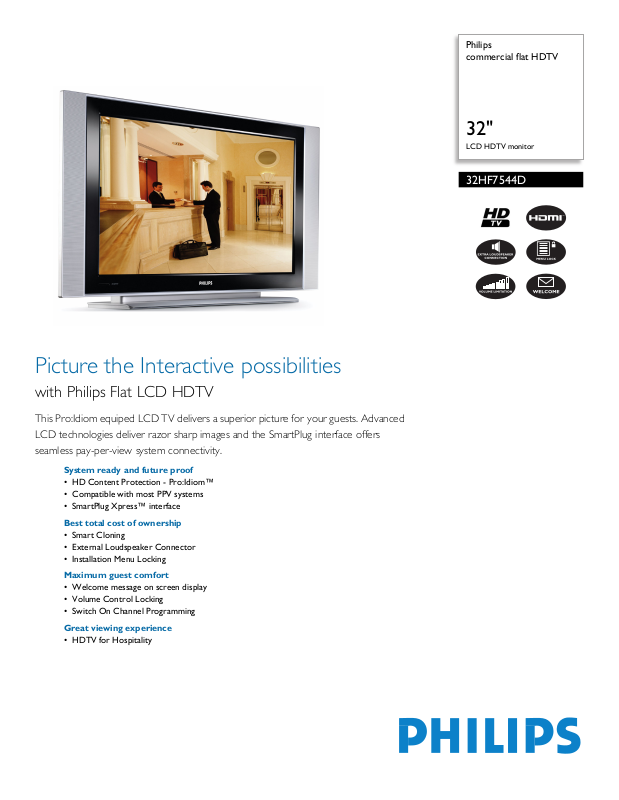

Philips
commercial flat HDTV
32"
LCD HDTV monitor
32HF7544D
Picture the Interactive possibilities
with Philips Flat LCD HDTV
This Pro:Idiom equiped LCD TV delivers a superior picture for your guests. Advanced
LCD technologies deliver razor sharp images and the SmartPlug interface offers
seamless pay-per-view system connectivity.
System ready and future proof
• HD Content Protection - Pro:Idiom™
• Compatible with most PPV systems
• SmartPlug Xpress™ interface
Best total cost of ownership
• Smart Cloning
• External Loudspeaker Connector
• Installation Menu Locking
Maximum guest comfort
• Welcome message on screen display
• Volume Control Locking
• Switch On Channel Programming
Great viewing experience
• HDTV for Hospitality
Page 2
For preview purpose only
commercial flat HDTV
32" LCD HDTV monitor
Technical specifications Product highlights
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 500 cd/m²
• Contrast ratio (typical): 800:1
• Diagonal screen size: 32 inch / 80 cm
• Display screen type: LCD WXGA Active
Matrix TFT
• Picture enhancement: Progressive Scan, 3/2 -
2/2 motion pull down, Digital Noise
Reduction, Jagged Line Suppression, Active
Control, Luminance Transient Improver,
Dynamic contrast
• Screen enhancement: Anti-Reflection coated
screen
• Viewing angle (h / v): 178 / 178 degree
• Panel resolution: 1366 x 768p
• Response time (typical): 8ms
Supported Display Resolution
• Video Formats
Resolution Refresh rate
640 x 480p 2Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF,
VHF
• TV system: NTSC, ATSC
• Video Playback: NTSC, PAL
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner Display: PLL
• Number of Preset Channels: 125
• Cable: Unscrambled Digital Cable -QAM
• Terrestrial: ATSC (8VSB)
Connectivity
• Number of AV connections: 5
• AV 1: YPbPr (2fh), Audio L/R in
• AV 2: CVBS, Audio L/R in
• AV 3: VGA PC-in, YPbPr (2Fh), Audio L/R in
• AV 4: HDMI
• AV 5: HDMI
• Front / Side connections: CVBS in, S-video
in, Audio in
• Connectivity Enhancements: RJ12
connector, RJ45 connector, HM-Link, Extra
Power supply 12V/1W, SmartCard Xpress
box ready, External Loudspeaker connector
• Other connections: Antenna IEC75
Power
• Power consumption: 120 W
• Standby power consumption: 15 W <
• Ambient temperature: 5 °C to 40 °C
• Mains power: 100-250V, 50-60Hz
Sound
• Sound Enhancement: Auto Volume Leveller
• Sound System: Stereo, Virtual Dolby
Surround
• Output power (RMS): 2 x 15W
Convenience
• Ease of Installation: Fine Tuning, PLL Digital
Tuning, Wireless Smart Loading, Program
Name, Advanced Hotel Mode
• Ease of Use: Auto Volume Leveller (AVL),
Smart Picture Control, Smart Sound
Control
• Screen Format Adjustments: Widescreen,
Auto Format
• Clock: Sleep Timer
• VESA Mount: 200 x 100 mm
• Comfort: Hotel Guest features
• On-Screen Display languages: English,
French, Spanish
Dimensions
• Color cabinet: Silver Frost & Black Deco
Front
• Set dimensions in inch (W x H x D):
36.42 x 20 x 6.46 inch
• Set dimensions with stand in inch
(W x H x D): 36.42 x 21.65 x 9.02 inch
• Box dimensions in inch (W x H x D):
39.37x27.17x11.1inch
• Product weight (lb): 46.69
• Weight incl. Packaging (lb): 55
• VESA wall mount compatible: 200,100 mm
Accessories
• Included Accessories: Power cord, Table top
stand
• Optional accessories: Wireless SmartLoader
22AV1120, Set up Remote RC2573GR,
Mounting brackets/ stands
32HF7544D/27
HDTV for Hospitality
There are many different ways to offer the HDTV
experience to your guests. Whether via an antenna for
off-air local reception, or a Digital Cable Headend, or via
a secure Pro:Idiom source such as Satellite or High
Definition PPV providers. This Philips HDTV is designed to
quickly and easily integrate into any of these
configurations and perform brilliantly.
HD Content Protection
Content protection technology specially created for the
hospitality industry which allows guest to enjoy first run
movies and other premium content in true HD quality.
(Pro:Idiom™ is a trademark of Zenith Corp.)
Smart Cloning
Philips offers the most flexible and easiest cloning options
for hospitality applications. Take advant age of wirel ess or
wired cloning convenience to quickly and easily copy all TV
settings from one set to all others in a system
configuration. In addition, Philips new R/F Update feature
allows all sets hooked to the system to be updated in as
little as 7 minutes.
PPV system compatible
The Philips ITV sets are compatible with most Pay Per
View systems. This guarantees seamless integration in
almost any system configuration.
SmartPlug Xpress™
The SmartPlug Xpress™ communication port (RJ-12) is
compatible with all major premium entertainment
services. The protocols enables the TV connection with
external decoders, set-top boxes and PC based solutions.
External Loudspeaker Connector
Amplified audio connector for e asy ins tal latio n of ex terna l
speakers (like for bathrooms), eliminating the need for
investments in external equipment
Installation Menu Locking
Provides conditional access to installation and
configuration settings via a special code
Welcome Message
Welcome greeting displayed on screen each time the TV
set is switched on
Volume Control Locking
This feature predefines the volume range in which the TV
set can operate, preventing excessive volume adjustments
avoiding disturbance of next door guests.
Date of issue 2006-10-26
Version: 2.0
12 NC: 8670 000 24049
UPC: 6 09585 11566 8
Loudspeakers
• Built-in speakers: 2
•
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
