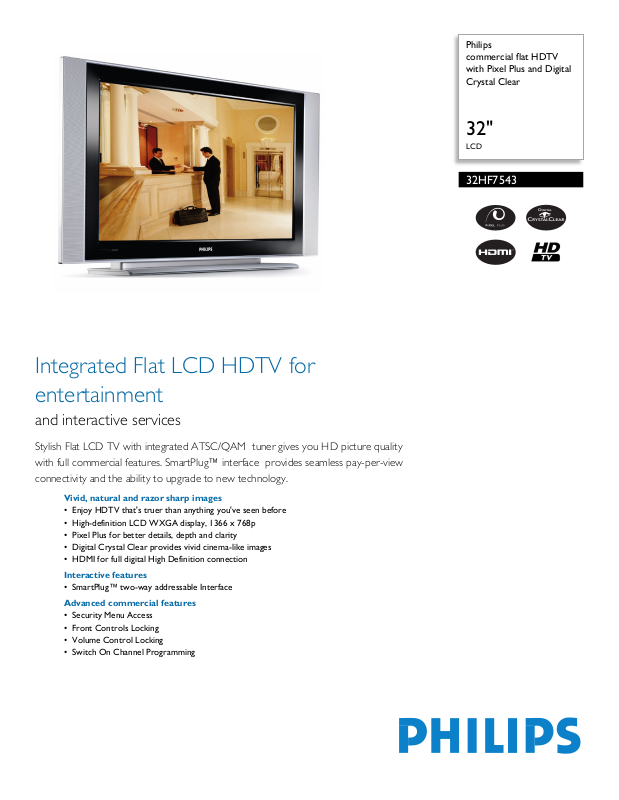

Philips
commercial flat HDTV
with Pixel Plus and Digital
Crystal Clear
32"
LCD
32HF7543
Integrated Flat LCD HDTV for
entertainment
and interactive services
Stylish Flat LCD TV with integrated ATSC/QAM tuner gives you HD picture quality
with full commercial features. SmartPlug™ interface provides seamless pay-per-view
connectivity and the ability to upgrade to new technology.
Vivid, natural and razor sharp images
• Enjoy HDTV that's truer than anything you've seen before
• High-definition LCD WXGA display, 1366 x 768p
• Pixel Plus for better details, depth and clarity
• Digital Crystal Clear provides vivid cinema-like images
• HDMI for full digital High Definition connection
Interactive features
• SmartPlug™ two-way addressable Interface
Advanced commercial features
• Security Menu Access
• Front Controls Locking
• Volume Control Locking
• Switch On Channel Programming
Page 2
For preview purpose only
commercial flat HDTV with Pixel Plus and Digital Crystal Clear
32" LCD
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 16:9, Widescreen
• Brightness: 1000 cd/m²
• Contrast ratio (typical): 600:1
• Diagonal screen size: 32 inch / 80 cm
• Display screen type: LCD WXGA Active
Matrix TFT
• Picture enhancement: Pixel Plus, Digital
Crystal Clear, Progressive Scan, Comb Filter
Digital, Active Control + Light sensor, 3/2 2/2 motion pull down, Widescreen Plus
• Screen enhancement: Anti ageing circuit,
Anti-Reflection coated screen
• Viewing angle (horizontal): 176 degree
• Panel resolution: 1366 x 768p
• Response time (typical): 16 ms
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1366 x 768 60Hz
• Video formats
Resolution Refresh rate
480p 60Hz
480i 60Hz
720p 60Hz
1080i 60Hz
• Screen Format Adjustments: 7 Widescreen
Modes, Auto Format, Subtitle and Heading
Shift
• Clock: On main display
• Child Protection: Child Lock+Parental
Control
• Comfort: Hotel Guest features
• VESA Mount: 200 x 100 mm
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF,
VHF
• TV system: ATSC, NTSC
• Video Playback: NTSC
• Aerial Input: 75 ohm F-type
• Cable: Digital Cable Ready CableCARD,
Unscrambled Digital Cable -QAM
• Number of Preset Channels: 127
Connectivity
• Other connections: Cable Card Interface,
Monitor out
• AV 1: Audio L/R in, CVBS in, RGB+H/V, SVideo Y/C, YPbPr (1, 2, 3Fh)
• AV 2: Audio L/R in, CVBS, S-Video
• AV 3: S/PDIF digital coaxial, YPbPr
• AV 4: HDMI
• AV 5: HDMI
• Front / Side connections: Audio L/R in, CVBS
in, Headphone out, S-video in, USB 1.1
• Connectivity Enhancements: RJ12 connector
Sound
• Sound Enhancement: Smart Sound
• Sound System: Virtual Dolby Surround
• Output power (RMS): 2 x 15W RMS
Loudspeakers
• Built-in speakers: 2
Power
• Power consumption: 135 W
• Standby power consumption: < 2 W
• Mains power: AC 108 - 132 V, 60 Hz
• Ambient temperature: +5 -/+ 40 C
Dimensions
Convenience
• Ease of Installation: Auto Volume Leveler,
Autostore, PLL Digital Tuning, Plug & Play
• Ease of Use: On Screen Display, Side
Control, Smart Picture Control
• Electronic Programme Guide: Gemstar
• Remote control type: tbc James
• Picture in Picture: 1 tuner PIP
• Remote Control: Amp, CD, DVD-R, Multi-
functional, Sat, TV, VCR
• Product dimension (WxDxH) inch:
4.7x20.0x36.7 inch
• Product weight: 18.2 kg
• Product weight (lb): 42.5
• Weight incl. Packaging: 22 kg
• Set dimensions (W x H x D):
933x507x119mm
Accessories
• Included Accessories: Table top stand,
Power cord, Remote Control, User Manual
•
32HF7543/37
HDTV
HDTV delivers exceptional picture quality and real movieviewing experience that makes television more dynamic,
tr uer tha n an yth ing y ou' ve s een befo re. It i s th e la tes t an d
best television signal available. It features picture quality
more than twice that of traditional analog broadcasts. In
order to effectively maximize the HDTV signal, a
television must incorporate advanced signal input
connectivity and circuitry design. To use HDTV the TV
must be connected via its Component Video, DVI or
HDMI inputs to a DTV set-top box and set to operate in
the DTV mode.
Pixel Plus
This set uses the power of the Pixel Plus processor to
increase the number of lines and the number of pixels.
The result is razor sharp pictures with incredible detail
and dept, every time from any source.
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an a nalo g si gnal, i t de liv ers an u nbl emi she d im age. Th e
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
SmartPlug™ Interface
The Smartplug interface permits OEM or 3rd party
decoders and controllers to interface with the TV.
Security Menu Access
Provides conditional access to installation and
configuration settings via a special code or master remote
control
Front Controls Locking
Prevents unauthorised access to TV functions
Volume Control Locking
This feature predefines the volume range in which the TV
set can operate, preventing excessive volume adjustments
avoiding disturbance of next door guests.
Switch On Channel Programming
It forces the TV set to a specified channel when turned on.
Perfect for in-house advertising or information channels.
Date of issue 2006-11-02
Version: 1.0
12 NC: 8670 000 22852
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
