Philips 32FD9944-69S User Manual
60,5mm / 2.38"
420mm / 16.54"
4
a
4
b
5
420mm /16,54"
5
60,5mm /2.38"
10
omtrek
10mm 8mm
x 4x 4
a
b
6
10mm
x 6
3122 126 0445.1
~ MAINS
RS232
VGA 1 VGA 2
RC OUT
VGA 2
L
R
L
R
AUDIO IN
VGA 1
EXTERNAL 5
ANTENNA
EXTERNAL 3
EXTERNAL 1 EXTERNAL 2
EXTERNAL 4
AUDIO
OUT
R
L
NO FUNCTION
VGA IN MONITOR
AUDIO VGA IN
CENTRE
AUDIO MONITOR
MAINS INLET
LL
RR
L
RV
U
Y
CABLE
1
2
3

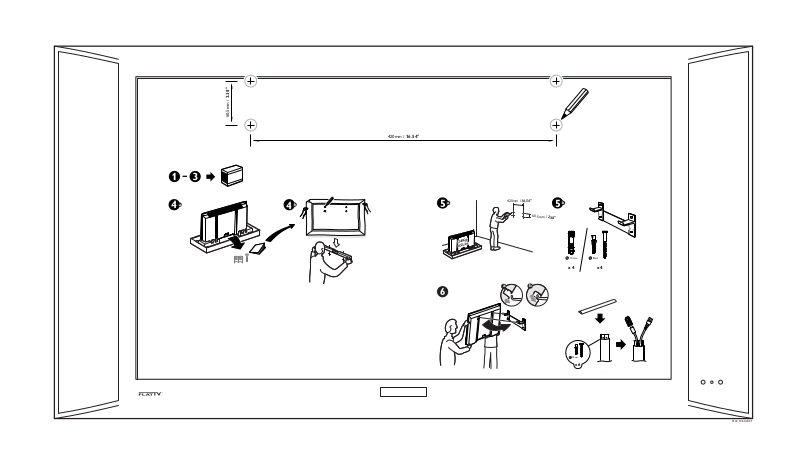

Unpacking and wall mounting instructions
For the unpacking instructions follow the illustrated steps printed on the
packaging (outside and inside). For the wall mounting instructions follow the
illustrated steps ‘ to § printed on the separate leaflet.
Make sure that the wall mount is being fixed securely enough so that it meets
safety standards.The weight of the monitor (excl. packaging) is about 24 kg.
Note: Stands are optional accessories. Consult your dealer.
Connect your TV receiver box
See the separate supplied instruction manual with your TV receiver box.
Connect your computer
To the TV receiver box
See the illustration in the inside frontcover of this handbook.
& Connect one end of a VGA cable to the video card of the computer and the
other end to the
Fix the connectors firmly with the screws on the plug.
VGA IN connector at the rear side of the TV receiver box.
é In case of a Multimedia computer, connect the audio cable to the audio
outputs of your Multimedia computer and to the
(left) inputs of the TV receiver box.
AUDIO VGA R (right) and L
English
Directly to the monitor
& Connect one end of a VGA cable 1 to the video card of the computer and
the other end to the
connectors firmly with the screws on the plug.
VGA 1 connector at the rear side of the monitor. Fix the
é In case of a Multimedia computer, connect the audio cable 2 to the audio
outputs of your Multimedia computer and to the
L (left) inputs of the TV monitor.
Daisy chaining
The Loop Through facility makes it possible to make a daisy chain with a
second monitor.
AUDIO VGA 1 R (right) and
“ Connect one end of another VGA cable to the VGA 2 connector at the rear
side of the monitor and the other end to the
monitor.
VGA 1 connector of a second
‘ In case of a Multimedia computer, also connect audio cables to the AUDIO L
and R outputs of the original monitor and to the AUDIO L and R inputs of the
second monitor.
The RC out jack next to the
remote control signals to other equipment.
This output cannot be used to daisy chain a second monitor.
VGA 2 connector makes it possible to daisy chain
