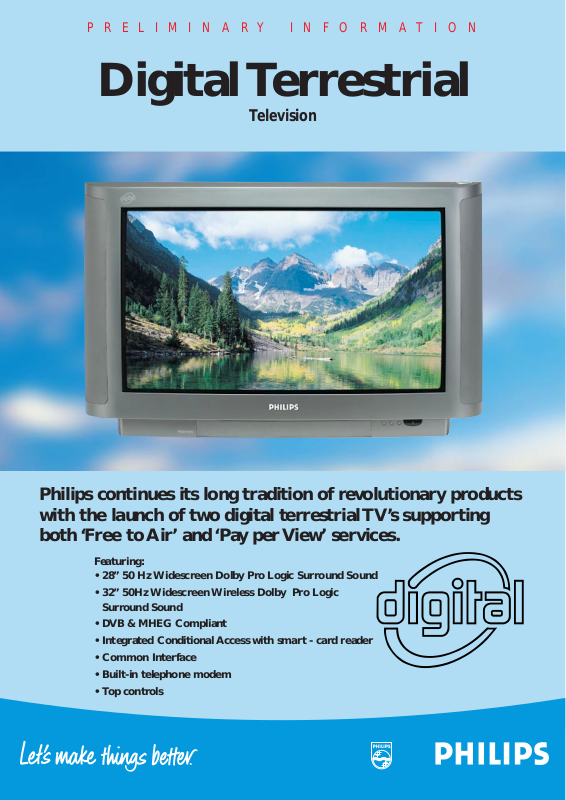

Philips 32DW6834 User Manual

Digital Terrestrial

T elevision

PRELIMINARY INFORMATION

Featuring:

• 28” 50 Hz Widescreen Dolby Pro Logic Surround Sound

• 32” 50Hz Widescreen Wireless Dolby Pro Logic Surround Sound

• DVB & MHEG Compliant

• Integrated Conditional Access with smart - card reader

• Common Interface

• Built-in telephone modem

• Top controls

Philips continues its long tradition of revolutionary products with the launch of two digital terrestrial TV’s supporting both ‘Free to Air’ and ‘Pay per View’ services.

For further information contact: Ian Knight,The Philips Centre, 420-430 London Road, Croydon

CR9 3QR

Telephone: 0181 781 8882

TECHNICAL SPECIFICATIONS

Functions 28”DOLBY / 28DW6734 32” DOLBY / 32DW6834

MID1.2 Digital / FL6b (Nov-98) MID1.2 Digital / FL6B (Jan-99)

Tuners Digital (2K COFDM) Digital (2K COFDM)

Analogue (UHF) Analogue (UHF)

Digital reception DVB Compliant DVB Compliant

MHEG Compliant MHEG Compliant

Program Sleep Timer Sleep Timer

Smart Clock + Daily on/off Clock Smart Clock + Daily on/off Clock OSD Cursor Cursor Remote control RC2007/01 RC2007/01

Operation Auto st by Auto st by Functions Programmable Keys Programmable Keys

Favourite Programs Favourite Programs

Personal Pref.pp Personal Pref.pp

Tubes UF BLS UF BLS Picture WS 6 Modes: 6 Modes:

- 4:3 - 4:3

- Zoom 14.9 - Zoom 14.9

- Zoom 16.9 - Zoom 16.9

- Super Zoom - Super Zoom

- Subtitle Zoom - Subtitle Zoom

- Wide Screen - Wide Screen

- Subtitle Shift - Subtitle Shift

- Continuous Zoom - Continuous Zoom

- Wide Screen Signalling Bit - Wide Screen Signalling Bit

Picture quality Sharpness Sharpness

Tint Tint

Smart Picture Smart Picture

Contrast Plus Contrast Plus

Picture Tilt Scavem Scavem Noise Reduction Noise Reduction CTI CTI

Audio 42W RMS 62W RMS Left/Right + Cent/Sub + Rear int/ext 12/12 + 2x6/na + 3/3 W RMS 6/6 + 2x6/18 + 2x3/2x7 W RMS

Smart Snd. Smart Snd. 5 Loadspeakers 6 Loadspeakers Dolby Pro Logic Dolby Pro Logic Corded Rear Speakers Cordless Rear Speakers Dolby Signalling Bit Dolby Signalling Bit Graphic Equaliser Graphic Equaliser Acoustic Horn Sub Woofer

Connections Intergrated conditional access Intergrated conditional access

Common interface (PCMCIA type 3) Common interface (PCMCIA type 3) RS232 RS232 2 Scarts 2 Scarts Front connections Front connections S-VHS S-VHS Audio out Audio out Headphones Headphones

EPG (when available) Electronic Programme Guide Electronic Programme Guide Teletext Digital (when available) Enhanced Digital Teletex Enhanced Digital Teletext

8 pages 8 pages

Analogue Favorite page Favorite page

Auto TXT name Auto TXT name Program List Program List

Digital interactivity Modem V22 bis Modem V22 bis Power st by 20W 20W Special Autoscan Autoscan

Child Lock Child Lock
