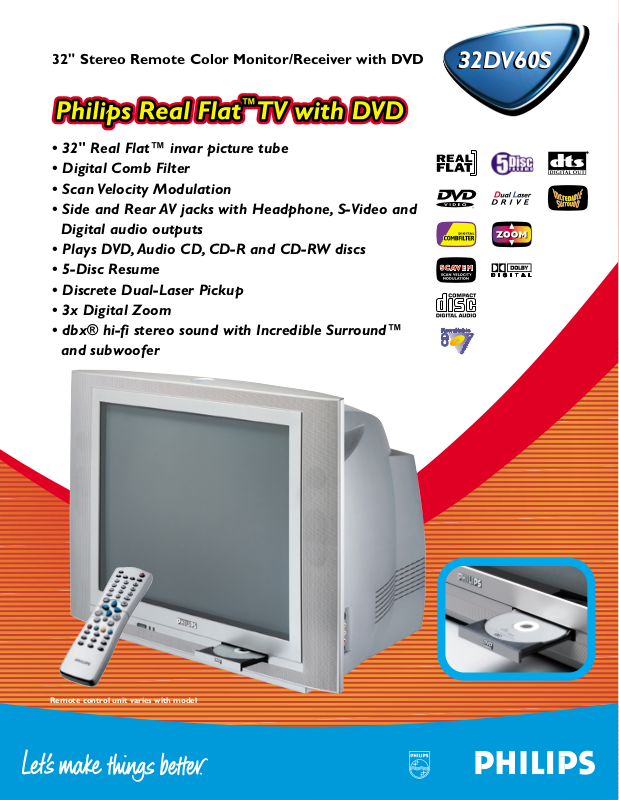

Philips 32DV 60S User Manual
32" Stereo Remote Color Monitor/Receiver with DVD
• 32" Real Flat™ invar picture tube
• Digital Comb Filter
• Scan Velocity Modulation
• Side and Rear AV jacks with Headphone, S-Video and
Digital audio outputs
• Plays DVD,Audio CD, CD-R and CD-RW discs
• 5-Disc Resume
• Discrete Dual-Laser Pickup
• 3x Digital Zoom
• dbx® hi-fi stereo sound with Incredible Surround™
and subwoofer
32DV60S
32DV60S
Remote control unit varies with model
Real Flat™ invar picture tube
Our Real Flat™ invar picture tube provides the best picture by minimizing unwanted reflections and
providing a wider viewing angle. The special alloy invar shadow mask delivers a sharper picture with
purer color, higher contrast and brighter whites as compared to standard tubes.
Incredible Picture™
Creates a remarkable increase in clarity and sharpness at the point of transition from dark to light areas of
the video image for a picture so sharp and well defined that you’ll never want to go to the movies again.
Digital Comb Filter
Digital circuitry clearly separates black and white detail from color data virtually eliminating dot crawl
and delivering unmatched, razor-sharp picture performance with 800+ lines of horizontal resolution.
1
Scan Velocity Modulation
The electron gun varies its scanning speed to optimize image detail and edge sharpness during
transitions between dark and light picture areas.
Improved Image Definition (IDD™)
AutoPicture™
Black Stretch
Blue Stretch
Green Stretch
3-Position Color Temperature
Remote Control
DVD System Remote RCAU013SLV
Number of remote control buttons 42 top buttons + 2 side buttons
Gain complete control of both the television and built-in DVD player with one easy to use remote. Operates
all functions for TV and DVD including menus and special effects such as Digital Zoom and Still modes.
Convenience
Multimedia Mode
One button instantly switches to A/V input source and automatically sets the Auto feature options to
MULTIMEDIA.
AutoSurf™
Simplify channel surfing by storing up to ten favorite stations in the Surf™ memory and then surfing only
those channels at the touch of a button. Add or delete channels from list through onscreen display.
AutoChron™
Automatically sets the right time of day and maintains it through brown-outs, power failures, and even
daylight savings time adjustments.
Side stereo AV jacks
Easily connect your camcorder, video game or other source using high resolution side S-Video and
stereo AV inputs.A stereo headphone jack provides a quick connection for private listening.
5-Disc Resume
Automatically "bookmarks" where you stopped your last 5 DVD discs so you can easily resume viewing
where you left off. No more searching for the right spot!
AutoLock™
AutoMute™
Alternate Channel
Onscreen Clock with Sleep Timer
Alarm On/Off Timer
Second S-Video Jack
Trilingual Onscreen Display
AutoProgramming
Close Caption
Onscreen Volume Bar
Sound
Incredible Surround™
An exciting psycho-acoustic method of widening the stereo spatial image for full-impact home entertainment.
AutoSound Plus™
Instantly optimize sound to satisfy any program situation. Select from one of four factory settings
including movies, music, voice, or personal with a variety of combinations of ultra bass, treble and
automatic volume leveling to suit any taste.
20-Watt dbx® hi-fi stereo sound system, Subwoofer and Digital Coaxial and Optical Audio Outputs
(5 Watts X 2 RMS into 8 ohms from 40Hz to 15.6kHz,with no more than 7% Total Harmonic Distortion).
Digital Coaxial and Optical AC-3 Audio Outputs for the highest quality connection to Dolby Digital™ and
DTS™ surround systems. Built-in active subwoofer adds impact and excitement to shows and movies,
especially from digital sources like DVD! (10 Watts RMS active subwoofer into 8 ohms from 50Hz to
250Hz, with no more than 7% Total Harmonic Distortion).
Tone Controls
Audio/video Jack Panel
Auto Sound Plus,AutoPicture, Auto Surf,AutoLock,Auto Mute, AutoChron,Incredible Picture, Incredible Surround and
Improved Image Definition (IID) are trademarks of Philips Consumer Electronics Company.
dbx is a registered trademark of dbx, Inc. Sunnyvale, CA.
UPC: 0 37849 91067 2
Product Dimension: 34.9" W x 26.6" H x 21.7" D
Product weight: 142.8 lbs
Carton dimensions: 41.2" W x 31.9" H x 28.9" D
Carton weight: 164.8 lbs
Master pack: 1
Carton contains: 32" Stereo Remote Color Monitor/Receiver, Remote Control
w/Batteries, Operating Instructions,Warranty Information.
Printed in the U.S.A.
®2001 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
Philips Design Singapore, Philips Consumer Electronics Co.
INTERNET ADDRESS: http//www.philips.com
CC Icon
This television receiver provides display of television closed captioning in accordance with
§15.119 of the FCC rules
DVD
10-Bit Video and 24-Bit Audio DAC
Highest-quality video and audio. Digital-to-analog converter converts the digital video information in
10-bit format, versus 8 or 9 bit. Digital-to-analog converter converts the digital audio information in
24-bit format, versus 16 or 20 bit.
Discrete Dual-Laser Pickup
Provides the best possible picture and sound with both DVD and Audio CD discs. One laser is optimized
for DVD playback,the other is dedicated to CD playback. Laser life is also maximized in this configuration.
3x Digital Zoom
The unique digital filtering system allows you to zoom in on every detail without losing picture quality,
during play and still modes. Enlarge up to three times without image degradation.
TV Standard
NTSC
60 Hz
• Number of lines 625
• Playback Multistandard (PAL/NTSC)
Video Format
• DA Convertor 10 bits
• Signal handling Components
• Digital Compression MPEG2 for DVD
DVD 50 Hz 60Hz
• Hor.Resolution 720 pixels2720 pixels
2
• Vert. Resolution 576 lines 480 lines
Audio Format
• Digital MPEG/ Compressed Digital
AC-3
PCM 16, 20,24 bit
fs, 48,96 kHz
• Analog Sound Stereo
Dolby Pro Logic downmix from multi channel sound 3D Sound for virtual 5 channel sound on 2 speakers.
Audio Performance
• DA Converter 24 bits
• DVD fs96 kHz 4 Hz - 44 kHz
fs48 kHz 4 Hz - 22 kHz
• CD fs44.1 kHz 4 Hz - 20 kHz
Signal-Noise (1 kHz) 100 dB
Dynamic Range (1 kHz) 100 dB
Crosstalk (1 kHz) 110 dB
Distortion / Noise (1 kHz) 90 dB
Connection
Digital Output 1 coaxial, 1 optical
IEC958 for CDDA/LPCM
IEC1937 for MPEG1/2,AC-3
DTS
Subtitles Selection (1 out of max. 32 languages)
Aspect Ratio conversion (16:9, 4:3 Letterbox, 4:3 Pan Scan)
Parental Control and Disk lockout
Disc Menu support (Title Menu and Root Menu)
Resume (5 discs) after stop / standby
Programming Titles / chapters with Favourite Selection
Audio CD Functionality
Time Display (Total / Track / Remaining Track Time)
Full audio functionality with remote control
Programming with Favourite Track Selection (FTS)
1
Lines per picture width. 600 based on EIA measurement procedures.
2
Equivalent to 500 lines on your TV.
Specifications subject to change without notice.
32DV60S
32DV60S
32" Stereo Remote Color Monitor/Receiver with DVD
