Philips 325B1L/75 leaflet

Download

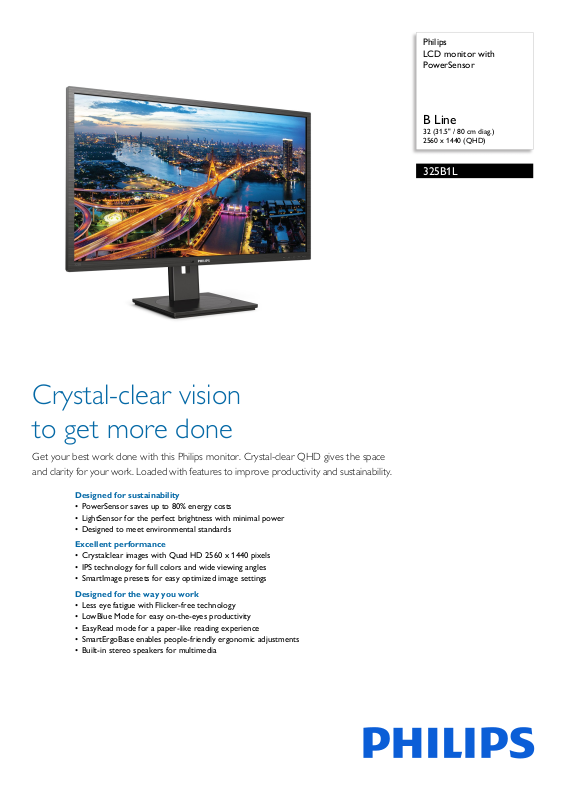

Page 1

Philips LCD monitor with PowerSensor

B Line

32 (31.5" / 80 cm diag.) 2560 x 1440 (QHD)

325B1L

Crystal-clear vision to get more done

Get your best work done with this Philips monitor. Crystal-clear QHD gives the space and clarity for your work. Loaded with features to improve productivity and sustainability.

Designed for sustainability

• PowerSensor saves up to 80% energy costs

• LightSensor for the perfect brightness with minimal power

• Designed to meet environmental standards

Excellent performance

• Crystalclear images with Quad HD 2560 x 1440 pixels

• IPS technology for full colors and wide viewing angles

• SmartImage presets for easy optimized image settings

Designed for the way you work

• Less eye fatigue with Flicker-free technology

• LowBlue Mode for easy on-the-eyes productivity

• EasyRead mode for a paper-like reading experience

• SmartErgoBase enables people-friendly ergonomic adjustments

• Built-in stereo speakers for multimedia

Page 2

325B1L/75

LCD monitor with PowerSensor

B Line 32 (31.5" / 80 cm diag.), 2560 x 1440 (QHD)

Highlights

PowerSensor

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life

LightSensor

you are demanding professional requiring extremely detailed information for CAD-CAM solutions, using 3D graphic applications or a financial wizard working on huge spreadsheets, Philips displays will give you Crystalclear images.

IPS technology

IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in 90 degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.

offers you major power savings. All in real time with the press of a single button!

Flicker-free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-free Technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

LowBlue Mode

LightSensor uses a smart sensor to adjust the picture brightness depending on the room light conditions for the perfect picture with minimal power usage.

Crystalclear images

These Philips screens deliver Crystalclear, Quad HD 2560x1440 or 2560x1080 pixel images. Utilizing high performance panels with high density pixel count, enabled by high bandwidth sources like Displayport, HDMI, Dual link DVI, these new displays will make your images and graphics come alive. Whether

SmartImage

SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen and gives you optimized display performance. This user friendly interface allows you to select various modes like Office, Photo, Movie, Game, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the contrast, color saturation and sharpness of images and videos for ultimate display performance. The Economy mode option

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

EasyRead mode

EasyRead mode for a paper-like reading experience

Page 3

325B1L/75

LCD monitor with PowerSensor

B Line 32 (31.5" / 80 cm diag.), 2560 x 1440 (QHD)

Specifications

Picture/Display

• LCD panel type: IPS technology

• Adaptive sync

• Backlight type: W-LED system

• Panel Size: 31.5 inch / 80 cm

• Display Screen Coating: Anti-Glare, 3H, Haze 25%

• Effective viewing area: 698.112 (H) x 392.688 (V)

• Aspect ratio: 16:9

• Maximum resolution: 2560 x 1440 @ 75 Hz*

• Pixel Density: 93 PPI

• Response time (typical): 4 ms (Gray to Gray)*

• Brightness: 250 cd/m²

• Contrast ratio (typical): 1,200:1

• SmartContrast: 50

• Pixel pitch: 0.2727 x 0.2727 mm

• Viewing angle: 178º (H) / 178º (V), @ C/R > 10

• Flicker-free

• Picture enhancement: SmartImage

• Display colors: Color support 1.07 billion colors

• Color gamut (typical): NTSC 89%*, sRGB 101.7%*, e RGB 88%*

Adob

• Scanning Frequency: 30 - 114 kHz (H) / 48 - 75 Hz

(V)

•sRGB

•EasyRead

•LowBlue Mode

,000,000 :1

Connectivity

• Signal Input: DisplayPort 1.2, HDMI 1.4 x 2

• HDCP: HDCP 1.4 (DP / HDMI)

• USB:: USB-B x 1 (upstream), USB 3.2 x 4

wnstream with 1 fast charge B.C 1.2)

(do

• Audio (In/Out): Audio out

• Sync Input: Separate Sync

Convenience

• Built-in Speakers: 3 W x 2

• User convenience: SmartImage, Input, rSensor, Menu, Power On/Off

Powe

• Control software: SmartControl

• OSD Languages: Brazil Portuguese, Czech, Dutch,

glish, Finnish, French, German, Greek,

En Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukranian

• Other convenience: Kensington lock, VESA mount

x100mm)

(100

• Plug & Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 10 / 8.1 / 8 / 7

Stand

• Height adjustment: 180 mm

• Pivot: -/+ 90 degree

•Swivel: -/+180 degree

• Tilt: -5~30 degree

Power

• ECO mode: 21.3 W (typ.)

• On mode: 40.3 W (typ.)

• Standby mode: 0.3 W

• Off mode: Zero watts with Zero switch

• Power LED indicator: Operation - White, Standby mode- White (blinking)

• Power supply: Built-in, 100-240VAC, 50-60Hz

Dimensions

• Product with stand(max height): 730 x 620 x 250 mm

• Product without stand (mm): 730 x 433 x 60 mm

• Packaging in mm (WxHxD): 930 x 563 x 186 mm

Weight

• Product with stand (kg): 10.70 kg

• Product without stand (kg): 6.93 kg

• Product with packaging (kg): 13.60 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• Altitude: Operation: +12,000ft (3,658m), Non-

eration: +40,000ft (12,192m)

• MTBF (demonstrated): 70,000 hrs (excluded

klight)

bac

Sustainability

• Environmental and energy: PowerSensor, LightSensor, RoHS

• Recyclable packaging material: 100 %

• Post consumer recycled plastic: 85%

• Specific Substances: PVC / BFR free housing,

ry free

Mercu

Compliance and standards

• Regulatory Approvals: CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CE Mark

Cabinet

• Front bezel: Black

• Rear cover: Black

•Foot: Black

• Finish: Texture

•

Issue date 2021-05-26

Version: 1.0.1

12 NC: 8670 001 73696 EAN: 87 12581 77470 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* "IPS" word mark / trademark and related patents on technologies

belong to their respective owners. * The maximum resolution works for either HDMI input or DP input. * Response time value equal to SmartResponse * NTSC Area based on CIE1976 * sRGB Area based on CIE1931 * Adobe RGB Coverage based on CIE1976 * The monitor may look different from feature images.
