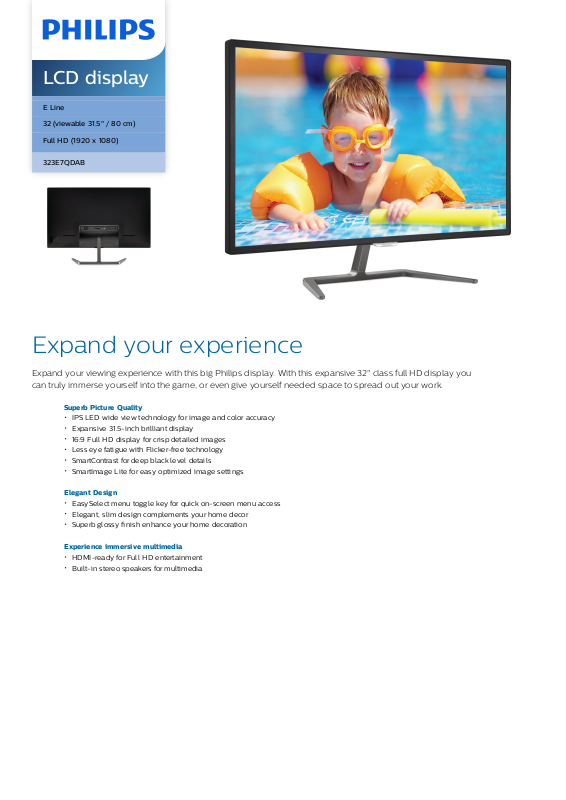

Page 1
LCD display
E Line
32 (viewable 31.5" / 80 cm)
Full HD (1920 x 1080)
323E7QDAB
Expand your experience
Expand your viewing experience with this big Philips display. With this expansive 32" class full HD display you
can truly immerse yourself into the game, or even give yourself needed space to spread out your work.
Superb Picture Quality
IPS LED wide view technology for i mage and color accuracy
Expansive 31.5-inch bri lliant display
16:9 Full HD display for crisp detailed images
Less eye fatigue with Flicker-free technology
SmartContrast for deep black level details
SmartImage Lite for easy optimized image settings
Elegant Design
EasySelect menu toggle key for quick on-screen menu access
Elegant, slim design complements your home decor
Superb glossy finish enhance your home decoration
Experience immersive multimedia
HDMI-ready for Full HD entertainment
Built-in stereo speakers for multimedia
Page 2
LCD display
323E 7QDAB/71

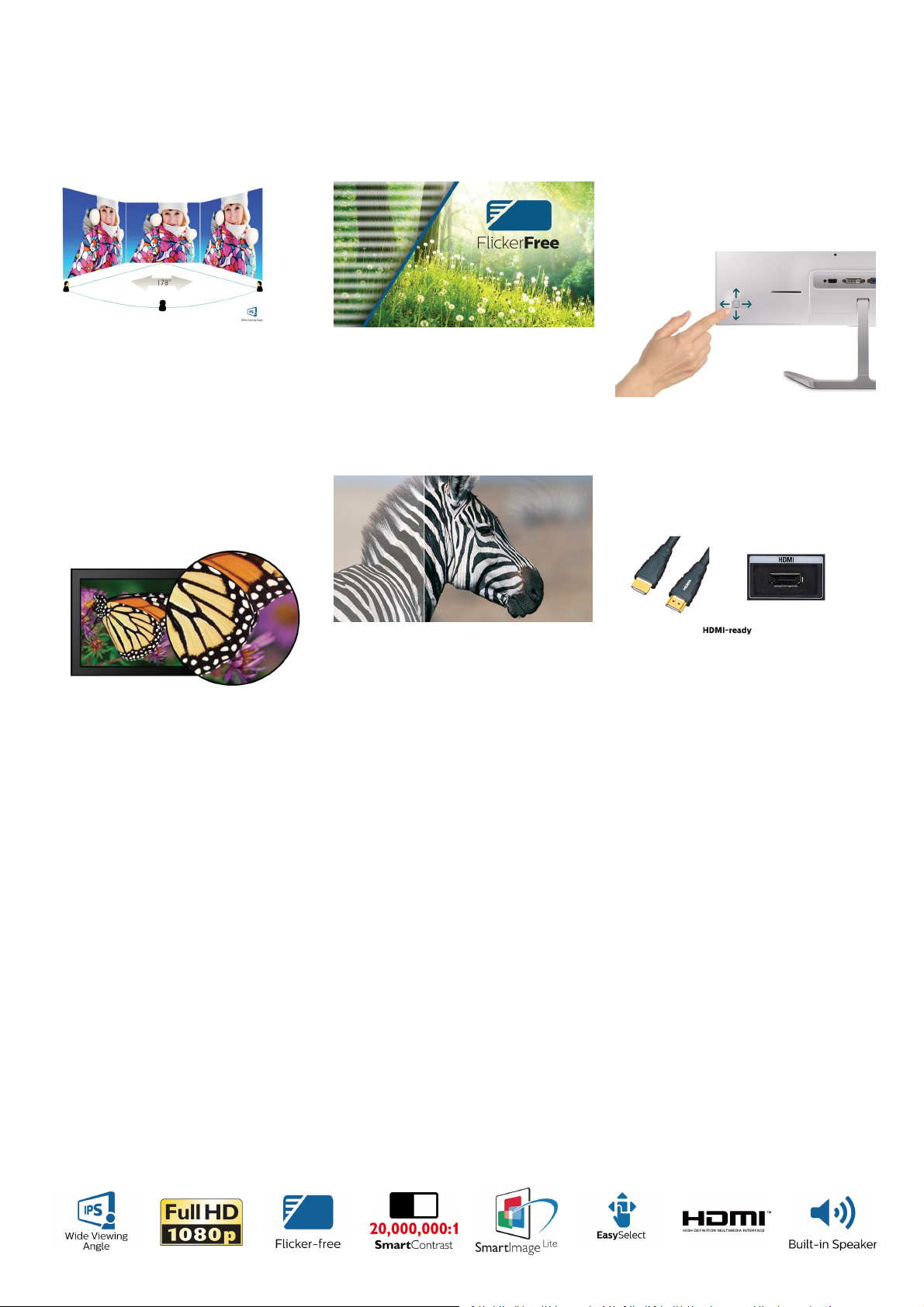

Highlights
IPS technology
IPS displays use an advanced technology
which gives you extra wide viewing angles of
178/178 degree, making it possible to view the
display from almost any angle. Unlike standard
TN panels, IPS displays gives you remarkably
crisp images with vivid colors, making it ideal
not only for Photos, movies and web browsing,
but also for professional applications which
demand color accuracy and consistent
brightness at all times.
16:9 Full HD display
Picture quality matters. Regular displays
deliver quality, but you expect more. This
display features enhanced Full HD 1920 x
1080 resolution. With Full HD for crisp detail
paired with high brightness, i ncredible contrast
and realistic colors expect a true to life picture.
Flicker-free technology
Due to the way brightness is controlled on
LED -backlit screens, some users experience
flicker on thei r screen which causes eye
fati gue. Philips Fli cker-free Technology applies
a new solution to regulate bri ghtness and
reduce fli cker for more comfortable viewing.
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digi tal images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-
tuned for j ust-right display of everyday office
applications and lower power consumption.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Philips technology that analyzes the content
displayed on your screen. Based on a scenario
you select, SmartImage Li te dynamically
enhances the contrast, color saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press on a single button.
EasySelect Menu Toggle Key
The discreetly placed EasySelect Menu Toggle
Key allows you to make quick and easy
adjustments to monitor setti ngs i n the On-
Screen Display menu.
HDMI Ready
An HDMI-ready devi ce has all the required
hardware to accept High-Defi nition Multimedia
Interface (HDMI) input. A HD MI cable enables
high-quality digital video and audio all
transmi tted over a single cable from a PC or
any number of AV sources (including set-top
boxes, DVD players, A/V receivers and video
cameras).
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
dependi ng on model and design.
Page 3
LCD display
323E 7QDAB/71
Specifications
Picture/Display
LCD panel type: IPS technology
Backlight type: W-LE D system
Panel Size: 31.5 i nch / 80 cm
Effective viewing area: 698.4 (H) x 392.85 (V)
Aspect ratio: 16:9
Optimum resoluti on: 1920 x 1080 @ 60 Hz
Response time (typical): 5 ms (Gray to Gray)*
Brightness: 250 cd/m²
Contrast ratio (typical): 1000:1
SmartContrast: 20,000,000:1
Pixel pitch: 0.364 x 0.364 mm
Viewing angle: 178º (H) / 178º (V), @ C/R > 10
Flicker-free
Picture enhancement: SmartImage Li te
Display colors: 16.7 M
Scanning Frequency: 30 - 83 kHz (H) / 56 -76
Hz (V)
sRGB
Connectiv ity
Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), HDMI (digital, HDCP)
Sync Input: Separate Sync, Sync on Green
Audio (In/Out): PC audio-in, Headphone jack
Convenience
Built-in Speakers: 5 W x 2
User convenience: Power On/Off, Menu/OK,
Volume/Down, Input/Up, SmartImage lite
OSD Languages: Brazil Portuguese, Czech,
Dutch, English, Finnish, French, German,
Greek, Hungarian, Italian, Japanese, Korean,
Polish, Portuguese, Russian, Simplified
Chinese, Spanish, Swedish, Traditional
Chinese, Turki sh, Ukrani an
Other convenience: Kensington lock, VESA
mount (100x100mm)
Plug & Play Compatibility: DDC/CI, Mac OS
X, sRGB, Windows 10 / 8.1 / 8 / 7
Stand
Tilt: -5/10 degree
Power
On mode: 45.7 W (typ.), 66.6 W (max.)
Standby mode: 0.5 W (typ.)
Off mode: 0.3 W (typ.)
Power LED indicator: Operati on - White,
Standby mode- White (blinking)
Power supply: 100-240VAC, 50-60Hz,
Internal
Dimensions
Product with stand (mm): 730 x 522 x 216 mm
Product without st and (mm): 730 x 431 x
64 mm
Packaging in mm (WxHxD ): 790 x 625 x
139 mm
Weight
Product with stand (kg): 6.91 kg
Product without st and (kg): 5.89 kg
Product with packaging (kg): 8.85 kg
Operating conditions
Temperature range (operation): 0 to 40 °C
Temperature range (storage): -20 to 60 °C
Relative humidity: 20%-80 %
Altitude: Operation: +12,000ft (3,658m), Non-
operation: +40,000ft (12,192m)
MTBF: 50,000 hrs (excluding backlight) hour(s)
Sustainability
Environmental and energy: RoHS, Lead-free,
Mercury Free
Recyclable packaging mater ial: 100 %
Compliance and standards
Regulatory Approvals: CE Mark, FCC Class B,
CU, SASO, KUCAS, E TL, TUV/ISO9241-307,
WEEE
Cabinet
Color: Black
Finish: Glossy
* "IPS" w ord mark / trademar k and related pate nts on
technologies belong to their respective owners .
* HDMI cables vary depending on re gion and models.
* Re sponse time value equa l to SmartResponse
© 20 19 Koninklijke Philips N.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Kon inklijke Philips N.V. or
their respective owners.
Issue date 2019‑0 5‑03
Version: 2.0.2
12 NC: 8670 001 413 58
EAN: 87 12581 7420 0 3
