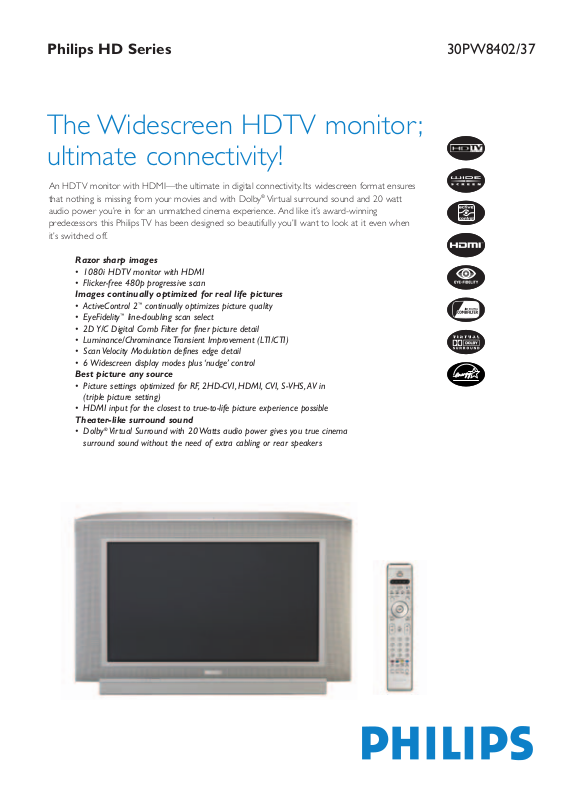

Philips HD Series

The Widescreen HDTV monitor; ultimate connectivity!

An HDTV monitor with HDMI—the ultimate in digital connectivity. Its widescreen format ensures that nothing is missing from your movies and with Dolby®Virtual surround sound and 20 watt audio power you’re in for an unmatched cinema experience. And like it’s award-winning predecessors this Philips TV has been designed so beautifully you’ll want to look at it even when it’s switched off.

Razor sharp images

• 1080i HDTV monitor with HDMI

•Flicker-free 480p progressive scan

Images continually optimized for real life pictures

•ActiveControl 2

•EyeFidelity™line-doubling scan select

•2D Y/C Digital Comb Filter for finer picture detail

•Luminance/Chrominance Transient Improvement (LTI/CTI)

• Scan Velocity Modulation defines edge detail

•6 Widescreen display modes plus ‘nudge’ control

Best picture any source

•Picture settings optimized for RF, 2HD-CVI, HDMI, CVI, S-VHS,AV in (triple picture setting)

• HDMI input for the closest to true-to-life picture experience possible

Theater-like surround sound

•Dolby®Virtual Surround with 20 Watts audio power gives you true cinema surround sound without the need of extra cabling or rear speakers

™

continually optimizes picture quality

30PW8402/37

Philips HDTV monitor 30PW8402/37

Technical specifications


•Viewable Screen size diagonal : 30” (76.2 cm)

•Picture tube : RealFlat

•DAF CRT gun

•Image stability : 60 Hz

•Crystal Clear III

- Scan Velocity Modulation

- 2D Y/C digital combfilter

- Dynamic contrast

- Color Enhancement: Green/Blue Stretch

•Digital Color Transient Improvement (CTI)

• Digital Luminance Transient Improver(LTI)

•Digital Histogram

•ActiveControl 2

™

•Digital Noise Reduction (DNR)

•6 Display modes 4:3, Zoom 14:9, Zoom 16:9, Subtitle Zoom, Superwide,Widescreen plus Auto and Nudge

™

widescreen

Progressive scan

Sound Quality

•Sound System : Hi-Fi Stereo

•Sound Power : 20 watts RMS

•2 full-range speakers

•Stereo

•Dolby®Virtual Surround

Ease of Use

• Compass Graphic User Interface

•AutoPicture™(5 modes)

•AutoSound™(4 modes)

•AutoVolume™Leveler (AVL)

• Multi-language OSD and menu control

•Wake up clock

•Sleep timer

•Autolock

• 100 presets

•Close Captioning

• Sofa-Lite™controller

™

Side Connections

•S-Video

• Headphone

• Video CVBS, audio L/R in

Rear Connections

• AVI : AV in, CVI/YPbPr

• AV2 : AV in, S -Video

• AV4 : HDMI (2fh auto)

• AV5 : YPbPr/RGB 2fh

• Monitor out : CBVS out, audio L/R out

Reception

• Tuning System : PLL Digital Tuning (100-fold)

•Color transmission

system off-air : NTSC-M

• NTSC video playback

• Channel Selections : 100 Channels

• Aerial Input : 75 ohms (F-threads)

Miscellaneous

Ambient Temperature : +5/45°C Main :AC 110V +/- 10% Power Consumption : <150 w

(normal Operation)

Gross Weight :140 lbs. Product Weight : 123 lbs. Set Dimensions (w x h x d) : 35” x 23.5” x 21.5” Box Dimensions (w x h x d) : 39.5” x 28.5” x 28” UPC :0 37849 94503 2 Optional : TC30PV2 matching

stand with an emphasis on high design and safety

Product highlights

™

HDMI

High Definition Multimedia Interface is a single cable interconnect that provides an uncompressed digital link between DVD players, STBs and A/V monitors such as HDTVs. Backwardly compatible with video-only DVI-D.

™

RealFlat

Undistorted and reflection-free picture for maximum viewing comfort. DAF (Dynamic Astigmatic Focus) for excellent picture quality.

EyeFidelity

Progressive Scan doubles the number of visible picture lines per field by displaying all picture lines at once, ensuring a jitterfree picture and eliminates line flicker.

1050i lines doubles the vertical resolution (interlaced) which adds astonishing sharpness.

Philips ActiveControl 2

Noise, sharpness, brightness, contrast and color are continuously analyzed and picture settings optimized to give you the best picture at any time.

Crystal Clear III

A unique package of picture innovations including Combfilter, Scan Velocity Modulation, and Dynamic Contrast. Crystal Clear III offers more contrast, natural colors and a high level of detail.

Dolby

Dolby circuitry for enhanced surround sound effect creates the sensation of Dolby digital surround with just 2 front speakers and is ideal for materials encoded with Dolby Pro Logic or Dolby Surround.

invar picture tube

™

scan select

™

Virtual Surround

Side AV + Headphone

Rear AV Input/Outputs

For more information consult the website

www.philipsusa.com

Date of issue: Nov 2003

Dolby and the double-D symbol are trademarks of Dolby Laboratories Licensing, Inc.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Subject to change without notice.
