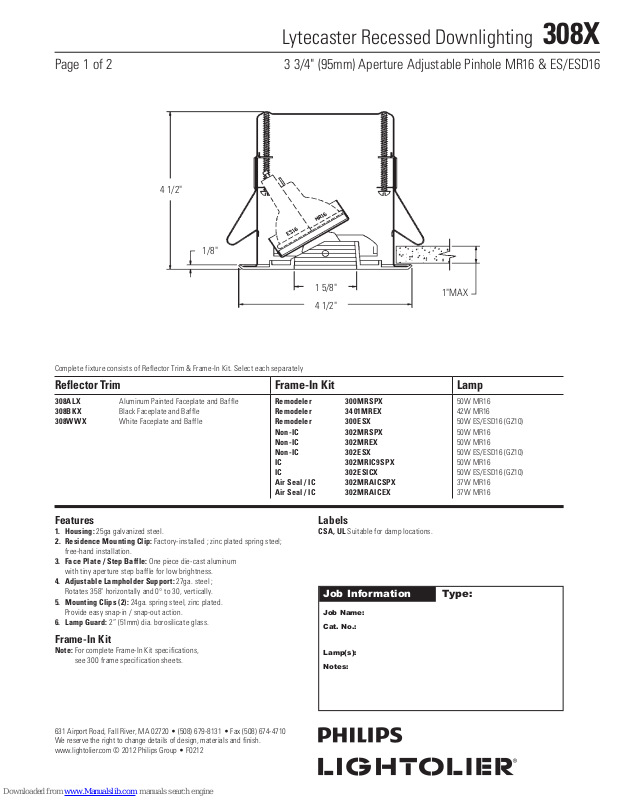

Philips 308X, Lightolier Lytecaster 308X Specification
Lytecaster Recessed Downlighting 308X
Page 1 of 2 3 3/4" (95mm) Aperture Adjustable Pinhole MR16 & ES/ESD16
4 1/2"
1/8"
Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately
Reflector Trim
308ALX
308BKX
308WWX
Aluminum Painted Faceplate and Baffle
Black Faceplate and Baffle
White Faceplate and Baffle
Frame-In Kit Lamp
Remodeler
Remodeler
Remodeler
Non-IC
Non-IC
Non-IC
IC
IC
Air Seal / IC
Air Seal / IC
Features
1. Housing: 25ga galvanized steel.
2. Residence Mounting Clip: Factory-installed ; zinc plated spring steel;
free-hand installation.
3. Face Plate / Step Baffle: One piece die-cast aluminum
with tiny aperture step baffle for low brightness.
4. Adjustable Lampholder Support: 27ga. steel ;
Rotates 358˚ horizontally and 0° to 30‚ vertically.
5. Mounting Clips (2): 24ga. spring steel, zinc plated.
Provide easy snap-in / snap-out action.
6. Lamp Guard: 2” (51mm) dia. borosilicate glass.
Frame-In Kit
Note: For complete Frame-In Kit specifications,
see 300 frame specification sheets.
1 5/8"
1"MAX
4 1/2"
300MRSPX
3401MREX
300ESX
302MRSPX
302MREX
302ESX
302MRIC9SPX
302ESICX
302MRAICSPX
302MRAICEX
Labels
CSA, UL Suitable for damp locations.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
50W MR16
42W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W MR16
50W ES/ESD16 (GZ10)
50W MR16
50W ES/ESD16 (GZ10)
37W MR16
37W MR16
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2012 Philips Group • F0212
Lytecaster Recessed Downlighting 308X
Page 2 of 2 3 3/4" (95mm) Aperture Adjustable Pinhole MR16 & ES/ESD16
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2012 Philips Group • F0212
Job Information Type:
