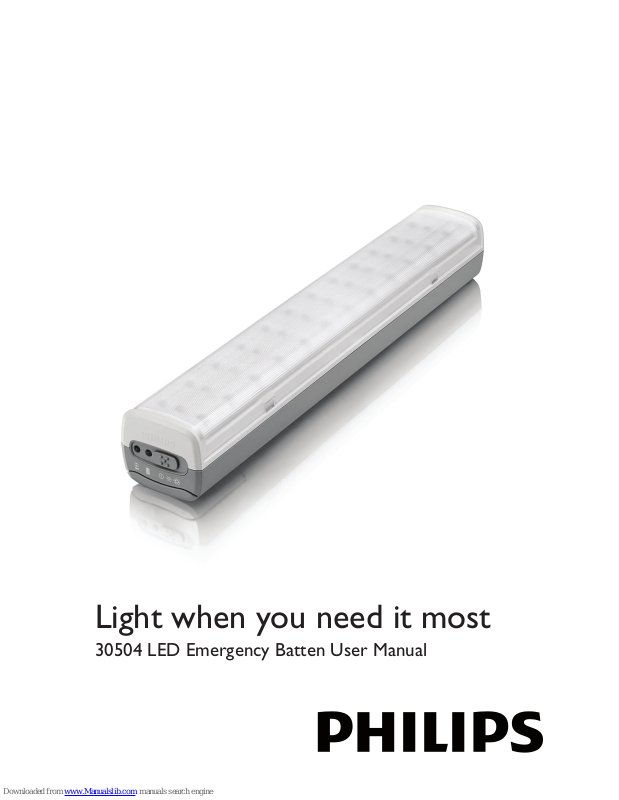

Light when you need it most
30504 LED Emergency Batten User Manual
Page 2
2
Important
- Please read the instructions before operating the batten.
- Always recharge the batten when the Battery charge indicator is Red.
- The LED light sources are not replaceable.
- The included Battery is not replaceable.
- The efciency may decrease if the batten is used or charged when temperatures are below
0°C or above 45°C
- This product is meant for Indoor use only. Please keep out from water, rain or harsh
environments.
- If the Batten is not working when the AC plug is plugged into the wall socket, First check
whether switch is on “ ” or “ ”side, then check whether the plug is well connected.
+-+
-
12hours
rst charging
m
Page 3
3
How to use
Red LED ‘charge status’ indication
Green LED ‘battery full’ indication
(LED indication turns Green after battery is fully charged)
OFF
Switch for lower level brightness
Switch for full brightness
Page 4
4
Charging mode
In this model keep the Batten connected to A/C power supply through the plug for general use
and battery charging.
- If the battery is charged, and the switch is in “ON” position, the batten will continue to be lit
on battery power. Dimming may occur depending on the battery charge level and brightness
level selection. In (Emergency mode) the Batten will provide light between 6-12 hours
duration depending on the brightness level selection.
- Red LED ‘charge status’ indication (After usage up to 11.5hours with lower brightness level,
or up to 5.5hours with full brightness level, LED indication turns Red to signal battery
charge depletion)
- Green LED ‘battery full’ indication (LED indication turns Green after battery is fully charged)
During power failure
Caution
Do not immerse
in water.
Do not in a
wet environment.
Never use
strong chemicals
on the body, as it
will damage the
plastic parts.
Keep away from re
or extreme heat.
Page 5
5
Specications
Portable Mountable
Stand able
Mountable and Standable
Battery ((included): 2X3.7V,2200mAh Li-ion 18650
LED light source: 36x0.07W
Charging time: 10 hours
Operating time: 6 hours/full brightness 12 hours/lower level brightness
Dimension: 307x50x46mm
Supply: AC 90-380V~50/60HZOperating
Temp: 0°C to 45°C
Product Weight: 1Kg
Remark
Please check the shelf life expiry date label on the packaging before using rst time. The product
may malfunction if not fully charged before the last date.
Page 6
6
4404.018.29981
Last update: 19/03/12
PHILIPS CONSUMER LUMINAIRES SHENZHEN COMPANY LTD
飞利浦家居灯饰(深圳)有限公司
6 F, Auxiliary Building of Shekou Technology Building,
Nanhai Rd, Shekou,Nanshan District, Shenzhen City
Guangdong Province, 518067 PRC (China)
深圳市南山区南海大道蛇口科技大厦辅楼六层(邮编:518067
)
