Philips 2U LTO User Manual

www.philips.com/welcome

EN USER MANUAL

Model

www.philips.com/support

Serial

Country Number Tariff

Austria 0810 000205 €0.07/min Belgium 078250145 €0.06/min Bulgaria +3592 489 99 96 local Croatia 01 3033 754 local Czech Rep 800142840 free Denmark 3525 8759 local Finland 09 2311 3415 local France 0821 611655 €0.09/min Germany 01803 386 852 €0.09/min Greece 0 0800 3122 1280 free Hungary 0680018189 free Ireland 0800 055 6882 free Italy 840320086 €0.08/min Luxembourg 40 6661 5644 local Netherlands 0900 8407 €0.10/min Norway 2270 8111 local Poland 0223491504 local Portugal 2 1359 1442 local Romania 1-203-2060 local Russia (495) 961-1111 local Serbia +381 114 440 841 local Slovakia 0800 004537 free Slovenia 01 280 95 22 local Spain 902 888 784 €0.10/min Sweden 08 5792 9100 local Switzerland 0844 800 544 local Turkey 0800 261 3302 local UK 0870 900 9070 local Ukraine 044 254 2392 local

This information is correct at the time of press. For updated contact information, refer to www.philips.com/support.

Table of contents

1 Important � � � � � � � � � � � � � � � � � � � � � 3

1.1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.2 Screen care . . . . . . . . . . . . . . . . . . . . . 4

1.3 Environmental care . . . . . . . . . . . . . . . 4

2 Your TV � � � � � � � � � � � � � � � � � � � � � � � 5

2.1 TV overview . . . . . . . . . . . . . . . . . . . . 5

3 Get started � � � � � � � � � � � � � � � � � � � � 7

3.1 Position the TV . . . . . . . . . . . . . . . . . . 7

3.2 Wall mount the TV . . . . . . . . . . . . . . . 7

3.3 Connect the antenna cable . . . . . . . . . 9

3.4 Connect the mains cord . . . . . . . . . . . 9

3.5 Insert the remote control batteries . . 9

3.6 Switch on the TV . . . . . . . . . . . . . . . . 10

3.7 First time setup . . . . . . . . . . . . . . . . . 10

4 Use your TV � � � � � � � � � � � � � � � � � � 1 1

4.1 Switch your TV on/off or to standby 11

4.2 Watch TV. . . . . . . . . . . . . . . . . . . . . . 12

4.3 Watch connected devices . . . . . . . . . 12

4.4 Use teletext . . . . . . . . . . . . . . . . . . . . 13

5.9 Use subtitles . . . . . . . . . . . . . . . . . . . 27

5.10 View photos and listen to music. . . . 28

5.11 Listen to digital radio channels . . . . . 30

5.12 Update your TV software . . . . . . . . . 30

6 Install channels � � � � � � � � � � � � � � � � 3 2

6.1 Automatically install channels . . . . . . 32

6.2 Manually install channels . . . . . . . . . . 33

6.3 Rename channels . . . . . . . . . . . . . . . . 34

6.4 Uninstall or reinstall channels . . . . . . 34

6.5 Rearrange channels . . . . . . . . . . . . . . 34

6.6 Manually update the channel list . . . . 34

6.7 Test digital reception . . . . . . . . . . . . . 35

6.8 Start a demo . . . . . . . . . . . . . . . . . . . 35

6.9 Reset TV to factory settings . . . . . . . 35

7 Connect devices � � � � � � � � � � � � � � � 3 6

7.1 Connection overview . . . . . . . . . . . . 36

7.2 Select connection quality. . . . . . . . . . 37

7.3 Connect devices . . . . . . . . . . . . . . . . 39

7.4 Setup devices . . . . . . . . . . . . . . . . . . . 43

7.5 Use Philips EasyLink. . . . . . . . . . . . . . 44

7.6 Prepare TV for digital services . . . . . 45

5 Use more of your TV � � � � � � � � � � � 1 4

5.1 Remote control overview . . . . . . . . . 14

5.2 Use TV menus . . . . . . . . . . . . . . . . . . 16

5.3 Adjust picture and sound settings. . . 18

5.4 Change to Shop or Home mode . . . 22

5.5 Use advanced teletext features. . . . . 22

5.6 Create favorite lists . . . . . . . . . . . . . . 24

5.7 Use the Electronic Programme Guide

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.8 Use timers and Child lock. . . . . . . . . 26

8 Technical specifications� � � � � � � � � � 4 6

9 Troubleshooting � � � � � � � � � � � � � � � 4 7

10 Index� � � � � � � � � � � � � � � � � � � � � � � � � 5 1

Specications are subject to change without notice. Trademarks are

the property of Koninklijke Philips Electronics N.V. or their respective owners.

Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those specied herein, conrmation of their validity and suitability must be obtained. Philips warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied.

Warranty

No components are userserviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Philips Service Centres and ofcial repair shops. Failure to do so shall void any warranty, stated or implied. Any operation expressly prohibited in this manual, any adjustments, or assembly procedures not recommended or authorised in this manual shall void the warranty.

Pixel characteristics

This LCD product has a high number of colour pixels. Although it has effective pixels of 99,999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural proper ty of the display (within common industry standards) and is not a malfunction.

Open source software

This television contains open source software. Philips hereby offers to deliver or make available, upon request, for a charge no more than the cost of physically

performing source distribution, a complete machine-readable copy of the corresponding source code on a medium customarily used for software interchange.

This offer is valid for a period of 3 years after the date of purchase of this product. To obtain the source code, write to

Philips Consumer Lifestyle Development Manager LoB Mainstream Displays 620A Lorong 1, Toa Payoh Singapore 319762

Compliance with EMF

Koninklijke Philips Electronics N.V.

manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.

One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

Philips is committed to develop, produce and market products that cause no adverse health effects.

Philips conrms that if its products are handled properly for their intended use, they are safe to use according to scientic evidence available today.

Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early integration in its products.

Mains fuse (UK only)

This TV is tted with an approved moulded plug. Should it become necessary to replace the mains fuse, this must be replaced with a fuse of

the same value as indicated on the

plug (example 10A).

Remove fuse cover and fuse.1.

The replacement fuse must 2. comply with BS 1362 and have the ASTA approval mark. If the fuse is lost, contact your dealer in

order to verify the correct type.

Ret the fuse cover.3.

In order to maintain conformity to the EMC directive, the mains plug on this product must not be detached from the mains cord.

VESA, FDMI and the VESA Mounting Compliant logo are trademarks of the Video Electronics Standards Association.

Manufactured under license from Dolby Laboratories. ‘Dolby’, ‘Pro Logic’ and the double D symbol G, are trademarks of Dolby Laboratories.

Manufactured under license from BBE Sound, Inc. Licensed by BBE, Inc under one or more of the following US patents: 5510752,5736897. BBE and BBE symbol are registered trademarks of BBE Sound Inc.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

® Kensington and Micro Saver are registered US trademarks of ACCO World Corporation with issued registrations and pending applications in other countries throughout the world. All other registered and unregistered trademarks are the proper ty of their

respective owners.

1 Important

Congratulations on your purchase and welcome to Philips!

Read this user manual before you start to use this product.

Pay close attention to this section and follow the safety and screen care instructions. The product warranty does not apply if damage is caused by failing to follow these instructions.

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

The model and serial number of your TV can be found on the back and side of the TV as well as on the packaging.

1�1 Safety

Two people are required to lift and carry a • TV that weighs more than 25 kilos (55lb). Improper handling of the TV can result in serious injury.

If transporting the TV in low temperatures • (less than 5°C), open the box and wait until the TV matches the ambient temperature of the room before unpacking.

To avoid short circuit, do not expose the • TV, remote control or remote control batteries to rain or water.

Do not place vessels of water or other • liquids on top of or near the TV. Spilling liquids on the TV can cause electric shock. If liquids are spilt on the TV, do not operate the TV. Immediately disconnect the TV from

the mains and have the TV checked by a qualified technician.

To avoid risk of fire or electric shock, do • not place the TV, remote control or remote control batteries near naked flame sources (e.g. lighted candles) and other heat sources including direct sunlight.

Do not install the TV in a confined space • such as a bookcase. Leave a space of at least 10cm (four inches) around the TV for ventilation. Be sure air flow is not obstructed.

If placing the TV on a flat, solid surface be • sure to use only the supplied stand. Do not move the TV if the stand is not properly screwed to the TV.

Wall mounting of the TV should only be • performed by qualified personnel. The TV must only be mounted on an appropriate wall bracket and on a wall that can safely hold the weight of the TV. Improper wall mounting can result in severe injury or damage. Do not attempt to wall mount the TV yourself.

If the TV is mounted on a swivel base or • swivel arm, ensure no strain is placed on the power cord when the TV is swivelled. Strain on the power cord can loosen connections and cause arcing or fire.

Disconnect the TV from the mains and • antenna before lightning storms. During lightning storms do not touch any part of the TV, mains cord or antenna cable.

Be sure that you have full access to the • mains cord for easy disconnection of the TV from the mains.

When disconnecting the TV from the mains, • be sure to:

Turn off the TV, then the mains power (if 1. available).

Unplug the mains cord from the mains 2. socket outlet.

ENGLISH

EN-3

EN-4

Unplug the mains cord from the power 3. connector at the back of the TV. Always pull the mains cord by the plug. Do not pull the mains cord.

of time. Examples include screen menus, teletext pages, black bars or stock market tickers. If you must use stationary images, reduce the screen contrast and brightness to avoid screen damage.

1�3 Environmental care

Recycling your packaging

The packaging of this product is intended to be recycled. Contact your local authorities for information on how to recycle the packaging.

Permanent hearing loss can occur if you use • earphones or headphones at high volumes. Though high volume may sound normal over time, it can damage your hearing. To protect your hearing, limit the amount of time you use earphones or headphones at high volume.

1�2 Screen care

Turn off and unplug the mains cord before • cleaning the screen. Clean the screen with a soft, dry cloth. Do not use substances such as household cleaning agents as these may damage the screen.

To avoid deformations or colour fading, • wipe off water droplets as soon as possible.

Do not touch, push, rub or strike the • screen with hard objects as this may damage the screen permanently.

Where possible, avoid stationary images • that remain on-screen for extended periods

Disposing your used product

Your product is manufactured with high-quality materials and components that can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Do not dispose your used product with household waste. Ask your dealer for information on how to safely dispose of the product. Uncontrolled waste disposal harms both the environment and human health.

Disposing used batteries

The supplied batteries do not contain mercury or cadmium. Dispose supplied and all other used batteries according to your local regulations.

Power consumption

The TV consumes minimal energy in standby mode to minimise environmental impact. Active power consumption is displayed at the back of the TV.

For more product specifications, see the product leaflet at www.philips.com/support.

EN-5

ENGLISH

2 Your TV

POWER

PROGRAM

VOLUME

Side connectors

This section gives you an overview of commonly-used TV controls and functions.

2�1 TV overview

Side controls and indicators

POWER1.

PROGRAM +/-2.

MENU3.

VOLUME +/-4.

Power indicator/Remote control sensor5.

Use the TV side connectors to connect to mobile devices such as a camera or highdefinition game console. You can also connect a pair of headphones or a USB memory device.

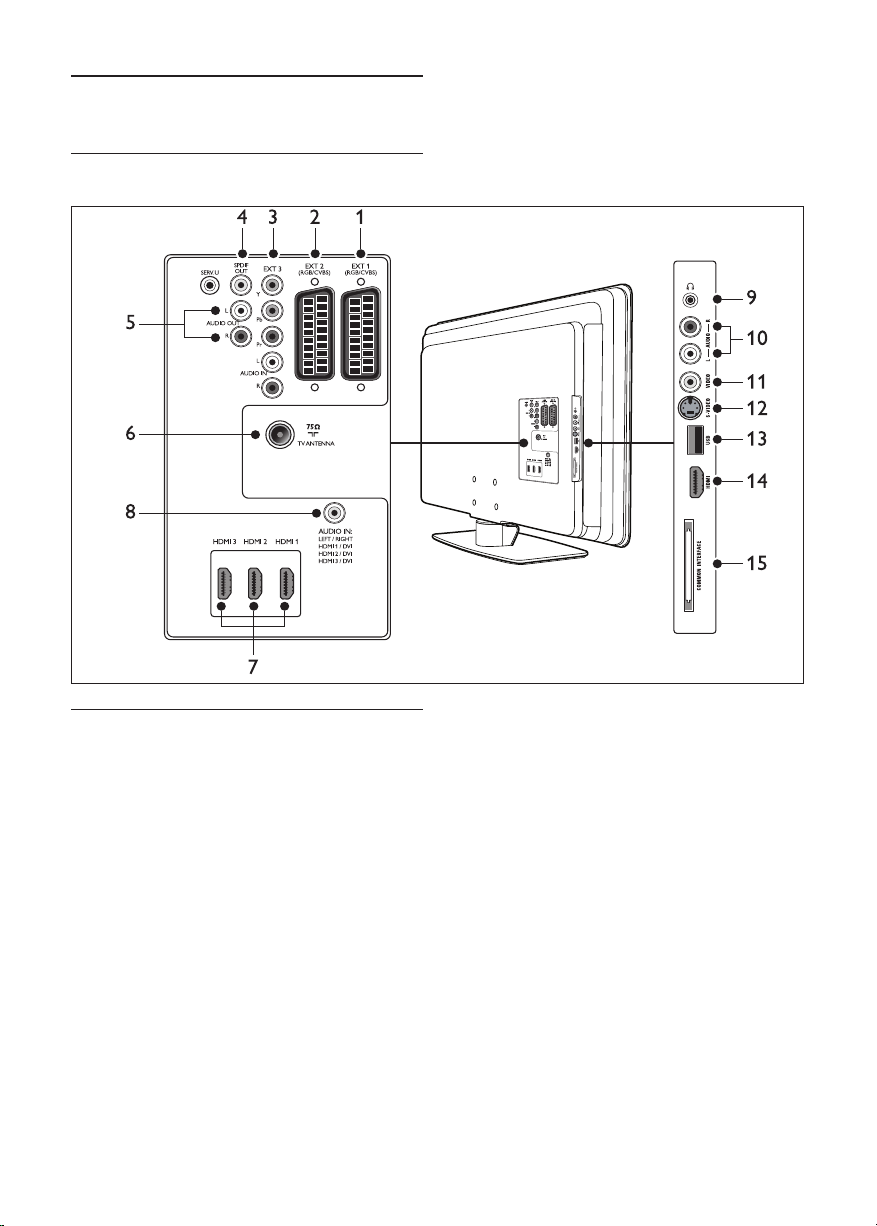

Back connectors

Use the TV back connectors to connect to the antenna and permanent devices such as a highdefinition disc player, DVD player or VCR.

Note D For more information about connections, see Section 7 Connect devices.

EN-6

Remote control

EXIT

123

456

7809

BROWSE

BACK

GUIDE

DEMO

MHEG

CANCEL

TELETEXT

SOURCE

SUBTITLE

INFO

OPTION

2 3

STANDBY1.

SOURCE2.

TELETEXT3.

COLOUR KEYS 4.

From left: Red, green, yellow, blue

NAVIGATION KEYS5. Up Î, Down ï, Left Í, Right Æ, OK

MENU6.

PROGRAM +/-7.

VOLUME +/-8.

For advanced information about the remote control, see Section 5.1 Remote control overview.

EN-7

ENGLISH

3 Get started

3�2 Wall mount the TV

This section helps you position and install the TV and supplements the information provided in the Quick Start Guide.

Note D Refer to the Quick Start Guide for stand mounting instructions.

3�1 Position the TV

In addition to reading and understanding the safety instructions in Section 1.1, consider the following before positioning your TV:

• The ideal viewing distance for watching TV is three times its screen size.

Position the TV where light does not fall on • the screen.

Connect your devices before you position • your TV.

• Your TV is equipped with a Kensington Security Slot at the back of the TV.

WARNING B Wall mounting of the TV should only

beperformedbyqualiedinstallers.

Koninklijke Philips Electronics N.V. bears no responsibility for improper mounting that results in accident or injury.

Step 1 Purchase a VESA-compatible wall

bracket

Depending on the size of your TV screen, purchase one of the following wall brackets:

TV screen size (inches/ cm)

32”/81cm Adjustable

37”/94cm Fixed 300 x 300 None

VESAcompatible wall bracket type (millimeters)

300 x 300

Special instructions

The VESAcompatible bracket must be adjusted to 200 x 300 before securing to the TV

If connecting an anti-theft Kensington lock (not supplied), position the TV within reach of a permanent object (such as a table) that can be easily attached to the lock.

42”/107cm or larger

Fixed 400 x 400 None

EN-8

Step 2 Remove the TV stand

Note D

These instructions are only applicable to TV models with mounted stands. If your TV stand is not mounted, skip to Step 3 Connect cables. TV stands may differ in shape on some TV models.

Carefully place the TV face down on a 1. flat, stable surface that is covered by soft cloth. The cloth should be thick enough to protect your screen.

Using a cross-head screwdriver (not 2. supplied), unscrew the four bolts that secure the stand to the TV.

Step 4 Secure the VESA-compatible wall

bracket to the TV

Locate the four mounting nuts at the back 1. of the TV.

Firmly pull the stand from the bottom of 3. the TV. Place both the stand and bolts in a secure location for future reinstallation.

Continue with the instructions provided 2. with your VESA-compatible wall bracket.

Note D When securing the VESA-compatible wall bracket to your TV, use M6 bolts for 32 inch models or M8 bolts for larger models (bolts not supplied).

EN-9

ENGLISH

3�3 Connect the antenna cable

UK - EIRE

Locate the 1. TV ANTENNA connector at the back of the TV.

Connect one end of an antenna cable 2. (not supplied) to the TV ANTENNA connector. Use an adaptor if the antenna cable does not fit.

Connect the other end of the antenna 3. cable to your antenna outlet, ensuring that the cable is tightly secured at both ends.

3�4 Connect the mains cord

Locate the 1. AC IN mains connector at the back or on the bottom of the TV.

Connect the mains cord to the 2. AC IN mains connector.

Connect the mains cord to the mains, 3. ensuring that the cord is tightly secured at both ends.

WARNING B Verify that your mains voltage corresponds with the voltage printed at the back of the TV. Do not insert the mains cord if the voltage is different.

To connect the mains cord

Note D

The location of the mains connector varies according to TV model.

3�5 Insert the remote control

batteries

Slide the battery cover off the back of the 1. remote control.

Insert the two supplied batteries (Size AAA, 2. Type LR03). Be sure the + and - ends of the batteries line up with the markings inside the case.

EN-10

Slide the cover back into position.3.

Menu language

Español

Français

Hrvatski

Italiano

Magyar

...

Please select your

language...

using cursor up and

down

English

Note D Remove the batteries if not using the remote control for an extended period of time.

3�6 Switch on the TV

The first time you switch on the TV, check that the mains cord is properly connected. When ready, turn on the mains (if mains switch is available), then press POWER on the side of the TV.

Note D Certain TV models require you to press and hold POWER for up to two seconds. A beep sound indicates that your TV is switched on. Your TV may take up to 15 seconds to start.

3�7 First time setup

The first time the TV is switched on, a 1. language selection menu appears.

Select your language and follow the on-screen instructions to setup the TV.

Tip E You can change the menu language or reinstall channels as described in Section 6 Install channels.

EN-11

ENGLISH

4 Use your TV

POWER

PROGRAM

VOLUME

POWER

PROGRAM

VOLUME

This section helps you perform basic TV operations. Instructions on advanced TV operations are provided in Section 5 Use more of your TV.

4�1�3 Switch your TV to standby

4�1 Switch your TV on/off or to

standby

4�1�1 Switch on your TV

If the power indicator (1) is off, press •

POWER on the side of the TV.

4�1�2 Switch off your TV

Press • POWER on the side of the TV. The power indicator (1) switches off.

Press • . STANDBY on the remote control. The power indicator switches to standby (red).

Tip E Though your TV consumes very little power when in standby, energy continues to be consumed as long as the mains remain connected and powered. When not in use for extended periods of time, switch off and disconnect the TV from the mains.

4�1�4 Switch on the TV from standby

If the power indicator is in standby (red), • press . STANDBY on the remote control.

Note D If you cannot locate your remote control and you want to switch on the TV from standby, press POWER on the side of the TV. This switches off your TV. Press POWER again to switch the TV back on.

EN-12

4�2 Watch TV

4�2�1 Switch channels

Press a number (1 to 999) or press • P +/- on your remote control.

Press • PROGRAM +/- on the side controls of the TV.

Press • on the remote control to return to the previously-viewed TV channel.

4�2�2 Switch channels (digital receiver)

4�2�3 Adjust volume

Press • VOLUME + or - on the remote control.

Press • VOLUME + or - on the side

controls of your TV.

Press • on the remote control to mute the sound. Press again to un-mute the sound.

Note D If headphones are connected, adjust headphone volume as described in Section

5.3.5 Adjust sound settings. You must press the MUTE button on the remote control to mute audio from the TV speakers. Pressing VOLUME +/- buttons turns on the TV speakers again.

Switch on the digital receiver.1.

Press 2. SOURCE on the remote control then select the input your digital receiver is connected to.

Press 3. OK to select the digital receiver.

Use the remote control of the digital 4. receiver to select TV channels.

4�3 Watch connected devices

Switch on the device.1.

Press 2. SOURCE on the remote control then select the input your device is connected to.

Press 3. OK to select the device.

EN-13

ENGLISH

4�4 Use teletext

Most TV channels broadcast information via teletext.

Press 1. TELETEXT on the remote control. The main index page appears.

To select a page with the remote control: 2.

• Enterthepagenumberwiththenumber keys.

• PressP +/- or Î/ï to view the next or the previous page.

• Pressacolourkeytoselectoneofthe colour coded items at the bottom of the screen.

Tip Press to return to the previously viewed page.

Press 3. TELETEXT again to switch off teletext.

Note (for UK users only) Some digital TV channels offer dedicated digital text services (for example, BBC1).

For advanced information on teletext, see Section 5.5 Use advanced teletext features.

EN-14

5 Use more of your TV

EXIT

123

456

7809

BROWSE

BACK

GUIDE

DEMO

MHEG

CANCEL

TELETE XT

SOURCE

SUBTITLE

INFO

OPTION

3 4 5

8 9

5�1 Remote control overview

This section helps you perform advanced TV operations.

This section provides a detailed overview of remote control features.

EN-15

ENGLISH

STANDBY1. Switches the TV on from standby or back to standby.

SOURCE2. Selects connected devices.

PICTURE FORMAT3. Selects a picture format.

SUBTITLE4. Activates or deactivates subtitles.

COLOUR KEYS5. Selects tasks or teletext pages.

INFO6. Displays programme information, if available.

OK7. Accesses the All channels menu or activates a setting.

NAVIGATION KEYS 8. Up Î, Down ï, Left Í and Right Æ keys navigate the menu.

OPTION9. Activates the Quick access menu.

PROGRAM (P) +/-10. Switches to the next or previous channel.

NUMBER KEYS 11. Selects a channel, page or setting.

PREVIOUS CHANNEL 12. Returns to the previously-viewed channel.

MHEG CANCEL 13. Cancels digital text or interactive services (UK only).

14. MUTE Mutes or restores sound.

VOLUME +/-15. Increases or decreases volume.

MENU16. Toggles the menu on or off.

BACK17.

GUIDE 18.

Toggles the Electronic Programme Guide on or off. Only active with digital channels.

DEMO19. Toggles the Demo menu on or off.

TELETEXT 20. Toggles teletext on or off.

DUAL SCREEN21. Splits the current channel or source on the left of the screen. Teletext appears on the

right.

EN-16

5�2 Use TV menus

Television

Multimedia

TV menu

Channel list Programme guide

Television

Multimedia

TV menu

Channel list

Programme guide

TV menu TV settings

Settings assistant

Reset smart settings


Sound

Features

Software update

Installation

TV settings

Settings assistant

Start now

TV settings

Sound

Settings assistant

Reset smart settings


On-screen menus help you install your TV, adjust picture and sound settings and access other features. This section describes how to navigate the menus.

5�2�1 Access the main menu

Press 1. MENU on the remote control to display the main menu.

Press 2. MENU to exit.

The main menu offers the following items:

TV menu• Select this menu for installation, picture, sound settings and other feature settings.

Channel list• Select this item to display the Channel list. Create your Favourite channel lists here.

Programme guide• Available when digital channels are installed, this item displays information about the digital programmes. See Section 5.7 Use the Electronic Programme Guide.

Multimedia• Select this item to view photos or play music stored on a USB device. See Section 5.10 View photos and listen to music.

5�2�2 Use the main menu

The following example describes how to use the main menu.

Press 1. MENU on the remote control to display the main menu.

Press 2. Æ to enter the TV menu.

Press 3. Æ to enter the TV settings menu.

+ 41 hidden pages
