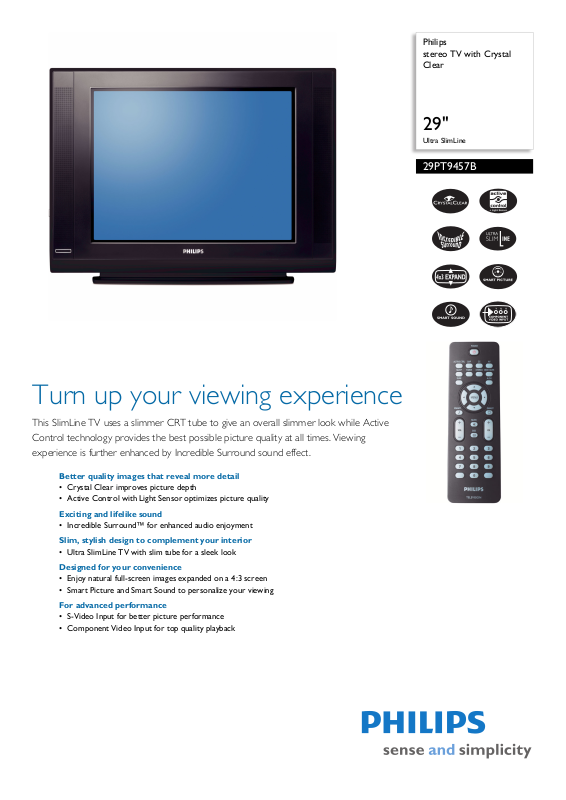

Philips 29PT9457B User Manual

Philips stereo TV with Crystal Clear

29"

Ultra SlimLine

29PT9457B

Turn up your viewing experience

This SlimLine TV uses a slimmer CRT tube to give an overall slimmer look while Active Control technology provides the best possible picture quality at all times. Viewing experience is further enhanced by Incredible Surround sound effect.

Better quality images that reveal more detail

• Crystal Clear improves picture depth

• Active Control with Light Sensor optimizes picture quality

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

Slim, stylish design to complement your interior

• Ultra SlimLine TV with slim tube for a sleek look

Designed for your convenience

• Enjoy natural full-screen images expanded on a 4:3 screen

• Smart Picture and Smart Sound to personalize your viewing

For advanced performance

• S-Video Input for better picture performance

• Component Video Input for top quality playback

Stereo TV with Crystal Clear

29PT9457B/77

29" Ultra SlimLine

Specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 29 inch / 74 cm

• Visible diagonal screen size: 68 cm

• Display screen type: Slim picture tube

• Picture enhancement: Active Control + Light sensor, Color Temperature Adjustment, Crystal Clear, Dynamic Noise Reduction

• Picture processing: 50 Hz, 60Hz Analog

Sound

• Output power (RMS): 2 x 5W

• Sound Enhancement: Ultra Bass

• Sound System: Incredible Surround, Stereo, SAP

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Use: Auto Volume Leveller (AVL), Channel Naming, Smart Picture Control, Smart Sound Control

• Remote control type: RCLB018

• Teletext: Closed Captioning

• Screen Format Adjustments: 16:9 compress, 4:3, 4:3 expand

• Clock: On/Off event timer, Sleep Timer

• Child Protection: Child Lock

• On-Screen Display languages: English, Portuguese, Spanish

• Signal strength indication

• Ease To Experience: Demo Mode

Monitor out

L/Mono

AV1 in

COMPONENT VIDEO INPUT

Tuner/Reception/Transmission

• TV system: NTSC, PAL N, PAL M

• Video Playback: NTSC, PAL (all versions)

• Aerial Input: 75 ohm F-type

• Tuner Display: PLL

Connectivity

• Other connections: AV out

• AV 1: Component Video in, CVBS in, Audio L/R in

• AV 2: Audio L/R in, CVBS in, S-Video

• Front / Side connections: Audio L/R in, CVBS in, Headphone out

Power

• Power consumption: 74 W

• Standby power consumption: <1 W

• Mains power: AC 100-250V, 50/60Hz

Dimensions

• Set dimensions (W x H x D): 781

x 586 x 400 mm

• Product weight: 38 kg

• Weight incl. Packaging: 42 kg

• Box dimensions (W x H x D): 852

x 670 x 489 mm

• Color cabinet: Black

Accessories

• Included Accessories: 2 x AAA Batteries, Remote Control, User Manual

•

AV2 in

S-VIDEO

Crystal Clear

Combining picture enhancements like Contrast plus and color improvement, Crystal Clear improves picture depth.

Active Control + Light Sensor

Active Control is a unique and intelligent way of optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Active Control with Light Sensor uses a sensor to ad jus t the pic tur e br igh tness de pen din g on t he r oom lig ht conditions.

Incredible Surround™

Incredible Surround is an audio technology from Philips that dramatically magnifies the sound field to immerse you in the audio. Using state-of-the-art electronic phase shifting, Incredible Surround mixes sounds from left and right in such a way that it expands the virtual distance between the two speakers. This wider spread greatly enhances the stereo effect and creates a more natural sound dimension. Incredible Surround allows you to experience total surround with greater depth and width of sound, without the use of additional speakers.

Ultra SlimLine TV

Philips SlimLine TV uses a slimmer CRT tube to give an overall slimmer TV that is up to 40% thinner than a traditional CRT TV while delivering the same superior picture quality.

4x3 Expand

4x3 Expand enables widescreen movies to be viewed on a 4:3 aspect ratio TV screen by removing the black bars at the top and bottom of the image. You are able to watch full-screen movies without compromizing on picture quality and resolution.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound provide you with direct access via a single key on the remote control. You can select optimized picture and sound settings for the various picture and sound modes.

S-Video Input

An S-video format signal preserves the video quality better than standard video input.

Component Video Input (YPbPr)

Component Video is the highest quality interconnection standard for analog video. It is sharper than S-video and composite video.

Issue date 2008-08-06

Version: 1.0.1

12 NC: 8670 000 38394 EAN: 87 12581 40673 8

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
