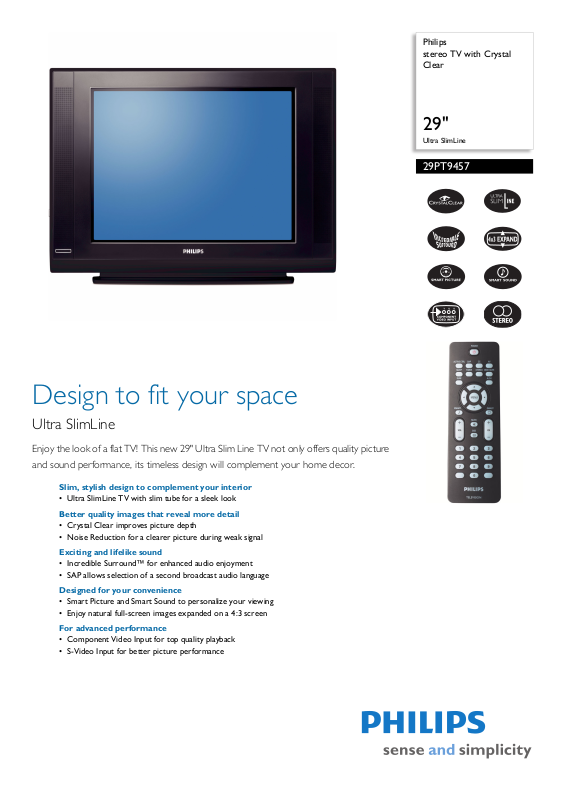

Philips 29PT9457-44 User Manual

Philips
stereo TV with Crystal
Clear

29"

Ultra SlimLine

29PT9457

Design to fit your space

Ultra SlimLine

Enjoy the look of a flat TV! This new 29" Ultra Slim Line TV no t only offers quality picture
and sound performance, its timeless design will complement your home decor.

Slim, stylish design to complement your interior

• Ultra SlimLine TV with slim tube for a sleek look

Better quality images that reveal more detail

• Crystal Clear improves picture depth

• Noise Reduction for a clearer picture during weak signal

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

• SAP allows selection of a second broadcast audio language

Designed for your convenience

• Smart Picture and Smart Sound to personalize your viewing

• Enjoy natural full-screen images expanded on a 4:3 screen

For advanced performance

• Component Video Input for top quality playback

• S-Video Input for better picture performance

Stereo TV with Crystal Clear

29PT9457/44

29" Ultra SlimLine

Specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 29 inch / 74 cm

• Visible diagonal screen size: 68 cm

• Display screen type: Slim picture tube

• Picture enhancement: Color Temperature
Adjustment, Contrast Plus, Noise Reduction,
Sharpness Adjustment, Tint

• Picture processing: 50 Hz, 60Hz Analog

Sound

• Output power (RMS): 2 x 5W

• Sound Enhancement: Treble and Bass Control,
Balance, Incredible Surround

• Sound System: Stereo, SAP

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Autosearch, Fine Tuning

• Ease of Use: Smart Picture, Smart Sound

• Screen Format Adjustments: 4:3, 4:3 expand

• Clock: On/Off event timer, Sleep Timer

• On-Screen Display languages: English, Portuguese,
Spanish

• Teletext: Closed Captioning

• Remote control type: RCLB018

• Remote control: Racer

VIDEO in

S-VIDEO

L

AUDIO

in

R

AUDIO

CVI

AV in

Monitor out

Y

L

Pb

R

Pr

Tuner/Reception/Transmission

• TV system: NTSC, PAL M, PAL N

• Video Playback: NTSC, PAL

• Aerial Input: 75 ohm F-type

• Tuner Display: PLL

• Number of Preset Channels: 181

Connectivity

• AV 1: Component Video in, Audio L/R in

• AV 2: Audio L/R in, CVBS in

• Front / Side connections: Audio L/R in, CVBS in,
S-video in

• Other connections: AV out

Power

• Mains power: AC 100-240V, 50/60Hz

• Power consumption: 105 W

• Standby power consumption: <3 W

Dimensions

• Set dimensions (W x H x D):
781

x 586 x 400 mm

• Product weight: 38 kg

• Weight incl. Packaging: 42 kg

• Box dimensions (W x H x D):
850

x 667 x 490 mm

• Color cabinet: Black

Accessories

• Included Accessories: 2 x AAA Batteries, Remote
Control, User Manual

•

VIDEO

L

AUDIO

R

Ultra SlimLine TV

Philips SlimLine TV uses a slimmer CRT tube to give an
overall slimmer TV that is up to 40% thinner than a
traditional CRT TV while delivering the same superior
picture quality.

Crystal Clear

Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture depth.

Noise Reduction

During weak signal transmission, random noise will
appear on the image. When viewed, the image contains
da rk and w hi te do ts. N oise re duct ion s igni fi cant ly re duce s
the appearance of these dots, hence creating a pleasant
viewing experience.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

SAP

Secondary Audio Program (SAP) allows you to choose
another language in program where two languages are
available.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture and sound modes.

4x3 Expand

4x3 Expand enables widescreen movies to be viewed on
a 4:3 aspect ratio TV screen by removing the black bars
at the top and bottom of the image. You are able to
watch full-screen movies without compromizing on
picture quality and resolution.

Component Video Input (YPbPr)

Component Video is the highest quality interconnection
standard for analog video. It is sharper than S-video and
composite video.

S-Video Input

An S-video format signal preserves the video quality
better than standard video input.

Issue date 2009-01-22

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Version: 2.0.9

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

12 NC: 8670 000 34071
EAN: 87 12581 36606 3

www.philips.com
