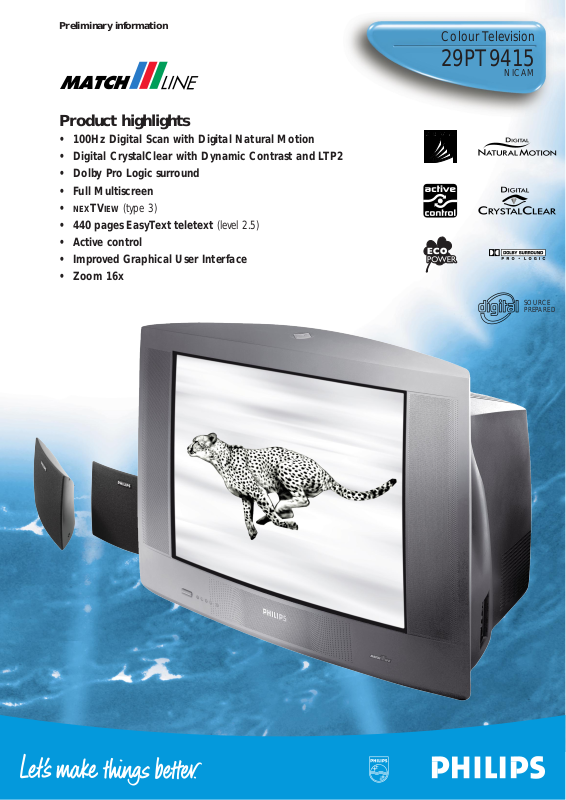

Philips 29PT9415 User Manual

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Product highlights

• 100Hz Digital Scan with Digital Natural Motion

• Digital CrystalClear with Dynamic Contrast and LTP2

• Dolby Pro Logic surround

• Full Multiscreen

• NEXTVIEW (type 3)

• 440 pages EasyText teletext (level 2.5)

• Active control

• Improved Graphical User Interface

• Zoom 16x

Preliminary information

SOURCE
PREPARED

Colour Television

29PT9415

NICAM

Technical specifications
Chassis

• Type: FL7c-look MG


• Screen diameter: 29”/72cm

• Visible screen size:68cm

• Picture tube:Blackline-S Ultra Flat 4:3

• Image stability:
100Hz Digital Scan - Digital Natural
Motion

• S-Video display

• Smart Picture control (5 modes)

- Soft,Natural,Rich,Multi media,

Personal

• Brightness,contrast,tint,sharpness,

colour control

Sound

• Sound system:4 speaker HiFi stereo

• Output (total):150W music output

• NICAM stereo

• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)

• Loudspeakers:

- 2 x Mid-high 2x6”

- 1x subwoofer 5”

- 1x centre speaker 2x6”

• Smart Sound control

- Movie,Speech,Music,Multimedia,

Personal

• 5 band graphic equaliser

• Surround sound speakers packed by

Operation

• Easymenu driven installation and

operation.Direct acces menu’s and
cursor control.

• Selection of 18 menu languages

• 100 preselections

• Multi-function RC handset controlling

- TV,VCR, Sat, DVD, CD, CDR,Tape,

Tuner

• On screen status display on

programmes and functions (OSD)

• Sleeptimer up to 180 minutes

• Electronic lock for parental control

• Favourite programme selection

• Programme title display
(transmitted by TXT)

• On screen menu display:

- Picture menu,Sound menu,Features
menu,Dolby menu,Program list,
Set-up menu,Installation menu,
Program name giving,Language and
country selection

• Full Multiscreen,second tuner built-in,
active moosaic 3,8,16 pictures,replay
function.Pip size variable 1/4 to 1/32
main screen

• Dealer message and demo modes

• Dealer Link;wireless communication for
installation and service

Reception

• Tuning system:100 fold PLL

• Colour transmission systems
Off-air:

/05,/19,/12,/58

PAL B/G/I +
SECAM B/G/L/L'
SECAM D/K

A/V connections:

PAL B/G
PAL I (UK only)
SECAM B/G
NTSC video play back

• Channel selections:120 channels

VHF,UHF,S-Channels,
Hyperband

• Frequency range:(47.25-855.25MHz)

• Aerial input:75 Ohm (Coax)

• VCR preselections:0;50-99

• Frequency / Channel selection
(Germany,Austria and Benelux only)

Teletext

• EasyText teletext (level 2.5):fast access
to pre-ferred pages and subcode page
scroll

• Recept.standards:WST / TOP / FLOF

• Page memory: 440 pages A.I.used for

- Habit watch,preferred page and
subcode page lists

- favorite pages

• Program independent subtitles

Remote Control

• RC type:RC 20xx

• Touch cursor

Connections

• Front

- S-Video in

- video CVBS-in (cinch)

- audio L/R-in (cinch) with automatic
mono switching

- headphone jack 3.5mm

• Rear

- Euro A/V connector
(RGB-in;CVBS-in/out) with auto
image format detection

- Euro A/V connector
(RGB-in;Y/C-in/out; CVBS-in/out)
with WYSIWYR select and image
format detection

- Euro A/V connector (CVBS-in)

- 2 audio-out (cinch)
Constant/Variable level

- surround sound out (cinch)

- surround sound out (clickfits 4x)

Miscellaneous

• Ambient temperature :+5/+45˚C

• Mains : AC 220-240V ± 10%

• Power consumption:
<xxxW;Stand by:0,3W

• Weight : 43kg (excl. packaging)

• Dimensions (wxhxd):(excl.connections)

78.1x58.3x50.1

Product highlights

• 100 Hz Digital Scan with Digital Natural

Motion offers a flickerfree picture with smooth

movement reproduction.

• Digital CrystalClear with Dynamic Contrast

Scavem,Combfilter,9-bit processing,luminance
enhancements and color enhancements. Offers a
crisp and natural picture.

• Dolby Pro logic surround

For lifelike sound experience,including 3D surround

•

NEXTVIEW Program Guide (type 3)

Direct access of program info of all channels
(1week) and automatic programming of VCR.

• Full Multiscreen with 2nd tuner and replay

function. Offers 2nd tuner PIP, or active mosaic

with up to 16 mulitscreens.

• 440 Pages EasyText teletext (level 2.5)

• Active Control

Auto Digital Noise Reduction,Auto Sharpness, Auto
Color, Auto contrast,Ambient Light sensor and Smart
Controls.Automatically offers the best picture setting.

• Improved Graphical User interface Easy menu
control of all functions

• Active subwoofer and full digital sound
processing

• Zoom 16x

Supporting Features

• Blackline-S Ultra Flat picture tube

• Digital Colour Transient Improvement (CTI)

• Picture freeze

• EasyTune (auto store,ACI and ATS)

• EasyLink +

• Low power standby

• 150W music output incl surround

• Integrated centre speaker

• Dynamic Bass Enhancement

• 4 Loudspeakers + 2 Surround speakers

• Independent headphone volume control

Release date : June 1999
Predecessor(s) : 29PT9413
Date of issue : December 1998 Features and specifications subject to change without notice

Dolby Pro Logic 3D surround

Surround sound modes

Hall Off (Stereo)

RC 20xx

(drawing not correct at date of printing)

Preliminary information

Colour Television

29PT9415

NICAM

Technical specifications
Chassis

• Type: FL7c-look MG


• Screen diameter: 29”/72cm

• Visible screen size:68cm

• Picture tube:Blackline-S Ultra Flat 4:3

• Image stability:
100Hz Digital Scan - Digital Natural
Motion

• S-Video display

• Smart Picture control (5 modes)

- Soft,Natural,Rich,Multi media,

Personal

• Brightness,contrast,tint,sharpness,

colour control

Sound

• Sound system:4 speaker HiFi stereo

• Output (total):150W music output

• NICAM stereo

• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)

• Loudspeakers:

- 2 x Mid-high 2x6”

- 1x subwoofer 5”

- 1x centre speaker 2x6”

• Smart Sound control

- Movie,Speech,Music,Multimedia,

Personal

• 5 band graphic equaliser

• Surround sound speakers packed by

Operation

• Easymenu driven installation and

operation.Direct acces menu’s and
cursor control.

• Selection of 18 menu languages

• 100 preselections

• Multi-function RC handset controlling

- TV,VCR, Sat, DVD, CD, CDR,Tape,

Tuner

• On screen status display on

programmes and functions (OSD)

• Sleeptimer up to 180 minutes

• Electronic lock for parental control

• Favourite programme selection

• Programme title display
(transmitted by TXT)

• On screen menu display:

- Picture menu,Sound menu,Features
menu,Dolby menu,Program list,
Set-up menu,Installation menu,
Program name giving,Language and
country selection

• Full Multiscreen,second tuner built-in,
active moosaic 3,8,16 pictures,replay
function.Pip size variable 1/4 to 1/32
main screen

• Dealer message and demo modes

• Dealer Link;wireless communication for
installation and service

Reception

• Tuning system:100 fold PLL

• Colour transmission systems
Off-air:

/05,/19,/12,/58

PAL B/G/I +
SECAM B/G/L/L'
SECAM D/K

A/V connections:

PAL B/G
PAL I (UK only)
SECAM B/G
NTSC video play back

• Channel selections:120 channels

VHF,UHF,S-Channels,
Hyperband

• Frequency range:(47.25-855.25MHz)

• Aerial input:75 Ohm (Coax)

• VCR preselections:0;50-99

• Frequency / Channel selection
(Germany,Austria and Benelux only)

Teletext

• EasyText teletext (level 2.5):fast access
to pre-ferred pages and subcode page
scroll

• Recept.standards:WST / TOP / FLOF

• Page memory: 440 pages A.I.used for

- Habit watch,preferred page and
subcode page lists

- favorite pages

• Program independent subtitles

Remote Control

• RC type:RC 20xx

• Touch cursor

Connections

• Front

- S-Video in

- video CVBS-in (cinch)

- audio L/R-in (cinch) with automatic
mono switching

- headphone jack 3.5mm

• Rear

- Euro A/V connector
(RGB-in;CVBS-in/out) with auto
image format detection

- Euro A/V connector
(RGB-in;Y/C-in/out; CVBS-in/out)
with WYSIWYR select and image
format detection

- Euro A/V connector (CVBS-in)

- 2 audio-out (cinch)
Constant/Variable level

- surround sound out (cinch)

- surround sound out (clickfits 4x)

Miscellaneous

• Ambient temperature :+5/+45˚C

• Mains : AC 220-240V ± 10%

• Power consumption:
<xxxW;Stand by:0,3W

• Weight : 43kg (excl. packaging)

• Dimensions (wxhxd):(excl.connections)

78.1x58.3x50.1

Product highlights

• 100 Hz Digital Scan with Digital Natural

Motion offers a flickerfree picture with smooth

movement reproduction.

• Digital CrystalClear with Dynamic Contrast

Scavem,Combfilter,9-bit processing,luminance
enhancements and color enhancements. Offers a
crisp and natural picture.

• Dolby Pro logic surround

For lifelike sound experience,including 3D surround

•

NEXTVIEW Program Guide (type 3)

Direct access of program info of all channels
(1week) and automatic programming of VCR.

• Full Multiscreen with 2nd tuner and replay

function. Offers 2nd tuner PIP, or active mosaic

with up to 16 mulitscreens.

• 440 Pages EasyText teletext (level 2.5)

• Active Control

Auto Digital Noise Reduction,Auto Sharpness, Auto
Color, Auto contrast,Ambient Light sensor and Smart
Controls.Automatically offers the best picture setting.

• Improved Graphical User interface Easy menu
control of all functions

• Active subwoofer and full digital sound
processing

• Zoom 16x

Supporting Features

• Blackline-S Ultra Flat picture tube

• Digital Colour Transient Improvement (CTI)

• Picture freeze

• EasyTune (auto store,ACI and ATS)

• EasyLink +

• Low power standby

• 150W music output incl surround

• Integrated centre speaker

• Dynamic Bass Enhancement

• 4 Loudspeakers + 2 Surround speakers

• Independent headphone volume control

Release date : June 1999
Predecessor(s) : 29PT9413
Date of issue : December 1998 Features and specifications subject to change without notice

Dolby Pro Logic 3D surround

Surround sound modes

Hall Off (Stereo)

RC 20xx

(drawing not correct at date of printing)

Preliminary information

Colour Television

29PT9415

NICAM

Technical specifications
Chassis

• Type: FL7c-look MG


• Screen diameter: 29”/72cm

• Visible screen size:68cm

• Picture tube:Blackline-S Ultra Flat 4:3

• Image stability:
100Hz Digital Scan - Digital Natural
Motion

• S-Video display

• Smart Picture control (5 modes)

- Soft,Natural,Rich,Multi media,

Personal

• Brightness,contrast,tint,sharpness,

colour control

Sound

• Sound system:4 speaker HiFi stereo

• Output (total):150W music output

• NICAM stereo

• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)

• Loudspeakers:

- 2 x Mid-high 2x6”

- 1x subwoofer 5”

- 1x centre speaker 2x6”

• Smart Sound control

- Movie,Speech,Music,Multimedia,

Personal

• 5 band graphic equaliser

• Surround sound speakers packed by

Operation

• Easymenu driven installation and

operation.Direct acces menu’s and
cursor control.

• Selection of 18 menu languages

• 100 preselections

• Multi-function RC handset controlling

- TV,VCR, Sat, DVD, CD, CDR,Tape,

Tuner

• On screen status display on

programmes and functions (OSD)

• Sleeptimer up to 180 minutes

• Electronic lock for parental control

• Favourite programme selection

• Programme title display
(transmitted by TXT)

• On screen menu display:

- Picture menu,Sound menu,Features
menu,Dolby menu,Program list,
Set-up menu,Installation menu,
Program name giving,Language and
country selection

• Full Multiscreen,second tuner built-in,
active moosaic 3,8,16 pictures,replay
function.Pip size variable 1/4 to 1/32
main screen

• Dealer message and demo modes

• Dealer Link;wireless communication for
installation and service

Reception

• Tuning system:100 fold PLL

• Colour transmission systems
Off-air:

/05,/19,/12,/58

PAL B/G/I +
SECAM B/G/L/L'
SECAM D/K

A/V connections:

PAL B/G
PAL I (UK only)
SECAM B/G
NTSC video play back

• Channel selections:120 channels

VHF,UHF,S-Channels,
Hyperband

• Frequency range:(47.25-855.25MHz)

• Aerial input:75 Ohm (Coax)

• VCR preselections:0;50-99

• Frequency / Channel selection
(Germany,Austria and Benelux only)

Teletext

• EasyText teletext (level 2.5):fast access
to pre-ferred pages and subcode page
scroll

• Recept.standards:WST / TOP / FLOF

• Page memory: 440 pages A.I.used for

- Habit watch,preferred page and
subcode page lists

- favorite pages

• Program independent subtitles

Remote Control

• RC type:RC 20xx

• Touch cursor

Connections

• Front

- S-Video in

- video CVBS-in (cinch)

- audio L/R-in (cinch) with automatic
mono switching

- headphone jack 3.5mm

• Rear

- Euro A/V connector
(RGB-in;CVBS-in/out) with auto
image format detection

- Euro A/V connector
(RGB-in;Y/C-in/out; CVBS-in/out)
with WYSIWYR select and image
format detection

- Euro A/V connector (CVBS-in)

- 2 audio-out (cinch)
Constant/Variable level

- surround sound out (cinch)

- surround sound out (clickfits 4x)

Miscellaneous

• Ambient temperature :+5/+45˚C

• Mains : AC 220-240V ± 10%

• Power consumption:
<xxxW;Stand by:0,3W

• Weight : 43kg (excl. packaging)

• Dimensions (wxhxd):(excl.connections)

78.1x58.3x50.1

Product highlights

• 100 Hz Digital Scan with Digital Natural

Motion offers a flickerfree picture with smooth

movement reproduction.

• Digital CrystalClear with Dynamic Contrast

Scavem,Combfilter,9-bit processing,luminance
enhancements and color enhancements. Offers a
crisp and natural picture.

• Dolby Pro logic surround

For lifelike sound experience,including 3D surround

•

NEXTVIEW Program Guide (type 3)

Direct access of program info of all channels
(1week) and automatic programming of VCR.

• Full Multiscreen with 2nd tuner and replay

function. Offers 2nd tuner PIP, or active mosaic

with up to 16 mulitscreens.

• 440 Pages EasyText teletext (level 2.5)

• Active Control

Auto Digital Noise Reduction,Auto Sharpness, Auto
Color, Auto contrast,Ambient Light sensor and Smart
Controls.Automatically offers the best picture setting.

• Improved Graphical User interface Easy menu
control of all functions

• Active subwoofer and full digital sound
processing

• Zoom 16x

Supporting Features

• Blackline-S Ultra Flat picture tube

• Digital Colour Transient Improvement (CTI)

• Picture freeze

• EasyTune (auto store,ACI and ATS)

• EasyLink +

• Low power standby

• 150W music output incl surround

• Integrated centre speaker

• Dynamic Bass Enhancement

• 4 Loudspeakers + 2 Surround speakers

• Independent headphone volume control

Release date : June 1999
Predecessor(s) : 29PT9413
Date of issue : December 1998 Features and specifications subject to change without notice

Dolby Pro Logic 3D surround

Surround sound modes

Hall Off (Stereo)

RC 20xx

(drawing not correct at date of printing)

Preliminary information

Colour Television

29PT9415

NICAM

Technical specifications
Chassis

• Type: FL7c-look MG


• Screen diameter: 29”/72cm

• Visible screen size:68cm

• Picture tube:Blackline-S Ultra Flat 4:3

• Image stability:
100Hz Digital Scan - Digital Natural
Motion

• S-Video display

• Smart Picture control (5 modes)

- Soft,Natural,Rich,Multi media,

Personal

• Brightness,contrast,tint,sharpness,

colour control

Sound

• Sound system:4 speaker HiFi stereo

• Output (total):150W music output

• NICAM stereo

• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)

• Loudspeakers:

- 2 x Mid-high 2x6”

- 1x subwoofer 5”

- 1x centre speaker 2x6”

• Smart Sound control

- Movie,Speech,Music,Multimedia,

Personal

• 5 band graphic equaliser

• Surround sound speakers packed by

Operation

• Easymenu driven installation and

operation.Direct acces menu’s and
cursor control.

• Selection of 18 menu languages

• 100 preselections

• Multi-function RC handset controlling

- TV,VCR, Sat, DVD, CD, CDR,Tape,

Tuner

• On screen status display on

programmes and functions (OSD)

• Sleeptimer up to 180 minutes

• Electronic lock for parental control

• Favourite programme selection

• Programme title display
(transmitted by TXT)

• On screen menu display:

- Picture menu,Sound menu,Features
menu,Dolby menu,Program list,
Set-up menu,Installation menu,
Program name giving,Language and
country selection

• Full Multiscreen,second tuner built-in,
active moosaic 3,8,16 pictures,replay
function.Pip size variable 1/4 to 1/32
main screen

• Dealer message and demo modes

• Dealer Link;wireless communication for
installation and service

Reception

• Tuning system:100 fold PLL

• Colour transmission systems
Off-air:

/05,/19,/12,/58

PAL B/G/I +
SECAM B/G/L/L'
SECAM D/K

A/V connections:

PAL B/G
PAL I (UK only)
SECAM B/G
NTSC video play back

• Channel selections:120 channels

VHF,UHF,S-Channels,
Hyperband

• Frequency range:(47.25-855.25MHz)

• Aerial input:75 Ohm (Coax)

• VCR preselections:0;50-99

• Frequency / Channel selection
(Germany,Austria and Benelux only)

Teletext

• EasyText teletext (level 2.5):fast access
to pre-ferred pages and subcode page
scroll

• Recept.standards:WST / TOP / FLOF

• Page memory: 440 pages A.I.used for

- Habit watch,preferred page and
subcode page lists

- favorite pages

• Program independent subtitles

Remote Control

• RC type:RC 20xx

• Touch cursor

Connections

• Front

- S-Video in

- video CVBS-in (cinch)

- audio L/R-in (cinch) with automatic
mono switching

- headphone jack 3.5mm

• Rear

- Euro A/V connector
(RGB-in;CVBS-in/out) with auto
image format detection

- Euro A/V connector
(RGB-in;Y/C-in/out; CVBS-in/out)
with WYSIWYR select and image
format detection

- Euro A/V connector (CVBS-in)

- 2 audio-out (cinch)
Constant/Variable level

- surround sound out (cinch)

- surround sound out (clickfits 4x)

Miscellaneous

• Ambient temperature :+5/+45˚C

• Mains : AC 220-240V ± 10%

• Power consumption:
<xxxW;Stand by:0,3W

• Weight : 43kg (excl. packaging)

• Dimensions (wxhxd):(excl.connections)

78.1x58.3x50.1

Product highlights

• 100 Hz Digital Scan with Digital Natural

Motion offers a flickerfree picture with smooth

movement reproduction.

• Digital CrystalClear with Dynamic Contrast

Scavem,Combfilter,9-bit processing,luminance
enhancements and color enhancements. Offers a
crisp and natural picture.

• Dolby Pro logic surround

For lifelike sound experience,including 3D surround

•

NEXTVIEW Program Guide (type 3)

Direct access of program info of all channels
(1week) and automatic programming of VCR.

• Full Multiscreen with 2nd tuner and replay

function. Offers 2nd tuner PIP, or active mosaic

with up to 16 mulitscreens.

• 440 Pages EasyText teletext (level 2.5)

• Active Control

Auto Digital Noise Reduction,Auto Sharpness, Auto
Color, Auto contrast,Ambient Light sensor and Smart
Controls.Automatically offers the best picture setting.

• Improved Graphical User interface Easy menu
control of all functions

• Active subwoofer and full digital sound
processing

• Zoom 16x

Supporting Features

• Blackline-S Ultra Flat picture tube

• Digital Colour Transient Improvement (CTI)

• Picture freeze

• EasyTune (auto store,ACI and ATS)

• EasyLink +

• Low power standby

• 150W music output incl surround

• Integrated centre speaker

• Dynamic Bass Enhancement

• 4 Loudspeakers + 2 Surround speakers

• Independent headphone volume control

Release date : June 1999
Predecessor(s) : 29PT9413
Date of issue : December 1998 Features and specifications subject to change without notice

Dolby Pro Logic 3D surround

Surround sound modes

Hall Off (Stereo)

RC 20xx

(drawing not correct at date of printing)

Preliminary information

Colour Television

29PT9415

NICAM

Technical specifications
Chassis

• Type: FL7c-look MG


• Screen diameter: 29”/72cm

• Visible screen size:68cm

• Picture tube:Blackline-S Ultra Flat 4:3

• Image stability:
100Hz Digital Scan - Digital Natural
Motion

• S-Video display

• Smart Picture control (5 modes)

- Soft,Natural,Rich,Multi media,

Personal

• Brightness,contrast,tint,sharpness,

colour control

Sound

• Sound system:4 speaker HiFi stereo

• Output (total):150W music output

• NICAM stereo

• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)

• Loudspeakers:

- 2 x Mid-high 2x6”

- 1x subwoofer 5”

- 1x centre speaker 2x6”

• Smart Sound control

- Movie,Speech,Music,Multimedia,

Personal

• 5 band graphic equaliser

• Surround sound speakers packed by

Operation

• Easymenu driven installation and

operation.Direct acces menu’s and
cursor control.

• Selection of 18 menu languages

• 100 preselections

• Multi-function RC handset controlling

- TV,VCR, Sat, DVD, CD, CDR,Tape,

Tuner

• On screen status display on

programmes and functions (OSD)

• Sleeptimer up to 180 minutes

• Electronic lock for parental control

• Favourite programme selection

• Programme title display
(transmitted by TXT)

• On screen menu display:

- Picture menu,Sound menu,Features
menu,Dolby menu,Program list,
Set-up menu,Installation menu,
Program name giving,Language and
country selection

• Full Multiscreen,second tuner built-in,
active moosaic 3,8,16 pictures,replay
function.Pip size variable 1/4 to 1/32
main screen

• Dealer message and demo modes

• Dealer Link;wireless communication for
installation and service

Reception

• Tuning system:100 fold PLL

• Colour transmission systems
Off-air:

/05,/19,/12,/58

PAL B/G/I +
SECAM B/G/L/L'
SECAM D/K

A/V connections:

PAL B/G
PAL I (UK only)
SECAM B/G
NTSC video play back

• Channel selections:120 channels

VHF,UHF,S-Channels,
Hyperband

• Frequency range:(47.25-855.25MHz)

• Aerial input:75 Ohm (Coax)

• VCR preselections:0;50-99

• Frequency / Channel selection
(Germany,Austria and Benelux only)

Teletext

• EasyText teletext (level 2.5):fast access
to pre-ferred pages and subcode page
scroll

• Recept.standards:WST / TOP / FLOF

• Page memory: 440 pages A.I.used for

- Habit watch,preferred page and
subcode page lists

- favorite pages

• Program independent subtitles

Remote Control

• RC type:RC 20xx

• Touch cursor

Connections

• Front

- S-Video in

- video CVBS-in (cinch)

- audio L/R-in (cinch) with automatic
mono switching

- headphone jack 3.5mm

• Rear

- Euro A/V connector
(RGB-in;CVBS-in/out) with auto
image format detection

- Euro A/V connector
(RGB-in;Y/C-in/out; CVBS-in/out)
with WYSIWYR select and image
format detection

- Euro A/V connector (CVBS-in)

- 2 audio-out (cinch)
Constant/Variable level

- surround sound out (cinch)

- surround sound out (clickfits 4x)

Miscellaneous

• Ambient temperature :+5/+45˚C

• Mains : AC 220-240V ± 10%

• Power consumption:
<xxxW;Stand by:0,3W

• Weight : 43kg (excl. packaging)

• Dimensions (wxhxd):(excl.connections)

78.1x58.3x50.1

Product highlights

• 100 Hz Digital Scan with Digital Natural

Motion offers a flickerfree picture with smooth

movement reproduction.

• Digital CrystalClear with Dynamic Contrast

Scavem,Combfilter,9-bit processing,luminance
enhancements and color enhancements. Offers a
crisp and natural picture.

• Dolby Pro logic surround

For lifelike sound experience,including 3D surround

•

NEXTVIEW Program Guide (type 3)

Direct access of program info of all channels
(1week) and automatic programming of VCR.

• Full Multiscreen with 2nd tuner and replay

function. Offers 2nd tuner PIP, or active mosaic

with up to 16 mulitscreens.

• 440 Pages EasyText teletext (level 2.5)

• Active Control

Auto Digital Noise Reduction,Auto Sharpness, Auto
Color, Auto contrast,Ambient Light sensor and Smart
Controls.Automatically offers the best picture setting.

• Improved Graphical User interface Easy menu
control of all functions

• Active subwoofer and full digital sound
processing

• Zoom 16x

Supporting Features

• Blackline-S Ultra Flat picture tube

• Digital Colour Transient Improvement (CTI)

• Picture freeze

• EasyTune (auto store,ACI and ATS)

• EasyLink +

• Low power standby

• 150W music output incl surround

• Integrated centre speaker

• Dynamic Bass Enhancement

• 4 Loudspeakers + 2 Surround speakers

• Independent headphone volume control

Release date : June 1999
Predecessor(s) : 29PT9413
Date of issue : December 1998 Features and specifications subject to change without notice

Dolby Pro Logic 3D surround

Surround sound modes

Hall Off (Stereo)

RC 20xx

(drawing not correct at date of printing)

Preliminary information

Colour Television

29PT9415

NICAM

Technical specifications
Chassis

• Type: FL7c-look MG


• Screen diameter: 29”/72cm

• Visible screen size:68cm

• Picture tube:Blackline-S Ultra Flat 4:3

• Image stability:
100Hz Digital Scan - Digital Natural
Motion

• S-Video display

• Smart Picture control (5 modes)

- Soft,Natural,Rich,Multi media,

Personal

• Brightness,contrast,tint,sharpness,

colour control

Sound

• Sound system:4 speaker HiFi stereo

• Output (total):150W music output

• NICAM stereo

• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)

• Loudspeakers:

- 2 x Mid-high 2x6”

- 1x subwoofer 5”

- 1x centre speaker 2x6”

• Smart Sound control

- Movie,Speech,Music,Multimedia,

Personal

• 5 band graphic equaliser

• Surround sound speakers packed by

Operation

• Easymenu driven installation and

operation.Direct acces menu’s and
cursor control.

• Selection of 18 menu languages

• 100 preselections

• Multi-function RC handset controlling

- TV,VCR, Sat, DVD, CD, CDR,Tape,

Tuner

• On screen status display on

programmes and functions (OSD)

• Sleeptimer up to 180 minutes

• Electronic lock for parental control

• Favourite programme selection

• Programme title display
(transmitted by TXT)

• On screen menu display:

- Picture menu,Sound menu,Features
menu,Dolby menu,Program list,
Set-up menu,Installation menu,
Program name giving,Language and
country selection

• Full Multiscreen,second tuner built-in,
active moosaic 3,8,16 pictures,replay
function.Pip size variable 1/4 to 1/32
main screen

• Dealer message and demo modes

• Dealer Link;wireless communication for
installation and service

Reception

• Tuning system:100 fold PLL

• Colour transmission systems
Off-air:

/05,/19,/12,/58

PAL B/G/I +
SECAM B/G/L/L'
SECAM D/K

A/V connections:

PAL B/G
PAL I (UK only)
SECAM B/G
NTSC video play back

• Channel selections:120 channels

VHF,UHF,S-Channels,
Hyperband

• Frequency range:(47.25-855.25MHz)

• Aerial input:75 Ohm (Coax)

• VCR preselections:0;50-99

• Frequency / Channel selection
(Germany,Austria and Benelux only)

Teletext

• EasyText teletext (level 2.5):fast access
to pre-ferred pages and subcode page
scroll

• Recept.standards:WST / TOP / FLOF

• Page memory: 440 pages A.I.used for

- Habit watch,preferred page and
subcode page lists

- favorite pages

• Program independent subtitles

Remote Control

• RC type:RC 20xx

• Touch cursor

Connections

• Front

- S-Video in

- video CVBS-in (cinch)

- audio L/R-in (cinch) with automatic
mono switching

- headphone jack 3.5mm

• Rear

- Euro A/V connector
(RGB-in;CVBS-in/out) with auto
image format detection

- Euro A/V connector
(RGB-in;Y/C-in/out; CVBS-in/out)
with WYSIWYR select and image
format detection

- Euro A/V connector (CVBS-in)

- 2 audio-out (cinch)
Constant/Variable level

- surround sound out (cinch)

- surround sound out (clickfits 4x)

Miscellaneous

• Ambient temperature :+5/+45˚C

• Mains : AC 220-240V ± 10%

• Power consumption:
<xxxW;Stand by:0,3W

• Weight : 43kg (excl. packaging)

• Dimensions (wxhxd):(excl.connections)

78.1x58.3x50.1

Product highlights

• 100 Hz Digital Scan with Digital Natural

Motion offers a flickerfree picture with smooth

movement reproduction.

• Digital CrystalClear with Dynamic Contrast

Scavem,Combfilter,9-bit processing,luminance
enhancements and color enhancements. Offers a
crisp and natural picture.

• Dolby Pro logic surround

For lifelike sound experience,including 3D surround

•

NEXTVIEW Program Guide (type 3)

Direct access of program info of all channels
(1week) and automatic programming of VCR.

• Full Multiscreen with 2nd tuner and replay

function. Offers 2nd tuner PIP, or active mosaic

with up to 16 mulitscreens.

• 440 Pages EasyText teletext (level 2.5)

• Active Control

Auto Digital Noise Reduction,Auto Sharpness, Auto
Color, Auto contrast,Ambient Light sensor and Smart
Controls.Automatically offers the best picture setting.

• Improved Graphical User interface Easy menu
control of all functions

• Active subwoofer and full digital sound
processing

• Zoom 16x

Supporting Features

• Blackline-S Ultra Flat picture tube

• Digital Colour Transient Improvement (CTI)

• Picture freeze

• EasyTune (auto store,ACI and ATS)

• EasyLink +

• Low power standby

• 150W music output incl surround

• Integrated centre speaker

• Dynamic Bass Enhancement

• 4 Loudspeakers + 2 Surround speakers

• Independent headphone volume control

Release date : June 1999
Predecessor(s) : 29PT9413
Date of issue : December 1998 Features and specifications subject to change without notice

Dolby Pro Logic 3D surround

Surround sound modes

Hall Off (Stereo)

RC 20xx

(drawing not correct at date of printing)

Preliminary information

29PT9015_FTL1.EPS 29PT9015_FTL2.EPS 29PT9015_FTR1.EPS
