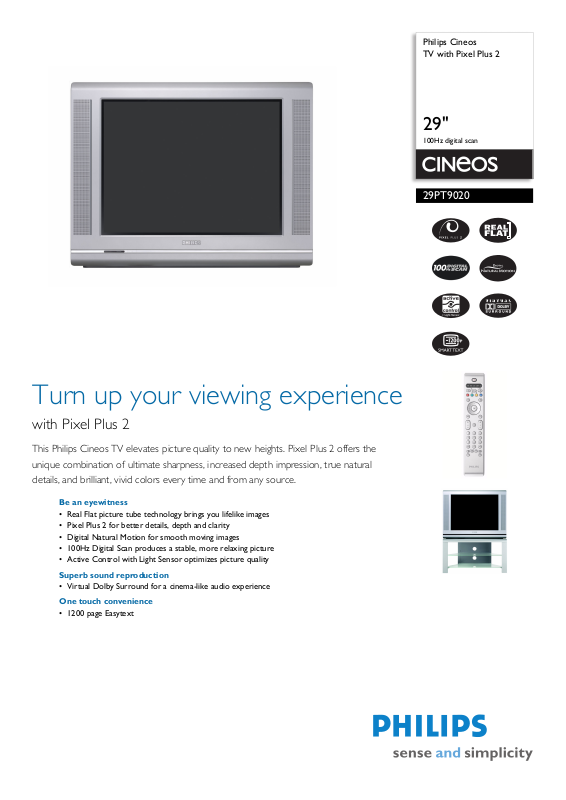

Philips 29PT9020 User Manual
Philips Cineos
TV with Pixel Plus 2
29"
100Hz digital scan
29PT9020
Turn up your viewing experience
with Pixel Plus 2
This Philips Cineos TV elevates picture quality to new heights. Pixel Plus 2 offers the
unique combination of ultimate sharpness, increased depth impression, true natural
details, and brilliant, vivid colors every time and from any source.
Be an eyewitness
• Real Flat picture tube technology brings you lifelike images
• Pixel Plus 2 for better details, depth and clarity
• Digital Natural Motion for smooth moving images
• 100Hz Digital Scan produces a stable, more relaxing picture
• Active Control with Light Sensor optimizes picture quality
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
One touch convenience
• 1200 page Easytext
TV with Pixel Plus 2
29PT9020/12
29" 100Hz digital scan
Specifications Product highlights
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 29 inch / 72 cm
• Visible diagonal screen size: 68 cm
• Display screen type: Real Flat picture tube
• Picture enhancement: Pixel Plus 2, Digital Crystal
Clear, Active Control + Light sensor, Digital
Natural Motion, Dynamic Noise Reduction
• Screen enhancement: Anti-Reflection
• Picture processing: 100 Hz Digital Scan
Sound
• Sound Enhancement: Digital Sound Processing,
Graphic Equaliser, 3-D sound
• Sound System: Nicam Stereo, Virtual Dolby
Surround
• Output power (RMS): 2 x 15W
• Music Power: 60 W
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Automatic Channel
Install(ACI), Automatic Tuning System (ATS),
Autostore, Fine Tuning, PLL Digital Tuning, Plug &
Play, Sorting
• Ease of Use: Graphical User Interface, Top
Controls, Auto Volume Leveller (AVL), Smart
Picture Control, Smart Sound Control, Picture
Freeze
• Remote control type: RCTE05SLS05
• Teletext: 1200 page Easytext
• Teletext enhancements: Habit Watch, Word
Search, Program information Line
• Screen Format Adjustments: 4:3, 4:3 expand, 16:9
compress
• Clock: Sleep Timer, Smart Clock
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
• TV system: SECAM L/L', SECAM D/K, SECAM B/
G, PAL D/K, PAL B/G, PAL I
Connectivity
• Number of Scarts: 2
• Other connections: Stereo constant level out
• Ext 2 Scart: S-video in, CVBS in/out
• Ext 1 Scart: RGB, CVBS in/out
• Front / Side connections: Video in, S-video in,
Headphone out, Audio L/R in
• Headphone: 3.5 mm
Power
• Power consumption: 109 W
• Standby power consumption: <3w
• Mains power: AC 220 - 240 V +/- 10%
Dimensions
• Product weight: 44 kg
• Weight incl. Packaging: 50 kg
• Color cabinet: Silver Frost (11027)
• Box dimensions (W x H x D):
800
x 654 x 577 mm
• Set dimensions (W x H x D):
746
x 578 x 493 mm
•
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.
Pixel Plus 2
Pixel Plus 2 is a digital picture processing technology that
improves the resolution of still and moving pictures. It
does more than adding pixels, it also makes the pixels
better, resulting incredible sharpness and picture depth
every time and from any source. And it does not just
improve the resolution either, because you also benefit
from improved color reproduction, resulting in the finest
color details and superior brilliance.
Digital Natural Motion
Philips invented Digital Natural Motion to eliminate
juddering effects that are visible with moving picture
content. Digital Natural Motion estimates motion in the
picture and corrects juddering movements in both
broadcast and recorded movie material (such as DVD).
The resulting smooth motion reproduction and excellent
sharpness take the viewing experience to a higher level.
100Hz Digital Scan
A conventional TV shows a picture by scanning 50 times
per second (50Hz). This frequency can be detected by
the human eye in the form of a flickering picture. 100Hz
sets show a picture by scanning 100 times per second
eliminating the field flickering. Philips' digital scan doubles
the rate of line flicker, making it undetectable. The result
is a more stable picture that is relaxing for your eye.
Active Control + Light Sensor
Active Control is a unique and intelligent way of
optimizing picture quality by measuring and analyzing
the incoming signal to automatically adjust picture quality
settings. Active Control with Light Sensor uses a sensor to
ad jus t the pic tur e br igh tnes s de pen ding on t he r oom lig ht
conditions.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
1200 page Easytext
Issue date 2007-12-07
Version: 19.0.21
12 NC: 8670 000 21399
EAN: 87 10895 85157 2
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
