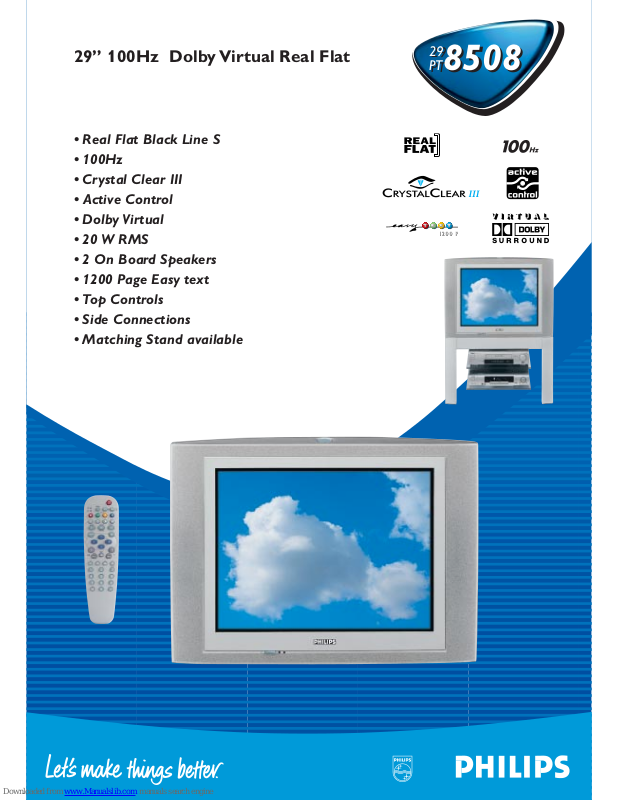

29” 100Hz Dolby Virtual Real Flat
• Real Flat Black Line S
• 100Hz
•Crystal Clear III
• Active Control
• Dolby Virtual
• 20 W RMS
•2 On Board Speakers
• 1200 Page Easy text
•Top Controls
• Side Connections
• Matching Stand available
29
PT8508
29
PT8508
Page 2
Technical specifications
• Screen Size: 29” (72 cm)
• Visible screen size: 68 cm (29”)
• Picture Tube: Real Flat Black Line S
• 100 Hz
• Crystal Clear III
• Active Control
• Color Transient Improvement (CTI)
• Black stretch and blue stretch
• Picture Freeze
Sound
• Sound Power: 20 W RMS
40 W Music Power
• Dolby Virtual
• 2 On Board Speakers
• Digital Signal Processing
Ease of Use Installation
• 100 Preset channels
• Autostore
• Fine Tuning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
• Top Controls
• RC 19002 (suitable for VCR/DVD/SAT)
• Program List
• Smart Picture Control: Soft, Natural, Rich,
Multimedia, Personal
• Smart Sound Control: Movie, Speech
Music, Personal
• AVL
• Dual I-II
• 16:9 Compress
• Smart Clock
• Sleep Timer
• Child Lock
Product highlights
Real Flat Black Line S
Philips TV picture tube provides non–distorted picture
quality, while offering a wider viewing angle without light
reflections.Thanks to the highly pigmented phosphors,
the brightness and contrast performance are considerably improved compared to conventional picture tubes.
100 Hz
Conventional Televisions show a picture by scanning 50
times per second (50 Hertz).This frequency can be
detected by the human eye in the form of a field flickering picture. 100 Hertz sets show a picture by scanning
100 times per second eliminating the field flickering.
Scavem
Scan VElocity Modulation - the speed at which
the picture lines are "wriiten"on the screen is varied to
ensure that all objects have the most crisp definition
and sharpest edges.
Active Control
Active Control automatically analyses, 50 times per second, the incoming signal and adjusts the key picture settings on Sharpness, Digital Noise Reduction and Picture
Format.Active Control thus offers the best possible picture settings any time, any source.
Dolby Virtual
Dolby processing circuitry for an enhanced cinema surround sound effect without the need for rear speakers.
1200 Page Easytext
Almost instant access to frequently used teletext pages
(Habitwatch) and the ability to scroll through subpages
without waiting.
Top Controls
Volume and channel change controls on top of the tv to
enable easy adjustment without the remote control.
Side Connections
Connections for headphone and other inputs such as
camcorder, side entry for ease of use.
29” 100Hz Dolby Virtual Real Flat
Connections
Side
• S-Video (Y/C) in
• CVBS Video in
• Audio L/R (cinch/RCA) in
• Headphone Jack 3,5 mm out
Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
• Euro A/V connector Ext2 (S-Video in/out, CVBS
in/out)
• Stereo Audio out (cinch) Constant level
Information
• 1200 Page Text Level 2,5 with Habit Watch
• Program Information Line
Reception
• Tuning System : PLL digital tuning
• Tuner :VHF, UHF, S-Channel, Hyperband
• Aerial Input: 75 ohm Coaxial
• TV System: See table
• Stereo System: See table
• Video Playback: NTSC 4.43/3.58
Miscellaneous
• Mains:AC 220-240V +/- 10%
• Power Consumption :TBC Normal Operation
TBC Stand by
• Set Weight : 45 kg
•Weight Incl. Packaging : 55 kg
• Set Dimension (WxHxD): 755x590x502 mm
•Box Dimension (WxHxD) : 973x804x726 mm
• TV Colour: Silver Frost (11027)
Predecessor : 29PT8507
Chassis : EMG
Introduction : Year 2003
Features and specifications subject to change without notice
29
PT8508
29
PT8508
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
29PT8508 /12
••••• ••• •• ••
04/2002
This Real Flat conventional TV brings top picture quality into a beautiful package. 100Hz Crystal Clear processing technology ensures that films and sports are truly represented and relaxing for the eyes. 1200 page
teletext memory allows instant access to any Teletext page. All in a stylish yet affordable package.
