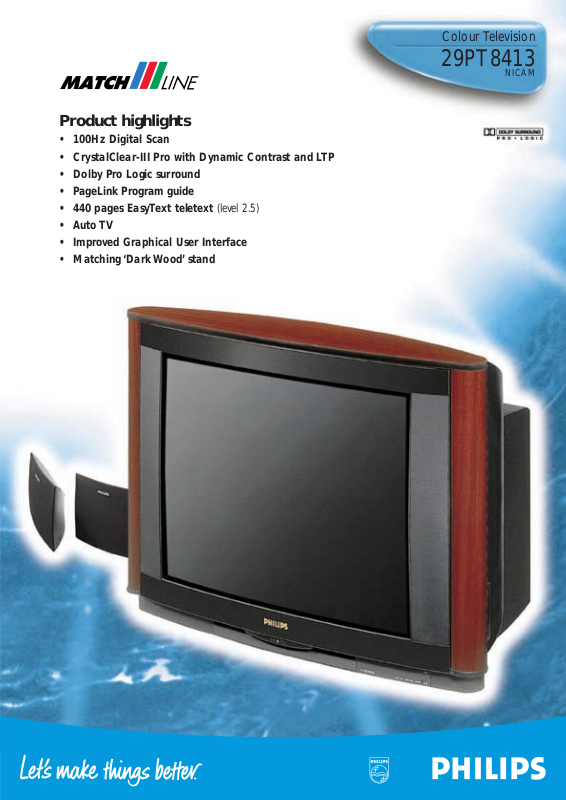

Philips 29PT8413 User Manual
Colour Television
29PT8413
NICAM
Product highlights
• 100Hz Digital Scan
• CrystalClear-III Pro with Dynamic Contrast and LTP
• Dolby Pro Logic surround
• PageLink Program guide
• 440 pages EasyText teletext (level 2.5)
• Auto TV
• Improved Graphical User Interface
• Matching ‘Dark W ood’ stand
Colour Television
29PT8413
NICAM
Technical specifications
Chassis
• Type: FL6cl MID2.25
• Screen diameter: 29"/72cm
• Visible screen size:68cm
• Picture tube:Blackline-S Ultra Flat 4:3
• Image stability:100Hz Digital Scan
• S-Video display
• Smart Picture control (5 modes)
- Soft,Natural,Rich, Spor t, Personal
• Brightness,contrast,tint, sharpness,
colour control
Sound
• Sound system:5 speaker HiFi stereo
• Output (total):100W music output
• NICAM stereo
• Frequency response:
20Hz-15kHz,+1/-3dB (ampl.)
• Loudspeakers:
- 2x squeeter 50x90mm
- 1x subwoofer 4"
- 2x centre speaker 41x71mm
• Smart Sound control
- Movie, Speech,Music,Personal
• Balance / treble / bass control
• Surround speakers included
Operation
• Easy menu-driven installation and
operation,direct access menu’s and
cursor control
• Selection of 12 menu languages
• 100 preselections
• Multi-function RC handset controlling
- TV,VCR ,Sat, DVD
• On screen status display on programmes and functions (OSD)
• Sleeptimer up to 180 minutes
• Electronic lock for parental control
• Favourite programme selection
• Programme title display
(transmitted by TXT)
• On screen menu display:
- Picture,Sound, Features,Equalizer,
Headphone, Dolby,Program list,
Message, Timer,Installation,
Program name giving,
Language and country selection
• Dealer message and demo modes
• Dealer Link;wireless communication for
installation and service
Reception
• Tuning system: 100 fold PLL
• Colour transmission systems
Off-air:
/25 PAL B/G/I +
SECAM B/G/L/L'
A/V connections:
PALB/G
PAL I (UK only)
SECAM B/G
NTSC video play back
• Channel selections:120 channels
VHF, UHF,S-Channels,
Hyperband
• Frequency range:(47.25-855.25MHz)
• Aerial input:75 Ohm (Coax)
• VCR preselections:0; 50-99
• Frequency / Channel selection
(Germany,Austria and Benelux only)
Teletext
• EasyText (level 2.5):fast access to preferred pages and subcode page scroll
• Recept.standards:WST / TOP / FLOF
• Page memory: 440 pages A.I.used for
- Habit watch,preferred page and
subcode page lists
- Page look up table
• Program independent subtitles
Remote Control
• RC type:RC 2001
Connections
• Front
- S-Video in
- video CVBS-in (cinch)
- audio L/R-in (cinch) with automatic
mono switching
- headphone jack 3.5mm
• Rear
- Euro A/V connector blue
(RGB-in;CVBS-in/out) with auto
image format detection
- Euro A/V connector blue
(RGB-in;Y/C-in/out; CVBS-in/out)
with WYSIWYR select and image
format detection
- Euro A/V connector black (CVBS-in)
- 2 audio-out (cinch) Constant level
- Front & Surround loudspeaker
connections (8 click fits)
Miscellaneous
• Ambient temperature :+5/+45°C
• Mains : AC 220-240V ± 10%
• Power consumption:
<110W;Stand by: <2W
• Weight : 45kg (excl. packaging)
• Dimensions (wxhxd):
79.6x56.3x47.1cm (excl.connections)
Product highlights
• 100Hz Digital Scan
Offers a flickerfree picture.
• CrystalClear-III Pro with Dynamic Contrast
Scaven,Comb filter and LTP (Luminance Transient
Processing) offers a crisp and natural picture.
• Dolby Pro Logic surround
For lifelike sound experience.
• Page link Program guide
Easy access of program info of selected
program.
• 440 Pages EasyText teletext (level 2.5)
• Auto TV
Auto Digital Noise Reduction,Auto Sharpness, Smart
Controls,Automatically offers the best picture setting.
• Improved Graphical User interface
• Matching ‘Dark wood’ stand
Supporting Features
• Blackline-S Ultra Flat picture tube
• Colour Transient Improvement (CTI)
• Picture freeze and strobe
• EasyTune (auto store,ACI and ATS)
• EasyLink +
• Low power standby
• 100W music output
• 5 band graphic equalizer
• Integrated centre speakers
• Dynamic Bass Enhancement
• Independent headphone volume control
Release date : May ‘98
Predecessor(s) : 29PT8413
Date of issue : March ‘98
Subject to modification
without notice
213
546
879
0
B
w
®Ò‡π
†
b
æ
Q
b
S
j
i
Mqa
0
◊
cd
TV VCR DVD SAT
SMARTSMART
PICTURESOUND
¬V P
U
®XPfi
fyÚh
ZOOM
INSTANT
RC 2001
Dolby Pro Logic Hall
Surround sound modes
Dolby 3 Off (Stereo)
