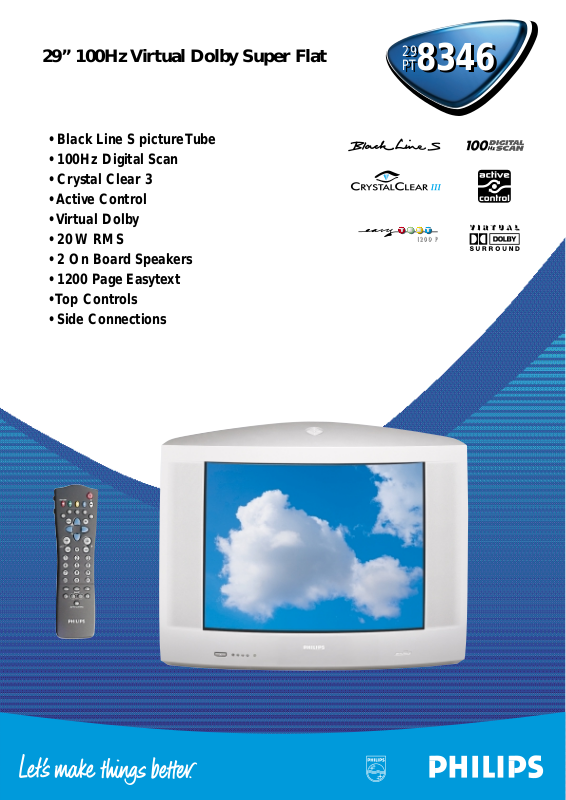

Philips 29PT8346 User Manual
29” 100Hz Virtual Dolby Super Flat
• Black Line S picture Tube
• 100Hz Digital Scan
• Crystal Clear 3
• Active Control
• Virtual Dolby
• 20 W RMS
• 2 On Board Speakers
• 1200 Page Easytext
• T op Controls
• Side Connections
29
PT8346
29
PT8346
Technical specifications
• Screen Size : 29” (72 cm)
• Visible screen size : 68 cm
• Picture Tube: Black Line S
• 100 Hz Digital Scan
• Crystal Clear III
• Active Control
• Picture Freeze
Sound
• Sound Power: 20 W RMS
40 W Music Power
• Dolby Virtual
• 2 On Board Speakers
• Digital Signal Processing
Ease of Use Installation
• 100 Preset channels
• Autostore
• Fine T uning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
• Top Controls
• RC 2592 (suitable for VCR/DVD/SAT)
• Program List
• Smart Picture Control : Eco,Natural, Rich,
Multimedia,Personal
• Smart Sound Control :Movie, Speech
Music, Personal
• AVL
• Dual I-II
• Smart Clock
• Sleep Timer
• Child Lock
Product highlights
Superflat Blackline S
Philips TV picture tube with invar mask gives less deformation and therefore can provide 80% more contrast
than conventional picture tubes for brilliant colours and
minimal reflections, even when viewing in daylight.This
superflat tube gives a flatter
100Hz Digital Scan
Conventional Televisions scan the picture at 50 times
per second (50 Hertz). This Frequency can be detected
by the human eye in the form of a flickering picture.
100 Hertz sets scan the picture at 100 times per second eliminating the overall area flicker. The result is a
clear stable picture which is more relaxing for the eye.
CrystalClear III
A unique package of picture innovations including combfilter,scavem,and dynamic contrast adjustment giving
natural colours, high contrast and high level of details.
Active Control
The tv automatically analyses the incoming signal and
adjust the key picture parameters of noise,sharpness,
colour,contrast and format giving the best possible at
all times.
Dolby Virtual
Using Dolby sound processing to widen the stereo
sound signal to give the impression that sound is coming from all around you.
1200 Page Easytext
Extremely fast access to many text pages and the ability to scroll through subpages with no wait.
Top Controls
Volume and channel change controls on top of the tv to
enable easy adjustment without the remote control.
Side Connections
Connections for headphone and other inputs such as
camcorder,side entry for ease of use.
29” 100Hz Virtual Dolby Super Flat
Connections
Side
• S-Video (Y/C) in
• CVBS Video in
• Audio L/R (cinch/RCA) in
• Headphone Jack 3,5 mm out
Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
• Euro A/V connector Ext2 (S-Video in/out,
CVBS in/out)
• Stereo Audio out (cinch) Constant level
Information
• 1200 Page Text level 2.5 with Habit Watch
• Program Information Line
• NexTView Level 2
• NexTView Link
Reception
• Tuning System:PLL digital tuning
• Tuner:VHF,UHF,S-Channel, Hyperband
• Aerial Input:75 ohm Coaxial
• TV System:See table
• Stereo System : See table
• Video Playback : NTSC 4.43/3.58
Miscellaneous
• Mains: AC 220-240V +/- 10%
• Power Consumption: 104W Normal Operation
0,55W Stand by
• Set W eight: 43kg
• Weight Incl. Packaging:44.6kg
• Set Dimension (WxHxD):780x582x501 mm
• Box Dimension (WxHxD) : 889x717x661
• TV Colour:Digital Silver (10810)
Predecessor :
Chassis :EMG
Introduction :Year 2000
Features and specifications subject to change without notice
29
PT8346
29
PT8346
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
29PT8346 /05
••• •• • •• •• ••
29PT8346 /12
••• •• • •• •• ••
29PT8346 /19
••• •• • •• •• ••
29PT8346 /58
••• •• • •• •• ••
