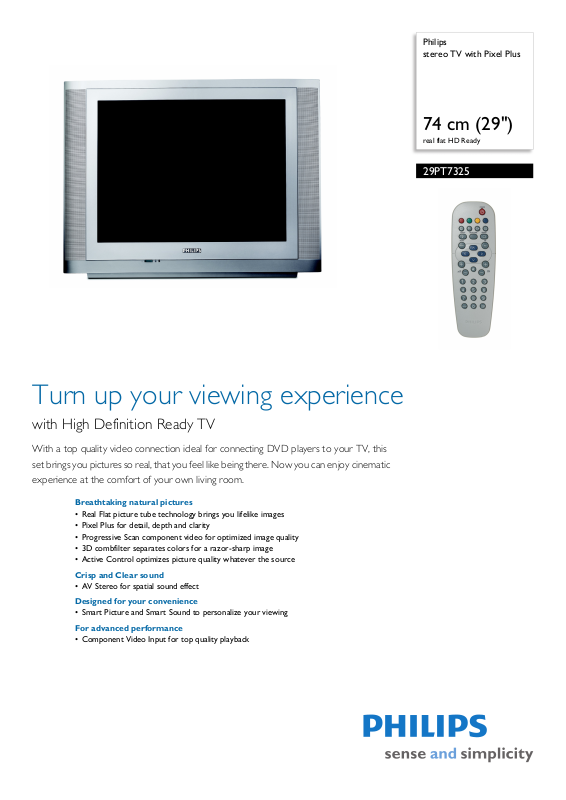

Page 1
Philips
stereo TV with Pixel Plus
74 cm (29")
real flat HD Ready
29PT7325
Turn up your viewing experience
with High Definition Ready TV
With a top quality video connection ideal for connecting DVD players to your TV, this
set brings you pictures so real, that you feel like being there. Now you can enjoy cinematic
experience at the comfort of your own living room.
Breathtaking natural pictures
• Real Flat picture tube technology brings you lifelike images
• Pixel Plus for detail, depth and clarity
• Progressive Scan component video for optimized image quality
• 3D combfilter separates colors for a razor-sharp image
• Active Control optimizes picture quality whatever the source
Crisp and Clear sound
• AV Stereo for spatial sound effect
Designed for your convenience
• Smart Picture and Smart Sound to personalize your viewing
For advanced performance
• Component Video Input for top quality playback
Page 2
Stereo TV with Pixel Plus
74 cm (29") real flat HD Ready
Highlights
29PT7325/69
Real Flat picture tube
The flatter tube provides a wider viewing angle
w
hile minimizing reflections for the best
picture possible.
Pixel Plus
Pixel Plus is a digital picture processing
te
chnology that increases the number of lines
and the number of pixels. The result is razor
sharp pictures with incredible detail and depth,
every time from any source.
Progressive Scan
Progressive Scan doubles the vertical
res
olution of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
3D Combfilter
The 3D comb filter separates brightness and
c
olor signals better in 3D domain to eliminate
cross-color, cross-luminance and dot-crawl
distortion - all of which detract from your
viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the
television image to accurately separate the
color from the black-and-white information
and remove both horizontally and vertically
hanging dots, as well as dot crawl. The result is
a razor sharp image.
Active Control
Active Control ensure that noise and
sharpness impro
made at a rate of 60 times per second. By
continually adjusting picture setting over 3,000
vements are continuously
times per minute, Active Control Plus ensures
that the viewing experience is optimized.
AV Stereo
By connecting the TV to an AV source with
s
tereo sound, the TV converts the mono
sound to spatial stereo sound for a lifelike
experience.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and
Smart Sound
a single key on the remote control. You can
select optimized picture and sound settings for
the various picture and sound modes.
Component Video Input (YPbPr)
Component Video is the highest quality
i
nterconnection standard for analog video. It is
sharper than S-video and composite video.
provide you with direct access via
Page 3
Stereo TV with Pixel Plus
74 cm (29") real flat HD Ready
Specifications
29PT7325/69
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 29 inch / 72 cm
• Visible diagonal screen size: 68 cm
• Display screen type: Re
• Picture enhancement: Contrast Plus, Progressive
an, Scavem, 3D Combfilter, Active Control Plus,
sc
Black stretch, Color Transient Improvement,
Color Temperature Adjustment, Luminance
Transient Improver, Tint, 3:2 pull-down, Dynamic
Noise Reduction, Pixel Plus, Smart Picture
• Picture processing: 100 Hz
• Color cabinet: Silver Frost
al Flat
picture tube
Supported Display Resolution
• Video formats
Resolution Refresh rate
1080i 60Hz
720p 50, 60Hz
480p 60Hz
Sound
• Music Power: 20 W
• Output power (RMS): 2 x 10 w
• Sound Enhancement: Auto Volume Leveller,
Sound
• Sound System: Stereo Playback
Smart
Convenience
• Ease of Installation: Auto Volume Leveler,
Autostore, Fine Tuning
• Ease of Use: Smart Picture, Smart Sound
• Remote control type: RCLA014
• Clock: Sleep Timer
• On-Screen Display languages
•Remote control: Zappa
• Screen Format Adjustments: 16:9 compress, 4:3,
4:3 expan
d
English, Malay, Thai
:
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I
• Video Playback: NTSC, PAL
•Tuner Display: PLL
• Number of Preset Channels: 100
Connectivity
• AV 1: Component Video in, CVBS in
• AV 2: CVBS, S-Video
•AV 3: Monitor Out
• Front / Side connections: Headphone out, S-video
V
BS in
in, C
Power
• Power consumption: 121 W
• Standby power consumption: < 1 w
• Mains power: 220V, 50/60Hz
Dimensions
• Set dimensions (W x H x D): 785 x 590 x 502 mm
• Set weight: 46 kg
• Weight incl. Packaging: 50 kg
•Box dimensions (W x H x D):
7 x
758 x 666 mm
89
•
Issue date 2011-06-07
Version: 2.0.3
12 NC: 8670 000 22724
EAN: 87 10895 89649 8
