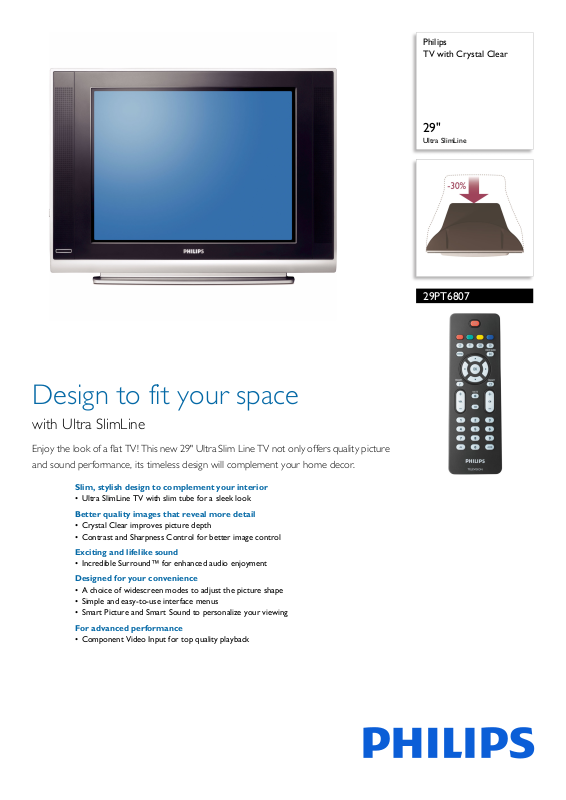

Page 1
Philips
TV with Crystal Clear
29"
Ultra SlimLine
29PT6807
Design to fit your space
with Ultra SlimLine
Enjoy the look of a flat TV! This new 29" Ultra Slim Line TV not only offers quality picture
and sound performance, its timeless design will complement your home decor.
Slim, stylish design to complement your interior
• Ultra SlimLine TV with slim tube for a sleek look
Better quality images that reveal more detail
• Crystal Clear improves picture depth
• Contrast and Sharpness Control for better image control
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Designed for your convenience
• A choice of widescreen modes to adjust the picture shape
• Simple and easy-to-use interface menus
• Smart Picture and Smart Sound to personalize your viewing
For advanced performance
• Component Video Input for top quality playback
Page 2
29PT6807/94
TV
29" Ultra SlimLine
Highlights
Ultra SlimLine TV
Philips SlimLine TV uses a slimmer CRT tube
to
give an overall slimmer TV that is up to 40%
thinner than a traditional CRT TV while
delivering the same superior picture quality.
Crystal Clear
Combining picture enhancements like
Co
ntrast plus and color improvement, Crystal
Clear improves picture depth.
Contrast & Sharpness Control
Contrast and Sharpness Control for better
image cont
Incredible Surround™
Incredible Surround is an audio technology
from Phi
rol
lips that dramatically magnifies the
sound field to immerse you in the audio. Using
state-of-the-art electronic phase shifting,
Incredible Surround mixes sounds from left
and right in such a way that it expands the
virtual distance between the two speakers.
This wider spread greatly enhances the stereo
effect and creates a more natural sound
dimension. Incredible Surround allows you to
experience total surround with greater depth
and width of sound, without the use of
additional speakers.
Widescreen movie modes
Enhance your viewing experience with
Wides
creen movie modes, which lets you
choose the screen format from various
options. View your movie the way it is meant
to be.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and
Smart Sound
a single key on the remote control. You can
select optimized picture and sound settings for
the various picture and sound modes.
Component Video Input (YPbPr)
Component Video is the highest quality
i
nterconnection standard for analog video. It is
sharper than S-video and composite video.
provide you with direct access via
Page 3
R
L
VIDEO in
AUDIO
in
S-VIDEO
L
R
VIDEO
Monitor out
AUDIO
AV in
L
R
AUDIO
Y
Pb
Pr
CVI
29PT6807/94
TV
29" Ultra SlimLine
Specifications
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 29 inch / 72 cm
• Visible diagonal screen size: 68 cm
• Display screen type: Slim picture tube
• Picture enhancement: Color Temperature
st
ment, Sharpness Adjustment, Contrast Plus,
Adju
Dynamic Noise Reduction
Sound
• Output power (RMS): 2x10W
• Sound Enhancement: Treble and Bass Control,
Balance, In
credible Surround, Auto Volume
Leveller
• Sound System: Stereo Playback
Convenience
• Ease of Installation: Autosearch, Fine Tuning
• Ease of Use: Smart Picture, Smart Sound
• Screen Format Adjustments: 4:3, Widescreen, 4:3
nd
expa
• Clock: On/Off event timer, Sleep Timer
• On-Screen Display languages: English
• Remote control type: RCLA021
• Remote control: Racer
Tuner/Reception/Transmission
• Tuner bands: UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/G
SECAM D/K
• Video Playback: NTSC, PAL
• Number of Preset Channels: 200
Connectivity
• AV 1: Audio L/R in, Component Video in
• AV 2: Audio L/R in, CVBS in
• Front / Side connections: CVBS in, Audio L/R in, So in
vide
• Other connections: Monitor out, CVBS, L/R
h)
(cinc
Power
• Mains power: AC 100-240V, 50/60Hz
• Standby power consumption: <3W
• Power consumption: 105 W
Dimensions
• Color cabinet: Bi colour Black and Silver Frost
• Set dimensions (W x H x D): 781 x 588 x 400 mm
•Box dimensions (W x H x D):
667 x 493 mm
877 x
• Product weight: 40.24 kg
• Weight incl. Packaging: 43.7 kg
Accessories
• Included accessories: 2 x AAA Batteries, Remote
Control, User Manual
•
,
Issue date 2018-03-16
© 2018 Koninklijke Philips N.V.
All Rights reserved.
Version: 2.0.10
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 25953
EAN: 87 12581 30649 6
www.philips.com
