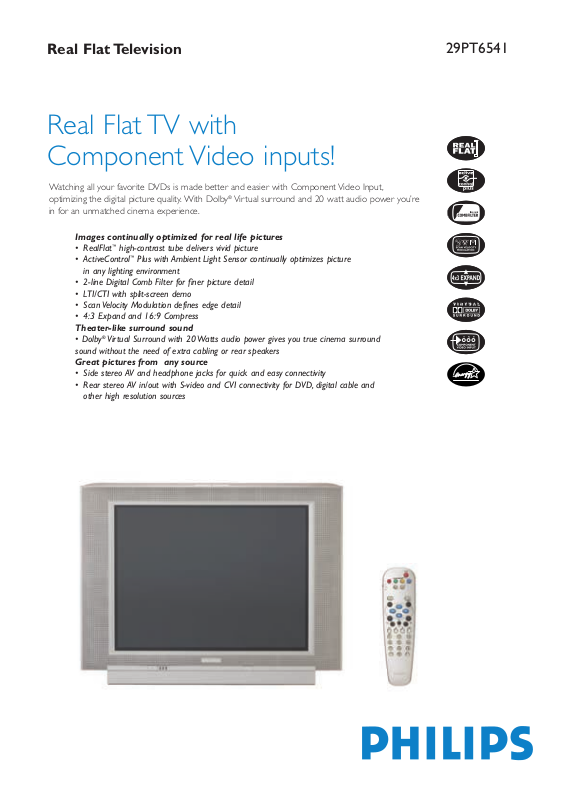

Philips 29PT6541 User Manual

Real Flat Television

Real Flat TV with Component Video inputs!

Watching all your favorite DVDs is made better and easier with Component Video Input, optimizing the digital picture quality. With Dolby®Virtual surround and 20 watt audio power you’re in for an unmatched cinema experience.

29PT6541

Images continually optimized for real life pictures

• RealFlat

• ActiveControl™Plus with Ambient Light Sensor continually optimizes picture

• 2-line Digital Comb Filter for finer picture detail

• LTI/CTI with split-screen demo

• Scan Velocity Modulation defines edge detail

• 4:3 Expand and 16:9 Compress

Theater-like surround sound

• Dolby®Virtual Surround with 20 Watts audio power gives you true cinema surround sound without the need of extra cabling or rear speakers

Great pictures from any source

• Side stereo AV and headphone jacks for quick and easy connectivity

• Rear stereo AV in/out with S-video and CVI connectivity for DVD, digital cable and

™

high-contrast tube delivers vivid picture

in any lighting environment

other high resolution sources

Real Flat Television 29PT6541

Technical specifications


• Screen size : 29” (74 cm)

• Viewing area : 68 cm (NBR 5258)

• Picture tube : RealFlat™4:3

• Scan Velocity Modulation

• 2-line Digital Combfilter

• Dynamic Noise Reduction (DNR)

• Digital Color Transient Improvement (CTI)

• Luminance Transient Improvement (LTI)

• ActiveControl™Plus

-LTI

-CTI

- Light Sensor

• Tint Control (NTSC)

Sound Quality

• Sound Power : 2 x 10 Watts RMS

• Stereo and SAP

• Dynamic Ultra Bass

•Dolby®Virtual Surround

• Auto Volume Leveler

Features

• Demo mode

• Closed Caption

• Format Modes : 4:3, 4:3 Expand, 16:9 Compress

Ease of Use

• Cursor User Interface

• Auto Picture™(5 modes)

• Auto Sound™(4 modes)

• American, French & Spanish

OSD and menu control

• On/Off Event Timer/Clock

• Sleep timer

• V-Chip

• QuadraSurf™Universal Remote

with glow buttons

Connections

Side Connections

• Headphone

• 1 AV In Stereo Rear Connections

• AVI : 1 AV In Stereo or CVI

• AV2 : 1 AV In Stereo or S-Video

• AV out

Reception

Tuning System : PLL Color transmission : - NTSC M Stereo sound : - BTSC transmission system off-airx

Miscellaneous

Mains : 90-140 V, 60 Hz Power Consumption : 137 (110 V)/67 W (220 V)

(Normal Operation) 1W Standby

Net Weight : 49 Kg Gross Weight : 55 Kg Set Dimensions : 755 x 578 x 493 mm

(W x H x D mm)

Box Dimensions : 816 x 637 x 565 mm

(W x H x D mm)

Cabinet Color : Silver Shadow

Product highlights

RealFlat™picture tube

Undistorted and reflection-free picture for maximum viewing comfort.

™

ActiveControl

Enhanced with LTI/CTI and an Ambient Light Sensor, noise, sharpness, brightness, contrast and color are continuously analyzed and picture settings are optimized to give you the best picture in any lighting environment and condition.

Color Transient Improvement

Color signals are processed to bring out subtle differences resulting in greater depth and enhanced color definition.

Luminance Transient Improvement

LTI increases clarity and sharpness especially between dark and light areas of an image, ensuring clear and crisp pictures.

4 : 3 Expand

Expands movie images recorded in letterbox format by removing the black horizontal bars at the top and bottom and filling the entire screen.

16:9 Compress

Compresses full screen movie images into letterbox format by adding the black horizontal bars at the top and bottom of the TV screen. It eliminates the stretched effect of anamorphic movies.

Dolby

Creates a soundstage in front and around the viewer for more immersing home entertainment experience utilizing the built-in speakers only.

QuadraSurf with glow buttons

Elegantly designed with glow buttons, finding the remote control in the dark is no more a chore.

Component Video input

The best possible input for high resolution sources such as DVD, STBs and game consoles for superb color purity, detail and reduced color noise, surpassing even S-Video.

Predecessor : 29PT6631 Chassis : L04

Plus

Virtual surround

™

Universal Remote control

Side AV + Headphone

For more information consult the website

www.philips.com

Date of issue: Jan 2004

Dolby and the double-D symbol are trademarks of Dolby Laboratories Licensing, Inc.

Subject to change without notice.

Rear AV Input/Outputs
