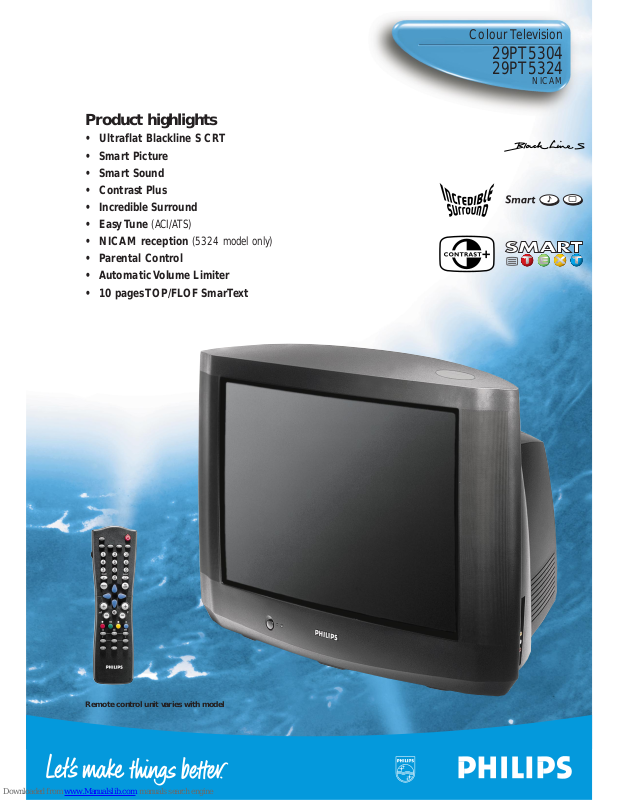

Page 1
Colour Television
29PT5304
29PT5324
NICAM
Product highlights
• Ultraflat Blackline S CRT
• Smart Picture
• Smart Sound
• Contrast Plus
• Incredible Surround
• Easy T une (ACI/A TS)
• NICAM reception (5324 model only)
• Parental Control
• Automatic V olume Limiter
• 10 pages TOP/FLOF SmarText
Remote control unit varies with model
Page 2
Colour Television
29PT5304
29PT5324
NICAM
Product highlights
• Ultraflat Blackline S CRT
• Smart Picture
• Smart Sound
• Contrast Plus
• Incredible Surround
• Easy T une (ACI/A TS)
• NICAM reception (5324 model only)
• Parental Control
• Automatic V olume Limiter
• 10 pages TOP/FLOF SmarText
Remote control unit varies with model
Page 3
Colour Television
29PT5304
29PT5324
NICAM
Product Information
Screen Size 29” (72cm)
Picture Tube 29” Ultraflat Blackline S
CRT
Visible Diagonal 68cm
Invar Mask
Scan V elocity Modulation (SCAVEM)
Contrast Plus
Smart Picture Modes Soft,Natural, Rich,
Personal
16:9 mode
Sharpness Control
Colour T emperature Control
Sound
Sound Output 2 x 8W RMS
Loudspeakers Full Range 2 x 5”
Incredible Surround
Smart Sound Modes Theatre,Music,
Voice, Personal
Bilingual Switch on Remote Control
Seperated Headphone Volume Control
Reception
Tuning System PLL Tuning
Tuner UV,S and Hyperband
Channel Selection 100 presets
Aerial Input 75 Ohm Coaxial
TV Systems See table
Video Playback NTSC 3.58/4.43
Stereo System See table
Teletext
Reception Stds TOP/FLOF
10 Pages memory
SmarText (4 favorite pages)
Connections
Side Stereo headphones out (3.5 mm)
Video CVBS In
S-Video In x 1
Audio In Cinch x 1 (Stereo)
Rear Ext 1:Scart RGB In + CVBS In/Out
Ext 2:Scart CVBS In/Out + Y/C In
Audio Out Cinch x 1 (Stereo)
Operation
Remote Control RCE82B
No.of RC buttons 44 buttons
Side TV/VCR switch on remote control
On Screen Display (OSD)
Cursor Control
Multi Languages selection
Information Line
Alternative Channel Selection
Parental Control
Sleep Timer (120 minutes)
Daily on/off clock
Measurements
Mains 220 - 240V,50/60 Hz
Power Consumption 110W Normal Oper.
3W Standby
Net Weight 37 kg (approx.)
Gross Weight 43 kg (approx.)
Gross Weight,incl.stand 48 kg (approx.)
Set Dimension 761 x 507 x 590
(W x D x H mm)
Box Dimension 849 x 628 x 734
(W x D x H mm)
Box Dimension, 849 x 628 x 802
incl.stand (W x D x H mm)
Product Highlights
Ultraflat Black Lines S CRT
The Ultraflat screen provides an improved viewing
angle, less disturbing reflections and prevents image
distortion. The Black Lines also offer s high contrast for
natural colours and improved daytime viewing.
SCAVEM (Scan Velocity Modulation) varies the speed
of the electron beam to enhance the image edges. This
circuit dramatically improves the overall picture
definition and contrast.
Contrast Plus greatly enhances the degree of black
to white contrast,thus optimizing the total contrast for
improved picture clarity.
Incredible Surround actively processes the signal
using advanced electronics and psycho-acoustic method
to widen the stereo spiritual image.
This feature provides incredible sound with extra depth
and an unbelievable three-dimensional effect.
Smart Picture provides user with four factory preset
positions (Soft,Natural, Rich, Personal) to enhance
enjoyment of video games, spor ts , movies etc. By
selecting the desired option,all the important picture
elements are instantly adjusted to optimize viewing
pleasure.
Smart Sound provides user with four factory preset
positions (Theatre, Music,Voice,Personal) to suit every
individual sound preference when viewing different
programmes or sources.
Easy T une (A TI/ACS) provides you the ease of
installing and storing channels with no fuss.
Chassis : A8
Release Date : January 1999
Reference : GBP E 1297 Features and specifications subject to change without notice
version stereo transmission stand
system system supplied
in the
box
2CS
DK
•
NICAM
DK
•
2CS
BG
•
•
•
NICAM
BG
•
•
NICAM
I
•
•
NICAM
LL’
•
PAL
BG
•
•
•
PAL
DK
•
PAL
I
•
•
SECAM
BG
•
•
SECAM
DK
•
SECAM
LL’
•
29PT5304 /00
29PT5324 /01
29PT5324 /05
29PT5324 /58
