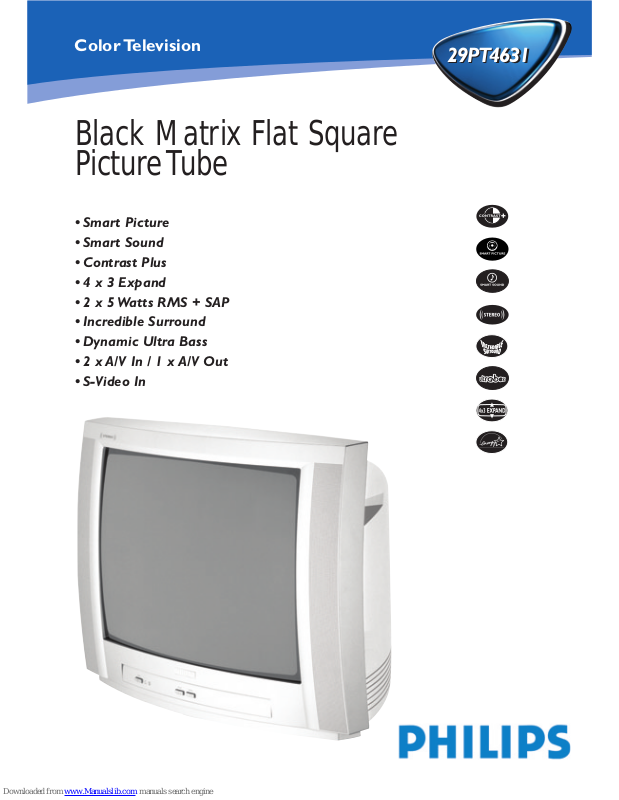

Page 1
29PT4631
29PT4631
Color Television
Blac k Matrix Flat Square
Picture T ube
• Smart Picture
• Smart Sound
• Contrast Plus
• 4 x 3 Expand
• 2 x 5 Watts RMS + SAP
• Incredible Surround
• Dynamic Ultra Bass
• 2 x A/V In / 1 x A/V Out
• S-Video In
Page 2
Color Television
29PT4631
29PT4631
Product Information
• Screen size 74 cm
• Picture tube Black Matrix Invar Mask
• Viewing area 68 cm (NBR 5258)
• Smart Picture Modes Rich, Natural, Soft,
Personal, Multimedia
• Contrast Plus
• Sharpness Control
• Color Temperature
Control
• 4:3 Expand
• Noise Reduction
Sound
• Sound output 2 x 5 Watts RMS
• Loudspeakers Full Range
• Smart Sound Modes Theatre, Music,
Voice, Personal
• Incredible Surround
• Dynamic Ultra Bass
• Auto Volume Leveller (AVL)
Reception
• Tuning system PLL digital tuning
• Tuner UV, S and Hyperband
(Pal Multisystem)
Full Cable
• Channel selection 100 presets (Pal)
181 presets (NTSC)
• Aerial input 75 Ohm Coaxial
• System PAL-M, PAL-N, NTSC,
PAL-BG Playback
Close Caption
• Full Text
Connectors
• Rear Stereo Audio/Video
input x 2
Stereo Audio/Video
out x 1
S-Video input
Operation
• Remote control RCLB014
• Number of remote 35 buttons
control buttons
• Multi language
on-screen display
•Surf
• Wake-up Clock
• Daily On/Off Timer
• Sleep Timer (240 minutes)
Measurements
• Mains 90-276V, 50/60 Hz
• Power consumption 88W
(Normal Operation)
1W Standby
• Net Weight 34.5 kg
• Gross weight 38.5 kg
• Set dimension 730 x 500 x 590
( W x D x H mm)
• Box dimension 798 x 555 x 658
( W x D x H mm)
• Container loading 304 (Truck)
168 (40’ DC)
• Cabinet Color Techno Silver (10811)
Product Highlights
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of five
preset positions (Rich, Natural,Soft,Personal,
Multimedia) to enhance enjoyment of video games,
sports and movies, also based upon the room lighting
condition.By selecting the desired option,all important
picture elements are instantly adjusted to optimize
viewing pleasure.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Theatre, Music,Voice,Personal) to suit
each individual sound preference when viewing
different programs or sources.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
4 x 3 Expand
Expands movie images recorded in letterbox format by
removing the black horizontal bars at the top and
bottom and filling the entire screen.
Incredible Surround
Actively processes the signal using advanced electronics
and psycho-acoustic method to widen the stereo spatial
image. This feature provides incredible sound with
extra depth and an unbelievable three-dimensional
effect that surrounds the user completely without the
need for additional surround speakers.
S-Video Input
Used for playback of S-VHS VCR tapes,Video Discs,
Video Games or Compact Disc-Interactive (cd-I) discs.
Better picture detail and clarity is possible with the
S-Video playback as compared to the picture from a
normal antenna (RF) connection.
Predecessor : 29PT558A
Chassis : L01 2K3
Release date : Q2 2003
Reference : PS&P/L01/Latam/29PT4631 v1.0
Date of issue : Jan 2003
Features and specifications subject to change
without notice
2003 © Philips Consumer Electronics
www.consumer.philips.com
