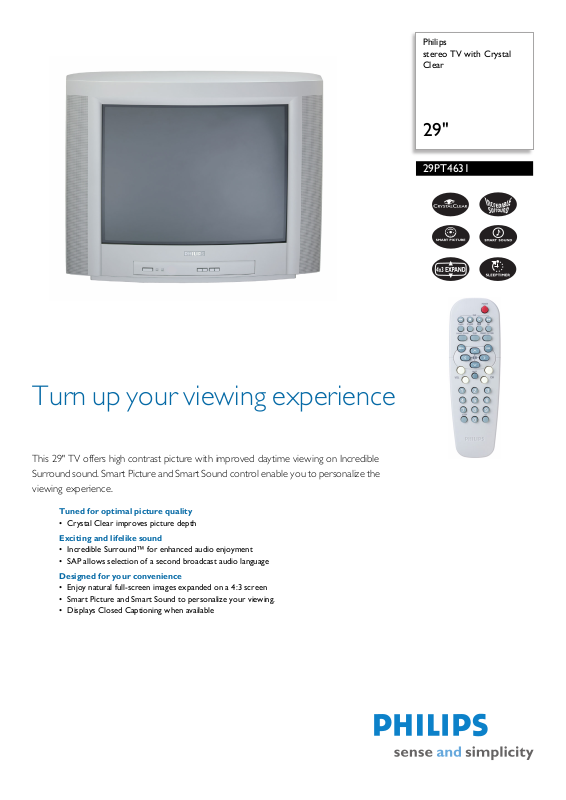

Philips 29PT4631 User Manual

Philips
stereo TV with Crystal
Clear

29"

29PT4631

Turn up your viewing experience

This 29" TV offers high contrast picture with improved daytime viewing on Incredible
Surround sound. Smart Picture and Smart Sound control enable you to personalize the
viewing experience.

Tuned for optimal picture quality

• Crystal Clear improves picture depth

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

• SAP allows selection of a second broadcast audio language

Designed for your convenience

• Enjoy natural full-screen images expanded on a 4:3 screen

• Smart Picture and Smart Sound to personalize your viewing.

• Displays Closed Captioning when available

stereo TV with Crystal Clear

29"

29PT4631/77R

Specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 29 inch / 74 cm

• Visible diagonal screen size: 68 cm

• Picture enhancement: Dynamic Noise
Reduction, Color Temperature Adjustment,
Tint

• Picture processing: 60Hz Analog, 50 Hz

Sound

• Output power (RMS): 2 x 5W

• Sound Enhancement: Auto Volume Leveller,
Ultra Bass

• Sound System: Incredible Surround, Stereo, SAP

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Use: Smart Picture Control, Smart Sound
Control

• Remote control type: RCLB014

• Teletext: Closed Captioning

• Screen Format Adjustments: 4:3 expand, 4:3

• Clock: On/Off event timer, Sleep Timer

• On-Screen Display languages: English, Spanish,
Portuguese

Tuner/Reception/Transmission

• TV system: NTSC, PAL M, PAL N

• Video Playback: PAL B/G

• Aerial Input: 75 ohm F-type

• Tuner Display: PLL

Connectivity

• Other connections: AV out

• AV 1: AV In

• AV 2: S-Video, AV in

Power

• Power consumption: 70 W

• Standby power consumption: <3 W

• Mains power: AC 100-250V, 50/60Hz

Dimensions

• Set dimensions (W x H x D):
733

x 585 x 496 mm

• Set weight: 34.5 kg

• Weight incl. Packaging: 38.5 kg

• Box dimensions (W x H x D):
798

x 653 x 555 mm

• Color cabinet: Silver Shadow (10811)

•

Crystal Clear

Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

SAP

Secondary Audio Program (SAP) allows you to choose
another language in program where two languages are
available.

4x3 Expand

4x3 Expand enables widescreen movies to be viewed on
a 4:3 aspect ratio TV screen by removing the black bars
at the top and bottom of the image. You are able to
watch full-screen movies without compromizing on
picture quality and resolution.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture modes such as
Eco, Natural, Rich, Multimedia and Personal, and sound
modes such as Movie, Voice, Music and Personal.

Closed Caption

Closed Caption displays text data, subtitles for spoken
audio or alternate language when available.

Date of issue 2007-01-26

Version: 8.0

12 NC: 8670 000 17407
EAN: 87 10895 74490 4

© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
