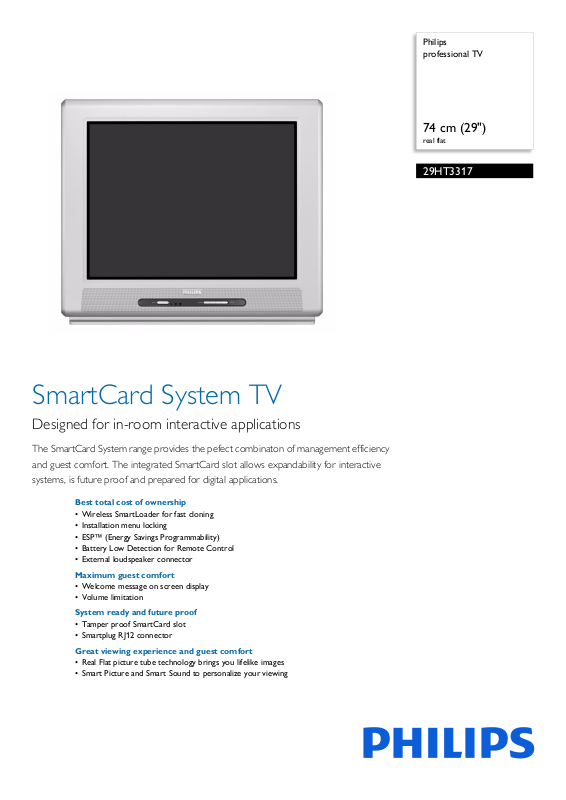

Page 1
Philips
professional TV
74 cm (29")
real flat
29HT3317
SmartCard System TV
Designed for in-room interactive applications
The SmartCard System range provides the pefect combinaton of management efficiency
and guest comfort. The integrated SmartCard slot allows expandability for interactive
systems, is future proof and prepared for digital applications.
Best total cost of ownership
• Wireless SmartLoader for fast cloning
• Installation menu locking
• ESP™ (Energy Savings Programmability)
• Battery Low Detection for Remote Control
• External loudspeaker connector
Maximum guest comfort
• Welcome message on screen display
• Volume limitation
System ready and future proof
• Tamper proof SmartCard slot
• Smartplug RJ12 connector
Great viewing experience and guest comfort
• Real Flat picture tube technology brings you lifelike images
• Smart Picture and Smart Sound to personalize your viewing
Page 2
Professional TV
74 cm (29") real flat
29HT3317/69Y
Specifications
Picture/Display
• Picture enhancement: Scavem, Comb Filter Digital
• Color cabinet: Silver Frost
• Aspect ratio: 4:3
• Display screen type: Re
• Picture processing: 50 Hz
• Diagonal screen size: 29 inch / 72 cm
Sound
• Sound Enhancement: Auto Volume Leveller,
Dynamic Bass Enhancement, Incredible Surround
• Output power (RMS): 2 x 5 W
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner bands: UVSH
•Tuner Display: PLL
•TV system: NTSC, PAL I, PAL B/G, PAL D/K,
SECAM B/G,
• Video Playback: NTSC, PAL, SECAM
• Number of Preset Channels: 125
• Stereo System: Nicam BG/DK/I, 2CS BG/DK
SECAM D/K
Connectivity
• AV 2: Audio L/R in, CVBS, Y/C
• Connectivity Enhancemen
connector, SmartCard Expansion Slot, External
Loudspeaker connector
•Front / Side connections: Audio
Headphone Out, S-video in
• Other connections: Monitor out
al Flat picture tube
ts: RJ12 SmartPlug
L/R in, CVBS in,
Convenience
• Clock: On main display, Sleep Timer
• Comfort: Hotel Guest features
• Ease of Installation: Advanced Hotel Mode,
omatic Tuning System (ATS), Cloning of TV
Aut
settings, Fine Tuning, Program Name
• Ease of Use: Smart Picture, Smart Sound
• On-Screen Display languages: En
Chinese
• Remote Control: TV
• Teletext: 10 page Smart Text
• Remote control type: RC2887
glish, Malay,
Accessories
• Included accessories: Batteries for remote control,
Remote Control
• Optional accessories: Set up Remote RC2573GR,
Wireless S
martLoader 22AV1120
Loudspeakers
• Built-in speakers: 2
Power
• Mains power: AC 90-276V, 50/60Hz
• Power consumption: Normal Operation 81 W
Dimensions
• Set weight: 43 kg
• Weight incl. Packaging: 47.5 kg
• Carton dimensions (WxDxH) inch: 872 x 764 x
4
63
• Product dimensions (WxDxH): 702 x 598 x 501
•
Highlights
Wireless SmartLoader
Provides the ability to copy easy and wireless all
programmming settings from one TV set into other
TV sets in less then a minute. The feature ensures
uniformity between TV sets and significantly reduces
installation time and costs.
Installation menu locking
Prevents unauthorized access to installation and
configuration settings, to ensure maximum guest
convenience and avoid unnecessary reprogramming
costs.
ESP™
Feature can be selected in the set-up menu. The TV
can be switched off automatically after a specified
period of use saving energy and provide extended
product life time. The selectable range is from 0 to
99 hours.
Battery Low Detection
This feature informs of the need to replace the
remote control batteries preventing nuisance calls
and unneccessary replacement of batteries.
External loudspeaker connector
Amplified audio connector for easy installation of
external speakers (like for bathrooms), eliminating
the need for investments in external equipment
Welcome message
A welcome greeting is displayed each time the TV set
is switched on.
Volume limitation
This feature predefines the volume range with which
the TV set is allowed to operate, preventing
excessive volume adjustments and avoiding
disturbance of next door guests.
Integrated SmartCard Slot
The integrated SmartCard slot allows third parties
to add new functionality to the TV through
application cards, without the need for additional
boxes and external connections. The TV can also be
connected to external decoders and set-top boxes
of all major interactive system providers, through
the SerialXpress Control Interface (supporting
UART and RS232 protocols) and the SmartPlug
Control interface.
Smartplug RJ12 connector
The Smartplug RJ12 connector permits OEM or 3rd
party decoders and controllers to interface with the
TV.
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.
Issue date 2014-02-11
Version: 1.0.3
12 NC: 8670 000 20688
EAN: 87 10895 82785 0
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
