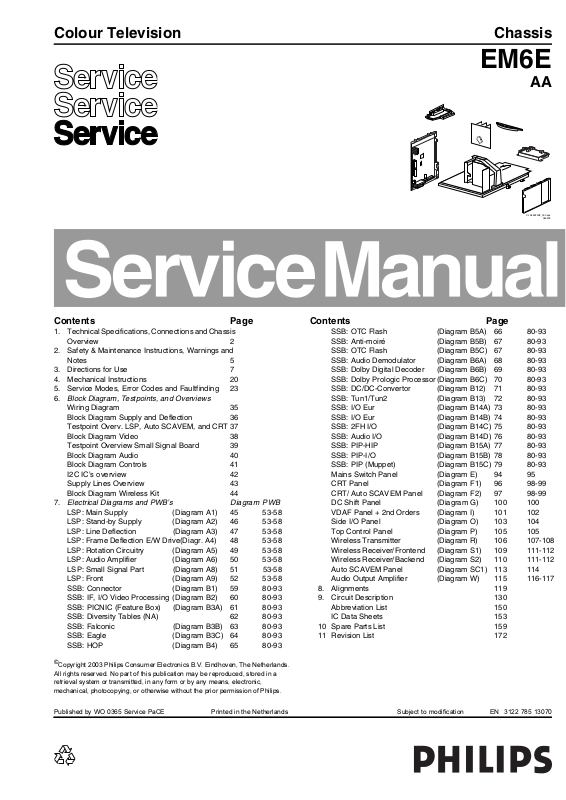

Philips 28PW961805 Schematic

Colour Television Chassis

EM6E

AA

CL 36532008_000.eps

060503

Contents Page Contents Page

1. Technical Specifications, Connections and Chassis
Overview 2

2. Safety & Maintenance Instructions, Warnings and
Notes 5

3. Directions for Use 7

4. Mechanical Instructions 20

5. Service Modes, Error Codes and Faultfinding 23

6. Block Diagram, Testpoints, and Overviews
Wiring Diagram 35
Block Diagram Supply and Deflection 36
Testpoint Overv. LSP, Auto SCAVEM, and CRT 37
Block Diagram Video 38
Testpoint Overview Small Signal Board 39
Block Diagram Audio 40
Block Diagram Controls 41
I2C IC’s overview 42
Supply Lines Overview 43
Block Diagram Wireless Kit 44

7. Electrical Diagrams and PWB’s Diagram PWB
LSP: Main Supply (Diagram A1) 45 53-58

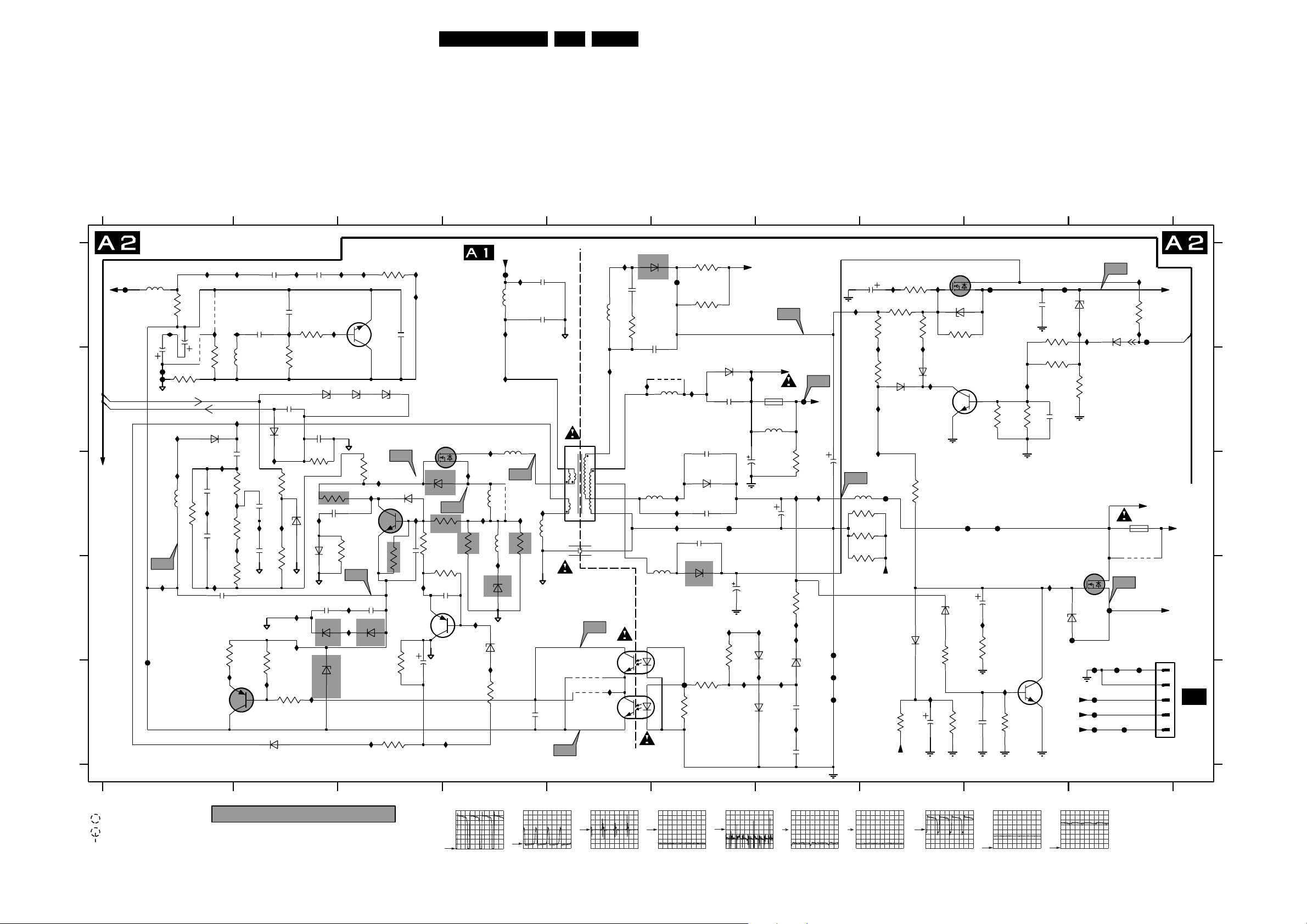

LSP: Stand-by Supply (Diagram A2) 46 53-58

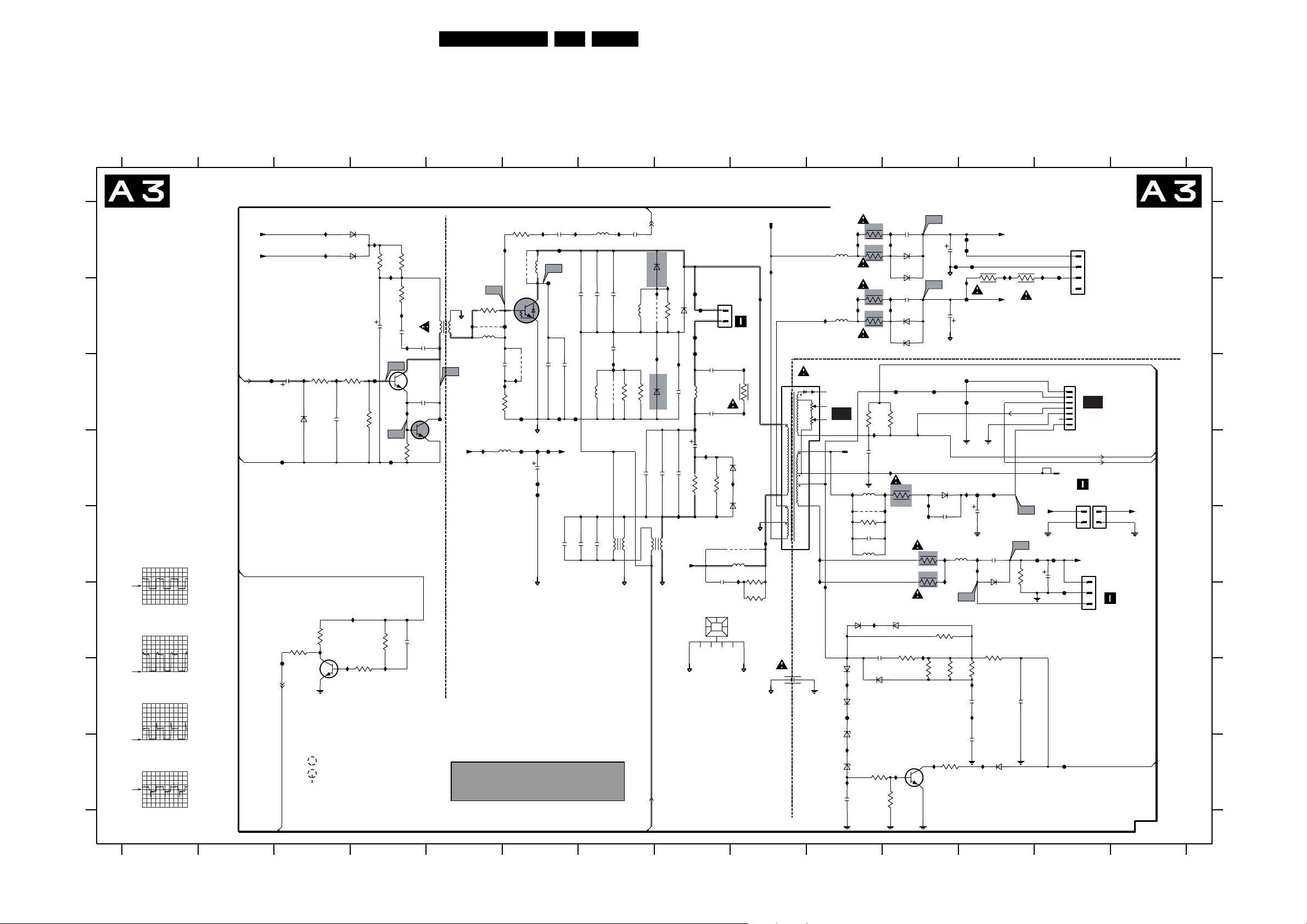

LSP: Line Deflection (Diagram A3) 47 53-58

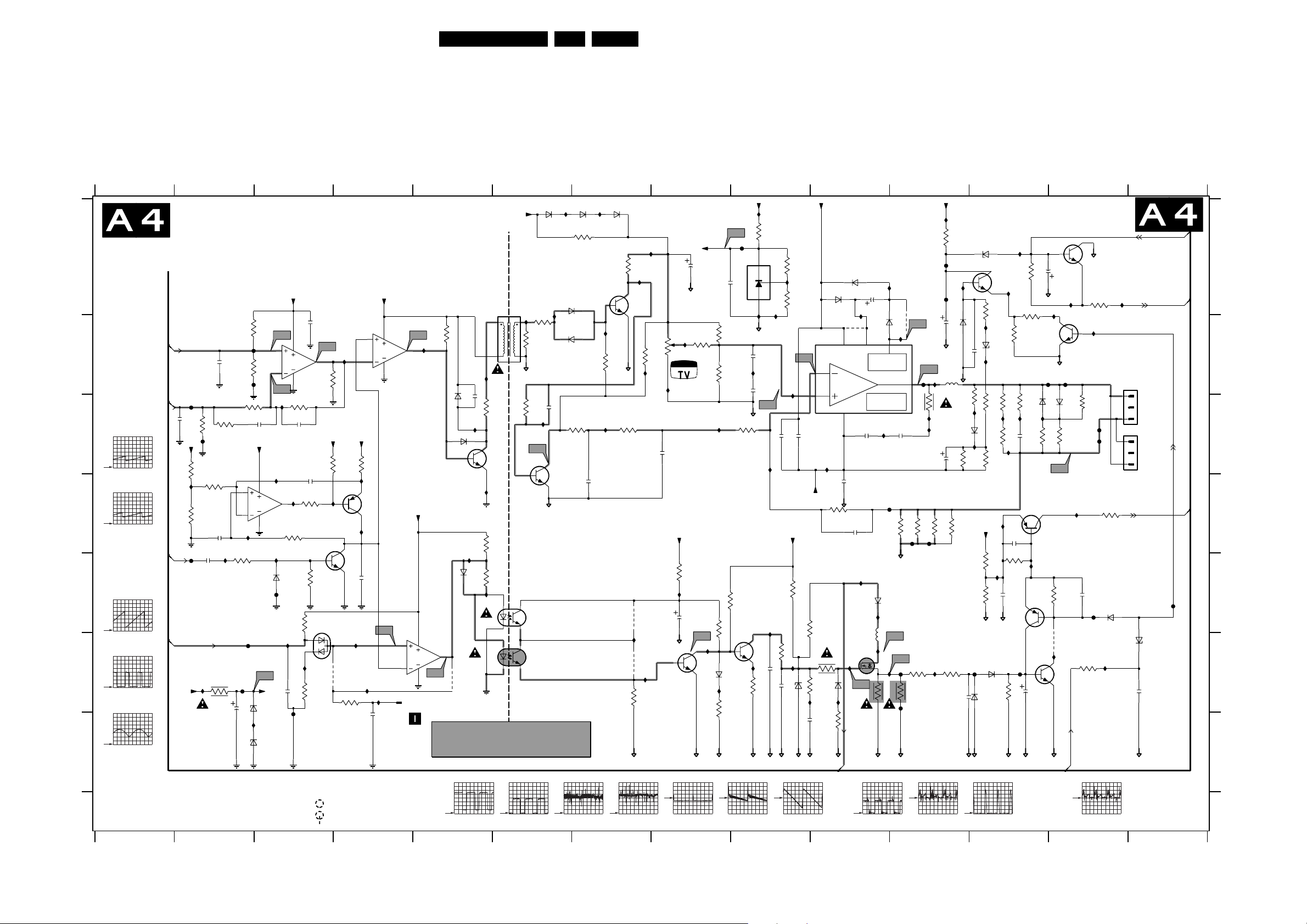

LSP: Frame Deflection E/W Drive(Diagr. A4) 48 53-58

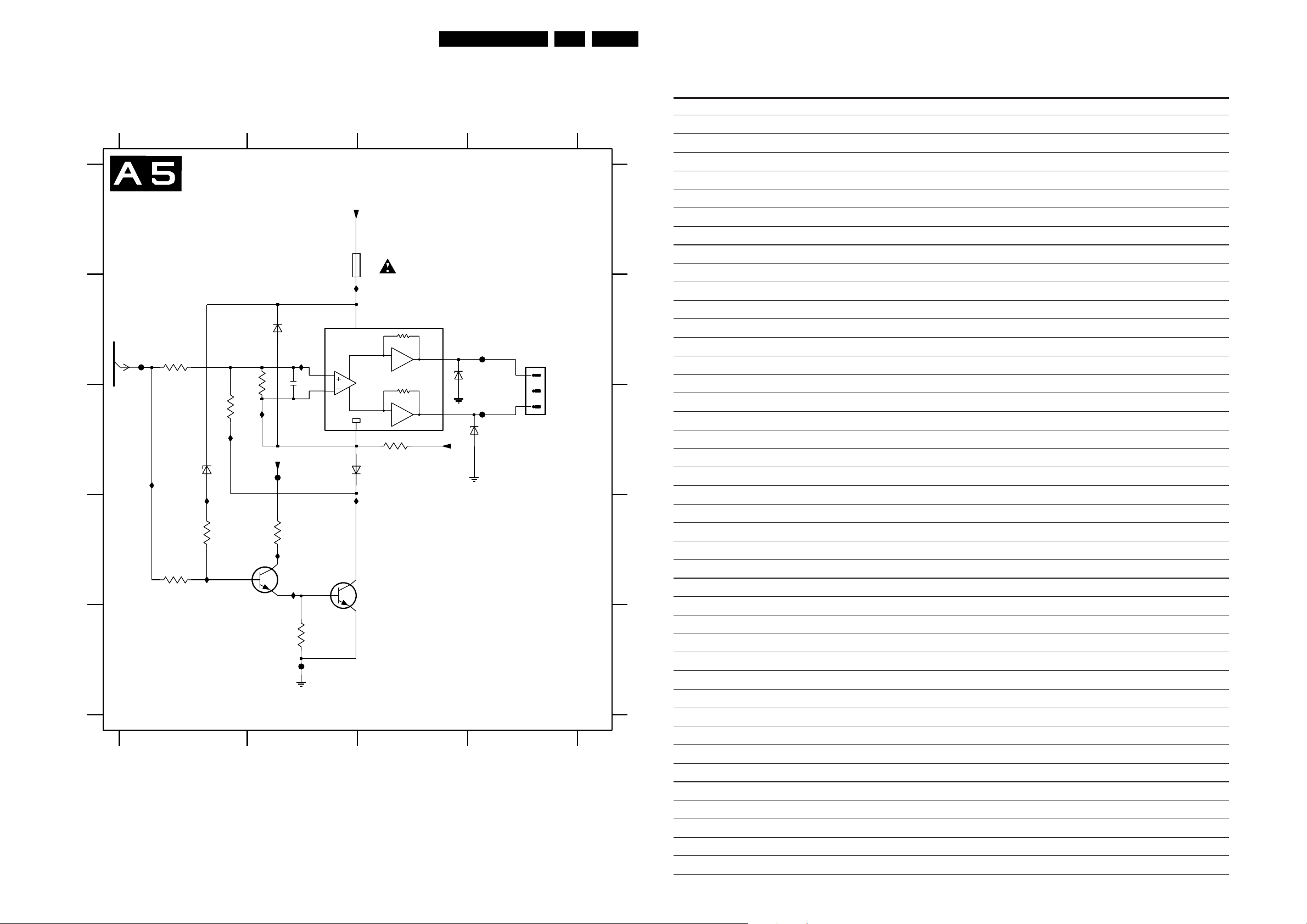

LSP: Rotation Circuitry (Diagram A5) 49 53-58

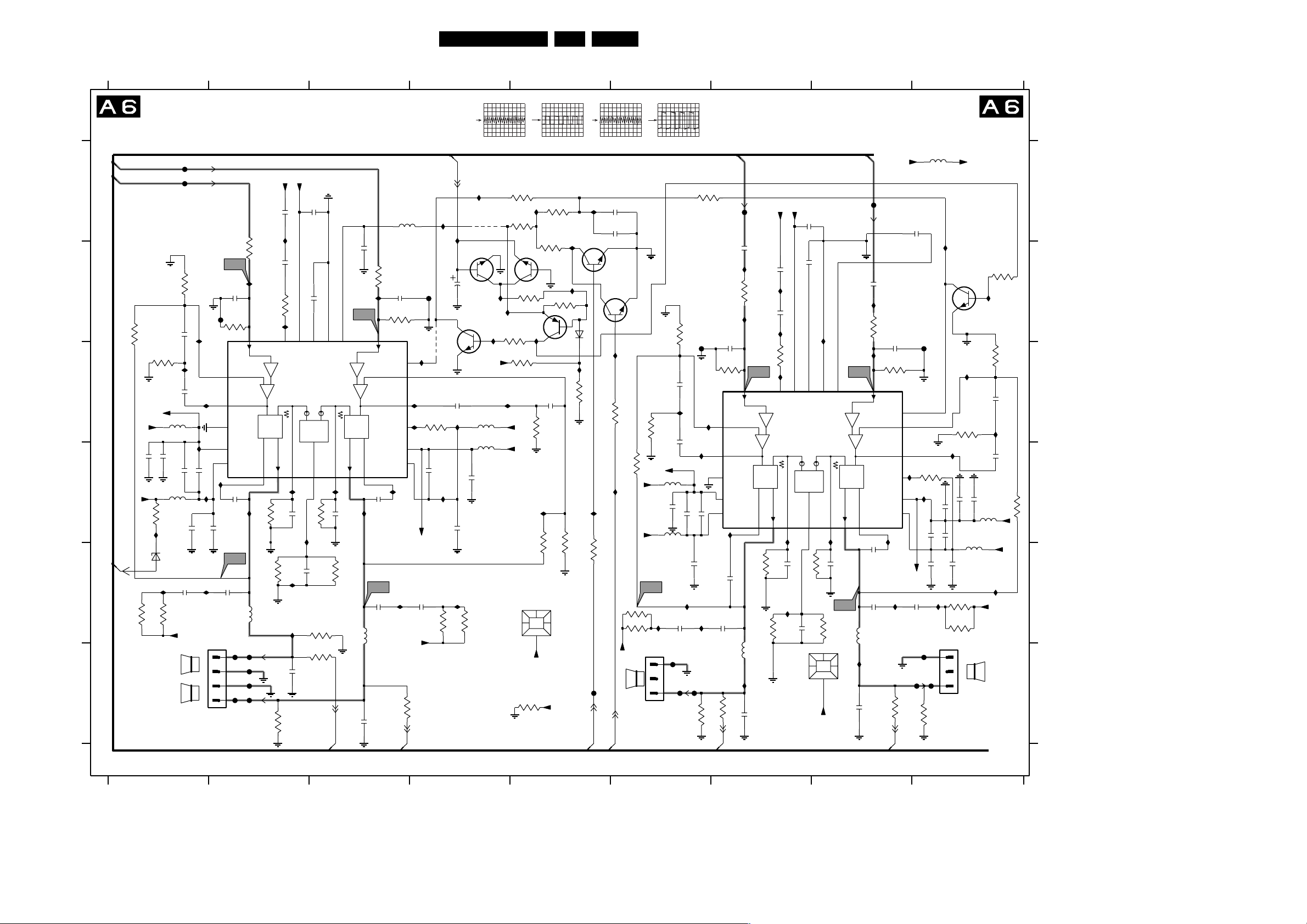

LSP: Audio Amplifier (Diagram A6) 50 53-58

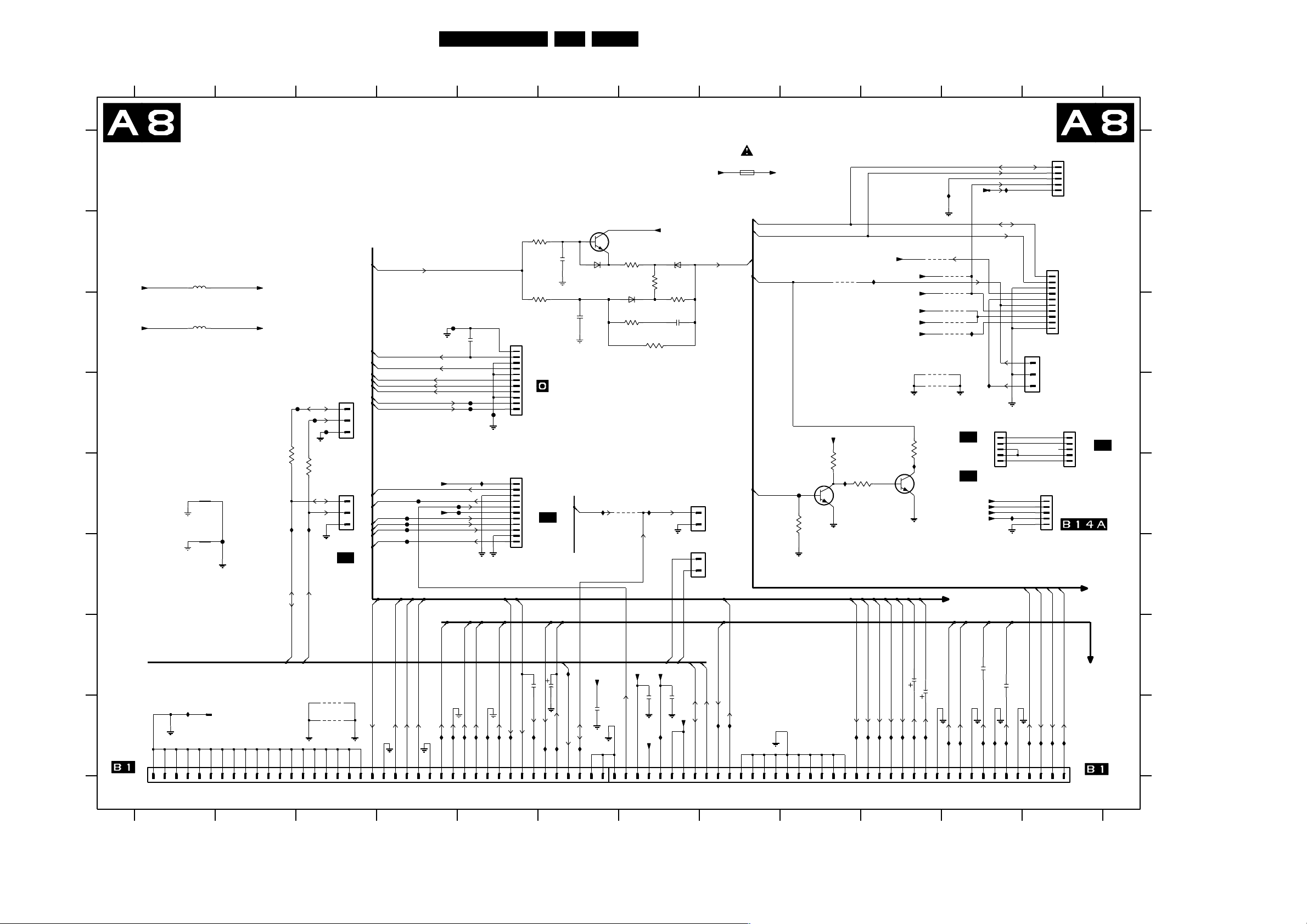

LSP: Small Signal Part (Diagram A8) 51 53-58
LSP: Front (Diagram A9) 52 53-58

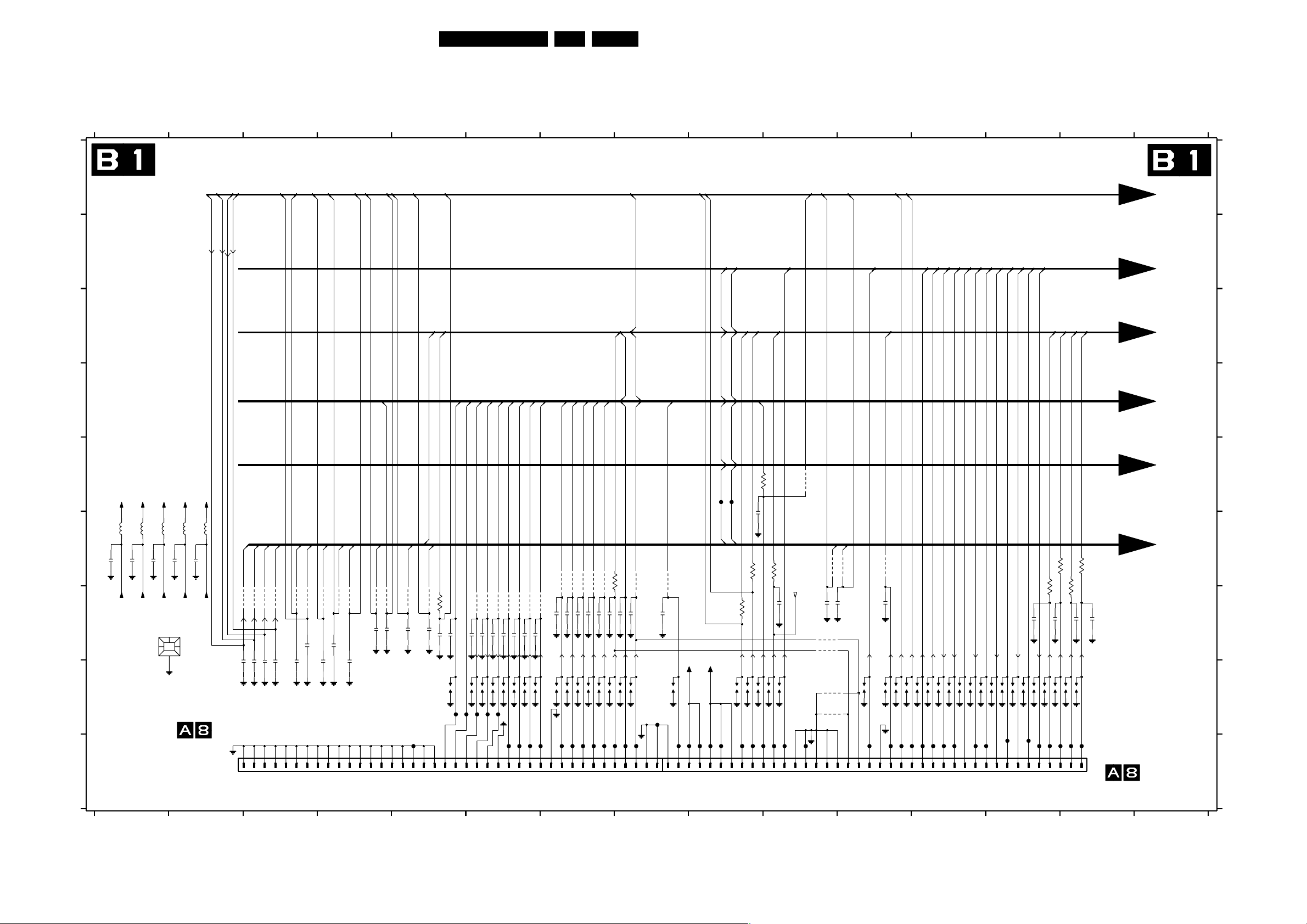

SSB: Connector (Diagram B1) 59 80-93

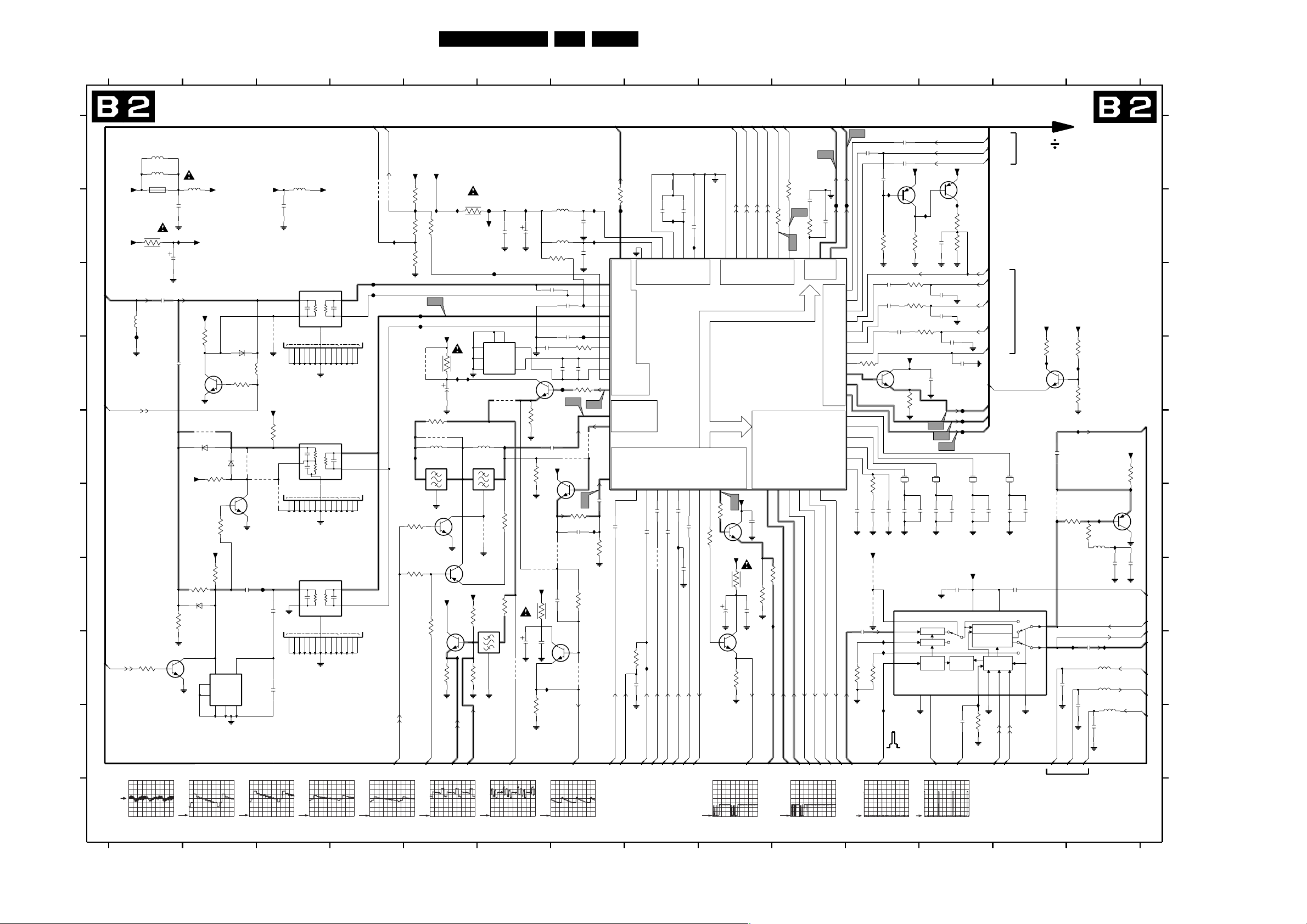

SSB: IF, I/O Video Processing (Diagram B2) 60 80-93

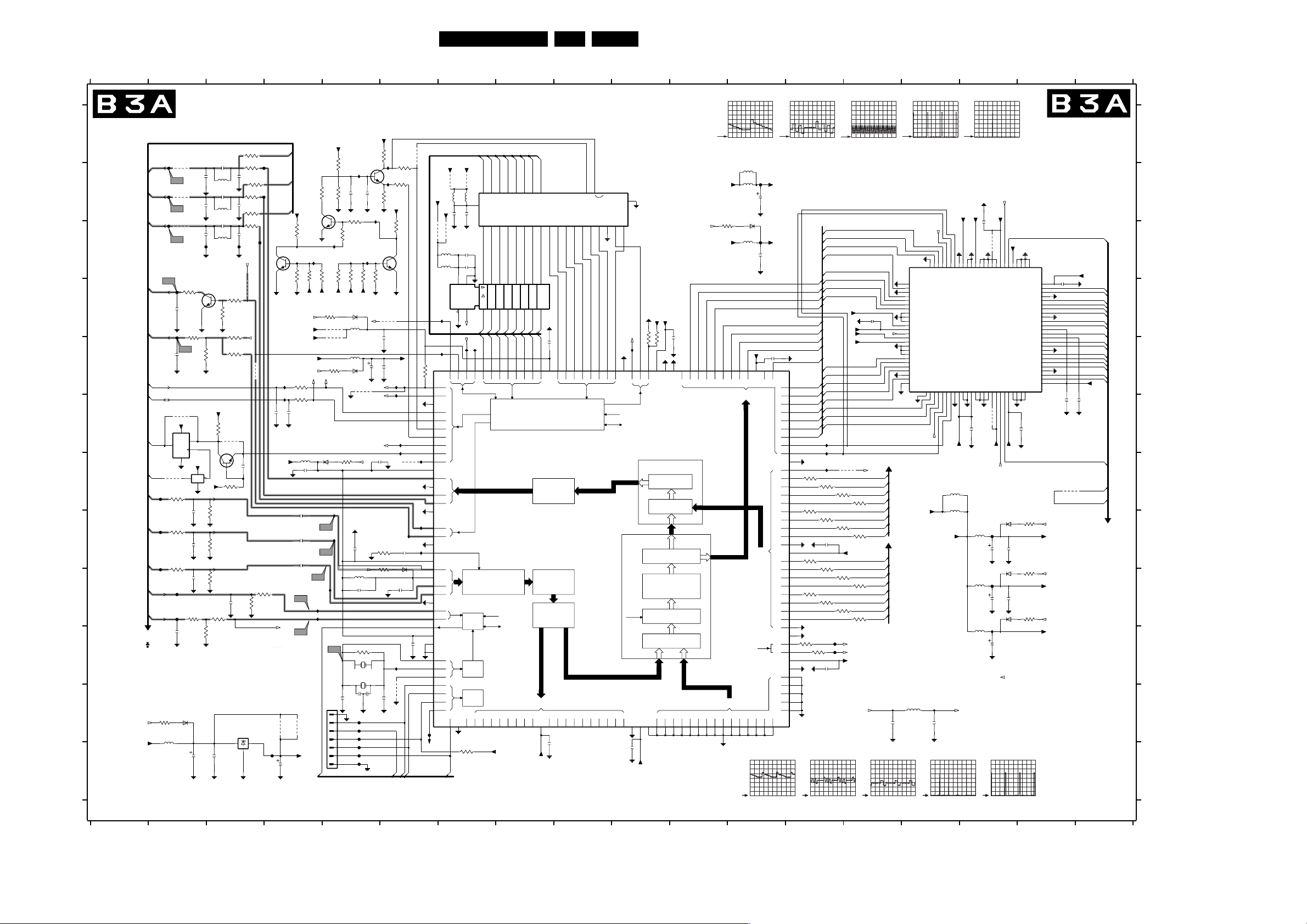

SSB: PICNIC (Feature Box) (Diagram B3A) 61 80-93
SSB: Diversity Tables (NA) 62 80-93

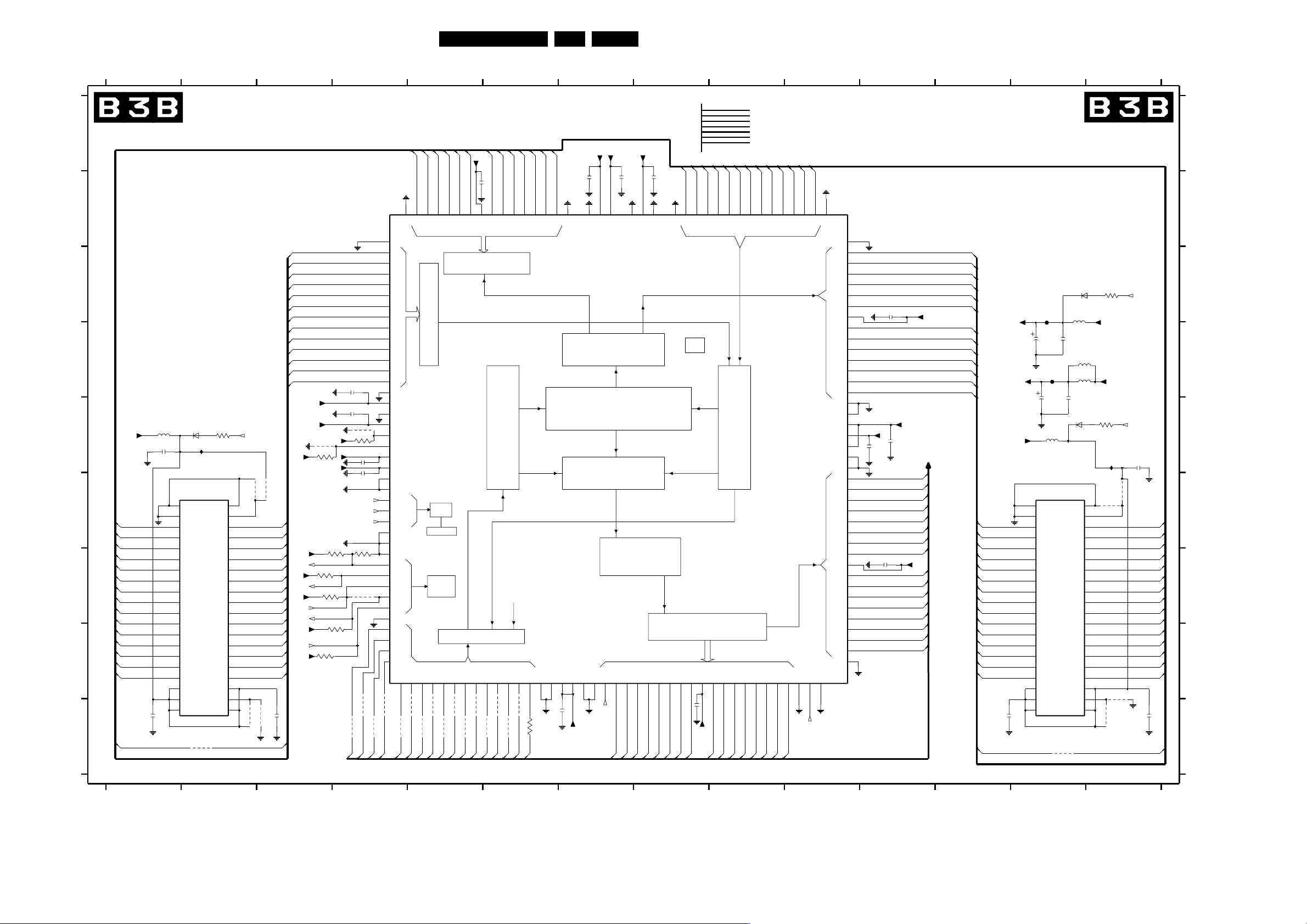

SSB: Falconic (Diagram B3B) 63 80-93

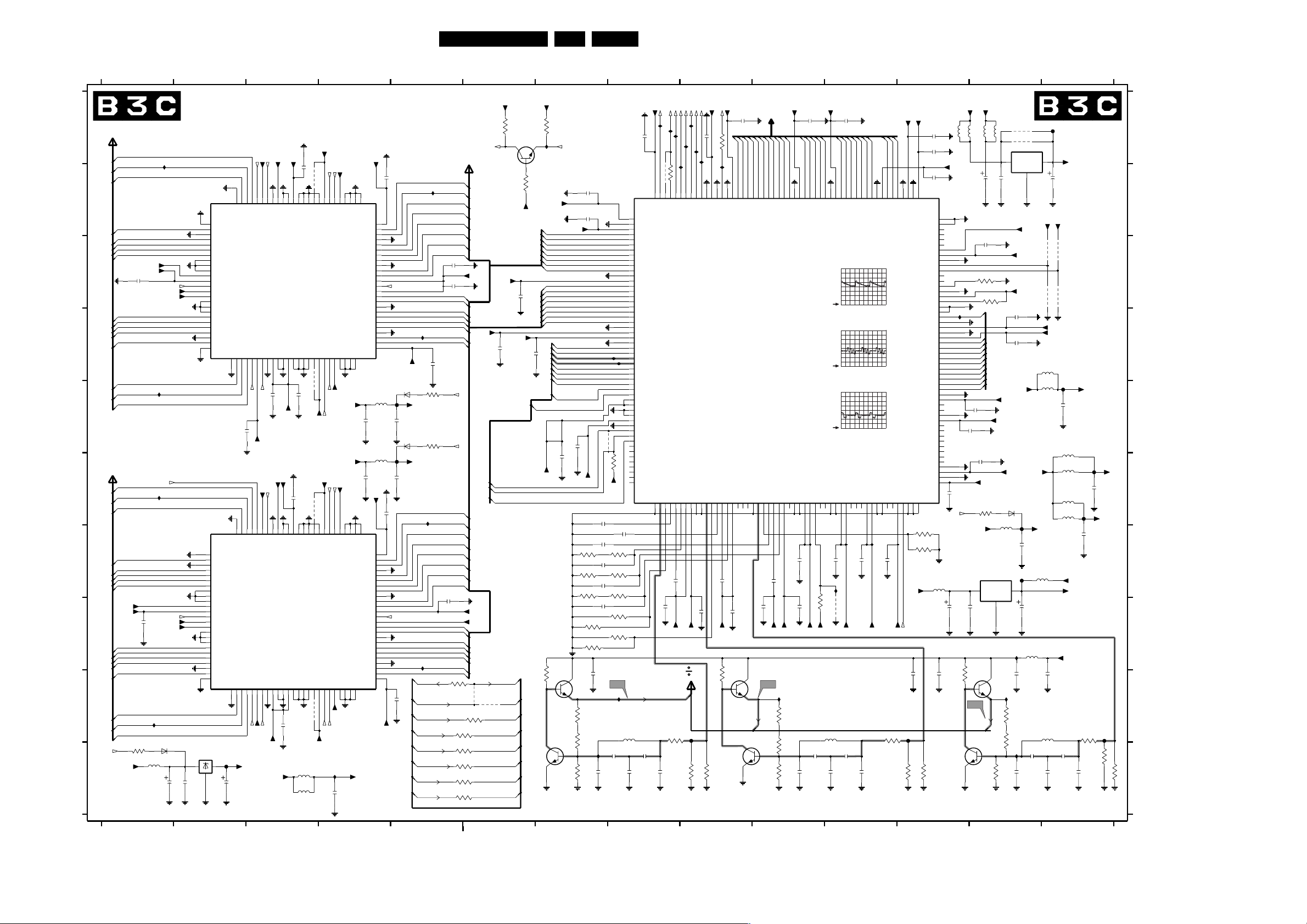

SSB: Eagle (Diagram B3C) 64 80-93

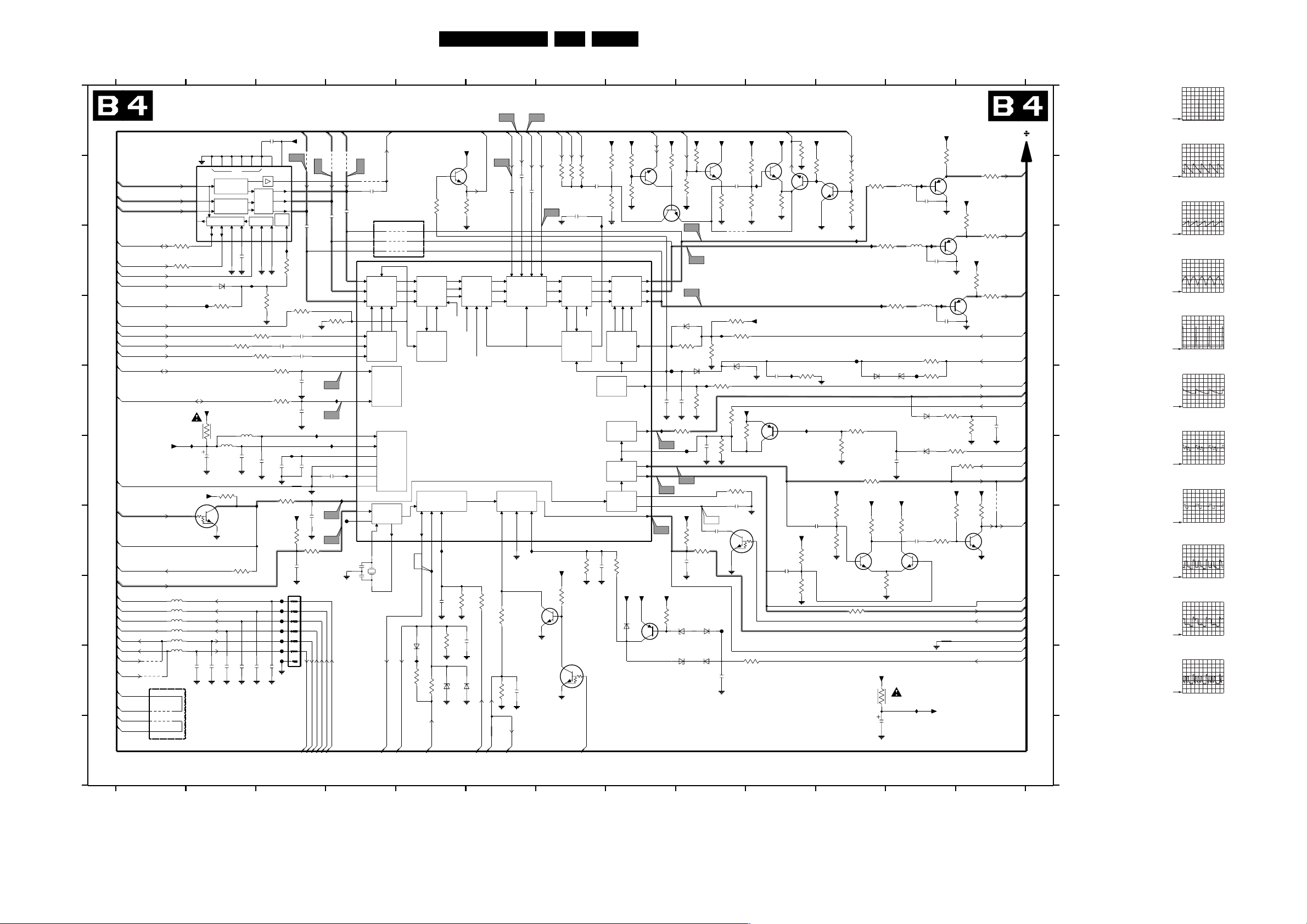

SSB: HOP (Diagram B4) 65 80-93

©

Copyright 2003 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

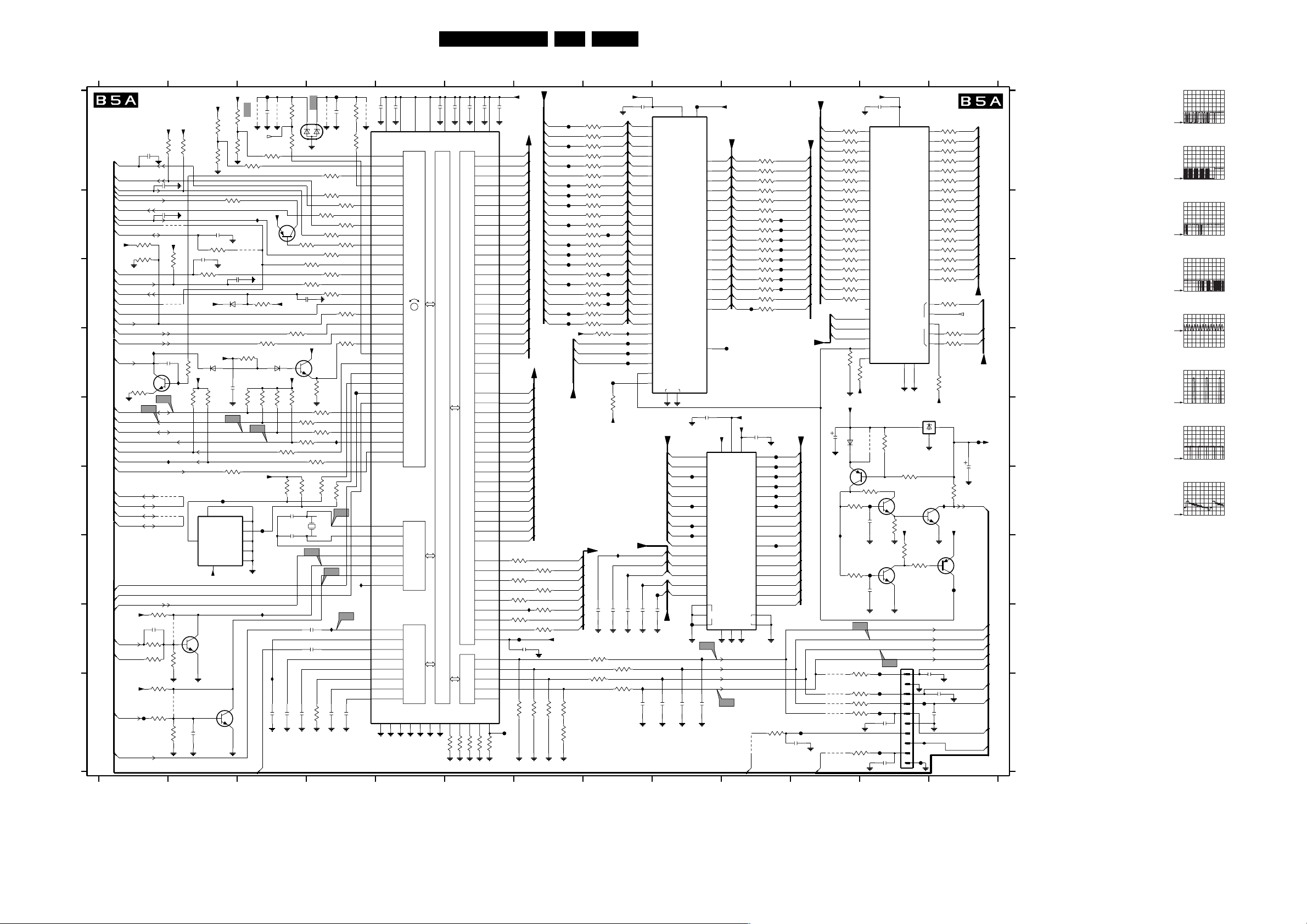

SSB: OTC Flash (Diagram B5A) 66 80-93

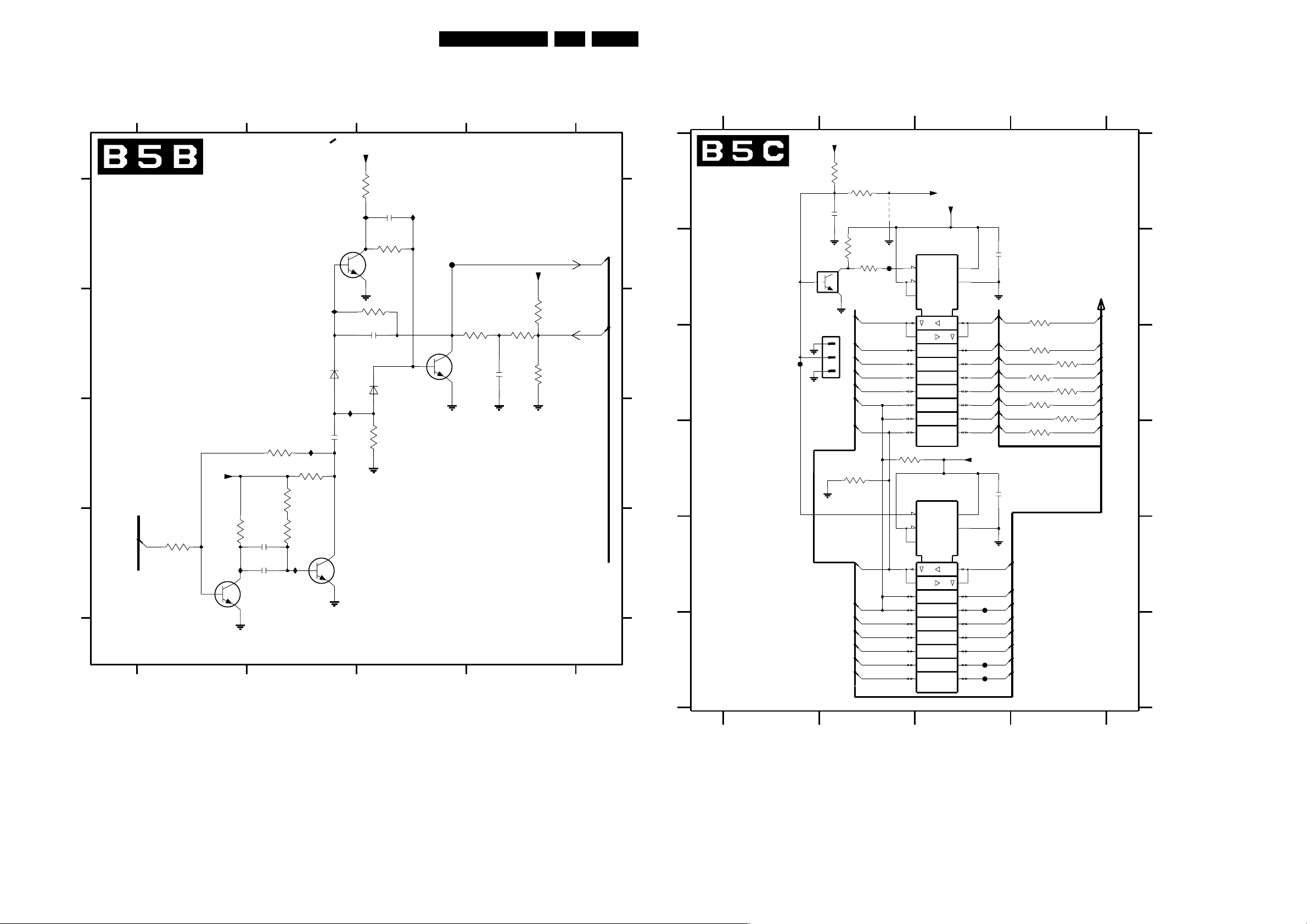

SSB: Anti-moiré (Diagram B5B) 67 80-93
SSB: OTC Flash (Diagram B5C) 67 80-93

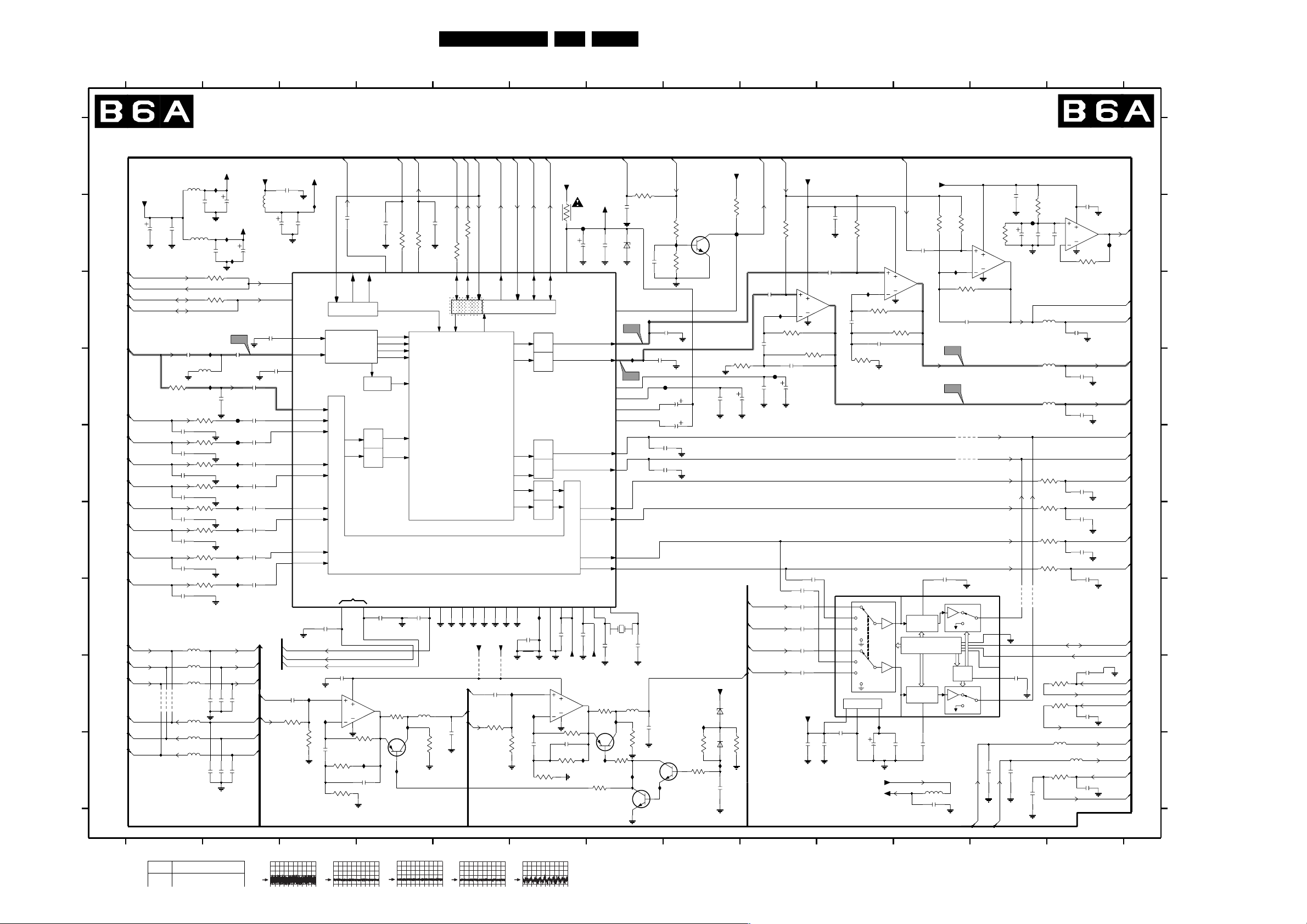

SSB: Audio Demodulator (Diagram B6A) 68 80-93

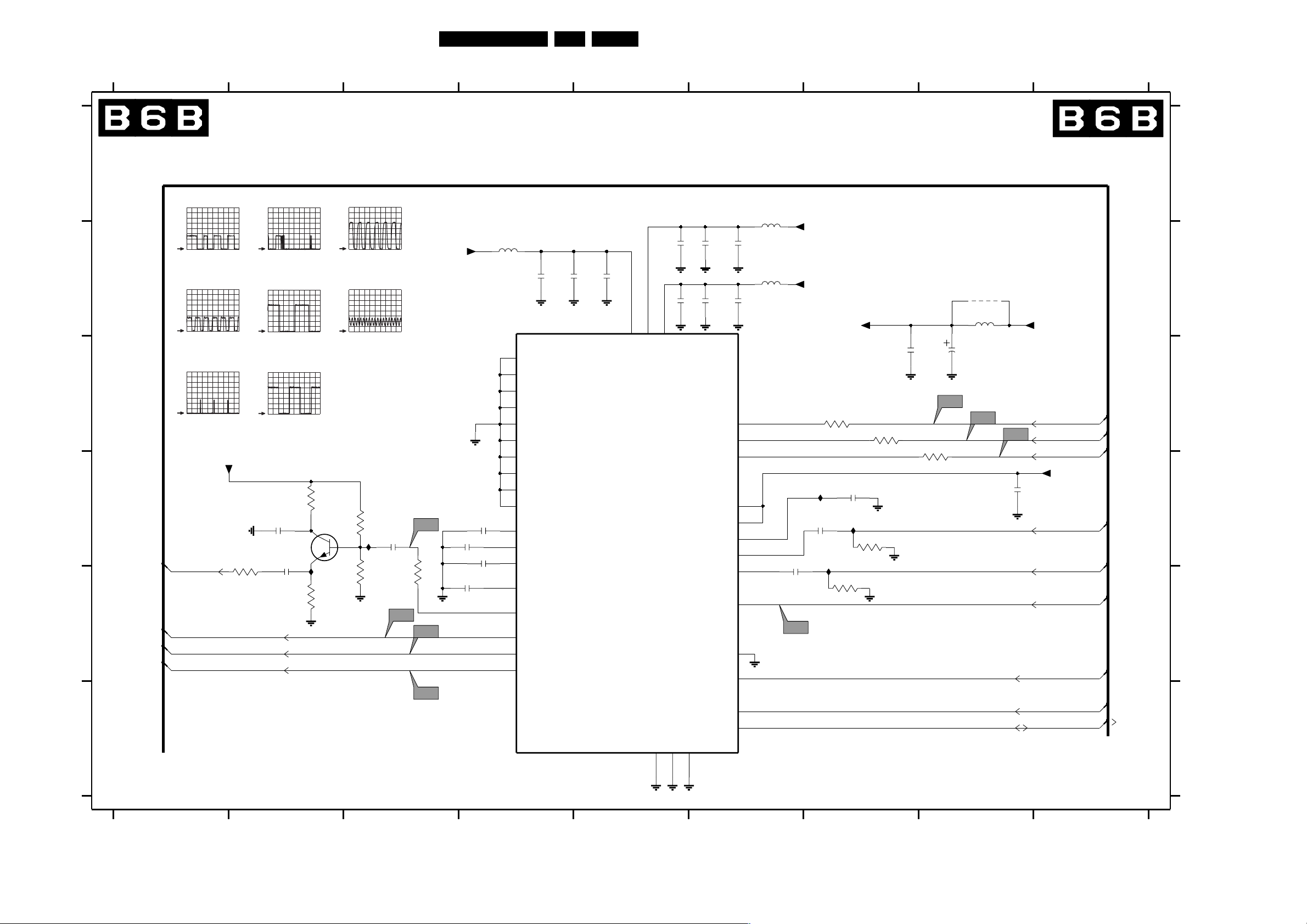

SSB: Dolby Digital Decoder (Diagram B6B) 69 80-93

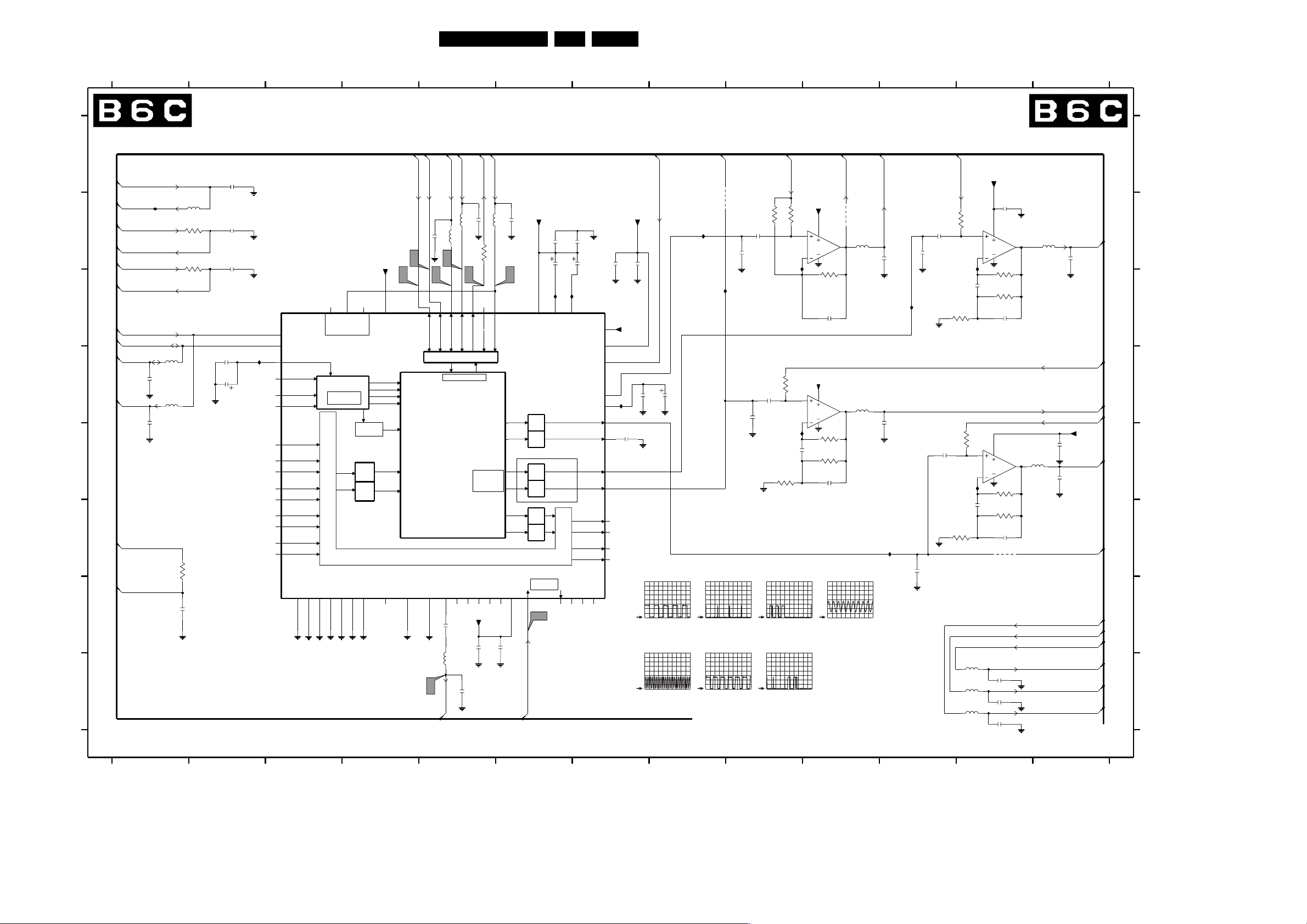

SSB: Dolby Prologic Processor(Diagram B6C) 70 80-93

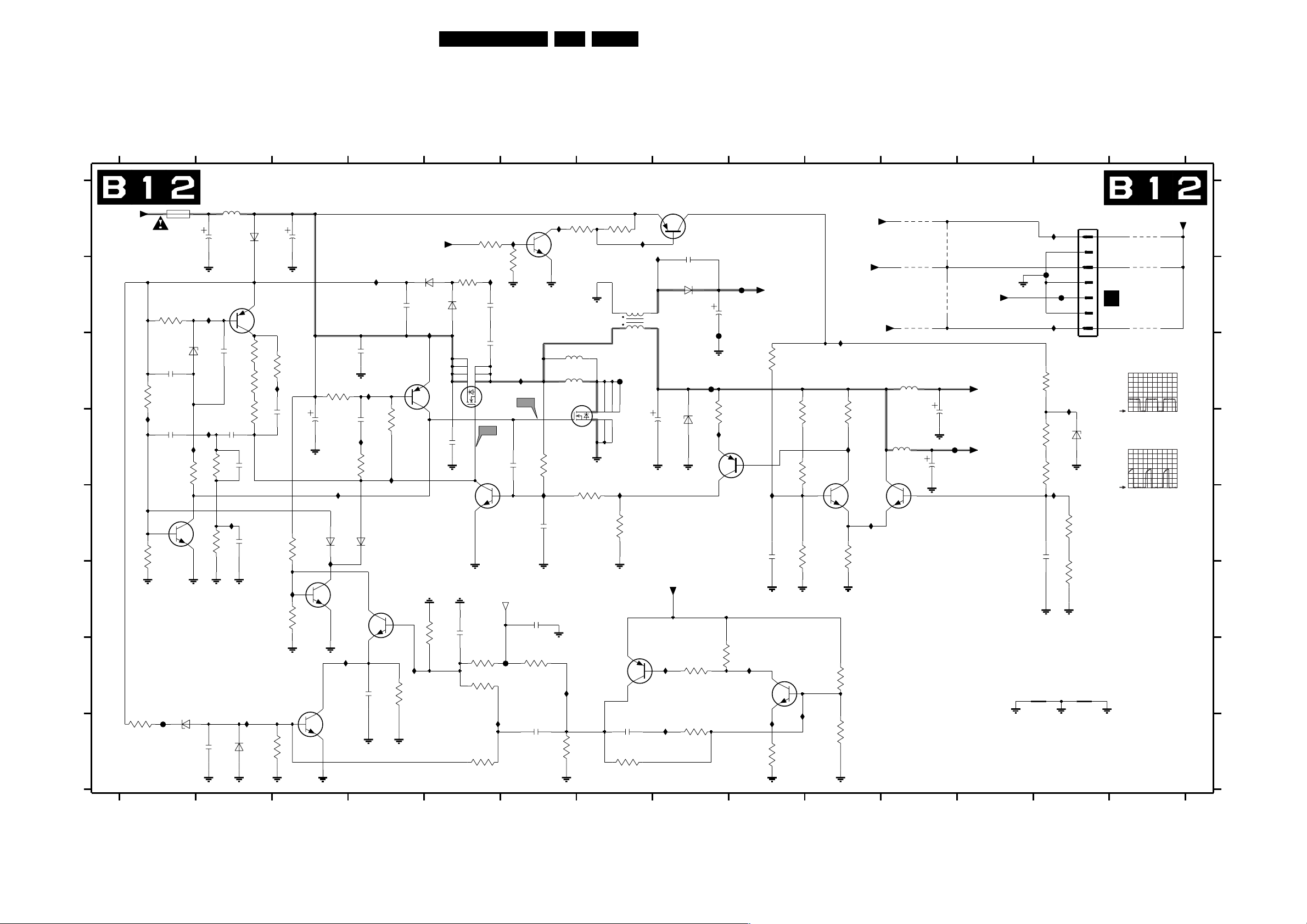

SSB: DC/DC-Convertor (Diagram B12) 71 80-93

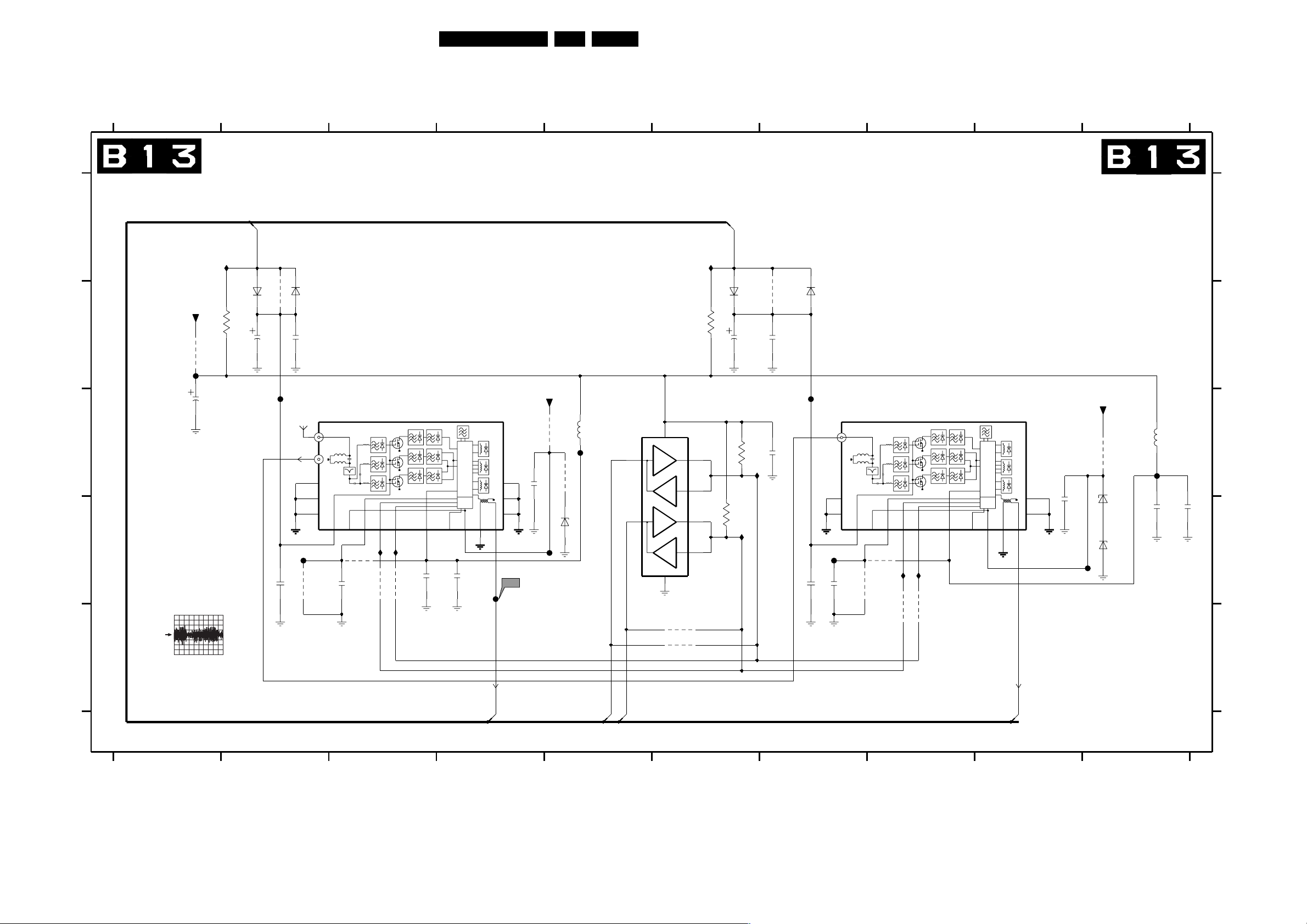

SSB: Tun1/Tun2 (Diagram B13) 72 80-93

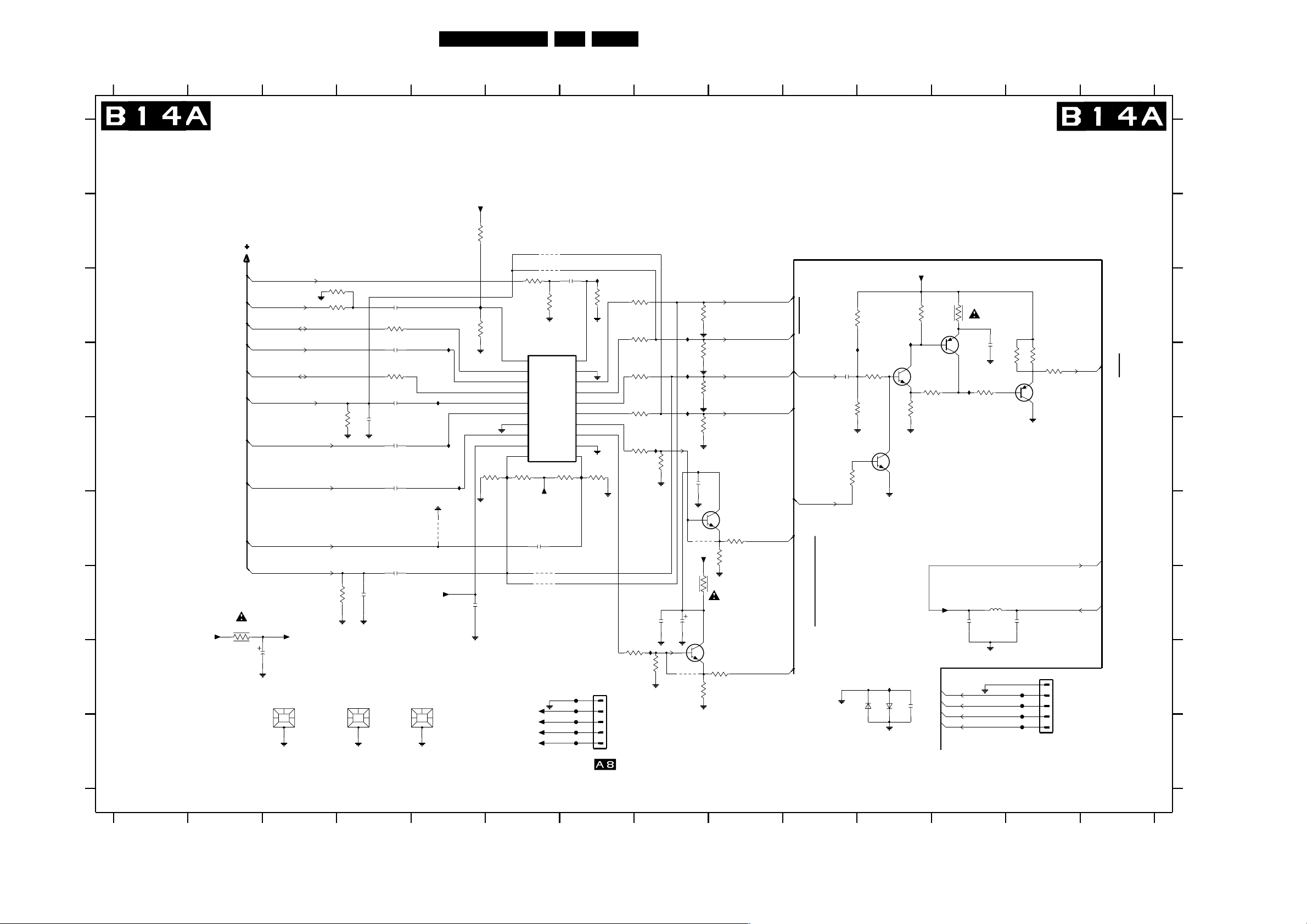

SSB: I/O Eur (Diagram B14A) 73 80-93

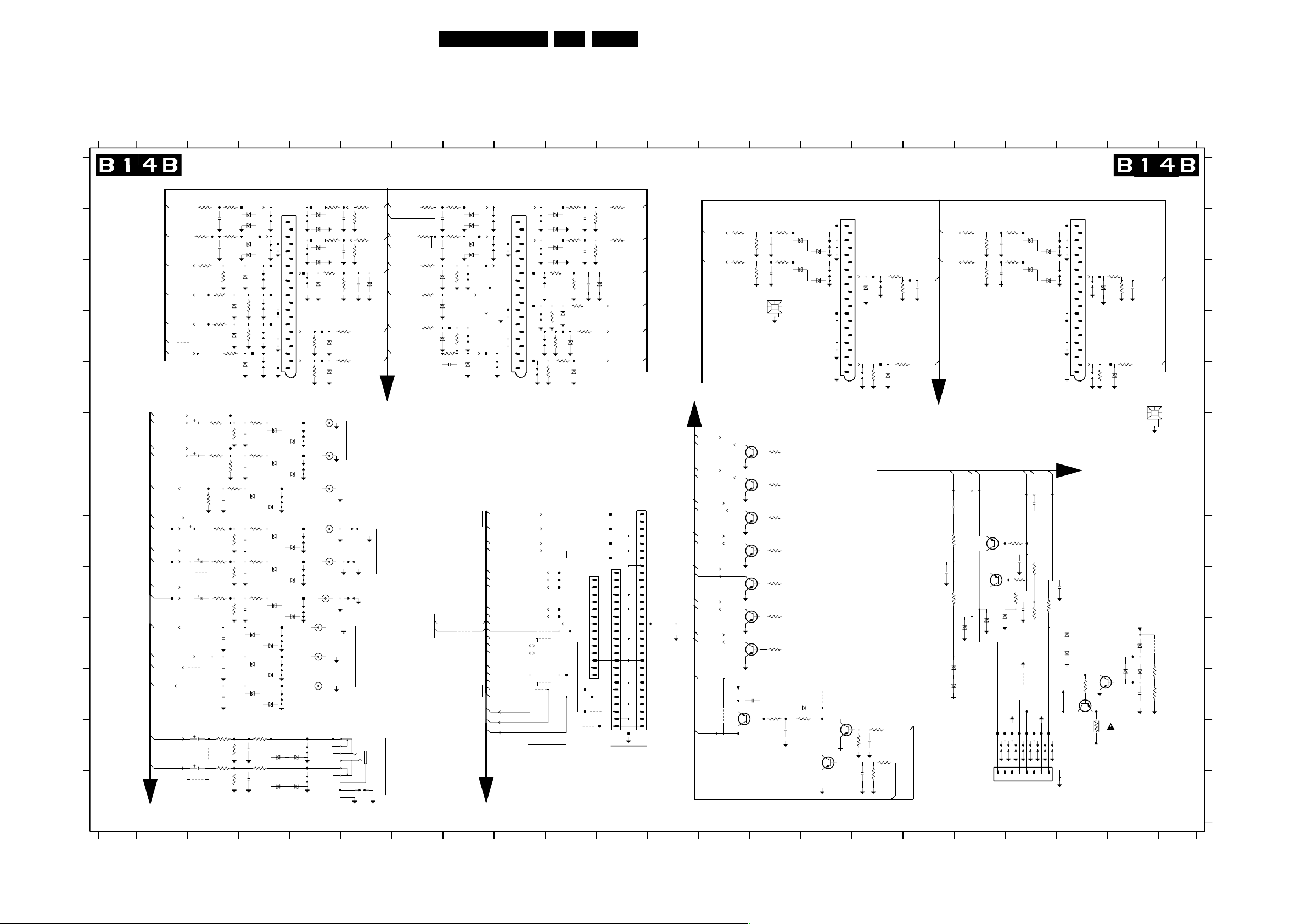

SSB: I/O Eur (Diagram B14B) 74 80-93

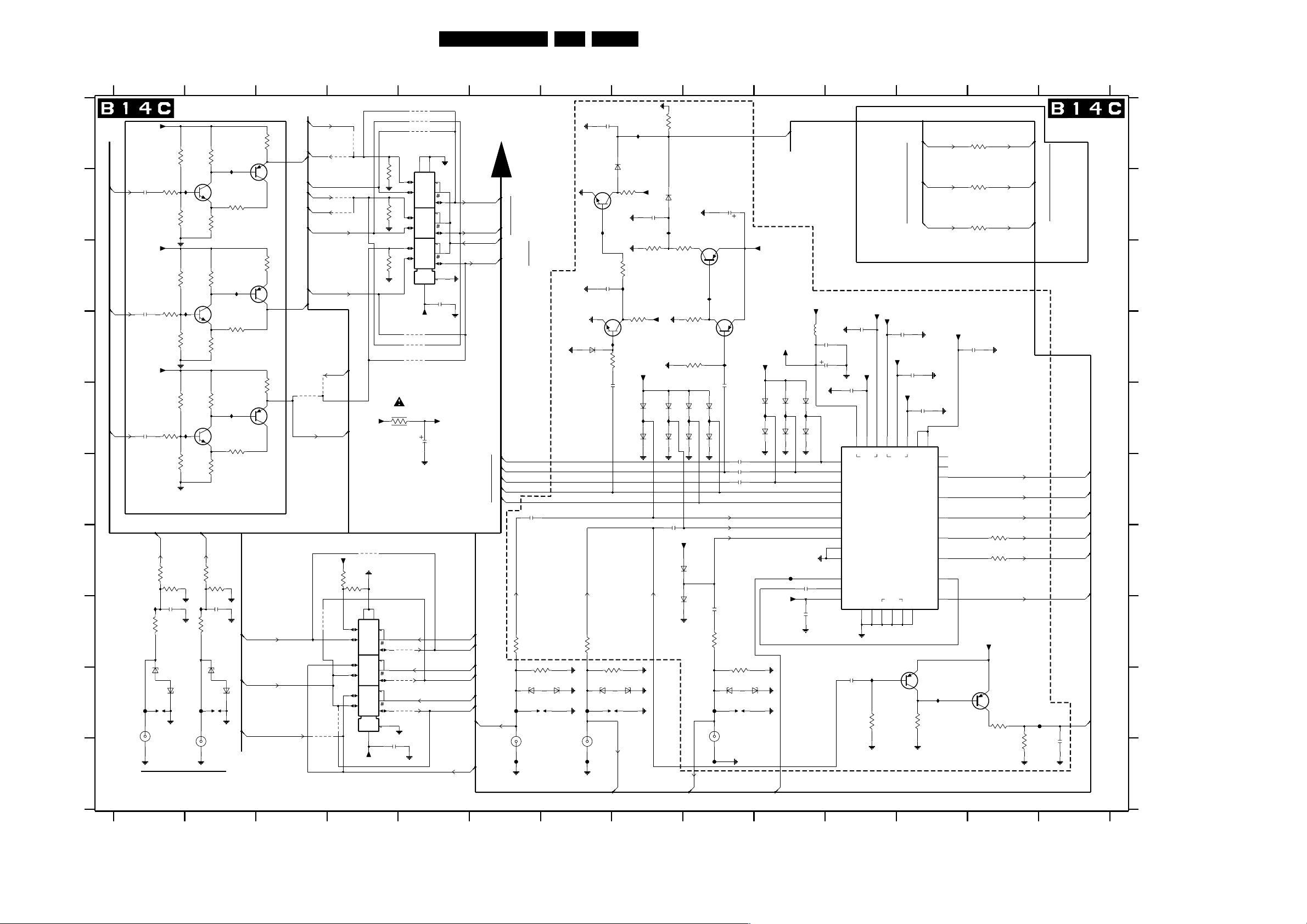

SSB: 2FH I/O (Diagram B14C) 75 80-93

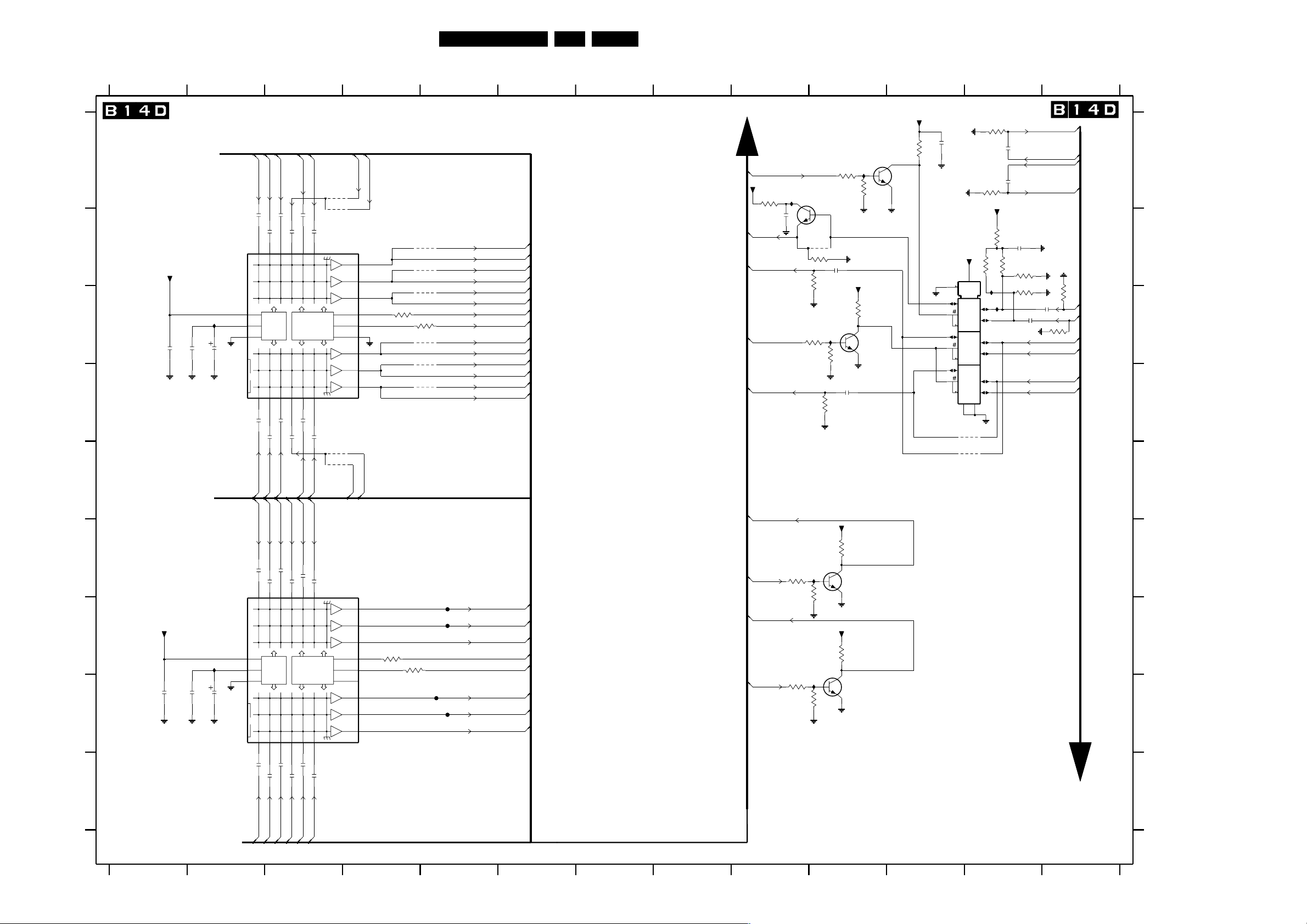

SSB: Audio I/O (Diagram B14D) 76 80-93
SSB: PIP-HIP (Diagram B15A) 77 80-93

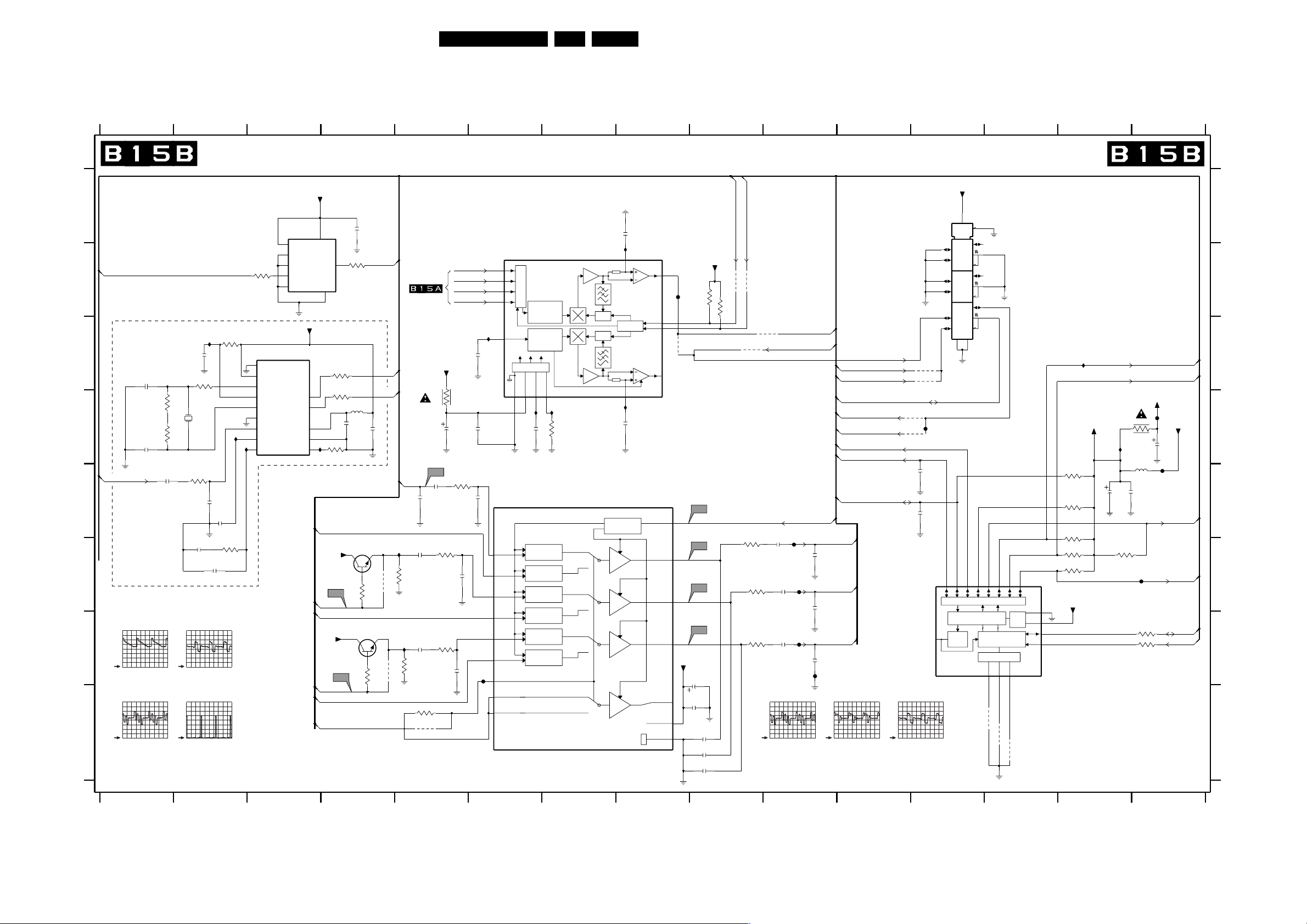

SSB: PIP-I/O (Diagram B15B) 78 80-93

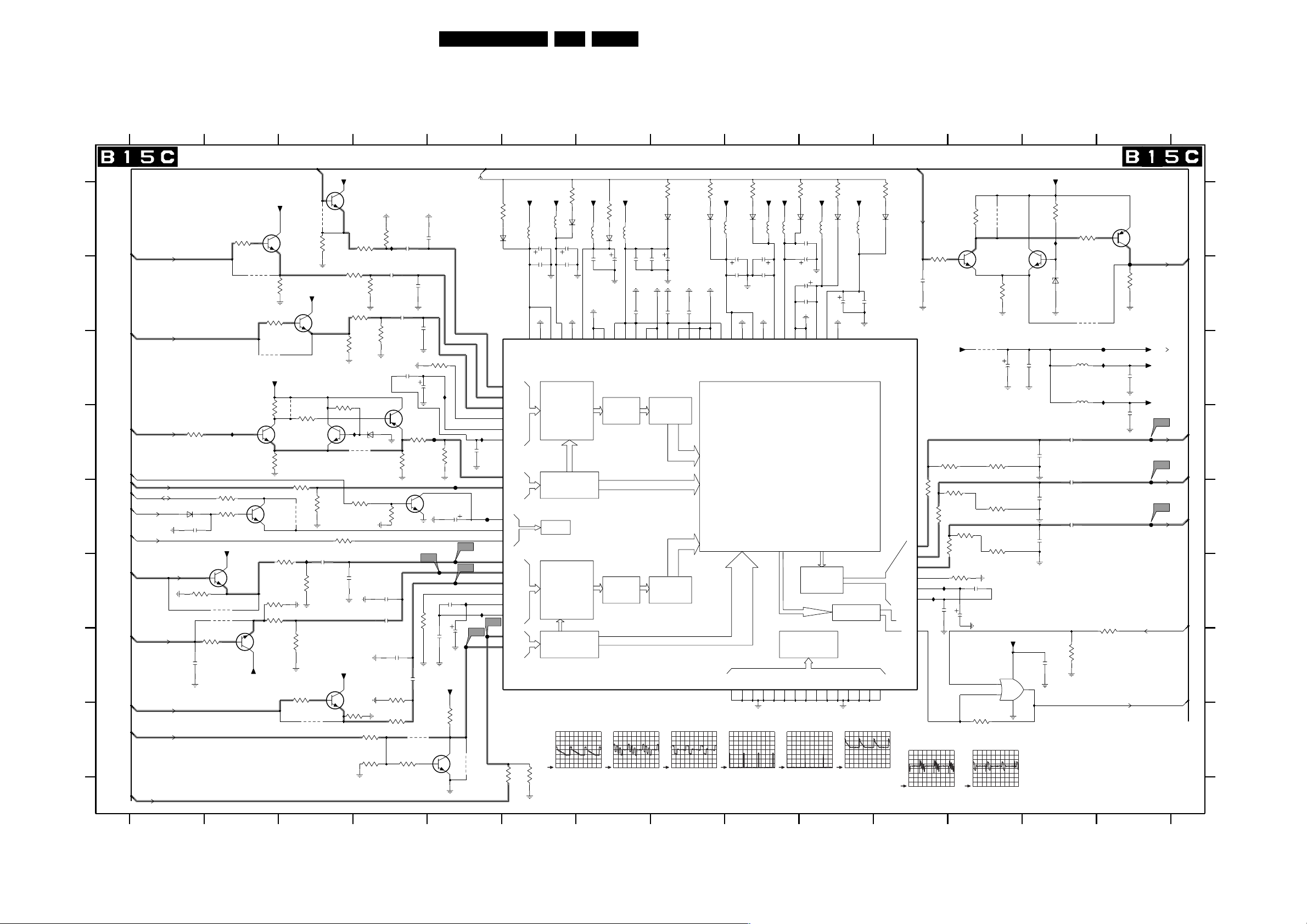

SSB: PIP (Muppet) (Diagram B15C) 79 80-93

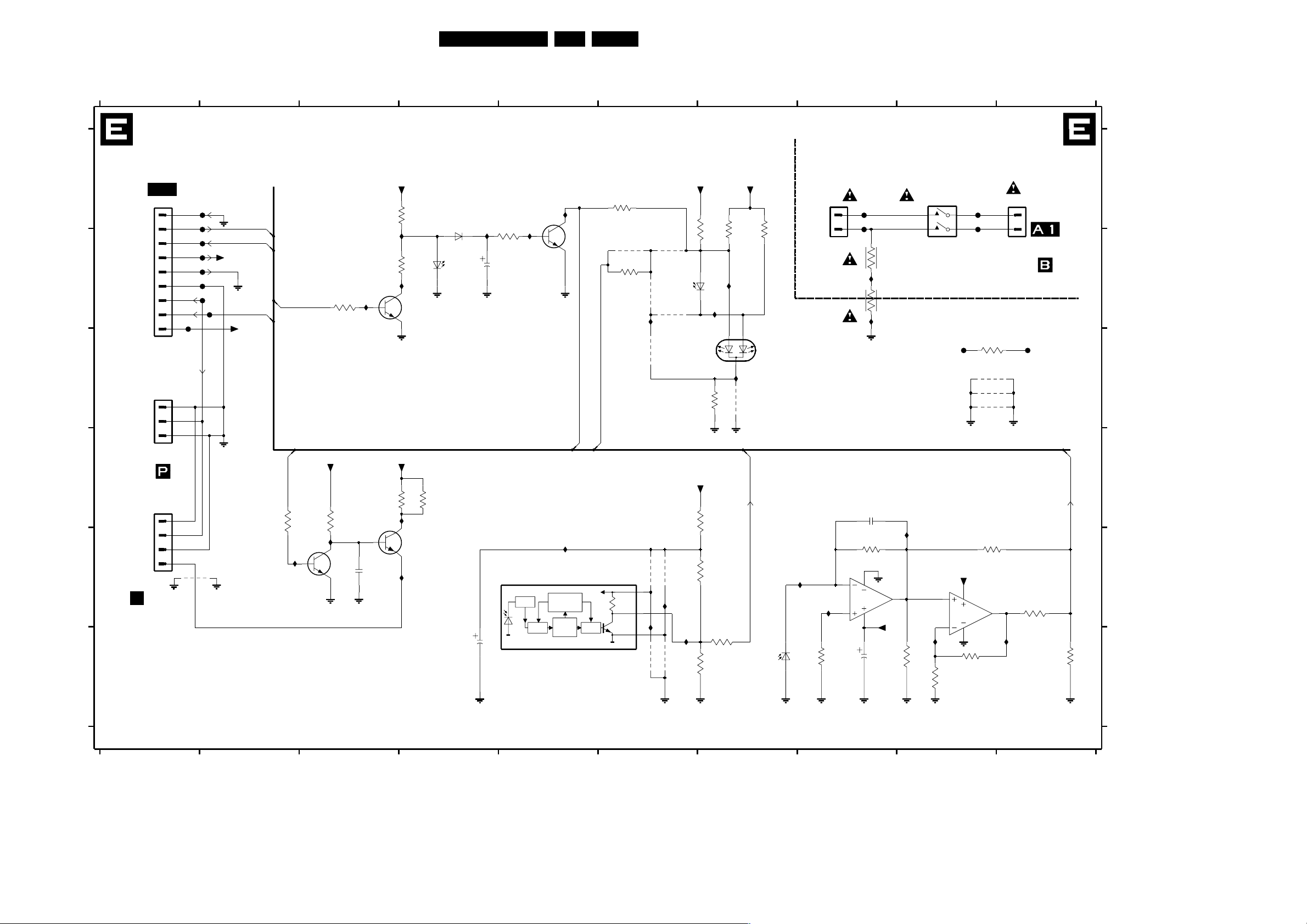

Mains Switch Panel (Diagram E) 94 95

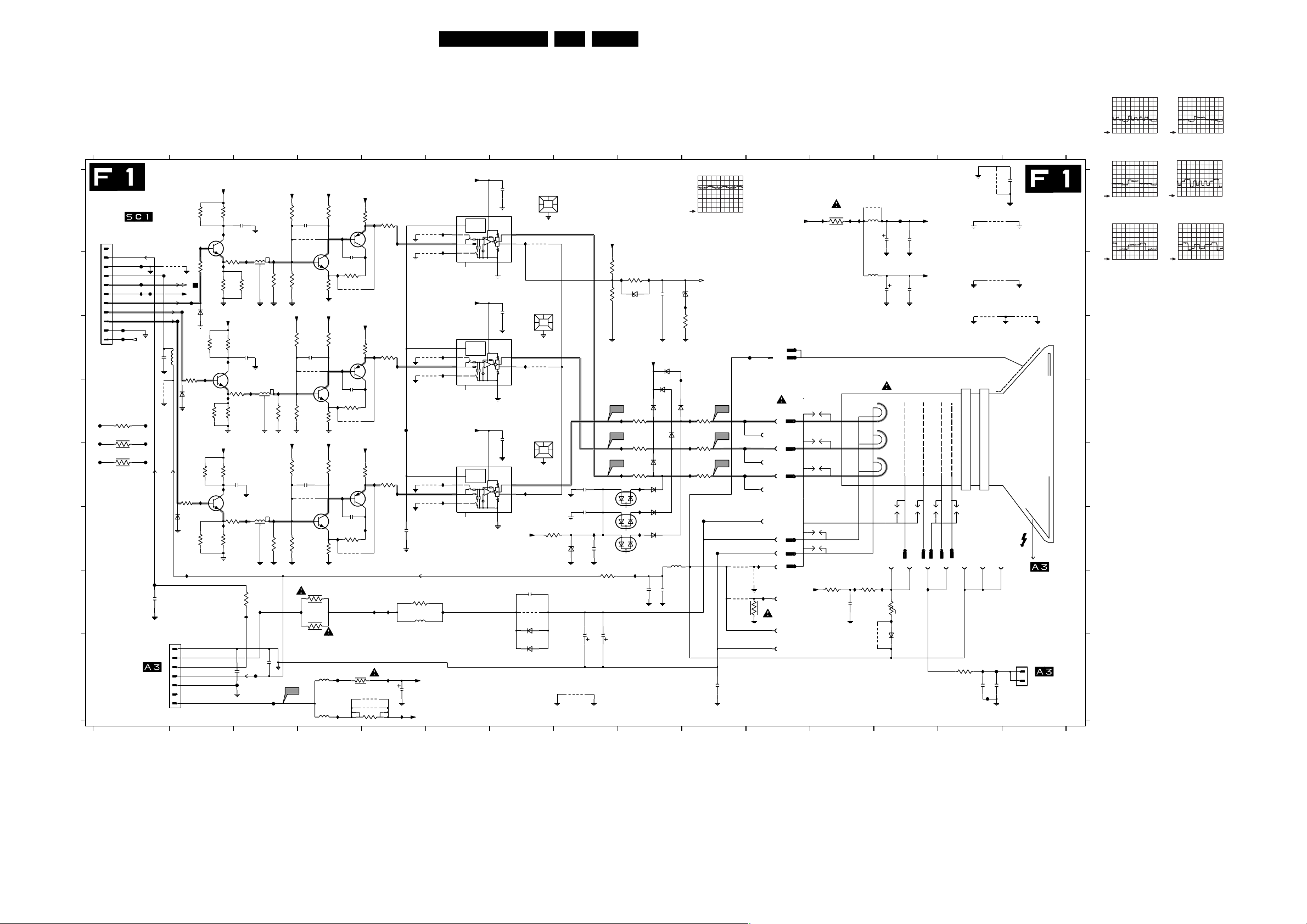

CRT Panel (Diagram F1) 96 98-99

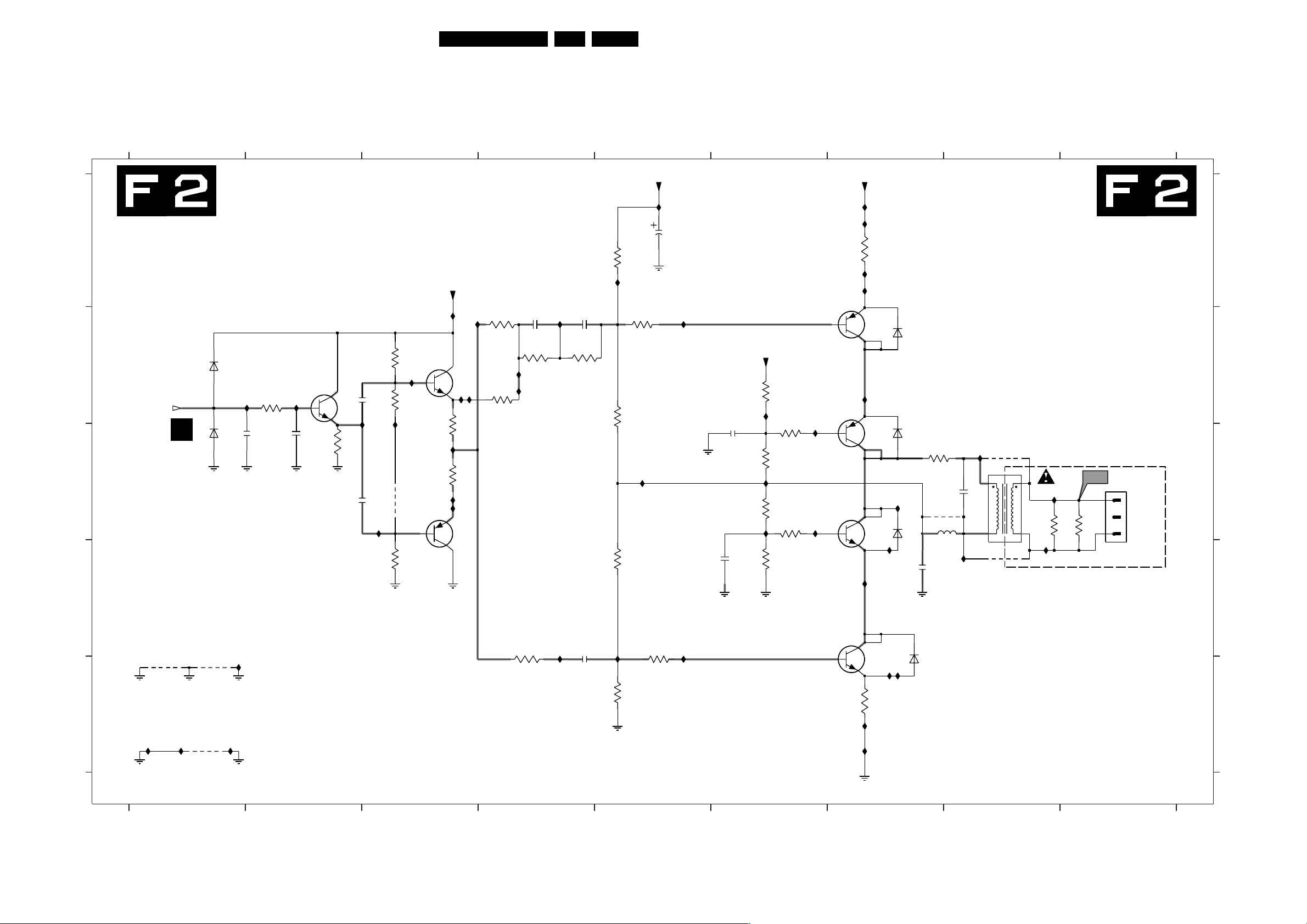

CRT/ Auto SCAVEM Panel (Diagram F2) 97 98-99

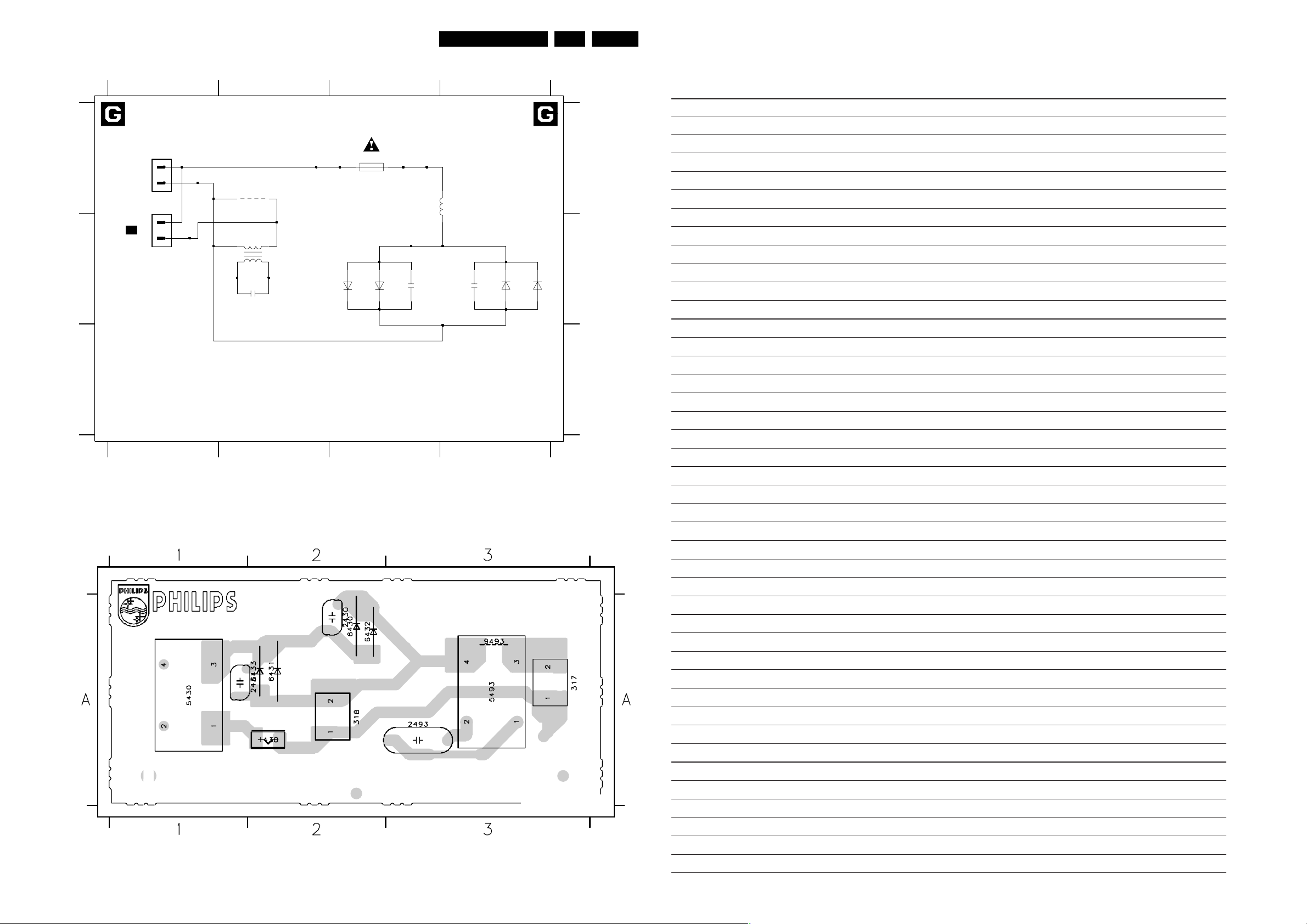

DC Shift Panel (Diagram G) 100 100

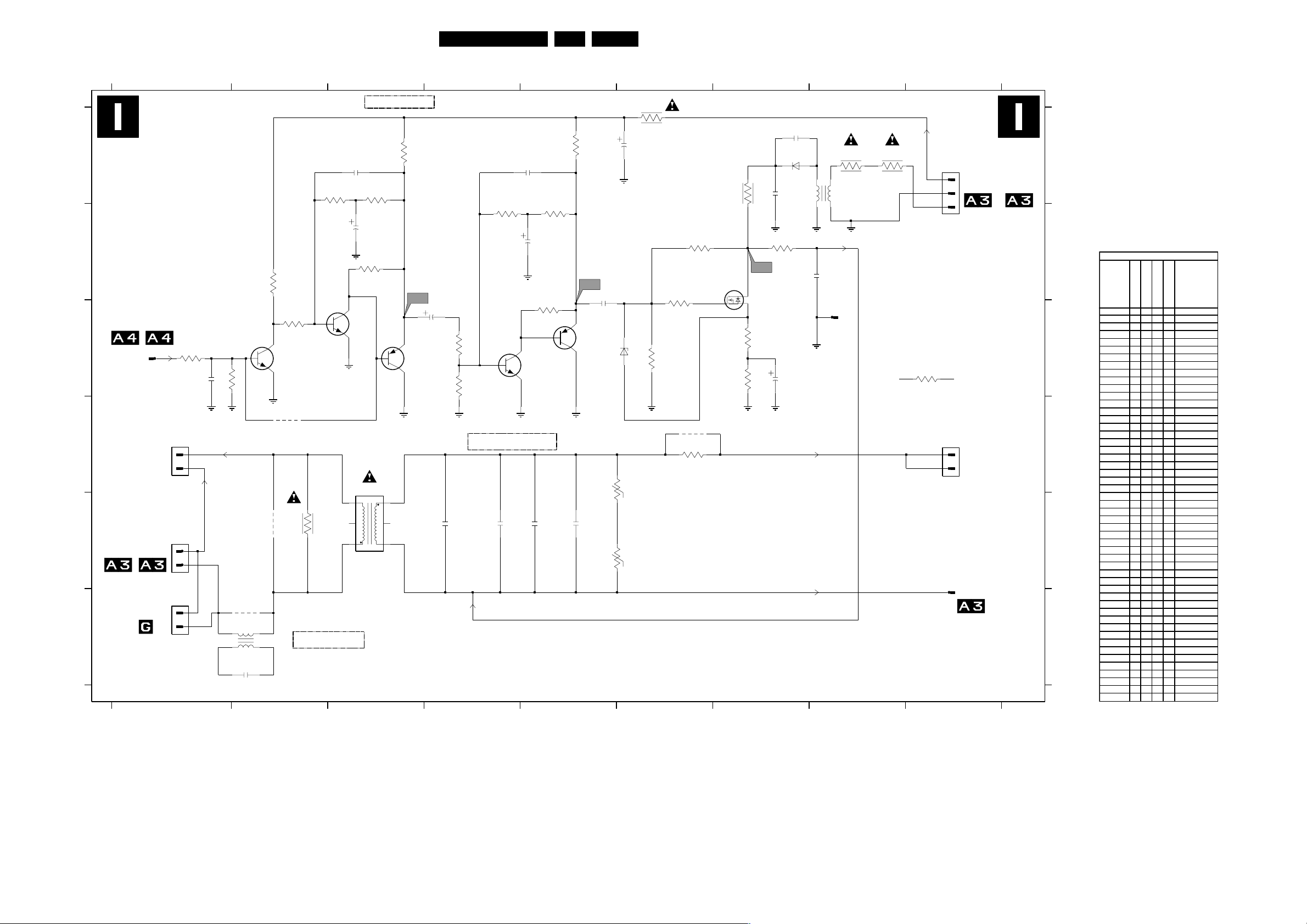

VDAF Panel + 2nd Orders (Diagram I) 101 102

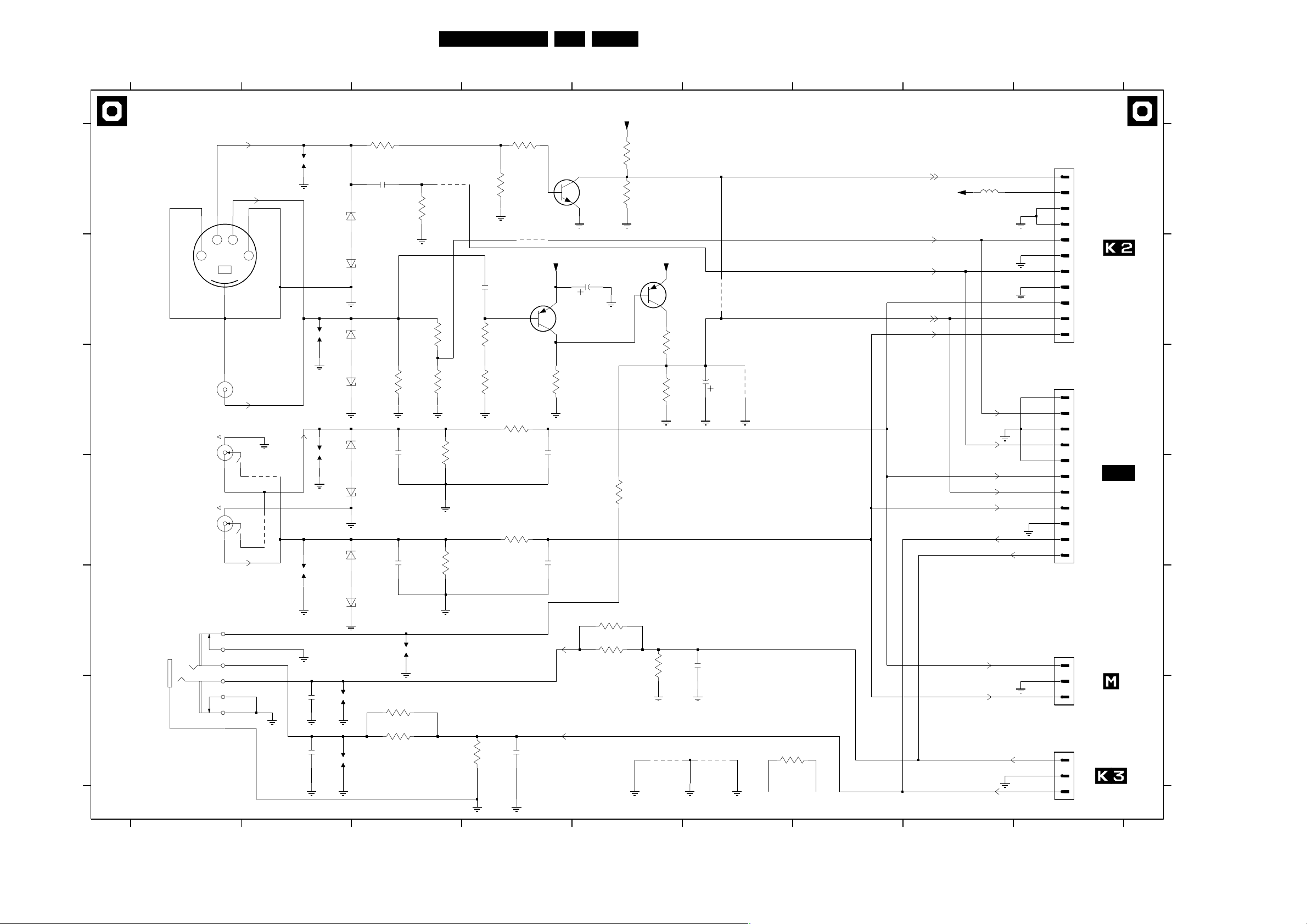

Side I/O Panel (Diagram O) 103 104

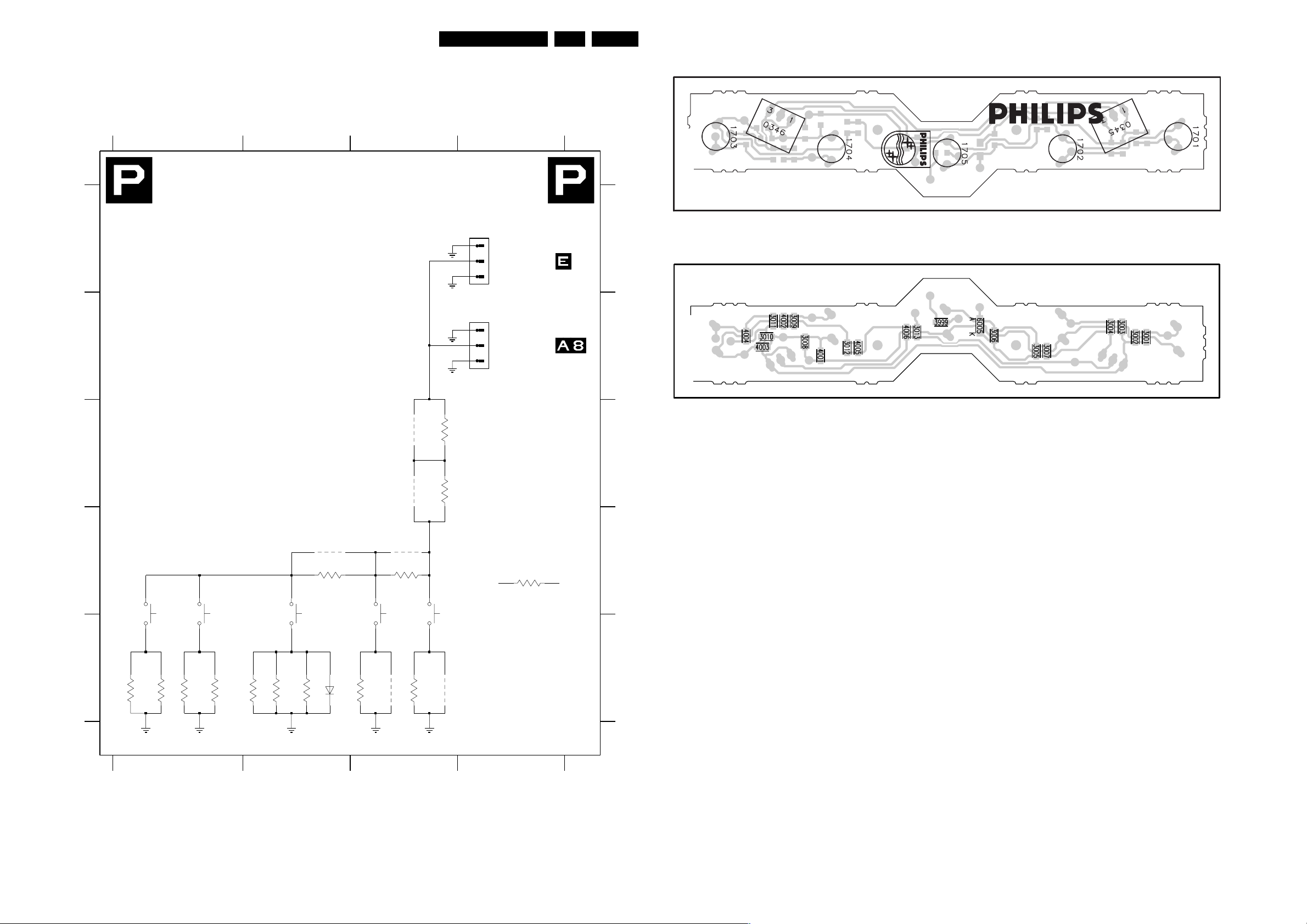

Top Control Panel (Diagram P) 105 105

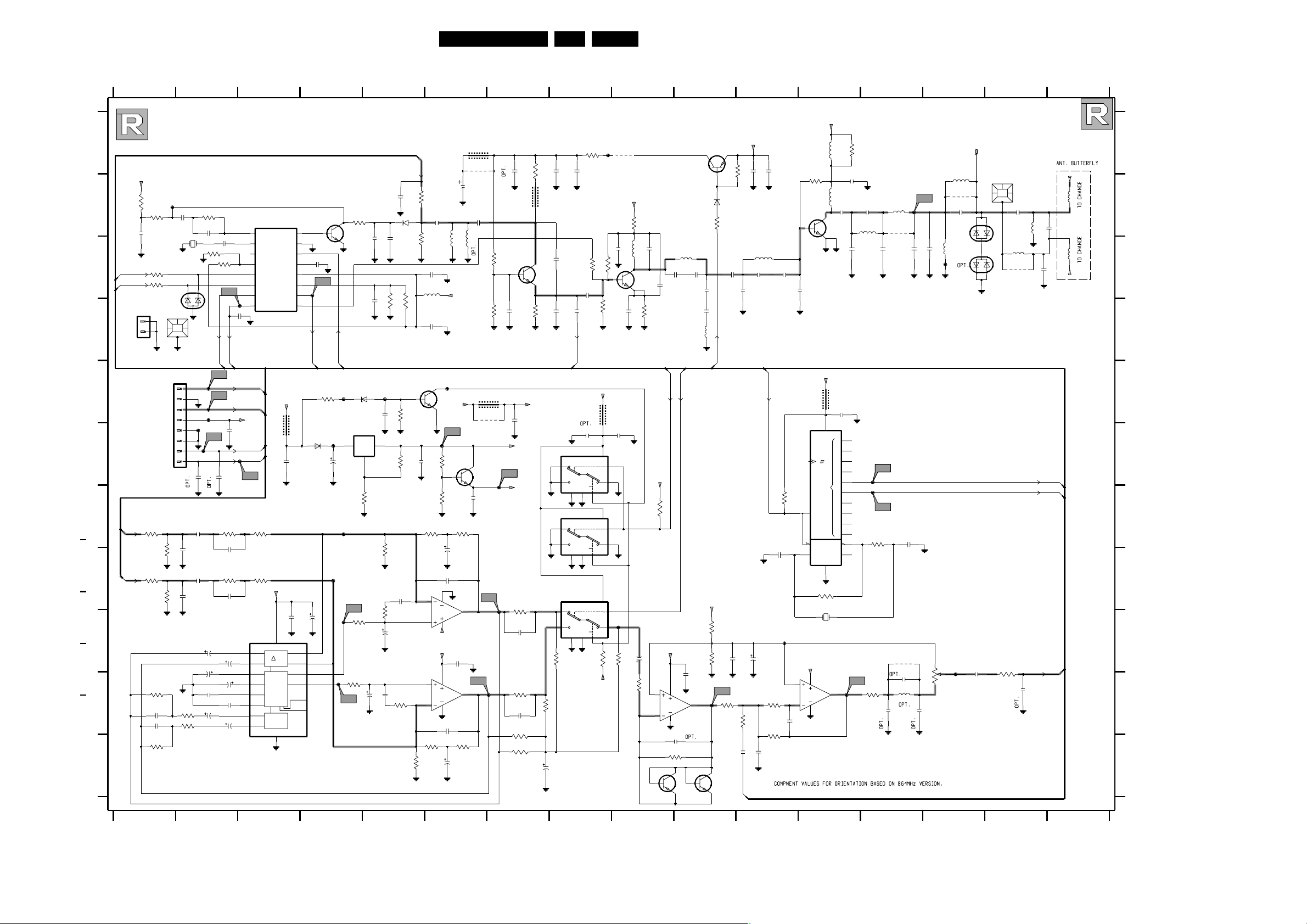

Wireless Transmitter (Diagram R) 106 107-108

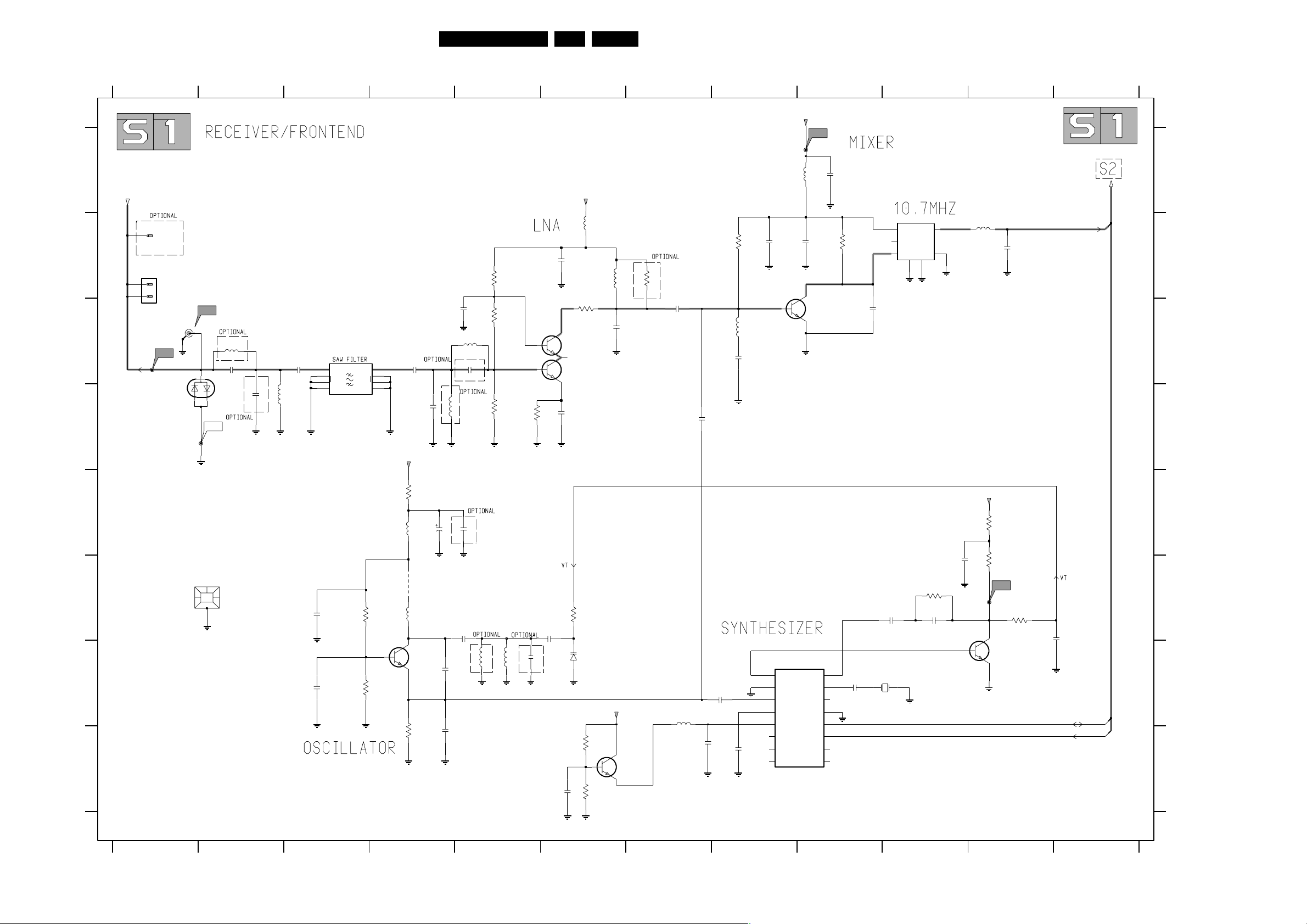

Wireless Receiver/Frontend (Diagram S1) 109 111-112

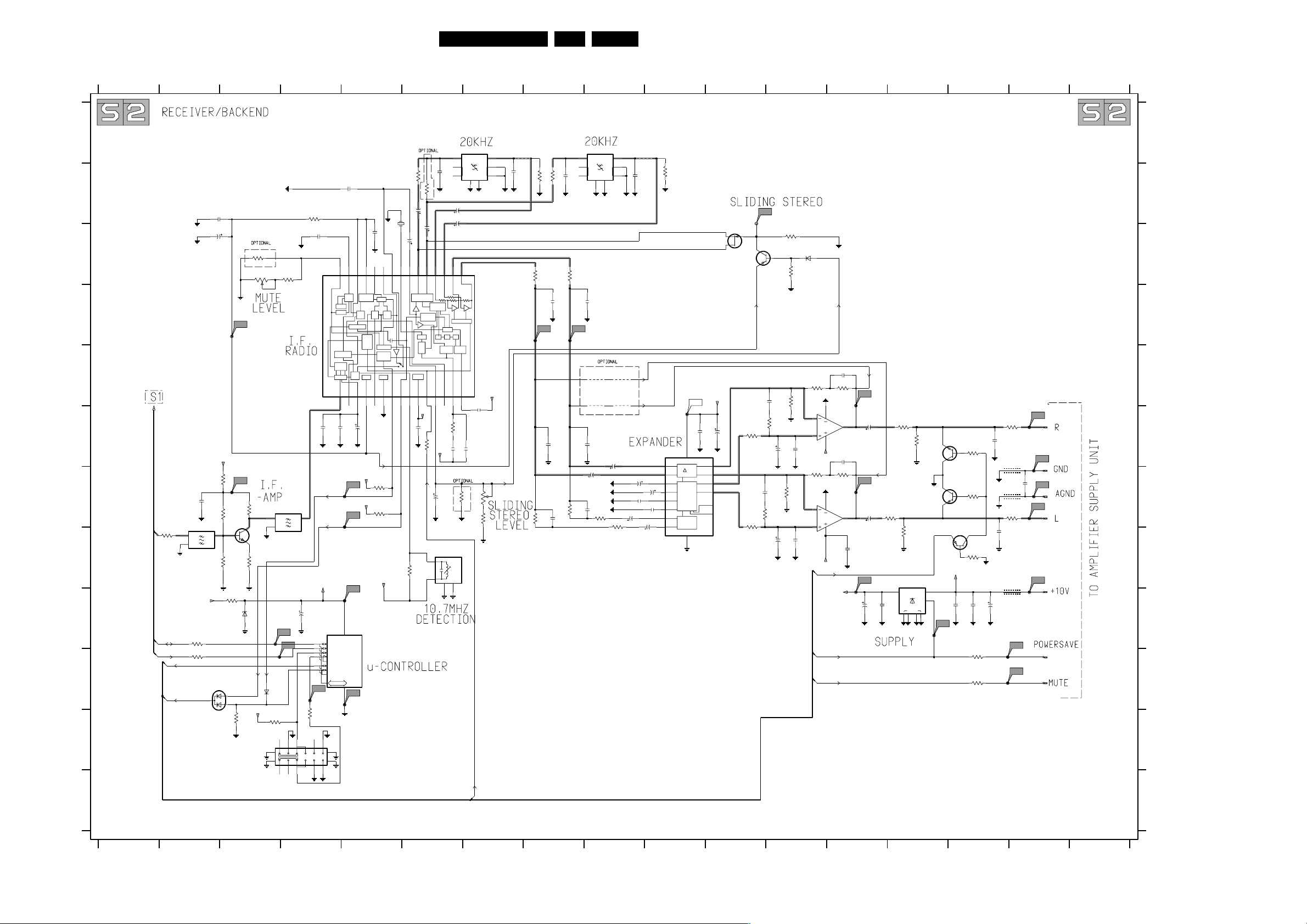

Wireless Receiver/Backend (Diagram S2) 110 111-112

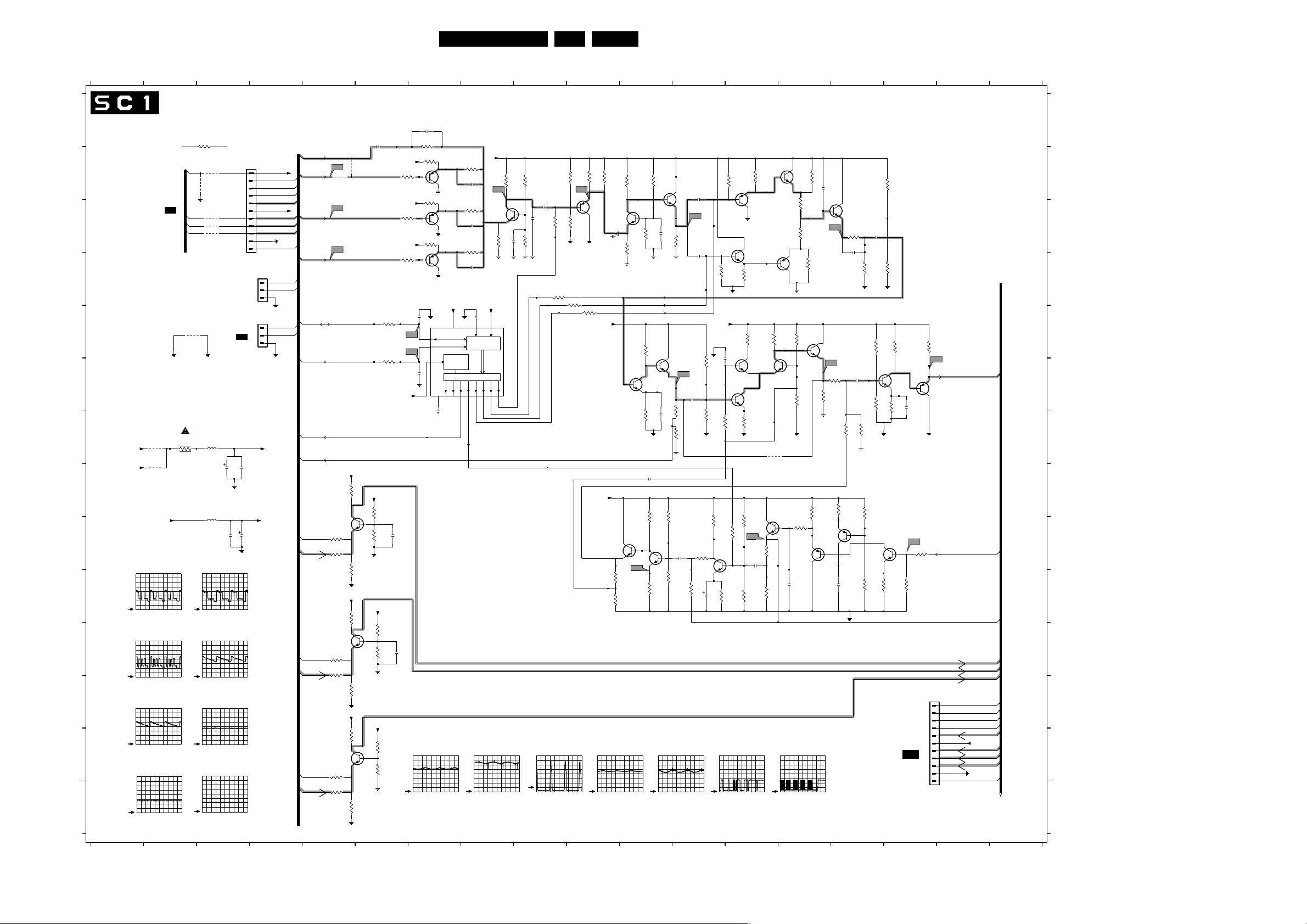

Auto SCAVEM Panel (Diagram SC1) 113 114

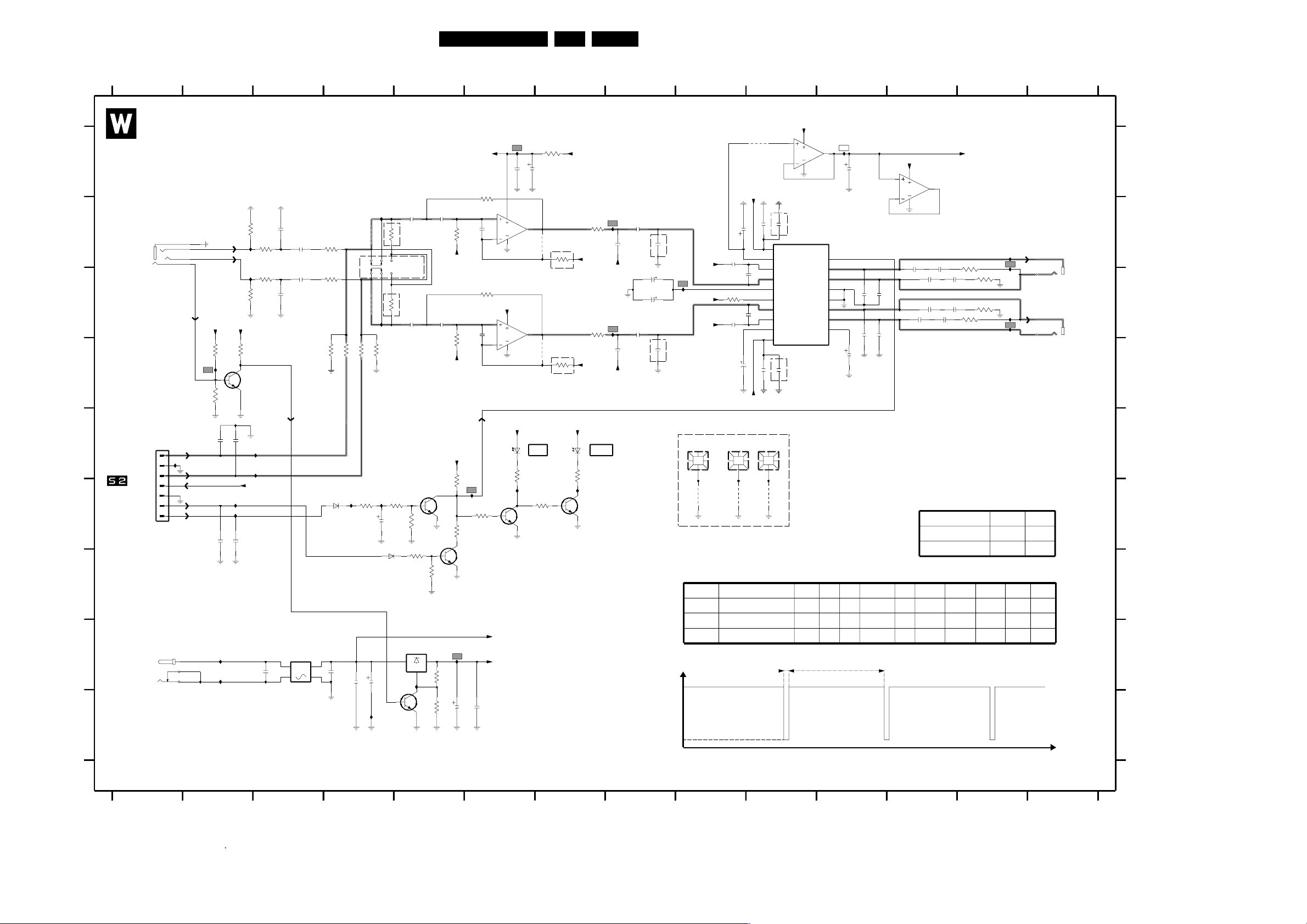

Audio Output Amplifier (Diagram W) 115 116-117

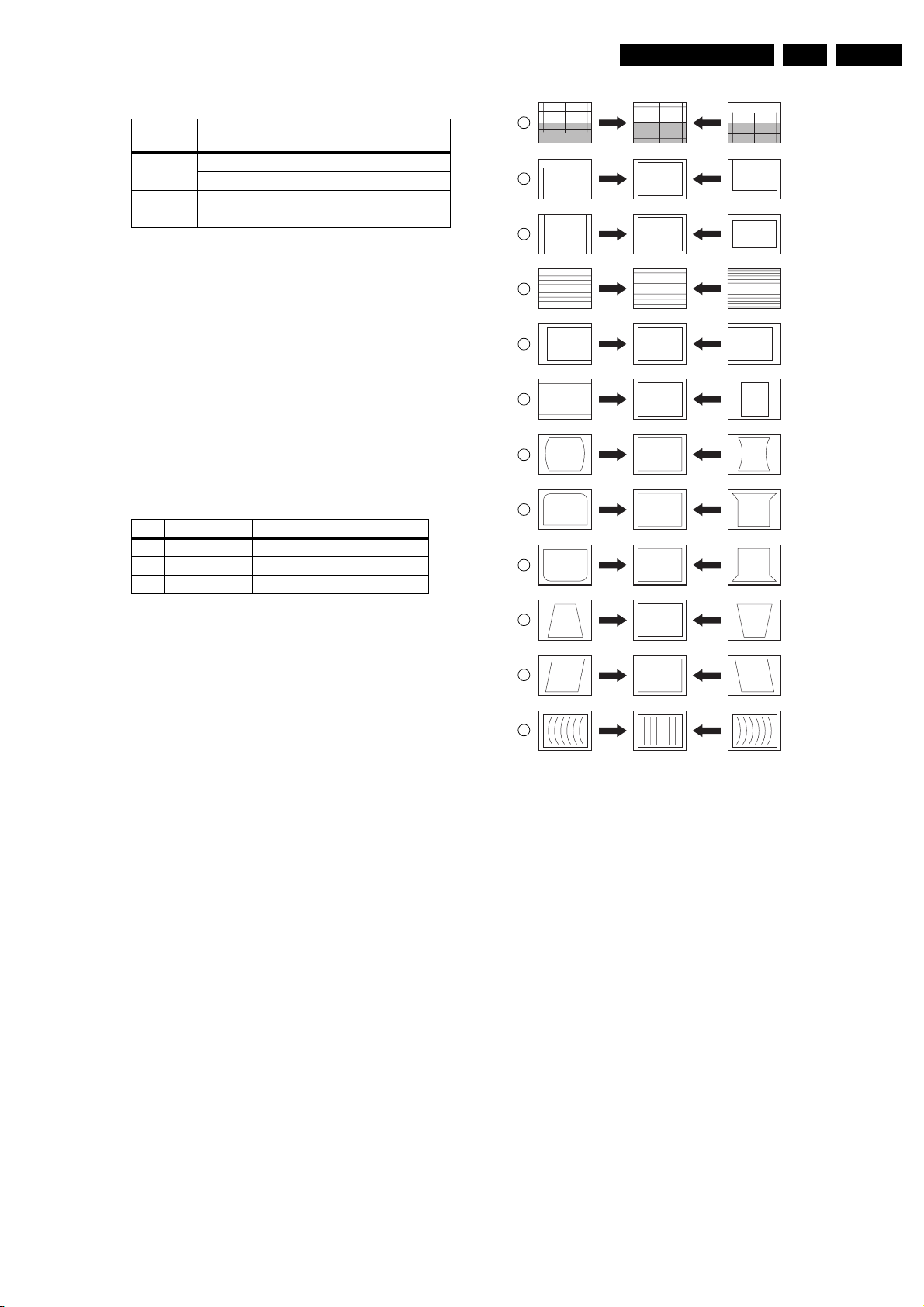

8. Alignments 119

9. Circuit Description 130
Abbreviation List 150
IC Data Sheets 153

10 Spare Parts List 159
11 Revision List 172

Published by WO 0365 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 13070

EN 2 EM6E1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1. Technical Specifications

2. Connections

3. Chassis Overview

Note: Figures below can deviate slightly from the actual
situation, due to the different set executions.

1.1 Technical Specifications

1.1.1 Vision

Display type : CRT, Real Flat WS
Screen size : 28” (70 cm)

: 32” (82 cm)
: 36” (92 cm)

Tuning system : PLL
Colour systems : PAL: B/G, D/K, I

: SECAM: B/G, D/K, L/

L’

: NTSC: playback only

Channel selections : 100 presets

: UVSH

Aerial input : 75 ohm, IEC-type

1.1.2 Sound

Sound systems : FM-mono, AM-mono

: FM-stereo: B/G,

Czech

: NICAM: B/G, D/K, I, L

Maximum power : 4 x 15 W rms (int.)

1.1.3 Miscellaneous

Cinch: In

- CVBS 1 V pp / 75 ohm 

- Audio - L 0.5 V rms / 10 kohm 

- Audio - R 0.5 V rms / 10 kohm 

Mini Jack: Headphone - Out

- Headphone 32 - 600 ohm / 10 mW 

1.2.2 Rear Connections

AUDIO RECEIVER

AUDIO OUT

L

CENTRE INR

SURROUND

IN 2

DIGITAL AUDIO

CINEMA LINK

SUBW. 20-250Hz

IN 1

R L

OUT

Change the source set-up in the menu
to use the digital audio connectors.

EXT.1 EXT.2

EXT.3 EXT.4

TO ACTIVE
SPEAKERS

75 Ω

ANTENNA

FM RADIO

OPTIONAL

OPTIONAL

Mains voltage : 220 - 240 Vac
Mains frequency : 50 / 60 Hz
Ambient temperature : +5 to +45 deg. C
Maximum humidity : 90 % R.H.
Power consumption :

- Normal operation : ≈ 130 W

- Standby : < 1 W

1.2 Connections

1.2.1 Front, top control and Side I/O Connections

TOP CONTROL

-+

M

FRONT VIEW

IR RECEIVER

BLUE LED

RED LED

LIGHT SENSOR

SK 1

Figure 1-1 Front, top control and Side I/O

-+

P/CHVOLUME

SIDE I/O

SVHS

VIDEO

3.5

AUDIO R

AUDIO L

CL 36532008_015.eps

060503

SURROUND SOUND

SURROUND SOUND

WIRELESS
TRANSMITTER

TV ANTENNA

75 Ω

CL 26532008_013.eps

SURROUND SOUND
CINCH SOCKET

OR

WIRELESS TR.
SOCKET

070403

Figure 1-2 Rear View

Audio receiver

Audio - Out (Cinch)

R - Audio - R 0.5 Vrms / 1 kohm 
L - Audio - L 0.5 Vrms / 1 kohm 

Audio - In (Cinch)

C - Audio - Centre 

Hosiden: SVHS - In

1 - Y Ground 
2 - C Ground 
3 - Y 1 Vpp / 75 ohm 
4 - C 0.3 Vpp / 75 ohm 

Sets equipped with Surround output for active speakers
and Digital Audio:

R - Surround - R 0.5 Vrms / 1 kohm 
L - Surround - L 0.5 Vrms / 1 kohm 

- Subwoofer 20 - 250 Hz 

Technical Specifications, Connections, and Chassis Overview

EN 3EM6E 1.

Digital Audio (if present)

- Dig. audio out 

- Dig. audio in 2 

- Dig. audio in 1 

Audio - Out (Cinch)

R - Audio - R 0.5 Vrms / 1 kohm 
L - Audio - L 0.5 Vrms / 1 kohm 

FM Radio (Optional)

- IEC-type Coax, 75 ohm 

External 1: RGB/YUV and CVBS - In/Out

121

CL96532137_056.eps

202

171199

Figure 1-3 SCART connector

1 - Audio - R 0.5 Vrms / 1 kohm 
2 - Audio - R 0.5 Vrms / 10 kohm 
3 - Audio - L 0.5 Vrms / 1 kohm 
4 - Audio Ground 
5 - Audio Ground 
6 - Audio - L 0.5 Vrms / 10 kohm 
7 - Blue / U 0.7 Vpp / 75 ohm 
8 - CVBS-status 0 - 1.3 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 

9 - Video Ground 
10 - N.C.
11 - Green / Y 0.7 Vpp / 75 ohm 
12 - N.C.
13 - Video Ground 
14 - Video Ground 
15 - Red / V 0.7 Vpp / 75 ohm 
16 - Status / FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75 ohm 
17 - Video Ground 
18 - Video Ground 
19 - CVBS-out 1 Vpp / 75 ohm 
20 - CVBS-in 1 Vpp / 75 ohm 
21 - Shielding Ground 

13 - Video Ground 
14 - Video Ground 
15 - C-in 0.7 Vpp / 75 ohm 
16 - Status / FBL 0 - 0.4 V: INT

1 - 3 V: EXT / 75 ohm 
17 - Video Ground 
18 - Video Ground 
19 - CVBS 1 Vpp / 75 ohm 
20 - CVBS-in 1 Vpp / 75 ohm 
21 - Shielding Ground 

External 3: CVBS - In

121

CL96532137_056.eps

202

171199

Figure 1-5 SCART connector

1 - Ground 
2 - Audio - R 0.5 Vrms / 10 kohm 
3 - Ground 
4 - Audio Ground 
5 - Ground 
6 - Audio - L 0.5 Vrms / 10 kohm 
7 - N.C.
8 - CVBS-status 0 - 1.3 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 

9 - Video Ground 
10 - N.C.
11 - N.C.
12 - N.C.
13 - Video Ground 
14 - Video Ground 
15 - N.C.
16 - N.C.
17 - Video Ground 
18 - Video Ground 
19 - N.C.
20 - CVBS-in 1 Vpp / 75 ohm 
21 - Shielding Ground 

External 4: CVBS - In

External 2: CVBS and SVHS - In/Out (for VCR)

121

CL96532137_056.eps

202

171199

Figure 1-4 SCART connector

1 - Audio - R 0.5 Vrms / 1 kohm 
2 - Audio - R 0.5 Vrms / 10 kohm 
3 - Audio - L 0.5 Vrms / 1 kohm 
4 - Audio Ground 
5 - Audio Ground 
6 - Audio - L 0.5 Vrms / 10 kohm 
7 - C-out 0.7 Vpp / 75 ohm 
8 - CVBS-status 0 - 1.3 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 
9 - Video Ground 
10 - Easylink (P50) 
11 - Green 0.7 Vpp / 75 ohm 
12 - N.C.

121

CL96532137_056.eps

202

171199

Figure 1-6 SCART connector

1 - Ground 
2 - Audio - R 0.5 Vrms / 10 kohm 
3 - Ground 
4 - Audio Ground 
5 - Ground 
6 - Audio - L 0.5 Vrms / 10 kohm 
7 - N.C.
8 - CVBS-status 0 - 1.3 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 

9 - Video Ground 
10 - N.C.
11 - N.C.
12 - N.C.
13 - Video Ground 
14 - Video Ground 
15 - N.C.

EN 4 EM6E1.

Technical Specifications, Connections, and Chassis Overview

16 - N.C.
17 - Video Ground 
18 - Video Ground 
19 - N.C.
20 - CVBS-in 1 Vpp / 75 ohm 
21 - Shielding Ground 

Surround - Sound

Sets equipped with Surround-Out jack plug 3,5 mm

- Surround

Audio 0.2 - 2 Vrms / 10 kohm 

1.3 Chassis Overview

CRT PANEL

F

SIDE I/O PANEL

O

SMALL SIGNAL BOARD

B

Sets equipped with Wireless Transmitter: RJ45

1 - SDA_TM Signal 
2 - SCL_TM Signal 
3 - GND Ground 
4 - GND Ground 
5 - 11V_S Supply 
6 - AUDIO_SL 2.8 Vrms 
7 - GND AUDIO Ground 
8 - AUDIO_SR 2.8 Vrms 

Aerial - In

- IEC-type Coax, 75 ohm 

TOP CONTROL PANEL

P

P

SCAVEM PANEL

SC

Figure 1-7 PWB location

MAINSWITCH PANEL

LARGE SIGNAL PANEL

DC-SHIFT (optional)

DAF PANEL

CL 36532008_016.eps

E

A

G

I

040403

EN 20 EM6E4.

Mechanical Instructions

4. Mechanical Instructions

Index of this chapter:

1. Set Disassembly

2. Service Positions

3. Assy / PWB Removal

4. Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

• Follow the disassemble instructions in described order.

4.1 Set Disassembly

4.1.1 Wireless Surround Transmitter Removal (if attached)

1. Remove the cable of the Wireless Surround Transmitter
box (at the right side of this RJ45 plug you can find the
release-hook of the lock-mechanism).

2. Pull the Wireless Surround Transmitter box backwards. It
is clicked to the rear cover via three clamps.

4.1.2 Rear Cover Removal

1

2 (5x)

3

1. Disconnect the loudspeaker cable connectors at the top of
the sub-woofer box.

2. Unlock he subwoofer bracket and at the same time pull the
unit backwards.

3. Take out the sub-woofer unit including the bracket.

4.2 Service positions

4.2.1 DAF Module

1

2

4

4

3

3

CL 16532044_011.eps

Figure 4-2 DAF-module

1. Remove the fixation screw (if present) as described in
section: ‘Assy/PWB removal’.

2. Push down the fixation clamp, and pull the complete
bracket at the same time loose from the LSP bracket. The
module is now unlocked from the chassis and can be
handled in several positions.

3

4.2.2 Small Signal Board (SSB)

150501

SERVICE CONNECTOR

CL 36532008_009.eps

Figure 4-1 Removal of the rear cover

Warning: Disconnect the mains power cord before you remove

the rear cover.

First, unscrew the top cover plate:

1. Remove the fixation screw(s) [1] that secure the cover
plate.

2. Remove the top cover plate and the rear cover screws,
hidden by this top cover plate.

To be able to access the electronics of the set, you must
remove the rear cover:

1. Disconnect all communication cables.

2. Remove the fixation screws [2] of the rear I/O cover plate.

3. Remove the remaining fixation screws [3] of the rear cover.

4. Unlock the securing clips at bottom side and remove the

rear cover. Make sure not to damage any cable during this
cover removal.

4.1.3 Sub-woofer Removal

Caution: Do not disconnect the loudspeaker cable from the

subwoofer box when the set is operative, because the class-D
amplifier cannot handle a change in load during operation.
It is no problem when the subwoofer is disconnected before

operation, but a change from connected to disconnected
during operation can damage the amplifier.

040403

CL 26532008_014.eps

040403

Figure 4-3 Small Signal Board removal

1. Unlock the SSB bracket at the position as shown in the
figure and place the board flat on the table.

Note: For good access to both sides it is possible to use two
‘IDE extended flat cables’, 48 cm, 40 fold (ordering code for one
cable: 3104 311 05501). Or use the cables from the service
extension tool 9965 000 14526.

4.2.3 LSP Component side

1

2

Mechanical Instructions

1

2

EN 21EM6E 4.

Figure 4-4 LSP unlock action

1. Make sure the SSB bracket is unlocked and placed on the
table.

2. Release the LSP bracket locking clips and pull it out of the
mounting holes.

4.2.4 Solder Side LSP

2

1

1502

CL 36532008_010.eps

040403

Figure 4-6 Service position LSP

For better accessibility of the LSP, do the following (see also
figure above):

1. Make sure the DAF module is uncoupled from the LSP
bracket.

2. Unlock both LSP fixation clamps and pull it backwards to
release it out of the mounting holes.

3. To disconnect the degaussing coil from the LSP, remove
the cable from connector 1502 [1].

4. Release the wiring from their fixation clamps, in order to get
room for repositioning the LSP.

5. Replace the IDE flat cables by two 'IDE extended flat
cables', 48 cm, 40 fold (ordering code for one cable: 3104
311 05501). Or use the cables from the service extension
tool 9965 000 14526.

6. Rotate the LSP 90 degrees clockwise [2], and place it in
one of the bottom fixation holes as shown in the figure.

7. Hook the bracket in the first row of fixation holes of the
bottom tray, see figure.

4.3 Assy / PWB Removal

Sometimes, it can be necessary to swap a complete assy or
Printed Wiring Board (PWB). How that can be done is
explained below.

CL 36532008_017.eps

070503

3

CL 36532008_011.eps

Figure 4-5 Place LSP in Service position

040403

4.3.1 Top Control Assy / Panel

Top control board

Figure 4-7 Top control assy

1. Release both fixation screws about five full turns.

2. Pull the complete assy back- and upwards (it hinges in the

cabinet front).

3. Flip the assy, and you can access the board by releasing
(carefully) the four fixation clamps.

CL 16532149_068.eps

051201

EN 22 EM6E4.

Mechanical Instructions

4.3.2 Side-I/O Assy / Panel

3

2

Figure 4-8 Side I/O assy

1. Release the snap-hook [1] with your finger.

2. At the same time, pull the assy backwards.

3. Release the two fixation clamps on the right side of the

bracket [2] (the board hinges at the left side).

4. Remove the board from the bracket.

4.3.3 Mains Switch Assy / Panel

1

1

2

2

1

CL 16532149_069.eps

061201

4.3.4 DAF Assy / Panel

1

2

4

4

3

3

CL 16532044_011.eps

Figure 4-10 DAF-module

1. Remove the fixation screw [1] (if the screw is present).

2. Disconnect the cables.

3. Push down the fixation clamp [2], and pull the complete

bracket at the same time backwards. The module is now
unlocked from the LSB bracket and can be removed.

4. Release the PWB fixation clamps [4], to remove the print
from the DAF bracket.

4.3.5 Auto-Scavem Assy / Panel

This panel is mounted in a bracket on the left side of the LSB.
It is not necessary to remove the bracket.

1. Release the two PWB fixation clamps at top as well as at
bottom side of the PWB.

2. Remove the cables

3. Take out the Auto-Scavem PWB.

4.3.6 Small Signal Board (SSB)

150501

CL 16532149_070.eps

061201

Figure 4-9 Mains Switch Assy

1. Release the two fixation clamps by pushing them upwards
[1]. At the same time, pull the complete assy backwards [2].
Note: be aware that the degaussing coil/cable can hamper
this.

2. Release the two fixation clamps on the two sides of the
bracket (the board hinges at the connector side).

3. Remove the board from the bracket.

4. When the light guide (located in the cabinet, in front of the

LEDs) is defective, you can replace it by pushing it
forwards at the left side (it hinges at the right side, seen
from the rear).

1. Unlock the bracket and at the same time pull the bracket
out of the locking holes.

2. Place the SSB bracket on the table.

3. To remove the PWB disconnect the cables, unscrew the

mounting screws and take the PWB out of its bracket.

4.3.7 Large Signal Panel (LSP)

1. Unlock the LSB bracket as described in section "Service
positions".

2. Disconnect the necessary cables.

3. Remove the PWB mounting screws and release the

fixation clamps on the left of the LSP-bracket (the board
hinges at the right side).

4. Remove the board from the bracket.

4.4 Set Re-assembly

To reassemble the whole set, do all processes in reverse order.

Be sure that, before the rear cover is mounted:

• The mains cord is mounted correctly in its guiding brackets.

• All wires/cables are returned in their original positions. This

is very important due to the large "hot" area of the set.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

EN 23EM6E 5.

Index of this chapter:

1. Test points

2. Service Modes

3. Problems and solving tips (related to CSM)

4. ComPair

5. Error Codes

6. The blinking LED procedure

7. Protections

8. Repair tips

9. Software downloading

5.1 Test Points

The chassis is equipped with test points printed on the circuit
board assemblies. They refer to the diagram letters.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

Service Default Mode (SDM) and Service Alignment Mode
(SAM) offer several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between a Philips Customer Care Centre (P3C) and a
customer.

There is also the option of using ComPair, a hardware interface
between a computer (see requirements below) and the TV
chassis. It offers the ability of structured troubleshooting, test
pattern generation, error code reading, software version
readout, and software upgrading.
Minimum requirements: a Pentium processor, Windows 95/
98, and a CD-ROM drive (see also paragraph “ComPair”).

Note: In this chassis, the bi-coloured LED (red/green) is
replaced by two separate LEDs, a blue and a red one. The blue
LED is controlled by software (via ON_OFF_LED). The red
LED will light in anti-phase to the blue, but with a time delay.
This means that if the blue LED is blinking fast, the red LED will
stay off, but after the blue LED is “OFF” long enough, the red
LED will go “ON”.
So take care: In certain service modes (e.g. blinking LED,
stepwise start-up, etc.) you must observe the blue LED and
ignore the red LED.

5.2.1 Service Default Mode (SDM)

Purpose

• To create a pre-defined setting, to get the same
measurement results as given in this manual.

• To override SW protections.

• To start the blinking LED procedure.

Specifications

• Tuning frequency: 475.25 MHz for PAL/SECAM.

• Colour system: SECAM L for France or PAL B/G for the

rest of Europe.

• All picture settings at 50 % (brightness, colour, contrast).

• All sound settings at 50 %, except volume at 25 %.

• All service-unfriendly modes (if present) are disabled, like:
– (Sleep) timer.
– Child/parental lock.
– Blue mute.
– Automatic volume limiter (AVL).
– Auto switch-off (when no video signal was received for

10 minutes).

– Skip/blank of non-favourite pre-sets.
– Smart modes.
– Auto store of personal presets.
– Auto user menu time-out.

How to enter SDM

Use one of the following methods:

• Use the standard RC-transmitter and key in the code

“062596”, directly followed by the “MENU” button.
Note: It is possible that, together with the SDM, the main

menu will appear. To switch it off, push the “MENU” button
again.

• Short for a moment the two solder pads on SSP print, with
the indication “SDM”. These solder pads are present at
both sides of the print. Activation can be performed in all
modes, except when the set has a problem with the main­processor.
Caution: If the SDM is entered via the pins, all the
software-controlled protections are de-activated.

• Use the DST-emulation feature of ComPair.

• Use the “DEFAULT” button on the Dealer Service Tool

(RC7150).

After entering this mode, “SDM” will appear in the upper right
corner of the screen.

How to navigate

When you press the “MENU” button on the RC transmitter, the
set will toggle between the SDM and the normal user menu
(with the SDM mode still active in the background).

How to exit SDM

Use one of the following methods:

• Switch the set to STANDBY via the RC-transmitter.

• Press the “EXIT” button on the DST.

• Via a standard customer RC-transmitter: key in “00”-

sequence.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To perform (software) alignments.

• To change option settings.

• To easily identify the used software version.

• To view operation hours.

• To display (or clear) the error code buffer.

Specifications

• Operation hours counter.

• Software version.

• Option settings.

• Error buffer reading and erasing.

• Software alignments.

How to enter SAM

Use one of the following methods:

• Via a standard RC transmitter: key in the code “062596”
directly followed by the “OSD [i+]” button. After entering
SAM with this method a service warning will appear on the
screen, you can continue by pressing any digit key on the
RC.

• Short for a moment the two solder pads on SSP print, with
the indication SAM. These solder pads are present at both
sides of the print. Depending on the software version it is
possible that the service warning will appear, you can
continue by pressing any digit key on the RC.

• Use the DST-emulation feature of ComPair.

• Press the ALIGN button on the DST while the set is in the

normal operation

EN 24 EM6E5.

Service Modes, Error Codes, and Fault Finding

After entering this mode, “SAM” will appear in the upper right
corner of the screen.

Contents of SAM:

• OPERATION HOURS. Displays the accumulated total of

operation hours (not the standby hours).

• HARDWARE INFO
– ROM VERSION. Displays the date of the software and

the software version of the ROM
(example: EM6EU1-1.0_01234 = AAABBC­X.Y_NNNNN).

• AAA= the chassis name.

• BB= the region: EU= Europe, AP= Asia Pacific

PAL/Multi, AN= Asia Pacific NTSC, US= USA, LT=
LATAM.

• C= the language cluster number.

• X.Y= the software version, where X is the main

version number (different numbers are not
compatible with one another) and Y is the sub
version number (a higher number is always
compatible with a lower number).

• NNNNN= last five digits of 12nc code software.

– SW VERSION RDS RADIO. Displays the software

version of the RDS radio (if RDS radio is present).

• ERRORS (followed by maximal 10 errors). The most
recent error is displayed at the upper left (for an error
explanation see paragraph “Error Codes”).

• DEFECTIVE MODULE. Here the module that generates
the error is displayed. If there are multiple errors in the
buffer, which are not all generated by a single module,
there is probably another defect. It will then display the
message “UNKNOWN” here.

• RESET ERROR BUFFER. When you press the “OK”
button, the error buffer is reset.

• ALIGNMENTS. This will activate the “ALIGNMENTS” sub-
menu.

• DEALER OPTIONS. Extra features for the dealers.

• SERVICE OPTIONS. Extra features for Service.

• INITIALISE NVM. When an NVM was corrupted (or

replaced) in the former EM3 chassis, the microprocessor
replaces the content with default data (to assure that the
set can operate). However, all pre-sets and alignment
values are gone now, and option numbers are not correct.
Therefore, this was a very drastic way. In this chassis, the
procedure is implemented in another way: The moment the
processor recognises a corrupted NVM, the “initialise
NVM” line will be highlighted. Now, you can do two things
(dependent of the service instructions at that moment):
– Save the content of the NVM via ComPair for

development analysis, before initialising. This will give
the Philips Service department an extra possibility for
diagnosis (e.g. when Development asks for this).

– Initialise the NVM (same as in the past, however now it

happens conscious).

• STORE. All options and alignments are stored when
pressing the “OK”-button

• FUNCTIONAL TEST. All devices are tested via the “OK”
button. Eventual errors are displayed in the error buffer.
The error buffer is not erased, the content returns when this
test is terminated.

• DAILY MENUS. With the “OK” button, you can go to the
normal user menu. SAM is still active in the background.
With the “MENU” button, you return from the user menu to
SAM menu. This feature can be helpful to quickly change
some settings in the user menu.

• SW MAINTENANCE
– UPGRADE. More info see paragraph Software

downloading.

– EVENTS. Not useful for service purposes. In case of

specific software problems, the development
department can ask for this info.

– BDM INFO. Broadcast Debug Menu info. The purpose

of this menu is to debug the broadcast, not the TV. The
menu gives an overview of what is received on the
current preset. Following items are displayed:

P r e s e t n r : -- UTC: - - : - - : --
P r e s e t n a m e : ----- LTO: - - : - - : --
Time: - - : - - : --
C N I N V M : ---- Date: - - / - - / ----
C N I F 1 : ----
C N I F 2 : ---- Time TXT: - - : - - : --
C N I V P S : ---- Time 8/30 F1: - - : - - : --
M o r n i n g P r o g : --- Date 8/30 F1: - - / - - / ----
N a m e 8 / 3 0 F 1 : ----- LTO 8/30 F1: - - : - - : --
N a m e 8 / 3 0 F 2 : -----
N a m e T X T : ----- WSS G1: - - - -
S i g n a l S t r e n g t h :--- WSS G2: - - - -
WSS G3: - - -
E P G S e r v i c e : --- WSS G4: - - -

CL 36532017_055.eps

240403

Figure 5-1 Broadcast debug menu overview

Table 5-1 Broadcast debug menu explanation

Item Source Description

Presetnr Set Presetnumber of the current

selected preset.

Presetname Set Presetname of the current se-

lected preset.

CNI NVM Broadcaster CNI number stored in NVM for

the current preset.

CNI F1 Broadcaster CNI number from transmitted

Packet 8/30 Format 1.

CNI F2 Broadcaster CNI number from transmitted

Packet 8/30 Format 2.

CNI VPS Broadcaster CNI number from transmitted

VPS line.

Morning Prog Broadcaster "ARD" or "ZDF" according to

dedicated bit in 8/30 Format 1.

Name 8/30 F1 Broadcaster Name extracted from status

message of 8/30 Format 1.

Name 8/30 F2 Broadcaster Name extracted from status

message of 8/30 Format 2.

Name TXT Broadcaster Name extracted from TXT

header.

Signal
Strength

FBX Noise figure measured for se-

lected preset.

EPG Service Set EPG Service stored in NVM for

current preset displayed as
"TXT", "MCP", "SCP", "OCP".

UTC Set UTC (Universal Time Code for-

merly known as Greenwich
Mean Time) used in the set.

LTO Set LTO (Local Time Offset) used

in the set. Used by EPG for all
Nextview displays. (= Time
TXT header - Time 8/30 F1 )

Time Set Current time running in the set.

Was extracted at startup, then
maintained by software.

Date Set Current date running in the set.

Was extracted at startup, then
maintained by software.

Time TXT Broadcaster TXT header time from the se-

lected preset.
Time 8/30 F1 Broadcaster UTC time from 8/30 Format 1.
Date 8/30 F1 Broadcaster Date from 8/30 Format 1.
LTO 8/30 F1 Broadcaster LTO from 8/30 Format 1.
WSS G1 Broadcaster WSS Group 1 (Aspect Ratio)

bits 0 1 2 3
WSS G2 Broadcaster WSS Group 2 (Enhanced

Services) bits 4 5 6 7
WSS G3 Broadcaster WSS Group 3 (Subtitles) bits 8

9 10
WSS G4 Broadcaster WSS Group 4 (Reserved) bits

11 12 13

Service Modes, Error Codes, and Fault Finding

EN 25EM6E 5.

How to navigate

• In SAM, you can select the menu items with the “CURSOR
UP/DOWN” key on the RC-transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, move the “CURSOR UP/DOWN” key to display the
next/previous menu items.

• With the “CURSOR LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.

How to exit SAM

Use one of the following methods:

• Press the “MENU” button on the RC-transmitter, or

• Switch the set to STANDBY via the RC-transmitter, or

• Press the “EXIT” button on the DST.

5.2.3 Customer Service Mode (CSM)

Purpose

When a customer is having problems with his TV-set, he can
call his dealer. The service technician can than ask the
customer to activate the CSM, in order to identify the status of
the set. Now, the service technician can judge the severity of
the complaint. In many cases, he can advise the customer how
to solve the problem, or he can decide if it is necessary to visit
the customer.
The CSM is a read only mode; therefore, modifications in this
mode are not possible.

How to enter CSM

Use one of the following methods:

• Press the “MUTE” button on the RC-transmitter
simultaneously with the “MENU” button on the TV (top
control) for at least 4 seconds.

• Key in the code “123654” via the standard RC transmitter.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

How to navigate

By means of the “CURSOR-DOWN/UP” knob on the RC­transmitter, you can navigate through the menus.

Contents of CSM

Customer Service Menu 1

• SOFTWARE VERSION (example: EM6EU1-1.0_01234).

Displays the built-in software version. In case of field
problems related to software, software can be upgraded
(for more details, see paragraph Software downloading).
You will find details of the software versions in the chapter
“Software Survey” of the “Product Survey - Colour
Television” publication. This publication is generated four
times a year.

• FEATURE BOX. The 12NC-number of the built-in Feature
Box software

• SET TYPE. This information is very helpful for a helpdesk/
workshop as reference for further diagnosis. In this way, it
is not necessary for the customer to look at the rear of the
TV-set.

• CODE 1. Gives the latest 5 errors of the error buffer. As
soon as the built-in diagnose software has detected an
error the buffer is adapted. The last occurred error is
displayed on the leftmost position. Each error code is
displayed as a 3-digit number. When less than 10 errors
occur, the rest of the buffer is empty (000). See also
paragraph Error Codes for a description.

• CODE 2. Gives the first 5 errors of the error buffer. See
also paragraph Error Codes for a description.

• VOLUME. Gives the last status of the volume as set by the
customer. The value can vary from 0 (volume is minimum)

to 100 (volume is maximum). Volume values can be
changed via the volume key on the RC-transmitter.

• BRIGHTNESS. Gives the last status of the brightness as

set by the customer. The value can vary from 0 (brightness
is minimum) to 100 (brightness is maximum). Brightness
values can be changed via the “CURSOR LEFT” and
“CURSOR RIGHT” keys on the RC-transmitter after
pressing the “MENU” button and selecting “PICTURE” and
“BRIGHTNESS”.

• CONTRAST. Gives the last status of the contrast as set by

the customer. The value can vary from 0 (contrast is
minimum) to 100 (contrast is maximum). Contrast values
can be changed via “CURSOR LEFT” and “CURSOR
RIGHT” keys on the RC-transmitter after pressing the
“MENU” button and selecting “PICTURE” and
“CONTRAST”.

• COLOUR. Gives the last status of the colour saturation, as

set by the customer. The value can vary from 0 (colour is
minimum) to 100 (colour is maximum). Colour values can
be changed via “CURSOR LEFT” and “CURSOR RIGHT”
keys on the RC-transmitter after pressing the “MENU”
button and selecting “PICTURE” and “COLOUR”.

• HUE. Only relevant for NTSC-signals (e.g. some NTSC-

DVD-discs).

Customer Service Menu 2

• SHARPNESS. Gives the sharpness value. The value can

vary from 0 (sharpness is minimum) to 7 (sharpness is
maximum). In case of bad antenna signals, a too high
value of the sharpness can result in a noisy picture.
Sharpness values can be changed via the “CURSOR
LEFT” and “CURSOR RIGHT” keys on the RC-transmitter
after pressing the “MENU” button and selecting “PICTURE”
and “SHARPNESS”.

• HEADPHONE VOLUME. Gives the last status of the

headphone volume, as set by the customer. The value can
vary from 0 (volume is minimum) to 100 (volume is
maximum). Headphone volume values can be changed via
the “CURSOR LEFT” and “CURSOR RIGHT” keys on the
RC-transmitter after pressing the “MENU” button and
selecting “SOUND” and “HEADPHONE VOLUME”.

• DOLBY. Indicates whether the received transmitter

transmits Dolby sound (“ON”) or not (“OFF”). Attention: The
presence of Dolby can only be tested by the software on
the Dolby Signalling bit. If a Dolby transmission is received
without a Dolby Signalling bit, this indicator will show “OFF”
even though a Dolby transmission is received.

• SURROUND MODE. Indicates the by the customer

selected surround mode (or automatically chosen mode).
In case the set is a Non-Dolby set, there will be displayed
“0”. If it is a Dolby-set then is displayed: “STEREO”, “3
STEREO”, “HALL”, “3DSURROUND”, “DOLBY PRO
LOGIC” or “DOLBY DIGITAL”. These settings can be
influenced after pressing the “MENU” button and selecting
“SOUND” and SURROUND MODE”. It can also have been
selected automatically by signalling bits (internal software).

• TUNER FREQUENCY. Indicates the frequency the

selected transmitter is tuned to. The tuner frequency can
be changed via the “CURSOR LEFT” and “CURSOR
RIGHT” keys for fine tune after opening the installation
menu and selecting “INSTALL” and “MANUAL INSTALL”.

• DIGITAL OPTION. Gives the selected digital mode, “100

HZ”, “DIGITAL SCAN”, “NATURAL MOTION”, “DOUBLE
LINES”, or “PIXEL PLUS”. Change via “MENU”,
“PICTURE”, “DIGITAL OPTIONS”.

• CENTRE TRIM. Indicates the difference between main

volume and volume of centre speaker. Change via:
“MENU”, “SETUP”, “SPEAKERS”, and “CENTRE
VOLUME” (not available when “Surround Mode” is set to
“STEREO” or “HALL”). The value can vary from “-10” to
“+10”

• TV SYSTEM. Gives information about the video system of

the selected transmitter.

– BG: PAL BG signal received.
– DK: PAL DK signal received.

EN 26 EM6E5.

Service Modes, Error Codes, and Fault Finding

– I: PAL I signal received.
– L/La: SECAM L/La signals received.
– M: NTSC M signal received with video carrier on 38.9

MHz.

Customer Service Menu 3

• BALANCE. Indicates the balance settings, between “-50”

and “+50”. Change via “MENU”, “SOUND”, and
“BALANCE”. Not applicable for Dolby Pro Logic sets.

• CENTRE MODE. Indicates if centre mode is set “ON” or

“OFF”. When centre mode is on, all TV speakers are used
as one centre speaker. Change Centre mode via “MENU”,
“SETUP”, “SPEAKERS”, and “CENTRE MODE”.

• DNR. Gives the selected DNR setting (Dynamic Noise

Reduction), “OFF”, “MINIMUM”, “MEDIUM”, or
“MAXIMUM”. Change via “MENU”, “PICTURE”, “DNR”

• NOISE FIGURE. Gives the noise ratio for the selected

transmitter. This value can vary from 0 (good signal) to 127
(average signal) and to 255 (bad signal). For some
software versions, the noise figure will only be valid when
“Active Control” is set to “medium” or “maximum”.

• SOURCE. Indicates which source is used and the video/

audio signal quality of the selected source.
(Example: Tuner, Video/NICAM) Source: “TUNER”,
“EXT1”, “EXT2”, “EXT3”, “EXT4”, “SIDE”, “AV1”, “AV2”,
“AV3” or “AV4”. Video signal quality: “VIDEO”, “S-VIDEO”,
“RGB 1FH”, “YPBPR 1FH 480P”, “YPBPR 1FH 576P”,
“YPBPR 1FH 1080I”, “YPBPR 2FH 480P”, “YPBPR 2FH
576P”, “YPBPR 2FH 1080I”, “RGB 2FH 480P”, “RGB 2FH
576P” or “RGB 2FH 1080I”. Audio signal quality:
“STEREO”, “SPDIF 1”, “SPDIF 2” or “SPDIF”.

• AUDIO SYSTEM. Gives information about the audio

system of the selected transmitter: “ANALOGUE MONO”,
“ANALOGUE STEREO”, “PCM 2/0”, “DD 1/0”, “DD 2/0
LtRt”, “DD 2/0 L0R0”, “DD 2/1”, “DD 2/2”, “DD 3/0”, “DD 3/
1”, “DD 3/2”, “DD 1+1”, “MPEG 1/0”, “MPEG 2/0”, “MPEG
2/0 LtRt”, “MPEG 2/1”, “MPEG 2/2”, “MPEG 3/0”, “MPEG
3/1”, “MPEG 3/2”, “MPEG 1+1” or “MPEG 2+2”.

• TUNED BIT. Gives information about the tuning method of

the stored pre-set. If a channel is found via “automatic
installation”, you will see the value “Yes”. When you
change this (automatically found) frequency via “fine tune”
adjustment (installation menu - manual installation), the
displayed value will change to “No”. Therefore, when you
see the value “No” in this line, it is an indication that the
received channel is a non-standard signal (e.g. of a VCR).

• SURROUND SPEAKERS. Indicates if the surround

speakers are present, “YES” or “NO”. Change via “MENU”,
“SETUP”, “SPEAKERS”, and “SURROUND SPEAKERS”.

• ON TIMER. Indicates if the “On Timer” is set “ON” or “OFF”

and if the timer is “ON” also displays start time, start day
and program number. Change via “MENU”, “TV”,
“FEATURES”, and “ON TIMER”.

• PRESET LOCK. Indicates if the selected preset has a child

lock: “LOCKED” or “UNLOCKED”. Change via “MENU”,
“TV”, “FEATURES”, “CHILD LOCK”, and “CUSTOM
LOCK”.

“CUSTOM LOCK”. It is possible that more than one value
is shown.

• PROGRAM CATEGORY. Indicates the theme of the

selected transmitter: “MOVIES”, “NEWS”, “SHOWS”,
“SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or
“SERIES”.

• TV RATINGS LOCK. Only applicable for US.

• MOVIE RATINGS LOCK. Only applicable for US.

• V-CHIP TV STATUS. Only applicable for US.

Customer Service Menu 5

• V-CHIP MOVIE STATUS. Only applicable for US.

• OPTIONS 1. Gives the option codes of option group 1 as

set in SAM (Service Alignment Mode).

• OPTIONS 2. Gives the option codes of option group 2 as

set in SAM (Service Alignment Mode).

• AVL. Indicates the last status of AVL (Automatic Volume

Level): “ON” or “OFF”. Change via “MENU”, “TV”,
“SOUND”, “AVL”

• DELTA VOLUME. Indicates the last status of the delta

volume for the selected preset as set by the customer: from
“-12” to “+12”. Change via “MENU”, “TV”, “SOUND”,
“DELTA VOLUME”.

• SURROUND TRIM L. Indicates the last status of

“SURROUND LEFT VOLUME” as set by the customer:
from “-10” to “+10”. Only available in Digital Dolby sets.
Change via “MENU”, “SETUP”, “SPEAKERS”,
“SURROUND L VOLUME.

• SURROUND TRIM R. Indicates the last status of

“Surround Right Volume” as set by the customer: from “­10” to “+10”. Only available in Digital Dolby sets. Change
via “MENU”, “SETUP”, “SPEAKERS”, “SURROUND R
VOLUME.

• FRONT SPKR DIST. Indicates the last status of the

distance to the front speakers as set by the customer: “1m”,

“2m”, or “3m”,.... Change via “MENU”, “SETUP”,

“SPEAKERS”, “TO FRONT”.

• SURR. SPKR DIST. Indicates the last status of the

distance to the surround speakers as set by the customer:

“1m”, ”2m”, or ”3m”,.... Change via “MENU”, “SETUP”,

“SPEAKERS”, “TO SURROUND”.

How to exit CSM

Use one of the following methods:

• After you press a key on the RC-transmitter (with exception
of the “CHANNEL”, “VOLUME” and digit (0-9) keys), or

• After you switch the TV-set “OFF” with the mains switch.

5.3 Problems and Solving Tips (related to CSM)

Note: Below described problems are all related to the TV

settings. The procedures to change the value (or status) of the
different settings are described above. New value(s) are
automatically stored.

5.3.1 Picture Problems

Customer Service Menu 4

• CHILD LOCK. Indicates the last status of the general child

lock: “UNLOCK”, “LOCK”, or “CUSTOM LOCK”. Change
via “MENU”, “TV”, “FEATURES”, “CHILD LOCK”, and
“LOCK”.

• AGE LOCK. Indicates the last status of the EPG rating for

child lock: “OFF”, “4 YEARS”, “6 YEARS”, “8 YEARS”, “10
YEARS”, “12 YEARS”, “14 YEARS” or “16 YEARS”. This is
only displayed if child lock is set to “CUSTOM LOCK”

• LOCK AFTER. Indicates at what time the child lock is set:

“OFF” or e.g. “18:45” (lock time). This is only displayed if
child lock is set to “CUSTOM LOCK”

• CATEGORY LOCK. Indicates the last status of the EPG

theme childlock: “MOVIES”, “NEWS”, “SHOWS”,
“SPORTS”, “CHILDREN”, “MUSIC”, “CULTURE”, or
“SERIES”. This is only displayed if child lock is set to

Snowy/noisy picture

1. Check line 24 “Noise Figure”. In case the value is 127 or
higher, and the value is also high on other programs, check
the aerial cable/aerial system. For some software versions,
the noise figure will only be valid when “Active Control” is
set to “medium” or “maximum”.

2. Check lines 11 “Sharpness” and 24 “Noise Figure”. In case
the value of line 11 is 3 or 4 and the value of line 24 is high
(127 or higher), decrease the “Sharpness” value.

Picture too dark

1. Press “MENU”, “TV”, “PICTURE”, “SMART PICTURE”. In
case the picture improves, increase the “Brightness” or the
“Contrast” value. The new value(s) are automatically
stored (in “personal” pre-set) for all TV channels.

Service Modes, Error Codes, and Fault Finding

EN 27EM6E 5.

2. Check line 7 “Brightness” and 8 “Contrast”. If the value of
line 7 is low (< 10) or the value of line 8 is low (< 10),
increase the “Brightness” or the “Contrast” value.

Picture too bright

1. Press “MENU”, “TV”, “PICTURE”, “SMART PICTURE”. In
case the picture improves, decrease the “Brightness” or the
“Contrast” value. The new value(s) are automatically
stored (in “personal” pre-set) for all TV channels.

2. Check lines 7 “Brightness” and 8 “Contrast”. If the value of
line 7 is high (> 40) or the value of line 8 is high (> 50).
Decrease the “Brightness” value or increase the “Contrast”
value.

White line around picture elements and text

1. Press “MENU”, “TV”, “PICTURE”, “SMART PICTURE”. In
case the picture improves, decrease the “Sharpness”
value. The new value is automatically stored (in “personal”
pre-set) for all TV channels.

2. Check line 11 “Sharpness”. Decrease the “Sharpness”
value. The new value is automatically stored for all TV
channels.

No picture

Check line 27 “Tuned bit”. In case the value is “No”, install the
required program again. Open the installation menu and
perform manual installation.

Blue picture

No proper signal is received. Check the aerial cable/aerial
system.

Blue picture and/or unstable picture

A scrambled or decoded signal is received.

Black and white picture

Check line 9 “Colour”. In case the value is low (< 10), increase
the “Colour” value. The new value is automatically stored for all
TV channels.

No colours/colour lines around picture elements or
colours not correct or unstable picture

1. Check line 20 “TV System”. If a “strange” system pops up,
something has gone wrong during installation. Re-install
the channel.

2. In case line 20 is “L”, the installed system for this pre-set is
“France”, while “West Europe” is required. Install the
required program again: open the installation menu and
perform manual installation. Select system “West Europe”.

Menu text not sharp enough

1. Press “MENU”, “TV”, “PICTURE”, “SMART PICTURE”. In
case picture improves, decrease the contrast value. The
new value(s) are automatically stored for all TV channels.

2. Check line 8 “Contrast”. The value of line 8 is high (> 50).
Decrease the contrast value.

5.3.2 Sound Problems

No sound from left and right speaker

Check line 6 “Volume”. The value is low. Increase the value of
“Volume”. The new value(s) are automatically stored (in
“personal” pre-set) for all TV channels.

Sound too loud for left and right speaker

Check line 6 “Volume”. The value is high. Decrease the value
of “ Volume”. The new value(s) are automatically stored (in
“personal” pre-set) for all TV channels.

5.4 ComPair

5.4.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:

• ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I2C level)
and is therefore capable of accurately indicating problem
areas. You do not have to know anything about I2C
commands yourself because ComPair takes care of this.

• ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the SearchMan electronic manual of the defective chassis,
schematics and PWBs are only a mouse click away.

5.4.2 Specifications

ComPair consists of a Windows based faultfinding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
or RS232 cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector.

The ComPair faultfinding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:

• Automatic (by communication with the television):
ComPair can automatically read out the contents of the
entire error buffer. Diagnosis is done on I2C level. ComPair
can access the I2C bus of the television. ComPair can
send and receive I2C commands to the micro controller of
the television. In this way, it is possible for ComPair to
communicate (read and write) to devices on the I2C
busses of the TV-set.

• Manually (by asking questions to you): Automatic
diagnosis is only possible if the micro controller of the
television is working correctly and only to a certain extends.
When this is not the case, ComPair will guide you through
the faultfinding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next
step in the faultfinding process.

By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.

Beside fault finding, ComPair provides some additional
features like:

• Up- or downloading of pre-sets.

• Managing of pre-set lists.

• Emulation of the Dealer Service Tool (DST).

• If both ComPair and SearchMan (Electronic Service

Manual) are installed, all the schematics and the PWBs of
the set are available by clicking on the appropriate
hyperlink.

Example: Measure the DC-voltage on capacitor C2568
(Schematic/Panel) at the Mono-carrier.

– Click on the “Panel” hyperlink to automatically show

the PWB with a highlighted capacitor C2568.

– Click on the “Schematic” hyperlink to automatically

show the position of the highlighted capacitor.

EN 28 EM6E5.

Service Modes, Error Codes, and Fault Finding

5.4.3 Stepwise Start-up

Under normal circumstances, a fault in the power supply, or an
error during start-up, will switch the television to protection
mode. ComPair can take over the initialisation of the television.
In this way, it is possible to distinguish which part of the start­up routine (hence which circuitry) is causing the problem.
In sets with the Muppet IC present (dual screen functionality),
step 2 is skipped.
Take notice that the transition between two steps can take
some time, so give the set some time to reach a stable state.
During the transition time the LED can blink strangely.

Stepwise start- up explanation

This is realised via ComPair and is very helpful when a

protection is activated (see also chapter “Protections”).

Table 5-2 Stepwise start-up table

State Description mode Display

LED

0 Low power standby: 5V2/3V3

On None

present, uP in standby-mode

1 High power Standby: TV-set

in standby-mode

2 Main Power On: HOP in

standby, 5V/8V present, I2C

Wait 1s,
flash 1 x

Wait 1s,

flash 2 x
protections on, SSB is pow­ered by standby-supply (5V/
8V). Degaussing (12 s) has
been activated, MSP is reset.

3 Initialized (Semi standby):

most IC's are initialized, HOP

Wait 1s,

flash 3 x
still in standby

4 HOP: HOP fully powered and

working, EHT is present, rest

Wait 1s,

flash 4 x
of IC's initialized, black cur­rent stabilisation is off, picture
is still blanked

5 On: TV-set operates, black

current stabilisation is on, pic-

Wait 1s,

flash 5 x
ture is unblanked.

Enabled
protection

None

4 & 5

Plus 1, 6 &
18

Plus 2 & 16

7. Plug the mains adapter in a mains outlet, and switch the
interface “ON”. The green and red LEDs light up together.
The red LED extinguishes after approx. 1 second while the
green LED remains lit.

8. Start the ComPair program and read the “Introduction”
chapter.

EXTERNAL 2

L

R

AUDIO EXTERNAL 1

SERVICE

CONNECTOR

PC VCR I2CPower

9V DC

Figure 5-2 ComPair Interface connection

5.4.5 How To Order

ComPair order codes (EU/AP):

• Starter kit ComPair32/SearchMan32 software and
ComPair interface (excl. transformer): 3122 785 90450.

• ComPair interface (excluding transformer): 4822 727

21631.

• Starter kit ComPair32 software (registration version): 3122
785 60040.

• Starter kit SearchMan32 software: 3122 785 60050.

• ComPair32 CD (update): 3122 785 60110.

• SearchMan32 CD (update): 3122 785 60120.

• ComPair interface cable: 3122 785 90004.

• ComPair firmware upgrade IC: 3122 785 90510.

• Transformer Europe: 4822 727 21632.

• Transformer UK: 4822 727 21633.

5.5 Error Codes

CL96532156_029.eps

190600

Note (*):

• When the set is in stepwise mode and, due to stepping-up,
a protection is activated, the set will really go into protection
(blinking LED). The set will not leave the stepwise-mode
however. If state X is the state where the set went to
protection, stepwise start-up will return to state X-1. At
state (X-1) diagnostic measurements can be performed.
Also, in the short time the set is in state X but not yet in
protection, you can also do some measurements.

• Due to the initialisation process of the Muppet IC, step 2 is
not available in sets with Muppet. In this case, step 2 and
3 become one step

5.4.4 How To Connect

1. First, install the ComPair Browser software (see the Quick
Reference Card for installation instructions).

2. Connect the RS232 interface cable between a free serial
(COM) port of your PC and the PC connector (marked with
“PC”) of the ComPair interface.

3. Connect the mains adapter to the supply connector
(marked with “POWER 9V DC”) of the ComPair interface.

4. Switch the ComPair interface “OFF”.

5. Switch the television set “OFF” with the mains switch.

6. Connect the ComPair interface cable between the

connector on the rear side of the ComPair interface
(marked with “I2C”) and the ComPair connector at the rear
side of the TV.

5.5.1 Introduction

The error code buffer contains all detected errors since the last
time the buffer was erased. The buffer is written from left to
right, new errors are logged at the left side, and all other errors
shift one position to the right.
When an error has occurred, the error is added to the list of
errors, provided the list is not full or the error is a protection
error.
When an error occurs and the error buffer is full, then the new
error is not added, and the error buffer stays intact (history is
maintained), except when the error is a protection error.
To prevent that an occasional error stays in the list forever, the
error is removed from the list after 50+ operation hours.
When multiple errors occur (errors occurred within a short time
span), there is a high probability that there is some relation
between them.

5.5.2 How to read the Error Buffer

Use one of the following methods:

• On screen via the SAM (only if you have a picture).
Examples:

– 0 0 0 0 0: No errors detected
– 6 0 0 0 0: Error code 6 is the last and only detected

error

– 9 6 0 0 0: Error code 6 was first detected and error code

9 is the last detected error

Service Modes, Error Codes, and Fault Finding

EN 29EM6E 5.

• Via the blinking LED procedure (when you have no
picture). See next paragraph.

• Via ComPair.

5.5.3 How to clear the Error Buffer

Use one of the following methods:

• By activation of the “RESET ERROR BUFFER” command
in the SAM menu.

• With a normal RC, key in sequence “MUTE” followed by
“062599” and “OK”.

• When you transmit the commands “DIAGNOSE” - “99” ­“OK” with ComPair (or with a DST).

• If the content of the error buffer has not changed for 50+
hours, it resets automatically.

5.5.4 Error Codes

In case of non-intermittent faults, clear the error buffer before
you begin the repair. This to ensure that old error codes are no

Table 5-3 Error Table

Error Device Description Def. item Defect. module indi-

1 M24C32 NVM, spontaneous blinking error 1 7011 Control B5a
2 Hfail Protection Horizontal Flyback protection / Horizontal Flyback /
3 SAA4978 PICNIC 7713 Feature Box B3a
4 Supply 5V 5V protection / +5V Supply B5a
5 Supply 8V 8V protection / +8V Supply B5a
6 Slow I2C bus blocked Spontaneous blinking error 6 / Slow I2C Blocked /
7 TDA9330 HOP High-end Output Processor 7301 Video Controller B4

8 TDA932x HIP High-end Input Processor 7323 Chroma IF IO B2
13 UV1318/... Tuner protection 1T01 Tuner B13
14 MSPxxxx ITT sound processor 7A02 Audio module B6a
16 FBX Feature Box Protection / +3V (Fbx) Supply B3
18 Fast I2C bus blocked Spontaneous blinking error 18 / Fast I2C Blocked /
19 TDA8444 Auto Scavem DAC 7500 Auto Scavem SC1
21 M62320P PIP I/O Expander 7P56 Video Dual Screen B15b
23 UV1316/... PIP Tuner 1T02 Video Dual Screen B13
24 SAB9081 PIP Muppet 7PA6 Video Dual Screen B15c
26 SAA4992 Falconic 7718 +3V (Fbx) Supply B3b
27 T8F24EF Eagle 7724 +3V (Fbx) Supply B3c
28 Black current loop Black current loop / /
29 PCF8574T DVD I2C I/O Expander 7306 DVD Engine T3
32 M29W400BT Flash Ram (EPG) 7012 EPG Memory B5a
34 TDA932x Second HIP 7P09 Video Dual Screen B15a
63 MAS3529E Dolby Digital Decoder 7A30 Digital Audio Module B6b
64 SAA6588T TDL RDS 7100 TDL (Radio) T2
81 DPL4519 Dolby Prologic Decoder 7A63 Digital Audio Module B6c
82 TDA7309D Headphone processor 7A06 B6a
83 TEA6422 (1) Source select matrix audio 7I17 Audio Source Select B14d
84 TEA6422 (2) Source select matrix audio 7I18 Audio Source Select B14d
85 TEA6415 Source select matrix video 7I24 Video Source Select B14a
86 P89C664 TDL µP Radio 7002 TDL (Radio) T1
87 / TDL 12V audio off / TDL (Radio) T1
88 TEA5762 TDL FM Radio 7101 TDL (Radio) radio
89 M24C32 TDL NVM Radio 7011 TDL (Radio) T1
91 See extra info TDL LCD / TDL (Radio) T
92 See extra info TDL Motor / TDL (Radio) T
93 See extra info DVD 3V3 / DVD Engine T3
96 PCF8574 HDD Interface 7022 Harddisk Module TS
97 See extra info HDD Engine / Harddisk Module /
98 See extra info HDD Fan fan Harddisk Module TS

longer present. Before clearing the buffer, write down the
content, as this history can give you significant information.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
code and not the actual cause (e.g., a fault in the protection
detection circuitry can also lead to a protection).
There are various errors:

• I2C device errors.

• I2C bus errors.

• Protection errors.

• Errors not related to an I2C device, but of importance:

– BLACK CURRENT LOOP (ERROR 28): detection of a

continuous fail of the black current stabilisation loop of
the HOP.

– FALCONIC (ERROR 26): at start-up, after initialisation

of the PICNIC, the presence of the FALCONIC can be
checked.

– EAGLE (ERROR 27): at start-up, after initialisation of

the PICNIC, the presence of the Eagle can be
checked.

Diag

cation

EN 30 EM6E5.

Service Modes, Error Codes, and Fault Finding

Note:

• Error codes 1, 6, or 18 are protection codes and in this
case, supplies of some circuits will be switched “OFF”.
Also, in protection, the LED will blink the number of times
equivalent to the most recent error code.

• Some errors are only for TDL-sets (EM6E AB) or sets with
hard disk.

Extra info for certain errors:

• Error 91: If the TDL microprocessor gets an error from the
LCD display, this will be reported to the OTC, and will log
error 91 (only for TDL sets).

• Error 92: If one of the micro-switches of the LCD display is
not closed within a timeout, the TDL microprocessor will
report an error to the OTC, and error 92 will be logged (only
for TDL sets).

• Error 93: If the 3V3 is not present in DVD mode, or is
present when DVD is in stand-by, error 93 will be logged.
The presence or absence of the supply voltage is detected
via the I/O expander (schematic T3) (only for TDL sets).

• Error 97: There are 2 inputs to generate an error: The IO
expander that checks the supply voltages and the HDD
processor witch controls the hard disk itself. Both generate
the same error: HDD error (only for sets with HDD).

• Error 98: via a control line of the HDD interface IC (7022)
is sensed if the HDD fan is turning. In case the fan is not
turning, the HDD will be switched off and error 98 will be
logged (only for sets with HDD).

5.6 The Blinking LED Procedure

5.6.1 Introduction

Via this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful for fault
finding, when there is no picture.

When the SDM is entered, the front LED will show (blink) the
contents of the error-buffer. Error-codes > 10 are shown as
follows:
– A long blink of 750 ms (which is an indication of the decimal

digit),

– A pause of 1.5 s,
– “n” short blinks (where “n” = 1 - 9),
– When all the error-codes are displayed, the sequence

finishes with a LED blink of 3 s,

– The sequence starts again.

Example: Error 12 9 6 0 0.
After activation of the SDM, the front LED will show:
– 1 long blink of 750 ms (which is an indication of the decimal

digit) followed by a pause of 1.5 s,

– 2 short blinks followed by a pause of 3 s,
– 9 short blinks followed by a pause of 3 s,
– 6 short blinks followed by a pause of 3 s,
– 1 long blink of 3 s to finish the sequence,
– The sequence starts again.

Note: If errors 1, 6 or 18 occur, the LED always gives the last
occurred error even if the set is NOT in service mode.

5.6.2 How to Enter

Use one of the following methods:

• Enter the SDM (only via soldering pads marked “SDM” on
SSP). The blinking front LED will show the entire contents
of the error buffer (this works in “normal operation” mode
and in “protection” mode).

• Transmit the commands “MUTE” - “062500” - “OK” with a
normal RC. The complete error buffer is shown. Take
notice that it takes some seconds before the blinking LED
starts.

• Transmit the commands “MUTE” - “06250x” - “OK” with a

normal RC (where “x” is a number between 1 and 5). When
x= 1 the last detected error is shown, x= 2 the second last

error, etc.... Take notice that it takes some seconds before

the blinking LED starts.

• “DIAGNOSE X” with the DST (where “x” is a number
between 1 and 5). When x= 1 the last detected error is

shown, x= 2 the second last error, etc.... When x = 0 all

errors are shown.

5.7 Protections

5.7.1 Introduction

This chassis has only one microprocessor (OTC), which
remains active during Standby. This because power of the
microprocessor and the attached memory chip set is coming
from the 3V3 supply, which is derived from the 5V Standby­circuitry. Therefore, in both Power-on as in Standby mode, the
microprocessor is connected to this power supply.

If a fault situation is detected, an error code will be generated
and if necessary, the set is put in protection mode. The
protection mode is indicated by the blinking of the front LED at
a frequency of 3 Hz (or by a coded blinking in special cases).
In some error cases however, the microprocessor does not put
the set in the protection mode (this is the case with the ­hardware - loudspeaker protection of the audio amplifier).

The content of the error buffer can be read via the service menu
(SAM), the blinking LED procedure or via DST/ComPair.

To get a quick diagnosis, this chassis has three service-modes
implemented:

• The Customer Service Mode (CSM).

• The Service Default Mode (SDM). Start-up of the set in a

predefined way.

• The Service Alignment Mode (SAM). In this mode, items
of the set can be adjusted via a menu.

You can enter both SDM and SAM modes via the “service
pads” on the SSP, via an RC-transmitter (DST or standard RC),
or via ComPair. It is not possible to enter the SAM in “standby”;
the TV has to be in “normal operation” mode.

The “Protection Diagram” shows the structure of the protection
system. See diagram below.

7301

HFB

I2C PROTECTIONS

HIP
HOP
PICNIC
TUNER
NVM
DNR
MSP
TOPIC

FBX
PROTECTION

EHT-info

PICNIC 3V3

Flash detect

+8V_CON

+5V_CON

I2C

XPR (43)

FLS (5)

HFB-XRAY-PROT

I2C

7001

+8V SENSE (105)

+5V SENSE (106)

I2C

CL 16532044_024.eps

HOP

OTC

090501

Figure 5-3 Protection diagram

Service Modes, Error Codes, and Fault Finding

EN 31EM6E 5.

There are several types of protections:

• I2C related protections.

• OTC related protections (via polling on I/O pins or via

algorithms).

• HOP related protections (mainly for deflection items).

• Hardware errors that are not sensed by the OTC (e.g.

vertical flyback protection, bridge coil protection, E/W
protection, arcing protection).

All protections are explained below.

5.7.2 I2C Related Protections

In normal operation, some registers of the I2C controlled ICs
are refreshed every 200 ms. During this sequence, the I2C
busses and the I2C ICs are checked.
An I2C protection will take place if the SDA and SCL lines are
short-circuited to ground, or to each other. An I2C error will also
occur, if the power supply of the IC is missing (e.g. FBX_PROT
(error 16)).

5.7.3 OTC Related Protections

If a protection is detected at an OTC input, the OTC will start to
scan all protection inputs every 200 ms for 5 times. If the
protection on one of the inputs is still active after 1 s, the
microprocessor will put the set in the protection mode. Before
the scanning is started, a so-called “ESD refresh” is carried out.
This is done, because the interrupt on one of the inputs is
possibly caused either by a flash or by ESD. As a flash or ESD
can influence IC settings, the HIP, MSP, 3D Comb (US only)
and wireless module are initialised again, to ensure the normal
picture and sound conditions of the set.

8 V and 5 V protections: The microprocessor senses the
presence of the 8 V and 5 V (via the “+5V_CON” and
“+8V_CON” lines). If one (or both) of these voltages is (are) not
present, an error code is stored in the error buffer of the NVM,
and the set is put in the protection mode.

• BRIDGECOIL protection: This is sensed via the “EW”

signal going to the base of TS7652 (via R3495 and D6499).
In a normal situation, the voltage on C2498 (diagram A4) is
high and TS7652 is conducting. When bridge coil 5422
(diagram A3) is short circuited, the voltage on C2498
changes to low, which will block TS7652. In this case, also
TS7641 will block and the voltage on 2642 will rise until
TS7443 is forced in conduction. The “SUP-ENABLE” signal
(in normal operating condition -20 V) is shorted now to
ground level, which will force the Main Power Supply to
Standby mode.

• ARC protection: If there are “open” connections (e.g. bad

solder joints) in the high-energy deflection circuitry, this can
lead to damaging effects (read: fire). For that reason, the E/
W current is sensed (via 3479//3480). If this current
becomes too high, the “thyristor” circuit (TS7653 and
TS7654) is triggered. TS7442 is switched “on” and TS7443
is forced into conduction. . The “SUP-ENABLE” signal is
shorted now to ground level, which will force the Main
Power Supply to Standby mode.

• NON_VFB (No vertical Flyback) protection: If the frame

stage generates no pulses, TS7641 will block. TS7443 is
now switched “on”, which will lead to Standby mode.
Therefore, in normal operation condition, TS7641 and
TS7652 are conducting, while TS7443 is blocked.

Circuit Protection

The following fault condition will lead to a “partly” set protection:

• PROT1 (DC) protection: When a DC-voltage (positive or

negative) is sensed on one of the loudspeaker outputs, the
protection circuit (TS7704, 7705, 7706 and 7707 in
diagram A6) will put the IC7700 in Standby mode (via tri­state input pin 6). For more details, see chapter “Circuit
Descriptions”.

5.8 Repair tips

5.8.1 Miscellaneous

5.7.4 HOP Related Protections

The OTC reads every 200 ms, the status register of the HOP
(via the I2C bus). If a protection signal is detected on one of the
inputs of the HOP, the relevant error bit in the HOP register is
set to “high”. If this error bit is still “high” after 1 s, the OTC will
store the error code in the error buffer of the NVM and,
depending on the relevancy of the error bit, the set will either
go into the protection mode or not.

The following protections are implemented:

• HFB (Horizontal Flyback): If the horizontal flyback is not

present, this is detected via the HOP (HFB_X­RAY_PROT). One status bit is set to “high”. The error code
is stored in the error buffer and the set will go into the
protection mode.

• XPR (X-ray protection): If the HFB pulses are too low

(level detection), the HOP will detect this via the XPR-bit.
The error will be logged in the error buffer and the set will
go into protection mode.

Note: Both errors will be logged as HFB-failure.

5.7.5 Hardware Related Protections

Due to the architecture (“hot” deflection), some protections
cannot be sensed by the microprocessor. Three of these
protections will lead to a protection on set level (Standby mode
and blinking LED), while another will only lead to a circuit
protection.

The relay you hear when you switch the set “on” (from Standby
or via the mains switch), is from the degaussing circuitry. It is
not used for switching the Power Supply (as done in the MG­chassis).

Take care not to touch the “hot” heatsink while disconnecting
the SSP, despite the fact that the mains cord is out of the mains
socket. There can still be an annoying rest-voltage on the
heatsink for a short while. Because the discharge resistors
3502 and 3503 (on the LSP between hot and cold part) are not
stuffed for Europe. Instead, discharge resistors 3066 and 3057
on the Mains Switch panel are used, but because they are
located before the Mains switch, they only discharge when this
switch is “on”.
Advice: when you want to disconnect the SSP, first disconnect
the Mains cord, but keep the Mains Switch “on”.

Where the circuitry was too “crowded” for service printing, you
can find the correct location on the “test point overviews” in this
manual.
A very large part of the LSP is “hot”, such as:

– The primary part of the Standby Supply.
– The whole Main supply (except for the secondary Audio

supply).

– And the complete deflection circuitry (so notice that the

deflection coil is hot!).

TV-set Protection

The following fault conditions will lead to a “complete” set
protection:

EN 32 EM6E5.

Service Modes, Error Codes, and Fault Finding

5.8.2 Start-up Sequence

COLD

HOT

EHT-INFO

5

START/STOP

8V

RESET

5V

CON

8V

CON

106 105

POR

3

OTC

99 104

I2C BUS

1

STANDBY
low 7131/41 closed
high 7131/41 open

POR
7445

17/39

29

HOP

START/STOP

7141

7131

+11D

OUT

CUTOFF
(from
CRT panel)

5V

STBY

8V

SUPPLY

MAIN
SUPPLY

LINE DEFL.
(BRIDGECOIL

-PROT)
(ARC-PROT)

(NON-VFB)

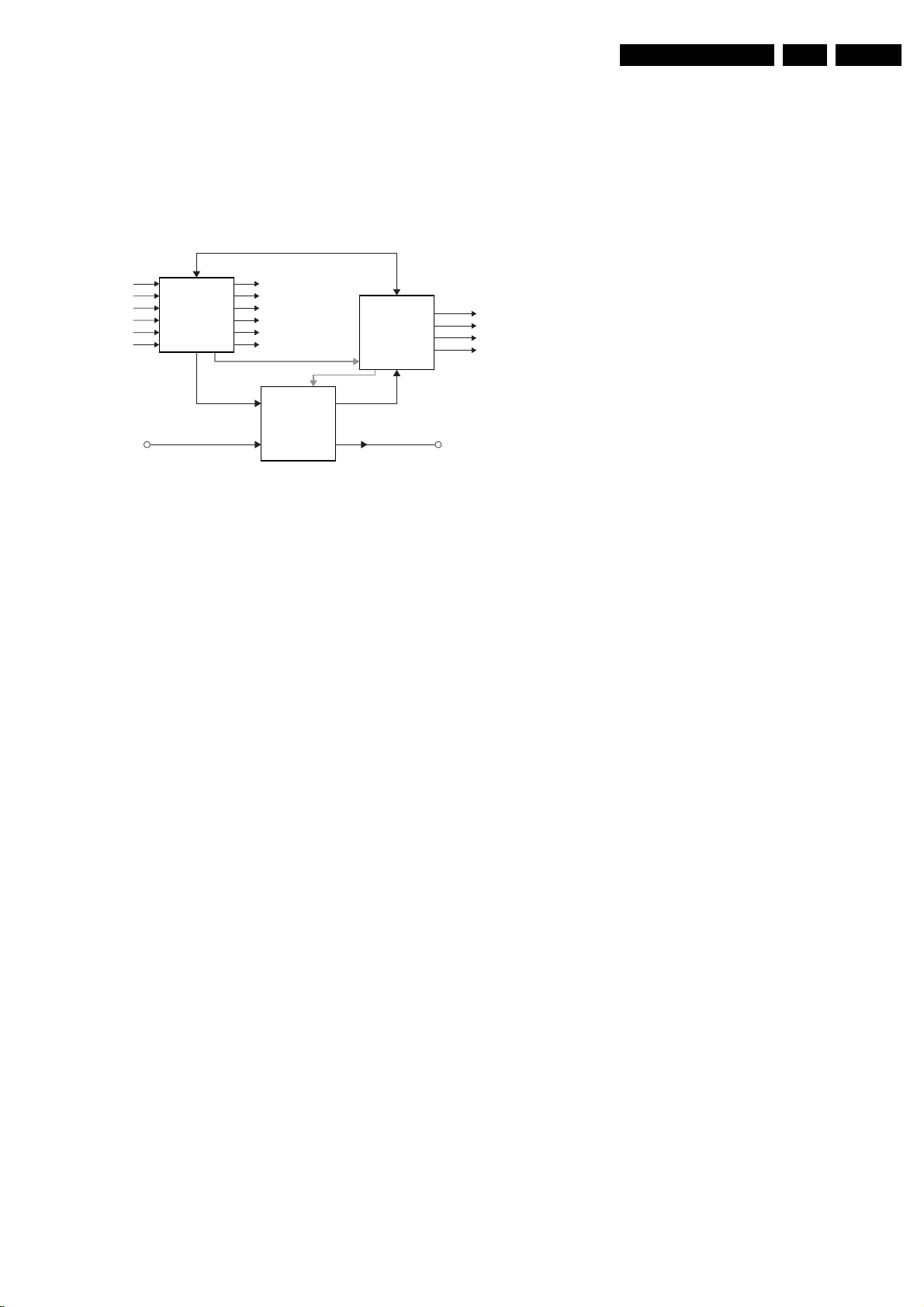

Figure 5-4 Start-up circuitry

The start up sequence differs from other sets (e.g. MG-sets or
EM2E-sets, but is same as in EM3E-set):

1. When the set is switched “on”, the 5 and 8 V lines
(“+5V_CON” and “+8V_CON”) of the standby power supply
are activated.

2. After the OTC senses them, the µP will address the HOP
via the I2C-bus, to start the drive [1].

3. Via the “SUP-ENABLE” signal, the Main Supply is switched
“on” and will deliver the V_BAT to the Line deflection stage
[2].

4. EHT generation is now started.

5. The OTC will un-blank the picture.

6. When you switch “off” the set, this is done in a controlled

way via the POR signal [3].

Note: Standby is not directly achieved via the Standby line of
the microprocessor, but indirectly via the HOP circuitry.

Vbat

FRAME

DEFL

SUP-ENABLE

220 VAC

PROT-

SENSING

CL16532044_023.eps

2

140501

When you suspect the “ARC” protection, look for bad solder
joints and smell. By interrupting resistor 3497, this protection is
disabled (special attention needed!).
When you suspect the “BRIDGECOIL” protection, which can
also be due to a too wide picture amplitude, shorten G and S of
the E/W MOSFET 7480. This will disable the protection. You
will now have minimal horizontal amplitude. Re-align the
horizontal amplitude in the SAM menu and remove the G/S
short of TS7480.

5.8.5 Main Supply

The simplest way is, to replace the components of the Main
Supply with repair kit 3122 785 90550.

More detailed way:

1. Replace FET 7504 and zener 6505.

2. Disconnect the SSP panel.

3. Short B and E of TS7529, in order to put the Main Supply

in “on”-mode (TS7529 is blocking then).
Caution: To prevent that R3403 and TS7443 will be
damaged, first disable the HW-protection of the
deflection circuit. Therefore short circuit C2642 on the
LSP (diagram A4).

4. Attach a load of 500 Ω to V_BAT capacitor C2515 (the
supply can not work without a minimum load).

5. Use a variac, and slowly increase the V_MAINS. Measure
over sensing resistors R3514//15, if a nice sawtooth
voltage becomes available.

6. Also measure the V_BAT. This may never exceed +141 V.
If it does, there is something wrong in the feedback circuitry
(e.g. regulator 7506).

Note: Be careful when measuring on the gate of FET TS7504.
This circuitry is very high ohmic and can easily be damaged
(first connect ground to measuring equipment, than measure
the gate).

5.8.6 Standby Supply

The simplest way is to replace the components of the Standby
Supply with repair kit 3122 785 90530.

5.8.7 Line Deflection

5.8.3 ComPair

This chassis does not have an IR transmitting LED (as in MG­sets). Therefore, a “Service” (ComPair) connector is
implemented at the rear side of the set, which is directly
accessible (as in A10-, EM2E-, EM3E and EM5E-sets). In
addition to this, there is also a blinking LED procedure to show
the contents of the error buffer.

When you use ComPair, you have the possibility to activate a
“stepwise start-up” mode. With this mode, you can initiate the
start-up sequence step by step. This also means that in certain
steps, some protections are not activated. This is sometimes
very convenient during repair.

5.8.4 Protections

Activating SDM via the “service pads” will overrule the
processor-controlled protections, but not the hardware
protections. This means, that the A/D-input protections (5 and
8 V) and the I2C “not-acknowledging” info of the feature box
(FBX) and of the Tuner are overruled.
Caution: When doing this, the service technician must know
what he is doing, as it could lead to damaging the set.

The “ARC”- and/or “BRIDGECOIL” protection are hardly ever
triggered, however:

The simplest way is to replace the components of the Line
Deflection circuitry with repair kit: 3122 785 90330.
Caution: item 3400 used in this chassis is different from the
part supplied in the kit. See partlist for correct value and
ordercode.

5.8.8 Frame Deflection

Caution: When the Frame Deflection circuitry is suspected,

one must be careful. Because there is a DC-voltage on the
frame deflection, the beam current could damage the CRT
neck, leading to a defective CRT.

To prevent this from happening, you must:
Interrupt the resistors 3403 and 3404 on the CRT panel
(diagram F1), in order to remove the “filament” voltage from the
tube (no beam current, so no chance of destroying the CRT).
Interrupt resistor 3403 on the LSP (diagram A4) to disable the
“SUP-ENABLE” line.
Measure with a multi-meter, or better with an oscilloscope, the
functionality of the Frame stage.
After you have found the cause, exchange the defective
component (e.g. TDA8177), and re-solder the interrupted
resistors.

Service Modes, Error Codes, and Fault Finding

Table 5-4 Repair tips

Phenomenon Possible Cause Repair tip

No picture, no LED. Standby Supply defective. Measure circuitry (see diagram A2). Start at test-point A19.

No picture, LED
blinking at 3 Hz.

No picture, LED
blinking with code 6­6-6 or 18-18-18.

No picture, LED
blinking with code 1­1-1.

No picture, no
sound. Set is making
audible squeaking
sound

No picture, no
sound. Blue LED
works fine

No RC-reception.
Blue LED does not
echo RC-com­mands.

Relay (degaussing)
is not audible, when
set is switched from
'off' or 'standby' to
'on'.

Picture is rotated. Rotation circuitry on dia-

Picture is continu­ously switching 'off'
and 'on', showing
heavy 'switch' spots
(set does not go into
protection).

Picture is not sharp. Focus is possibly mis-

Picture is not syn­chronised.

Picture is distorted. Check video-path in Serv-

Picture with horizon­tal stripes.

No menu, no OSD. Probably a defective uP. Measure test points B61to B64 on diagram B5A.
No NextView (EPG). IC7012 defective or not

No Teletext. IC7007 defective or not

Set is in protection due to
various causes. For error
codes see error-code list.

No communication on slow
I2C- or fast I2C-bus.

No communication on
NVM-I2C bus to the uP.

Supply is possibly in hic­cup-mode, which is audible
via a squeaking supply
transformer.

Supply does not work cor­rectly.

uP circuitry or RC-receiver
is defective.

uP is not working correct­ly.When pin 115 is low, the
degaussing must be acti­vated.

gram A5, or related supply
to it, malfunctions.

200 V is missing on CRT
panel.

aligned or SCAVEM-cir­cuitry does not work cor­rectly.

The sync is derived in the
HIP from xtal 1305 and/or

1308.

ice Default Mode.

Pixel Plus processing is
malfunctioning

powered.

powered.

When the Mains switch is 'on', this voltage must always be available
You have no picture, so:

- Read the error buffer via ComPair (error buffer is accessible when set is in protection,
compare-file will guide you to this)

- Read the blinking LED information via standard remote command <mute>06250x<ok>.

- Or you read the error code sequence via standard remote command
<mute>062500<ok>.
When you have found the error, check the circuitry related to the supply voltage and I2C­communication or the circuitry that triggers the protection.

As processor cannot communicate with one of the 2 busses it the standby-led spontane­ously starts blinking 6-6-6-etc or 18-18-18-etc...
If in the error buffer somewhere is an error 6 or 18, these will have the highest priority
starting the mentioned blinking.
Measure dependent of the error on the I2C-bus which device is loading the bus. (Use
I2C-overview)

As the uP cannot communicate with the NVM I2C bus, it spontaneously starts blinking
1-1-1. Note: when there is no access to the NVM, a lot of picture setting can go wrong.

Possible causes:

- V_BAT is shorted (caused by short circuited line transistor 7421), or

- Sound winding is shorted (amplifier is shortening the power supply lines), or

- D6514 is shorted (due to a too high V_BAT).
Remove excessive load, to see what causes the failure, or check feedback circuit. See
repair tip 'Main Power Supply' (supply needs a minimal load).

If e.g. V_BAT is only about 90 V, it is possible that the regulator IC (7506) is defective.

In case the set does react on a local keyboard operation, you must check the RC-receiv­er circuitry (diagram E).

Check RESET-circuitry on diagram B5A. Check the level on pin 115 when you switch the
set 'on'. Signal must be low initially and go to high after approx. 12 s.

Measure test points on diagram A5.

Probably a bad connection from LSP connector 1424 to CRT connector 1424 (diagram
F1), or an interruption of the 200 V supplies line (e.g. R3341 on circuit F1 is interrupted).

Re-align the 'FOCUS' potmeter on the Line Output Transformer, or check the SCAVEM
circuitry on the CRT-panel (diagram F2). It is also possible that the DAF circuitry is de­fective (see diagram I). Check the V_dc values.

Maybe the crystals 1305 and/or 1308 are making a bad contact.

Investigate whether there is an error code present in the error buffer. In case there is one,
check the I2C-bus and/or supply lines (see overview supply lines).
Measure and check signal path Tuner-HIP-PICNIC-HOP-RGB amplifier.
In case it is a geometry issue, check on diagram A4 opto-coupler 7482, OpAmps 7440/
7450 and the Frame circuitry alignments or a possible corrupted NVM (7011) on diagram
B5A.

Check functionality on circuitry (B3a, B3b, and B3c) of PICNIC (7713), FALCONIC
(7718, EAGLE (7724) and/or field memories (7714, 7717, 7719, 7722 and 7723.
Tip: the whole Pixel Plus chipset (3 ICs + 5 Field Memories) can be diagnosed via Com­Pair.

Check circuitry around IC7012 on diagram B5A.

Check circuitry around IC7007 on diagram B5A. Check also B61to B64 around uP on
diagram B5A.

EN 33EM6E 5.

EN 34 EM6E5.

Phenomenon Possible Cause Repair tip

Strange switch 'off'
behaviour

Problems caused by
EPG (Electronic Pro­gram Guide). The TV
set "hangs".

NexTView EPG is
not functioning only
Teletext guide.

Various symptoms,
due to missing local
supply voltage.

TS7445 possibly defective. Check, with a multi-meter, whether transistor TS7445 is well functioning. (diagram A3).

Problems with NexTView
EPG broadcasts.

EPG version 2C3 is
switched off during produc­tion.

An interrupted fuse, NFR­resistor or connection.

5.9 Software Downloading

In this chassis, you can upgrade the software via ComPair. You
can find more information on how this procedure works in the
ComPair file. It is possible that not all sets are equipped with
the hardware, needed to make software upgrading possible. To
speed up the programming process the firmware of the
ComPair interface can be upgraded. See paragraph “How To
Order” for the order number

Service Modes, Error Codes, and Fault Finding

To switch from EPG 2C3 to Teletext guide. Press for 4 seconds, simultaneously the
Menu button on the TV and digit 0 on the remote. The option settings for NexTView type
and Flashram will not change.

To switch from Teletext guide to EPG 2C3. Press for 4 seconds, simultaneously the
Menu button on the TV and digit 1 on the remote. The option settings for NexTView type
and Flashram will not change.

When no symptom or error code leads you to a specific circuitry, use the supply lines
overview (see supply lines overview), for a quick scan of all supply lines.

Wiring Diagram, Block Diagrams and Overviews

6. Wiring Diagram, Block Diagrams and Overviews

Wiring Diagram

ONLY FOR TDL EXECUTIONS

35EM6E 6.

TWEETER

AQUADAG

DEGAUSSING COIL

CRT

32"

EHT

K

EJECT
BUTTON
1264

3P

RADIO
PANEL

FM TUNER

MOUNTED ON TOP COVER

8264

L

LCD
BOARD

LCD
DISPLAY

P

TOP CONTROL PANEL

DVD ENGINE

8260

1260

N.C.

8120

5P

1120

8X

1120

8X

1264

1204

1253

3P

24P

1260

24P

1206
17P2X

8005

17P

30P1800

8253

30P

1U02

7P

T

INTERFACE

1201

1207

114t

1245

1203

5P

1250

1499

1435

8483

BLACK

YELLOW GREY

RED

FRAME

ROTATION

COIL

DEFLECTION

COIL

PANEL

F

SCAVEM

COIL

TWEETER

BROWN/BLACK
BROWN

CRT PANEL

LEFT

SPEAKER

MAINS SWITCH PANEL

E

MAINS

SWITCH

1620

02010202

2P

2P 3P9P

DC SHIFT

G

(OPTIONAL)

0317

2P

HORIZONTAL

I

DAF PANEL

1417 1418

2P

1419

2P

BLACK/

BLACK

WHITE

8190

2P

(FOR 36" ONLY)

8502

8693

8417

1491

8492

8202

8241

8418

CENTRE

SPEAKER

2P

1505

2P

1502

1417

2P

LOT

1424

1492

1491

7P

3P

8625

8737

2P

8424

1625

3P

1498

2P

0241 0245

MAINS
CORD

1497

1P

1491

1492

3P

WOOFER

CL 36532008_002.eps

1317

1693

(FOR 36" ONLY)

(FOR 36" ONLY)

SUB

060503

(COMPONENT VIEW)

8245

3P

B

MOTOR ASSY

BLUE RED

SSB

MOTOR

SWITCH

SWITCH

1U02

SCREENED

AREA

7P

1170

5P

8003

2P

8004
8001

2P

4P

8209

1207

4P

8251

8250

30P

8346 (only for not TDL sets)

CVBS (YELLOW)

LEFT (WHITE)

RIGHT (RED)

HEADPHONE

BLUE
BLUE

SVHS

SC

1I11

30P

RIGHT

SPEAKER

AUTO
SCAVEM

1955

3P

SIDE

O

I/O PANEL

1328

1326

1327

8192

TUNER1

1440

11P

1940

11P

TUNER2

1936

1S02

1S15

8440

8955

8936

11P

8206

40P40P

8205

CRT PANEL

F

1434

1P

1940

11P

RED

BLACK

1435

CRT

SOCKET

LSP(LARGE SIGNAL PANEL)

A

1147 1146

8335

1945

3P

5P

1946

compair
interface

1620

3P

5P

9P

1735

2P

4P

2P

1206

1936

40P

11P11P

1205

1940

40P

1952

5P

1953

5P

1943

3P

1737

1955

1483

3P

1424

7P

8194

8193

3P3P

1738

3P

1693

Wiring Diagram, Block Diagrams and Overviews

Block Diagram Supply and Deflection

36EM6E 6.

SUPPLY DEFLECTION

MAINS SWITCH

E

PANEL

(PARTLY)

+

A1

2516

-20V

-20V

1503

2.5A

1051

3

4

MAINS

SWITCH

V-START

+375V

7504
STP5NB40

D

S

A3

+375V

ACTIVATING

CIRCUIT

1

2

STAND-BY SUPPLY

A2

6109

STARTUP

7502
7530

G

A2

A4

7507

7529

TCET1103

220V

0201

2

1

6525

2

GBU4J

4

-

3

GND-STB

VBATT

7505
7508
7503

QUICK

SWITCH

OFF

MAIN SUPPLY

1

+

SUP-ENABLE

A2 A8 B14A B12

1147

1I70

5903

+11V

4

0202

2

1

6119 6118 6117

STARTUP

7100
7101
7105
7120

CONTROL

CIRCUIT

3120

5132

CONTROL

CIRCUIT

324

SUP-ENABLE

VOLTAGE

BOOSTER

PWM

GENERATOR

AND DRIVERS

VOLTAGE

CONTROL

FEEDBACK

MAIN SUPPLY

A1

1505

1501

2

F4AH

3509

7102

A11

G

A12

5113

3108 3118

A13

5102

2163
2102

V

5107

A10

5104

D

S

A15

5

6103

4

A16

1

-20V

MAIN SUPPLY

STARTUP

5

3514

7506
TL431

VBATT

ADJ.

1

+

2515

DC/DC CONVERTER

7U04

IU06

7U03

IU05

5501
5502
5503
5504

MAINS
FILTER

5101

3

2

1

7103 OR

7104

5506 OR

5612

4

3

1

HOT COLD

A6

5U01

5511
5516

7501
7528

ACTIVATING

CIRCUIT

85

9

10
11

12

6107

1

3113

2

6

7

9

10

6U02

6122

3124

3114

65355507

5509 6536 5513

+VBATT

5U05

5U06

3550

21

RP

RS +to

3

1

1550
4

A17

6110

6113

6111

7131

A19

7141

A7

+

2512

+

2511

A8

+3V3_ILINK

+3V3_SIM

+3V3_DCDC FBX

DEGAUSSING

3115

3116

1969

2.5A

+8V6-SWITCH

D

CONTROL

+5V-SWITCH

D

CONTROL

5514

2

+5.2V_MP

S

G

7130

+5.2V_MP1

1930

1968

2A

S

G

7140

1502

3

2

1

HOT

COLD

B5A

OTC

VTUN

A18

A20

STANDBY

ON

1A

A21

+11V_STBY

+16V+19V

AUDIO SUPPLY

+

2542

+

2543

-16V-19V

AUDIO SUPPLY

DEG.
COIL

A8

+11V_STBY

+11V

+8V6

B5A

OTC

A8

+5.2V

+5.2V_MP

+5V

GND-AUD

COLD

HOT

HOT

COLD

LINE DEFLECTION

A3

FROM

+VBATT

A1

HOT
COLD

+11D

+5.2V

LINEDRIVE 1

B4

HOP

FRAME DEFLECTION

A4

E/W DRIVE

EW-DRIVE

B4

HOP

+8Vb

3455

3456

HFB_X-RAY-PROT

B4

HOP

FRAMEDRIVE +

B4

HOP

B4

HOP
FRAMEDRIVE -

COLD
HOT

3660 3640

7611

CURRENT
SOURCE

5
6

3404

3459

A33

A34

3658

+8V-S

+

6456

A37

2403

7440-B

7

3419

7441

7440-A

3

1

2

A35

3657

6627 6626 6625

3631

7612

7455

A39

3457

3642

5
6

+8Vb

3632

6408

6407

341434062492

3654

7450-B

3
2

3415

3416

A22

7409

A23

3404

1693

7

A38

FRAME DEFLECTION

2457

+8Vb

7614

7450-A

1

A36

TV

3638

3643

3630

3634

G

A24

7408

COLD HOT

E/W - DRIVE

TO 1693

I

DAF

1

2

1
5

3641

+13V-LOT

7620

TDA8177

7

1

A40

DC-SHIFT

DC-

SHIFT

CIRCUIT

5400

A25

5410

94
61

SUP-ENABLE

3492

3484

7482

5

4

7487

5621

6

10

6620

62

OP. AMP

4

-15V-LOT

3623

(OPTIONAL)

1430

400 mA

+141V

5401

A26

7421
BU2520DX

+8V-S +141V

3493

A45

7486

7442, 7654
7653

EW

PROTECTION

CIRCUIT

ARC-PROT

7641
7443
7652

PROTECTION

CIRCUIT

2622

FLYBACK

GENERATOR

THERMAL

PROTECTION

1419

2443

A28

A30

5461

7445

A31

A32

1

2

1

2

1

1

2
3

2462

2464

1417

1497

1492

6400

34993498

5

8

HOR. DAF

CIRCUIT

FILAMENT

HFB_X-RAY-PROT.

A29

1620

1

2

3

317

1
2

5430

LOT

5

1

LINE
OUTPUT
CIRCUIT

+

6480

5467

A47

A48

VERT.
DEFL.
COIL

5421

3480

EW

2430

2431

3431

3

4

6

HOT COLD

5463

+13V-LOT

A50

1

7613

TL431

2

ROTATING CIRCUITRY

A5

TILT

B5A

OTC

5465

3635

3636

3

3637

3449

+11D +8Vb

+11V_ROT

3686

7681
7682

SWITCH OFF

CIRCUIT

IN STAND-BY

EW

CORR.

EW

7480

3488

STP3NB60

D

A46

G

3479

SUP-ENABLE

3620

6499

1625

S

1

2

SUP-ENABLE

3481

3483

A42

3

A43

5

5620

A44

EHT

FOCUS A

FOCUS B

VG2

10

8

11

9

12

125mA

3450 3451

3400

3463

3462

3465

3464

A49

1601

3685

DYNAMIC FOCUS

TO

F1

CRT

+11D

6400

3447

FILAMENT

3460

3461

6463

6462

6465

6464

+8V-S

7680

TDA7052

+Vp

2
3

3684

6080

+11D

EHT-INFO

1

6

CL 36532008_004.eps

I

5800

VER. DAF

CIRCUIT

VIDEO
SUPPLY

EHT-INFO

+11D

PORPOR

+13V - LOT

FRAME

DEFLECTION

SUPPLY

-15V - LOT

+13V LOT

-12V8

ROTATION
DEFLECTION
COIL

A8

SIM

1

200V

DAF

1418

HOT

COLD

1491

1424

B4

HOP

A6

AUDIO

COLD
HOT

1495

HOT
COLD

060503

1

2

1

2

3

4

5

6

7

1

2

3

4

LINE
DEFLECTION
COIL

TO

A4

E/W

DRIVE

TO

1424

F1

CRT

TO
PANEL
ON
CRT
NECK
(OPTIONAL)

Wiring Diagram, Block Diagrams and Overviews

Testpoint Overview LSP, Auto SCAVEM, and CRT

LSP COPPER TRACK SIDE

2 3 4 5 6 7 8 9 10

A21

A19

STANDBY

TRAFO

A10

A11

PM3394B

5100

S 7141

D

7131

+8V6

128

15

D

G

7102

STANDBY

SUPPLY

A3

G

S

PM3394B

+5V

A12

A4

7131
+8V6

D

G

S

MAIN

TRAFO

A7

A20

A8

106

15

5506

A6

A4

A5

VBATT

D

S

G

7504

A2

MAIN

A3

SUPPLY

A1

PM3394B

A5

A

B

C

D

E

F

G

A1

1

A18

1

4

A71

7680

A14

5

A17

A15 A16

A13

8

ROTATION

1 2 3 4 5 6 7 8 9 10

PM3394B

A2

A59

125

7700

AUDIO

L+R

A56

A58

C+SUB

G

A46

PM3394B

A6

PM3394B

A57

A67

A64

A63

125

7702

AUDIO

A62

A63

A45

D

S

7480

E/W

A10

A48

A47

PM3394B

37EM6E 6.

A61

A23

A22

7421
LINE

58
49
3

2
1

LOT 5430

PM3394B

4040

A33

A35

A34

A24

A25 A50

ECB

6

10
11
12

A12

1206 1205

A66

A60

A26

COLDHOTCOLD HOT

A11

A49

A28

PM3394B

A38

A37

A32

FRAME

11

A31

7620

A41

A36

A39

A13

A40

1

A29

A43

A42

A44

PM3394B

A30

A14

A1

E4

A3

D4

A4

C4

A5

C4

A6

PM3394B

A7
A8
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A56
A57

C5
A4
B4
C2
C2
D3
D1
D1
C1
C1
B1
A1
A3
A2
A3
D8
D8
D8
D8
D7
G9
G10
G10
E9
E9
C8
D9
C9
D10
D9
C9
D10
E10
E10
E10
F10
E10
D7
E6
E7
E7
C9
D9
C6
B6

A15

A

B

C

D

E

F

G

A58
A59
A60
A61
A62
A63
A64
A66
A67
A71

C6
B5
D7
C8
D7
D7
C7
C7
C7
F1

SC7

2 V / div DC

10µs / div

SC9

2 V / div DC

10µs / div

SC22

2 V / div DC

10µs / div

SC24

2 V / div DC

100µs / div

A16

SC8

2 V / div DC

10µs / div

SC10

1 V / div DC

10µs / div

SC23

2 V / div DC

100µs / div

CRT PANEL (COPPER TRACK SIDE)

1940

111

7330

F6

9

8

F9

7

F8

6

10

11

12

F7

5

CRT

SOCKET

AUTO SCAVEM PANEL
(COPPER TRACK SIDE)

16

A17

PM3394B

7350

1

1

7340

F5

9

9

1

F4

9

1

1424

F15

7

1483

3
2

SC22

1

7042

B

SC10

C

E

EB

SC9

7038

C

9

7500

50V / div DC

2us / div

A18

PM3394B

5V / div DC

5us / div

A41

PM3394B

200mV / div DC

2ms / div

F6

50V / div DC

10s / div

50V / div DC

5us / div

A19

1V / div DC

5us / div

A42

20V / div DC

2ms / div

F7

50V / div DC

10s / div

PM3394B

PM3394B

50V / div DC

5us / div

A22

1V / div DC

10us / div

A43

10V / div DC

2ms / div

F8

50V / div DC

10s / div

PM3394B

PM3394B

50V / div DC

5us / div

A23

PM3394B

200mV / div DC

10us / div

A44

PM3394B

200mV / div DC

2ms / div

F9

50V / div DC

10s / div

5V / div DC

10us / div

A24

5V / div DC

10us / div

A45

1V / div DC

10µs / div

F15

10 V / div DC

10µs / div

PM3394B

PM3394B

20V / div DC

10us / div

A25

PM3394B

2V / div DC

10us / div

A46

PM3394B

500mV / div DC

10µs / div

SC1

1 V / div DC

10µs / div

50V / div DC

5us / div

A33

PM3394B

500mV / div DC

2ms / div

A47

PM3394B

50V / div DC

10µs / div

SC2

1 V / div DC

10µs / div

5V / div DC

5us / div

A34

PM3394B

500mV / div DC

2ms / div

A48

PM3394B

500mV / div DC

10µs / div

SC3

1 V / div DC

10µs / div

2V / div DC

5us / div

A35

PM3394B

500mV / div DC

2ms / div

A56

200mV / div DC

2ms / div

SC4

2 V / div DC

10µs / div

5V / div DC

10us / div

A36

PM3394B

200mV / div DC

10us / div

A57

PM3394B

20V / div AC

2us / div

SC5

2 V / div DC

10µs / div

200mV / div DC

10us / div

A37

PM3394B

500mV / div DC

2ms / div

A58

200mV / div DC

2ms / div

SC6

2 V / div DC

10µs / div

500mV / div DC

5ms / div

A38

PM3394B

200mV / div DC

10us / div

A59

PM3394B

10V / div DC

2us / div

5V / div DC

5ms / div

A39

2V / div DC

10us / div

F4

50V / div DC

10s / div

PM3394B

20V / div DC

5us / div

A40

PM3394B

200mV / div DC

2ms / div

F5

50V / div DC

10s / div

SC1
SC2
SC3

C

7004

B

E

11 1

134

SC23
SC24

SC8

SC7

7022

7006

B

E

789

1940

7026

B

E

EB

C

7012

SC4

C

8

C

C

BE

SC6

7008

B

SC5

C

E

CL 36532008_050.eps

060503

Block Diagram Video

VIDEO

B13

1

2

3

5

6

7

8
9

10
11
12
13

B13

2

A= NO DW
B= DW
C= TDL

TUN1

CVBS-TER-OUT

+33V

+5V

6TO8

1TO1

UV1318ST

-/33

7.3

9

11

ERR

TUNER

13

1

15

4

AGC1

SDA-S

SCL-S

CVBS-SC1-AV1-IN

CVBS-AV3-IN

Y-CVBS-SC2-AV2-IN

C-SC2-SVHS-IN

Y-CVBS-FRONT-IN

C-FRONT-IN

PIP-OUT
CVBS-SC2-MON-OUT
R/G/B-SC1-Y/U/V-IN
R/G/B-SC2-IN R/G/B-SC2-V-IN

TUN2

+5V

1TO2

3

UV1316

TUNER 2

ERR

23

SDA-S

14

15
16
17

18
19

20

21

B14B

1(A,B,C)

12(A,B)

24(C)

26(C)

11(A,B,C)

7(A,B,C)

17(B,C)

13(A,B,C)

21(B,C)

23(A,B)

26(C)

TER-CVBS-OUT

C-FRONTS-IN

IF, I/O VIDEOPROCESSING PIP I/O

B2 B6A B15B

AT00

IF-TER

AGC

MONITOR

B5

+33V

9117

IF-TER2

PIP

451

AGC2

SCL-S

AV1-SUB

IN-CVBS-SC1

AV3-CVBS-IN

IN-Y-CVBS-SC2 AV2

SC2-R C-IN AV2

Y-CVBS-PIP DW-OUT

C-PIP DW-OUT

PIP-OUT1

SC2-R/G/B-IN

R-SC1-IN V-IN

G-SC1-IN Y-IN

B-SC1-IN

IN-SC1-FBL

SC2-CVBS MON-OUT

SC2-R C-IN AV2

SC2-G-IN

SC2-B-IN

SC2-FBL-IN

7138

Wiring Diagram, Block Diagrams and Overviews

7402

5403

40,4

SAW FILTER

AUDIO

1409

1411 7410

IF, I/O, PIP

B15A

40.4

ALIGNMENT

5P07

SCART 1

21

20

SC1-CVBS

19

IN-SC1-FBL

16

15

11

STATUS SC1

8

7

U-IN

SCART 2

21

20

IN-Y-CVBS-SC2-AV2

19

16

15

11

P50
STATUS SC2

8

7

SC2_B_IN_C_OUT

B14A

SAW FILTER

VIDEO

VIF1
VIF2

1410
1408

SIF2
SIF1

7P05

IF-VIDEO

VIF1
VIF2

1P05
1P06

IF-AUDIO

1105

1P07 7P07

B2

HIP

7411

7323
TDA9320H

I5

2
3

62

TUNER AGC

64
63

SOUND-OUTPUT

EF

7P09
TDA9321H

HIP

I5

2
3

62

64
63

MONO-HIP-OUT

B5A

OTC

B2

HIP

1406
1407

EF

SOUND
FILTER

I6

V1

10 12 13 14

GROUP

PLL

DELAY

DEM

COR.

HIP (MAIN)

QSS

MIXER

QSS-AM

AM

DEMO

5

QSS-AM

B6A

1P08
1P09

SOUND
FILTER

I6

V1 V2 V5

10

12 13 14 26

PLL

GROUP

DEM

DELAY

HIP (PIP)

QSS

MIXER

AM

DEMO

5

B15B

SIF-OUT

22(A,B)

14(C)

3(C)

6(A,B,C)

16(B,C)

3,6

14,15

22

7322

EF

V2

ERR

8

SEE
BLOCK DIAGRAM
AUDIO

7415

7P06

EF

ERR

34

SEE
BLOCK DIAGRAM
AUDIO

SCART 3

21

20

AV3-CVBS-IN

19

16

15

11

STATUS-SC3

8

7

SCART 4

21

20

SC4-CVBS-AV3-Y-SVHS

19

16

15

10

STATUS-SC4

8

7

CVBS-TXT

B5A

OTC

7307

7320

TDA9181

12

26 29CY28

VIDEO

SWITCH

+

CONTROL

VIDEO

SWITCH

+

CONTROL

COMB

FILTER

B5A

B5A

32 34

32

OTC

OTC

Y

C

SEPAR.

Y

C

SEPAR.

PROC.

PROC.

SYNC

7P08

PROC.

PROC.

SYNC

14 Y

12

Y

C

SCART1

36 37 38 39

Y

C

SCART1

36 37 38 39

C

R

R

EF

V5

16

18

20

21

23

24

16

18

20

21

23

24

5,15

7412

EF

Y/U/V

SWITCH

UU

DECODER

PAL

NTSC

SECAM

V-SYNC

PROC.

H-SYNC

PROC.

UY

RGB

MATRIX

G B

Y/U/V

SWITCH

UU

DECODER

PAL

NTSC

SECAM

V-SYNC

PROC.

H-SYNC

PROC.

UY

RGB

MATRIX

G B

N.C.

5(A,B,C)

15(B,C)

24(A,B)

29(C)

24,29

Y
U
V

VY V

V

R G B

41 42 43 40

PIP-CVBS-MON

Y
U
V

VY V

V

R G B

41 42 43 40

SVHS

49
50
51

61

60

1305

54

1308

57

46

47

SCART2

B15B

V6

49 Y-HIP-OUT
50

U-HIP-OUT

51

V-HIP-OUT

V7

V8

F14

VS-HIP-OUT

61

L8
HS-HIP-OUT

60

1P03

57

1P00

54

46

47

SCART2

SIDE I/O

O

34

251

CVBS

A8 B1

1936

7414

V6

Y50

U50

V7

V50

V8

F14

VA50

L8

HA50

4.43MHz

3.57MHz

SCL-F

SDA-F

3.57MHz

4.43MHz

S-SCL

S-SDA

C/16:9

Y

2 Y-CVBS-FRONT-IN

C-FRONT-IN

4
7

IN-Y50

IN-U50

IN-V50

B15C

B15B

VA50-PIP

HA50-PIP

IN-Y50

IN-U50

IN-V50

VA50-PIP

HA50-PIP

PIP MUPPET

7PA7

7PA8

7PA9

7PA9

7PB2

7PB6

7PA0

7PA1

3PB8

7PA2

PIP I/O

C

S-SDA

S-SCL

V33

V34

V35

FPA2

FPB1

FPA3

100

FPA5

FPA4

1936

24Y

7

2,8,19

2

DY 6

3

DU 7

4

DV 8

MUPPET-BLK

7PA6
SAB9081H

98 8

2

MUPPET

DOUBLE

WINDOW

PROC.

70

ERR

24

94

7PB1

168

2

83

74

79

81

73
75

7PB5

72

87

7P56
M62320

9

I/O
EXP

SWITCH-HEF

3

10

PIP_RESET

11

2

ERR

21

SWITCH-HEF-SUB

12

27(C)

8(A)

18(B)

9(A,B)
23(A,B)

19(B)
28(C)

23,27,28

7P54
TDA8601T

12

10

OR

GATE

7PA2

HA

FBLK

5

FPA7

FPA8

FPA9

38EM6E 6.

V37

12

V38

11

V39

10

DY

DU

DV

4

MUPPET_BLK

S-SDA

S-SCL

PIP-RESET

B15B

B14C

B15C

B14C

PICNIC

B3A

B6A

Y-PIP+MAIN-OUT

U-PIP+MAIN-OUT

V-PIP+MAIN-OUT

L6

L7

L8

L10

3727

VA50

L11

3728

HA50

MS81V04160

FALCONIC

B3B B3C

7718

SAA4992

FALCONIC

FIELD

MEMORY

2

7719
MSM54V12222A

DVD

ENGINE

7717
MSM54V12222A

B14C

25(C)

24(C)

26(C)

24(A,B)
22(A,B)

B14A

I/O

30(C)

10(C)

28(C)

27(C)

20(C)

29(C)
31(C)

7711

64K

M27C512

PROM

7712

74HC573D

LATCH

7713

SAA4978H

23

ADC

25

26

28

29

7714

ERR

26

3x

SIGNAL PROCESSING

PICNIC

SYNC PROCESSING

FIELD

MEMORY

FM1

FIELD

MEMORY

3

DIGITAL

ERR

53

DAC

EAGLE

7722

MS81V04160

FIELD

MEMORY

4

FIELD

MEMORY

5

7723

MS81V04160

3x

OUTPUTS 12, 14, 15, 18, 19
NOT USED IF "EAGLE"
IS PRESENT

12

Y100

Y_EAGLE_E

U100

14

U_EAGLE_E

V100

15

V_EAGLE_E

VD

19

VD_E

HD

18

HD_E

7724
T8F24EF

3x

DAC

EAGLE

ERR

27

DVD INTERFACE

INTERFACE DVD

T3 T2

1253

1 9300

DVD-SCL

2

DVD-SDA

6

DVD-B
DVD-G

8

DVD-R

10

DVD-Y

12

DVD-C

14
16

4

IN-SC1-FBL

SC4-CVBS-AV3-Y-SVHS
SC1-CVBS

C-MMC-OUT C-PIPDW-OUT

PIP-OUT 20

FRONT-C-IN 3

FRONT-Y-CVBS-IN 1

PIP-OUT1 11

SC4-CVBS-AV3-Y-SVHS 5

Y-CVBS-MMC-OUT 8

DVD-CVBS

DVD-IRQ

MMC-R
R-SC1-IN V-IN

MMC-G
G-SC1-IN-Y-IN

MMC-B
B-SC1-IN-U-IN

9320

9316

1
2

9301

3
4
5

9322

6
7

8

13
12

+5V10

13
12

VIDEO MATRIX SWITCH
(only present in TDL + DVD version)

7124
TEA6415

10 13

IN1

IN2

IN3

IN4

IN5

IN6

IN7

3
5

1
2

3
5

1
2

7125
74HC4053

7132
74HC4053

OUT1

OUT2

OUT3

OUT4

OUT5

OUT6

ERR

85

OUTPUT
FILTER

L1

L2

L3

L5

L4

7728

Y_EAGLE_E

7729

L24

U_EAGLE_E

7730

L25

V_EAGLE_E

L26

VD_E

HD_E

OR

OR

OR

OR

OR

OR

7704

3721

OR

OR

7703

OR HD100

OR

54

63

OUTPUT

FILTER

73

29

28

(only for TDL + DVD version)

INTERFACE
CONNECTOR

7
2
1
8
6
5
4
3

4 SC1-R-IN-V-IN

15

14

5

4

9

15

SWITCH-HEF-SUB

10

14

11

14

17

18

15

16

1250

DVD-Y-CVBS Y-CVBS-MMC-OUT

17

SDA-S

19
20

SCL-S

22

IRQ

9125

DVD-C

23

9123

DVD-R

25

DVD-G
DVD-B

26

SWITCH-HEF

B15B

SWITCH-HEF

B15B

B15B

SWITCH-HEF

B15B

Y-CVBS-PIPDW-OUT

C-FRONTS-IN

Y-CVBS-FRONTS -IN

C-RECORD-IN

CVBS-Y-RECORD-IN

B4

TOPIC
NOT PRESENT
IF "EAGLE"
IS PRESENT

Y100

6

U100

8

V100

9

VD100

B14B

17

SDA-S

19

SCL-S

20

IRQ-DIGITAL

22

C-MMC-OUT

23

MMC-R
MMC-G

25

MMC-B

26

SC1-G-IN-Y-IN

SC1-B-IN-U-IN

SC1-FBL-IN

IN-CVBS-SC1-AV1-SUB

IN-CVBS-SC1-AV1

7106

7150

HOP

+8VS

TOPIC

OPTIONAL

CONNECTOR

7313 : 7315

EF

EF

EF

E/W DRIVE

LINEDRIVE1

EHT-INFO

POR FLASH

SC1

1955

1SDA-S
2

EHT-INFO

R-CRT
G-CRT
B-CRT

CUT_OFF

7316

7317

7319

VSYNC

OTC

TILT

OTC

POR

AUTOSCAVEM

SCL-S

B1

3340

3341

3342

3367

B5A

B1

B5A

B1
B5A

3
4

Y(OPTIONAL)

B4

7500
TDA8444T

I/O

EXP.

R

B4

VSYNC

ERR

19

6x

SCAVEM

G

B

7003
7005
7007

B5

CONTROL

FROM

BLOCK

DIAGRAM

R-TXT

G-TXT

B-TXT

V24 V26

V25

HOP

ERR

7

RAMP

PH1-2

9 1413

35 36 37 38

RGB

INSERTION

OUTPUT

AMPL.

CATHODE

CALIBR.

GEN

STARISTOP

H-DRIVE

29

DRIVE

FRAME

22

FBL-TXT

E/W

1940
1
2
3
4
5
6
7
8

9
10
11

V27

R

G

B

5

YLTP

43

40

41

42

44

3

4

2
1

8

7303

7361
7362

V28

V29

V30

F20

F18

FRAMEDRIVE -

FRAMEDRIVE +

F19

L13

7310, 7311

PULSE

FORMER

530us

TO 1955

A8

LSP

+11V

HFB_X_RAY_PROT

Y-SCAVEM

+8V6

'CONROL'

7301
TDA9330H

7302
TDA9178

20

V19

2323

N.A.

3363

3331

3321

3320

B1

B5A

B1

V20

2431

V21

2321

R
G
B

F17

L12

V23

V22

HFB-X-RAY-PROT

HFB

DYN-FASE-COR.

28

Y/U/V

RGB

27

MATRIX

26

YUV

30

RGB

31

YUV

32

MATRIX

23

24

PH1-1

11

10

2120

1301

12MHz

3324

19

17

16

7304

SDA-F

SCL-F

31(C)

B5A

30(C)

25(C)

1S15 1205

32

33

41

25

24

23

21

31

26

29
28

26

B5B

ANTI-MOIRÉ

7020
7023

ONE

SHOT

11ms

PWM-ANTIMOIRÉ

B5A

7500
7000 7042

PROC.

LSP SMALL SIGNAL

A8

PAR T

HFB-X-RAY-PROT

EHT-INFO

Y-SCAVEM(OPTIONAL)

CUTOFF

7403

PROTECTION

CIRCUIT

ANTI-MOIRÉ

7021
7022

2064

HFB_X_RAY_PROT

EHT_INFO

SVM

+8V+12V
R-DL

G-DL
B-DL

CUT-OFF

R-CRT

G-CRT

B-CRT

A4

A4

A3

FLIP

FLOP

3036

+8V

TO
BLOCK
DIAGRAM
DEFLECTION

1440
1
2
3
4
5
6
7
8
9

10
11

3032

0.7V OR
3V

2063

1940

1

2
3
4

5
6
7

8

9
10

11

12(C)

0383

1

5300

2

SCAVEM
COIL

3

SC22

F9

8
6

11

F8

F7

3404

3403

VG1

+8V

1434

FROM LOT

DEFLECTION

VG2

A3

STATIC FOC (B)

DIN FOC (A)

COLD

HOT

CRT

EHT

EHT-INFO

+200D

n.c.

SCAVEMCRT

SCAVEM
OUTPUT

7330

TDA61118JF

7500

5500

7503

5501

7506

5502

FILAMENT PULSES

5309

F15

5310

200V

3

7340

TDA61118JF

3

7350

TDA61118JF

CUT_OFF

3341

3301

3352

8

R

F6
F5

3351

8

G

3350

853

B

F4

+200A

VSYM

F1 F2

1940

N.C.

1

HFB_X-RAY_PROT

2

14(B)

3(A,B)

19(C)

18(C)

9(C)

26(C)

N.C.

8(C)

N.C.

3

4

5

6

7

8

9

10

11

SEE
BLOCK DIAGRAM
DEFLECTION

Y-SCAVEM_IN

+8V_+12V

CUT_OFF

FROM

1424

OF

A3

(LINE
DEFL.)

1424

R-CRT

G-CRT

B-CRT

1

2

3

4

5

6

7

HFB_X-RAY_PROT

22

CL 36532008_005.eps

060503

Wiring Diagram, Block Diagrams and Overviews

Testpoint Overview Small Signal Board

SSB side A SSB side B

39EM6E 6.

7001

PIN TP
5 B60
16 B55
83 B57
84 B58
85 B52
86 B51
87 B54
88 B53

7323

PIN TP
2I5
10 I6
12 V1
14 V2
26 V5
46 V10
47 V9
49 V6
50 V7
51 V8
60 L8
61 F14

7P09
PIN TP
2I5
10 I6
12 V1
14 V2
46 V10
47 V9
49 V6
50 V7
51 V8
60 L8
61 F14

A1

2X SCART

2X SCART

HEADPHONE

WIRELESS

A2

TUNER SPLITTER

TUNER

A3

FLASH

RAM

SET SW

AT00

FM3

FM4

FM2

OTC

FM4

PROM

1U06

1U05

7A63

PIN TP
3 A10
4A9
5 A13
12 A14
14 A11
15 A12
54 A16

7713

PIN TP
23 L6
25 L7
26 L8
28 L10
29 L11
34 L9

JUNCTION

2700/2701 L1

FALCONIC

FM

L24

PICNIC

NVM

FLASH

RAM
EPG

L25

EAGLE

DRAM

TXT

L26

2703/2704 L2

7301

PIN TP
26 V21
27 V20
28 V19
23 F17
24 L12
40 V28
41 V29
42 V30
2 F18
3 F20
1 F19

PM3394B

B52

PM3394B

B53

PM3394B

HIP

AUDIO

DEM

DOLBY
PRO

7A02

PIN TP
20 B66
21 B67
50 B65

2706/2707 L3

2723/3729 L4

2724/3721 L5

TOPIC

HOP

COMBFILTER

7A03

PIN TP
1 B69
7 B68

MUPPET

HIP
PIP

7A06

PIN TP
2 FPB1
8FPA7
10 FPA9
12 FPA8
70 FPA5
94 FPA4
98 FPA2
100 FPA3

1S021S15

A4

A5

A6

A7

A8

A9

7A30

PIN TP
9A8
17 A1
19 A7
20 A6
21 A5
25 A2
26 A3
27 A4

7P54

PIN TP
2 V33
3 V34
4 V35
10 V39
11 V38
12 V37
16 V36

A10

A11

A12

DOLBY

DIGITAL

A13

A14

A16

AT00

B51

2 V / div DC

250ns / div

B54

PM3394B

2V / div DC

5ms / div

FPA8

500mV / div DC

20µs / div

PFA2

500mV / div DC

20µs / div

V36

100mV / div DC

20µs / div

2 V / div DC

50ns / div

B55

PM3394B

2V / div DC
250ns / div

FPA9

500mV / div DC

20µs / div

PFB1

500mV / div DC

20µs / div

V37

500mV / div DC

20µs / div

2 V / div DC

1µs / div

B57

PM3394B

500mV / div AC

10us / div

I5

20mV / div AC

10µs / div

V1

PM3394B

1V / div DC

10us / div

V38

500mV / div DC

20µs / div

2 V / div DC

1µs / div

B58

PM3394B

1V / div DC

5ms / div

I6

PM3394B

1V / div DC

10us / div

V2

PM3394B

1V / div DC

10us / div

V39

500mV / div DC

20µs / div

1 V / div DC

2µs / div

B60

PM3394B

500mV / div DC

10us / div

L1

1 V / div DC

10µs / div

V5

PM3394B

1V / div DC

10us / div

1U05

5 V / div DC

5µs / div

1 V / div DC

5µs / div

B65

200mV / div AC

10µs / div

L2

1 V / div DC

10µs / div

V6

PM3394B

500mV / div DC

20us / div

1U06

5 V / div DC

5µs / div

1 V / div DC

200ns / div

B66

20mV / div AC

1ms / div

L3

1 V / div DC

10µs / div

V7

PM3394B

500mV / div DC

20us / div

1 V / div DC

100ns / div

B67

20mV / div AC

1ms / div

L4

1 V / div DC

10ms / div

V8

PM3394B

1V / div DC

20us / div

2 V / div DC

10µs / div

B68

20mV / div AC

1ms / div

L5

1 V / div DC

20µs / div

V9

PM3394B

2V / div DC

200us / div

2 V / div DC

200ns / div

B69

20mV / div AC

1ms / div

L6

PM3394B

500mV / div DC

10us / div

V10

PM3394B

2V / div DC

200us / div

2 V / div DC

1µs / div

F17

1V / div DC

5ms / div

L7

PM3394B

500mV / div DC

10us / div

V19

1V / div DC

10us / div

2 V / div DC

50ns / div

F14

1V / div DC

5ms / div

L8

1V / div DC

20us / div

V20

1V / div DC

10us / div

2 V / div DC

2µs / div

F18

PM3394B

500mV / div DC

5ms / div

L9

PM3394B

1V / div DC

250ns / div

V21

1V / div DC

10us / div

2 V / div DC

2µs / div

F19

PM3394B

500mV / div DC

5ms / div

L10

1V / div DC

20us / div

V28

PM3394B

1V / div DC

10us / div

1 V / div DC

50ns / div

F20

PM3394B

500mV / div DC

5ms / div

L11

1V / div DC

5ms / div

V29

PM3394B

1V / div DC

10us / div

200mV / div AC

10µs / div

FPA3

500mV / div DC

20µs / div

L12

1V / div DC

10us / div

V30

PM3394B

1V / div DC

10us / div

2V / div DC

100us / div

FPA4

1 V / div DC

20µs / div

L24

1 V / div DC

10µs / div

V33

500mV / div DC

20µs / div

2V / div DC

100us / div

FPA5

1 V / div DC

5ms / div

L25

1 V / div DC

10µs / div

V34

500mV / div DC

20µs / div

CL 36532008_052.eps

2V / div DC

5ms / div

FPA7

500mV / div DC

20µs / div

L26

1 V / div DC

10µs / div

V35

500mV / div DC

20µs / div

070503

Block Diagram Audio

SEE ALSO

IF

BLOCK DIAGRAM

B2

VIDEO
7323
TDA9320H

L

R

RADIO

RADIO

ENGINE

DVD-L

DVD-R
SPDIF-

DVD

OPTIONAL

OPTIONAL

HIP

MAIN

SIDE I/O

O

L

R

B14B

SCART 1

3
1

SCART 2

3
1

SCART 3

3
1

SCART 4

3
1

RADIO
PANEL

L

R

DVD

B14C

B14B

6

2

6

2

6

2

6

2

3380

5

3437

10

1936

6

8

I/O

AL-SC1-IN

AR-SC1-IN

AL-SC2-IN

AR-SC2-IN

AL-SC3-IN

AR-SC3-IN

AL-SC4-IN

AR-SC4-IN

T2

1120

1

2

1253

25

27

22

SOUND-OUTPUT

7411

1411

A8 B1

1206
25

26

INTERFACE

7103

L

RADIO

DVD

R

SWITCH

L

R

L-FRONT-IN

R-FRONT-IN

T3

2FH1-L

2FH1-R

2Fh1-L

2Fh1-R

2Fh2-L

2Fh2-R

SND-CENTER-IN

SPDIF-1

SPDIF-2

Wiring Diagram, Block Diagrams and Overviews

AUDIO I/O

7410

7101

B14D

QSS_AM

L

R

4

6

1

8

10

2

2

11

3

4

3

5

5

7

6

9

7

1

8

12

9

10

1250 1111

15

13

10

25

24

23

20

19

18

4

5

6

9

10

11

B14B

15

13

10

7117
TEA6422D

R1

R2

MATRIX
SWITCH

R3

R4

R5

R6

L1

L2

L3

L4

L5

L6

SNDL-BO-OUT1

SNDR-BO-OUT1

SPDIF-BO-OUT

4

3

2

1

5

9I32 9I37
not present

in versions with

hard disc drive

9I32

9I33

9I34

ROUT1

13

R1

15 13

ROUT2

R2

17

ROUT3

R3

ERR

83

L1

L2

L3

2FH1-R

1

MONO-PIP

5

SNDR-SC1-OUT

3

12 LOUT1

14

16

LOUT2

LOUT3

2FH1-L

2

MONO-PIP

6

SNDL-SC1-OUT

4

3,4

7,9

11

12

2

1

9I35

9I36

9I37

7118 only present

in version with
hard disc drive

7118
TEA6422D

25

R1

24

R2

MATRIX

SWITCH

23

R3

20

R4

19

R5

18

R6

4

L1

5

L2

6

L3

9

L4

10

L5

11

L6

B14D

12
13

ERR

84

7120-C

R1

15

R2

17

R3

12

L1

14

L2

16

L3

14

SUBW-SP1 -SW

QSS

SND R-SEC-IN

SND R-BO-IN

SND L-SEC-IN

SND L-BO-IN

I2S-BO-IN

I2S-BO-WS

I2S-BO-CLK

I2S-BO-IN

I2S-BO-WS

I2S-BO-CLK

7100

40EM6E 6.

AUDIO DEMODULATOR

B6A

B65

7

1

8

2

3

4

5

9

10

7,9

8,10

B6C

5A31

5A32

5A33

B6B

A5

A6

A7

SPDIF-IN2

SPDIF-IN2

SCL-F-DD

7A02
MSP4450 (used in combination with MAS3528E and DPL4519G)

IF1

50

SC3

SC4

I2S-MSP-OUT

I2S-MSP-WS

I2S-MSP-CLK

I2S-MSP

ADC

MONO-IN

SC1

5

4

3

2A39

R-MAIN-IN

L-MAIN-IN

2Fh2-R

2Fh2-L

2Fh1-R

2Fh 1-L

CENTER

CENTER

47

45

44

42

41

39

38

36

35

IF2

I2S-MSP-OUT

I2S-MSP-WS

I2S-MSP-CLK

DOLBY DIGITAL DECODER (MAS)

7A30
MAS3528E

21

SERIAL IN

20

2

S

I

19

40

S/PDIF

38

3SDA-F-DD

4

RISC DSP CORE

in

I2C

ERR

63

CLOCK

9

A8

SYS-CLK1

LOUD-

SPEAKER

SOUND

PROCESSING

HEADPHONE/

SURROUND

SOUND

PROCESSING

DAC

DAC

AUDIO DEMODULATOR DETAIL

B6A

(IF MSP34X2 IS USED)

7A02 MSP34X2 (detail)

DOLBY PRO LOGIC

B6C

7A63
DPL4519G

A13

5

A9

4

A10

3

I2S

INTERFACE

A14

12

A11

15

A12

14

ERR

81

57

A15

SYS-CLK1 SYS-CLK0

B5b

S

ERR

14

PRE-PROCESSING

ADC

17

27
26
25

PRESCALE

A1

A2 A3

7A31

PRESCALE

A4

I2S-DD-OUT
I2S-DD-WS
I2S-DD-CLK

SPDIF-OUT

SOURCE
SELECT

I2S

INTERFACE

I2S-DPL-OUT

I2S-DPL-WS

I2S-DPL-CLK

DE-

MODULATOR

SCART

DSP

INPUT

SELECT

S/PDIF

OUT

SERIAL OUT

2

I

PIO

711 125,6 91718

LOUD

DAC

DACM-SUB

HEAD

DAC

SCART
OUTPUT
SELECT

SC

12

I2S-DPL-OUT

15

I2S-DPL-CLK

14

I2S-DPL-WS

I2S-DPL

HEADPHONE CONN.

DAC

DSP

A16

B66

20

21

B67

23

17

18

28

SNDR-SC1-OUT-DC

SNDL-SC1-OUT-DC

29

SNDR-MON­OUT

25

SNDL-MON-

26

OUT

61

DAC

54

B5b

LM833D

5

3

3

17
18
22
24

DACM-SUB

DACA-R

7A03

7

1

7A00

1

11,15 12,16

HEADPHONE-R
HEADPHONE-L

MSP-CENTER
MSP-SURR

23

17

18

20

B68

AUDIO-R

AUDIO-L

B69

AUDIO-SW

HPN-R

HPN-L

B14D

REG-SW

9A65

2
1

5
3

9.10

9A60

SNDR-SC1-OUT

SNDL-SC1-OUT

7120

15

4

7122-B

17

18

ONLY PRESENT
IF MPS 34X2
IS MOUNTED

7A61

537

7A62

5

3

SNDR-SC2-OUT

SNDL-SC2-OUT

SUBW

SURR-R

1

SURR-L

7

AUDIO-C

1

SURR-L

SURR-R

17

18

3,15

4,16

13

14

13,14,15
16,17,18

3,4

B1 A8 A6

AUDIO-C

AUDIO AMPLIFIER

-16V-19V

7700

A56

TDA7490

18

6

STBY-MUTE

10

A58

-16V-19V

7700

A62

TDA7490

10

6

STBY-MUTE

18

A60

-16V-19V

7701 : 7707

SOUND-ENABLE

B5

POR PROT1

A3

A8

16

15

14

13

15

16

B14B

SOUND

ENABLE

AUDIO
SUPPLY
PROT, CIRCUIT

SNDL-SC1-OUT

SNDR-SC1-OUT

SNDL-SC2-OUT

SNDR-SC2-OUT

SNDR-MON-OUT

SNDL-MON-OUT

SUBW

SURR-R

SURR-L

B14B

1I11

8

1

SNDR-BO-IN

10

3

SNDL-BO-IN

SPDIF-OUT

24 22

PWM

OSC

PWM

24

24

PWM

OSC

PWM

24 22

I/O

+16 +19V

+16V+19V

+16V+19V

PROT-AUDIO-SUPPLYHFB-X-RAY-PROT

5702

5701

3718

5721

3728

5720

3729

N.C.

3717

3745

6745

1735

1737

1738

+16V+19V

R

1

3

1

3

4

3

1

3

15W/
8Ω

L

15W/
8Ω

SUBWOOFER

15W/
8Ω

CENTRE

15W/
8Ω

A57

23

A59

3

A63

23

A61

3

SCART 1

6

L

3
2

R

1

SCART 2

6

L

3
2

R

1

R-MON-OUT

L-MON-OUT

SUBW-OUT

SURR-R-OUT

SURR-L-OUT

SPDIF-OUT

PIP AUDIO

B15A

7P09
TDA9321H

QSS_AM

PIP

VIFOUT

PIP IF

5

10

SEE ALSO
BLOCK DIAGRAM
VIDEO

3P48

3P93

1P11

1P10

1P12

7P05

MONO­HIP-OUT

1P07

7P55-M

7P55-BG

7P55-DK

7P55-I

7P09

PIP I/O

B15B

SIF-OUT (MONO AM FOR LL')

7P55
TDA9820T

3

1

FM

INTERCARRIER

SOUND

2

DEMODULATOR

(MONO)

1

8

5

6

7P57
3
5

9

SEL-PIP­CVBS-SOUND

SEL-PIP-SOUND1

SEL-PIP-SOUND2

4
MONO-PIP

MONO-PIP

3

3

1

PIP I/O SIDE I/O I/O WIRELESS

B6A B1

B15B

S-SDA

S-SDL

7P56
M62320

3

2

3A42

PIP-AUDIO

PIP-AUDIO

4

I/O

EXP

ERR

21

1

5

2

6

3

SNDR-MON-OUT

SNDR-SEC-IN

SNDL-MON-OUT

SNDL-SEC-IN

7A06
TDA7309

17
18 2
20

14
13
11

ERR

82

HPN-R

9

HPN-L

9A019A00

7A07-A
MC33178D

3

5

WIRELESS KIT

A8 B14B

1

7

HEADPHONE-L

HEADPHONE-R

B5A

1936

O

S-SDA

10

L

11

R

7

FRONT-DETECT

S-SCL

SEL-IN-2-B

B14D

7108-A

SURR-L

SURR-R

7108-B

+11V_S

1103

1

SDA

2

SCL

3

4

5

6

7

SUPPLY

8

UNIT

13VDC

TRANSMITTER

R

RECEIVER

S1

FRONTEND
RECEIVER

S2

BACKEND
AUDIO OUTPUT

W

AMPLIFIER

WIRED
AUDIO
INPUT
(3,5MM
STEREO JACK)

SEE ALSO
BLOCK DIAGRAM
WIRELESS KIT

R

SPEAKER

OUT

2,5MM

MONO JACK

L

SPEAKER

OUT

CL 36532008_003.eps

060503

15W

4Ω

15W

4Ω

Wiring Diagram, Block Diagrams and Overviews

Block Diagram Controls

CONTROL
(BASIC VERSION)

TOP CONTROL

P

5x

CHANNEL+
CHANNEL-

VOLUME+
VOLUME-

MENU

ADDITIONAL
CONTROL FOR
TDL VERSIONS

TOP CONTROL

P

5x

CHANNEL+
CHANNEL-

VOLUME+
VOLUME-

MENU

10X
BLUE LED

DVD EJECT

K

BUTTON

6202

DVD ENGINE

KEYBOARD

1200

ERR

93

DVD3V3

(OPTIONAL)

0345

OR

2

KEYBOARD

0346

OR

2

OR

1207 1207

1

2

3

+5V VCC_LED

EJECT LED

DVD EJECT

4

1264 1264

1

OR

2

OR

3

SIDE I/O

O

HEADPHONE

CONTROL

MAINS SWITCH PANEL

E

6051
TLUV5300

RED

1050

RECEIVER

+5V STANDBY

0245

2

LIGHT
SENSOR

LCD BOARD

L

1

3

4

T3

12531800

1

DVD-SCL

2

DVD-SDA

4

DVD-IRQ DVD-IRQ

17

18

19

20

21

30

1264

1

2

3

SEND
LED

6070

KEYBOARD

1

2

3

+5V

INTERFACE (DVD)

+3V3_DVD

9317

9318

DVD-MUTE

+5-2V-MP

3082

3084

3

1

3

GREEN

ON/OFF LED

E1

1

IR-

+5V STANDBY

7050

6052

27

7070

1245

9300

SCL-S

9301

SDA-S

+5V-DVD

+11V-S
+12V-DVD

DVD-MUTE

DVD-EJECT

FRONT

DETECT

ON/OFF LED

KEYBOARD

LIGHT SENDER

+8V6

12

DVD-IRQ

COLD

RC5

IR-LED

1936

0241

7

1

2

3

4

5

6

7

8

9

151314

I/O

EXP

ERR

29

T4

7400, 7407
7409

FRONT

A10

1946

1

N.C.

2

3

4

+5V2

5

N.C.

6

7

8

9

+8V

1945

2

DTV REGULATOR

DVD

SUPPLY

7306
PCF8574AT

4

DVD-STDBY

5

+3V3-DVD-OK

6

+12V-DVD-OK

7

DVD-IRQ

9

DVD-MUTE

10

IRQ

11

+5V-DVD-OK

12

DVD-EJECT

A8

1936

7

DVD-STDBY

+3V3-DVD-OK

+5V-DVD-OK

+12V-DVD-OK

CONN.

1206

1S02

22

IS021206

37

38

39

1205 1S15

37

T2

B1

CONN.

B14B

IRQ-DIGITAL

B5A

FM RADIO

ERR

B5A

+5V2-CON

I/O

S-SDA

S-SCL

88

OTC FLASH

SEE ALSO
BLOCK DIAGRAM
VIDEO

7005
LF33AB

IN

1

41EM6E 6.

7001
SAA5801H

B60

7009

7010

86DAVN

7000
ST232

RESET

7004
PCF1252

RS232
PROC

5

B57

83HFB

RESET

RP

OTC

84

7

114

74

109

108

99POR-FLASH

98IRQ-DIGITAL

93HD@HOME

96IRQ-FTV

97

120

113

100RC

107KEYBOARD

110LIGHT_SENSOR

B58

B56

T1

SDA-SW

SCL-SW

M24C32

RST

RXD

12

TXD

11

CVBS-TXT

B2

7015

B4

VSYNC

B4

7016

CVBS-Y-RECORD-IN

N.C.

FRONT-DETECT

7002 :
7004

RESET

7013, 7014

OUT

+3V3
INTOTC

B14B

B14B

RESET
FLASH

RAM

STATUS_SC3

STATUS_SC4

B4

B4B

B4

N.C.

P50

B14B

7008

ON-OFF-LED

+3V3

INTERFACE

T2

RADIO

12501I11

19

19

20

22

N.C.

SDA-S 8

20

SCL-S

22

IRQ

T3

11201120

+12V-AUDIO

5

RADIO-ENABLE-MPX

6

RADIO-DATA

7

RADIO-CLOCK

8

RADIO-STEREO

7100
SAA6588T

RDS

16

ERR

MPX

64

1280

2

RXD

4

13

TXD

14

B61

77

78 G-TXT

79 B-TXT

80 FBL-TXT

88 SDA-F

87 SCL-F

86 SDA-S

85 SCL-S

90 TXD

89

RXD

3099C 3081

119

3074D 3097

96

104 STANDBY

95 SOUND-ENABLE

94 RESET AUDIO

115 DEGAUSSING

117

116

103

118

SDA

91

92

SCL

ADDRESS

DATA

CONTROL

16

17

INTERFACE
CONTROL

57

EEPROM

7011

7011
MC24C32

5

6

ERR

89

B62

B63

B64

B53

B54

B51

B52

N.C.

EEPROM

4kByte

1001

SDA-S

SCL-S

7

B55

NVM.

ERR

1

R-TXT

9005

OR 9017

9006 OR 9018

SEL_IN_2

SEL_IN_1

PWW_ANTIMOIRÉ

AUD-PWB-CTRL

7006
LH28F320BJE

PROGRAM

FLASH-RAM

SET SW

32Mbit

7002
P89C664

9

24

25

26

27

15
30

31

10

11

13

B4

µC

ERR

86

SEE ALSO
IIC DIAGRAM

SAM

SDM

A2

A6

B6A

A1

B6B

B6B

B5B

B1

7007
MSM51V18165F

SEE ALSO
BLOCK DIAGRAM
VIDEO

DRAM

(TXT)

16Mbit

DATA0 ... DATA7

LCD-ENABLE

2

LCD-RW

3

LCD-RS

4

LCD-BACKLIGHT

7

5

6

7010

18

16
17

32

1300

21

22

+12V-ENABLE

28

12V-AUDIO-OK

29

7012
M29W400BT

EPG-

FLASH-RAM

4Mbit

+5V-SW

USW1

USW2

7009
L9997

10

CONTROL

+5V

12

9

+5V-SW

FLASH PROG.
MODE SWITCH

1400
20 MHz

+12V-STBY

SUPPLY

CONTROL

MOTOR

ERR

92

AUDIO

7001
7003
7005

ERR

32

RP

1007

+12V-AUDIO

B5C

(OCTAL BUS TRANSCEIVER)

7018
7019

1260

1

10

12

13

14

15

16

17

18

19

20

21

22

23

24

OTC-FLASH

74LVC245APW
74LVC245APW

AUXILIARY

FLASH

CIRCUIT

FOR

PROGRAM

FLASH RAM

LCD BOARD LCD DISPLAY

L

1260

1

10

12

LCD-ENABLE

13

14

15

16

17

LCD-BACKLIGHT

18

USW1

19

20

USW2

21

22

23

24

+5V

+5V

DATA

LCD-RW

LCD-RS

3007

3006

1402

1

2

3

7000

LCD

BACKLIGHT

CONTROL

+5V

+5V

3005

5V

3004

LCD-CONTRAST

LCD-RS

LCD-RW

LCD-ENABLE

DATA

LCD-LED-BACKLIGHT

MOTOR +

MOTOR -

USW1

3009

+5V

USW2

3010

+5V

1205

1203

1204

1

2

3

4

5

6

7

14

15

16

17

1

2

1

2

1

2

CL 36532008_006.eps

ERR

91

LCD PANEL
SWING OUT

M

MOTOR

DETECT

SK

SWITCH 1

DETECT

SK

SWITCH 2

ON MECHANICAL UNIT

FOR SWING OUT

LCD DISPLAY

060503

Wiring Diagram, Block Diagrams and Overviews

I2C IC’s overview

42EM6E 6.

IIC

OTC

B5A

SAA5801H

PROCESSOR

ADDRESS

CONTROL

7001

SET

DATA

88

87

86

85

91

92

3064-D5

3064-C6

3064-B7

3064-A8

3100

3101

EEPROM

+5V2_CON

+5V2_CON

SDA

SCL

7011

M24C32

(NVM)

+5V2_CON

3069

3079

SDA-F

SCL-F

+5V2-CON

3092

3088

+3V3-INTOTC

3110 3111

56

LH28F320BJE

PROGRAM

FLASH-RAM

MSM51V18165F

DRAM
(TXT)

M29W400BT

FLASH-RAM

7006

7007

7012

EPG

ERR

ERR

32

SDA-S

SCL-S

1

I/O, VIDEO PROC.

B2

ERR

18

3377

47 46

7323

TDA9320H

HIP1

ERR

SIM.

B1

CONN.

3S03

3S09

ERR

6

COMPAIR

CONNECTOR

FOR SERVICE

(REACHABLE VIA

HOLE IN REAR

COVER)

PICNIC

B3A

SDA-F

SCL-F

3376

SDA-D SCL-D SN-DA-E SN-CL-E

8

TUN1/TUN2

B13

SDA-S

SCL-S

1T01

UV1318

TUNER1

ERR

13

3709

3710

54

7713

SAA4978H

PICNIC

ERR

3

45

1T02

UV1316

TUNER2

PIP

ERR

23

1

2

45

B14B

7108-BS-SDA S-SDA

S-SCL S-SCL

SEL-IN-2-B

LSP

A8

12061S02

SDA-S

8

SCL-S

9

1

2

3

3I59

3261 3262

7108-A

1

2

SC1

19551955

+5V

3758

B14A

3I58

AUTOSCAVEM

3502

4

7500

TDA8444T

SN-DA

SN-CL

VIDEO I/O

3104

2

7124

TEA6415CD-TR

ELECTRONIC

SWITCH

ERR

85

3500

3

DAC

ERR

19

FALCONIC

B3B

26 27

7718

SAA4992

FALCONIC

ERR

26

3105

4

R

1I03 1101

1

2

EAGLE

B3C

9741-D5

32 26

AUDIO I/O

B14D

3I30

28

27

7I17

TEA6422D

ELECTRONIC

SWITCH

ERR
83

WIRELESS TRANSMITTER

I2C-DATA

8

7

I2C-CLOCK

3102

5

TSA5060AT

SYNTHESIZER

7724

T8F24EF

EAGLE

ERR

27

3I31

7101

9741-C6

3I18

28

7I18

TEA6422D

ELECTRONIC

SWITCH

ERR
84

3101

6

3320

3P66

7P56

ERR

PIP I/O

21

B6A

3A17

3A19

3P64

2

AUDIO
DEMODULATOR

SDA-F-AUD

SCL-F-AUD

1

2

7A02

MSP4450

or

MSP34...

ERR

14

3P79

3P81

14

15

7P51

Z8630

V-CHIP

(USA only)

4

7A06

TDA7309

HEADPHONE

FDS

ER
82

B15C

3PB7

7PA5

3PB9

6PA1

HA

5

PIP MUPPET

HOP

B4

3321

11

10

7301

TDA9330

HOP

ERR

7

HIP-PIP

B15A

3I19

3P23

47

27

7P09

TDA9321H

HIP2

ERR

34

B15B

3P22

46

3

M62320

I/O EXP.

B6C

DPL4519G

PRO-LOGIC

74

7PA6

SAB9081H

DW PROC.
(MUPPET)

ERR

24

DOLBY
PRO-LOGIC

2

7A63

DOLBY

ERR

81

3PC1

73

5A24

5A23

1

DOLBY

B6B

DIGITAL

SDA-F-DD

SCL-F-DD

4

3

7A30

MAS3528E

DOLBY

DIGITAL

ERR

63

B14B T2 T1 T3

I/O EU

1I11 1250

SDA-S

19

20

SCL-S

Error codes

Error Device Description Def. item Defect. module indication Diag

1 M24C32 NVM, spont aneous blinking error 1 7011 Control B5a
2 Hfail Protection Horizontal Flybac k protection / Horizont al Flyback /
3 SAA4978 PICNIC 7713 F eature Box B3a
4 Supply 5V 5V prot ection / +5V Supply B 5a
5 Supply 8V 8V prot ection / +8V Supply B5a
6 Slow I2C bus blocked Spontaneous blinking error 6 / Slow I 2C Blocked /
7 TDA9330 HOP High-end Output Processor 7301 Video Controller B4

8 TDA932x HI P High-end Input Processor 7323 Chroma IF IO B2
13 UV1318/… Tuner protection 1T 01 Tuner B13
14 MSPxxxx ITT sound processor 7A02 Audio module B6a
16 FBX Feat ure Box Protection / +3V (Fbx) Supply B3
18 Fast I 2C bus blocked Spontaneous blinking error 18 / Fast I2C Blocked /
19 TDA8444 Auto Scavem DAC 7500 Auto Scavem SC1
21 M62320P PIP I/O Expander 7P56 Video Dual Screen B15b
23 UV1316/… PIP Tuner 1T02 Video Dual Screen B13
24 SAB9081 PIP Muppet 7PA6 Video Dual Screen B15c
26 SAA4992 Falconic 7718 +3V (Fbx) Supply B3b
27 T8F24EF Eagle 7724 +3V (Fbx) Supply B3c
28 Black cur rent loop Black current loop
29 PCF8574T DVD I2C I/O Expander 7306 DVD Engine T3
32 M29W400BT F lash Ram (EPG) 7012 EPG Memory B5a
34 TDA932x Second HIP 7P09 Video Dual Screen B15a
63 MAS3529E Dolby Digital Decoder 7A30 Digital Audio Module B6b
64 SAA6588T TDL RDS 7100 TDL (Radio) T2
81 DPL4519 Dolby Prologic Decoder 7A63 Digital Audio Module B6c
82 TDA7309D Headphone proces sor 7A06 B6a
83 TEA6422 ( 1) Source select matrix audio 7I 17 Audio Source Select B14d
84 TEA6422 ( 2) Source select matrix audio 7I 18 Audio Source Select B14d
85 TEA6415 Source select matrix video 7I24 Video Source Select B14a
86 P89C664 TDL µP Radio 7002 TDL (Radio) T1
87 / TDL 12V audio off / TDL (Radio) T1
88 TEA5762 TDL FM Radio 7101 TDL (Radio) radio
89 M24C32 TDL NVM Radio 7011 TDL (Radio) T1
91 See extr a info TDL LCD / T DL (Radio) T
92 See extr a info TDL Motor / TDL (Radio) T
93 See extr a info DVD 3V3 / DVD Engine T3
96 PCF8574 HDD Interface 7022 Harddisk Module TS
97 See extr a info HDD Engine / Harddisk Module /
98 See extr a info HDD Fan fan Harddisk Module TS

/ /

INTERFACE CONTROL

98

7002

P89C664

µC

ERR

86

30

SDA

31

SCL

56

7011

M24C32

NVM

ERR

+5V +5V+5V

3084 3082

24

25

26

27

3024

3021

T3

89

RADIO-ENABLE-MDX

RADIO-DATA

RADIO-CLOCK

RADIO-STEREO

+5V

9

3323

15

7306

PCF8574AT

I/O EXP.

ERR
29

3019

3110

7100

SAA6588T

RDS

PROC.

ERR

64

3103

DVD ENGINE SD5-31SL

CONN. ZIVA

1800

1253

9301

2

9300

1

3322

14

+5V

3018

SDA-SW

SCL-SW

3112

10

3102

3128

5106

5

5103

6

5104

7

5105

8

2

1

SERVICE & DEBUG

1702

TXD-SER

1

SERVICE

2

RXD-SER

3

4

5

6

7

+5V

RADIO PANEL

11201120

5

6

7

8

5815

5813

5814

5812

3161

3160

3159

3158

+5V

+5V

3711

3714

+5V

3426

3423

S-I2C-DA

S-I2C-CL

+5V

3420

3400

56

7400

M24C32

NVM

+5V

3710

7702-B

+5V

37173716

7101

29

TEA5762

28

RADIO
PROC.

27

ERR

24

88

3713

7702-A

4411

*

SD

7407

G

+5V

4410

*

SD

7406

G

+5V

M-I2C-DA

M-I2C-CL

3700

TXD-SER

3712

7402

3433

161

ZIVA-5

3402

3432

160

3401

14

187

185

164

163RXD-SER

CL 36532008_007.eps

182

183

SD ATA 2

SCLK2

TO

DVD

CIRCUITS

060503

Wiring Diagram, Block Diagrams and Overviews

Supply Lines Overview

43EM6E 6.

MAINS

E

SWITCH

A1

MAIN
SUPPLY

A2

STAND-BY
SUPPLY

PRIMARY

SIDE

MAIN SUPPLY

A1

COLDHOT

STAND-BY SUPPLY

A2

5101

3

2

1

7103 OR

7104

1

5

4

2

MAIN SUPPLY

A1

5506 OR

5612

5

4

3

1

HOT COLD

+

2515

1

1550
4

7501
7528

ACTIVATING

CIRCUIT

6110

85

9

10

11

12

6107

3113

6122

3124

3114

65355507 5514

6

7

9

5509 6536 5513

10

6113

6111

7131

7141

+

2512

+

2511

ROTATING

A5

CIRCUITRY

FRAME

A4

DEFLECTION
E/W DRIVE

3449

+11D

3115

3116

1969

2.5A

+8V6-SWITCH

S

D

G

7130

CONTROL

1968

2A

+5V-SWITCH

S

D

G

7140

CONTROL

AUDIO SUPPLY

+

2542

+

2543

+11V_ROT

1601

1

125mA

+8Vb

COLD HOT

+5.2V_MP

+11V_STBY

STANDBY

+5.2V_MP1

+5.2V_MP

+11V-STBY

+16V+19V

GND-AUD

-16V-19V

SUP-ENABLE

7680

TDA7052

VTUN

+11V

+8V6

COLD

+VBATT

+13V-LOT

TDA8177

-15V-LOT

T1

1U02

1

3

5

7

B14A

5I01

DTV REGULATOR

T4

1146

3

4

5

+5.2V_MP

+5V_PCF

T3

+5V_2V_MP

+3V3_DVD

+5V_DVD

+11V_S

+12V_DVD

+12V_DVD

T2

+5V

+12V_AUDIO

3139

3140

+12V_DVD

3078

3079

+11V

N.C.

3080

3081

3042

+3V3_FAULT

B12

3338

1402

CONTROL

1406

T630mA

7400

11 5.6

VOLTAGE

REGULATOR

CONTROL

+5V_PCF

+5V_2V_MP

+3V3_DVD

+5V_DVD

+11V_S

+12V_DVD

+5V

+12V_AUDIO

+5V

+5V

+12V_STBY

+5V_SW

+5V

L

1260

16

24

T1A

D

S

7407
IRFR9024N

G

D

S

7409

G

+12V_AUDIO

6101

7005

1

5

2

LCD BOARD

+5V

+5V

+5V

LCD_BACKLIGHT

+5V

5403

+3V3_DVD

+5V_DVD

+11V_S

+12V_DVD

+5V_SWENABLE

+11V_S+11V

+12V_DVD

6407

+11V_F

54025406

+3V3_DVD

6401

+5.2V_MP

+5V_DVD

6402

9317

5102

+12V_PREAMP

+12V_AUDIO

1205

2

+5V

16

7000

1264 1264

3003

313

CL 36532008_008.eps

DVD
ENGINE

1253

1800

17

17

18

18

19

19

20

20

21

21

SUPPLY LINE
DETAILS SEE
DVD ENGINE

RADIO
PANEL

1120

1120

44

SUPPLY LINE
DETAILS SEE

RADIO PANEL

+5V

1260

16

24

LCD
DISPLAY

K

1

1x

2x

1x

1x

1x

FOR MORE

MANUAL

FOR MORE

DIAGRAM

1x

1x

EJECT

6202

070503

FRONT

A10

+5V2

1946 0241

+5V2

+8V

4994

A2

VTUN

+11V

+5.2V_MP

A8

+5.2V_MP

VTUN

+11V5

+11V

+8V6

+8V

+5.2V_MP1

+5.2V

+8V

+5V

+5V

STANDBY

+11V5

+8V

A6

+16V+19V

-16V-19V

HOT

+141V

2

+13V-LOT

7620

4

+8V-S

-15V-LOT

A3

+VBATT

SUP-ENABLE
HOT
COLD

LINE
DRIVE

COLD
HOT

3635

7813

5903

5902

1930

1000mA

AUDIO AMPLIFIER

+16V+19V

5712 5708 5711 5707

4

5735

-VS

LINE
DEFLECTION

5400 5401

+141V

+5V2

5410

+11D

EW

3464

-15V-LOT

6464

3465

6465

3462

+13V-LOT

6462

3463

6463

+13V-LOT

3498

-15V-LOT

LINE

OUTPUT

STAGE

E

+11V5

+8V

+5.2V

-16V-19V

-Vf1
22 1 2 24

7700

TDA7490

HOT COLD

5

7421

1

5465

3

5463

6

HOT

1495

3499

MAINS
SWITCH

+5V STANDBY

+8V6

+11V5

+8V

+5.2V

+16V+19V

-Vf11

5430

LOT

9410

8

9

12

COLD

PANEL ON CRT
NECK

131

3

VTUN

+11V

+5.2V_MP

+5.2V_MP

VTUN

+11V5

+5.2V_MP

+8V

+8V

+5V

+5V

+5V

STANDBY

+11V5

+8V

-VS

5715 5722 5716 5723

-Vf2

4

22 1 2 24

7702

TDA7490

EHT TO ANODE CRT
FOCUS 1
FOCUS 2

3400

6400

+218V

FILAMENT

3460

6460

5461

3461

+11D +11D

FILAMENT
PULSES

(OPTIONAL)

1146

3

4

5

1147

1

2

3

4

5

1206 1S02

3

4

5

6

7

1205361S15

36

1940

1

6

-Vf21

1424 1424

7

2

+11D

TO
3450
3451

1492

1

3

B12

B14A

1I70

1

2

3

4

5

B1

3

4

5

6

7

SC1

1940

1

6

F1

1240

6

+8V_+12V

+200V

7

2

1492

1

3

I

DC/DC CONVERTER

1U01

1800mA

7U04

G

STANDBY

G

+3V3_FAULT

+11V

3IK7

5S02

5S01

5S04

5S05

5S03

7U03

CONTROL

+5V2

+33V

+11V

+5V2

+8V

AUTOSCAVEM

+11V

+8V6

3600

9002

5600

+8V_+12V

+8V

5601

CRT

5308

3305

5303

3341

5309

5310

3301

3404

3401

5400

3403

FILAMENT

3809

11VDC

3807 3808

DAF

5U02

D

S

D

S

17x

1440

+8V

9401

F2

AUTO
SCAVEM

1U02

9U03

+11V

+3V3_SIM

+3V3_LINK

1x1x

5415

5416

7005

+3V3_FBX

7720

1

9U08

3

5

7

ANTI MOIRE

+5V

+5V

+8Vp

+5V2_CON

+8V_CON

+5VCOM

+8VP

+8V_VDP

+5VS

+8V_VDP

+8VS

+5V_VDP

+5VS

+8V_CON
+5V2_CON

OUT

+3V3_INTOTC

+5V_CON

+5V_AUD

+5DA

+5DB
+8V-AUD

+8VC

+5VF

+11V_AUD

7706

5706

5714

5729

5733

5731

5737

5713

+8V_CON

+3V3_FBX

+2V5_E

5725

+2V5FCA

57225749

+2V5FCD

+8VS

+3V3_INTOTC

+5M

5756

5744

11

TDA9320H

+5VCOM

TDA9181

17

7301

TDA9330H

HOP

7001

SAA5801H

OTC

+11V_AUD

7A02

MSP3
AUDIO
PROC.

+2V5B

+3V3_FAULT
11-7713

5736

+3V3A
+3V3_FAULT
+3V3PR
+3V3_FAULT
+3V3_INT
+3V3_FAULT

+3V3FM

+3V3_FAULT
+3V3P
+3V3_FAULT

5405455404

7323

HIP

6.5

7307

5302395301

9,19,20,38,49,
75,101,111

104

+5DA

+5DB

+8VC

31

+5VA

24-7713

5745

5738

5742

OTC-FLASH

B5C

+3V3_INTOTC

DOLBY

B6C

PROLOGIC

+5DA

+5DB

+8VC

+11V_AUD

FALCONIC

B3B

+3V3_FBX

5719

+3V3FA
+3V3_FAULT

5718

+2V5FB

5753

B12

B12

B12

B12

B12

B12

7726

5724

5727

5726

7727

5743

5728

+3V3_INT

5716

To 7717

+3V3_FAULT

5717

To 7719
+3V3_FAULT

+3V3_E

+3V3FCD

B12

+3V3_FAULT
+3V3FC1

B12

+3V3_FAULT

+3V3FC2

B12

+3V3_FAULT

+1V5_E
+1V5FCA
+1V5FCC

B12

+3V3_FAULT

B5B

+5V_CON

TUN1/TUN2

B13

+5V

+33V

I/O EUR

B14B

+5V2

+5V

+11V

+11V_S

3IC1

+5V

3IB4

3IB5

+11V_S

1X

2FH I/O

B14C

+5V

AUDIO I/O

B14D

+5V

+8V

PIP IF/IO

B15A

5P03 5P00

+5V

5P01

+8V

+8V

+8VPIP

1X

B15B

+5V

+5VPIP

+8VPIP

B15C

+3V3_SIM

+5VPIP

PIP I/O

5P51

PIP MUPPET

9PB2

5PA9

5PB0

B12

1X

B12

B12

7I07

3IN4

3P00

3P01

3P02

3P74

3P88

+3.3V

+3V

+3V3_FAULT_PIP

+3VD

+3V3_FAULT_PIP

+5VPIP

+5V_CON

+5V

+33V

+5V2

+5V

+11V

+11V_S

+11V_S

+5VIO

+5V

+8V

+5VHIP

+8VHIP

+8VPIP

C-7P05

+5VD

+5VPIP

+8VPIP

14-7P55

+11V

6U02

+3V3_LINK

5U01

5U05

+3V3_SIM

5U06

+3V3_DCDC FBX

+11V

+5V

B15C B14AB3CB3A

+3V3_SIM

+3V3_DCDC FBX

2x

+5V2

1x

+33V

1x

+11V

+8VA

+8V

+8V

3x

+8V_AUD

1x

+8V_VDP

2x

8x

+5V

+5V_CON

2x

+5V_VDP

2x

1x

+5V_AUD

6

+8V

+8V_SVM

+200A

VSYM

9

10

VSYM

+8V_SVM

IF/IO

B2

+5V2
+5V2_CON

1x

+8V
+8V_CON

8x

+5V_VDP

+8V_VDP

B4

+8V_VDP

+5V_VDP

B5A

+8V_CON

+5V2_CON

+5V_CON

STANDBY

B6A

+5V_AUD

+8V_AUD

+5V

+5VF

+11V_S

B6B

+5V

B3A

+5VF

+5VA

2x

+3V3
_DCDC FBX

+2V5B

1x

+3V3_FBX

1x

B3C

+8V_CON

+3V3_FBX

+5VA +5VA

+2V5B

+5VA

3402

3400

HOP

3329

3304

OTC

IN

AUDIO DEMODULATOR

5A00

5A03

3A03

+5V

5A06

5A01

DOLBY DIGITAL DECODER

5A38

PICNIC

5747

5746

EAGLE

+5VA

5748

5721

5723

Wiring Diagram, Block Diagrams and Overviews

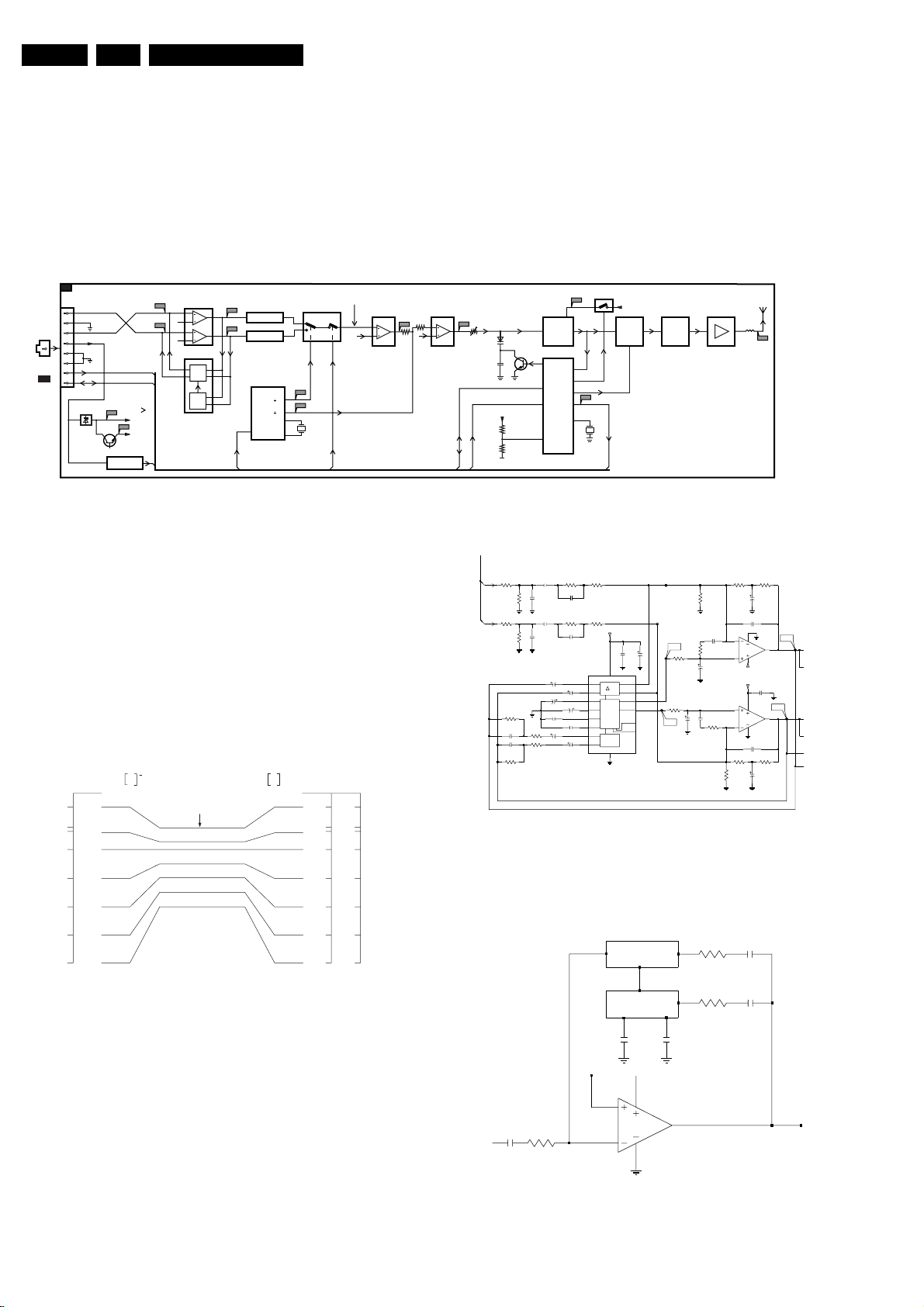

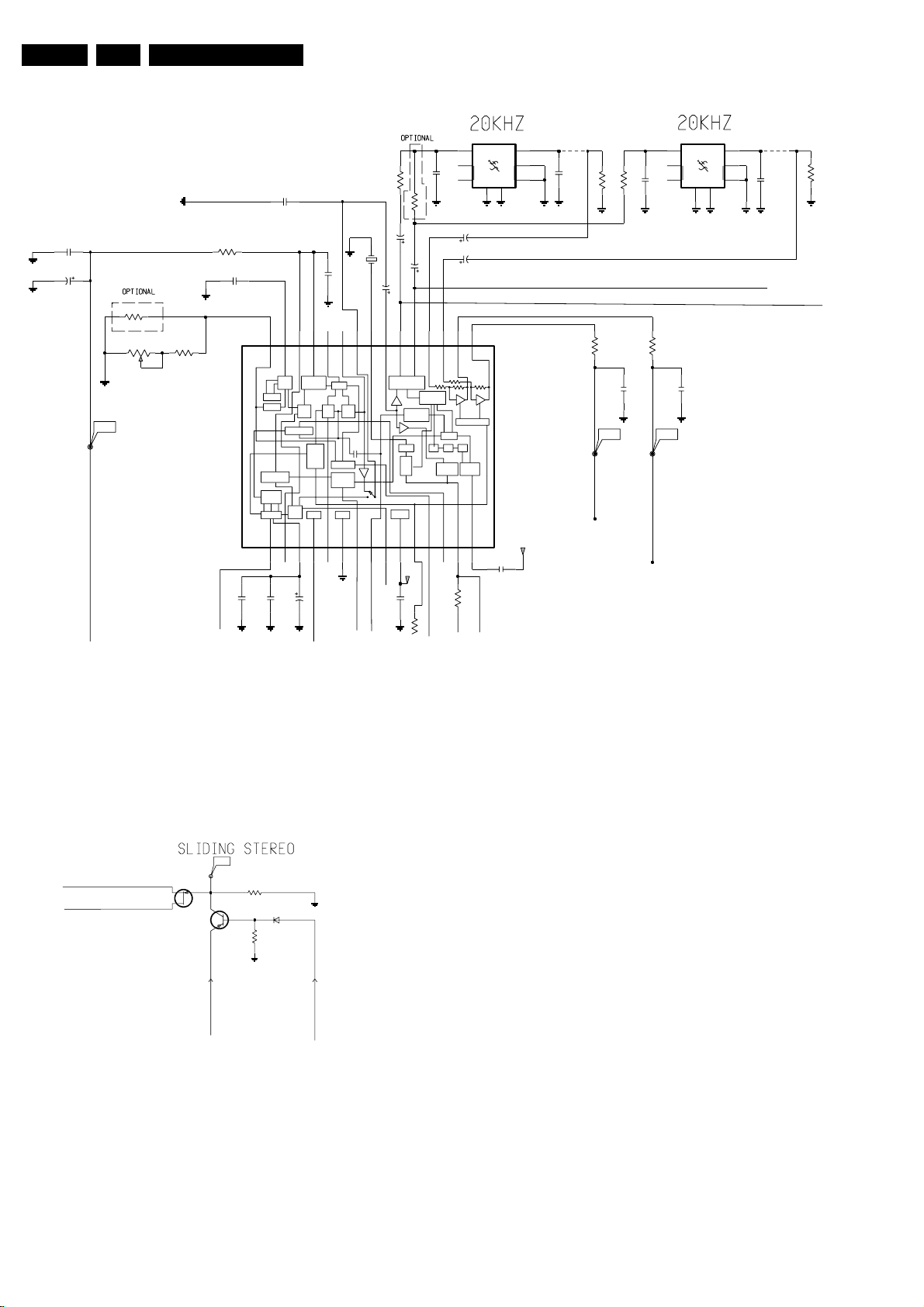

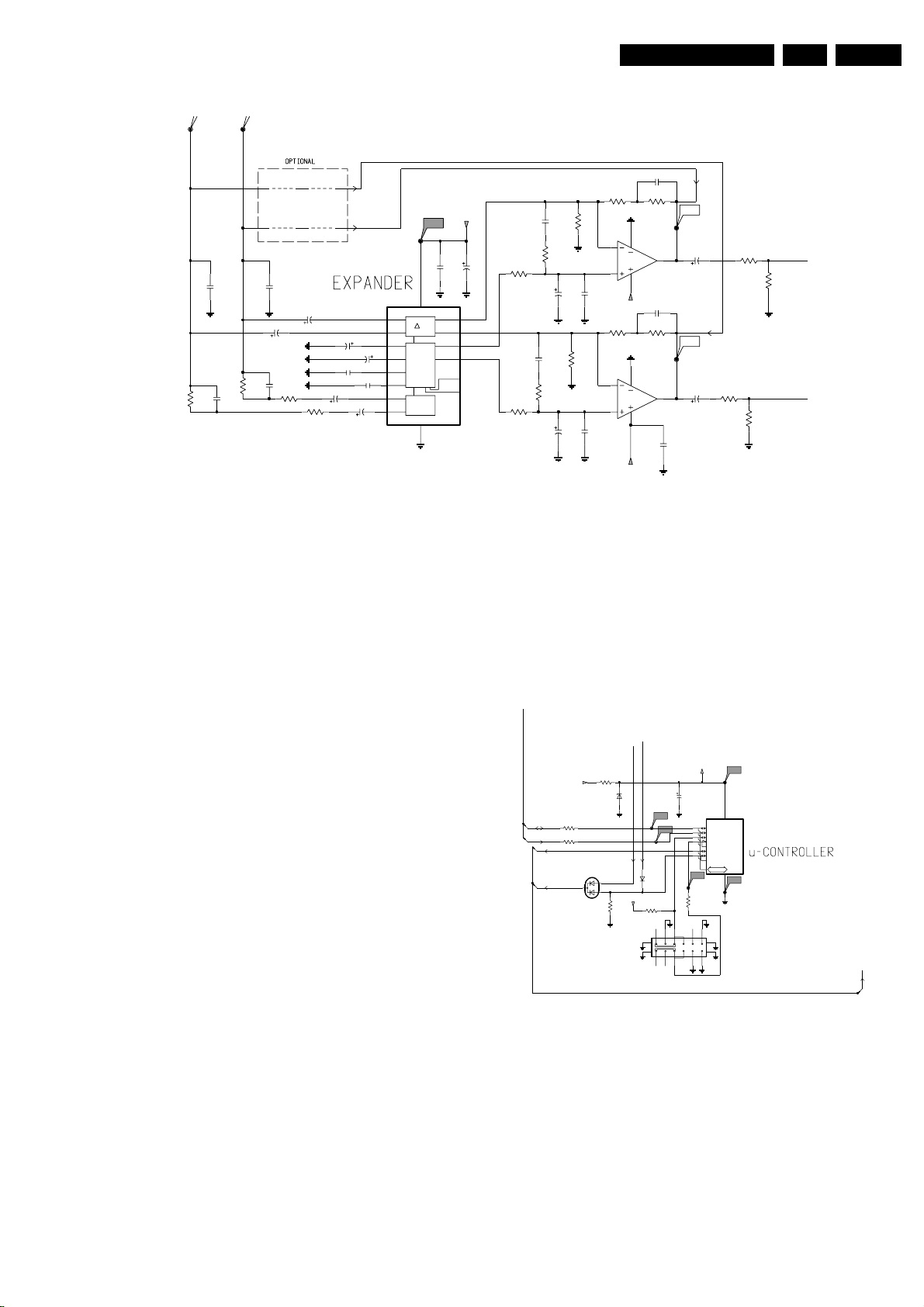

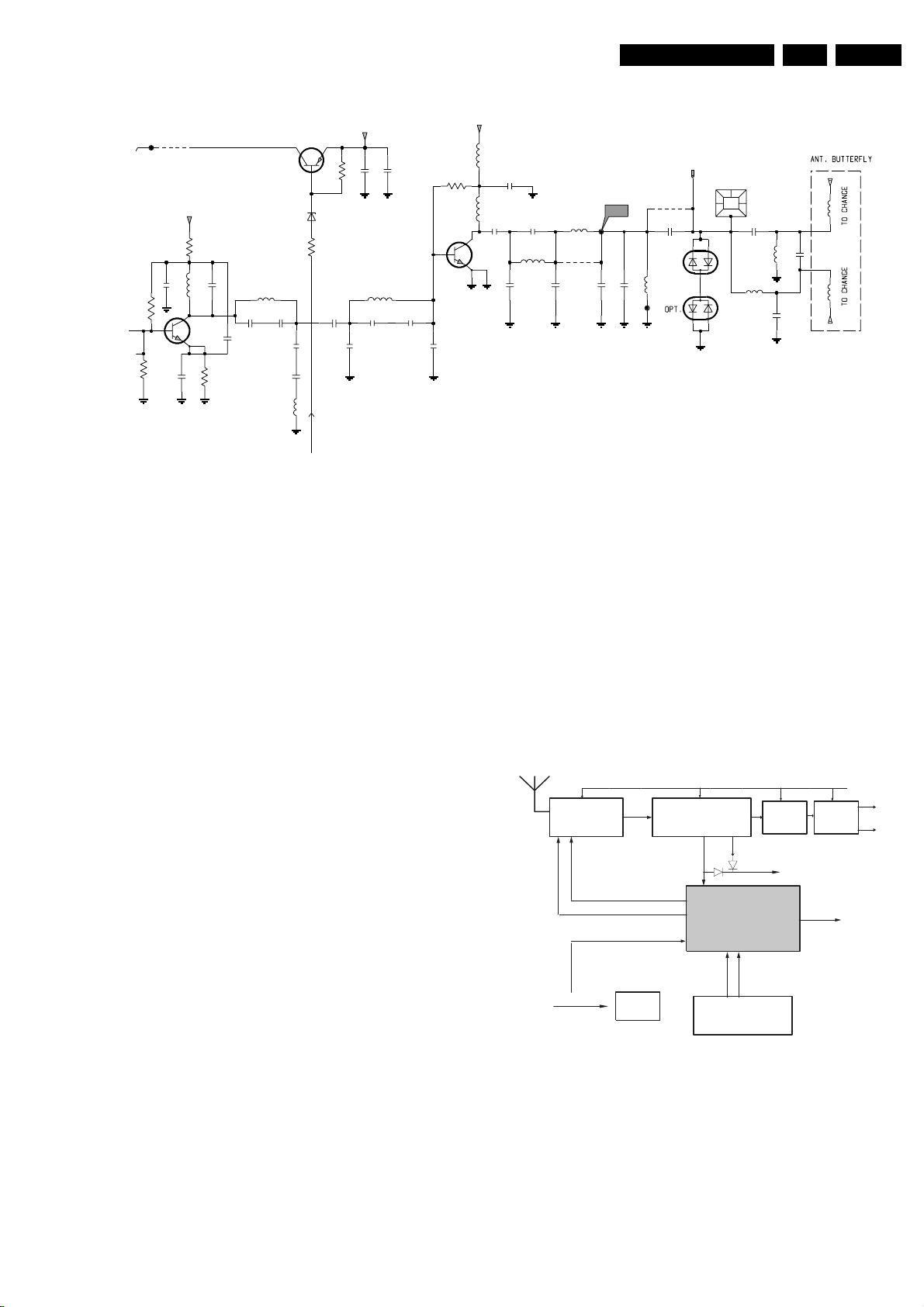

Block Diagram Wireless Kit

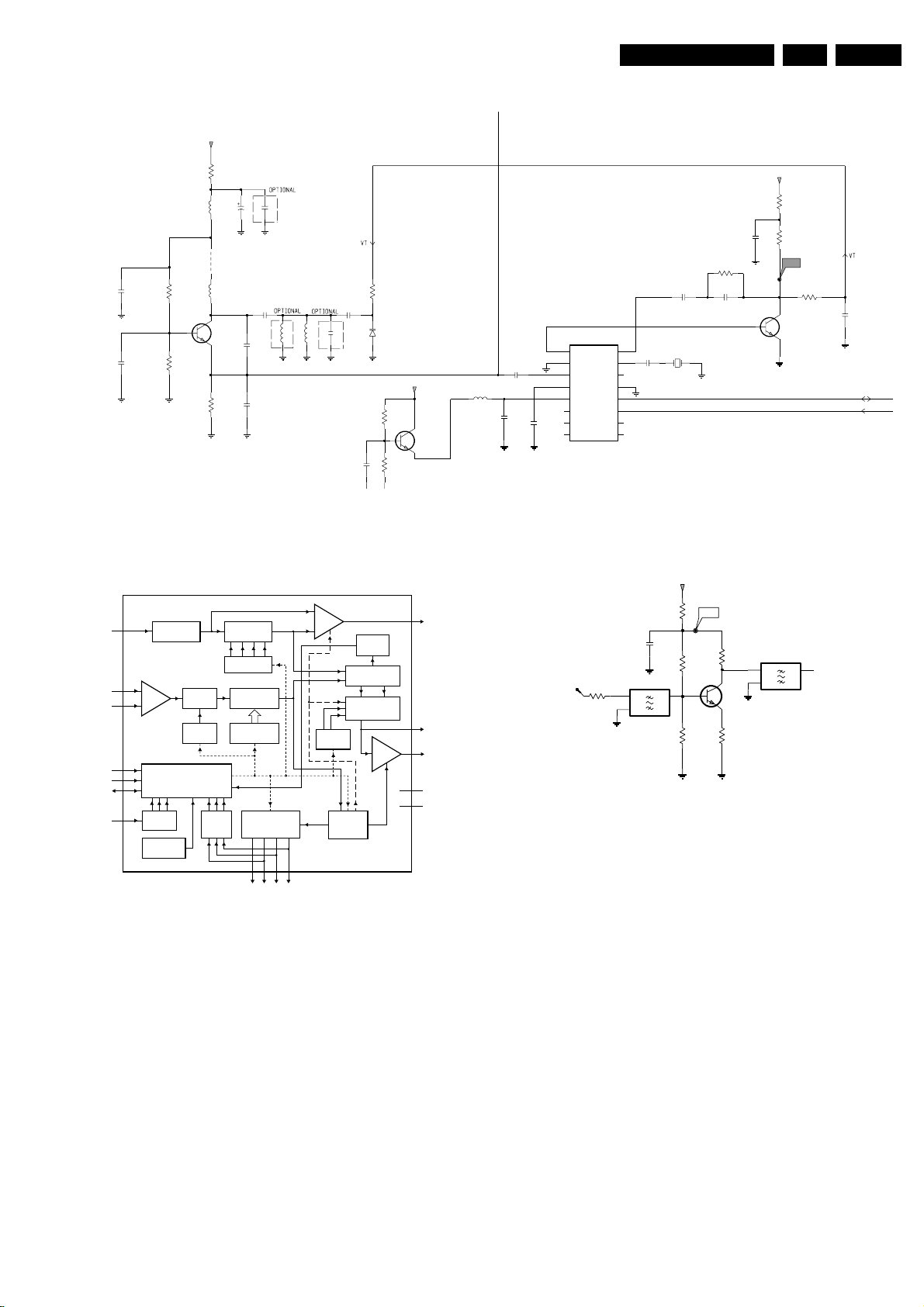

BLOCK DIAGRAM WIRELESS KIT

TRANSMITTER

R

TO TV

CONNECTION

TO1103

B14B

1101

1

2

3

4

5

6

7

8

7117
LD1117DT

32

11V_S

7119

R

L

I2C-CLOCK

I2C-DATA

F124

F126

6105, 7118

POWER DOWN
DETECTOR

+8V

+5V

- COMPANDER -

F140

L

F141

R

PD

2

3

V

6

5

V

5

11

7113
NJM4565M

7112
SA572D

∆G

RECTI-

FIER

44EM6E 6.

- STEREO ENCODER -

PD

MULTIPLEXED

4

6

7116-B
NJM4565M

62

5

V

LIMITER LOW-PASS

F147

7

3174

V

7116-A

3177

3

1

I2C-DATA

F149

SDA

MODULATION
LEVEL ADJ.

3179

(VARICAP)

SCL

I2C-CLOCK

1

7

7
9

3
13

F144

PRE-EMPHASIS

2166, 3161, 3191

PRE-EMPHASIS

12

VPIL

7110
74HC4060

OSCILLATOR

ENABLE
(Low)

256

512

2165, 3160, 3190

F145

7111
74HC4053HD

5

3

9

SUBC
46,875kHz

F131

14

F130

13 PILOT 23,4375kHz

10

1106
12MHz

11

6102

BB151

3105

3106

- PLL -

MPX

+6V

SELECTION

7102

VERSION

433MHz

or

864MHz

7103
BFR92A

OSCILLATOR

7101
TSA5060A

16

5

6

SYNTHESIZER

11

ADC

LOCAL

F113

7104

+8b

7105

X2

FREQUENCY

MULTIPLIER

OSC

F110

1105
4MHz

VPIL

VOSC
(ENABLE)

VFIL
(ENABLE)

X2 (ENABLE)

14

7

9

8

2

FILTER

7106
BFG520

OUTPUT

5112

F114

SUPPLY

UNIT

WIRED
AUDIO

(3,5MM

stereo

jack)

13VDC

6

5

V

2

3

V

3782

7780
NJM4565M

3788

MUTE

F712 F728

7

F713

1

7784 7789

7755

POWERSAVE

R

L

F729

F702

+10V

F727

MUTE

F745

CL 36532008_051.eps

1790

1

2

3

4

5

6

7

060503

RECEIVER / FRONT END

S1

1602

SAW

FILTER

7601
BFC520

LNA

(LOW
NOISE
AMPL.)

7602
BFR92A

MIXER

5606

10.7MHz

- PLL -

7605

LOCAL

7603

OSCILLATOR

BF392A

6601

BB151

(VARICAP)

AUDIO OUTPUT AMPLIFIER

W

1106

1

2

3

4

5

6

7

1100

IN

1108

R

L

+10V

(active high)

MUTE

POWERSAFE

(active high)

1

R

3

L

2
5

MUTE WIRED

1109

I115

2
4

3

I116

EM1

FILTER

I111

I112

3123

sensitivity 3Vrms

3124

sensitivity 2.8Vrms

4MHz

7104
7107

7110
LM317MDT

3

1

ENABLE

CONTROL

7604

CONTROL

TSA5060ATS

14

SYNTHE-

SIZER

+10V

PVCC

5

6

7100-A,B
LM837MX

3

2

5

6

16 7

2

1609

REF

REF

MUTE

I117

2

7111
7103

RECEIVER / BACKEND

S2

7707
BF520

1706 1707

IF IF IF

7050
PIC12C508A

1

F741

DA MUTE-VIA µC

F742

CL

1

7

7106 7505

"ON"

LED

DRIVER

6100 6101

GREEN RED

6

programmed
for 433 MHz

or 864 MHz

3103

3119

µC

carrier

I102

REF

I106

REF

2

3

4

5

2105

2111

2130

2129

MUTE_AMPn

PVCC

"STANDBY"

LED

DRIVER

+5V

POWER SAVE

4 POSITIONS

17

2114

18

14

2124

13

11
20

7710
LA1836M

1

1710
DET
ADJ.

10,7MHz

CHANNEL

SELECTION

SWITCH

7101
TDA1564TH

2

11

FM

DETECTOR

3741
MUTE
LEVEL
ADJ.

1765

3

4

7

8

19 12

- EXPANDER -

7770

+5V

+10V

+8V

9

3

13

SA572D

∆G

RECTI-

FIER

3766

6751

LA931

1

7790

5

11

8
5

2703, 3727

17 7

STEREO

DECODER

LL

30

13

812 20

7

7706

F724

SLIDING
STEREO

F725

AND

GATE

CONTROL

STEREO

6710

14

TUNED

I104

I118

I119

I107

7100-D

I114

3743
SLIDING
STEREO
ADJ.

(mono jack)

(mono jack)

REF

RR

21

7705

1101

4 Ohm/15W

2,5mm

1103

4 Ohm/15W

2,5mm

1730

FILTER

20kHz

1740

FILTER

20kHz

AMPLIFIER

R

L

18

19

DE-EMPH.

16

DE-EMPH.

2702, 3728

Circuit Diagrams and PWB Layouts

7. Circuit Diagrams and PWB Layouts

Large Signal Panel: Main Supply

123

A1 : A11

F526

I509

DSP

1591

I521

3562

100R

9503

5502

23

1

I502

9504

I503

1R

3500

I569

9519

2529

100n

I575

I573

470p

HOT

PM3394B

I574

9507

4

9513

3551

3548

6513

6508

6524

VBATT

2509

22n

F535

F543

I563

330R

7503

1K

+375V

BZX384-C56

BZX384-C56

I518

BZX384-C47

A5

5V / div DC

10us / div

A2

V-START

6525

2508

22n

2537

2516

3550

2

232266296

Rp

1

BT151

PM3394B

A1

GBU4J

22n

330u

Rs

+t

+t

A

DSP

1590

2507

470n

I520

B

5501

9502

1423

2533

100n

3509

TO

COIL

VBATT

3560

1M2

GND-SUP

I535

HOT

V

F513

2

1

1505

1502

3556

RES

COLD

C

F514

MAINS SWITCH

PANEL

DEGAUSSING

D

E

3554

I576

3555

I581

F

FROM

0202 OF

6M8

680K

3503

4M7

RES

8204 000 8277.3

A1

PM3394B

50V / div DC

2us / div

MAIN SUPPLY

1

4

5516

3

3501

100R

9501

1501

T5AH-250V

F516

F519

MCL4148

6522
2545

10u

I577

F511

1n

3561

2505

1510

2

2

9516

5515

33u

3537

1K

2520

100n

7505

BC857B

1M

3558

47K

I532

2n2

F528

TUNERGND

TO

0301 OF

FOR LATAM - AP SETS

3557

47K

I504

I507

DMF-2405

I508

F512

3521

4M7

1

2

220K

2539

3502

4M7

123

A2

50V / div DC

5us / div

PM3394B

A3

50V / div DC

5us / div

55113421

54A-0018

5503

3

14

5504

2

3

14

I523

I528

9512

I580

7508

BF423

I579

I578

10K

3559

2521

GND-SSP

COLD

PM3394B

A4

50V / div DC

5us / div

9514

+375V

A2

3552

7530

BC847B

F538

BC546B

5517

I538

BZX79-C15

2K2

3553

10K

2544

2n2

F515

I534

3531

7529

F502

280V

A2

83R

5519

I570

A3

I550

I522

6K8

I562

F542

1503

F4AH-250V

280V

I510

7504

STP5NB40

6505

F534

I568

I526

10n

2517

GND-STB

3

9518

2

3516

1

I544

* MAESURED IN RESPECT TO GND-SUP !

A6

PM3394B

20V / div DC

10us / div

45EM6E 7.

456 7 8

I564

2541

P

A2

0R47
I501

I540

5505

I543

BAT254

1u

BAS216

I517

3514

3515

47R

83R

I531

3536

6517

F540

3522

1K5

330p

BZX284-C27

I511

6506

5518

3535

F510

9511

F539

6K8

7506
TL431

I558

30R

6530

2504

6507

BAS316

3517

6537

I500

3518

330K

BZX79-C33

I559

BYV95C

I566

I516

22n

4

7507

TCET1103(G)

1

F517

10n

2538

47K

F527

BAS316

6510

3546

6520

A4

0043

123

2550

3519

3513

330K

I565

10K

1N4148

BZV85-C6V8

3

2501

2

9510

HEATSINK

GND-STB

22n

2K2

220R

3547

6515

2535

4n7

1n

2552

22n

2530

STARTU

F500

3545

15K

3504

2K2

I524

0R47

I545

9505

6523

45 6

MAIN SUPPLY REPAIR KIT: 3122 785 90550

6518

5K6

I552

F541

3525

47R

A5

3506

5510

6516

3511

2K2
3542

12K

I567

2525

BAT254

5520

BY359X-1500

F537

6514

I536

6509

1

I546

BAS216

2518

I548

I505

330p

I512

3508

15R

6519

BYD33D

7502

150K

6534

2510

I529

2515

I530

33K

BAS216

3

2532

1u

2540

I519

*

2513

470p

10u

2527

F509

2V5*

3512

470p

220p

2502

3526

0R1

9515

I513

BC547B

1n5

3505

83R

I572

BZT03-C

3520

I555

16V*

2

6533

BAS216

About DC-voltages measured:

NORMAL ..V.
STANDBY (..V.)

3543

HOT COLD

1K

I549

I506

39n

2503

I515

330K

A6

140V*

2514

10n

5512

69

5

4

5506

56

4

3

1

3507

1M

2n2

3523

3530

I561

1K

2506

47n

F523

F522

F524

3533

SUP-ENABLE

15R

2526

2n2

A2

-20V

SUP-ENABLE

10

11

12

132

7

8

9

10

160K

F520

2524

+375V

I551

GND-AUD

3540

10K

10n

3527

GND-SUP

A3,A4

A3,A4

2531

F531

I554

2K

0041

HEATSINK

GND-AUD

6535

I525

1n5

3510

3549

5507

83R

F505

I541

I514

F532

5509

83R

820R

220K

STPS8H100

2546

4n7

F506

2548

I553

4n7

STPS8H100

14

23

I539

I582

F533

I583

6536

1550

7528

BC337-25

2547

4n7

I560

2549

4n7

3528

2512

5V3

6511

6512

2511

10K

5514

33u

I537

7501

A7

2m2

2m2

I527

A8

F518

BAS216

BAS216

3529

18V

F529

5513

33u

I542

BC847B

F530

2542

2543

-18V

DEGAUSSING

4K7

3534

47K

F525

F503

470u

470u

F536

F508

VBATT

F521

3524

I556

+16V+19V

GND-AUD

-16V-19V

+5.2V_MP

3532

33K

2528

GND-SSP

HOT

COLD

2534

4n7

GND-SUP

3541

22R

GND-SUP

CL 36532008_019.eps

78

A2

A8

47K

I557

1u

070503

A

B

C

D

E

F

0041 A7
0043 D4
1501 C1
1502 D1
1503 A3
1505 D1
1510 F1
1550 D8
1590 A1
1591 A2
2501 C4
2502 E6
2503 A6
2504 B4
2505 F1
2506 E6
2507 B1
2508 B3
2509 A3
2510 C5
2511 C8
2512 B8
2513 D6
2514 D6
2515 C5
2516 C3
2517 C3
2518 A5
2520 D1
2521 F2
2524 E6
2525 B5
2526 F6
2527 B6
2528 F8
2529 E2
2530 F5
2531 D7
2532 F5
2533 C1
2534 F8
2535 C5
2537 B3
2538 E4
2539 F1
2540 F5
2541 A5
2542 B8
2543 C8
2544 C4
2545 E1
2546 B7
2547 B8
2548 C7
2549 C8
2550 E4
2552 E5
3500 C2
3501 A1
3502 F1
3503 F1
3504 A5
3505 B5

3506 D5
3507 D6
3508 A5
3509 C1
3510 D7
3511 A5
3512 B6
3513 A4
3514 B5
3515 B5
3516 E3
3517 E4
3518 A4
3519 F4
3520 D5
3521 C1
3522 E5
3523 D6
3524 E8
3525 D5
3526 E6
3527 E7
3528 E8
3529 E8
3530 E6
3531 D4
3532 E8
3533 F6
3534 F8
3535 C5
3536 E5
3537 D1
3540 D6
3541 F8
3542 A5
3543 A6
3545 A5
3546 A4
3547 B4
3548 E2
3549 E7
3550 D3
3551 E2
3552 B3
3553 C4
3554 E1
3555 E1
3556 E1
3557 E1
3558 F1
3559 F2
3560 F1
3561 E1
3562 A2
5501 B1
5502 B2
5503 B2
5504 B2
5505 C5
5506 C6
5507 B7
5509 C7
5510 E5

5511 A2
5512 B6
5513 C8
5514 B8
5515 C1
5516 A1
5517 A4
5518 C5
5519 A4
5520 B5
6505 B3
6506 B5
6507 C4
6508 F2
6509 D5
6510 A4
6511 D8
6512 E8
6513 F2
6514 C5
6515 C5
6516 F5
6517 F5
6518 A5
6519 A5
6520 B4
6522 E1
6523 F5
6524 F2
6525 A3
6530 A4
6533 F5
6534 C5
6535 A7
6536 C7
6537 F4
7501 E8
7502 A5
7503 E3
7504 A3
7505 E1
7506 E5
7507 C4
7508 E2
7528 E8
7529 F4
7530 B3
9501 B1
9502 B1
9503 B2
9504 B2
9505 F5
9507 A2
9510 D4
9511 C5
9512 E2
9513 C2
9514 E2
9515 E6
9516 C1
9518 D3
9519 D2
F500 A5

F502 A4
F503 B8
F505 B7
F506 B7
F508 C8
F509 C6
F510 C5
F511 C1
F512 C1
F513 C1
F514 C1
F515 C4
F516 D1
F517 D4
F518 D8
F519 D1
F520 D6
F521 E8
F522 E6
F523 E6
F524 F6
F525 F8
F526 A2
F527 F4
F528 F1
F529 B8
F530 B8
F531 B7
F532 B7
F533 B7
F534 B3
F535 B3
F536 C8
F537 C5
F538 C3
F539 D5
F540 D5
F541 D5
F542 F4
F543 B3
I500 A4
I501 C5
I502 B2
I503 C2
I504 A1
I505 A6
I506 A6
I507 B1
I508 C1
I509 A2
I510 A3
I511 A5
I512 A6
I513 F6
I514 B7
I515 B6
I516 B4
I517 A5
I518 F3
I519 B6
I520 B1
I521 A2
I522 B4

I523 B2
I524 B5
I525 B7
I526 C3
I527 C8
I528 C2
I529 C5
I530 D5
I531 D5
I532 F1
I534 D4
I535 F1
I536 D5
I537 D8
I538 A4
I539 E7
I540 C5
I541 E7
I542 E8
I543 E5
I544 E3
I545 F5
I546 F5
I548 A6
I549 A6
I550 B4
I551 B7
I552 B5
I553 C7
I554 D7
I555 D5
I556 E8
I557 E8
I558 F5
I559 A4
I560 A8
I561 E6
I562 E4
I563 D3
I564 A5
I565 A4
I566 B4
I567 A5
I568 B3
I569 C2
I570 B4
I572 C5
I573 F2
I574 E2
I575 E2
I576 E1
I577 F1
I578 F2
I579 F2
I580 E2
I581 F1
I582 B7
I583 C8
