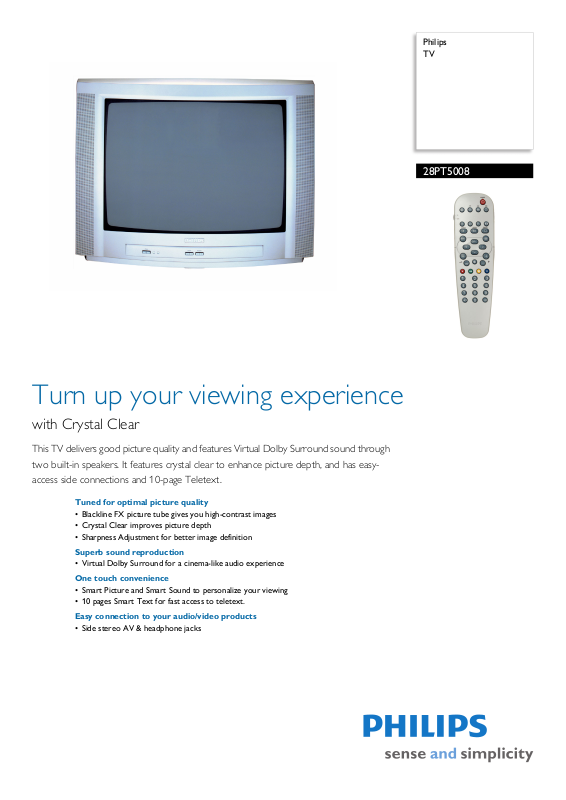

Philips 28PT5008/01 Specifications
Philips
TV
28PT5008
Turn up your viewing experience
with Crystal Clear
This TV delivers good picture quality and features Virtual Dolby Surround sound through
two built-in speakers. It features crystal clear to enhance picture depth, and has easyaccess side connections and 10-page Teletext.
Tuned for optimal picture quality
• Blackline FX picture tube gives you high-contrast images
• Crystal Clear improves picture depth
• Sharpness Adjustment for better image definition
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
One touch convenience
• Smart Picture and Smart Sound to personalize your viewing
• 10 pages Smart Text for fast access to teletext.
Easy connection to your audio/video products
• Side stereo AV & headphone jacks
TV
28PT5008/01
Specifications
Picture/Display
• Aspect ratio: 4:3
• Diagonal screen size: 28 inch / 70 cm
• Visible diagonal screen size: 66 cm
•Color cabinet: Pearl - Whit
• Display screen type: Black
• Picture enhancement: Cry
Temperature Adjustment, Sharpness Adjustment
• Picture processing: 50 Hz
Sound
• Sound Enhancement: Ultra Bass
• Sound System: Incredible Surround, Nicam Stereo
• Output power (RMS): 2 x 5 W
• Music Power: 10 W
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning, Plug & Play, Sorting
• Ease of Use: Smart Picture, Smart Sound, Watch
analogue/record
• Remote control type: RCLE014
• Teletext: 10 page Smart Text
• Teletext enhancements: 4 favourite pages,
gram information Line
Pro
• Remote Control: TV, VCR
• Screen Format Adjustments: 16:9 compress, 4:3,
digital, Top Controls
e Silver (11092)
line FX picture tube
stal Clear, Color
xpand
4:3 e
• Clock: Sleep Timer, Smart Clock
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL
SECAM D/K, SECAM L/L'
•Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
I, SECAM B/G,
Connectivity
•Number of Scarts: 2
• Ext 1 Scart: CVBS in/out, RGB
• Ext 2 Scart: CVBS in/out, S-video in
• Other connections: Audio variable level out
•Front / Side connections: Audio
Headphone Out
• Headphone: 3.5 mm
L/R in, CVBS in,
Power
• Power consumption: 63 W
• Standby power consumption: < 1 w
• Mains power: AC 220 - 240 V +/- 10%
Dimensions
• Product weight: 34 kg
• Weight incl. Packaging: 38 kg
•Box dimensions (W x H x D):
8 x 672 x 548 mm
78
• Set dimensions (W x H x D): 724 x 581 x 469 mm
•
Highlights
Blackline FX picture tube
Blackline FX is a new Philips tube with dark glass for
better contrast and highly pigmented phosphor
giving brighter and more contrast.
Crystal Clear
Combining picture enhancements like Contrast plus
and color improvement, Crystal Clear improves
picture depth.
Sharpness Adjustment
Sharpness Adjustment for better image definition
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology
for enhancing surround sound effects. It will create
the sensation of Dolby Pro Logic without the
necessity of additional rear speakers. You become
totally immersed in your television experience.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart
Sound provide you with direct access via a single key
on the remote control. You can select optimized
picture and sound settings for the various picture
and sound modes.
10 page Smart Text
The teletext is a common system transmitted by
most broadcasters. The 10 page smart text feature
gives you fast access to information when changing
pages.
Side Stereo AV & headphone
Side stereo AV & headphone makes it more
convenient to connect external devices like audio
equipment, games and video cameras. It's the easy
way to enjoy an extra audio sensation or a totally
immersive gaming experience.
Issue date 2013-01-31
Version: 1.0.2
12 NC: 8670 000 19335
EAN: 87 10895 81130 9
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
