Philips 278B1/27 leaflet

Download

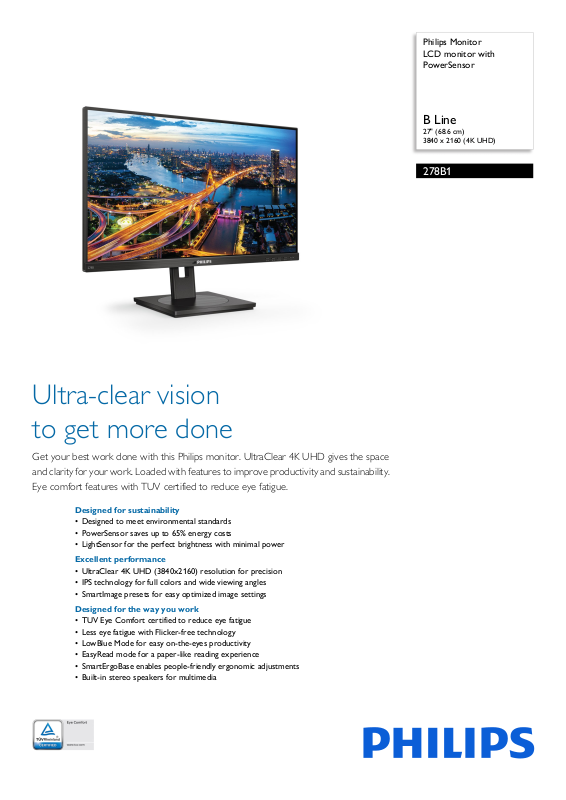

Page 1

Philips Monitor LCD monitor with PowerSensor

B Line

27" (68.6 cm) 3840 x 2160 (4K UHD)

278B1

Ultra-clear vision to get more done

Get your best work done with this Philips monitor. UltraClear 4K UHD gives the space and clarity for your work. Loaded with features to improve productivity and sustainability. Eye comfort features with TUV certified to reduce eye fatigue.

Designed for sustainability

• Designed to meet environmental standards

• PowerSensor saves up to 65% energy costs

• LightSensor for the perfect brightness with minimal power

Excellent performance

• UltraClear 4K UHD (3840x2160) resolution for precision

• IPS technology for full colors and wide viewing angles

• SmartImage presets for easy optimized image settings

Designed for the way you work

• TUV Eye Comfort certified to reduce eye fatigue

• Less eye fatigue with Flicker-free technology

• LowBlue Mode for easy on-the-eyes productivity

• EasyRead mode for a paper-like reading experience

• SmartErgoBase enables people-friendly ergonomic adjustments

• Built-in stereo speakers for multimedia

Page 2

278B1/27

LCD monitor with PowerSensor

B Line 27" (68.6 cm), 3840 x 2160 (4K UHD)

Highlights

PowerSensor

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 65 percent and prolonging monitor life

LightSensor

demanding professional requiring extremely detailed images for CAD solutions, using 3D graphics applications or a financial wizard working on huge spreadsheets, Philips displays will make your images and graphics come alive.

IPS technology

IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in 90 degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.

contrast, color saturation and sharpness of images and videos for ultimate display performance. The Economy mode option offers you major power savings. All in real time with the press of a single button!

TUV Rheinland Eye Comfort

Philips display meet TUV Rheinland Eye Comfort standard to prevent eye strain caused by prolonged computer use. With TUV Eye Comfort certification, Philips displays ensure flicker-free, low blue mode, no disturbing reflections, wide viewing angle and less reduction of image quality from different angles and ergonomic stand designs for ideal viewing experience. Keep your eyes healthy and boost work productivity.

LightSensor uses a smart sensor to adjust the picture brightness depending on the room light conditions for the perfect picture with minimal power usage.

UltraClear 4K UHD Resolution

These Philips displays utilize high performance panels to deliver UltraClear, 4K UHD (3840 x

2160) resolution images. Whether you are

SmartImage

SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen and gives you optimized display performance. This user friendly interface allows you to select various modes like Office, Photo, Movie, Game, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the

Flicker-free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-free Technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

Page 3

278B1/27

LCD monitor with PowerSensor

B Line 27" (68.6 cm), 3840 x 2160 (4K UHD)

Specifications

Picture/Display

• LCD panel type: IPS technology

• Backlight type: W-LED system

• Panel Size: 27 inch / 68.6 cm

• Display Screen Coating: Anti-Glare, 3H, Haze 25%

• Effective viewing area: 596.736 (H) x 335.664 (V)

• Aspect ratio: 16:9

• Optimum resolution: 3840 x 2160 @ 60 Hz

• Pixel Density: 163 PPI

• Response time (typical): 4 ms (Gray to Gray)*

• Brightness: 350 cd/m²

• Contrast ratio (typical): 1000:1

• SmartContrast:

• Pixel pitch: 0.1554 x 0.1554 mm

• Viewing angle: 178º (H) / 178º (V), @ C/R > 10

• Picture enhancement: SmartImage

• Display colors: Color support 1.07 billion colors

• Color gamut (typical): NTSC

• Scanning Frequency: 30 - 140 kHz (H) / 23 - 75 Hz (V)

• SmartUniformity: 97 ~ 102%

• Delta E: < 2 (sRGB)

•sRGB

• Flicker-free

•LowBlue Mode

•EasyRead

50,000,000:1

93%*, sRGB 112%*

Connectivity

• Signal Input: DisplayPort 1.2, HDMI 2.0 x 2

• HDCP: HDCP 2.2 (DP/HDMI/USB)

• USB:: USB-B x 1 (upstream), USB 3.2 x 4

wnstream with 1 fast charge B.C 1.2)

(do

• Audio (In/Out): Headphone out

• Sync Input: Separate Sync

Convenience

• Built-in Speakers: 2 W x 2

• User convenience: SmartImage, Input,

rSensor, Menu, Power On/Off

Powe

• Control software: SmartControl

• OSD Languages: Brazil Portuguese, Czech, Dutch,

glish, French, Finnish, German, Greek,

En Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukranian

• Other convenience: Kensington lock, VESA mount

x100mm)

(100

• Plug & Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 10 / 8.1 / 8 / 7

Stand

• Height adjustment: 150 mm

• Pivot: -/+ 90 degree

•Swivel: -/+ 180 degree

• Tilt: -5 ~ 35 degree

Power

• ECO mode: 22.5 W (typ.)

• On mode: 24.1 W (typ.) (EnergySta test method)

• Standby mode: < 0.3 W (typ.)

• Off mode: Zero watts with Zero switch

• Power LED indicator: Operation - White, Standby mode- White (blinking)

• Power supply: Built-in, 100-240VAC, 50-60Hz

Dimensions

• Product with stand(max height): 613 x 537 x 205 mm

• Product with stand(max height): 24.1 x 21.1 x

8.1 inch

• Product without stand (mm): 613 x 366 x 51 mm

• Product without stand in inc

2.0 inch

• Packaging in mm (WxHxD): 700 x 456 x 215 mm

• Packaging in inch (WxHxD): 27.6 x 17.9 x 8.5 inch

h: 24.1 x 14.4 x

Weight

• Product with stand (kg): 6.64 kg

• Product with stand (lb): 14.61 lb

• Product without stand (kg): 5.03 kg

• Product without stand (lb): 11.07 lb

• Product with packaging (kg): 9.92 kg

• Product with packaging (lb): 21.82 lb

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• Altitude: Operation: +12,000ft (3,658m), Non-

eration: +40,000ft (12,192m)

• MTBF (demonstrated): 70,000 hrs (excluded

klight)

bac

Sustainability

• Environmental and energy: PowerSensor, LightSensor, EnergyStar 8.0, EPEAT*, TCO Certified Edge, RoHS

• Recyclable packaging material: 100 %

• Post consumer recycled plastic: 85%

• Specific Substances: Mercury free, PVC / BFR free

using

Compliance and standards

• Regulatory Approvals: CB, FCC Class B, ICES-003, CE Mark, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, UKRAINIAN, TUV Eye Comfort certified

Cabinet

•Foot: Black

• Rear cover: Black

• Front bezel: Black

• Finish: Texture

What's in the box?

• Monitor with stand

• Cables: HDMI cable, DP cable, USB-A to B cable,

er cable

Pow

•User Documentation

•

Issue date 2022-04-21

Version: 2.0.1

12 NC: 8670 001 80727 UPC: 6 09585 25467 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* "IPS" word mark / trademark and related patents on technologies

belong to their respective owners. * Response time value equal to SmartResponse * NTSC Area based on CIE1976 * sRGB Area based on CIE1931 * EPEAT rating is valid only where Philips registers the product. Please

visit https://www.epeat.net/ for registration status in your country.

* The monitor may look different from feature images.
