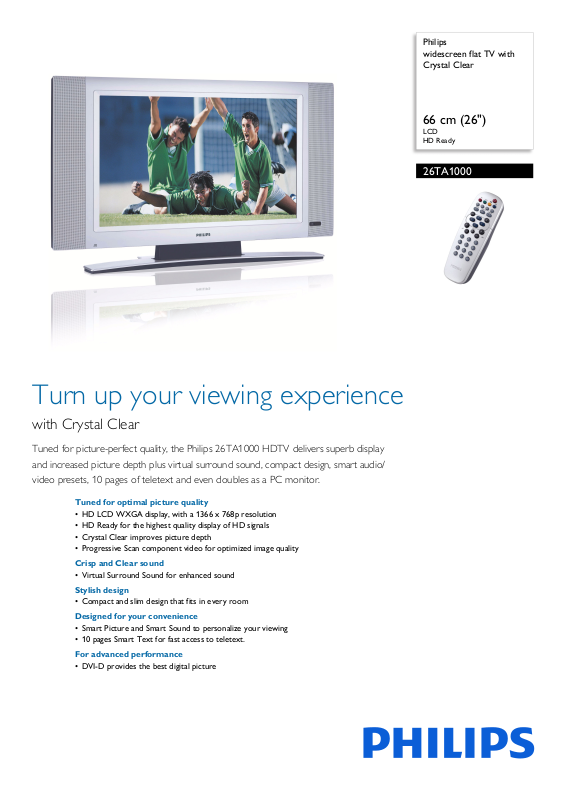

Page 1
Philips
widescreen flat TV with
Crystal Clear
66 cm (26")
LCD
HD Ready
26TA1000
Turn up your viewing experience
with Crystal Clear
Tuned for picture-perfect quality, the Philips 26TA1000 HDTV delivers superb display
and increased picture depth plus virtual surround sound, compact design, smart audio/
video presets, 10 pages of teletext and even doubles as a PC monitor.
Tuned for optimal picture quality
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Crystal Clear improves picture depth
• Progressive Scan component video for optimized image quality
Crisp and Clear sound
• Virtual Surround Sound for enhanced sound
Stylish design
• Compact and slim design that fits in every room
Designed for your convenience
• Smart Picture and Smart Sound to personalize your viewing
• 10 pages Smart Text for fast access to teletext.
For advanced performance
• DVI-D provides the best digital picture
Page 2
Widescreen flat TV with Crystal Clear
66 cm (26") LCD, HD Ready
Highlights
26TA1000/79
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
s
creen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
on pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Crystal Clear
Combining picture enhancements like
Co
ntrast plus and color improvement, Crystal
Clear improves picture depth.
Progressive Scan
Progressive Scan doubles the vertical
resoluti
on of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and
Sm
art Sound provide you with direct access via
a single key on the remote control. You can
select optimized picture and sound settings for
the various picture and sound modes.
10 page Smart Text
The teletext is a common system transmitted
b
y most broadcasters. The 10 page smart text
feature gives you fast access to information
when changing pages.
DVI-D input
A DVI-D input makes an uncompressed digital
RGB co
nnection from source to screen. By
eliminating the conversion of the digital signal
to analog, it delivers an unblemished image.
Thanks to the non-degraded signal, you get less
flicker and a clearer picture. The DVI input is
fully backward compatible with HDMI sources,
and also uses HDCP copy protection.
Page 3
Widescreen flat TV with Crystal Clear
66 cm (26") LCD, HD Ready
Specifications
26TA1000/79
Picture/Display
• Aspect ratio: 16:9
• Brightness: 500 cd/m²
• Contrast ratio (typical): 600:1
• Display screen type: LCD WXGA Active Matrix
T
TF
•
Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfi
skin tone correction, Black stretch, Blue stretch,
Green enhancement, Progressive scan, Smart
Picture, White stretch
• Screen enhancement: Anti-Reflection coated
sc
• Viewing angle (H / V): 170 / 170 degree
• Response time (typical): 8 ms
• Panel resolution: 1366 x 768p
lter, 3D MA deinterlacing, Automatic
re
en
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1280 x 768 60Hz
deo formats
• Vi
olution Refresh rate
Res
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p
80i 60Hz
10
60Hz
Picture, Smart Sound
• Remote control type: RC19335016
• Remote Control: TV
• Screen Format Adjustments: 4:3, Subtitle Zoom,
rwide, Widescreen, Zoom 14:9, Zoom 16:9
Supe
• User convenience: Sleep Timer
• VESA Mount: 100 x 100 mm (in rear center)
• Child Protection: Child Lock+Parental Control
• Teletext: 10 page Smart Text
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL B/G, PAL I, SECAM B/G, SECAM
D/K
Connectivity
• AV 1: Audio L/R in, CVBS in, S-Video
• AV 2: Audio L/R in, CVBS in, S-Video
• AV 3: Audio L/R in, CVBS in, YPbPr
• AV output: Audio (L/R) x1, Composite (CVBS) x1
• HD in: Audio L/R in, YPbPr
• PC: 3.5 mm PC audio input x1, VGA-in D-Sub
HD
15
•
Other connections: Analog audio Left/Right in,
DVI-D
• headphone: Headphone out 3.5 mm jack
Power
• Power consumption: < 100 W
• Standby power consumption: < 2 W
• Ambient temperature: 5 °C to 40 °C
• Power supply: 90-264 VAC, 50/60 Hz
Sound
• Output power (RMS): 2 x 5 W
• Sound Enhancement: Virtual Surround Sound
• Sound System: Mono, Stereo
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, Fine Tuning, PLL
Digital Tuning
• Ease of Use: Auto Volume Leveller (AVL), Smar
Dimensions
• Product weight (+stand): 12.7 kg
• Product weight (+stand) (lb): 30 lb
• Set dimensions with stand (W x H x D):
480 x 213 mm
820 x
•Set dimensions with stand in inch (W
32.3 x 18.9 x 8.4 inch
Accessories
• Included accessories: Batteries for remote control,
Power cord, Quick start guide, Remote Control,
t
User Manual, Warranty certificate
•
x H x D):
Issue date 2014-02-10
Version: 2.0.11
12 NC: 8639 000 16856
EAN: 87 10895 97258 1
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
