Page 1

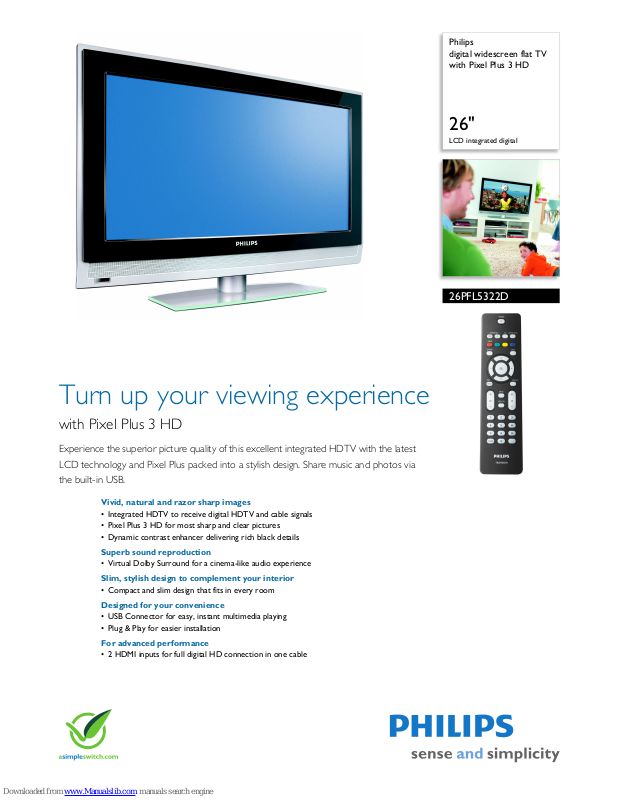

Philips digital widescreen flat TV with Pixel Plus 3 HD

26"

LCD integrated digital

26PFL5322D

Turn up your viewing experience

with Pixel Plus 3 HD

Experience the superior picture quality of this excellent integrated HDTV with the latest LCD technology and Pixel Plus packed into a stylish design. Share music and photos via the built-in USB.

Vivid, natural and razor sharp images

•Integrated HDTV to receive digital HDTV and cable signals

• Pixel Plus 3 HD for most sharp and clear pictures

• Dynamic contrast enhancer delivering rich black details

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Slim, stylish design to complement your interior

• Compact and slim design that fits in every room

Designed for your convenience

• USB Connector for easy, instant multimedia playing

• Plug & Play for easier installation

For advanced performance

• 2 HDMI inputs for full digital HD connection in one cable

Page 2

26PFL5322D/37

Highlights

Digital widescreen flat TV with Pixel Plus 3 HD

26" LCD integrated digital

Integrated HDTV Cable Ready

The built-in HDTV tuner that receives and disp

lays terrestrial ATSC and unscrambled

cable signals

Pixel Plus 3 HD

Pixel Plus 3 HD offers the unique combination o

f ultimate sharpness, natural detail, vivid colors and smooth natural motion on all qualities of HD, standard TV signals and multimedia content, for high definition displays. Each pixel of the incoming picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. Artifacts and noise in all sources from multimedia to standard TV and also in highly compressed HD are detected and reduced ensuring that the picture is clean and razor sharp.

Virtual Dolby Surround

Virtual Dolby Surround is a processing te

chnology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

USB Multimedia Connector

The USB connector allows access to m

ultimedia jpg, mp3 and alb files of most USBsticks and most digital cameras (USB 1.1 memory-class device). Plug the USB into the slot at the side of the TV and access your photos or music files. This makes you easily viewing and sharing your photos and music.

Plug & Play

Plug & Play gives you the ability to install or add a

new component and have it work without

having to perform any complex installation procedure or technical analysis.

2 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

Issue date 2011-01-12

Version: 5.0.13

12 NC: 8670 000 26095 UPC: 6 09585 12331 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

26PFL5322D/37

Specifications

Digital widescreen flat TV with Pixel Plus 3 HD

26" LCD integrated digital

Picture/Display

• Aspect ratio: 16:9, Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 2800:1

• Response time (typical): 8 ms

• Viewing angle (H / V): 176 / 176 degree

• Diagonal screen size: 26 inch / 66 cm

• Panel resolution: 1366 x 768p

• Picture enhancement: Pixel Plus 3 HD, Dynamic co

rast enhancement, 3/2 - 2/2 motion pull down,

3D Combfilter, Active Control, Progressive scan

• Screen enhancement: Anti-Reflection coated sc

Supported Display Resolution

• Video formats Resolution Refresh rate 480i 60

Hz 480p 60Hz 720p 60Hz 1080i 60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 10W

• Sound System: Dolby Digital (AC-3), Virtual Dolby Surround

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: On main display

• Ease of Installation: Autostore, PLL Digital Tuning, Plug & Play

• Ease of Use: On Screen Display, Settings assistant W

zard, Side Control

• Remote Control: TV

• Remote control type: RC2033601

• Screen Format Adjustments

7 Widescreen Modes,

Auto Format

• VESA Mount: 200x100 mm

Multimedia Applications

• Digital Content Management: Digital Media Reader

• Multimedia connections: USB memory class device

• Playback Formats: MP3, Slideshow files (.alb), JPEG Still pict

ures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• AV 1: Audio L/R in, CVBS in, YPbPr

• AV 2: Audio L/R in, YPbPr

•AV 3: HDMI

•Front / Side connections: Audio

L/R

in, CVBS in,

Headphone out, S-video in, USB

• Audio Output - Digital: Coaxial (cinch)

• Other connections: HDMI

Power

• Ambient temperature: 5 °C to 40 °C

• Mains power: 100-250V, 50-60Hz

• Power consumption: 130 W

• Standby power consumption: < 1 W

Dimensions

• Set dimensions in inch (W x H x D):

26.8 x 18.6 x 4.5 inch

•Set dimensions with stand in inch (W

x H x D):

26.8 x 21.1 x 7.9 inch

• Product weight (lb): 30 (with stand), 24.3 (without stand)

•

Box dimensions in inch (W x H x D):

33.1

x 22.5 x 8.03 inch

• Weight incl. Packaging (lb): 38.3

Accessories

• Included accessories: Table top stand, Power cord, Quick start guide, User Manual, Registration card, Remote Control

•
