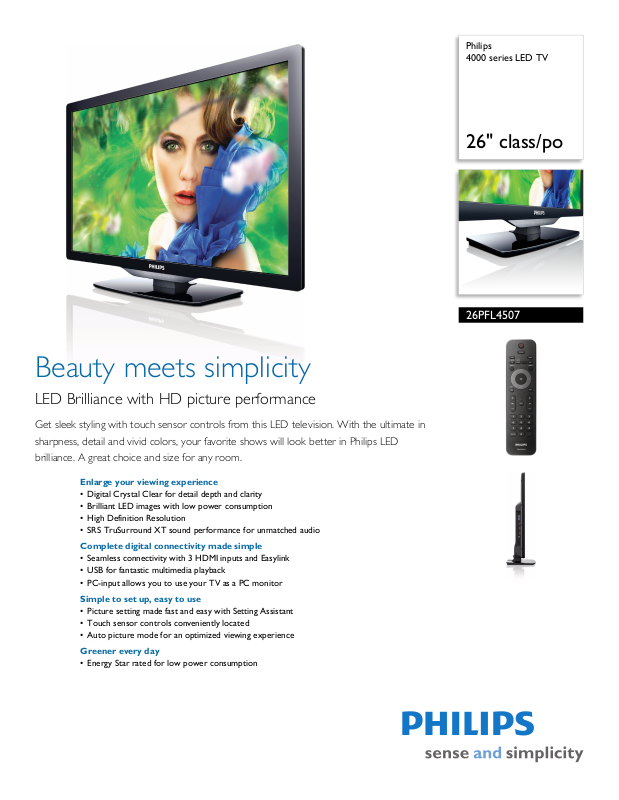

Page 1
Philips
4000 series LED TV
26" class/po
26PFL4507
Beauty meets simplicity
LED Brilliance with HD picture performance
Get sleek styling with touch sensor controls from this LED television. With the ultimate in
sharpness, detail and vivid colors, your favorite shows will look better in Philips LED
brilliance. A great choice and size for any room.
Enlarge your viewing experience
• Digital Crystal Clear for detail depth and clarity
• Brilliant LED images with low power consumption
• High Definition Resolution
• SRS TruSurround XT sound performance for unmatched audio
Complete digital connectivity made simple
• Seamless connectivity with 3 HDMI inputs and Easylink
• USB for fantastic multimedia playback
• PC-input allows you to use your TV as a PC monitor
Simple to set up, easy to use
• Picture setting made fast and easy with Setting Assistant
• Touch sensor controls conveniently located
• Auto picture mode for an optimized viewing experience
Greener every day
• Energy Star rated for low power consumption
Page 2
4000 series LED TV
26" class/po
Highlights
26PFL4507/F7
Digital Crystal Clear
Digital Crystal Clear is a package of picture
innovations that digitally adjusts and optimizes
picture quality to optimal contrast, color and
sharpness levels. It's like watching vivid cinemalike images.
LED with low power consumption
LED lighting technology is the most advanced
av
ailable. In this TV it combines an eye-catching
minimalistic design with stunning image quality,
as well as being the lowest power consumption
in its category. Another environmental benefit is
that LED lighting technology does not contain
hazardous materials. With an LED backlight you
can enjoy low power consumption, high
brightness, incredible contrast and sharpness
and vibrant colors.
Picture setting with Assistant
Settings assistant for effortless personalized TV
s
ettings. The new settings assistant
personalisation wizard guides you to
personalised settings with unparalleled ease. It
includes not only picture, but the complete
viewing experience, including sound and
Ambilight settings. The wizard shows a few
screens with easy to choose options to select
the essential settings. The TV performance is set
to the your personal preference without difficult
terms or settings, and this very quickly.
Seamless connectivity
EasyLink uses the HDMI CEC industry standard
p
rotocol to share functionality between
connected devices and the TV. HDMI makes an
uncompressed digital RGB connection from the
source to the screen for the ultimate picture
quality. HDMI uses HDCP copy protection.
With HDMI input of the TV you can connect
multiple HD sources, for instance an HD settop
box, a Blu-ray player, and Game Console or
Digital Camcorder.
SRS TruSurround XT
SRS TruSurround XT® creates an immersive,
feat
ure-rich surround sound experience from
two speakers, complete with rich bass, high
frequency detail and clear dialog.
USB multimedia playback
The USB connector allows access to jpeg photos
and moti
most USB-sticks (USB memory-class device).
Plug the USB into the slot at the side of the TV
and access the multimedia content using the
easy on screen content browser. You can now
view and share your movie and photos.
on jpeg movie(320x240 30fps, PCM) of
Page 3
4000 series LED TV
26" class/po
Specifications
26PFL4507/F7
Picture/Display
• Aspect ratio: Widescreen
• Panel resolution: 1366 x 768p
• Brightness: 280 cd/m²
• Response time (typical): 8 ms
• Contrast ratio (typical): 1000:1
• Diagonal screen size: 26 inch / 66 cm
• Visible screen diagonal (inch): 26 inch
• Viewing angle: 170º (H) / 160º (V)
• Picture enhancement: 3D Combfilter, Digital Noise
eduction, Progressive scan, Digital Crystal Clear
R
• Display screen type: LED WXGA Display
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
720 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
deo formats
• Vi
Resolution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 24,30,60Hz
Sound
• Equalizer: 5-bands
• Output power (RMS): 2 x 8W
• Sound System: SRS TruSurround XT, Dolby Digital
-3), Stereo, SAP
(AC
Loudspeakers
• Built-in speakers: 2
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Sleep Timer
• Ease of Installation: Autostore
• Ease of Use: Auto Volume Leveller (AVL),
AutoPictu
re, AutoSound, Settings assistant Wizard,
EasyLink, Touch Sensor
• Remote Control: TV
•Screen Format Adjustments: 16:9,
4:3, Full, Movie Expand, Wide, unscaled (dot by dot)
• Multimedia: auto slideshow
Normal, Zoom,
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: JPEG Still pictures, Motion JPEG
x240 30fps, PCM
320
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: ATSC, NTSC
• Video Playback: NTSC
• Tuner bands: UHF, VHF
Connectivity
• AV 1: CVBS in, Shared audio L/R in
• AV 2: YPbPr, Shared audio L/R in
• HDMI 1: HDMI, Shared audio L/R in
• HDMI 2: HDMI, Shared audio L/R in
• HDMI 3: HDMI, Shared audio L/R in
• Audio Output - Digital: Coaxial (cinch)
• Other connections: Headphone out, Shared audio L/
in, PC-In VGA
R
• USB: USB
• EasyLink (HDMI-CEC): One touch play, Power
atus, System info (menu language), System audio
st
control, System standby
Power
• Mains power: 120V/60Hz
• Power consumption: 38 W
• Standby power consumption: <0.5 W
• Ambient temperature: 5°C to 40°C (41°F to 104°F)
Dimensions
• Set dimensions in inch (W x H x D):
25.02 x 15.65 x 2.7 inch
• Set dimensions with stand in inch (W x H x D):
25.02 x 16.95 x 6.97 inch
• Product weight (lb): 10.8
• Product weight (+stand) (lb): 12.57 lb
• Box dimensions in inch (W
x H x D):
28.94 x 18.46 x 4.69 inch
• Weight incl. Packaging (lb): 15.21
• VESA wall mount compatible: 200 x 100 mm
Accessories
• Included accessories: Table top stand, Quick start
guide, User Manual, Registration card, Remote
Control, Batteries for remote control, Cable
management
•
Issue date 2012-02-11
Version: 4.2.1
12 NC: 8670 000 87092
UPC: 6 09585 22319 6
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
