Philips 26PF9956/98 Leaflet

Download

Page 1

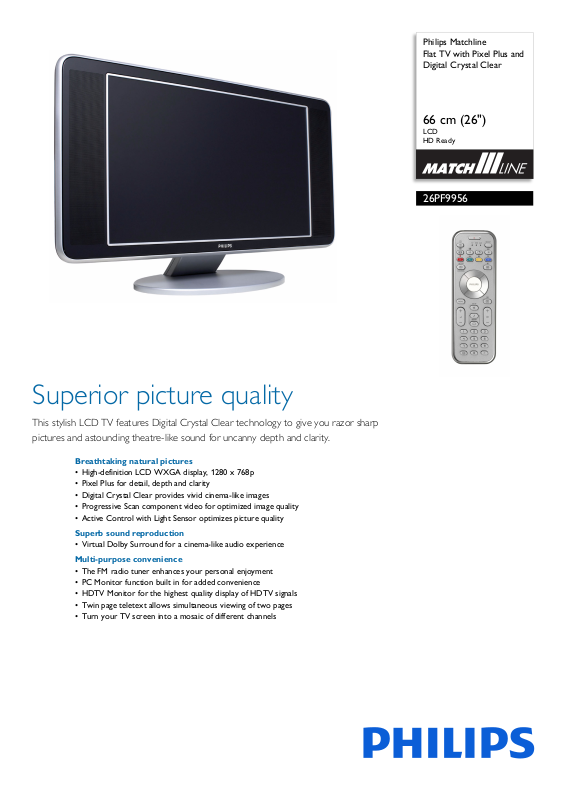

Philips Matchline Flat TV with Pixel Plus and Digital Crystal Clear

66 cm (26")

LCD HD Ready

26PF9956

Superior picture quality

This stylish LCD TV features Digital Crystal Clear technology to give you razor sharp pictures and astounding theatre-like sound for uncanny depth and clarity.

Breathtaking natural pictures

• High-definition LCD WXGA display, 1280 x 768p

• Pixel Plus for detail, depth and clarity

• Digital Crystal Clear provides vivid cinema-like images

• Progressive Scan component video for optimized image quality

• Active Control with Light Sensor optimizes picture quality

Superb sound reproduction

• Virtual Dolby Surround for a cinema-like audio experience

Multi-purpose convenience

• The FM radio tuner enhances your personal enjoyment

• PC Monitor function built in for added convenience

• HDTV Monitor for the highest quality display of HDTV signals

• Twin page teletext allows simultaneous viewing of two pages

• Turn your TV screen into a mosaic of different channels

Page 2

Flat TV with Pixel Plus and Digital Crystal Clear

66 cm (26") LCD, HD Ready

26PF9956/98

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 450 cd/m²

• Contrast ratio (typical): 400:1

• Diagonal screen size: 26 inch / 65 cm

• Visible diagonal screen size: 65 cm

• Display screen type: LCD WXGA Active Matrix T

• Picture enhancement: 2D Combfilter, 3/2 - 2/2

tion pull down, Active Control + Light sensor,

mo Color Transient Improvement, Color Temperature Adjustment, Contrast Plus, Digital Crystal Clear, Digital Noise Reduction, Jagged Line Suppression, Luminance Transient Improver, Pixel Plus, Progressive scan, Sharpness Adjustment

• Screen enhancement: Anti-Reflection coated

reen

• Viewing angle (H / V): 170 / 170 degree

• Panel resolution: 1280 x 768p

• Response time (typical): 16 ms

Supported Display Resolution

• Computer formats

Resolution Refresh rate 1024 x 768 60Hz 1280 x 768 60Hz 640 x 480 60, 72, 75, 85Hz 800 x 600 56, 60, 72, 75,85Hz

deo Formats

• Vi

Resolution Refresh rate 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Dynamic Bass Enhancement

• Sound System: Mono, Nicam Stereo, Virtual Dolby

ound

Surr

• Total Sound Power (RMS): 20 W

Convenience

• Ease of Installation: Auto Program Naming, Sorting,

Program Name, Plug & Play, Fine Tuning, Autostore

• Ease of Use: Auto Volume Leveller (AVL

Radio, Graphical User Interface, Smart Sound, Smart Picture, Program List

• Remote control type: RCAP049_FRP

), FM

• Teletext: 10 page Smart Text

• Teletext enhancements: 4 favourite pages, Program info

• Picture in Picture: Picture in graphics, Twin page

• Remote Control: Amp, DVD, TV

• Screen Format Adjustments: Full screen, Subtitle and 14:9, Zoom 16:9

• Clock: Wake up Clock, Sleep Timer

• VESA Mount: 100 x 100 mm

• Child Protection: Child Lock

rmation Line

Heading Shift, Superwide, Widescreen, Zoom

Tuner/Reception/Transmission

• Tuner bands: FM, Hyperband, S-Channel, UHF, VHF

• TV system: SECAM L/L', SECAM D/K, SECAM B/G, SECAM, PAL D/K, PA

• Video Playback: NTSC, PAL, SECAM

• Aerial Input: 75 ohm coaxial (IEC75)

•Tuner Display: PLL

• Number of Preset Channels: 100

L B/G, PAL I, PAL

Connectivity

• Number of AV connections: 3

• Other connections: PC-in VGA + Audio L/R in, DVI-D, FM An

• AV 1: CVBS in, CVI

• AV 2: CVBS, S-Video Y/C

• Front / Side connections: Audio in, CVBS in, Headph

tenna, Antenna IEC75

one Out, S-video in

Power

• Power consumption: 110 W W

• Standby power consumption: < 2 W

• Ambient temperature: 5 °C to 40 °C

• Power supply: AC 90-240

Dimensions

• Product weight: 15 kg

• Dimensions (with base) (W x H x D):

8 x 504 x 270 mm

Accessories

• Included accessories: Component video cable (R/ G/B), Mini jack to Cinch (Female), Power cord, Quick start guide, Remote Control, Registration card, RF antenna cable, User Manual

•

Highlights

LCD WXGA display, 1280 x 768p

This WXGA display with state-of-the-art LCD screen technology gives you HD resolution of 1280 x 768p pixels. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Pixel Plus

Pixel Plus is a digital picture processing technology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.

Digital Crystal Clear

Digital Crystal Clear is a package of picture innovations that digitally adjusts and optimizes picture quality to optimal contrast, color and sharpness levels. It's like watching vivid cinema-like images.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Active Control + Light Sensor

Active Control is a unique and intelligent way of optimizing picture quality by measuring and analyzing the incoming signal to automatically adjust picture quality settings. Active Control with Light Sensor uses a sensor to adjust the picture brightness depending on the room light conditions.

Virtual Dolby Surround

Virtual Dolby Surround is a processing technology for enhancing surround sound effects. It will create the sensation of Dolby Pro Logic without the necessity of additional rear speakers. You become totally immersed in your television experience.

FM-radio

A small FM radio is integrated into the headphone so you always have a music source with you.

Issue date 2014-02-10

Version: 1.0.2

12 NC: 8670 000 21179 EAN: 87 10895 84267 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

PC Monitor

This set has a VGA input which is compatible with the display output signal from your PC. This means you have the convenience of using it both as a TV and PC Monitor and for multi-tasking.

HDTV Monitor

HDTV is the latest and best television signal available. It produces picture quality more than twice that of traditional analog broadcasts. In order to effectively maximize the HDTV signal, a television must incorporate advanced signal input connectivity

Twin page teletext

Twin page teletext allows you to simultaneously view two teletext pages side by side

Multiple PiP Modes

Multiple Picture-in-Picture modes allow you to simultaneously watch two video sources either picture-in-picture, side by side, or in a mosaic-view with still images.
