Page 1

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Pg. SCHEMATIC DIAGRAMS AND PC BOARDS

1. F8 Wiring Diagram

2. OVERALL FUNCTION

3. POWER SUPPLY - SECT. A1

4. HORIZONTAL DEFLECTION - SECT. A2

5. VERTICAL DEFLECTION - SECT. A3

6. SYNCRONIZATION - SECT. A4

7. TUNER/VIDEO IF - SECT. A5

8. VIDEO PROCESSING - SECT. A6

9. CONTROL PROCESSOR - SECT. A7

10. CUSTOME CONTROL - SECT. A8

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

11. BTSC DECODER - SECT. A9

12. NICAM-2CS DECODER - SECT. A10

13. SMART SOUND - SECT. A11

14. AUDIO AMPLIFIER - SECT. A12

15. HEADPHONE - SECT. A13

16. REAR I/O CINCH - SECT. A14

17. CRT PANEL - SECT. B

18. MAIN CHASSIC & CRT (TOP VIEW)

19. MAIN CHASSIS & CRT (BOTTOM VIEW)

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 2

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

Mechanical Assembly

REFER TO SAFETY GUIDELINES

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 3

DISASSEMBLY INTRODUCTIONS

(Display Cabinet Back Removal Illustration)

(Display Main Chassis Removal Illustration)

(Display Service Position Illustration)

Page 4

(Display Cabinet Back Removal Illustration)

Page 5

(Display Main Chassis Removal Illustration)

Page 6

(Display Service Position Illustration)

Page 7

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

Mechanical Diagrams

REFER TO SAFETY GUIDELINES

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 8

MAIN CABINET EXPLODED VIEW Page: 1 of 1

Page 9

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

Troubleshooting

REFER TO SAFETY GUIDELINES

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 10

Page 11

Page 12

Page 13

Page 14

Page 15

Page 16

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

General Information

REFER TO SAFETY GUIDELINES

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 17

F8 CHASSIS INTRODUCTION

The F8 chassis is a leader TV chassis produced by Philips Consumer Electronics Company for the 1999 model year. The F8 chassis is used in sets with 25“ and 27“ screen sizes. The F8 chassis is a global design and is oriented front to rear, or ”north to south“, as it has been called. The F8 chassis tuning system features 181 channels with on-screen display (OSD). The main tuning system uses a tuner, a microcomputer IC, and a memory IC mounted on the main chassis. The microcomputer communicates with the memory IC, the customer keyboard, remote receiver, U/V tuner, signal processor IC and the audio output IC via the

I2C bus. customer-preferred settings, and service/factory data.

The F8 chassis uses a Very Large Scale (VLSI) Integrated Circuit for signal processing. This IC performs video IF, sound IF processing, AGC control, horizontal and vertical drive and synchronization, also luminance/chrominance processing. The on-screen graphics and closed caption decoding are done within the microprocessor, and then sent to the signal processor IC to be added to the main signal.

The F8 chassis utilizes a switch mode power supply for the main voltage source. The chassis has a hot chassis ground reference on the primary side of the power supply, and a cold ground reference on the secondary side of the power supply and the rest of the chassis. ALWAYS USE AN ISOLATION TRANSFORMER

WHEN SERVICING THIS CHASSIS FOR YOUR SAFETY.

The memory IC retains the settings for favorite stations,

MODEL TO MODULE LIST

The model to Module list shown below identifies all electrical panels, modules and assemblies used in each model produced with the F8 chassis. This information was current at time of printing.

Information concerning cabinet parts and cabinet mounted parts (CRT/Yoke/etc.) is shown in the Cabinet Replacement Parts List.

Replacement part numbers for each module are provided in the Chassis Panel Replacement Parts List.

If you are attempting to service a model equipped with the F8 chassis, the necessary electrical information should be covered in this service manual, even if the corresponding model number is not listed.

Page 18

Model Panel Number Size Description

25PT10-C121 25” PHILIPS – MAGNAVOX 00EMF803-A002 Main Chassis

25PT15-C121 25” PHILIPS – MAGNAVOX 00EMF806 A002 Main Chassis

25TR19-C121 25“ PHILIPS – MAGNAVOX 00EMF803-A001 Main Chassis

25TS56-C121 25“ PHILIPS – MAGNAVOX 00EMF806-A001 Main Chassis

26LL59-0121 25“ PHILIPS - LATIN AMERICA 00EMF820-A001, A002 Main Chassis

26LL59-1121 25“ PHILIPS - LATIN AMERICA 00EMF821-A001 Main Chassis

26LW59-2221 25“ PHILIPS - LATIN AMERICA 00EMF822-A001, A002 Main Chassis

26LW59-3221 25“ PHILIPS - LATIN AMERICA 00EMF823-A001 Main Chassis

27TS57-C101 27“ PHILIPS – MAGNAVOX 00EMF832-A101, A102 Main Chassis

27TS57-C121 27” PHILIPS – MAGNAVOX 00EMF832-A102 Main Chassis

29LL69-0121 27“ PHILIPS - LATIN AMERICA 00EMF850-A001, A002 Main Chassis

29LL69-1121 27“ PHILIPS - LATIN AMERICA 00EMF851-A001 Main Chassis

CH1927-C101 27” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF893-A102 Main Chassis 00A10680-B002 Channel One Card 00A10777-A001 Interface Module

HD2511-C121 25“ PHILIPS – MAGNAVOX 00EMF801-A001 Main Chassis

HD2530-C121 25“ PHILIPS – MAGNAVOX 00EMF804-A001 Main Chassis

HD2720-C101 27“ PHILIPS – MAGNAVOX 00EMF830-A101 Main Chassis or 00EMF831-A102

LL9125-C121 25” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT

Page 19

00EMF899-A002 Main Chassis MS2530C221 25" PHILIPS – MAGNAVOX

313917808991 Main Chassis MS2530C225 25" PHILIPS – MAGNAVOX

313917808991 Main Chassis MS2730C221 27" PHILIPS – MAGNAVOX

313917868471 Main Chassis OCC925-C121 25“ PHILIPS – MAGNAVOX

00EMF891 A001 Main Chassis 00A10777-A001 Interface Module

OCC927-C101 27“ PHILIPS – MAGNAVOX 00EMF893 A001, A102 Main Chassis 00A10777-A001 Interface Module

PA9027-C101 27” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF894 A102 Main Chassis 00AVJ250 A001 Pro video Card Assembly 00A10757 A001 L9 Audio Jack Panel 00A10778 A001 L9 ITV Front A-V 00A10791 A001 Comb Filter Panel 00A10808 A001 Pro Plus Interface

PA9032-C101 32” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF895 A102 Main Chassis 00AVJ250 A001 Pro video Card Assembly 00A10757 A001 L9 Audio Jack Panel 00A10791 A001 Comb Filter Panel 00A10808 A001 Pro Plus Interface

PC9225-C121 25“ PHILIPS – MAGNAVOX 00EMF891-A001, A102 Main Chassis 00A10777-A001 Interface Module

PC9227-C101 27“ PHILIPS INDUSTRIAL TELEVISION - CARD SET 00EMF893-A101, A102 Main Chassis 00A10777-A001 Interface Module

PL9125-C121 25“ PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF890-A001, A002 Main Chassis

PL9127-C101 27“ PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF892-A101, A102 Main Chassis

PPC927-C101 27” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF894 A102 Main Chassis 00A10791 A001 Comb Filter Panel 00A10757 A001 L9 Audio Jack Panel 00A10778 A001 L9 ITV Front A/V 00A10808 A001 Pro Plus Interface

PPC932-C101 32” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT

Page 20

00EMF895 A102 Main Chassis 00A10757 A001 L9 Audio Jack Panel 00A10791 A001 Comb Filter Panel 00A10808 A001 Pro Plus Interface

SC2932C121 32" PHILIPS INDUSTRIAL TELEVISION - CARD SET 313501700770 Scan Card 00A10808 A001 Pro Plus Interface 00A10757 A001 Audio Jack Panel 00AVJ222 A001 Scan Converter Card 00A10654 A001 Scan Converter Jack Panel 00EMF895 A002 Main Chassis 00A10791 A001 Comb Filter Panel

SCN927-C101 27” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF894 A102 Main Chassis 00A10757 A001 L9 Audio Jack Panel 00A10777 A001 Interface Module 00A10778 A001 L9 ITV Front A/V 00A10791 A001 Comb Filter Panel

Page 21

SCN932C101 32” PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF895 A102 Main Chassis 00A10757 A001 L9 Audio Jack Panel 00A10777 A001 Interface Module 00A10791 A001 Comb Filter Panel

TC9225-C121 25“ PHILIPS – MAGNAVOX 00EMF891-A001, A002 Main Chassis 00A10777-A001 Interface Module

TL9125-C121 25“ PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF890-A001, A002 Main Chassis

TL9127-C101 27“ PHILIPS – INDUSTRIAL TELEVISION - SMARTPORT 00EMF892-A101, A102 Main Chassis

TR2503-C121 25“ PHILIPS – MAGNAVOX 00EMF801-A001 Main Chassis

TR2519-C121 25“ PHILIPS – MAGNAVOX 00EMF803-A001 Main Chassis

TS2546-C121 25“ PHILIPS – MAGNAVOX 00EMF804-A001, A002 Main Chassis

TS2556-C121 25“ PHILIPS – MAGNAVOX 00EMF806-A001, A002 Main Chassis

TS2575-C121 25“ PHILIPS – MAGNAVOX 00EMF807-A001, A002 Main Chassis

TS2746-C101 27“ PHILIPS – MAGNAVOX 00EMF830-A101, A102 Main Chassis

TS2746-C121 27“ PHILIPS – MAGNAVOX 00EMF830-A102 Main Chassis

TS2757-C101 27“ PHILIPS – MAGNAVOX 00EMF832-A101 Main Chassis

TS2774-C101 27“ PHILIPS – MAGNAVOX 00EMF833-A101, A102 Main Chassis

TS2774-C121 27“ PHILIPS – MAGNAVOX 00EMF833-A102 Main Chassis

TS3256-C101 32” PHILIPS – MAGNAVOX 00EMF880-A102 Main Chassis

TS3256-C121 32” PHILIPS – MAGNAVOX 00EMF880-A002 Main Chassis

XR2503-C121 25“ PHILIPS – MAGNAVOX 00EMF801-A001, A002 Main Chassis

XS2556-C121 25“ PHILIPS – MAGNAVOX

Page 22

00EMF806-A001, A002 Main Chassis XS2757-C101 27“ PHILIPS – MAGNAVOX

00EMF832-A101, A102 Main Chassis

Remote

Replacement

Remote Drawing RC0702 TR2503-C121 X 25TR19-C121 X 25TS56-C121 X 26LL59-0121 X 26LL59-1121 X 26LW59-2221 X 26LW59-3221 X 27TS57-C101 X 29LL69-0121 X 29LL69-1121 X HD2511-C121 X HD2530-C121 X HD2720-C101 X TL9125-C121 X TL9127-C101 X TR2519-C121 X TS2546-C121 X TS2556-C121 X TS2575-C121 X TS2746-C101 X TS2757-C101 X TS2774-C101 X XR2503-C121 X XS2556-C121 X XS2757-C101 X OCC925-C121 OCC927-C101 PC9225-C121 PC9227-C101 PL9125-C121 PL9127-C101 TC9225-C121

RC0702/04

3139 148

54201

No Remote No Remote No Remote No Remote No Remote No Remote No Remote

RCO705/00

3139 228

80571

RC0705

-------------

RC282901/01

3139 228

81441

Philips

RCL9UB RCL9UB RCU82C

RC282901/04

3139 228

81451

PH/MX

RC2524/04

3139 228

81591

RC2528/04

3139 228

82051

RCU82D

-------------

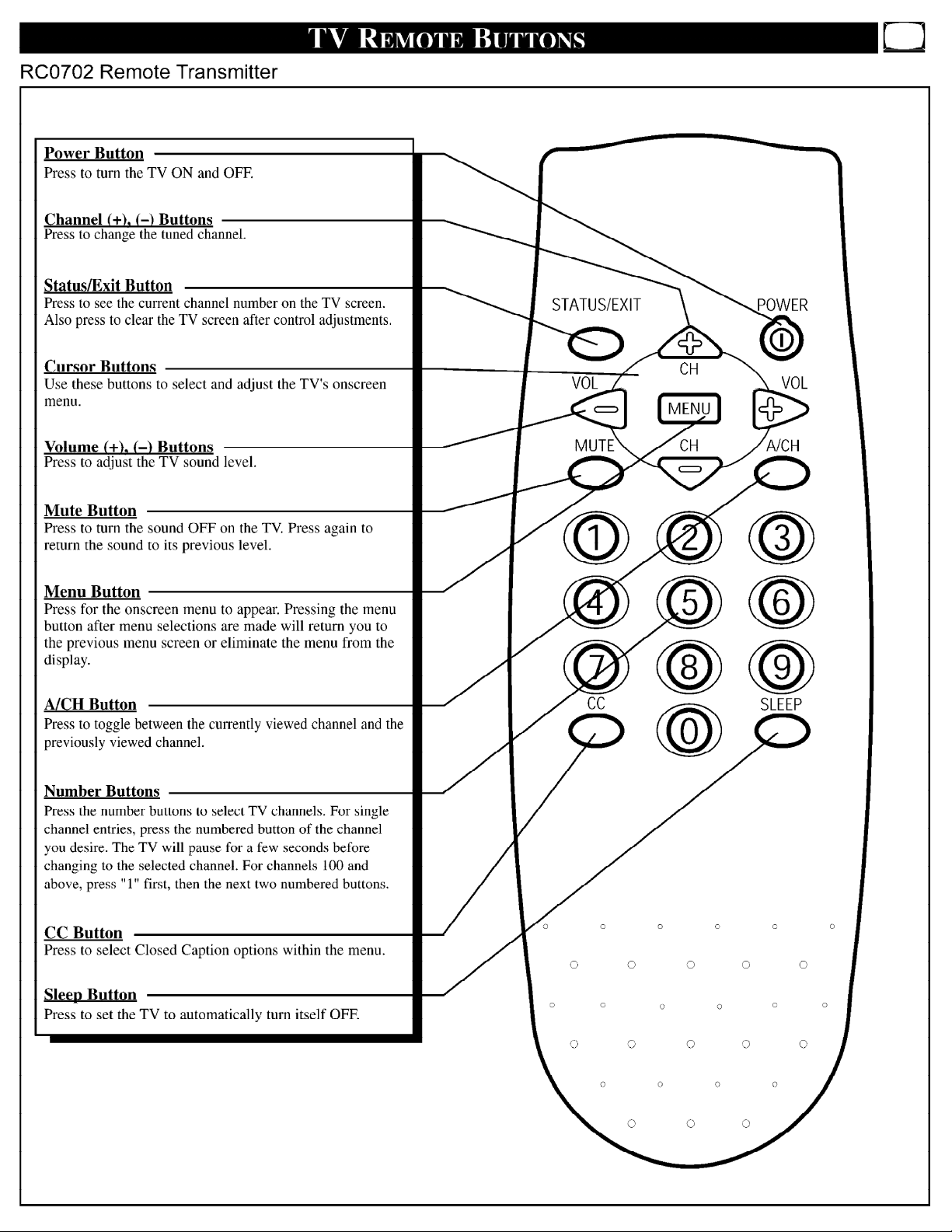

Display Quick-Use Guide for RC0702 Transmitter Display Quick-Use Guide for RCU82C Transmitter

Page 23

MODEL TO REMOTE CROSS-REFERENCE

Remote

Replacement

RC0702/04

3139 148

54201

No Remote No Remote No Remote No Remote No Remote No Remote No Remote

RCO705/00

3139 228

80571

RC0705

-------------

RC282901/01

3139 228

81441

Philips

RCL9UB RCL9UB RCU82C

RC282901/04

3139 228

81451

PH/MX

RC2524/04

3139 228

81591

RC2528/04

3139 228

82051

RCU82D

-------------

Display Quick-Use Guide for RC0702 Transmitter Display Quick-Use Guide for RCU82C Transmitter Display Quick-Use Guide for RCL9UB Transmitter

Page 24

MODEL TO JACKPANEL CROSS-REFERENCE

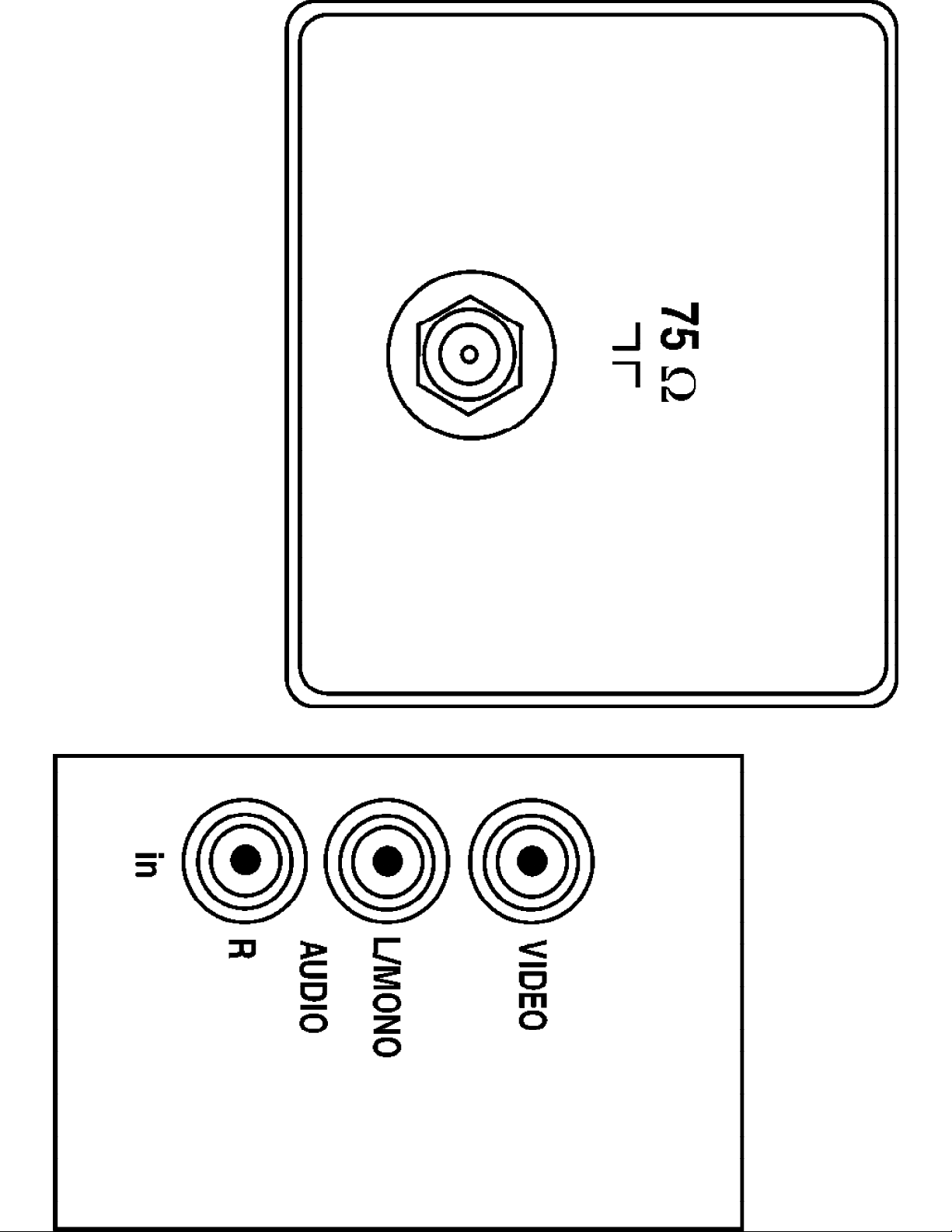

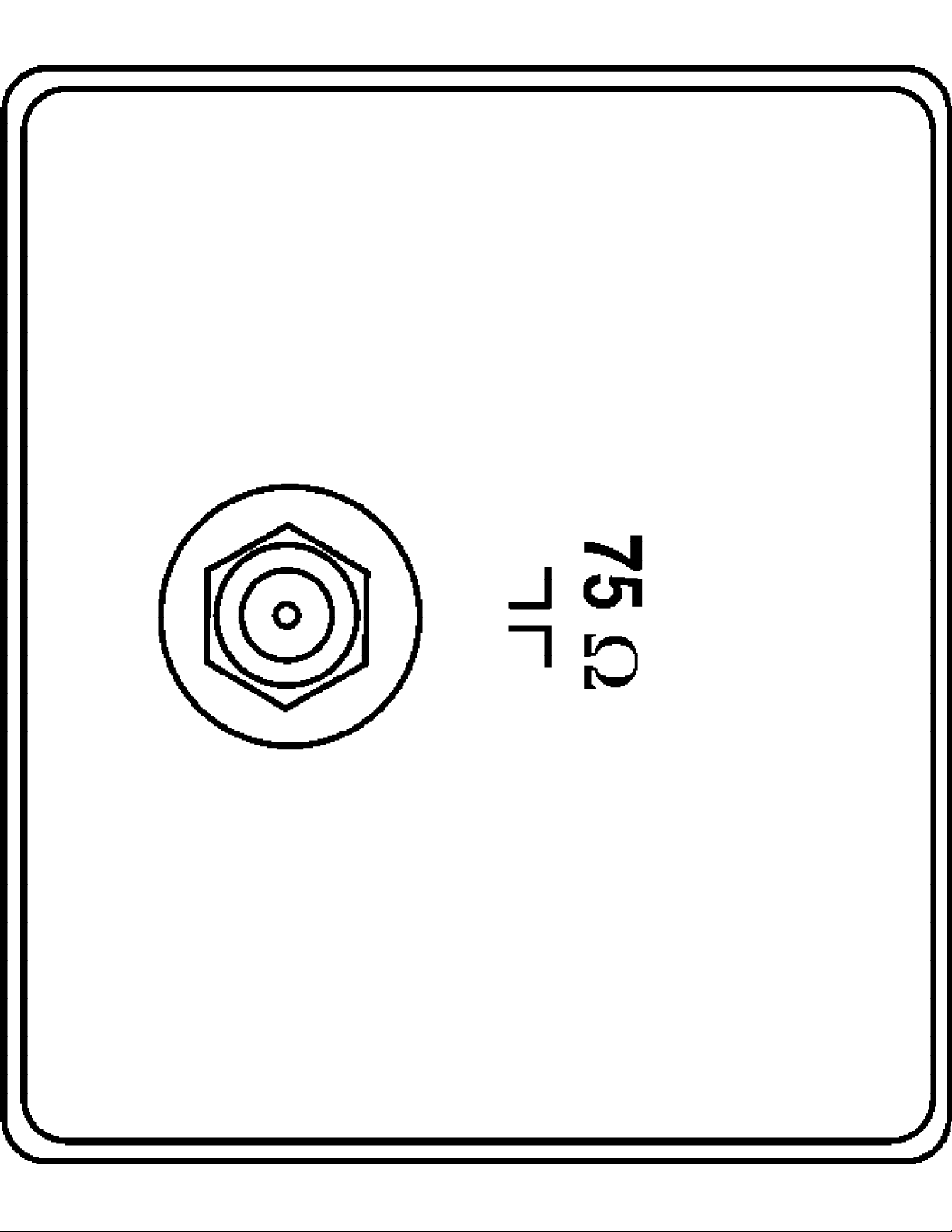

Display JP9000 Jack Panel Display JP9103 Jack Panel Display JP9106 Jack Panel

Models Jack Panels

JP9000 JP9103 JP9106

TR2503-C121 25TR19-C121 X 25TS56-C121 X 26LL59-0121 X 26LL59-1121 X 26LW59-2221 X 26LW59-3221 X 27TS57-C101 X 29LL69-0121 X 29LL69-1121 X HD2511-C121 X HD2530-C121 X HD2720-C101 X TR2503-C121 X TR2519-C121 X TS2546-C121 X TS2556-C121 X TS2575-C121 X TS2746-C101 X TS2757-C101 X TS2774-C101 X XR2503-C121 X XS2556-C121 X XS2757-C101 X TL9125-C121 TL9127-C101 OCC925-C121 OCC927-C101 PC9225-C121 PC9227-C101 PL9125-C121 PL9127-C101

TC9225-C121

No Jack Panel No Jack Panel No Jack Panel No Jack Panel No Jack Panel No Jack Panel No Jack Panel No Jack Panel No Jack Panel

Page 25

GLOSSARY OF TERMS, ACRONYMS, AND ABBREVIATIONS

2CS Two Channel Stereo AFC Automatic Frequency Control AFT Automatic Fine Tuning AP Asia Pacific ATS Automatic Tuning System AV External Audio/Video AVL Automatic Volume Level control BTSC Broadcast Television Standard Committee (TV Stereo) CBA Circuit Board Assembly (PCB) CC Closed Captioning CSM Customer Service Mode CVBS Color Video Blanking Sync DNR Dynamic Noise Reduction EEPROM Electrical Erasable Programmable Read-Only Memory Error Buffer Register that keeps track of errors that occur and stores error codes Error Code A numerical value used to indicate a failure in the television EU Europe EXT External audio/video input FM Frequency Modulation I²C Inter IC bus, 2-wire bi-directional (SCL/SDA) ID Identification IDENT Horizontal coincidence signal, transmitter identification IF Intermediate Frequency IN ITT sound IC with NICAM function IT ITT sound IC without NICAM function LATAM Latin America LED Light Emitting Diode Local Keyboard The buttons (usually volume up, volume down, channel up, and channel down)

located on the front of the television set

MA Mono All; single mono carrier receiver NR Noise Reduction NTSC National Television Systems Committee (video) NVM Non Volatile Memory OB Option Byte (Feature Byte) OSD On Screen Display PCB Printed Circuit Board (CBA) PIP Picture In Picture PLL Phase Locked Loop PP Personal Preference RAM Random Access Memory RC Remote Control RC-5 Remote Control system 5 RGB Red Green Blue ROM Read Only Memory SAM Service Alignment Mode SAP Second Audio Program SCL Serial Clock SDA Serial Data SDM Service Default Mode SVHS Super Video Home System Top Level Menu This refers to the main menu (as opposed to sub menus) in SAM V-Chip Violence-Chip

Page 26

VCR Video Cassette Recorder Y/C Luminance/Chrominance (video)

SAFETY INSTRUCTIONS FOR REPAIRS

1. Safety regulations require that during a repair:

• the set should be connected to the mains via an isolating transformer

• safety components, indicated by the symbol s , should be replaced by components

identical to the original ones

• when replacing the CRT, safety goggles must be worn

2. Safety regulations require that after a repair the set must be returned in its original condition. In particular, attention should be paid to the following points:

Note:

This resoldering is advised to prevent bad connections due to metal fatigue in solder joints, and is therefore only necessary for television sets older than 2 years.

• As a strict precaution, we advise you to resolder the solder joints through which the

horizontal deflection current is flowing, in particular:

- All pins of the line output transformer (LOT)

- flyback capacitor(s)

- S-correction capacitor(s)

- line output transistor

- pins of the connector with wires to the deflection coil

- other components through which the deflection current flows

• Resolder points are marked by a white circle on the bottom of the CBA.

• The wire trees and EHT cable should be routed correctly and fixed with the

mounted cable clamps.

• The insulation of the mains lead should be checked for external damage.

• The mains lead strain relief should be checked for its function in order to avoid

touching the CRT, hot components or heat sinks.

• The electrical DC resistance between the mains plug and the secondary side

should be checked (only for sets which have a mains isolated power supply).

This check can be done as follows:

- unplug the mains cord and connect a wire between the two pins of the mains plug

- set the mains switch to the on position (keep the mains cord unplugged!)

- measure the resistance value between the pins of the mains plug and the

metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 Megohm and 12 Megohm.

- switch off the TV and remove the wire between the two pins of the mains plug

• The cabinet should be checked for defects to avoid touching of any inner parts by the customer.

RF Input/

Antenna

Jacks

Quantity

Video

Input

JP9000 JP9103 JP9106 JP9202 JP9204 JP9403 JP9406 JP9410 JP9411 JP9519 JP9523 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 2 x 75

ohm

0 3 6 2 4 3 7 10 11 19 23

1 1 1 1 1 1 2 2 3 3

2 x 75

ohm

Page 27

JACK PANEL DEFINITIONS

JP9000 JP9103 JP9106 JP9202 JP9204 JP9403 JP9406 JP9410 JP9411 JP9519 JP9523

RF Input/

Antenna

Jacks

Quantity

Video

Input

Audio

Input

SVHS

Input

ead-phon Front Front Front Front Side Side Surround

Sound

Speaker

Video Out 1 1 1 1 1 1

Audio

Output

Smart

Plug

CH. 1

Demod.

Theft

Control

Pillow

Control

Guide +

Gold YUV

Comp. In

"* Only one set of audio output jacks, menu selectable, switchable between fixed and variable output"

75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 75 ohm 2 x 75

0 3 6 2 4 3 7 10 11 19 23

1 1 1 1 1 1 2 2 3 3

L-R L-R 1 L-R 1 L-R 2 (L-R) 2 (L-R) "3(L-R)

Out

L-R

(Fixed)

L-R

(Fixed)

L-R

(Fixed)

1 2

L-R

(Fixed)

ohm

2-Rear, 1-Side"

(1-Rear/

1-Side)

(1-Rear/

L-R* L-R*

1 1 3 3

2 x 75

ohm

"3(L-R) 2-Rear, 1-Side"

1-Side)

Page 28

MAIN CHASSIS SCHEMATIC NOTES:

UNLESS OTHERWISE SPECIFIED:

1. ALL VOLTAGES AND WAVEFORMS WERE TAKEN UNDER THE FOLLOWING CONDITIONS:

- LINE VOLTAGE MAINTAINED AT 120VAC, 60Hz VIA AN ISOLATION

TRANSFORMER.

- SET IN SDM (SERVICE DISPLAY MODE). To enter SDM, press 0-6-2-5-9-6-Menu

on the remote control.

- ALL VOLTAGES WERE TAKEN FROM MODEL TS2774C101.

2. ALL WAVEFORMS WERE TAKEN WITH AN NTSC SIGNAL GENERATOR DELIVERING 10mVp-p AT THE ANTENNA INPUT.

3. ON VOLTAGE CHARTS:

- VOLTAGES IN THE "Signal" COLUMN WERE TAKEN WITH AN NTSC SIGNAL

GENERATOR DELIVERING 10mVp-p AT THE ANTENNA INPUT.

- VOLTAGES IN THE "No Signal" COLUMN WERE TAKEN WITH NO SIGNAL

APPLIED.

- VOLTAGES IN THE "Standby" COLUMN WERE TAKEN WITH THE SET IN

STANDBY MODE (Power supplied to the chassis, set turned off).

4. ALL VOLTAGES ARE POSITIVE DC WITH RESPECT TO GROUND IN THAT SECTION OF THE CHASSIS, AND MAY VARY DUE TO NORMAL PRODUCTION TOLERANCES.

5. COMPONENT AND SPECIAL SYMBOLS: * INDICATES A COMPONENT WHICH WILL VARY DEPENDING ON SCREEN

SIZE, PRODUCTION DATES, AND OPTION FEATURES INSTALLED. PLEASE SEE THE REPLACEMENT PARTS LIST FOR SPECIFIC PART INFORMATION.

• INDICATES A COMPONENT IS AN SMD ”CHIP“ TYPE COMPONENT, AND AS

SUCH WILL BE LOCATED ON THE BOTTOM Side OF THE CBA.

6. A HIGH VOLTAGE OSCILLOSCOPE PROBE (100:1) IS NEEDED TO MEASURE THE WAVEFORM AT THE HORIZONTAL OUTPUT TRANSISTOR (PART # 7620).

7. SPARK GAPS SHOWN ON THE CRT SCHEMATIC ARE INTERNAL TO THE CRT SOCKET.

8. THE NUMBERS 1a THROUGH 38b, SHOWN IN ENCLOSED BOXES, CORRESPOND TO THE WAVEFORM PHOTOGRAPHS.

9. FOR VOLTAGE, WATTAGE, AND TOLERANCE RATINGS OF RESISTORS AND CAPACITORS, PLEASE SEE THE ELECTRICAL REPLACEMENT PARTS LIST.

10. INDICATES PCE REPLACEMENT PART NUMBER ONLY.

MAIN CHASSIS WAVEFORM NOTES:

UNLESS OTHERWISE SPECIFIED: ALL WAVEFORMS WERE TAKEN UNDER THE FOLLOWING CONDITIONS:

- LINE VOLTAGE MAINTAINED AT 120VAC, 60Hz VIA AN ISOLATION

TRANSFORMER.

- SET IN SDM (SERVICE DISPLAY MODE). TO ENTER SDM, PRESS

0-6-2-5-9-6-MENU ON THE REMOTE CONTROL.

- ALL WAVEFORMS WERE TAKEN FROM MODEL TS2774-C101.

- ALL WAVEFORMS WERE TAKEN WITH AN NTSC SIGNAL GENERATOR

DELIVERING 10mVp-p AT THE ANTENNA INPUT.

- SWEEP TIME/CM SETTINGS ARE SHOWN WITH THE FIGURES IN THE

CALIBRATED POSITION.

- THE ACTUAL SWEEP TIMES AND VOLTAGES PRESENT ARE SHOWN

WHEREVER POSSIBLE.

Page 29

- COMPOSITE VIDEO SIGNALS ARE SHOWN WITHOUT SWEEP TIME AND

VOLTAGES PRESENT BECAUSE THESE SIGNALS HAVE VARIABLE SWEEP TIMES AND VOLTAGES.

- A HIGH VOLTAGE OSCILLOSCOPE PROBE (100:1) IS NEEDED TO MEASURE

THE WAVEFORM AT THE HORIZONTAL OUTPUT TRANSISTOR (PART #

7460).

- THE DESIGNATORS A1a THROUGH V6c, SHOWN IN ENCLOSED BOXES,

CORRESPOND TO THE WAVEFORM PHOTOGRAPHS.

AUDIO WAVEFORM NOTES:

THESE NOTES APPLY ONLY TO THE AUDIO WAVEFORMS (A1a THROUGH A3d). AUDIO WAVEFORMS WERE TAKEN UNDER THE FOLLOWING CONDITIONS:

- ALL WAVEFORMS WERE TAKEN WITH A LEADER LMS-238 SOUND

GENERATOR CONNECTED AT THE ANTENNA INPUT, WITH THE FOLLOWING SETTINGS:

- INT FREQUENCY SET TO 1kHz

- STEREO (L+R), PILOT ON

- VIF/RF OUTPUT AT CHANNEL 3

- ALL WAVEFORMS WERE TAKEN FROM MODEL TS2774C101.

- TELEVISION SET TO CHANNEL 3 IN NORMAL MODE.

- DO NOT MUTE THE SET.

- SET THE TELEVISION VOLUME AT 40.

- THE SPEAKERS MAY BE DISCONNECTED AT CONNECTOR #0234 (BOARD

LOCATION B-1) IF THE AUDIO OUTPUT CAUSES A DISTRACTION TO THE SERVICER.

OPTION BYTES & FEATURE LISTING

USA/CANADIAN CHASSIS LISTINGS LATIN AMERICAN CHASSIS LISTINGS INDUSTRIAL CHASSIS LISTINGS

Page 30

Display Quick-Use Guide for RC0702 Transmitter

Page 31

Display Quick-Use Guide for RCU82C Transmitter

Page 32

Display Quick-Use Guide for RCL9UB Transmitter

Page 33

Display JP9000 Jack Panel

Page 34

Display JP9103 Jack Panel

Page 35

Display JP9106 Jack Panel

Page 36

USA/CANADIAN CHASSIS LISTINGS

Page 37

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

Electrical Adjustments

REFER TO SAFETY GUIDELINES

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 38

SERVICE ADJUSTMENTS Required Tools For Servicing:

Isolation Transformer Multimeter Oscilloscope High Voltage (100:1) Oscilloscope Probe Sencore VG91 Universal Video Generator

Service Adjustment Notes:

Unless Otherwise Specified:

1. All service adjustments are ”hot“ voltagewise. For maximum safety, ensure the use of properly insulated tools.

2. Refer to the F8 Main Chassis Printed Circuit Board for location of test points and adjustable components.

3. Grid Locations (Ex.: D-2) next to the reference numbers for components refer to the Main Chassis Printed Circuit Board.

Caution: The F8 chassis incorporates a ”hot“ ground system. Always use a

separate isolation transformer when applying power to the exposed chassis.

Focus Adjustment

1. Tune the set to a local or cable station.

2. Adjust the Focus Control (located on the upper part of the flyback transformer) for best picture details at high light conditions.

Degaussing the Television

1. Position the television so that the screen faces the direction it will be facing when in use.

2. Ensure the set is turned off.

3. Move a degaussing coil in a circular motion slowly around the sides and front of the set.

4. Withdraw the degaussing coil at least six feet from the television before disconnecting it from its power source.

Service Modes:

Introduction

1. There are three service modes used in the F8 chassis. They are:

a. SDM - Service Default Mode b. SAM - Service Alignment Mode c. CSM - Customer Service Mode

2. The Service Default Mode (SDM) is a technical aid for the service technician. It is used for setting of options, reading error codes, and erasing error codes. This mode displays the Run Timer, Software Version, and current option settings. Service Default Mode (SDM) also establishes a fixed, repeatable setting of controls to allow measurements to be made. On screen display is kept at a minimum to reduce the cluttering of waveforms with unwanted information.

3. The Service Alignment Mode (SAM) is used to make tuning adjustments, align the white tone, adjust the picture geometry, and make sound adjustments.

4. The Customer Service Mode shows error codes and information on the TV operation settings. The servicer can instruct the customer to enter CSM by

Page 39

telephone and read off the information displayed. This helps the servicer to

with diagnosing or repairing a set. These are ”service unfriendly modes.“

diagnose problems and failures in the TV set before making a service call.

5. When in a service mode, "SDM" (for Service Default Mode) or ”SAM“ (for Service Alignment Mode) or ”CSM“ (for Customer Service Mode) will be displayed (in green) in the top right corner of the screen. All other On Screen Display (except highlighted items in SDM or SAM) will be in red.

6. It will be memorized in the EEPROM that the TV set is in SDM or SAM. This is necessary because the TV must show up in SDM or SAM again after an AC power interrupt.

7. When the television is in SAM or SDM, all normal features (such as volume control and direct channel access) are available.

EEPROM Replacement or Defective EEPROM

After replacing a EEPROM (or with a defective/no EEPROM) default settings will be used that enable the set to start up and that allow access to the Service Default Mode and Service Alignment Mode.

Service unfriendly modes

In the service modes, a number of modes/features are ignored since they interfere ”Ignoring“ means that the event that is triggered is not executed; the setting remains

unchanged (Example: Timer OFF: 8:00 PM; the set will not switch OFF in service mode at 8:00PM, but the setting will remain). The service unfriendly modes are:

• (Sleep) timer

• Blue mute

• Auto switch off (when there is no video signal identified)

• Hotel or hospital mode

• Smart lock or blocking by V-chip

• Skipping and/or blanking of ”Not Favorite“ channels

• Automatic storing of Personal Preset settings

• Automatic user menu time-out (menu switches back or OFF automatically)

Service Default Mode (SDM)

1. The Service Default Mode (SDM), sets the option codes and bytes of the set, and displays the error codes (the Power LED begins blinking procedure for error code display, if errors are detected). SDM also overrides software protections. The Service Default Mode (SDM) must be used when taking voltages and waveforms.

2. To enter the Service Default Mode, press the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Menu Do not allow the display to time out between entries while keying the sequence.

SDM can also be entered by pressing the Channel Down and Volume Down keys

on the local keyboard simultaneously while in SAM mode.

When Service Default Mode is entered, the text "SDM" will be displayed in the

upper right corner of the screen.

3. When Service Default Mode is entered, the Power LED will begin blinking to display any detected error codes, the set automatically tunes to Channel 3 (61.25 MHz), and service unfriendly modes are disabled. All customer controls are set to predetermined values.

4. When the unit is operating in Service Default Mode, all normal on-screen displays are suppressed and replaced by a special service display. A sample SDM display is shown below.

Page 40

5. To select an option code or option byte in SDM, use the Menu Up or Menu Down keys on the remote control.

6. To change the value of an option code, use the Menu Left or Menu Right keys.

7. To change the value of an option byte, enter the new value using the numeric keys on the remote control.

8. Press the Status button on the remote control to toggle the OSD (except ”SDM“) ON and OFF to prevent the OSD from interfering with measurements and oscilloscope waveforms.

9. Press the Menu button on the remote control while in SDM to switch the software to a Virtual Customer Mode; the text "SDM" will still be displayed in the upper right corner of the screen. In this mode, all customer menu adjustments to the set can be made. From the Virtual Customer Mode, press the Menu button to return to the SDM display.

10. To exit the Service Default Mode and erase the error codes, turn the unit off with the Power button on the remote control then unplug the AC cord.

11. To exit the Service Default Mode and save the error codes, unplug the AC cord to turn off the set. When the set is turned on again, the Service Default Mode will still be active.

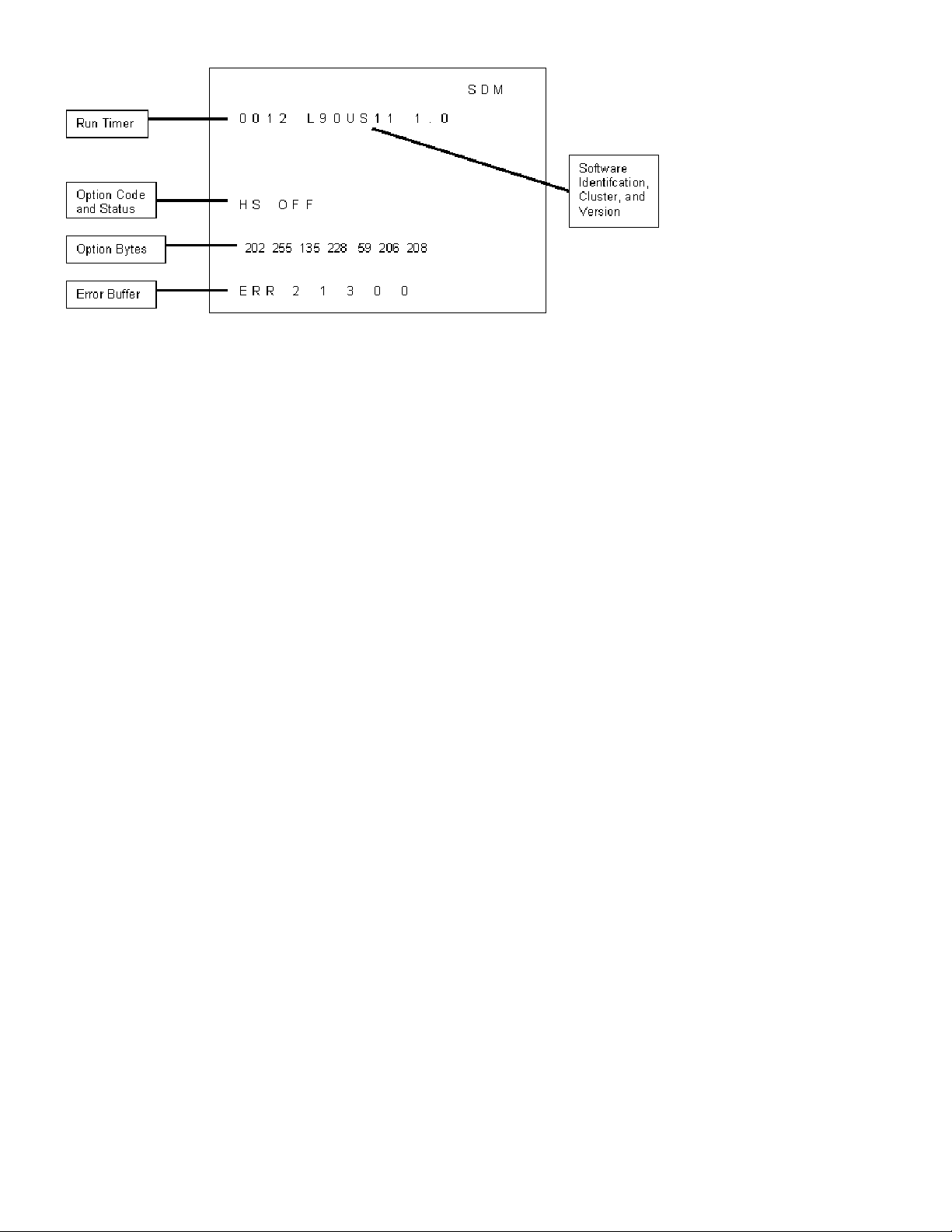

Explanation of Display: Run Timer

The run timer counts the normal operation hours, not the standby hours. The actual value of the run timer is displayed in SDM and CSM. The run timer displays hours in hexadecimal format. This display will increment based on the amount of time the set has been on. The timer will also be incremented one hour each time the set is turned on.

Software Identification, Cluster, and Version

The software identification, cluster, and version will be shown in the service main menu display. These numbers consist of the last part of the customer identification printed on the IC package; the screen will show ”AAABBC-X.Y“. (Example: L90US11 1.0)

− AAA is the engineering project name (Ex: L90 = L9.0).

− BB is a function specification indicating specific functionality or a region (Ex: US).

Processors with the same engineering project name and function name are interchangeable, except for the languages they support.

− C is the language cluster number within the ”BB“ software version

Page 41

(Ex: 11 = English/Spanish/French)

− X is the main version number (Ex: 1)

− Y is the sub version number (Ex: 0)

− the main version number is updated with a major change of specification

(incompatible with the previous software version)

− the sub version number is updated with a minor change (backwards compatible

with the previous versions)

− if the main version number changes, the new version number is written in the

EEPROM

− if the main version number changes, the default settings are loaded

− if the sub version number changes, the new version number is written in the

EEPROM

− if the EEPROM is fresh, the software identification, version and cluster will be

written to EEPROM

− Note: a new micro controller is considered to be compatible if it works instead of

the old software and the functionality is not significantly changed.

Error Buffer

Error codes are required to indicate failures in the television. For intermittent complaints, always check the error buffer. A unique error code is available for:

• activated protection (error codes 1, 2, and 3)

• failing I2C device

• general I2C error

• RAM failure (e.g. internal RAM of microprocessor (IC 7600)

Other error codes are:

• Signal processor (IC 7250) start-up error

• EEPROM check-sum error

The last five errors, remembered in the EEPROM, are shown in the service menu. This is called the error buffer. The error that is found last is displayed on the left, except when protection (1 to 3) is active. Errors 1, 2, and 3 are often shown at the right of the error buffer display whenever they are detected.

Example 1:

Suppose the display shows: 8 – 11 – 2– 0 – 0 With 2 displayed at the right of the error buffer, high beam current protection is active.

Example 2:

Suppose the display shows: 11 – 4 – 5– 3 – 0 With 3 displayed at the right of the error buffer, vertical protection is active.

The following error codes have been defined:

Error Code Table:

0 = No error 1 = X-Ray / overvoltage protection active 2 = High beam current (BCI) protection active 3 = Vertical protection active 4 = I²C error while communicating with the sound processor (IC 7833) 5 = Signal processor (IC 7250) start-up error 6 = I²C error while communicating with the signal processor IC (IC 7250) 7 = General I²C error * 8 = Internal RAM error micro controller 9 = EEPROM Configuration error (Checksum error)

Page 42

10 = I²C error, EEPROM error 11 = I²C error, PLL tuner

Note: I²C = (SCL/SDA) * General I²C error means: no I²C device is responding to the particular I²C

bus. Possible causes: SCL short circuit to GND, SDA short circuit to GND, SCL short circuit to SDA, SDA open circuit (at IC 7600), SCL open circuit (at IC 7600)

Reading Error Codes

Error codes are displayed in the following ways:

1. By SDM display or CSM display

2. By blinking Power LED

1. If the on screen display is working, enter SDM or CSM and read the error buffer display.

2. If the on screen display is not working, do the following: a. Remove AC power b. Use a jumper to connect pin M24 to pin M25 at IC 7601 (D-3) c. Apply AC power; read the error codes (see LED Sequence List below) d. If there is no LED indication, take the following steps as needed: Power on Press 0–6–2–5–9–6–Menu on the remote control Note: Some indications take 30 seconds or longer to appear on the LED.

3. LED Sequence List: a. Wait for long LED on (1.5 seconds) b. Count the following on flashes (individual errors are separated by 1.5

seconds LED off)

Example:

4. Displayed error codes are saved by removing the AC power. Displayed error codes are erased by pressing the power button on the remote control or local keyboard.

Option Code and Status Table

The following options in SDM can be identified:

Note: All options may not be available in some sets.

OPTION OP VALUES

System SY SS (This option is not used in US models) Option Byte 1 Option Byte 2 Option Byte 3 Option Byte 4 Option Byte 5 Option Byte 6 Option Byte 7

Slider Bar Value Display DP OFF/ON Animated Menu AM OFF/ON Hospital Mode HS OFF/ON Hotel Mode HT OFF/ON

OB1

Option Bytes 1 through 7 are used to set 8 options

OB2

simultaneously with one byte (value can be keyed in

OB3

with numerical buttons on remote control when the

OB4

byte is highlighted).

OB5

Values = 0 – 255

OB6

See the Chassis Feature Listing to see the values for

OB7

Option Bytes 1 through 7. These values can be used to set the option package for a particular model.

Page 43

Demo Mode DM OFF/ON Games Mode GM OFF/ON Clock (Volatile) CK OFF/ON Child Lock CL OFF/ON V-Chip VC OFF/ON V-Chip Block Unrated VU OFF/ON Block No Rating (V-Chip) VN OFF/ON Smart Sound SS OFF/ON Smart Picture SP OFF/ON Remote Control Type RC OFF = RC0702/04 remote control / ON =

All other remote controls

Channel Select Time Window TW OFF = 2-second time window / ON =

5-second time window Surf SF OFF/ON Video Mute (Channel Change) VM OFF/ON Tuner Type TN OFF = Philips tuner / ON= ALPS tuner Fine Tuning FT OFF/ON AV1 XT OFF/ON AV2 2X OFF/ON Auto Cable Detect CD OFF/ON Blue Mute BM OFF/ON No Ident (Auto Standby) NI OFF/ON Noise Reduction NR OFF/ON Contrast Plus CP OFF/ON Color Temperature CT OFF/ON East-West Functions EW OFF/ON (This option is not used in US models) Video Processor Standby BS OFF/ON Video Processor Auto Startup AS OFF/ON Bass/Treble Control/Boost BT OFF/ON Incredible Surround IS OFF/ON Volume Limiter VL OFF/ON Ultra Bass UB OFF/ON Automatic Volume Leveller

(AVL) SAP - Mono/Stereo DU OFF/ON Audio Out (Fixed/Variable) AO OFF/ON Sound Type ST BG/I/DK/M (Should remain on M) Sound Board SB DB = DBX/SAP (BTSC)

LV OFF/ON

EC = BTSC stereo (No SAP)

MA = Mono All

MS = Bi Sonic (Mono by tuner, stereo by A/V jacks)

Option SY : System

Function: Set the multi system hardware configuration Values: SS (This option is not used in US models)

OB 1 – OB 7 : Option Byte 1 – Option Byte 7

Function: Set 8 options simultaneously with one byte

(value can be keyed in with numerical buttons on remote control)

Values: 0 – 255

Option DP : Slider Bar Value Display

Function: Enable/disable slider bar value display in customer menu Values: OFF = Disable slider bar value display ON = Enable slider bar value display

Option AM : Animated Menu

Function: Enable/disable animated menu Values: OFF = Disable animated menu display

Page 44

ON = Enable animated menu display

Option HS : Hospital Mode

Function: Enable/disable the possibility to enter hospital mode Values: OFF = Disabled, hospital mode cannot be entered ON = Enabled, hospital mode can be entered

Option HT : Hotel Mode

Function: Enable/disable the possibility to enter hotel mode Values: OFF = Disabled, hotel mode cannot be entered ON = Enabled, hotel mode can be entered

Option DM : Demo Mode

Function: Enable/disable the possibility to enter demo mode Values: OFF = Disabled, demo mode is not active ON = Enabled, demo mode is active

Option GM : Games Mode

Function: Enable/disable games function Values: OFF = Disabled, games command is ignored ON = Enabled, games command is processed

Option CK : Clock (Volatile)

Function: Enable/disable clock function Values: OFF = Disabled, clock menu not available ON = Enabled, clock menu available

Option CL : Child Lock

Function: Enable/disable child lock function Values: OFF = Disabled, child lock menu not available ON = Enabled, child lock menu available

Option VC : V-Chip

Function: Enable/disable v-chip function (customer menu item Smartlock) Values: OFF = Disabled, v-chip menu (customer menu item Smartlock) Not available ON = Enabled, v-chip menu (customer menu item Smartlock) available

Option VU : V-Chip Block Unrated

Function: Enable/disable V-Chip block unrated (in Smartlock menu) Values: OFF = Disabled, V-Chip block unrated (in Smartlock menu) not available ON = Enabled, V-Chip block unrated (in Smartlock menu) available

Option VN : Block No Rating (V-Chip)

Function: Enable/disable block no rating V-Chip (in Smartlock menu) Values: OFF = Disabled, block no rating V-Chip (in Smartlock menu) not available ON = Enabled, block no rating V-Chip (in Smartlock menu) available

Option SS : Smart Sound

Function: Enable/disable smart sound function Values: OFF = Disabled, Smart Sound command is ignored ON = Enabled, Smart Sound command is processed

Option SP : Smart Picture

Function: Enable/disable smart picture function Values: OFF = Disabled, Smart Picture command is ignored ON = Enabled, Smart Picture command is processed

Option RC : Remote Control Type

Function: Choose the type of remote control to be used Values: OFF = RC0702/04 remote control ON = All other remote controls Note: If changed, this option can only be returned to the original setting by option

byte correction.

Page 45

Option TW : Channel Select Time Window

Function: Select time window for channel selection Values: OFF = 2-second time window for channel selection ON = 5-second time window for channel selection

Option SF : Surf

Function: Enable/disable the possibility to enter surf mode Values: OFF = Disabled, customer menu item Surf not available and A/CH command alternates channels ON = Enabled, customer menu item Surf available and A/CH command surfs or alternates channels

Option VM : Video Mute (Channel Change)

Function: Enable/disable video mute during channel change Values: OFF = Disabled, no video mute during channel change ON = Enabled, video muted during channel change

Option TN : Tuner Type

Function: Choose the tuner type that is configured in the hardware Values: OFF = Philips tuner (A Philips tuner will have the Philips name embossed on the side) ON = ALPS tuner (An ALPS tuner will not have the Philips name embossed on the side)

Option FT : Fine Tuning

Function: Enable/disable fine tuning Values: OFF = Customer menu item fine tuning disabled ON = Customer menu item fine tuning enabled

Option XT : AV1

Function: Enable/disable external input source 1 (Ext 1) Values: OFF = Disabled, external input source 1 (Ext 1) not available ON = Enabled, external input source 1 (Ext 1) available

Option 2X : AV2

Function: Enable/disable external input source 2 (Ext 2) Values: OFF = Disabled, external input source 2 (Ext 2) not available ON = Enabled, external input source 2 (Ext 2) available

Option CD : Auto Cable Detect

Function: Enable/disable automatic detection of Cable/Broadcast during autostore. Values: OFF = Disabled, autostore uses the selected Cable/Broadcast setting ON = Enabled, autostore will detect and set Cable/Broadcast mode

Option BM : Blue Mute

Function: Enable/disable blue mute when no television station signal is present Values: OFF = Disabled, no blue mute when no television station signal is present ON = Enabled, blue mute active when no television station signal is present

Option NI : No Ident (Auto Standby)

Function: Enable/disable automatic switch to standby after 10 minutes when no

television station signal is present Values: OFF = Disabled, no automatic switch to standby ON = Enabled, set switches to standby after 10 minutes when no

television station signal is present

Option NR : Noise Reduction

Function: Enable/disable noise reduction function Values: OFF = Disabled, customer menu item Noise Reduction not available ON = Enabled, customer menu item Noise Reduction available

Option CP : Contrast Plus

Function: Enable/disable contrast plus function Values: OFF = Disabled, customer menu item Contrast Plus not available ON = Enabled, customer menu item Contrast Plus available

Page 46

Option CT : Color Temperature

Function: Enable/disable color temperature function Values: OFF = Disabled, customer menu item Color Temperature not available ON = Enabled, customer menu item Color Temperature available

Option EW : East-West Functions

Function: Enable/disable east-west control function Values: OFF = Disabled, east-west alignment not available in SAM (EWW, EWP, EWC, EWT) ON = Enabled, east-west alignment available in SAM (EWW, EWP, EWC, EWT)

Option BS : Video Processor Standby

Function: Enable/disable video processor standby Values: OFF = Disabled, video processor standby is not active ON = Enabled, video processor standby is active

Option AS : Video Processor Auto Startup

Function: Enable/disable video processor auto-startup Values: OFF = Enabled, video processor is in auto-startup mode ON = Disabled, video processor is switched on under control of microcontroller

Option BT : Bass/Treble Control/Boost

Function: Enable/disable bass and treble function Values: OFF = Disabled, customer menu items Bass and Treble not available ON = Enabled, customer menu items Bass and Treble available

Option IS : Incredible Surround

Function: Enable/disable incredible surround function Values: OFF = Disabled, incredible surround function not available ON = Enabled, incredible surround function available

Option VL : Volume limiter

Function: Enable/disable volume limiter Values: OFF = Disabled, customer menu item Volume Limiter not available ON = Enabled, customer menu item Volume Limiter available

Option UB : Ultra Bass

Function: Enable/disable ultra bass function Values: OFF = Disabled, ultra bass function not available

ON = Enabled, ultra bass function available

Option LV : Automatic Volume Leveller (AVL)

Function: Enable/disable automatic volume leveller function Values: OFF = Disabled, customer menu item AVL not available ON = Enabled, customer menu item AVL available

Option DU : SAP

Function: Set SAP configuration (sets with DBX stereo system only) Values: OFF = Disabled, stereo/SAP not available ON = Enabled, stereo/SAP available

Option AO : Audio Out (Fixed/Variable)

Function: Set audio output type (where present) Values: OFF = Fixed audio out ON = Variable audio out (always on)

Option ST : Sound Type

Function: Set the sound type Values: BG PAL system

I PAL system

DK PAL system M Default for USA

Option SB : Sound Board

Function: Set the sound board configuration Values: DB = DBX/SAP (BTSC)

EC = BTSC stereo (No SAP)

Page 47

MA = Mono All

MS = BiSonic (Mono from tuner, Stereo from A/V jacks)

Service Alignment Mode (SAM)

1. The Service Alignment Mode (SAM) is used to make tuning adjustments, align the white tone, adjust the picture geometry, and make sound adjustments.

2. To enter the Service Alignment Mode (SAM), press the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status Do not allow the display to time out between entries while keying the sequence. SAM can also be entered by pressing the Channel Down and Volume Down keys

on the local keyboard simultaneously while in SDM mode. When Service Alignment Mode is entered, the text "SAM" will be displayed in the top right corner of the screen.

3. When Service Alignment Mode is entered, service unfriendly modes are disabled. The following volatile SAM item values are set:

♦ AKB = 0 ♦ VSD = 0 ♦ AFW = 275 kHz ♦ SBL = 0

4. When the unit is operating in Service Alignment Mode, all normal on-screen displays are suppressed and replaced by a special service display. The first screen seen upon entering SAM is the ”top level SAM menu.“ The service technician must return to the top level SAM menu before exiting with a power-off command. A sample SAM top level menu display is shown below.

Explanation of top level SAM menu display:

The Software Identification, Cluster, and Version are explained in the Service Default Mode section under ”Explanation of Display.“ The Menu Items and Sub Menus are explained below. Note: The ”Audio“ sub menu will not be seen on screen when Service Alignment

Mode is first entered. Use the Menu Up and Menu Down buttons on the remote control to view all menu items and sub menu choices.

5. To select a menu item or a sub menu in SAM, use the Menu Up or Menu Down keys on the remote control to highlight the item or menu you wish to adjust.

6. To change the value of a highlighted SAM menu item (AKB or VSD), use the Menu Left or Menu Right keys on the remote control.

Page 48

7. To enter a highlighted SAM sub menu, use the Menu Left or Menu Right keys.

After entering the sub menu, use the Menu Up or Menu Down to select an item

within the sub menu.

Use the Menu Left or Menu Right keys to change the value of the selected item.

Press the Menu button to return to the top level SAM menu.

8. Press the Menu button on the remote control while in SAM to switch the software to a Virtual Customer Mode; the text "SAM" will still be displayed in the upper right corner of the screen. In this mode, all customer menu adjustments to the set can be made. From the Virtual Customer Mode, press the Menu button to return to the SAM Menu.

9. Press the Status button on the remote control to toggle the OSD (except ”SAM“) ON and OFF.

10. To exit the Service Alignment Mode, turn the set off with the Power button on the remote control. To turn off the set without exiting SAM (or erasing any stored error codes), unplug the AC cord. When the set is powered on again, the Service Alignment Mode will still be active. Note: When SAM is exited or a power interrupt occurs, the volatile SAM items

AKB, VSD, AFW, and SBL will be reset to their original values.

Main Menu

The SAM main menu contains the following items:

− AKB

− VSD

− Tuner sub menu

− White Tone sub menu

− Geometry sub menu

− Audio sub menu

Menu: MAIN Values Remarks AKB Black current loop

(Auto Kine Bias)

VSD Vertical scan

disable

TUNER WHITE TONE GEOMETRY AUDIO

OFF/ON (0/1) OFF/ON (0/1)

> > > >

Tuner sub menu

The tuner sub menu contains the following items:

− IF-PLL

− AFW

− AGC

− YD

− CL

− AFA and AFB

The items AFA and AFB cannot be selected; they are for monitoring purposes only. The item values are stored in EEPROM if this sub menu is left. A sample display of the Tuner sub menu is shown below.

Page 49

Sub Menu: TUNER Values Remarks IF-PLL IF-PLL alignment 0 – 127 This adjustment is auto-aligned

(no action required)

AFW AFC window 1 2 5 / 2 7 5

kHz

AGC AGC takeover

point

YD Y-delay

adjustment

CL Cathode drive

level AFA 0 / 1 read only, not accessible AFB 0 / 1 read only, not accessible

0 – 63 See below 0 – 15 Always set to 12 (no effect) 0 – 7 Always set to 4

Always set to 275 kHz

Tuner Adjustment: AGC Takeover Point (AGC):

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Tuner sub menu.

3. Use the menu left/right keys to enter the Tuner sub menu.

4. In the Tuner sub menu, use the Menu Up/Down keys to highlight AGC.

5. Use the Menu Right key to raise the value of AGC until snow appears in the picture.

6. Then use the Menu Left/Right keys to reduce AGC value until the snow disappears. a. AGC values between 10 and 20 are nominal. b. Single digit AGC values may cause overload.

7. Upon completion of Tuner adjustment, press the Menu button to return to the top

Page 50

level SAM menu.

White Tone sub menu

The white tone sub menu contains the following items:

− Normal Red

− Normal Green

− Normal Blue

− Delta Cool Red

− Delta Cool Green

− Delta Cool Blue

− Delta Warm Red

− Delta Warm Green

− Delta Warm Blue

Note: Delta values are only used in models with the item ”Color Temperature“ in the

customer menu.

OSD is kept to a minimum in this menu, in order to make white tone alignment possible. The item values are stored in EEPROM if this sub menu is left. The Contrast Plus feature (black stretch) is set to OFF when the White Tone sub menu is entered. A sample display of the White Tone sub menu is shown below.

Sub Menu: WHITE TONE Value

Range

NORMAL Starting Values:

NORMAL RED 0 – 63 45 NORMAL GREEN 0 – 63 32 NORMAL BLUE 0 – 63 39

COOL

DELTA COOL RED –2 Delta values are a change of the

Default

Value

Remarks

normal values. These start at the default values, and are set to

Page 51

DELTA COOL RED –2 Delta values are a change of the

normal values. These start at the default values, and are set to achieve cool and warm steps of color temperature in the customer menu. Standard factory settings are

given as the default values. DELTA COOL GREEN 0 DELTA COOL BLUE +6

WARM

DELTA WARM RED +2 DELTA WARM GREEN 0 DELTA WARM BLUE –7

White Tone Adjustments:

Note: The following procedure was performed with a Sencore VG91 Universal Video

Generator providing grey scale bars.

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the White Tone sub menu.

3. Use the Menu Left/Right keys to enter the White Tone sub menu.

4. Set the VG91 Generator as follows: STD TV Ch. 3, RF-IF Range set to HI, RF-IF Level set to NORMAL (1), Video Pattern = Raster, R-G-B raster controls OFF.

5. Connect the RF output of the generator to the Television Antenna Input, and adjust the VG91 level to remove any snow from the raster.

6. Turn off chroma at generator and leave grey scale bars.

7. From the White Tone sub-menu, use the Menu Up/Down keys to select Normal Red, Normal Green, or Normal Blue. Then use the Menu Left/Right keys to adjust the values to obtain the best white balance.

8. A reasonable starting point for NORMAL is:

Normal Red=45, Normal Green=32, Normal Blue=39

9. After NORMAL is set, use the same method to set DELTA COOL and DELTA WARM as offsets. A reasonable starting point for DELTA COOL is: Delta Cool Red=(–2), Delta Cool Green=0, Delta Cool Blue=+6 A reasonable starting point for DELTA WARM is: Delta Warm Red=+2, Delta Warm Green=0, Delta Warm Blue=(-7)

10. After the values are set, or if no changes are required, press Menu to return to the top level SAM menu.

Geometry sub menu

OSD is kept to a minimum in this sub menu in order to make picture geometry adjustments possible. The item values are stored in EEPROM if this sub menu is left. The value of item Service Blanking (SBL) is not stored in EEPROM, and it is set to OFF when the geometry sub menu is exited. A sample display of the Geometry sub menu is shown below.

Page 52

The picture geometry sub menu contains the following items:

Sub Menu:

VAM Vertical amplitude 0 – 63 VSL Vertical slope 0 – 63 SBL Service blanking ON/OFF HSH Horizontal shift 0 – 63 EWW E-W width 0 – 63 Only available in models with an

EWP E-W parabola/width 0 – 63 Only available in models with an EWT E-W trapezium 0 – 63 Only available in models with an EWC E-W corner parabola 0 – 63 Only available in models with an H60 Delta HSH for 60 Hz 0 – 15 Not used

V60 Delta VAM for 60 Hz 0 – 15 Not used VSC Vertical S-Correction 0 – 63 VSH Vertical shift 0 – 63

GEOMETRY Values Remarks

East-West Panel (Diode Modulator) East-West Panel (Diode Modulator) East-West Panel (Diode Modulator) East-West Panel (Diode Modulator)

Geometry Adjustments:

Notes:

1. The following Geometry adjustments were performed with a Sencore VG91 Universal Video Generator.

2. Set the VG91 Generator as follows: STD TV Ch. 3, RF-IF Range set to HI, RF-IF Level set to NORMAL (1), Video Pattern = Raster, R-G-B raster controls OFF, crosshatch or center cross pattern as required.

3. Connect the RF output of the generator to the Television Antenna Input, and adjust the VG91 level to remove any snow from the raster.

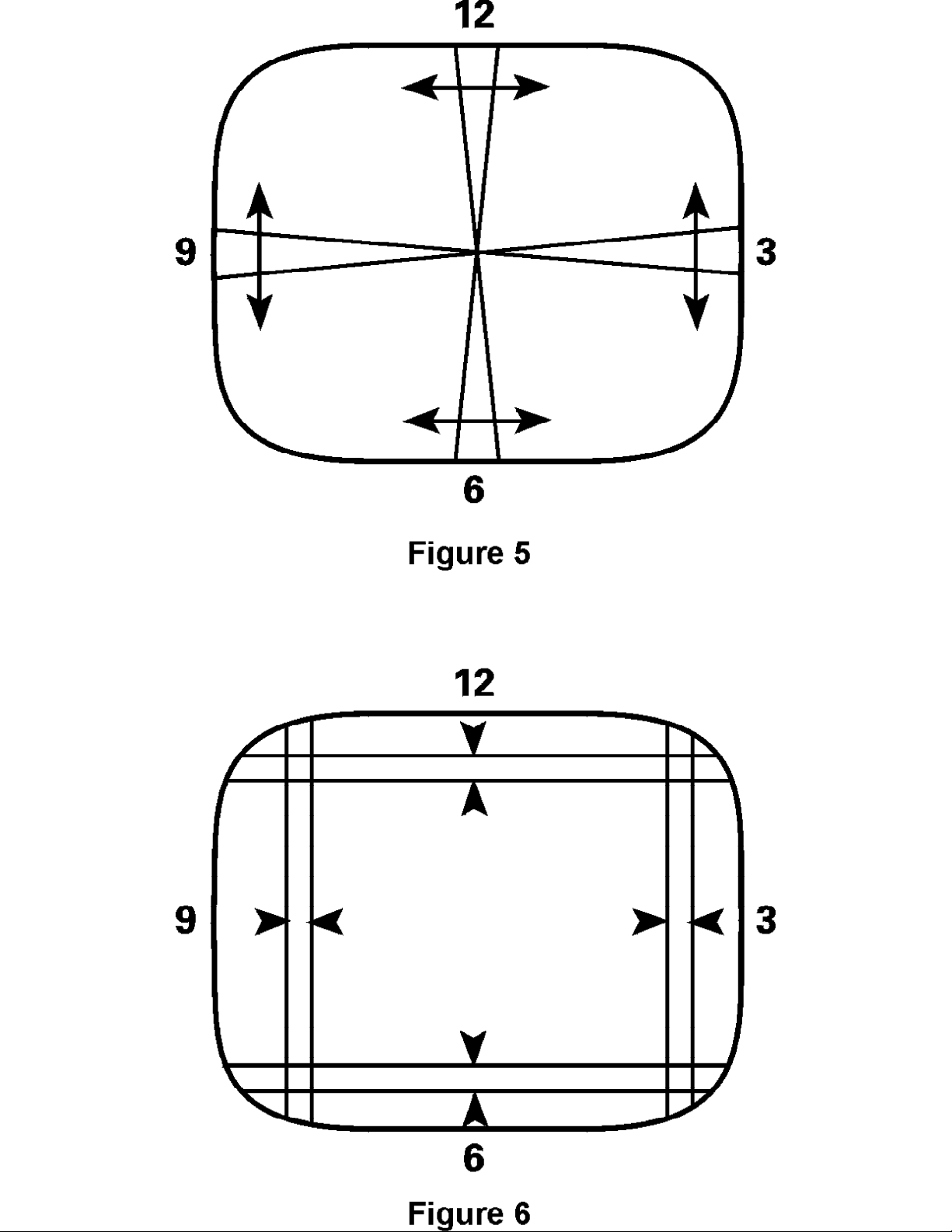

Vertical Shift (VSH):

Page 53

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub-menu, use the Menu Up/Down keys to select VAM.

5. Input a center cross pattern to the antenna/cable input terminal.

6. Using the Menu Left/Right keys, adjust VSH so that the horizontal bar is properly centered, top to bottom.

7. If other Geometry adjustments are needed, proceed to the necessary adjustment using the Menu Up/Down buttons.

8. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

Vertical Amplitude (VAM):

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub-menu, use the Menu Up/Down keys to select VAM.

5. Input a crosshatch pattern to the antenna/cable input terminal.

6. Using the Menu Left button, reduce the value so that the picture does not fill the entire screen.

7. Use the Menu Up/Down keys to select VSH (Vertical Shift) from the Geometry sub-menu and, using the Menu Left/Right keys, center the picture on the screen, top to bottom.

8. Using the cursor up/down keys, select VAM from the Geometry sub-menu, and use the Menu Right key to increase the value to obtain a slight overscan.

9. If other Geometry adjustments are needed, proceed to the necessary adjustment using the Menu Up/Down buttons.

10. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

Horizontal Shift (HSH):

Note: This adjustment centers the video on the raster. It does not move the raster.

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub-menu, use the Menu Up/Down keys to select HSH.

5. Input a center cross pattern to the antenna/cable input terminal.

6. Using the Menu Left/Right keys, adjust HSH so that the vertical bar is properly centered, left to right.

7. If other Geometry adjustments are needed, proceed to the necessary adjustment using the Menu Up/Down keys.

8. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

Page 54

Vertical Slope (VSL):

when centering the raster. It can also be used in adjusting the yoke and setting

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub-menu, use the Menu Up/Down keys to select VSL.

5. Input a crosshatch pattern to the antenna/cable input terminal.

6. Using the Menu Left/Right keys, adjust VSL so that the squares at the bottom of the screen are equal in size to the squares at the top of the screen.

7. If other Geometry adjustments are needed, proceed to the necessary adjustment using the Menu Up/Down keys.

8. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

Vertical S-Correction (VSC):

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub-menu, use the Menu Up/Down keys to select VSC.

5. Input a crosshatch pattern to the antenna/cable input terminal.

6. Using the Menu Left/Right keys, adjust VSC so that the squares at the center of the screen are equal in size to the squares at the top and bottom of the screen.

7. If other Geometry adjustments are needed, proceed to the necessary adjustment using the Menu Up/Down keys.

8. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

Service Blanking (SBL):

Service Blanking provides a straight cutoff line in the center of the raster. It is useful vertical size and linearity.

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub-menu, use the Menu Up/Down keys to select SBL.

5. Use the Menu Left/Right keys to toggle SBL ON or OFF.

6. With SBL on, VSH can be used to center the raster on the fiduciary marks (the small notches in the phosphor on the right and left edge of the CRT). These are absolute center.

7. If other Geometry adjustments are needed, proceed to the necessary adjustment using the Menu Up/Down keys.

8. Upon completion of Geometry adjustments, press the Menu button to return to

Page 55

the top level SAM menu.

Delta HSH for 60Hz (H60):

Note: This adjustment should not be changed from the factory preset value (10).

Delta VAM for 60Hz (V60):

Note: This adjustment should not be changed from the factory preset value (5).

Note: The following GEOMETRY adjustments can only be performed on models

containing an East-West Panel (Diode Modulator).

East-West Width (EWW):

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence

on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the

Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub menu, use the Menu Up/Down keys to select EWW.

5. Input a crosshatch pattern to the antenna/cable input terminal.

6. Use the Menu Left key to reduce the value of EWW so that the picture does not fill

the entire screen.

7. Use the Menu Up/Down keys to select HSH (Horizontal Shift) from the Geometry

sub menu and, using the Menu Left/Right keys, center the picture on the screen.

8. Use the Menu Up/Down keys to select EWW from the Geometry sub menu, and

use the Menu Right key to increase the value to obtain a slight overscan.

Note: Remember, adjusting EWW will affect other horizontal adjustments.

9. If other Geometry adjustments are needed, proceed to the necessary adjustment

using the Menu Up/Down keys.

10. Upon completion of Geometry adjustments, press the Menu button to return to

the top level SAM menu.

East-West Parabola/Width (EWP):

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence

on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the

Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub menu, use the Menu Up/Down keys to select EWP.

5. Input a crosshatch pattern to the antenna/cable input terminal.

6. Use the Menu Left/Right keys to adjust the value of EWP.

7. This adjusts the top and bottom of the right and left side of the raster, adjusting the

raster by “bending” it out or in.

8. This adjustment should be set so that the screen appears to be straight and “flat.”

9. If other Geometry adjustments are needed, proceed to the necessary adjustment

using the Menu Up/Down keys.

10. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

East-West Trapezium (EWT):

Page 56

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence

on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the

Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub menu, use the Menu Up/Down keys to select EWT.

5. Input a crosshatch pattern to the antenna/cable input terminal.

6. Use the Menu Left/Right keys to adjust the value of EWT.

7. This balances the width at the top of the screen to the width at the bottom of the

screen.

8. This adjustment should be set so the top and bottom of the screen are of equal

width.

9. If other Geometry adjustments are needed, proceed to the necessary adjustment

using the Menu Up/Down keys.

10. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

East-West Corner Parabola (EWC):

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence

on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the

Geometry sub menu.

3. Use the Menu Left/Right keys to enter the Geometry sub menu.

4. In the Geometry sub menu, use the Menu Up/Down keys to select EWC.

5. Input a crosshatch pattern to the antenna/cable input terminal.

6. Use the Menu Left/Right keys to adjust the value of EW CORNER.

7. This adjustment affects the very corner sections of the raster, and acts as a

“touch-up” of the EWP (East-West Parabola/Width) adjustment.

8. This adjustment should be set so the corners of the screen are straight and equal

in size.

9. If other Geometry adjustments are needed, proceed to the necessary adjustment

using the Menu Up/Down keys.

10. Upon completion of Geometry adjustments, press the Menu button to return to the top level SAM menu.

Audio sub menu

The audio sub menu item values are stored in EEPROM if this sub menu is left. A sample display of the Audio sub menu is shown below.

Page 57

The Audio sub menu contains the following item on stereo chassis:

Sub Menu: AUDIO Values Remarks AT Attack time at AVL 1 – 4 Normal setting is

Audio Adjustment: Attack Time at AVL (AT):

1. Enter the Service Alignment Mode (SAM) by pressing the following key sequence on the remote control transmitter:

0-6-2-5-9-6-Status

Do not allow the display to time out between entries while keying the sequence.

2. From the top level SAM menu, use the Menu Up/Down keys to highlight the Audio sub menu.

3. Use the Menu Left/Right keys to enter the Audio sub menu.

4. Use the Menu Left/Right keys to adjust the value of AT.

5. Set the volume of AT to 4.

6. Upon completion of Audio adjustment, press the Menu button to return to the top level SAM menu.

Convergence and Purity Adjustments

Notes:

1. The following adjustments were performed with a Sencore VG91 Universal Video Generator.

2. Set the VG91 Generator as follows: STD TV Ch. 3, RF-IF Range set to HI, RF-IF Level set to NORMAL (1), Video Pattern = Raster, R-G-B raster controls OFF, Mode Switch set to L+R, Audio Frequency set to 300Hz, and 0 Pilot (max. CCW).

3. Connect the RF output of the generator to the Television Antenna Input, and adjust the VG91 level to remove any snow from the raster.

Page 58

Pre-Convergence Procedure

Note: The degaussing procedure should be performed prior to this adjustment.

1. Place the multi-pole Purity and Convergence Assembly with the 2-Y pole purity rings directly in the gap between the G2 and G3 (focus) grids as shown in the "Convergence and Purity Assembly" graphic.

2. Enter Service Alignment Mode (refer to Service Alignment Mode section).

3. Apply a center cross or crosshatch pattern to the antenna/cable input terminal.

4. Select the White Tone sub-menu by pressing the Menu Up/Down keys on the remote control so that White Tone is highlighted.

5. Use the Menu Left/Right keys to enter the White Tone sub-menu.

6. Use Menu Up/Down keys to toggle between the options. Be sure to record the values of all options (Normal Red/Green/Blue, Delta Cool Red/Green/Blue, and Delta Warm Red/Green/Blue).

7. Use the Menu Up/Down keys to select Normal Green, and use the Menu Left key to set Normal Green to minimum.

8. Loosen the yoke clamp screw, pull the yoke back, and remove the three yoke wedges.

9. Slide the yoke all the way forward so that it rests against the bell of the CRT.

10 Tighten the yoke clamp screw so that the yoke does not drop away from the bell

of the CRT.

11. Slowly spread, and if necessary, rotate the 2-Y pole purity rings so that the red and blue lines are at least parallel and preferably coincide at the 6:00 and 12:00 positions as shown in the "2Y Spread and 2Y Rotate" graphic.

12. Proceed to the Color Purity Adjustment.

Color Purity Adjustment

1. Connect a solid white pattern signal to the antenna/cable input terminal.

2. Use the Menu Up/Down keys to select Normal Blue, and use the Menu Left key to set Normal Blue to minimum.

3. Use the Menu Up/Down keys to select Normal Red, and use the Menu Right key to set Normal Red to maximum.

4. Slowly spread the 2-X pole purity rings to center the red portion of the screen, leaving the same amount of green on one side of the screen as blue on the other side.

5. Tighten the yoke clamp screw slightly so that the yoke may be moved with some friction.

6. Proceed to the Static Center Convergence Adjustment.

Static Center Convergence Adjustment

1. Apply a center cross or crosshatch pattern to the antenna/cable input terminal and observe the screen to ensure that the yoke is not tilted. If necessary, rotate the yoke to obtain a level raster.

2. Use the Menu Up/Down keys to select Normal Blue, and use the Menu Right key to set Normal Blue to maximum.

3. Slowly spread, and if necessary, rotate the 4-pole magnetic rings to converge red and blue lines at the center of the screen.

4. Use the Menu Up/Down keys to select Normal Green, and use the Menu Right key to set Normal Green to maximum.

5. Slowly spread, and if necessary, rotate the 6-pole magnetic rings to converge red/blue on green lines at the center of the screen.

6. Repeat steps three and five for optimum performance.

7. Proceed to the Dynamic Edge Convergence Adjustment.

Page 59

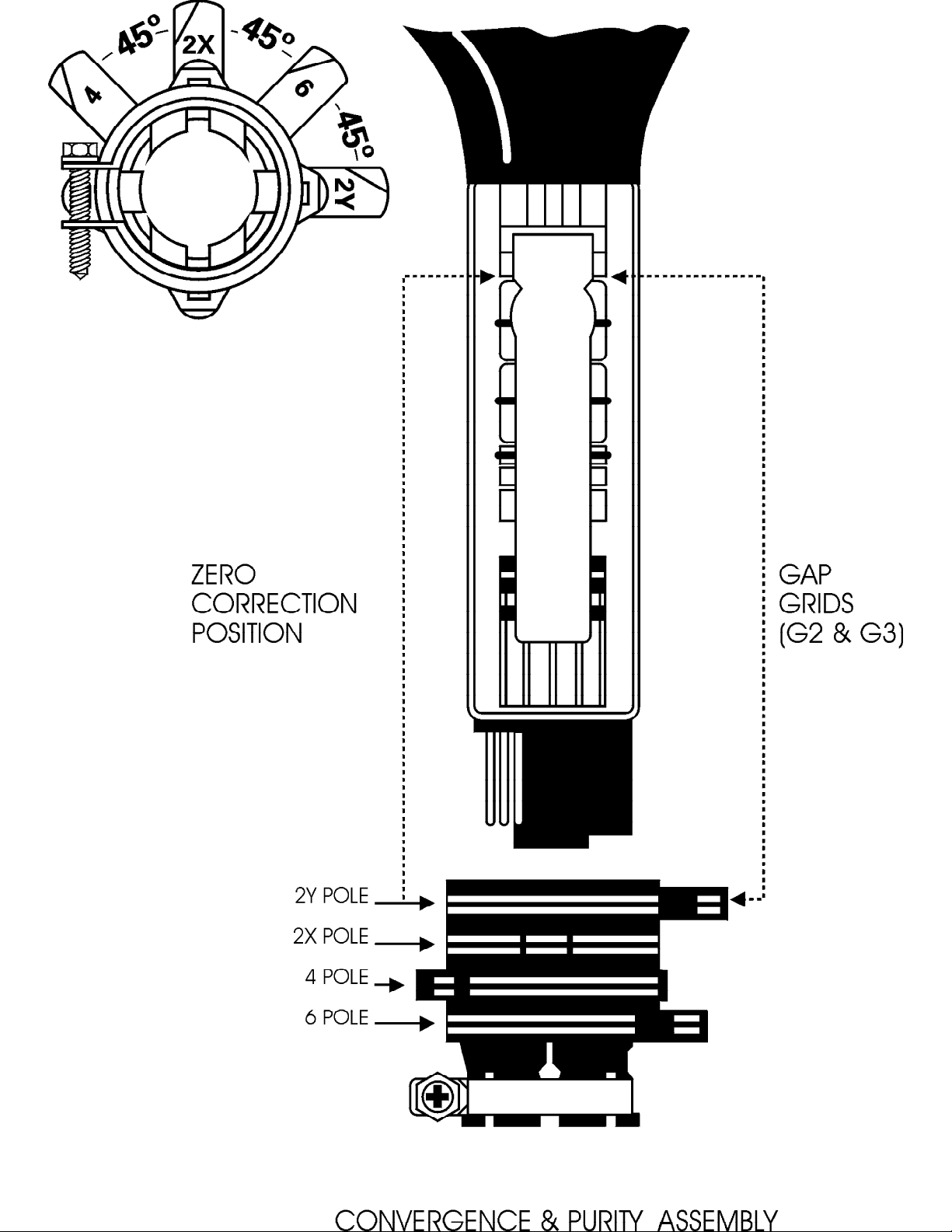

(Display Convergence and Purity Assembly)

Dynamic Edge Convergence Adjustment

Note: To secure the correct position of the deflection yoke, three rubber wedges are

used. They are ultimately to be placed as shown in Figure 3c or Figure 4c.

1. Apply a crosshatch pattern to the antenna/cable input terminal.

2. Use the Menu Up/Down keys to select Normal Green, and use the Menu Left key to set Normal Green to minimum.

3. Tilt the yoke up and down to converge the red and blue vertical lines at the 6:00 and 12:00 positions and the red and blue horizontal lines at the 3:00 and 9:00 positions (refer to Figure 5 ). When the correct position has been found, place a rubber wedge between the yoke and the CRT. If the yoke is tilted up, place wedge one as shown in Figure 3a; if it is tilted down, place wedge one as shown in Figure 4a.

4. Tilt the yoke to the left and right to find the point of best possible convergence of the red and blue lines at the edges, top and bottom of the screen as shown in Figure 6. When the correct position is located, place wedges two and three as shown in Figure 3b or Figure 4b.

5. Remove wedge one and place it in the final position as shown in Figure 3c or Figure 4c.

6. Use the Menu Up/Down keys to select Normal Green, and use the Menu Right key to set Normal Green to maximum.

7. Proceed to the White Balance Setup.

(Display Figures 3a, 3b, 3c, 4a, 4b, & 4c of Wedge Placement Display)

(Display Figures 5 & 6 of Yoke Tilt Display)

Master Screen (VG2)/ White Balance Setup:

1. With the set OFF, rotate VG2 (located on the lower part of the flyback transformer) counterclockwise.

2. Use the Power Button (on the remote control or the local keyboard) to turn the set ON, without a signal, and rotate VG2 clockwise until snow is visible.

3. Enter Service Alignment Mode (refer to Service Alignment Mode section).

4. Enter the Virtual Customer Menu by pressing the Menu button on the remote and set brightness and picture to 31 and color to 0.

5. Apply an NTSC color bar signal to the antenna/cable input terminal and tune to the active channel.

6. Connect an oscilloscope, 20V per division and 10 uSec time base, to pin 6 of the CRT Socket. Observe the stairstep pattern while adjusting VG2.

Hint: Counterclockwise adjustment will compress bottom of stairstep pattern.

Clockwise adjustment will compress top of stairstep pattern.

7. Adjust VG2 midway between top and bottom compression.

8. Proceed to White-Tone Adjustments under White Tone sub-menu in the Service Alignment Mode section to complete White Balance Setup.

Customer Service Mode (CSM)

1. The Customer Service Mode (CSM) is used to retrieve data on the TV operation

settings and stored error codes.

2. To enter the Customer Service Mode, press and hold the Mute button on the

Page 60

remote control and any key on the local keyboard (except ”Power“) for more than 4 seconds. When the set is in Customer Service Mode, the text "CSM" is displayed in the top right corner of the screen.

3. To use this system, the customer is instructed by phone to enter CSM and read off

the display that appears. This information is useful to gain insights into failures before traveling to the customer's home.

4. This information can also be used to avoid nuisance trips to the home when the

problem is an operational error (example: Closed Caption is on or set is in Hospital Mode).

5. When entering CSM, all disruptive functions are turned off, and service unfriendly

modes are ignored. While CSM is active, no changes can be made in settings or functions. When CSM is exited, the TV returns to all prior operational settings.

6. To exit CSM, press any key (on the remote control or local keyboard) except

”Channel Up“ or ”Channel Down.“ To exit CSM and return the set to normal operation mode, press any key on the local keyboard or the remote control except Channel Up, Channel Down, or Power. To exit CSM and turn the set off, press the Power button on either the TV set or the remote control.

7. A sample CSM display is shown below.

C S M 1 002A L90US11 1.0 2 CODES 0 0 0 0 0 3 OP 202 255 135 228 59 206 208 4 SYS: 5 NOT TUNED 6 7 8 9 VOL LIM 255

Explanation of CSM Display Screen

The following information is displayed on screen:

• Text ”CSM“ on the first line

• Line number for every line (to make CSM language independent)

• To view multiple CSM pages (such as lines 8 and 9), use the Channel Up or

Channel Down keys

• For more information on lines 1, 2, and 3, see SDM section ”Explanation of Display“

• Line 1 displays the run timer and the software identification, cluster, and version

• Line 2 displays the error buffer contents (the word ”error“ is not used on this

Page 61

screen, instead ”codes“ is used)

• Line 3 displays the option code information

• Line 4 displays SYS: (This is not used)

• Lines 5 through 8 display information on active service unfriendly modes

• Line 5 displays the text ”NOT TUNED“ if no television station is tuned

• Line 6 displays the text ”TIMER“ if the sleep timer or ”on“ timer is active

• Line 7 displays the text ”LOCKED“ if one or more channels or presets is locked via

child lock

• Line 8 displays the text ”HOSPITAL“ if hospital mode is active, or ”HOTEL“ if hotel mode is active

• If the volume limiter is active, line 9 displays the text ”VOL LIM“ and the set value of the volume limiter. If the volume limiter is inactive, the displayed value will be 255 (the maximum volume allowed).

CSM Flow Chart

Page 62

Normal operation mode

any key on the local keyboard

feature settings (that were

when the set is switched on,

picture, sound and feature

Press "MUTE" button (RC) and

(except "POWER") for more than 4 seconds

Store current picture, sound and feature settings (for later retrieval)

Set pre-defined picture, sound and feature settings

Ignore service unfriendly options

Display CSM information screen

"Channel up" (RC or local keyboard)

Exit CSM

Restore picture, sound and stored during entry)

Other key

"Channel down" (RC or local keyboard)

“POWER” (RC or local keyboard)

To next CSM pageTo previous CSM page

Off (Exit CSM):

settings (that were stored during entry) are restored

F8 CHASSIS OPTION BYTES & FEATURE LISTINGS

USA/CANADIAN CHASSIS LISTINGS LATIN AMERICAN CHASSIS LISTINGS INDUSTRIAL CHASSIS LISTINGS

Page 63

Convergence and Purity Assembly - (Display Convergence and Purity Assembly)

Page 64

2Y Spread and 2Y Rotate

Page 65

(Display Figures 3a, 3b, 3c, 4a, 4b, & 4c of Wedge Placement Display)

Page 66

(Display Figures 5 & 6 of Yoke Tilt Display)

Page 67

USA/CANADIAN CHASSIS LISTINGS

Page 68

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

Training Information

REFER TO SAFETY GUIDELINES

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 69

F8 CHASSIS INTRODUCTION

processor IC and the audio output IC via the I2C bus. stations, customer-preferred settings, and service/factory data.

TRANSFORMER WHEN SERVICING THIS CHASSIS FOR YOUR SAFETY.

The memory IC retains the settings for favorite

SIGNAL FLOW DESCRIPTION

(Display Signal Flow Block Diagram)

The incoming RF signal is applied to the U/V tuner where the 45.75 MHz IF signal is developed and amplified. The IF signal then exits the tuner from pin11to pass through the SAW filter, (1003). The shaped signal is then applied to IC 7250, the IF processor. The automatic gain control (AGC) is performed in IC 7250 and applied to the U/V tuner at pin1. An automatic fine tuning signal (AFT) is also

generated in the IC and then routed to the tuning system via the I2C bus, to provide frequency correction as needed.

The IF signal exits IC 7250 at pin 6, the audio and video signals are separated and each processed accordingly. The sound IF signal enters IC 7250 at pin 1, while the video re-enters at pin 13. The audio signal passes through the pre-amp, volume control and volume limiting circuits before application to the final audio stages.

The video signal entering at pin 13, is separated into its luminance and chrominance components, and exits at pins 21, 20, and 19 as R, G, and B respectively. The R G B signals are sent to the CRT DRIVE board, amplified and applied to the CRT pins as drive. Drive and cutoff controls for the CRT are also located on this board.

Brightness, Picture, Sharpness, Color and Tint control voltages are varied by the microprocessor, IC 7600 through individual control lines. IC 7600 also controls selected inputs, as selected by the consumer. Video and audio muting are an internal function of IC 7250. Automatic volume limiting also takes place inside this IC.

Vertical and Horizontal drive signals are also developed inside IC 7250. Vertical drive exits the IC from pin 47, while Horizontal drive exits at pin 40. These signals are a product of a Voltage Controlled Oscillator Circuit (VCO) and divider network located inside the chip. Vertical drive is applied to pin 1 of IC 7401, amplified, shaped, and output from pin 5 where it is applied to the vertical winding of the yoke. A feedback signal is returned to pin 46 of IC 7250. The vertical sync pulse is also applied to the

Page 70

microprocessor, IC 7600, to pin 37 for On-Screen Display and Closed-Captioning synchronization. The horizontal drive signal exits IC 7250 from pin 40 and is applied to Q 7461, the horizontal driver transistor. The signal is amplified and coupled to the base circuit of Q 7460, the horizontal output transistor. The H.O.T. drives the Integrated Flyback Transformer, which provides high voltage, screen voltage, focus, G-2, and filament voltages for the CRT. A scan-derived power supply is also provided by the IFT. It supplies -13 volts, +13 volts, +50 volts, a secondary +5 volt supply, and a +200 volt source for video drive. The secondary of the IFT is monitored by safety circuits and is tied back to the microprocessor and signal-processing IC’s to turn the set off if a problem should occur.

POWER SUPPLY DESCRIPTION

(Display Power Supply Block Diagram)

The F8 chassis family uses a free-running switch-mode power supply with a single controller IC. As AC power is applied to the set, approximately 160volts DC is developed by the bridge rectifiers and fed to the primary winding of the power transformer, then to the FET switch. The start voltage for the power supply is taken from the hot leg of the AC input. This voltage goes to controller IC 7520. A separate operating voltage is developed from the power transformer, rectified, and applied to IC 7520. The power supply is on all the time; there is no standby mode. The set is turned on and off by the microprocessor switching the +8 volt regulator on and off. The +8 volt is the supply voltage for the signal processor. IC7520 is regulated by means of a feedback circuit, monitoring the +11 volt secondary line. Any voltage variations are reflected back to the controller IC 7520 through an Opto-Coupler IC and change the operating frequency of the power supply as needed. REMEMBER TO USE AN ISOLATION

TRANSFORMER WHEN SERVICING THIS CHASSIS.

Complete Circuit Description

When AC is applied, current flow through the Bridge Rectifier circuit causes two simultaneous events to occur:

1. Capacitor 2508 begins to charge to 160 volts DC.

2. Capacitor 2540 begins to charge to 14.5 volts DC. When capacitor 2508 is fully charged, 160 volts is applied to the drain of 7518, through transformer 5545. When capacitor 2540 is fully charged, 14.5 volts is applied to pin 1 of

7520. This voltage will cause 7520 to begin oscillating and putting out a pulse train on pin 3. These pulses will cause 7518 to conduct which will cause a field to build up in the primary winding of transformer 5545. When this field collapses, a field will be induced in the secondary windings. Pins 8 and 9 of 5545 will output to diode 6540, which will rectify the pulses. Capacitor 2540 will filter the pulses and provide approximately 12.5 volts to pin 1 of 7520. This now becomes the RUN voltage for 7520.

Feedback control is accomplished by monitoring the 140 volt line. The 140 volt, +VBATT supply is sent through resistor 3571 to pin 3 of the Programmable Regulator

Page 71

IC, 7570. This regulator will turn on at 2.5 volts DC. Current will then begin to flow

AGC voltage is generated in 7250 along with AFT information. The AGC is output on

After entering at pins 27, 31 and 32 they are mixed with the signals for OSD or Closed

After being processed by the matrix circuit they are output to the CRT Panel

through the diode portion of the Opto-Isolator IC, 7581. The intensity of light caused by this current flow will then control the conduction of the transistor portion of 7581. The voltage appearing on pin 4 of 7581 is then monitored by pin 14 of 7520 where it is compared to a 2.5 volt reference voltage. Changes felt on pin 14 will control the width of the pulses coming out of pin 3. These pulse changes will determine the “on” time of

7518.

Video Signal Paths

Tuner Video

RF signals are received at the RF input connector on the tuner. From there they are amplified and sent to the IF circuits within the tuner. The IF signal is amplified and output on pin 11 and sent to the SAW filter, 1003, for shaping prior to being input to pins 48 and 49 of the Signal Processor IC,

7250.

pin 54 and enters the tuner on pin 1. The AFT information is sent to the micro via the IIC bus. AFT and Tuning information are then sent from the micro to the tuner where they enter at pins 4 and 5.

After processing, Composite Video exits 7250 at pin 6 and is buffered by transistor

7266. It is then sent through filter 1201 to remove any audio component. From there, it re-enters 7250 on pin 13.

Once inside 7250, the signal is split in two directions. It is demodulated, processed and output as Luminance, R-Y and B-Y on pins 28, 29 and 30. From there it re-enters 7250 on pins 27, 31 and 32. It is also directly passed through

from pin 13 to pin 38 where it is output and split, once again, in two directions.

WILL RETURN TO THIS PATH LATER.

Captioning coming from the micro, into pins 23, 24, 25 and 26. on pins 18, 19, 20 and 21.

Page 72

The signals then enter IC7330 for amplification, output on pins 7, 8 and 9 to the CRT

Audio Decoder IC, 7833. After processing, the left and right audio signals are output on

socket and then to the CRT. Now, back to where our Video exited 7250 at pin 38 and split in two directions. The first

path is from pin 38 through buffer transistor 7134 to 0223, the Video Output Jack. The second path is from pin 38 through buffer transistor 7258 to pin 23 of the microprocessor. This video is used for OSD and Graphics.

External Video

External Video enters at 0223F, the Video Input Jack. From there it is routed to pin 17 of 7250. At this point it is treated the same as Tuner Video.

SVHS

SVHS enters the Jack Panel at S_VHS connector, 1071-A and the Y and C signals are sent to IC7250, pins 10 and 11. Once the Y and C components enter 7250 they are processed the same as any other video/chroma.

Audio Signal Paths

The composite signal coming out of pin 6 of IC7250 is buffered by 7266 and sent through Jumper 4214. Then it goes through a video stripping network consisting of capacitor 2850, resistor 3850, inductor 5833, and capacitor 2887. Here, the video component is stripped and only the audio IF is allowed to be applied to pin 58 of the

pins 28 and 29 and sent to the Audio Output IC, 7950. IC7950 amplifies the left and right audio, outputs them on pins 8 & 10 and 11 & 13 and

sends them to the Headphone/Speaker circuit. This circuit determines which output medium will be used. If there is not a set of headphones plugged into the Headphone Jack (0232), the left and right audio are sent to the speaker connector, 0234. If there is a set of headphones connected, the audio will be sent through the headphones only.

Page 73

In Mono versions, the Audio IF is taken from pin 6 of 7250, buffered by 7266 and sent

Volume control and muting is accomplished from pin 2 of the microprocessor to pin 7 of

VlotAux-11V, VlotAux+11V and VlotAux+50V all supply power to the vertical output IC,

to transistor 7000 for amplification. It then passes through the bandpass filter, 1001, and enters IC7250 on pin 1. The signal is processed and exits on pin 15. From there it is sent to pin 55 of IC 7833, processed and output on pin 29. From there it goes to pin 3 of IC7950 where it is amplified and output on pins 11 and 13. This Mono signal is then applied to the Headphone/Speaker circuit on the L+ and L- lines. If there is no headphone connected, the output will be to connector 0215.

External audio is applied to the Jack Panel and sent to pins 49 and 50 of IC7833 where it is processed and output on pins 28 and 29 and from there on, treated the same as any other audio.

the audio output IC.

Sweep Circuits

Horizontal Circuit

The horizontal drive pulse is internally generated in IC7250 and is output on pin 40. This pulse is amplified by transistor 7461 and transformer coupled by 5461 to the base of the Horizontal Output, 7460, where it is amplified.

Shaping takes place in the collector circuit (C2463 and C2465), which results in a perfectly timed 825 volt peak-to-peak pulse to drive the deflection yoke and the flyback transformer.

The Flyback Transformer secondary windings produce 10 working voltages:

7401. The 187 volt VideoSupply, the filament voltage, Screen voltage (VG2) and Focus

voltage all go to the CRT board. The EHT voltage goes to the anode connection on the CRT. The VT_Supply and the VlotAux+5V Supply both go to the Tuner. The VT_Supply is

zenered down to 33 volts for tuning voltage and the VlotAux+5V supply acts as B+ for the Tuner and also becomes the +5 volt supply. The VlotAux+5V supply also provides voltage to the Audio Circuits.

Page 74

Vertical Circuit

The vertical drive signals are internally generated in IC7250 and are output on pins 46 and 47. From there they are sent to the Vertical Output IC, 7401, pins 1 and 7.

Inside the IC, the waveforms are amplified, shaped and output on pins 5 and 6. The output on pin 5 is the waveform that drives the yoke and provides feedback to the IC. The output on pin 6 is the Vertical Synchronization pulse that is sent to pin 37 of the microprocessor.

Microprocessor

The Microprocessor IC, 7600, is powered by a 3.3 volt source (3V3). This voltage is derived from the Regulator transistor, 7603. Transistor 7603 is fed from the Vaux, 11 volt supply in the power supply.

The microprocessor communicates with the memory IC, 7601, the Signal Processor IC, 7250, the IR receiver, 7680, the Audio Decoder IC, 7833, the Audio Output IC, 7950, the U/V tuner and the customer keyboard.

Reset is accomplished shortly after AC is applied. Transistor 7604 is delayed in turning on by the network consisting of Zener Diode, 6607, and Resistors 3635 and 3636. This delay is enough to allow the 3.3 volt B+ to the microprocessor come up and through resistor 3634, place a high on pin 43 (Reset). After the delay, transistor 7604 is turned on causing pin 43 to go low.

Closed Captioning and On Screen Graphics are generated inside the microprocessor and sent to the Signal Processor to be added to the main signal. Synchronization for these processes is provided by feeding Horizontal and Vertical pulses into the micro on pins 36 and 37.

Protection circuits on the main board all tie into the base of Transistor 7605. When any one of the protection circuits output a high, it is felt on the base of 7605. When 7605 is turned on, pin 16 of 7600 is brought low which tells the micro to shut the set down.

Shutdown Circuits

Page 75

Apply the positive lead of a variable DC power supply to the positive terminal of

Apply the positive lead of an ohm meter to pin 5 and the negative lead to pin 4 of 7581.

Three of the shutdown protection circuits are derived from pins 7 and 10 of the Flyback Transformer.

If the voltage on the filament line (pin 7) goes too low, transistor 7482 will turn on and apply a positive voltage to the P9StbyOn+Protn line.

If the voltage on the filament line (pin 7) goes too high, transistor 7462 will turn on causing transistor 7463 to turn on and apply a positive voltage to the HEW_Protn line.

If the beam current (pin 10) becomes excessive, the voltage on the EHT line will go toward the negative direction. This action will cause transistor 7481 to turn on and place a positive voltage on the P9StbyOn+Protn line.

For sets having East West correction circuitry, pin 10 of 5545 is being monitored by transistor 7470. Transistors 7470, 7481 and 7482 all control transistor 7605. In the event of a problem, 7605 will bring pin 16 of the Microprocessor, 7600 low, shutting the set down.

How to Check an Opto-Isolator

Procedure

Using a basic diagram taken from the F8 schematic, we are going to determine whether or not IC7581 is functioning properly.

Step #1

capacitor 2561. Connect the negative lead of the power supply to pin 1 of IC7570. By connecting them this way we are able to use resistors 3685 and 3575 as protection for IC7570.

Step #2

Set the ohmmeter to the 2K scale or greater.

Step #3

Slowly increase the DC voltage from 0 to 5 volts. If the IC is good, you will see the reading on the ohmmeter start decreasing as the voltage approaches 5 volts. CAUTION: Do not exceed 5 volts DC.

Page 76

How to Check a Programmable Regulator IC

Apply the positive lead of a variable DC power supply to pin 3 of IC7570 and the

Apply the positive lead of your DVM to pin 1 of IC7570 and the negative lead to cold

Procedure

Using a basic diagram taken from the F8 schematic, we are going to determine whether or not IC7570 is functioning properly.

Step #1

negative lead to cold (chassis) ground.

Step #2

ground.

Step #3

Slowly increase the DC voltage from 0 to 2.5 volts. If the IC is good, you will begin to see a DC voltage reading on your DVM as soon as the applied DC voltage is 2.5 volts.

Page 77

(Display Signal Flow Block Diagram)

Page 78

(Display Power Supply Block Diagram)

Page 79

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7583

Model no.: 26LL590121 First Publish: 10-9-2000 Rev. Date: 08-02-2004 Print Date: 10/07/2006

Parts List

REFER TO SAFETY GUIDELINES

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 80

26LL590121 - Manual no. 7583 Page: 1

Main Chassis Parts

S 0127 3.15 Amp Fuse, . . . . . . . . . . . . 3122 358 72141

0138 Clip for 7401. . . . . . . . . . . . . 3135 011 01031

0140 Clip for 7460. . . . . . . . . . . . . 3135 011 01031

0152 Cable, DIP, 6 Pin, 400mm . . . . . . . 3104 301 09421

0153 4 Pin Cable. . . . . . . . . . . . . . 3104 301 09431

0212 Connector, 2 Pin . . . . . . . . . . . 2422 025 15396

0220 4 Pin Board Connector. . . . . . . . . 2422 025 04852

0223 3 Pin Board Connector. . . . . . . . . 2422 026 04963

0224 1 Pin Board Connector. . . . . . . . . 2422 034 20021

0228 1 Pin Board Connector. . . . . . . . . 2422 034 20021

0234 Connector, 4 Pin . . . . . . . . . . . 2422 025 12479

S 0243 Connector, 6 Pin . . . . . . . . . . . 2422 025 04854

0244 4 Pin Board Connector. . . . . . . . . 2422 025 04852

S 0245 Connector, 6 Pin . . . . . . . . . . . 2422 025 04854

S 0254 CRT Socket (9 Pin) . . . . . . . . . . 2422 500 80022

0267 Connector, 3 Pin . . . . . . . . . . . 2412 020 00725

1000 Tuner. . . . . . . . . . . . . . . . . 2422 542 90057

1001 Filter . . . . . . . . . . . . . . . . 2422 549 42501

1003 45 MHz SAW, Filter,. . . . . . . . . . 2422 549 42433

1200 Filter, Ceramic, 4.5MHz. . . . . . . . 2422 549 40807

1208 Crystal Resonator. . . . . . . . . . . 4835 242 77276

S 1500 Fuse, 4A, 250V, IEC. . . . . . . . . . 2422 086 10869

S 1572 1 Amp, Radial Fuse,. . . . . . . . . . 4835 253 97162

S 1573 2.5 Amp Fuse, Radial,. . . . . . . . . 2422 086 10422

S 1580 Relay, 12V . . . . . . . . . . . . . . 2422 132 07317

1600 Switch, Tactile. . . . . . . . . . . . 2422 128 02742

1601 Switch, Tactile. . . . . . . . . . . . 2422 128 02742

1602 Switch, Tactile. . . . . . . . . . . . 2422 128 02742

1603 Switch, Tactile. . . . . . . . . . . . 2422 128 02742

1606 Switch, Tactile. . . . . . . . . . . . 2422 128 02742

1660 Crystal, Resonator, 12MHz, 20 Pin. . . 2422 543 00488 1822 Crystal Resonator, 18MHz432, 12 Pin, HC

49/U A . . . . . . . . . . . . . . . . 2422 543 00842

2001 Cap, 47n, 10%, 25V, Ceramic. . . . . . 3198 023 04730

2002 Cap, 100u, 20%, 50V, Electrolytic. . . 3198 025 51010 2003 Cap, 470u, 20%, 16V, Electrolytic. . . 3198 025 24710

2004 Cap, 22n, 10%, 50V, Ceramic. . . . . . 3198 017 02230

2005 Cap, 330p, 5%, 50V, Ceramic. . . . . . 3198 016 03310

2006 Cap, 82p, 5%, 50V, Ceramic . . . . . . 3198 016 08290

2011 Cap, 10u, 20%, 50V, Electrolytic . . . 3198 025 51090 2013 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

2102 Cap, 330p, 5%, 50V, Ceramic. . . . . . 3198 016 03310

2103 Cap, 330p, 5%, 50V, Ceramic. . . . . . 3198 016 03310

2104 Cap, 330p, 5%, 50V, Ceramic. . . . . . 3198 016 03310

2201 Cap, 220n, 10%, 50V, Polyester . . . . 3198 014 02240

2202 Cap, 4n7, 10%, 50V, Ceramic. . . . . . 3198 017 04720

2203 Cap, 10u, 20%, 50V, Electrolytic . . . 3198 025 51090

2204 Cap, 100p, 5%, 50V, Ceramic. . . . . . 3198 016 01010

2205 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2206 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2207 Cap, 100u, 20%, 25V, Electrolytic. . . 3198 025 31010 2208 Cap, 100u, 20%, 25V, Electrolytic. . . 3198 025 31010 2209 Cap, 470n, +80/-20%, 16V, Ceramic. . . 3198 017 24740 2211 Cap, 470n, +80/-20%, 16V, Ceramic. . . 3198 017 24740 2212 Cap, 470n, +80/-20%, 16V, Ceramic. . . 3198 017 24740 2213 Cap, 470n, +80/-20%, 16V, Ceramic. . . 3198 017 24740

2214 Cap, 22n, 10%, 50V, Ceramic. . . . . . 3198 017 02230

2215 Cap, 2u2, 20%, 50V, Electrolytic . . . 3198 025 52280

2216 Cap, 220n, 10%, 16V, Ceramic . . . . . 2238 780 16654

2220 Cap, 15p, 5%, 50V, Ceramic . . . . . . 3198 016 01590

2221 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2222 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2226 Cap, 33u, 20%, 25V, Electrolytic . . . 2020 021 90124

2227 Cap, 1u, 20%, 50V, Electrolytic. . . . 3198 025 51080

2247 Cap, 47n, 10%, 25V, Ceramic. . . . . . 3198 023 04730

2248 Cap, 47n, 10%, 25V, Ceramic. . . . . . 3198 023 04730

2249 Cap, 47n, 10%, 25V, Ceramic. . . . . . 3198 023 04730

2330 Cap, 100n, 10%, 250V, Metalized Polyest

er. . . . . . . . . . . . . . . . . . . 2222 368 90177

2340 Cap, 10u, 20%, 250V, Electrolytic. . . 2020 012 93495

2341 Cap, 3n3, 10%, 500V, Ceramic . . . . . 3198 019 43320

S 2343 Cap, 3n3, 10%, 2KV, Ceramic. . . . . . 2020 558 90529

2345 Cap, 1n, 10%, 500V, Ceramic. . . . . . 3198 019 41020

2401 Cap, 100n, 10%, 50V, Polyester . . . . 3198 014 01040

2402 Cap, 100n, 10%, 50V, Polyester . . . . 3198 014 01040

2404 Cap, 220n, 10%, 50V, Polyester . . . . 3198 014 02240

2405 Cap, 470p, 5%, 50V, Ceramic. . . . . . 3198 016 04710

2407 Cap, 470p, 5%, 50V, Ceramic. . . . . . 3198 016 04710

2409 Cap, 220n, 10%, 50V, Polyester . . . . 3198 014 02240

2420 Cap, 4n7, 10%, 50V, Ceramic. . . . . . 3198 017 04720

2426 Cap, 100n, 10%, 63V, Metalized Polyeste 2222 370 75104

2428 Cap, 2n2, 10%, 50V, Ceramic. . . . . . 3198 017 02220

2429 Cap, 1u, 20%, 50V, Electrolytic. . . . 3198 025 51080

2430 Cap, 10u, 20%, 50V, Electrolytic . . . 3198 025 51090 2431 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2437 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

2438 Cap, 1u, +80/-20%, 16V, Ceramic. . . . 3198 017 21050

2440 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2441 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2448 Cap, 220p, 10%, 500V, Ceramic. . . . . 3198 019 42210

S = Safety Part Be sure to use exact replacement part.

2450 Cap, 47u, 20%, 160v, Electrolytic. . . 2020 021 91139

2451 Cap, 15n, 10%, 50V, Polyester. . . . . 2020 300 90575

2451 0.01uF., 10%, 50V, Polyester, only 27. 3198 138 20941 2456 Cap, 47n, 10%, 250V, Metalized Polyeste 2222 368 90176 2457 Cap, 390n, 5%, 250V, Metalized Polyprop

ylene. . . . . . . . . . . . . . . . . 2222 479 90021

2458 Cap, 2u2, 20%, 100V, Electrolytic. . . 2020 021 91331

2459 Cap, 680p, 10%, 500V, Ceramic. . . . . 3198 019 46810

2461 Cap, 1n, 10%, 500V, Ceramic. . . . . . 3198 019 41020

2462 Cap, 47n, 10%, 250V, Metalized Polyeste 2222 368 90176

2463 470pF., 10%, 2KV, Ceramic. . . . . . . 4835 122 47638

S 2465 Cap, 10n, 5%, 1600V, Polypropylene . . 2222 375 90154

2469 Cap, 1u, 10%, 50V, Polyester . . . . . 3198 014 01050

2473 Cap, 47u, 20%, 50V, Electrolytic . . . 3198 025 54790

2481 Cap, 470n, 10%, 50V, Polyester . . . . 3198 014 04740

2482 Cap, 68n, 10%, 250V, Polyester . . . . 2222 347 90234

2484 Cap, 100n, 10%, 50V, Polyester . . . . 3198 014 01040

2485 Cap, 4u7, 20%, 250V, Electrolytic. . . 2020 012 93293 2486 Cap, 470u, 20%, 16V, Electrolytic. . . 3198 025 24710 2487 Cap, 100u, 20%, 50V, Electrolytic. . . 3198 025 51010 2488 Cap, 470u, 20%, 16V, Electrolytic. . . 3198 025 24710 2489 Cap, 470u, 20%, 16V, Electrolytic. . . 3198 025 24710

2490 Cap, 470p, 10%, 500V, Ceramic. . . . . 3198 019 44710

2491 Cap, 470p, 10%, 500V, Ceramic. . . . . 3198 019 44710

2492 Cap, 180p, 5%, 50V, Ceramic. . . . . . 3198 016 01810

2500 0.47uF., 250V, Polyester . . . . . . . 4835 121 47569

2502 Cap, 2n2, 10%, 1KV, Ceramic. . . . . . 3198 019 52220

2504 Cap, 2n2, 10%, 1KV, Ceramic. . . . . . 3198 019 52220

2505 Cap, 2n2, 10%, 1KV, Ceramic. . . . . . 3198 019 52220

S 2507 Cap, 1n5, 10%, 1KV, Ceramic. . . . . . 2020 558 90443

2508 Cap, 470u, 20%, 200V, Electrolytic . . 2020 024 90647

S 2511 Cap, 470p, 10%, 1KV, Ceramic . . . . . 2020 558 90471

2517 Cap, 1n, 10%, 50V, Ceramic . . . . . . 3198 019 11020

S 2518 Cap, 470p, 10%, 1KV, Ceramic . . . . . 2020 558 90471

2520 Cap, 82p, 5%, 50V, Ceramic . . . . . . 3198 016 08290

2521 Cap, 3n3, 10%, 50V, Ceramic. . . . . . 3198 017 03320

2522 Cap, 3n3, 10%, 50V, Ceramic. . . . . . 3198 017 03320

2524 Cap, 330p, 5%, 50V, Ceramic. . . . . . 3198 016 03310

2529 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

2530 Cap, 1u, 20%, 50V, Electrolytic. . . . 2020 021 91147

2531 Cap, 1n, 2%, 50V, Polypropylene. . . . 2020 310 90049

2532 Cap, 470p, 5%, 50V, Ceramic. . . . . . 3198 016 04710

2533 Cap, 2n2, 10%, 50V, Ceramic. . . . . . 3198 017 02220

2540 Cap, 100u, 20%, 25V, Electrolytic. . . 2020 021 90547

S 2545 1500pF., 250VAC, Ceramic . . . . . . . 4835 122 47621

S 2550 Cap, 470p, 10%, 1KV, Ceramic . . . . . 2020 558 90471

2551 Cap, 47u, 20%, 160v, Electrolytic. . . 2020 021 91358 2561 Cap, 1000u, 20%, 16V, Electrolytic . . 3198 026 21020

S 2562 Cap, 220p, 10%, 1KV, Ceramic . . . . . 2020 558 90424

2564 Cap, 1n, 10%, 50V, Ceramic . . . . . . 3198 017 01020

2565 Cap, 1n, 10%, 50V, Ceramic . . . . . . 3198 017 01020

2571 Cap, 2u2, 20%, 25V, Electrolytic . . . 2020 021 91353

2572 Cap, 330p, 5%, 50V, Ceramic. . . . . . 3198 016 03310

2573 Cap, 33n, 10%, 50V, Ceramic. . . . . . 3198 017 03330

2575 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

2576 Cap, 6n8, 10%, 50V, Ceramic. . . . . . 3198 017 06820

2586 Cap, 220u, 20%, 25V, Electrolytic. . . 3198 025 32210 2604 Cap, 22u, 20%, 50V, Electrolytic . . . 3198 025 52290

2609 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2613 Cap, 100n, 10%, 50V, Polyester . . . . 3198 014 01040

2615 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

2616 Cap, 22p, 5%, 50V, Ceramic . . . . . . 3198 016 02290

2617 Cap, 22p, 5%, 50V, Ceramic . . . . . . 3198 016 02290

2618 Cap, 100p, 5%, 50V, Ceramic. . . . . . 3198 016 01010

2619 Cap, 1u, 20%, 50V, Electrolytic. . . . 3198 025 51080

2620 Cap, 22p, 5%, 50V, Ceramic . . . . . . 3198 016 02290

2621 Cap, 22p, 5%, 50V, Ceramic . . . . . . 3198 016 02290

2622 Cap, 220u, 20%, 25V, Electrolytic. . . 3198 025 32210

2623 Cap, 10n, 10%, 50V, Ceramic. . . . . . 3198 017 01030

2624 Cap, 68p, 5%, 50V, Ceramic . . . . . . 3198 016 06890

2625 Cap, 390p, 5%, 50V, Ceramic. . . . . . 3198 016 03910

2626 Cap, 390p, 5%, 50V, Ceramic. . . . . . 3198 016 03910

2627 Cap, 390p, 5%, 50V, Ceramic. . . . . . 3198 016 03910

2628 Cap, 390p, 5%, 50V, Ceramic. . . . . . 3198 016 03910

2629 Cap, 22n, +80/-20%, 50V, Ceramic . . . 3198 019 22230 2630 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

2631 Cap, 1u, +80/-20%, 16V, Ceramic. . . . 3198 017 21050

2633 Cap, 10n, 10%, 50V, Ceramic. . . . . . 3198 017 01030

2679 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2681 Cap, 220u, 20%, 25V, Electrolytic. . . 3198 025 32210

2697 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2843 Cap, 100u, 20%, 25V, Electrolytic. . . 3198 025 31010

2851 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2852 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2853 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2854 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2855 Cap, 3p3, 8%, 50V, Ceramic . . . . . . 3198 016 03380

2856 Cap, 3p3, 8%, 50V, Ceramic . . . . . . 3198 016 03380

2857 Cap, 1u, +80/-20%, 16V, Ceramic. . . . 3198 017 21050

2858 Cap, 47p, 5%, 50V, Ceramic . . . . . . 3198 016 04790

2860 Cap, 10u, 20%, 50V, Electrolytic . . . 3198 025 51090 2861 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

Page 81

26LL590121 (continued) Page: 2

2862 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2863 Cap, 10u, 20%, 50V, Electrolytic . . . 3198 025 51090 2864 Cap, 220n, +80/-20%, 25V, Ceramic. . . 3198 023 22240 2865 Cap, 220n, +80/-20%, 25V, Ceramic. . . 3198 023 22240 2866 Cap, 220n, +80/-20%, 25V, Ceramic. . . 3198 023 22240 2867 Cap, 220n, +80/-20%, 25V, Ceramic. . . 3198 023 22240 2868 Cap, 4u7, 20%, 50V, Electrolytic . . . 3198 025 54780 2869 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2870 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2871 Cap, 10u, 20%, 50V, Electrolytic . . . 3198 025 51090

2874 Cap, 47p, 5%, 50V, Ceramic . . . . . . 3198 016 04790

2875 Cap, 47p, 5%, 50V, Ceramic . . . . . . 3198 016 04790

2877 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040

2882 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2883 Cap, 10u, 20%, 50V, Electrolytic . . . 3198 025 51090

2884 Cap, 1n, 5%, 50V, Ceramic. . . . . . . 3198 016 01020

2888 Cap, 100u, 20%, 25V, Electrolytic. . . 3198 025 31010 2889 Cap, 100n, +80/-20%, 25V, Ceramic. . . 3198 023 21040 2950 Cap, 100u, 20%, 25V, Electrolytic. . . 3198 025 31010

2952 Cap, 1u, +80/-20%, 16V, Ceramic. . . . 3198 017 21050

2954 Cap, 470n, +80/-20%, 16V, Ceramic. . . 3198 017 24740

2955 Cap, 10n, 10%, 50V, Ceramic. . . . . . 3198 017 01030

2956 Cap, 1u, +80/-20%, 16V, Ceramic. . . . 3198 017 21050

2958 Cap, 470n, +80/-20%, 16V, Ceramic. . . 3198 017 24740

2959 Cap, 10n, 10%, 50V, Ceramic. . . . . . 3198 017 01030

2960 Cap, 2u2, 20%, 25V, Electrolytic . . . 3198 026 32220 2961 Cap, 10u, 20%, 16V, Electrolytic . . . 3198 028 21090

2962 Cap, 10p, 5%, 50V, Ceramic . . . . . . 3198 016 01090

2963 Cap, 10p, 5%, 50V, Ceramic . . . . . . 3198 016 01090

3000 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010 3001 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010 3010 Res, 560 ohm, 5%, 1/6W, Carbon Film. . 3198 011 05610

3013 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

3014 4.7k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27052

3015 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

3016 Res, 680 ohm, 5%, 1/6W, Carbon Film. . 3198 011 06810

3021 Res, 1K, 2%, 0,25W . . . . . . . . . . 4822 051 10102

3103 Res, 8K2, 5%, 1/6W, Carbon Film. . . . 3198 011 08220

3104 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3108 Res, 8K2, 5%, 1/6W, Carbon Film. . . . 3198 011 08220

3109 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3123 75 ohm, 5%, 1/10W, Metal Film. . . . . 4835 111 37276

3200 560 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 27054

3201 390 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37253

3203 330 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37443

3204 Res, 1K8, 5%, 1/6W, Carbon Film. . . . 3198 011 01820

3205 Res, 1K, 2%, 0,25W . . . . . . . . . . 4822 051 10102

3206 560 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 27054

3208 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3209 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

3212 390 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37253

3213 560 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 27054

3215 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

3216 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

3217 Res, 1M5, 5%, 1/8W, Metalized Glass. . 2322 730 61155

3218 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3219 560 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 27054

3220 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3225 100k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37434

3228 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3231 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

3232 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

3233 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

3243 4.7k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27052

3246 82k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37277

3247 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010 3248 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3249 Res, 330K, 5%, 1/10W, Glass. . . . . . 3198 021 53340

3250 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

3251 100k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37434

3252 2.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37234

3253 2.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37234

3257 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3258 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3259 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3331 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3332 Res, 1K, 20%, 1/2W, Carbon Film. . . . 2120 103 90046

3333 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3334 Res, 1K, 20%, 1/2W, Carbon Film. . . . 2120 103 90046

3335 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3336 Res, 1K, 20%, 1/2W, Carbon Film. . . . 2120 103 90046

S 3340 Res, 10 ohm, 5%, 1/3W, Metal Film. . . 2306 204 03109

S 3341 1 ohm, 5%, 1/3W, Metal Film. . . . . . 4822 111 30483

S 3342 1 ohm, 5%, 1/3W, Metal Film. . . . . . 4822 111 30483

3343 1.5k, 20%, 1/2W, Carbon Composition. . 4835 110 47034 3344 Res, 22 ohm, 5%, 1/6W, Carbon Film . . 3198 011 02290

S 3345 VDR, DC, 1mA, 50V, MAX 115V . . . . . 2322 593 13507

3346 Res, 22 ohm, 5%, 1/6W, Carbon Film . . 3198 011 02290

3401 3.3 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 03380

3402 3.3 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 03380

3403 3.3 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 03380

3405 Res, 2K, 1%, 3/5W, Metal Film. . . . . 2322 156 22002

S = Safety Part Be sure to use exact replacement part.

3406 Res, 1K, 5%, 1/6W, Carbon Film . . . . 3198 011 01020

3407 Res, 2K, 1%, 3/5W, Metal Film. . . . . 2322 156 22002

3408 Res, 1K, 5%, 1/6W, Carbon Film . . . . 3198 011 01020

3409 1.5 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 57664

3410 Res, 220 ohm, 5%, 1/6W, Carbon Film. . 3198 011 02210 3411 Res, 220 ohm, 5%, 1/6W, Carbon Film. . 3198 011 02210

3420 470k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37407

3421 Res, 2K2, 5%, 1/6W, Carbon Film. . . . 3198 011 02220

3422 Res, 2K2, 5%, 1/6W, Carbon Film. . . . 3198 011 02220

3423 Res, 680K, 5%, 1/10W, Metalized Glass. 3198 021 56840 3424 Res, 10M, 10%, 1/10W, Metalized Glass. 2120 108 90606

3425 150k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27045

3426 39k, 5%, 1/10W, Metal Film . . . . . . 4835 111 27051

3428 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

3429 27k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37442

3431 3.3k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37247

3432 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3436 Res, 1K, 2%, 0,25W . . . . . . . . . . 4822 051 10102

3437 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3438 33k, 1/4W, Carbon Film . . . . . . . . 4835 110 57375

3442 Res, 3K9, 5%, 1/6W, Carbon Film. . . . 3198 011 03920

3447 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3448 Res, 8K2, 5%, 1/6W, Carbon Film. . . . 3198 011 08220

3449 Res, 3K3, 5%, 1/6W, Carbon Film. . . . 3198 011 03320

S 3452 Res, 22 ohm, 5%, 2 1/2W, Metal Film. . 2322 195 63229

S 3453 Res, 4R7, 5%, 5W, Wire Wound . . . . . 2322 251 41478

S 3454 Res, 33K, 5%, 1 1/3W, Metal Film . . . 2322 194 63333

3458 Res, 1K, 5%, 1/6W, Carbon Film . . . . 3198 011 01020

3461 Res, 4K7, 5%, 1/6W, Carbon Film. . . . 3198 011 04720

S 3462 Res, 6K8, 5%, 5W, Metal Film . . . . . 2322 257 41682

3463 Res, 47 ohm, 5%, 1/6W, Carbon Film . . 3198 011 04790

3464 Res, 1K, 2%, 0,25W . . . . . . . . . . 4822 051 10102

S 3465 Res, 10 ohm, 5%, 1/3W, Metal Film. . . 2306 204 03109

3466 Res, 39K, 1%, 3/5W, Metal Film . . . . 2322 156 23903

3467 Res, 14K, 1%, 3/5W, Metal Film . . . . 2322 156 21403

3467 Res, 15K, 1%, 3/5W, Metal Film . . . . 2322 156 21503

3468 Res, 1K, 5%, 1/6W, Carbon Film . . . . 3198 011 01020

3469 3.3k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37247

3478 Res, 220K, 5%, 1/6W, Carbon Film . . . 3198 011 02240

3480 Res, 27K, 1%, 3/5W, Metal Film . . . . 2322 156 22703

3481 Res, 100K, 1%, 3/5W, Metal Film. . . . 2322 156 21004

3482 Res, 32K4, 1%, 3/5W, Metal Film. . . . 2322 156 23243

3483 Res, 22K, 5%, 1/6W, Carbon Film. . . . 3198 011 02230

3484 Res, 10K, 5%, 1/6W, Carbon Film. . . . 3198 011 01030

S 3485 4.7 ohm, 5%, 1/2W, Metal Film. . . . . 4835 110 47023

S 3486 1 ohm, 5%, 1/2W, Metal Film. . . . . . 4835 110 27012

S 3487 1 ohm, 5%, 1/2W, Metal Film. . . . . . 4835 110 27012

S 3488 4.7 ohm, 5%, 1/2W, Metal Film. . . . . 4835 110 47023

S 3490 1 ohm, 5%, 1/2W, Metal Film. . . . . . 4835 110 27012

S 3491 1 ohm, 5%, 1/2W, Metal Film. . . . . . 4835 110 27012

S 3492 1 ohm, 5%, 1/2W, Metal Film. . . . . . 4835 110 27012

3495 6.8k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37272

3496 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3497 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3501 Res, 470 ohm, 20%, 1/2W, Carbon Film . 2120 103 90019 S 3502 Res, 2M2, 5%, 1/2W, Metalized Glass. . 2322 242 13225 3503 10ohm, 120VAC, Positive Temperature Coe

fficient . . . . . . . . . . . . . . . 4835 116 47001

S 3505 Surge Protector. . . . . . . . . . . . 2422 549 43073

S 3508 Res, 22K, 5%, 2 1/2W, Metal Film . . . 2322 195 63223 S 3510 Res, 33K, 5%, 2 1/2W, Metal Film . . . 2322 195 63333

S 3511 Res, 1K, 10%, 7W, Metal Film . . . . . 2322 258 41102

3512 15k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37458

3513 Res, 180K, 5%, 1/4W, Carbon Film . . . 2120 101 74184

3514 Res, 820K, 1%, 3/5W, Metal Film. . . . 2322 156 28204

S 3515 2.5 ohm, 20%, 3.6W, Negative Temperatur

e Coefficient. . . . . . . . . . . . . 2122 612 00023

3516 Res, 1K, 2%, 0,25W . . . . . . . . . . 4822 051 10102

3517 Res, 1K, 5%, 1/6W, Carbon Film . . . . 3198 011 01020

S 3518 Res, 0R22, 5%, 3W, Metal Film. . . . . 2120 106 90548

3520 Res, 82K, 5%, 1/6W, Carbon Film. . . . 3198 011 08230

3521 330 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37443

S 3525 33 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57665

3528 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010 3529 Res, 68 ohm, 5%, 1/6W, Carbon Film . . 3198 011 06890

3530 Res, 3K3, 5%, 1/6W, Carbon Film. . . . 3198 011 03320

3532 Res, 6K8, 5%, 1/6W, Carbon Film. . . . 3198 011 06820

3534 15k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37458

3536 Res, 18K, 5%, 1/6W, Carbon Film. . . . 3198 011 01830

3537 Res, 10K, 5%, 1/6W, Carbon Film. . . . 3198 011 01030

S 3542 4.7 Megohm, 5%, 1/2W, Metal Film . . . 4835 116 57009

3570 15k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37458

3571 Res, 150K, 1%, 3/5W, Metal Film. . . . 2322 156 21504

3573 Res, 2K, 1%, 1/10W, Metalized Glass. . 2120 108 92657

3574 33k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37248

3575 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3577 Res, 10K, 5%, 1/6W, Carbon Film. . . . 3198 011 01030

3578 Res, 1K, 2%, 0,25W . . . . . . . . . . 4822 051 10102

3579 Res, 1K, 1%, 1/10W, Metalized Glass. . 2120 108 91451 3585 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3592 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3594 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

Page 82

26LL590121 (continued) Page: 3

3595 68k, 5%, 1/6W, Carbon Film . . . . . . 4835 111 37205

3596 Res, 10K, 5%, 1/6W, Carbon Film. . . . 3198 011 01030

3597 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3598 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3599 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

3607 8.2k, 5%, 1/8W, Inline Package . . . . 4835 111 97046

3608 2.2k, 5%, 1/8W, Inline Package . . . . 4835 111 97049

3609 2.2k, 5%, Resistor Network . . . . . . 2120 108 93868

3611 Res, 1K, 2%, 0,25W . . . . . . . . . . 4822 051 10102

3612 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3613 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3615 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3617 8.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37448

3618 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3619 4.7k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27052

3629 470 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37259

3630 Res, 470 ohm, 5%, 1/6W, Carbon Film. . 3198 011 04710

3631 27k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37442

S 3632 Res, 47 ohm, 5%, 2 1/2W, Metal Film. . 2322 195 63479 3633 Res, 820 ohm, 5%, 1/6W, Carbon Film. . 3198 011 08210

3634 2.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37234

3635 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

3636 22k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37441

3637 2.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37234

3651 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010 3652 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3653 Res, 10K, 5%, 1/6W, Carbon Film. . . . 3198 011 01030

3654 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3655 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3657 Res, 270 ohm, 5%, 1/6W, Carbon Film. . 3198 011 02710 3661 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3662 4.7k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27052

3663 8.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37448

3664 8.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37448

3665 4.7k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27052

3666 5.6k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37376

3667 27k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37442

3672 4.7k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27052

3673 10k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37216

3674 1.8k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37231

3675 Res, 150 ohm, 5%, 1/10W, Metalized Glas 3198 021 51510 3676 Res, 150 ohm, 5%, 1/10W, Metalized Glas 3198 021 51510 3677 Res, 150 ohm, 5%, 1/10W, Metalized Glas 3198 021 51510

3680 680 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37271

3681 4.7k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27052

3682 8.2k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37448

3683 100 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37432

3684 3.3k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37247

3841 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010 3842 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3843 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

3844 470 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37259

3845 470 ohm, 5%, 1/10W, Metal Film . . . . 4835 111 37259

3950 Res, 680 ohm, 5%, 1/6W, Carbon Film. . 3198 011 06810

3951 3.3k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37247

3952 Res, 100 ohm, 5%, 1/6W, Carbon Film. . 3198 011 01010

3953 6.8k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37272

3954 1.5k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37437

3955 Res, 4K7, 5%, 1/6W, Carbon Film. . . . 3198 011 04720

3956 1.5k, 5%, 1/10W, Metal Film. . . . . . 4835 111 37437

3957 Res, 4K7, 5%, 1/6W, Carbon Film. . . . 3198 011 04720

4001 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4002 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4004 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4007 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4009 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4010 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4011 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4012 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4013 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4020 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4051 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4100 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4101 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4102 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4103 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4143 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4144 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4203 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4207 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4212 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4214 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4215 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4216 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4501 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4602 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4650 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4651 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4652 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4654 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4655 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4684 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

S = Safety Part Be sure to use exact replacement part.

4687 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4831 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4832 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4833 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4902 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4903 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4904 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4905 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4909 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4911 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4912 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4914 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4957 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

4999 Zero ohm,. . . . . . . . . . . . . . . 4835 111 27056

5000 Coil, 5u6. . . . . . . . . . . . . . . 3198 018 25680

5004 Coil, 820n . . . . . . . . . . . . . . 2422 535 97314

5201 Coil, 22u. . . . . . . . . . . . . . . 3198 018 22290

5202 Coil, 6u8. . . . . . . . . . . . . . . 3198 018 16880

5342 22uH., 10%, Coil, Peaking. . . . . . . 4835 157 67069

S 5445 Transformer, L.O.T., models ending in C

101, C121, and C125. . . . . . . . . . 2422 531 02327

S 5445 Transformer, L.O.T., models ending in C

221 and C225 . . . . . . . . . . . . . 3128 138 20941

5451 Coil, 27u. . . . . . . . . . . . . . . 2422 535 96614

5457 Coil, Linear Correction. . . . . . . . 3128 138 53241

5461 Transformer. . . . . . . . . . . . . . 3128 138 33811

5480 Coil, 27u. . . . . . . . . . . . . . . 2422 535 97334

5480 Coil, 39u. . . . . . . . . . . . . . . 2422 535 97336

5480 33uH., Peaking Coil, only in 25. . . . 4835 157 58205

S 5500 Filter, Mains, 5mH, 2A . . . . . . . . 2422 549 43432

5516 100uH., Coil . . . . . . . . . . . . . 4835 157 67078

5518 Fixed, Inductor, 100MHz, 50R. . . . . 3198 018 90010

5521 Coil, 2u2. . . . . . . . . . . . . . . 3198 018 12280

5540 Coil, 4u7. . . . . . . . . . . . . . . 3198 018 14780

S 5545 Transfomer,. . . . . . . . . . . . . . 2422 531 02314

5551 27uH., 5%, Coil, Peaking . . . . . . . 4835 157 67052

5552 Fixed, Inductor, 100MHz, 50R. . . . . 3198 018 90010

5572 100uH., Coil . . . . . . . . . . . . . 4835 157 67078

5573 100uH., Coil . . . . . . . . . . . . . 4835 157 67078

5575 100uH., Coil . . . . . . . . . . . . . 4835 157 67078

5576 100uH., Coil . . . . . . . . . . . . . 4835 157 67078

5577 Fixed, Inductor, 100MHz, 50R. . . . . 3198 018 90010

5600 Coil, 8u2. . . . . . . . . . . . . . . 3198 018 18280

5601 Coil, 8u2. . . . . . . . . . . . . . . 3198 018 18280

5620 Coil, 6u8. . . . . . . . . . . . . . . 3198 018 16880

5821 Coil, 100u . . . . . . . . . . . . . . 3198 018 21010

5831 Coil, 12u. . . . . . . . . . . . . . . 3198 018 21290

5832 Coil, 12u. . . . . . . . . . . . . . . 3198 018 21290

6008 Zener, 33 Volt BZX79-C33 . . . . . . . 4835 130 37904

6113 Zener Diode, 6.8 volt. . . . . . . . . 9340 386 40115

6211 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6212 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6213 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6331 Diode. . . . . . . . . . . . . . . . . 4835 130 37294

6333 Diode. . . . . . . . . . . . . . . . . 4835 130 37294

6335 Diode. . . . . . . . . . . . . . . . . 4835 130 37294

6401 Diode. . . . . . . . . . . . . . . . . 4835 130 37094

6402 Zener, 33 Volt, BZX79-C33. . . . . . . 4835 130 37904

6403 Diode. . . . . . . . . . . . . . . . . 4835 130 37094

6404 Diode. . . . . . . . . . . . . . . . . 4835 130 37094

6449 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6450 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6460 Diode, Rect, BY228/20 . . . . . . . . 9336 215 80112

6463 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6465 Diode, BYD33J. . . . . . . . . . . . . 4835 130 37094

6466 Diode, BYD33J. . . . . . . . . . . . . 4835 130 37094

6480 Diode, Zener . . . . . . . . . . . . . 4835 130 37947

6481 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6485 Diode, BYD33J. . . . . . . . . . . . . 4835 130 37094

6486 Diode, EGP20DL-530 . . . . . . . . . . 4835 130 37919

6487 Diode. . . . . . . . . . . . . . . . . 4835 130 37094

6488 Diode, Rect, BYV27-200. . . . . . . . 9322 126 72673

6490 Diode, Rect, BYV27-200. . . . . . . . 9322 126 72673

6505 Diode, Bridge Rect, GBU6JL-7002 . . . 9322 138 08667

6507 Diode, BYD33J. . . . . . . . . . . . . 4835 130 37094

6508 Diode, BYD33J. . . . . . . . . . . . . 4835 130 37094

6510 Zener Diode, 20 volt . . . . . . . . . 9331 178 60133

6511 Diode, BYV95C. . . . . . . . . . . . . 4835 130 37052

6512 Diode, Rect, BY228/20 . . . . . . . . 4822 130 41275

6513 Diode, Rect, BY228/20 . . . . . . . . 4822 130 41275

6514 Zener, 18 Volt, BZX79-C18. . . . . . . 4835 130 37908

6540 Diode. . . . . . . . . . . . . . . . . 4835 130 37294

6550 Diode, Rect, BY229X-800 . . . . . . . 9340 380 30127

6560 Diode, EGP20DL-530 . . . . . . . . . . 4835 130 37919

6570 Diode, EGP20DL-530 . . . . . . . . . . 4835 130 37919

6582 Diode, EGP20DL-530 . . . . . . . . . . 4835 130 37919

6584 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6585 Diode, 1N4148. . . . . . . . . . . . . 4835 130 37048

6590 Diode, EGP20DL-530 . . . . . . . . . . 4835 130 37919

6591 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

6601 Diode, Zener . . . . . . . . . . . . . 4835 130 37684

6606 Zener, 4.7 Volt, BZX79-C4V7. . . . . . 4835 130 37005

Page 83

26LL590121 (continued) Page: 4

6607 Zener, 6.8 Volt, BZX79-C6V8. . . . . . 4835 130 37945

6690 LED, LTL-307P. . . . . . . . . . . . . 4835 130 97096

6831 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

6951 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

6961 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

7250 IC,. . . . . . . . . . . . . . . . . . 9352 620 26112

7251 IC, LM317T . . . . . . . . . . . . . . 9337 220 80682

7254 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7256 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7258 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7263 Transistor, PNP, BC857B. . . . . . . . 5322 130 60508

7266 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7330 IC,. . . . . . . . . . . . . . . . . . 9352 184 10112

7401 IC,. . . . . . . . . . . . . . . . . . 9322 121 47687

7460 Transistor, NPN, BU1508DX. . . . . . . 9340 170 50127

7461 Transistor, NPN, BF819 . . . . . . . . 9335 354 50127

7462 Transistor, BC547B . . . . . . . . . . 4835 130 47055

7463 Transistor, BC557B . . . . . . . . . . 4835 130 47409

7480 IC,. . . . . . . . . . . . . . . . . . 9322 028 93682

7481 Transistor, BC557B . . . . . . . . . . 4835 130 47409

7482 Transistor, PNP, BC857B. . . . . . . . 5322 130 60508

7518 STH8NA60FI SMPS FET . . . . . . . . . 9322 068 92687

7518 STH10NC60FI SMPS FET. . . . . . . . . 9322 155 66687

7520 IC, MC44603A . . . . . . . . . . . . . 4835 209 88537

7570 IC,. . . . . . . . . . . . . . . . . . 9337 711 00676

S 7581 Coupler, TCDT1101G . . . . . . . . . . 9338 431 30682

7590 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7591 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7592 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7600 IC, SAA5543PS/M4/1046 L90US1-1.4 . . . 4835 310 57477

7601 IC, ST24W04B6. . . . . . . . . . . . . 9322 097 23682

7603 Transistor, NPN, BC337 . . . . . . . . 9331 796 00126

7604 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7605 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7608 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7609 Transistor, NPN, BC847B. . . . . . . . 4822 130 60511

7680 IR Receiver. . . . . . . . . . . . . . 9322 127 53667

7833 IC,. . . . . . . . . . . . . . . . . . 9322 135 49682

7950 IC,. . . . . . . . . . . . . . . . . . 4835 209 88543

9423 Res, 10K, 5%, 1/6W, Carbon Film. . . . 3198 011 01030

CBA 00EMF820A002 Main Chassis Board Asm. . 00EM F82 0A002

Cabinet & Accessory Parts

S AC01 Power Cord . . . . . . . . . . . . . . 3135 010 04731

S AC02 Anode Clip . . . . . . . . . . . . . . 4835 256 97264

AC03 Cabinet Back . . . . . . . . . . . . . 3139 124 27731

AC04 Cabinet Front. . . . . . . . . . . . . 3139 137 52851

AC05 Chassis Guide. . . . . . . . . . . . . 3139 124 31381

AC06 Control Buttons. . . . . . . . . . . . 3139 124 27351

S AC07 Convergence and Purity Assembly. . . . 2422 549 43385

S AC08 CRT A63AFW86X (26LL59 1121). . . . . . 9301 734 20443

S AC08 CRT A63AFW36X (C121 Version) . . . . . 9301 763 20443

S AC09 Coil, Degaussing . . . . . . . . . . . 3121 218 62961

S AC09 Coil, Degaussing . . . . . . . . . . . 3121 218 62971

AC11 Light Guide. . . . . . . . . . . . . . 3139 124 26461

AC12 Nameplate. . . . . . . . . . . . . . . 4835 459 17546

AC13 Owner's Manual, English & Spanish (26LL

59 0121) . . . . . . . . . . . . . . . 3135 015 10711

AC13 Owner's Manual, Spanish (26LL59 1121). 3135 015 10721

AC14 Power Button . . . . . . . . . . . . . 3139 124 26444

REMOTE Remote Transmitter, RC282901/01. . . . 3139 228 81441

AC16 Speaker, 5W, 16 ohm (2 Used) . . . . . 2422 264 00333

S AC18 Yoke . . . . . . . . . . . . . . . . . 3313 203 00121

AC19 Yoke Wedge (3 Used). . . . . . . . . . 4835 535 27001

S AC20 AC Adapt, UL - IEC (26LL59 1121) . . . 3135 010 03071 AC21 Battery, 1.5V AA, 2-Pack, (Not Shown . 9299 000 10137

AC24 Spring . . . . . . . . . . . . . . . . 3139 121 26231

S = Safety Part Be sure to use exact replacement part.

PHILIPS 26LL590121 Technical Service

Specifications and Main Features

Frequently Asked Questions

User Manual
