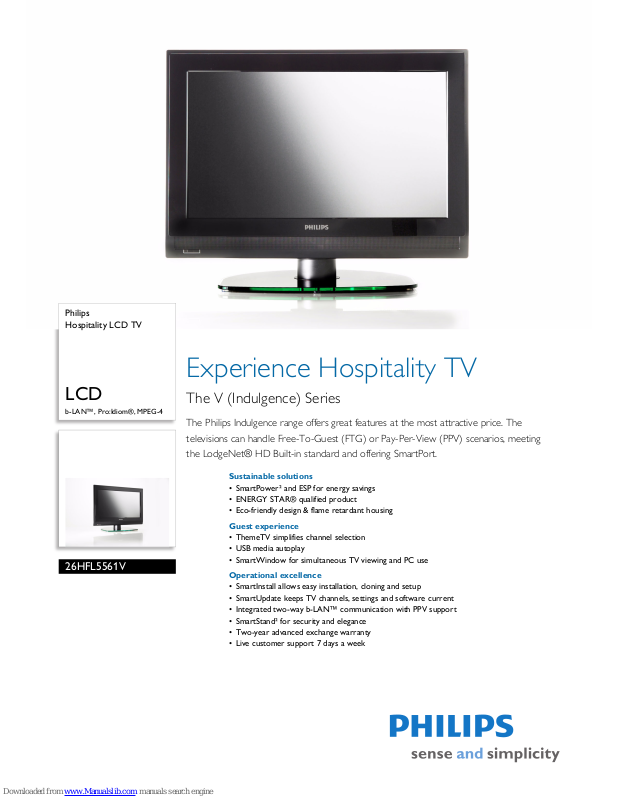

Page 1
Philips
Hospitality LCD TV
LCD
b-LAN™, Pro:Idiom®, MPEG-4
26HFL5561V
Experience Hospitality TV
The V (Indulgence) Series
The Philips Indulgence range offers great features at the most attractive price. The
televisions can handle Free-To-Guest (FTG) or Pay-Per-View (PPV) scenarios, meeting
the LodgeNet® HD Built-in standard and offering SmartPort.
Sustainable solutions
• SmartPower² and ESP for energy savings
• ENERGY STAR® qualified product
• Eco-friendly design & flame retardant housing
Guest experience
• ThemeTV simplifies channel selection
• USB media autoplay
• SmartWindow for simultaneous TV viewing and PC use
Operational excellence
• SmartInstall allows easy installation, cloning and setup
• SmartUpdate keeps TV channels, settings and software current
• Integrated two-way b-LAN™ communication with PPV support
• SmartStand² for security and elegance
• Two-year advanced exchange warranty
• Live customer support 7 days a week
Page 2
26HFL5561V/F7
Highlights
Hospitality LCD TV
LCD b-LAN™, Pro:Idiom®, MPEG-4
Eco-friendly design
Sustainability is integral to the way Philips does
bu
siness. Philips TVs are designed and
produced according to our EcoDesign
principles aimed at minimizing overall
environmental impact, through lower power
consumption, removal of hazardous
substances, lower weight, more efficient
packaging and better recyclability. Philips TVs
also have a special housing of flame retardant
material. Independent tests carried out by
emergency fire services have shown that
whereas TVs can sometimes intensify fires
caused by external sources, Philips TVs will not
contribute to the fire.
ENERGY STAR®
This product has earned the ENERGY STAR®.
ENERGY STAR qualified products meet or
exceed the guidelines estabished by the U.S.
govenment for in-use and standby power
consumption, at the time of manufacture.
Learn more at ENERGYSTAR.gov.
Everyday support (USA-based)
Your hotel never closes, and neither do we.
Phili
ps offers you real help from a live person 7
days a week, excluding major holidays.
Integrated two-way b-LAN™
Philips televisions feature the LodgeNet
Interact
ive b-LAN™ communication protocol
built into the TV. This allows for simple and
reliable cloning, customizing, and updating of
our products. By integrating b-LAN™, these
televisions also work right out of the box in all
LodgeNet® systems, without any need for
terminals or cards.
SmartInstall
Philips introduces SmartInstall, the most
c
omplete and easy to use installation process
we have ever offered. SmartInstall consists of
an easy to use PC program that allows all
features to be configured and all channels to be
mapped in a fraction of the time it takes to do
so on an actual television with a remote. And
with the addition of the Philips Smart Gateway,
the televisions can even automatically clone all
settings when plugged in.
SmartPower² and ESP
Our second generation power saving
te
chnology allows the backlight intensity to be
dynamically adjusted by the system to reduce
the power consumption by up to 60%, saving
substantially on energy costs. In addition,
Philips' Energy Savings Programmability (ESP)
allows the set to turn itself off when not in use
to save even more energy when guests or
maids leave televisions on for long periods
while the room is vacant.
SmartStand²
Philips unique SmartStand² is a complete
commerci
al solution, offering 180 degree
swivel that can be limited in either or both
directions to 30, 60, or 90 degrees. The stand
includes a securable mounting plate that can be
affixed either using security screws or non-drill
adhesive. In addition, all security hardware for
drill and non-drill mounting is included on
select models (check with your Philips
representative for specific models).
SmartUpdate
Philips televisions are the first to automatically
k
eep themselves updated. All SmartUpdate
featured Philips commercial televisions on the
property can automatically check for and
download updated channel maps, settings, and/
or software. Philips televisions update in the
background when new files are found, and as a
result, the guest experience has minimal
disruption. SmartUpdate requires a Philips
Smart Gateway to operate.
SmartWindow
SmartWindow allows your guests the added
convenience o
f working on their laptop PC's
on one half of the screen while enjoying the TV
content of their choice on the other half. The
perfect balance of work and leisure.
ThemeTV
Hotel guests often have difficulty locating
des
irable programs since they are unfamiliar
with the channel lineup. Traditional Electronic
Program Guides (EPGs) are little help as the
guest has to scroll through multiple pages to
find channels. In addition, traditional EPGs
require hotels to pay fees for channel
information on a per room basis. Philips is
proud to introduce a better program-location
tool with ThemeTV. Guests simply filter by
type of channel, for example "Sports" and
instantly see and tune to any Sports channel
available. Guests are seconds away from
desirable content.
Advanced exchange warranty
Philips offers unmatched commitment to
k
eeping your guest rooms in working order.
We have such confidence in the reliability of
our televisions that we offer a two-year
advanced exchange warranty with same day
ship. In the unlikely event that something does
go wrong we ship a replacement directly to
you. (Same day ship applies to calls received MF prior to 2 PM ET.)
USB media autoplay
Philips TVs feature a USB connector that
al
lows the guest to connect USB memory
sticks to play music or photos right on the TV.
MPEG 4 HD
decoder integrated
Page 3
Issue date 2011-06-07
Version: 1.3.3
12 NC: 8670 000 70529
UPC: 6 09585 20175 0
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
26HFL5561V/F7
Specifications
Hospitality LCD TV
LCD b-LAN™, Pro:Idiom®, MPEG-4
Picture/Display
• Aspect ratio: 16:9, Widescreen
•Color cabinet: Black
• Brightness: 450 cd/m²
• Contrast ratio (typical): 1000:1
• Dynamic screen contrast: 8000:1
• Diagonal screen size: 26 inch / 66 cm
• Picture enhancement: Pixel Plus 3 HD, Progressive
s
c
an, 3/2 - 2/2 motion pull down, 3D Combfilter,
Dynamic contrast enhancement, Contrast Plus,
Digital Noise Reduction, Jagged Line Suppression,
Luminance Transient Improver, Color Transient
Improvement, Automatic skin tone correction,
Color Enhancement, Motion adaptive deinterlacing, Active Control
• Screen enhancement: Anti-Reflection coated
sc
re
en
• Display screen type: LCD WXGA Active Matrix
TFT
•
Panel resolution: 1366 x 768p
• Response time (typical): 8 ms
• Viewing angle: 178º (H) / 178º (V)
Supported Display Resolution
• Computer formats
Res
olution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1366 x 768 60Hz
• Vi
deo formats
Res
olution Refresh rate
480i 60Hz
480p 60Hz
720p 60Hz
1080i 60Hz
1080p 24, 25, 30, 50, 60Hz
Sound
• Sound System: Stereo, Dolby Digital (AC-3)
• Output power (RMS): 2 x 10W
• Sound Enhancement: Auto Volume Leveller,
In
credible Surround, Treble and Bass Control
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Fine Tuning, PLL Digital Tuning,
Program Name, Advanced Hotel Mode, Cloning of
TV settings via USB, Keyboard lock-out, Security
menu access
• Ease of Use: Auto Volume Leveller (AVL
), Smar
t
Picture, Smart Sound
• Screen Format Adjustments:
4:3, 7 Widescreen
Modes
• Comfort: Hotel Guest features, Sleep timer,
Switch on channel, V
olume limitation, Welcome
message
• User convenience: Closed captioning (digital),
Vc
hip a
nd parental lock
• Interactive hotel features: Connectivity panel
co
mpatible, Remote diagnostics, SmartClone,
SmartGuide, SmartSecure, SmartUpdate,
SmartWindow, Integrated bLAN, Smoovie Pay TV
• Other convenience: Kensington lock
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: NTSC, ATSC
•Video Playback: NTSC
• Number of Preset Channels: 250
• Cable: Unscrambled Digital Cable -QAM
• Terrestrial: ATSC (8VSB)
• Aerial Input: 75 ohm F-type
Connectivity
• AV 1: Audio L/R in, CVBS in
• AV 2: Audio L/R in, YPbPr
• AV 3: VGA PC-in
• AV 4: HDMI (v1.3 with CEC)
• AV 5: HDMI (v1.3 with CEC)
• AV 6: HDMI (v1.3 with CEC)
•Front / Side connections: Audio
L/R
in, CVBS in,
Headphone out, S-video in, USB
• Other connections: Antenna F-type, RS232 Serial,
S/PDIF
out (coaxial)
• Connectivity Enhancements: RJ12 SmartPlug
conn
ector, External Loudspeaker connector
Power
• Mains power: 110 - 240V, 50/60Hz
• Maximum Power Consumption: 125 W
• SmartPower high mode: 55.42 W
• SmartPower medium mode: 57.4 W
• SmartPower low mode: 67.5 W
• SmartPower Off mode: 70.8 W
• Standby power consumption: < 1 W
• Ambient temperature: 5 °C to 40 °C
Dimensions
• Set dimensions in inch (W x H x D):
26.8 x 18.6 x 4.5 inch
•Set dimensions with stand in inch (W
x H x D):
26.8 x 21.1 x 14.2 inch
• Product weight (lb): 24.3
• Product weight (+stand) (lb): 32.6 lb
• Weight incl. Packaging (lb): 35.9
• VESA wall mount compatible: 200 x 100 mm
• Box dimensions in inch (W x H x D):
36
.4
x 9.1 x 21
.8 inch
Accessories
• Included accessories: Warranty Leaflet, Power
Cord (3m), Quick start guide, Swivel stand with
anti-theft, Security Bolts (Table Stand), Security
Screws (Table Stand), Batteries for remote
control, Remote Control
• Optional accessories: Set up Remote RC2573GR,
Mo
un
ting brackets/ stands
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: JPEG Still pictures, MP3,
Slid
eshow files (.alb)
Green Specifications
• Safety: Flame retardant housing
•E
co Designed
• SmartPower²
•Energy Star 3.0
• Low Power Standby
•
* Advanced Exchange warranty is valid in the United States only. Local
warranties govern sales in other countries.
* Dolby Digital is a registered trademark of Dolby Labs
* LodgeNet and b-LAN are trademarks of LodgeNet Interactive
Corporation
* Pro:Idiom is a registered trademark of the Zenith corporation.
