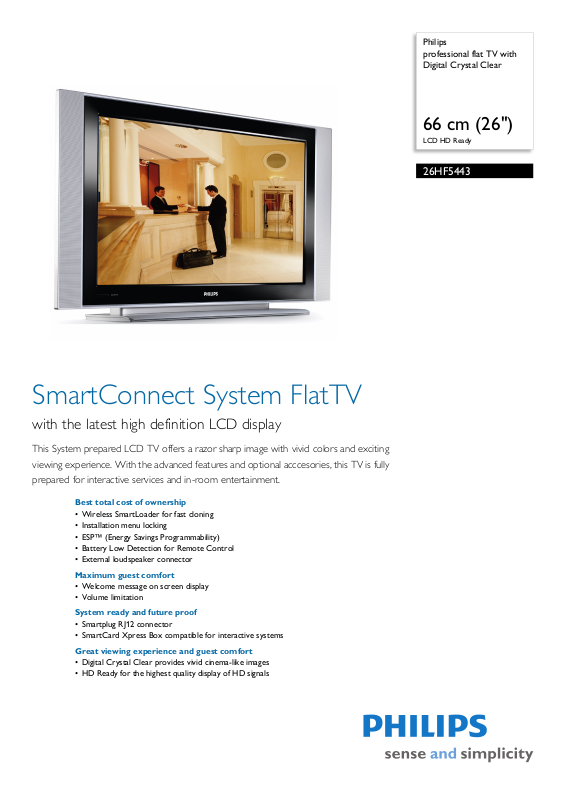

Page 1
Philips
professional flat TV with
Digital Crystal Clear
66 cm (26")
LCD HD Ready
26HF5443
SmartConnect System FlatTV
with the latest high definition LCD display
This System prepared LCD TV offers a razor sharp image with vivid colors and exciting
viewing experience. With the advanced features and optional acccesories, this TV is fully
prepared for interactive services and in-room entertainment.
Best total cost of ownership
• Wireless SmartLoader for fast cloning
• Installation menu locking
• ESP™ (Energy Savings Programmability)
• Battery Low Detection for Remote Control
• External loudspeaker connector
Maximum guest comfort
• Welcome message on screen display
• Volume limitation
System ready and future proof
• Smartplug RJ12 connector
• SmartCard Xpress Box compatible for interactive systems
Great viewing experience and guest comfort
• Digital Crystal Clear provides vivid cinema-like images
• HD Ready for the highest quality display of HD signals
Page 2
Professional flat TV with Digital Crystal Clear
66 cm (26") LCD HD Ready
Highlights
26HF5443/97
Wireless SmartLoader
Provides the ability to copy easy and wireless
al
l programmming settings from one TV set
into other TV sets in less then a minute. The
feature ensures uniformity between TV sets
and significantly reduces installation time and
costs.
Installation menu locking
Prevents unauthorized access to installation
and configuration
guest convenience and avoid unnecessary
reprogramming costs.
ESP™
Feature can be selected in the set-up menu.
The
TV can be switched off automatically after
a specified period of use saving energy and
provide extended product life time. The
selectable range is from 0 to 99 hours.
Battery Low Detection
This feature informs of the need to replace the
remote con
calls and unneccessary replacement of
batteries.
External loudspeaker connector
Amplified audio connector for easy installation
o
f external speakers (like for bathrooms),
eliminating the need for investments in
external equipment
settings, to ensure maximum
trol batteries preventing nuisance
Welcome message
A welcome greeting is displayed each time the
T
V set is switched on.
Volume limitation
This feature predefines the volume range with
w
hich the TV set is allowed to operate,
preventing excessive volume adjustments and
avoiding disturbance of next door guests.
Smartplug RJ12 connector
The Smartplug RJ12 connector permits OEM
or
3rd party decoders and controllers to
interface with the TV.
SmartCard Xpress Box
The optional SmartCard Xpress Box can be
mounte
d at the rear side of the TV set and
allows third party decoders and application
cards to interface with the TV adding new
functionality to the TV. The TV can also be
connected to external decoders and set-top
boxes of all major interactive system
providers, through the Serial Xpress Control
Interface (supporting UART and RS232
protocols) and the SmartPlug Control
interface.
Digital Crystal Clear
Digital Crystal Clear is a package of picture
i
nnovations that digitally adjusts and optimizes
picture quality to optimal contrast, color and
sharpness levels. It's like watching vivid cinemalike images.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
on pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
HDMI input
HDMI makes an uncompressed digital RGB
c
onnection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Page 3
Professional flat TV with Digital Crystal Clear
66 cm (26") LCD HD Ready
Specifications
26HF5443/97
Picture/Display
• Display screen type: LCD WXGA Active Matrix
TFT
• Diagonal screen size: 26 inch / 66 cm
• Aspect ratio: Widescreen, 16:9
• Panel resolution: 1366 x 768p
• Brightness: 500 cd/m²
• Contrast ratio (typical): 600:1
• Response time (typical): 8 ms
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: Digit
Progressive scan, 3D Combfilter, 3/2 - 2/2 motion
pull down, Digital Noise Reduction, Jagged Line
Suppression
• Screen enhancement: Anti-Reflection coated
re
en
sc
• Color cabinet: Bicolour Black & Silver Frost
a
l Crystal Clear,
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz
deo Formats
• Vi
Res
olution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
• AV 3: VGA PC-in, YPbPr (2Fh), Audio L/R in
•AV 4: HDMI
• Front / Side connections: CVBS in, S-video in,
L/R in
Audio
•
Connectivity Enhancements: RJ12 connector, RJ45
ector, HM-Link, SmartCard Xpress box
conn
ready, Extra Power supply 12V/1W, External
Loudspeaker connector
• Other connections: Monitor out, CVBS, L/R
inc
h)
(c
Convenience
• Ease of Installation: Automatic Tuning System
(ATS), Fine Tuning, Cloning of TV settings,
Advanced Hotel Mode, Program Name
• Ease of Use: Smart Picture, Smart Sound
• On-Screen Display languages: En
S
implified Chinese
• Comfort: Hotel Guest features
• Screen Format Adjustments: 4:3, Full screen,
e
rwide, Widescreen, Subtitle Zoom, Zoom
Sup
16:9, Zoom 14:9
• Teletext: 10 page Smart Text
• Clock: Sleep Timer
• VESA Mount: 200 x 100 mm
• Remote Control: TV
• Remote control type: RC2887
glish, Malay,
Power
• Mains power: AC 100 - 240 V, 50/60 Hz
• Power consumption: Normal Operation 98 W
• Ambient temperature: 5 °C to 40 °C
Sound
• Output power (RMS): 2 x 5W
• Sound System: Stereo, Virtual Dolby Surround
• Sound Enhancement: Auto Volume Leveller
Tuner/Reception/Transmission
• Tuner bands: VHF, UHF, S-Channel, Hyperband
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/G
SECAM D/K, NTSC
• Stereo System: Nicam BG/DK/I, 2CS BG/DK
• Video Playback: PAL, SECAM, NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 125
Connectivity
• AV 1: YPbPr (2fh), Audio L/R in
• AV 2: CVBS, S-Video, Audio L/R in
Dimensions
• Set weight: 16 kg
• Weight incl. Packaging: 18.8 kg
•Set dimensions (W x H x D):
x 436 x 114 mm
804.5
• Dimensions (with base) (W x H x D):
x 477 x 222 mm
804.5
,
•Box dimensions (W x H x D):
209 x 601 mm
876 x
Accessories
• Included accessories: Remote Control, Batteries
for remote control, Power cord, Table top stand
• Cables: Minijack-to-AV Cinch (Female)
Optional accessories: Set up Remote RC2573GR,
•
Wireless Sm
•
artLoader 22AV1120
Issue date 2011-06-07
Version: 1.0.7
12 NC: 8670 000 24159
EAN: 87 10895 97125 6
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
