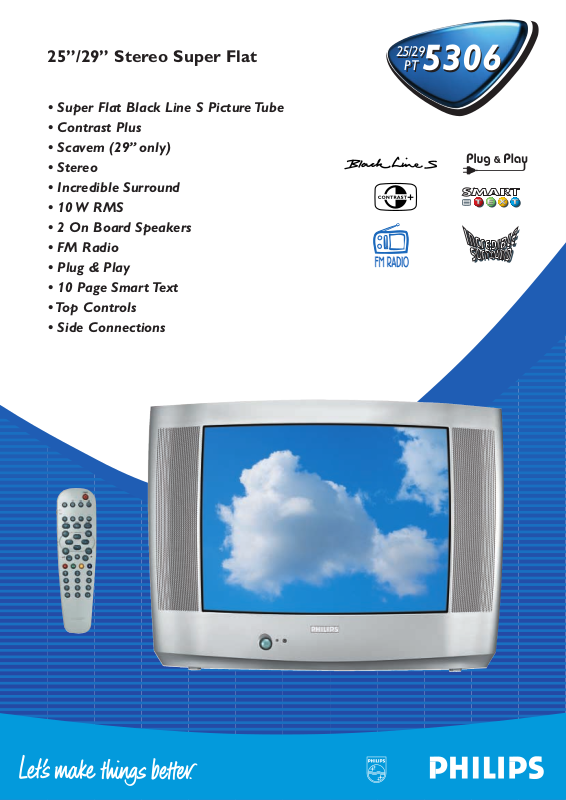

25”/29” Stereo Super Flat
• Super Flat Black Line S Picture Tube
• Contrast Plus
• Scavem (29” only)
• Stereo
• Incredible Surround
• 10 W RMS
• 2 On Board Speakers
• FM Radio
• Plug & Play
• 10 Page Smart Text
• Top Controls
• Side Connections
25/29
PT 5306
25/29
PT 5306
Product Information
• Screen Size : 25” (63 cm)
• Visible screen size : 25” : 59 cm
29” : 68 cm
• Picture Tube : Super Flat Black Line S
• Scan Velocity Modulation (29” only)
• Contrast Plus
• Sharpness Control
• Noise reduction
• Colour Temperature
Sound
• Sound Power : 10 W RMS
20 W Music Power
• Incredible Surround
• Ultra bass
• 2 On Board Speakers
Ease of Use Installation
• Plug & Play
• 100 Preset channels
• Autostore
• Fine Tuning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
• Top Controls
• RCLE014 (suitable for VCR)
• Smart Picture Control : Soft, Natural, Rich,
Multimedia, Personal
• Smart Sound Control : Movie, Speech
Music, Personal
• Smart Listening (Delta Volume + AVL)
• Dual I-II
• Smart Clock
• Wake up Clock
• Sleep Timer
• 16:9 Compress
• 4:3 Expand (formatter)
• Smart Lock (Child lock + Parental control)
25”/29” Stereo Super Flat
Connections
Side
• CVBS Video in
• Audio L/R (cinch/RCA) in
• Headphone Jack 3,5 mm out
Back
•
Euro A/V connector Ext1 (RGB in, CVBS in/out)
• Euro A/V connector Ext2 (S-Video in, CVBS in/out)
Information
• 10 Page Smart Text
• 4 Favourite Pages
• Program Information Line
FM Radio
• Stereo FM Radio
• 40 Preset channels
• Autostore / Manual store
• Sorting
• Preset List
Reception
• Tuning System : PLL digital tuning
• Tuner :VHF, UHF, S-Channel, Hyperband
• Aerial Input : 75 ohm Coaxial
• TV System : See table
• Stereo System : See table
• Video Playback : NTSC 4.43/3.58
Miscellaneous
• Mains :AC 220-240V, 50/60 Hz (stroke /01, /05)
AC 90-276V, 50/60 Hz (stroke /58)
• Power Consumption : 25” : 62 W
29” : 72 W
< 1W Stand by
• Set Weight : 25”-28 kg
29”-37 kg
• Weight Incl. Packaging : 25”-31 kg
29”-43 kg
• Set Dimension (WxHxD) : 25”-684x540x473 mm
29”-761x590x507 mm
• Box Dimension (WxHxD) : 25”-784x679x573 mm
29”-849x734x628 mm
• TV Colour : Silver Shadow (10811)
Features and specifications subject to change without notice
Product Highlights
Super Flat Black Line S
Philips TV picture tube with invar mask gives less deformation and therefore can provide 80% more contrast than
conventional picture tubes for brilliant colours and minimal
reflections, even when viewing in daylight.This Super Flat
tube gives a flatter surface for an improved TV design.
Contrast Plus
A special electronic circuit has been incorporated into
this television to enhance the darker portions of the
picture for added realism and improved picture quality.
Scavem
Scan VElocity Modulation - the speed at which
the picture lines are "wriiten"on the screen is varied to
ensure that all objects have the most crisp definition
and sharpest edges.
Incredible Surround
Incredible Surround widens the stereo sound signal
offering a surround sound experience.
RMS
The standard professional measure of sound output
power.All our Tv's aremeasured in RMS with 10%
Distortion.There are other terms than RMSwhich often
show higher numbers but are not comparable.
FM Radio
A radio is included inside the TV, capable of stereo
sound (in stereo TV's)
and storage of up to 40 FM Radio stations. On screen
naming of all these
stations is also possible for easy navigation.
Plug & Play
Having connected the tv , it automatically searches for
all channels and installs them.
10 Page Smart Text
Fast access to your own programmed favourite text
pages.
Top Controls
Volume and channel change controls on top of the tv to
enable easy adjustment without the remote control.
Side Connections
Connections for headphone and other inputs such as
camcorder,side entry for ease of use.
Predecessor : 25/29PT5305
Chassis : L01 LS
Introduction :Year 2002
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
25/29PT5306 /01
•••••••••••
25/29PT5306 /05
•••••••••••
25/29PT5306 /58
••• •• •• • •
25/29
PT 5306
25/29
PT 5306
05/01
