Philips 25PT4675, 25PT4655, 28PT4675, 28PT4655 User Manual

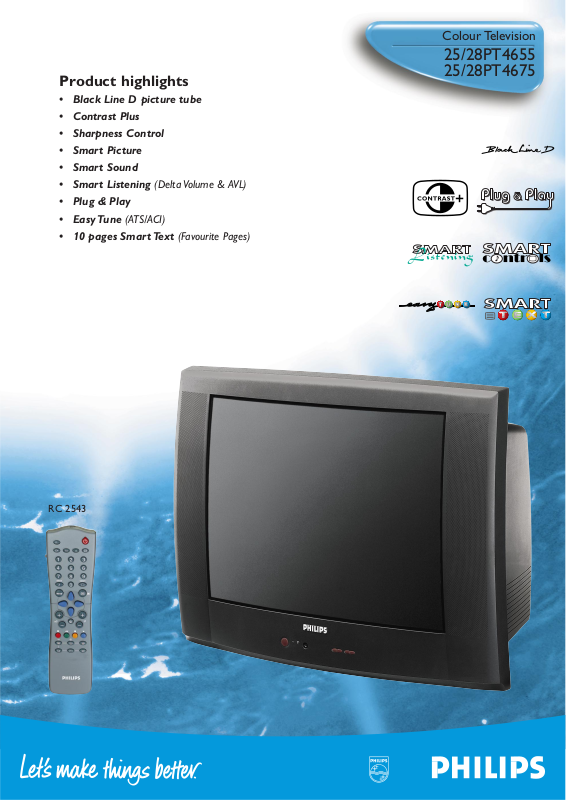

Product highlights
• Black Line D picture tube
• Contrast Plus
• Sharpness Control
• Smart Picture
• Smart Sound
• Smart Listening (Delta Volume & AVL)
• Plug & Play
• Easy Tune (ATS/ACI)
• 10 pages Smart Text (Favourite Pages)
Colour Television
25/28PT4655
25/28PT4675
RC 2543
Product Information
Colour Television
25/28PT4655
25/28PT4675
Screen size 25” (63 cm)
28” (70 cm)
Picture tube 25” / 28” Black Line D
Viewing area 59 cm (25”)
67 cm (28”)
Iron Mask
Smart Picture Modes Soft, Natural, Rich,
Personal
Contrast Plus
Sharpness Control
Color Temperature Control
16 : 9 Compress & 4 : 3 Expand
Noise Reduction
Sound
Sound output 2 x 5 Watts RMS
Loudspeakers Full Range Speakers
Smart Sound Modes Movie, Music, Speech,
Personal
Ultra Bass
Smart Listening (Delta Volume & AVL)
Bilingual switch on remote control
Reception
Tuning system PLL digital tuning
Tuner UV, S and Hyperband
Channel selection 80 presets
Aerial input 75 Ohm Coaxial
TV systems See table
Video playback NTSC 3.58 / 4.43
Stereo systems See table
Plug and Play
Easy Tune (ATS / ACI) : UK, FR, BE, NL, CH, DE,AT,
ES, PL, IT, ND
Teletext
Reception standards TOP / FLOF
10 page memory
Smart Text (4 Favourite Pages)
Connectors
Front Stereo headphone out (3.5 mm)
Rear Ext 1: Scart CVBS In / Out + RGB In
Ext 2: Scart CVBS In / Out + Y/C In
Operation
Remote control RC2543/01
Side TV/VCR switch on remote control
Program Information Line
Sleeptimer (240 minutes)
Measurements
Mains 220 - 240V, 50 Hz
Power consumption
• 25” – 83 Watts (Normal Operation)
• 28” – 97 Watts (Normal Operation)
• 5 Watts standby
Net weight
• 25” – 28 kg (approx.)
• 28” – 36 kg (approx.)
Gross weight
• 25” – 30 kg (approx.)
• 28” – 38 kg (approx.)
Set dimension
• 25” – 690 x 452 x 541 (W x D x H mm)
• 28” – 763 x 476 x 580 (W x D x H mm)
Box dimension
• 25” – 791 x 552 x 686 (W x D x H mm)
• 28” – 856 x 597 x 725 (W x D x H mm)
Cabinet Colour Black (80007)
Product Highlights
Black Line D picture tube
The Black Line D picture tube offers excellent images
with high sharpness and contrast and less reflection for
brilliant colors and improved viewing in daylight
conditions.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Smart Picture
A touch of the SMART PICTURE button on the remote
control provides the option of selecting one of four
preset positions (Soft, Natural, Rich, Personal) to enjoy
excellent viewing under different lighting conditions.
Select the desired option and all important picture
elements are instantly adjusted to optimize viewing
pleasure. ‘Rich’ for bright daylight conditions,‘Soft’ for
dark room settings, ‘Natural’ for normal ambient
conditions and ‘Personal’ for individual preference.
Smart Sound
A touch of the SMART SOUND button on the remote
control provides the option of selecting one of four
preset positions (Movie, Music, Speech, Personal) to
optimize each individual sound preference when
viewing different programs or sources.
Easy Tune (ATS / ACI)
A no fuss and easy way to install and store channels in
any favorite order.
Sleeptimer
The Sleeptimer automatically turns the TV off at a
preset time of up to 240 minutes from the time the
feature is activated. Sleeptimer settings are
programmed in 15, 30 and 60-minute increments.
Plug and Play
No problem anymore to install your new TV.
You choose the language you are more famliar with,
the country you are in and the TV will install
automatically all available programs.
version
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
25/28PT4655 /00 • • •
25/28PT4675 /01 • • • • • • • •
Predecessor : 25/28PT4354 & 25/28PT4374
Chassis : L9SS & L9LS
Release date (TTM) : August 1999
Date of issue : January 2000 Features and specifications subject to change without notice
stereo
system
transmission
system
