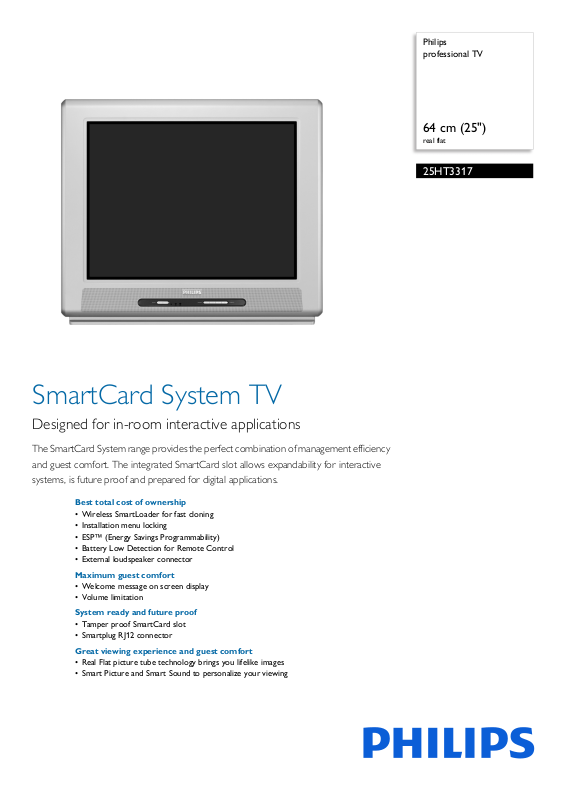

Page 1
Philips
professional TV
64 cm (25")
real flat
25HT3317
SmartCard System TV
Designed for in-room interactive applications
The SmartCard System range provides the perfect combination of management efficiency
and guest comfort. The integrated SmartCard slot allows expandability for interactive
systems, is future proof and prepared for digital applications.
Best total cost of ownership
• Wireless SmartLoader for fast cloning
• Installation menu locking
• ESP™ (Energy Savings Programmability)
• Battery Low Detection for Remote Control
• External loudspeaker connector
Maximum guest comfort
• Welcome message on screen display
• Volume limitation
System ready and future proof
• Tamper proof SmartCard slot
• Smartplug RJ12 connector
Great viewing experience and guest comfort
• Real Flat picture tube technology brings you lifelike images
• Smart Picture and Smart Sound to personalize your viewing
Page 2
25HT3317/79Y
professional TV
64 cm (25") real flat
Highlights
Wireless SmartLoader
Provides the ability to copy easy and wireless
al
l programmming settings from one TV set
into other TV sets in less then a minute. The
feature ensures uniformity between TV sets
and significantly reduces installation time and
costs.
Installation menu locking
Prevents unauthorized access to installation
and configuration
guest convenience and avoid unnecessary
reprogramming costs.
ESP™
Feature can be selected in the set-up menu.
The
TV can be switched off automatically after
a specified period of use saving energy and
provide extended product life time. The
selectable range is from 0 to 99 hours.
settings, to ensure maximum
Battery Low Detection
This feature informs of the need to replace the
remote co
calls and unneccessary replacement of
batteries.
External loudspeaker connector
Amplified audio connector for easy installation
o
f external speakers (like for bathrooms),
eliminating the need for investments in
external equipment
Welcome message
A welcome greeting is displayed each time the
T
V set is switched on.
Volume limitation
This feature predefines the volume range with
w
hich the TV set is allowed to operate,
preventing excessive volume adjustments and
avoiding disturbance of next door guests.
ntrol batteries preventing nuisance
Integrated SmartCard Slot
The integrated SmartCard slot allows third
p
arties to add new functionality to the TV
through application cards, without the need
for additional boxes and external connections.
The TV can also be connected to external
decoders and set-top boxes of all major
interactive system providers, through the
SerialXpress Control Interface (supporting
UART and RS232 protocols) and the
SmartPlug Control interface.
Smartplug RJ12 connector
The Smartplug RJ12 connector permits OEM
o
r 3rd party decoders and controllers to
interface with the TV.
Real Flat picture tube
The flatter tube provides a wider viewing angle
w
hile minimizing reflections for the best
picture possible.
Page 3
25HT3317/79Y
professional TV
64 cm (25") real flat
Specifications
Picture/Display
• Display screen type: Real Flat picture tube
• Diagonal screen size: 25 inch / 63 cm
• Aspect ratio: 4:3
• Picture processing: 50 Hz
• Color cabinet: Silver Frost
Sound
• Output power (RMS): 2 x 5 W
• Sound System: Stereo
• Sound Enhancement: Auto Volume Leveler,
ncredible Surround, Dynamic Bass Enhancement
I
Loudspeakers
• Built-in speakers: 2
Tuner/Reception/Transmission
• Tuner bands: UVSH
• TV system: PAL B/G, PAL D/K, PAL
SECAM D/K, NTSC
• Stereo System: Nicam BG/DK/I, 2CS BG/DK
• Video Playback: PAL, SECAM, NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 125
I, SECAM B/G,
Connectivity
• AV 2: CVBS, Y/C, YPbPr, Audio L/R in
• Front / Side connections: CVBS in, S-video in,
• Connectivity Enhancemen
/R in, Headphone Out
Audio L
connector, SmartCard Expansion Slot, External
ts: RJ12 SmartPlug
Loudspeaker connector
• Other connections: Monitor out
Convenience
• Ease of Installation: Automatic Tuning System
(ATS), Fine Tuning, Cloning of TV settings,
Advanced Hotel Mode, Program Name
• Ease of Use: Smart Picture, Smart Sound
• On-Screen Display languages: En
Simplified Chinese
• Comfort: Hotel Guest features
• Teletext: 10 page Smart Text
• Clock: On main display, Sleep Timer
• Remote Control: TV
• Remote control type: RC2887
glish, Malay,
Power
• Mains power: AC 90-276V, 50/60Hz
• Power consumption: Normal Operation 72 W
Dimensions
• Set weight: 31.5 kg
• Weight incl. Packaging: 35 kg
• Set dimensions (W x H x D): 622 x 523 x 458 mm
•Box dimensions (W x H x D):
8 x 619 x 562 mm
71
Accessories
• Included accessories: Remote Control, Batteries
for remote control
• Optional accessories: Set up Remote RC2573GR,
Wireless S
•
martLoader 22AV1120
Issue date 2020-05-06
Version: 1.0.2
12 NC: 8670 000 20456
EAN: 87 10895 82781 2
