Philips LPF 5135, LPF 5120, LPF 5125, 253117544-B User Manual

User Manual

LPF 5120

LPF 5125

LPF 5135

Introduction

Notice

CAUTION!

DANGER!

DANGER—HEAT!

Dear Customer

Introduction Brand Variable

With the purchase of this device, you have chosen a quality PHILIPS product brand. Their device fulfils the most varied requirements for private use or in your office and business everyday.

Energy Saving Mode

You use the power and toner saving functions to save electricity and toner, by switching the device to power saving

mode or printing in toner saving mode. Use the ECO-

button to make toner saving copies quickly and simply.

Starter Cartridge

For printing purposes, your device utilises the most up-todate laser printing technology. A starter cartridge is provided with the device. This starter cartridge is already installed; however you must remove the packaging used for transportation before you can use the device.

Paper Tray

You can insert a supply of paper into the paper tray of up to 250 sheets. You can insert special paper formats, envelopes, slides, sheets of labels or printed documents into the manual paper feed.

Telephone Book

In the telephone book of your device, you can save entries with multiple numbers and collect multiple entries into groups. You can assign various ring tones to the entries.

You have many functions available to you for fax transmission, for example, different resolutions or the timer function. You can secure your fax reception with a code. In that case, incoming faxes are not printed out, but rather are stored in the fax memory. With the fax polling function, you can retrieve faxes that lie ready in the dialled device.

Broadcast Transmissions

With the broadcasting key (= Broadcasting) you can add further numbers during the dialing process and send a message quickly and simply to several recipients.

Fax Templates

Five fax templates, which you can use, are stored in your device. With these templates you can quickly create, for example, a short fax note or an invitation.

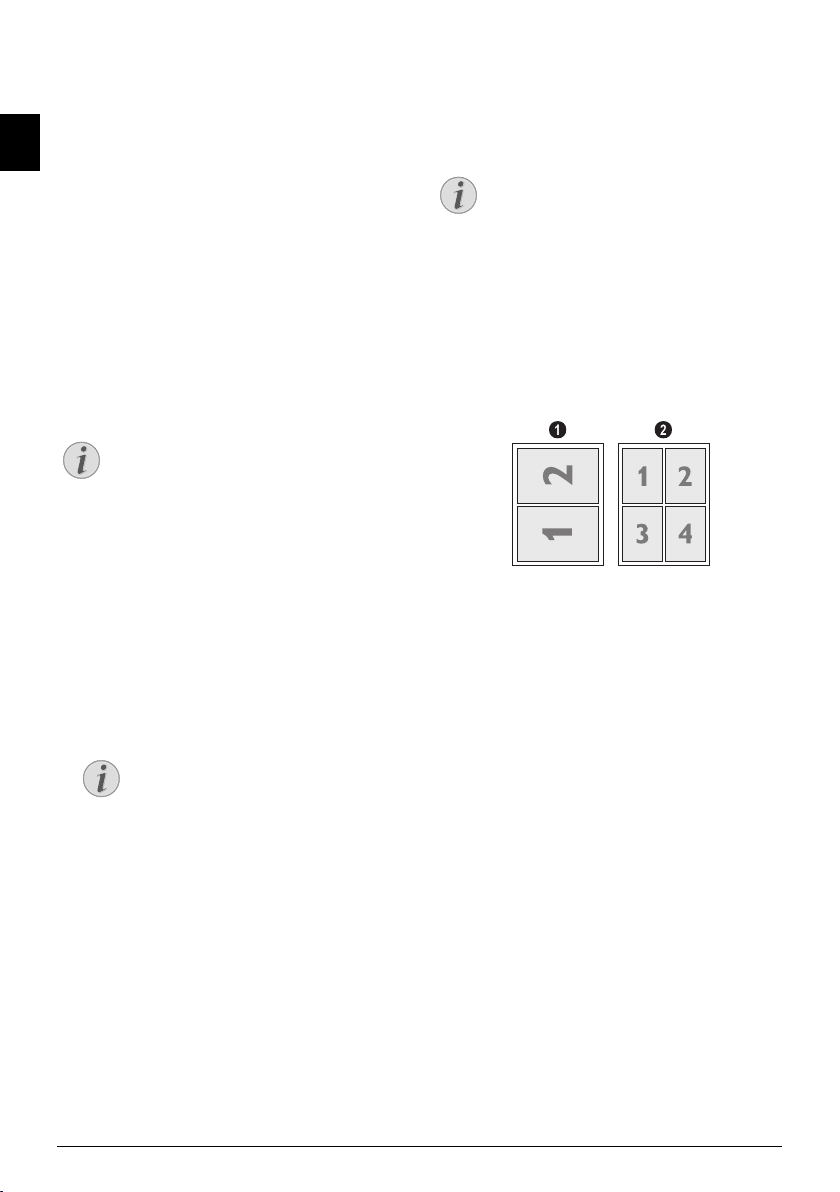

Copying Several Documents onto one Page (Mosaic Cop y)

You can copy several documents onto one page to save paper. The documents are adjusted automatically during the copying process.

Print Calendar

Your device prints a weekly overview as a calendar page for you – for the current week, the coming week or a freely selectable week.

If you want, your device can print Sudoku puzzles in four different difficulty levels with solution.

PC Connection

You can connect the device to your computer and use it as a printer (LPF¦5135). With the TWAIN scanner driver you can access the device and scan documents from any application which supports this standard.

We hope you enjoy your device and its many functions!

Spaltenumbruch

About this User Manual

With the installation guide on the following pages, you can start using your device quickly and easily. Detailed descriptions can be found in the following sections of this user manual.

Read the entire user manual carefully. Follow all safety instructions in order to ensure proper operation of your device. The manufacturer accepts no liability if these instructions are not followed.

Multiple models of this device series are described in this user manual. Please note that some functions are only available with specific models.

Symbols Used

Troubleshooting

This symbol designates tips that will help you to use your device more effectively and easily.

Damage to the Device or Loss of Data!

This symbol gives warning of damage to the device and possible loss of data. These damages can result from improper handling.

Danger to Persons!

This symbol gives warning of danger to persons. Physical injury or damage can result from improper handling.

Heat risk!

This symbol in the user manual or inside the device indicates a danger of hot surfaces. Physical injury or damage can result from improper handling.

2 Philips · Laserfax 5120 · 5125 · 5135

Introduction .............................................. 2

Dear Customer ............................................................ 2

About this User Manual .............................................. 2

1 General Safety Information................ 5

2 Overview............................................... 7

Device Overview .......................................................... 7

Connections on the Rear Side ...................................... 7

Panel with Display ....................................................... 8

Overview of the Menu Functions ................................ 9

Print Lists and Reports .............................................. 10

3 Initial Operation ................................ 11

Packing Contents ...................................................... 11

Removing Packaging Material ................................... 11

Attaching the Document Support .............................. 13

Fold Out the Print Out Support ................................ 13

Attaching the Document Outlet Tray ........................ 14

Connecting the Telephone Handset .......................... 14

Connecting the Telephone Cable .............................. 14

Connecting the Mains Cable ..................................... 14

Initial Installation ...................................................... 15

Connecting to the Computer ..................................... 16

4 Telephone Functions......................... 17

Placing a Call on the Device ...................................... 17

Getting Outside Line ................................................. 17

Chain Dialling ........................................................... 17

Insert Dialling Pause .................................................. 17

Dialling with the Handset Replaced .......................... 17

Calling Line Identification (CLIP) ............................. 18

Missed Calls .............................................................. 18

5 Telephone Book of the Device......... 19

Looking up an Entry ................................................. 19

Saving Entry .............................................................. 19

Edit Entry .................................................................. 19

Delete an Entry ......................................................... 20

Delete all Entries ....................................................... 20

Printing the Telephone Book ..................................... 20

Groups ...................................................................... 20

6 Printer and Printing Media............... 22

Connecting to the Computer ..................................... 22

Specifications for Print Media .................................... 22

Pulling out Paper Stopper .......................................... 22

Insert Paper into the Paper Tray ................................ 23

Load Paper into the Manual Paper Feed .................... 24

Loading Pre-printed Material .................................... 24

Inserting Slides and Labels ......................................... 24

Printing on Both Sides (Manual Duplex Printing) ..... 25

Print Calendar ........................................................... 25

Sudoku: Printing a Game .......................................... 25

7 Fax....................................................... 27

Send a Fax Using Standard Settings ........................... 27

Loading Documents .................................................. 27

Dialling a Number .................................................... 28

Getting Outside Line ................................................. 28

Sending Fax Later (= Timer Function) ....................... 28

Manually Sending a Fax ............................................. 29

Chain Dialling ........................................................... 29

Eavesdropping while Connection is Established ......... 29

Sending to Multiple Recipients (= Broadcasting) ....... 29

Using Fax Templates ................................................. 29

Fax Reception ............................................................ 29

Receiving Fax Manually ............................................. 30

Receive Faxes Silently ................................................. 30

Setting Protected Fax Reception ................................ 30

Polling Faxes .............................................................. 30

Jobs ............................................................................ 30

8 Copier................................................. 32

Loading Documents .................................................. 32

Make Copies Using Standard Settings ........................ 33

Make Copies Using the Second Profile ...................... 33

Make Copies Using User-Defined Settings ................ 33

Make Enlarged or Compressed Copies ....................... 34

Copying Several Documents onto one Page

(Mosaic Copy) ........................................................... 34

Configure Settings for Second Profile ........................ 34

9 Settings............................................... 36

Set Up Power Saving Function .................................. 36

Set Up Toner Saving Function .................................. 36

Selecting the Country ................................................ 36

Selecting the Language ............................................... 36

Entering the Date and Time ...................................... 36

Set the Time Zone ..................................................... 36

Entering Your Telephone Number and Name ........... 37

Setting the Ring Tones .............................................. 37

Set Resolution ............................................................ 37

Setting the Contrast ................................................... 38

Set the Level of Brightness for the Copier .................. 38

Deactivating the Button Tones .................................. 38

Configure Paper Settings ............................................ 38

Set Fax Transmission from the Memory .................... 38

Turning Page Header On/Off .................................... 38

Switching Transmission Report On/Off .................... 39

Setting the Fax Reception Mode ................................ 39

Silent Fax Reception .................................................. 39

Additional Options for Fax Transmission .................. 39

Additional Fax Reception Options ............................. 40

Locking the Device .................................................... 40

Print Lists and Reports ............................................... 41

10 Telephone Lines and Additional

Devices .................................................... 42

Selecting the Dialling Process ..................................... 42

Set up the Public Switch Telephone Network (PSTN)

................................................................................... 42

Set up Private Branch Exchange (PABX) .................... 42

DSL Connection ........................................................ 43

ISDN Connection ..................................................... 43

Connecting Additional Devices .................................. 43

Using Additional Telephones (Easylink) .................... 43

Using an External Answering Machine ...................... 43

Table of Contents 3

11 Service................................................. 44

Display Counter Levels .............................................. 44

Displaying the Toner Level ........................................ 44

Checking the Firmware Version ................................ 44

Changing the Toner Cartridge ................................... 44

Fixing a Paper Jam ..................................................... 46

Fixing a Document Jam ............................................. 49

Cleaning .................................................................... 49

Calibrating the scanner .............................................. 51

Using Service Codes .................................................. 52

Power Cycling ........................................................... 52

Problems and Possible Causes .................................... 53

Error Messages and Possible Causes ........................... 55

12 Glossary .............................................. 58

13 Appendix............................................. 61

Technical Data .......................................................... 61

Guarantee .................................................................. 62

Declaration of Conformity (DoC) ............................. 63

Customer Information ............................................... 68

4 Philips · Laserfax 5120 · 5125 · 5135

1 General Safety Information

Introduction 3

Your device has been tested in conformity with standards EN 60950-1 and IEC 60950-1 and should only be operated with telephone systems and power equipment that meet these standards. The device was built exclusively for use in the indicated sales region.

Introduction 2

Do not make any changes or settings that are not described in this user manual. Physical injury or damage to the device or loss of data can result from improper handling. Take note of all warning and safety notes indicated.

Setting Up the Device

The device should rest securely on a stabile, flat surface.

The device should rest securely on a stabile, flat surface. If the device should fall, it can be damaged or can cause injury to people, especially small children. Position all cables in such a way that no one will stumble on them, thus avoiding possible injuries to persons or damage to the device itself.

The distance between the devic e and other appliances or objects, must be at least 15 centimetre s.

The distance between the device and other devices or objects must be at least 15 centimetres; this also applies to the use of additional cordless telephones. Do not place the device in the vicinity of radios or televisions.

Protect the device against direct sunlight

Protect the device against direct sunlight, heat, large temperature fluctuations and moisture. Do not place the device in the vicinity of heaters or air conditioners. Observe the information on temperature and humidity in the technical data.

The device must have sufficient ventilation

The device must have sufficient ventilation and may not be covered. Do not put your device in closed cabinets or boxes. Do not place the machine on soft surfaces such as tablecloths or carpets and do not cover the ventilation slits. Otherwise, the device can overheat and catch on fire.

The area in which you operate the device must be adequately ventilated

The area in which you operate the device must be adequately ventilated, especially if the device is used frequently. Set up your device in such a way that the flow of the exhaust air stream points away from the work station.

In the event that the device becomes too hot, o r if you see smoke coming from the dev ice

In the event that the device becomes too hot, or if you see smoke coming from the device, you must immediately pull the power cable out of the power socket. Have your device examined by trained professionals at a technical service location. To prevent the spread of fire, open flames should be kept away from the device.

Do not plug in the device in moist rooms.

Do not plug in the device in moist rooms. Never touch the mains cable, the mains connection or the telephone socket with wet hands.

Do not allow liquids to enter into the device.

Do not allow liquids to enter into the device. Disconnect the device from the electrical power source and from the telephone network, if liquids or foreign objects have entered the device and have your device examined by trained professionals at a technical service location.

Do not allow children to handle the device w ithout supervision.

Do not allow children to handle the device without supervision. The packing materials should be kept out of the hands of children.

Magnetic telephone handset

The telephone handset of the device is magnetic. Caution, small metallic objects (paper clips) may be retained if placed near or on the telephone handset.

Power Supply/Telephone Line

Check whether the mains voltage of your device

Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location.

Emissions

This device complies with EN 55022 Class B. Use only the power and telephones cables supplied. Before you use the device make sure that you connected the telephone cable supplied as described.

Never touch the power or telephone cable if the insulation is damaged.

Never touch the power or telephone cable if the insulation is damaged. Replace damaged wires immediately. Use suitable cables only; if necessary please contact our technical customer service or your retailer.

Disconnect your device from the power and telephone networks during an electrical storm.

Disconnect your device from the power and telephone networks during an electrical storm. If this is not possible, do not use the device during an electrical storm.

Before cleaning the surface of your device, disconnect it from the power and telephone networks.

Before cleaning the surface of your device, disconnect it from the power and telephone networks. Use a soft, lintfree cloth. Never use liquid, gaseous or easily flammable cleansers (sprays, abrasives, polishes, alcohol). Do not allow any moisture to reach the interior of the device.

Only clean the display with a dry, soft cloth .

Only clean the display with a dry, soft cloth. If the display breaks, a mildly corrosive liquid may escape. Avoid all contact with your skin and eyes.

In the event of a power failure, your device will not function;

In the event of a power failure, your device will not function; saved data is retained.

Consumable Materials

Original Consumable Mat erial

Use only original consumable materials. These are available from a specialised retailer or through our order service (see back side of this user manual). Other consumable materials could damage the device or shorten its service life.

Environment

Dispose of old consumable materials according to the waste regulations of your country.

Caution when Handling Toner Powder:

If you breathe in toner powder, go into the fresh air immediately. Call a doctor immediately! If you get toner powder in your eyes, rinse them with a lot of water for at least 15 minutes. Call a doctor immediately! If you have swallowed toner powder, drink small amounts of water. Try NOT to vomit. Call a doctor immediately!

Toner Cartridge 1

Never open a toner cartridge. Store both new and used cartridges in a place where they will not come into the hands of children.

Paper Jam

In case of a paper jam, remove the paper carefully out of the device. Throw the paper away carefully: It is possible that the toner may not be completely set on the print-out, and toner dust could be released into the air.

If toner dust is released into the air, you should avoid allowing it to contact your skin and eyes.

If toner dust is released into the air, you should avoid allowing it to contact your skin and eyes. Do not inhale the released toner dust. Remove the toner dust from clothing or objects with cold water; hot water would only cause the toner to set. Never remove loose toner dust with a vacuum cleaner.

General Safety Information · 5

Repairs

Danger—Heat!

The fuser unit and and its surroundings inside the device become hot during operation. Do not touch these parts if you have opened the device. Proceed with care when you are removing a paper jam for instance.

Display

Should disruptions occur, follow the instructions on the display and on the error report.

Repairs

Do not make any repairs to the device yourself. Improper maintenance can result in injuries or damage to the device. Only have your device repaired by an authorised service centre.

Do not remove the type label from your device; this would void the warranty.

6 Philips · Laserfax 5120 · 5125 · 5135

2Overview

Device Overview

Document Support

‚ Document support

Document Feed Slot

ƒ Document feed slot

Document Guide

„ Document guide

Panel with Display

… Panel with display

Document Outlet Tray

† Document outlet tray

Device Cover

‡ Device cover

Manual Paper Feed

ˆ Manual paper feed

Paper Tray

‰ Paper tray

Printer Output Tray

Š Printer output tray

Print Output

‹ Print output

Telephone Handset with Spiral Cable (Type 3)

Œ Telephone handset with spiral cable (LPF¦5125,

LPF¦5135)

Vorderansicht nummeriert

Spaltenumbruch

Scanner glass

‚ Scanner glass

Toner Cartridge

ƒ Toner cartridge

Paper Jam Door (Print Unit)

„ Paper jam door (print unit)

Gerät offen nummeriert

Connections on the Rear Side

On/Off Switch

‚ On/Off switch

Mains Cable Socket

ƒ Mains cable socket

Paper Jam Door (Fuser Unit)

„ Paper jam door (fuser unit)

Telephone Handset Socket (Type 3)

… Ð socket—Connection socket for the telephone

(LPF¦5125, LPF¦5135)

EXT Socket

† Ï/EXT. socket—Connection socket for additional

devices

LINE Socket

‡ Î/LINE socket—Connection socket for telephone

cable

USB Connection for Firmware Update / USB Connection for the Computer

ˆý Socket—USB connection for Firmware update

(LPF¦5120, LPF¦5125) / USB connection for the computer (LPF¦5135)

Tension lever of the fixer unit

‰ Tension lever of the fixer unit (Two levers!)

Rückseite nummeriert

Overview · Device Overview 7

Panel with Display

Letter Keypad 2

Keys (A—Z)—Telephone book register: Calling up telephone book entries / entering letters.

Special Characters 1

;ü—Entering special characters (punctuation marks

and symbols). Select the entries with [. Confirm with

OK.

Special Characters 2

ûü—Entering language specific special characters (special

letters). Select the entries with [. Confirm with OK.

Shift Key

ú—Shift key: entering capital letters / in combination

with other keys: calling additional functions

Telephone Book

am—Calls up telephone book functions

Red Lamp

Red lamp Æ—If the lamp flashes or is lit, please read what

is indicated on the display

Green Lamp 2

Green Lamp â—The green lamp â on the panel will be

lit whenever there is a fax present in the memory.

Stop 2

j—Function abort / return to the starting mode

C—Returning to the previous menu level / deleting indi-

vidual digits

Arrow Keys

[—Calling the menu functions / navigation within the

menu / selecting options / moving the cursor

OK—Calling the menu functions / confirming input

Start (Starting Transmission of Messages / Starting Action)

o—Starting transmission of message / starting action

Fax

FAX—Start a fax transmission or fax reception

Copy

COPY—Press twice: making copies automatically. Press

once: adjusting copies

Resolution

f—Setting higher resolution for faxes and copying

(

STANDARD, FINE, SUPER FINE, PHOTO)

Help

¨—Print lists: Function list / fax journal / telephone book

/ jobs list / calendar / fax templates / settings

Broadcast Transmissions

À—Broadcasting: You can send one fax to multiple

recipients in succession.

ECO

ECO—Set up power saving and toner saving functions /

make a copy using the toner saving function

Number Keys

Numeric keys (0—9)—Entering digits

Redial / caller list

@—Redial / caller list: The redial / caller list contains the

last numbers dialled and the last calls received ( the numbers dialled, missed).

Speaker

μ—(LPF¦5120): Listening while the connection is

® the calls received and * the calls

established / (LPF¦5125, LPF¦5135): Dialling with the handset replaced

Rø—Insert short line interruption (Hook Flash) as office

index on PABX or for calling special functions in the public telephone network (PSTN)

ú and Rø—Inserting dialling pause

LPF 5120 · 5125 · 5140 · 5145

Spaltenumbruch Spaltenumbruch

8 Philips · Laserfax 5120 · 5125 · 5135

Overview of the Menu Functions

Introduction

The following functions are available on your device. There are two ways in which you can call functions.

Menu Navigation

Navigating in the Menu: Press OK or one of the two

arrow keys [, to open the function menu. Page through

[ menu entries. Use OK to sele ct a m enu f unct ion. Pres s

C to return to the previous menu level. Press j to close

the menu and return to the starting mode.

Direct Loading

Calling Functions Directly: You can call a menu func-

tion directly using the function number. Press OK and

enter the appropriate function number using the numeric

keypad. Confirm with OK. You will find the function

number in the following list.

0 Settings

Set up power and toner saving functions.

002 Set up power saving and toner saving

functions. .......................................................page 36

Deactivating the Button Tones

007 Deactivating the Button Tones ........page 38

Entering the Date and Time

011 Entering the date and time ..............page 36

Set the time zone

012 Set the time zone .............................page 36

Entering Name

021 Entering name .................................page 37

Entering Number

022 Entering number .............................page 37

Setting the Country

031 Setting the Country .........................page 36

Set the telephone network

032 Set the telephone network¦* .............page 42

Setting the Language

033 Setting the Language .......................page 36

Setting the Fax Reception Mode

041 Setting the fax reception mode.........page 39

Set the number of ring tones for fax receptio n

042 Set the number of ring tones for fax reception

.......................................................................page 37

Switch PABX operation on/off

051 Switch PABX operation on/off ........page 42

Enter a dialling code for the PABX operation

0522 Enter a dialling code for the PABX

operation........................................................page 42

Selecting the Dialling Process

053 Set the dialling mode (tone/pulse dialling)¦*

.......................................................................page 42

Setting Ring Tone

054 Selecting the Ring Tone...................page 37

Setting the Ring Volume

055 Setting the ring volume....................page 37

* Function is not support ed in all countrie s and networks

*¦Function is not supported in all countries and networks

1 Copier

Set the copier settings

10 Set the copier settings.............................page 37

Make copies using standard settings

11 Make copies using standard settings.......page 33

Make copies using settings from the second prof ile

12 Make copies using the second profile .....page 33

Make enlarged or compressed copies

13 Make enlarged or compressed copies......page 34

Copying several documents onto one page (Mosaic-co py)

14 Copy several documents on one page

(Mosaic-copy).................................................page 34

Spaltenumbruch

2 Printer

Set Paper Weight

201 Set paper weight.............................. page 38

Set Paper Source

202 Set paper source .............................. page 38

Setting the Paper Format

203 Setting the Paper Format ................ page 38

4 Fax

Settings for fax transmission

401 Set fax transmission......................... page 38

Settings for Fax Reception

402 Set fax reception.............................. page 40

Setting Protected Fax Reception

403 Setting Protected Fax Reception ..... page 30

Sending a Fax

41 Sending a Fax........................................ page 27

Poll faxes

42 Poll faxes ............................................... page 30

Printing the Fax Templates

45 Printing the Fax Templates ................... page 29

5 Telephone Book

Looking up an Entry

511 Looking up an entry........................ page 19

Saving Entry

512 Saving Entry ................................... page 19

Creating Group

513 Creating group................................ page 20

Edit Entry

514 Edit Entry....................................... page 19

Deleting an Entry

515 Deleting an Entry ........................... page 20

Printing the Telephone Book

516 Printing the telephone book............ page 20

7 Jobs

Immediate Job Execution

71 Immediate job execution ....................... page 31

Changing a Job

72 Changing a job...................................... page 31

Deleting a Job

73 Deleting a job........................................ page 31

Printing a Job

74 Printing a job ........................................ page 31

Printing the Job List

75 Printing the jobs list .............................. page 31

8 Lists and Reports

Print list of settings

80 Printing list of settings........................... page 41

Printing the List of Available Functions

81 Printing the List of Available Functions. page 41

Printing Fax Journal/Call Log

82 Printing Fax Journal/Call Log (LPF¦5125,

LPF¦5135)...................................................... page 41

Printing the Telephone Book

83 Printing the telephone book .................. page 41

Printing the Job List

84 Printing the jobs list .............................. page 31

Print Calendar

85 Print Calendar....................................... page 25

Printing Sudoku

86 Sudoku: printing a game ....................... page 25

Printing the Fax Templates

87 Printing the Fax Templates ................... page 29

9 Miscellaneous

Locking the Device

92 Locking the Device................................ page 40

Calibrating the scanner

931 Calibrating the Scanner................... page 51

Using Service Codes

933 Using service codes.......................... page 52

Checking the Firmware Version

934 Checking the firmware version........ page 44

Query the counter levels

94 Query the counter levels........................ page 44

Displaying the Toner Level

946 Displaying the Toner Level............. page 44

Spaltenumbruch

Overview · Overview of the Menu Functions 9

Print Lists and Reports

Printing the Functions List

You can also print the function list by pressing ¨. Using

[ select

Printing the Telephone Book

You can also print the telephone book by pressing ¨.

Using [ select

Printing the Fax Templates

You can also print the fax template by pressing ¨. Using

[ select

Printing Fax Journal/Call Log

Printing Fax Journal

You can also print the fax journal and the call log

(LPF¦5125, LPF¦5135) by pressing ¨. Using [ select

LOGS. Confirm with OK.

Printing the Job List

You can also obtain a print jobs list by pressing ¨. Using

[ select

Print Calendar

You can also print the calendar by pressing ¨. Using [

select

Sudoku: Printing a Game

You can also print a new Sudoku by pressing ¨. Using [

select

FUNCTION LIST. Confirm with OK.

PHONEBOOK. Confirm with OK.

FAX-TEMPLATES. Confirm with OK.

COMMANDS. Confirm with OK. CALENDAR. Confirm with OK. SUDOKU. Confirm with OK.

Prints the List of Settings

You can also obtain a list of all the settings by pressing ¨.

Using [ select

SETUP. Confirm with OK.

10 Philips · Laserfax 5120 · 5125 · 5135

3 Initial Operation

Notice

B 5

A 5

B 6

A 4

DANGER!

Packing Contents

Device

‚ Device

Starter Cartridge (Already Installed)

ƒ Starter cartridge (already installed)

Document support (in the paper tray)

„ Document support (in the paper tray)

Document outlet tray (in the paper tray)

… Document outlet tray (in the paper tray)

Paper Tray (Already Installed)

† Paper tray (already installed)

Telephone Handset (Type 3)

‡ Telephone handset (LPF¦5125, LPF¦5135)

Spiral Cable for Telephone Handset (Type 3)

ˆ Spiral cable for telephone handset (LPF¦5125,

LPF¦5135)

Mains Cable with Plug (Country-specific)

‰ Mains cable with plug (country-specific)

Telephone Cable with Plug (Country-specific)

Š Telephone cable with plug (country-specific)

User manual with installation guide (not depicted)

Installation-CD (Type 4)

Installation-CD (LPF¦5135) (not depicted)

Verpackungsinhalt

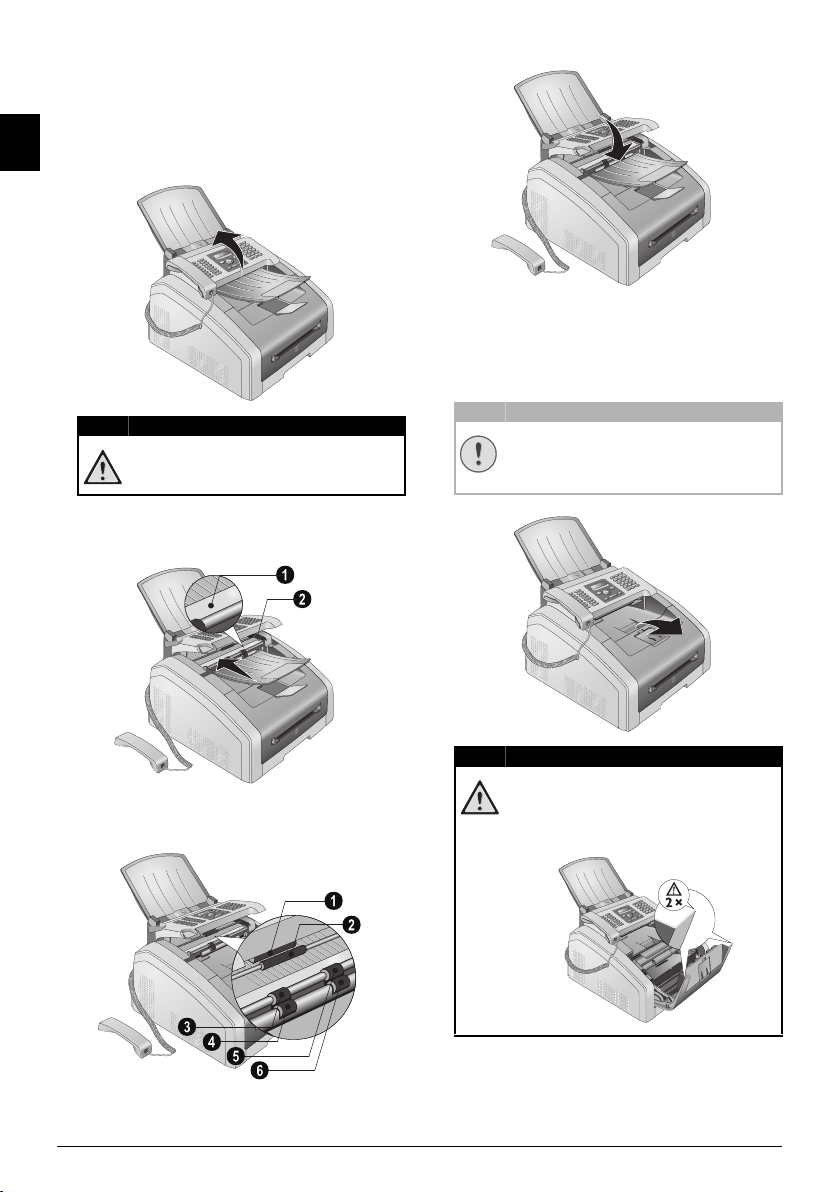

Removing Packaging Material

Removing Packaging Material from the Device

Remove the existing tape used for transportation from the device.

Verpackungsmaterial entf ernen

Remove the Packaging Material from the Toner Cartridge

1 Open the device by lifting the device cover forwards

Missing Package Contents

If one of the parts is missing or damaged, please contact your retailer or our customer service.

Spaltenumbruch

Edges on the Device Cover!

Take care of the edges on the device cover. You could injure yourself if you reach into the device from the side.

Initial Operation · Packing Contents 11

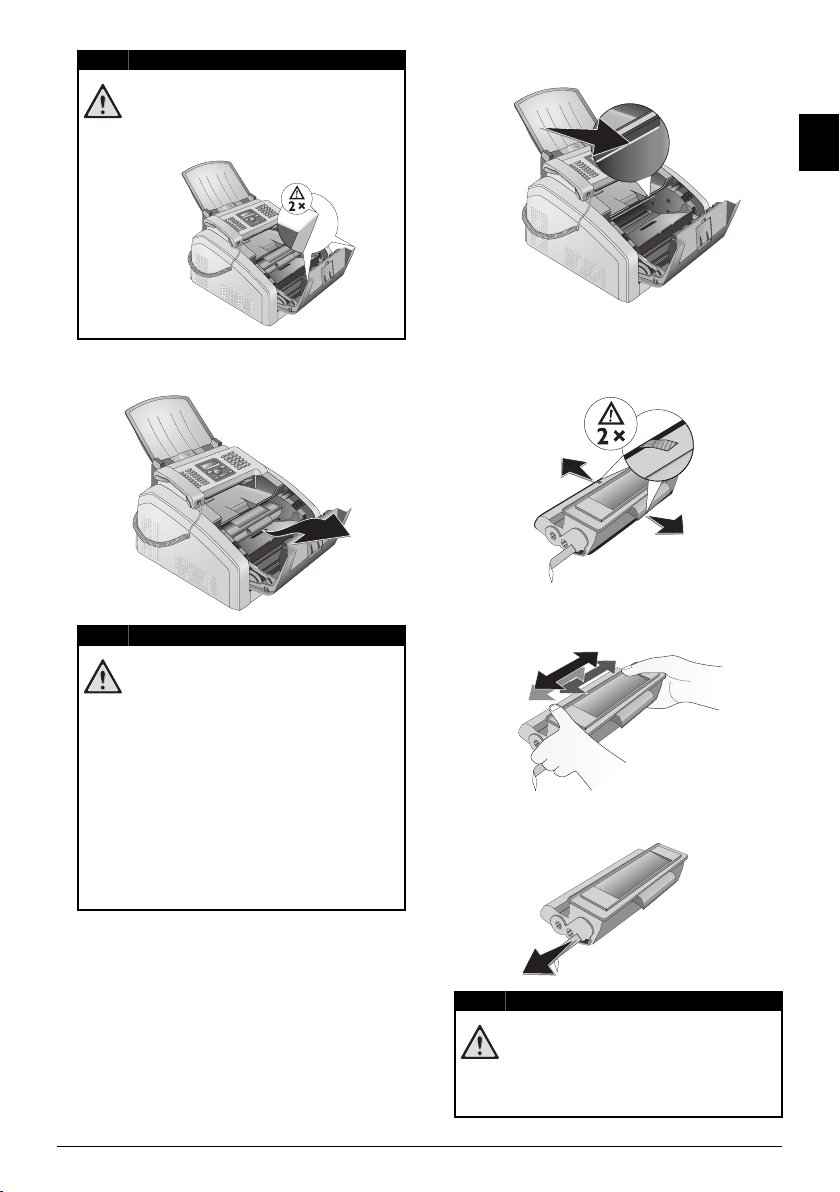

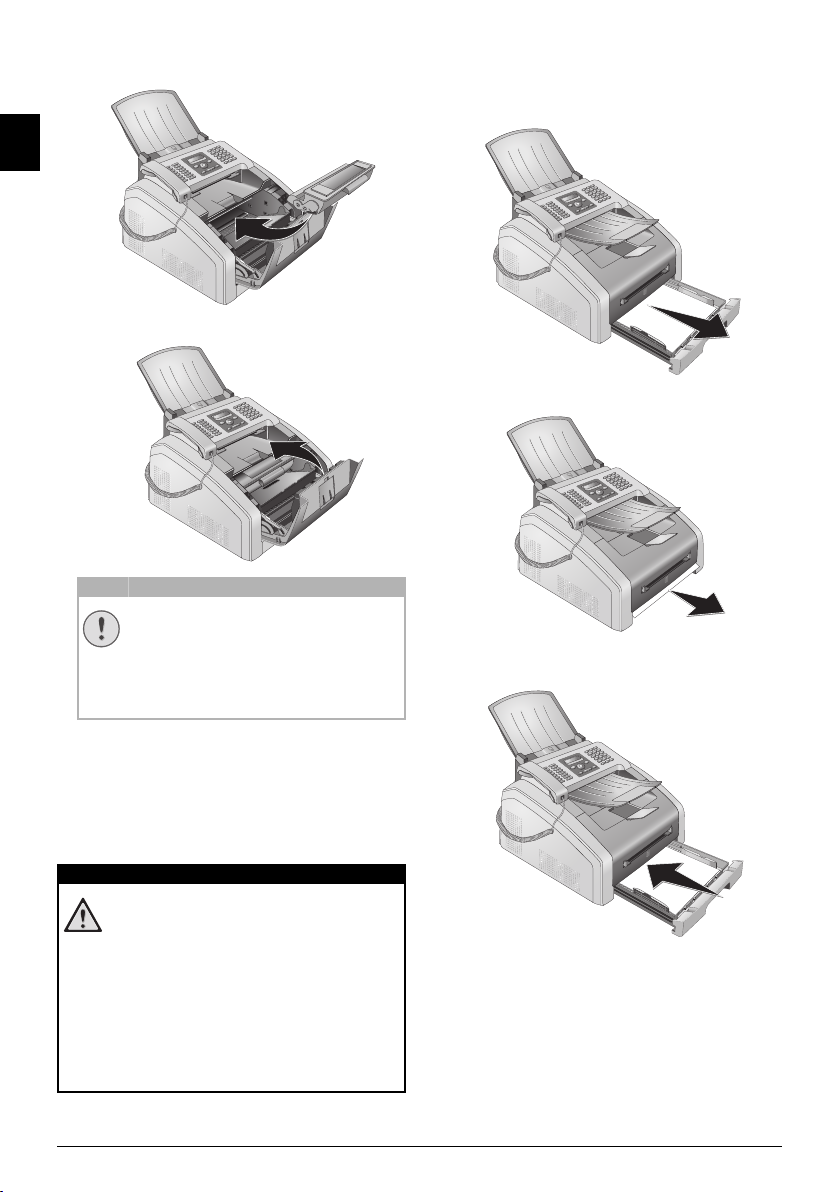

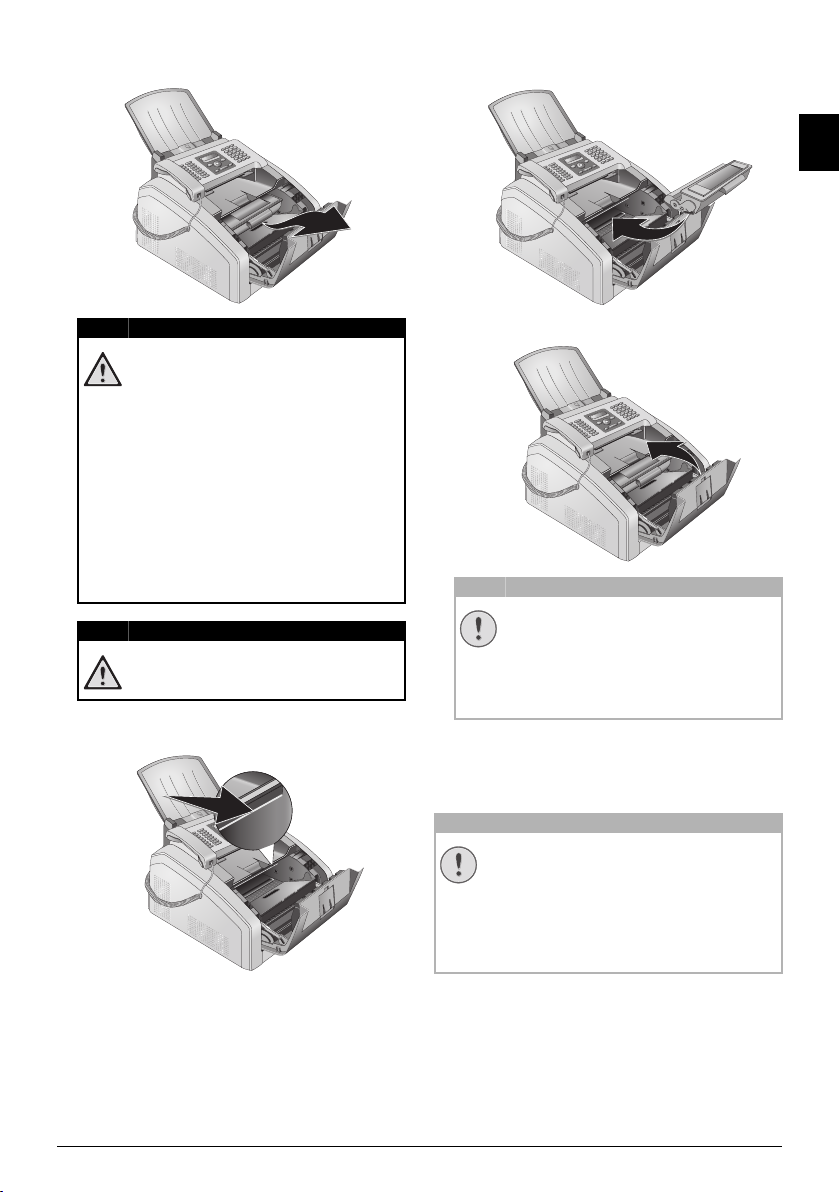

2 Remove the toner cartridge by gripping the handle in

DANGER!

CAUTION!

the middle and pulling it forwards out of the device

3 Remove the tape and protective paper, but do not

remove the protective strip from the cartridge yet .

Escaping Toner Dust!

Never open a toner cartridge. If toner dust is released into the air, you should avoid allowing it to contact your skin and eyes. Do not inhale the released toner dust. Remove the toner dust from clothing or objects with cold water; hot water would only cause the toner to set. Never remove loose toner dust with a vacuum cleaner.

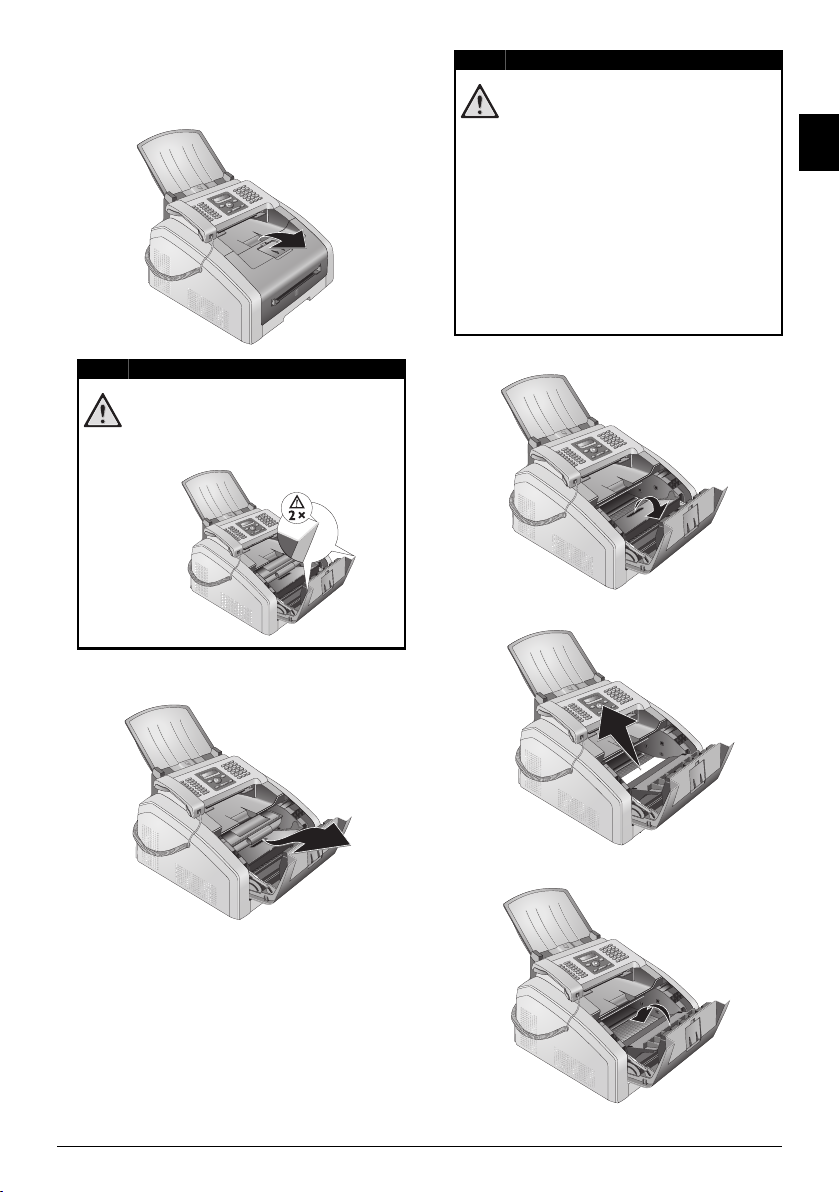

4 Shake the new toner cartridge back and forth several

times in order to distribute the toner evenly, thereby improving the print quality.

Escaping Toner Dust!

Once you have removed the protection strip, do not shake the toner cartridge any more. Otherwise, it is possible that toner dust will be released into the air.

6 Place the toner cartridge into your device. The cartridge

should snap securely into position.

7 Close the device.

Toner Cartridge Not Inserted Correctly!

If the device cover would not close, the toner cartridge is not inserted correctly. Take the toner cartridge out and insert it again correctly.

Remove the Packaging Material from the Paper Tray

1 Pull the paper tray out of the device.

5Only after completely pull off the protection strip

located on the left side of the cartridge.

A 4

B 5

A 5

B 6

12 Philips · Laserfax 5120 · 5125 · 5135

2 Please remove the protective cardboard from the paper

Notice

B 5

A 5

B 6

A 4

B 5

A 5

B 6

A 4

B 5

A 5

B 6

A 4

CAUTION!

tray before loading paper.

3 Remove the document support and the document out-

let tray from the paper tray.

4 Removing the tape in the paper tray which was used for

transportation purposes.

Attaching the Document Support

Insert the document support into the two openings in the cover. The document support should snap securely into place.

Dokumentenhalter aufstecken

Fold Out the Print Out Support

1 Fold the additional printer output tray forward.

A 4

B 5

A 5

B 6

Do Not Use the Paper Stopper with Legal Paper!

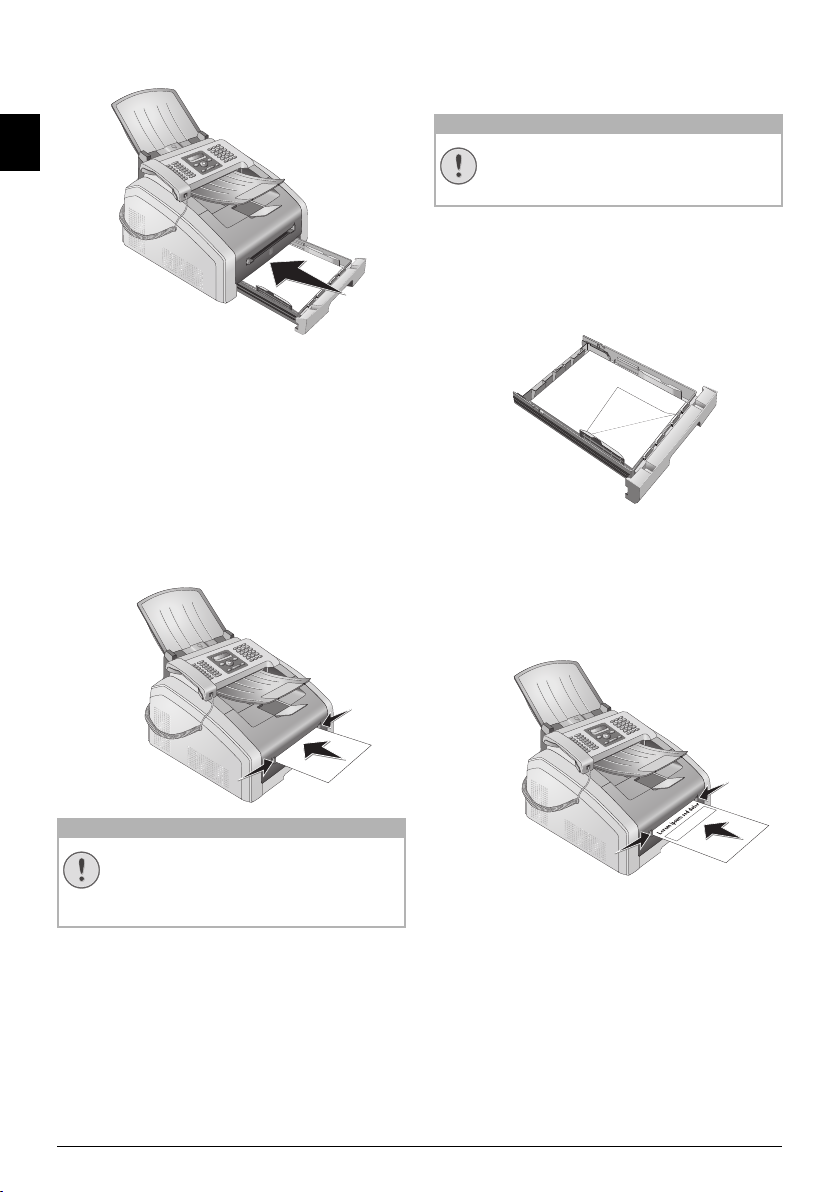

Loading Paper

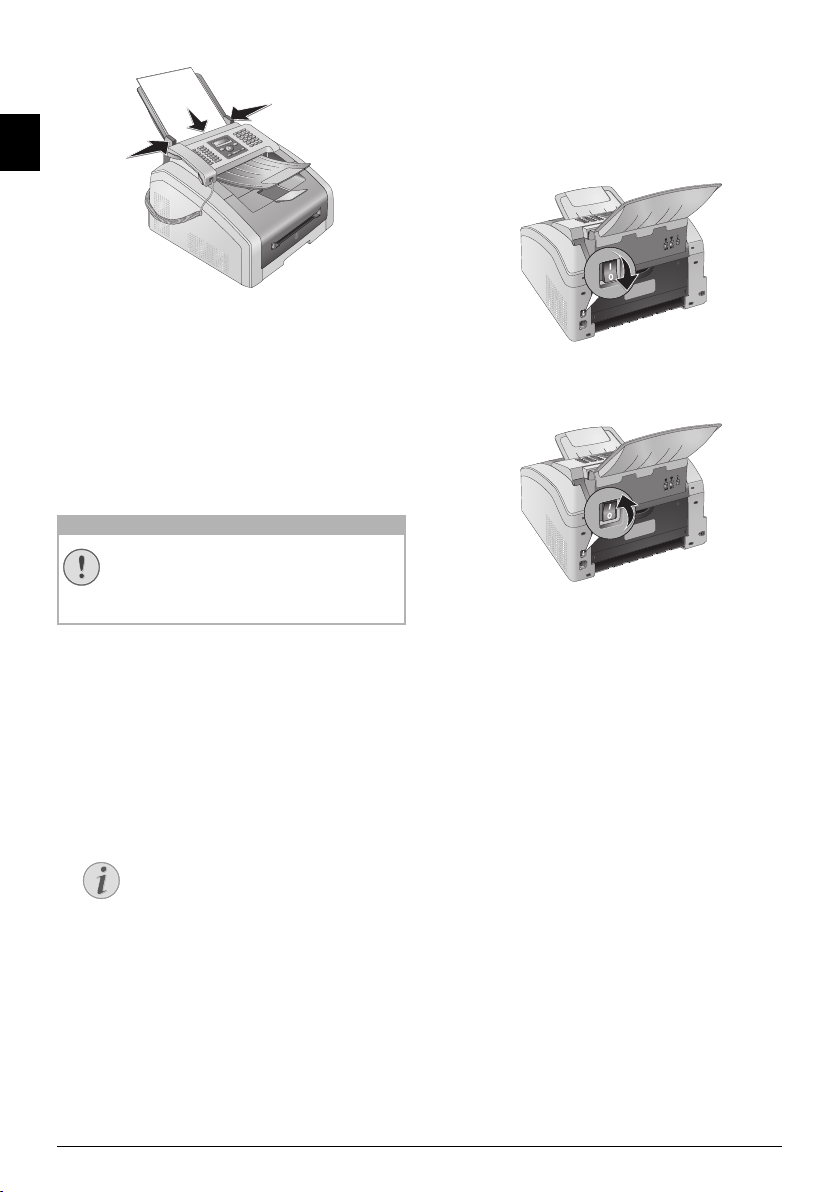

Adjust the paper tray to the paper and insert the paper (see also chapter Printing Media, page 22).

5 Push the paper tray into the device all the way to the

2 Printing on A4 Paper: Pull out the additional paper

Do not pull out the additional paper stopper on the print out support if you are printing on Legal paper.

stopper on the print out support.

stopping point.

Initial Operation · Attaching the Document Support 13

3 Printing on A5 Paper: Fold the print out support

CAUTION!

Notice

CAUTION!

with the pulled out paper stopper back again.

Attaching the Document Outlet Tray

Insert the document outlet tray into the two openings under the operation panel.

Dokumentenausgabehalter aufstecken

Connecting the Telephone Cable

Connect the telephone cable to the device by inserting it in

the socket designated with Î/LINE (RJ-11-Connector).

Insert the telephone plug into your PTT line socket.

Telefonkabel anschließen

Connection to an ISDN system!

You can not connect your devices directly to the digital output of the ISDN system. Details for ISDN connections can be found in the instructions provided with the terminal adapter or the dial-up router.

PABX Systems 1

Connection to Private Automatic Branch Exchange

If you connect your device as extension to a telephone system, you must set it for working as an extension (also see Chapter Telephone connections and additional devices, page 42).

Connecting the Telephone Handset

Type 3 (mit Telefon)

(LPF¦5125, LPF¦5135)

Connecting the Handset

Plug one end of the spiral cable into the socket on the telephone handset. Insert the other end into the socket desig-

nated with the Ð symbol.

Telefonhörer anschließen

Connecting the Mains Cable

Mains Voltage at the Site of Installation

Mains Voltage at the Site of Installation!

Check whether the mains voltage of your device (indicated on the type label) matches the mains voltage available at the setup location.

1 Insert the mains cable into the connection located on

the rear side of the device. Plug the power cable into the electrical outlet.

14 Philips · Laserfax 5120 · 5125 · 5135

2 Switch the device on using the on/off switch on the

CAUTION!

Notice

rear.

Spaltenumbruch

Initial Installation

After you connect your device to the mains voltage, the device starts. During the booting process, the lights flash. Wait until the initial installation process begins.

Automatic Changeover Between Summer Time/Win ter Time

Automatic Changeover Between Summer Time/Winter Time

With setting the country and time zone, the automatic changeover between summer and winter time is switched on. The automatic changeover is switched off if you enter the deviance from UTC manually using the time zones editor

Spaltenumbruch

Entering Name

Page Header

Your name and number are added together with date, time and page number at the top edge of each fax transmission (= header).

1 Enter the name using the keys (A—Z).

Selecting the Language

1 Use [ to select the desired display language.

2 Confirm with OK.

Selecting the Country

Setting the Country Correctly

Setting the Country Correctly!

You must set the country in which you are operating the device. Otherwise your device is not adapted to the telephone network. If your country is not included in the list, you must select a different setting and use the correct telephone cable for the country. Consult your retailer.

Setting the Country

1 Use [ to select the country in which you are operat-

ing the device.

2 Confirm with OK.

Set the Time Zone

Function is not supported in all countries a nd networks

(Function is not supported in all countries and networks)

Set the Time Zone

In countries with several time zones, you can select from preset time zones or manually enter the deviance of your time zone from UTC (see also chapter on setting the time zone, page 36). In countries with one time zone, the setting is adjusted automatically if you set the country correctly.

1 Use [ to select the time zone in which you are oper-

ating the device.

2 Confirm with OK.

Enter Letters

Enter capital letters by pressing and holding

ú key. You can enter space using ½.

To insert special characters and symbols,

press ;ü. Press ûü to insert language spe-

cific special characters. Select with [. Con-

firm with OK.

You can move the cursor using [. Use C to

delete individual characters.

2 Confirm with OK.

Entering Number

1 Enter your number.

Cursor Navigation 7

Enter Special Characters and Symbols

To insert special characters and symbols, press

;ü. Select with [. Confirm with OK.

You can move the cursor using [. Use C to

delete individual characters.

2 Confirm with OK.

Entering the Date and Time

1 Enter the date (two digits for each field), for example

31¦05¦25 for May 31th, 2025.

2 Enter the time, e.g. 14 00 for 2 pm.

3 Confirm with OK.

Initial Operation · Initial Installation 15

Connecting to the Computer

Notice

Type 4 (PC)

(LPF¦5135)

Only Use High Speed USB Cable

Notice

Only high-speed certified USB cable

Use only a custom high speed certified USB cable to connect the device to your computer. The cable should be no longer than 1.5 metres.

Connecting to the Computer

You can connect the device to a computer and use it as a printer and scanner. You can find all instructions on installation and usage in the operating instructions on the installation CD supplied.

Requirements

Your computer must have one of the following operating systems.

Microsoft Windows

2000 (SP¦4) · XP · Vista · Windows 7

Windows Server 2003/2008

Apple Macintosh

OS 10.4 · 10.5 · 10.6

Linux

Redhat 9.0 · Debian 5.0 · Suse 11.1 · Fedora 11 Ubuntu

9.10

Connecting USB Cable

1 Close all open programs and applications before begin-

ning the installation process. Place the installation CD in the CD-ROM drive of your computer. The program will start automatically.

Only high-speed certified USB cable

Use only a custom high speed certified USB cable to connect the device to your computer. The cable should be no longer than 1.5 metres.

2 Connect the device to your PC with a typical USB

cable. The USB port of your device can be found on the rear side.

16 Philips · Laserfax 5120 · 5125 · 5135

4 Telephone Functions

Notice

Type 3 (mit Telefon)

(LPF¦5125, LPF¦5135)

Connecting Additional Telephon es

For information on how to connect additional telephones and which functions are available to you, please refer the chapter on Telephone Connections and Additional Devices, Page 42.

Placing a Call on the Device

Dial the desired number. There are several ways to do this: Then pick up the handset.

Direct Dialling

Incorrect Outside Line Access Code

Setting Up an Extension

Incorrect Outside Line Access Code

In rare cases, the outside line access code may be a different number or a two-digit number. For older telephone systems, the outside line access

code can be R (= Flash). Press Rø to enter this

outside line access code. If the connection to the public telephone network is not possible, contact your telephone system supplier.

Direct Dialling

You can also lift up the receiver first, then dial a number. The dialling process begins immediately.

Manual Dialling: Dial the desired number using the numeric keypad.

Telephone Book

Telephone book register: with the keys (A—Z) you can access entries saved in the telephone book. Enter the initial letters or the name of the desired entry. Your device will show you the telephone book entries for the corre-

sponding letters. Select an entry using [.

Using the Telephone Book

You can also call the telephone book entries by

pressing am and select using [

SEARCH.

The function Search works even while you are conversing on the telephone.

If you are loading entries from the telephone book, it is possible to edit the numbers after you have loaded them. For example, you can add or delete prefixed numbers or direct dial numbers.

Redial / caller list

Redial / caller list: The redial / caller list contains the last numbers dialled and the last calls received ( the numbers dialled,

® the calls received and * the calls

missed).

Getting Outside Line

PABX Systems

Private branch exchanges (PABX) are typical in many offices and some households. You must dial an outside line access code in order to get a connection to the public telephone network (PSTN) from a PABX.

Inserting Outside Line Access Code

Enter the outside line access code with which you reach the public telephone network before you enter the desired number or select a stored entry. The outside line access

code is usually 0.

Connection to Private Automatic Branch Exchange

If you operate your device permanently on an extension, save the outside line access code (see also chapter on setting Private Branch Exchange (PABX) , page 42).

Chain Dialling

You can combine and edit manually entered digits and saved entries, before the dialling process starts. If you have saved, for example, the telephone number prefix of an inexpensive telephone service provider (call-by-call) as a telephone book entry, select this entry and manually enter the subsequent telephone number or select another saved entry.

Insert Dialling Pause

It may be necessary to insert a dial pause in telephone number, for example, for a direct-inward dialling number,

a sub-address or in a long distance number. Press ú and

Rø. The second part of the number is dialled only after a

short pause.

Dialling with the Handset Replaced

1 Press μ to dial without lifting up the handset. You

will hear the dial tone from the loudspeaker; the dialling process will commence immediately. Select the

desired volume level using [.

2 Pick up the hand-set when the subscriber accepts the

call.

No Hands-free Operation Possible

Hands-free operation is not possible with this function. You cannot answer if the subscriber picks up.

Spaltenumbruch

Telephone Functions · Placing a Call on the Device 17

Calling Line Identification

Notice

(CLIP)

Function is not supported in all countries a nd networks

(Function is not supported in all countries and networks)

CLIP Definition

The number of an incoming call appears on the display. For this function to work, the Calling Line Identification Presentation (CLIP) must be activated for your telephone connection. Enquire with your telephone company. Caller Line Identification may be associated with a fee.

Setting the Country Correctly

If the Caller Line Identification does not work even though the function is activated for your telephone connection, check if you have set the correct country (also see Chapter Settings, page

36)

Missed Calls

You can find reference to missed calls in the redial/caller list.

1 Press @.

2 Page through the dialled numbers, the calls received

and calls missed in the list using [ (

numbers dialled, missed).

3 To call back, pick up the handset.

® the calls received and * the calls

Displaying Telephone Book Names

Your device displays the name with which you have saved the number in the telephone book. The number and name will not be shown if the caller suppresses his number.

18 Philips · Laserfax 5120 · 5125 · 5135

5 Telephone Book of the Device

Notice

Telephone Book

Call the telephone book functions using am: You can

store new entries, search for entries as well as set and edit groups. You can save up to 250 entries in the telephone book of your device.

Cursor Navigation 1

Navigating in the Editor

You can move the cursor using [. Use C to

delete individual characters. Press j to close the

menu and return to the starting mode.

Looking up an Entry

Telephone Book

sponding letters. Select an entry using [.

1 Press am.

2 Using [ select

3 Confirm with OK.

SEARCH.

5 Confirm with OK.

6 Enter the number using the number pad.

7 Confirm with OK.

Enter Letters

Enter capital letters by pressing and holding

ú key. You can enter space using ½.

To insert special characters and symbols,

press ;ü. Press ûü to insert language spe-

cific special characters. Select with [. Con-

firm with OK.

Number from the Last Number Redial List

You can retrieve a saved number from the list of the last numbers dialled and last calls

received (redial/caller list). Press @. Select

an entry using [. Confirm with OK.

Access Function

You can also search for an entry in the tele-

phone book by pressing OK, 511

and OK.

4 Select an entry using [.

Help Button

Press ¨ to display the information saved on

this entry.

Saving Entry

No Repeat Entries

You cannot save two entries under the same name.

1 Press am.

2 Using [ select

3 Confirm with OK.

4 Enter the name using the keys (A—Z).

NEW ENTRY.

Access Function

You can also call the function by pressing

OK, 512 and OK.

Outside Line Access Code

If you have set your device up to work on a public telephone network (see Private Branch Exchange) and entered the outside line access code, save the number without the outside line access code (see also chapter line access code (PABX)

8 You can assign a ring tone to the number. Use [ or

the number buttons 1 to 7 to select a ring tone.

9 Confirm with OK.

Setting up outside

, page

Assigning the Standard Ring Tone

Select 1, in order to assign the standard

ring tone to the number.

10 Select the speed for fax transmissions to this recipient.

Normally you can select the highest speed. Set a lower transmission speed if you are sending faxes into networks with poor line quality.

11 Confirm with OK. The entry is saved.

Spaltenumbruch

Edit Entry

1 Press am.

2 Using [ select

3 Confirm with OK.

MODIFY.

Access Function

You can also call the function by pressing

OK, 514 and OK.

Telephone Book of the Device · Looking up an Entry 19

4 Enter the initial letters or select the entry you would

Notice

CAUTION!

Notice

like to change with [.

5 Confirm with OK.

6 Edit the name.

7 Confirm with OK.

8 Edit the number.

9 Confirm with OK.

10 You can assign a ring tone to the number. Use [ or

the number buttons 1 to 7 to select a ring tone.

11 Confirm with OK.

Assigning the Standard Ring Tone

Select 1, in order to assign the standard

ring tone to the number.

12 Select the speed for fax transmissions to this recipient.

Normally you can select the highest speed. Set a lower transmission speed if you are sending faxes into networks with poor line quality.

13 Confirm with OK. The entry is saved.

Delete an Entry

1 Press am.

2 Using [ select

3 Confirm with OK.

4 Using [ select

5 Confirm with OK.

6 Enter the initial letters or select the entry you would

like to delete with [.

7 Confirm with OK.

8 Using [ select

9 Confirm with OK.

Groups

The entry is deleted from all the groups in which it is included.

DELETE.

Access Function

You can also call the function by pressing

OK, 515 and OK.

DELETE: SINGLE.

DELETE: YES.

1 Press am.

2 Using [ select

DELETE.

3 Confirm with OK.

Access Function

You can also call the function by pressing

OK, 515 and OK.

4 Using [ select

DELETE: ALL.

5 Confirm with OK.

6 Using [ select

DELETE: YES.

7 Confirm with OK.

Printing the Telephone Book

Printing List of all Entries

Printing the Telephone Book

Press OK, 83 and OK to print a list of all saved

entries and groups in the telephone book.

Printing the Telephone Book

Help Button

You can also print the telephone book by press-

ing ¨. Using [ select

PHONEBOOK. Confirm

with OK.

Printing an Individual Entry

1 Telephone book register: with the keys (A—Z)

you can access entries saved in the telephone book. Enter the initial letters or the name of the desired entry. Your device will show you the telephone book entries

for the corresponding letters. Select an entry using [.

2 Press COPY.

Spaltenumbruch

Groups

You can create groups containing several numbers. A message is sent to all members of this group in succession. A group is displayed as an individual telephone book entry.

Creating Group

1 Press am.

2 Using [ select

3 Confirm with OK.

NEW GROUP.

Delete all Entries

All Telephone Book Entries are Deleted!

Access Function

You can also call the function by pressing

OK, 513 and OK.

All Telephone Book Entries are Deleted!

This function deletes all entries and groups in your telephone book.

20 Philips · Laserfax 5120 · 5125 · 5135

4 Enter a name for the group.

5 Confirm with OK.

6 Enter the initial letters or select the entry you would

like to add to the group using [.

7 Entries which belong to the group are highlighted with

Notice

a star (

*). Add other members to the group by selecting

the entries and press OK. Remove group members by

selecting the highlighted entry and press OK.

8 Using [ select

selection.

9 Confirm with OK.

ACCEPT GROUP to complete the

Edit Group

1 Press am.

2 Using [ select

3 Confirm with OK.

4 Using [ select the group you would like to edit.

5 Confirm with OK.

6 If necessary, enter a new name for the group.

7 Confirm with OK.

8 Entries which belong to the group are highlighted with

*). Add other members to the group by selecting

a star (

the entries and press OK. Remove group members by

selecting the highlighted entry and press OK.

9 Using [ select

selection.

10 Confirm with OK.

MODIFY.

Access Function

You can also call the function by pressing

OK, 514 and OK.

ACCEPT GROUP to complete the

Deleting a Group

Entries are Not Deleted

This function only deletes the group but not the telephone book entries contained in it.

1 Press am.

2 Using [ select

3 Confirm with OK.

DELETE.

Access Function

You can also call the function by pressing

OK, 515 and OK.

4 Using [ select

5 Confirm with OK.

6 Using [ select the group you would like to delete.

7 Confirm with OK.

8 Using [ select DELETE: YES.

9 Confirm with OK.

Telephone Book of the Device · Groups 21

DELETE: SINGLE.

+ 47 hidden pages
