Philips 24PW6322 User Manual

WideScreen Television

24PW6302 24PW6322

NICAM

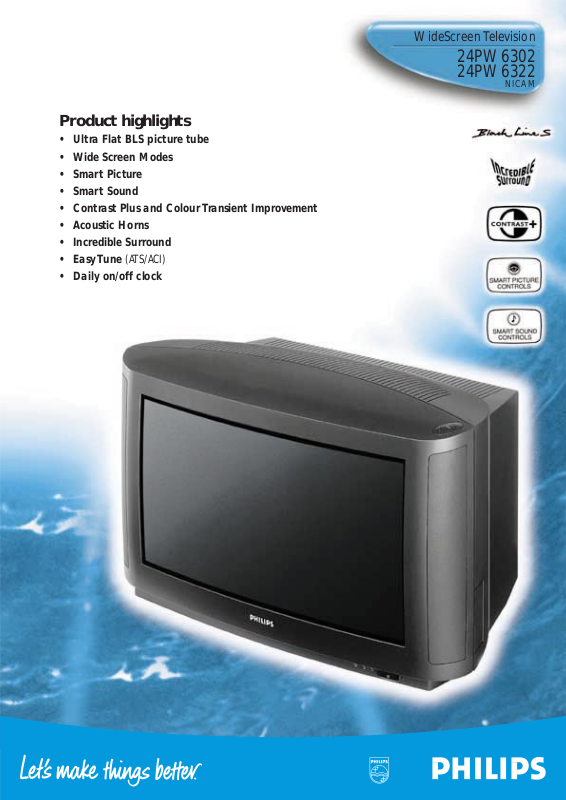

Product highlights

• Ultra Flat BLS picture tube

• Wide Screen Modes

• Smart Picture

• Smart Sound

• Contrast Plus and Colour Transient Improvement

• Acoustic Horns

• Incredible Surround

• Easy T une (ATS/ACI)

• Daily on/off clock

WideScreen Television

24PW6302 24PW6322

NICAM

Technical specifications Chassis

• Type : Mid 1.2


• Screen diameter : 61 cm FSQ

• Visible diagonal : 57 cm

• Picture tube : 16x9 U-BLS

• S-Video display

• Colour Transient Improvement (CTI)

• Tint,adjustable white colour

• Blackstretch

• Smart control key on remote control for four independent picture settings

• Settings via menu of :

- Brightness,Colour, Contrast,Sharpness,Tint,

Noise reduction

• Game and Digital optimal settings

Sound

• Sound system : 2 speakers stereo

• Loudspeakers : 2x5" acoustic horn

• Output (RMS) : 16W

• Frequency respons : 60Hz-20Hz

+1/-3dB (amplifier)

• Incredible sourround:switchable by menu

• Bi-langual switch on remote control

• Smart control key on remote control for four independent sound settings

• Headphone with independent volume control

• Settings via menu of :

- Treble,Bass, Balance , Incredible surround,

Headphone volume

Operation

• Easy menu-driven installation and operation

• Multi-language selection for menu

• Automatic Channel Installation (ACI)

• 100 preselections

• Programme name for all programmes

• Easy Logic remote control with VCR functions

• Personal Preference setting per programme

• ATS (Automatic Tuning System)

• Learning knob for direct access to menu functions

• Direct access for picture,sound and feature menu

• Sleeptimer up to 180 minutes

• Daily on/off clock,to program automatic switch on and off

• Smart Clock for automatic downloding of the internal clock

• Electronic lock

• Program title display (transmitted by teletext)

• Message mode

Teletext

• Reception standards:WST/TOP/FLOF

• 8 pages of Teletext memory

• Teletext time with one button on the remote control

• Favourite page

Reception

• Tuning system : 100 fold PLL

• Colour transmissionsystem off air: /00,/11 PAL B/G /01 PAL B/G/L/I

SECAM B/G/L/L' D/K/K'

/58 PAL B/G/D/K

SECAM B/G/D/K/K'

• NTSC playback : 4,43 MHz

• Channel selections : VHF,UHF,

S-Channels, Hyperband

• Frequency range : 47.25-855.25 MHz

• Aerial input : 75 Ohm (Coax)

Connections

• Side

• Stereo headphone out (3.5 mm jack)

• S-VHS in

• Audio L/R in (cinch)

• Video CVBS-in (cinch)

• Rear

• EXT1: RGB-in + CVBS-in/out

• EXT2: CVBS-in/out + Y/C in

• Audio out L/R constant level (cinch)

Remote control

• RC type: RC 7535

Miscellaneous

• Ambient temperature: +5/+55°C

• Mains : AC220-240V ±10%

• Power consumption : 90 W

• Stand-by power cons.: 3W at 220V

• Weight incl. pack : 30.5kg

• Weight excl. pack : 26.5kg

• Dimensions:

- incl.pack (wxhxd) : 80.5x57.0x55.5cm

- excl.pack (wxhxd) : 66.3x41.3x44.1cm

• Cabinet Painting : Mid Grey 10763

Product highlights

• Ultra Flat BLS picture tube

The flat screen offers an improved viewing angle and less disturbing reflections. The BLS offers high contrast and reduced reflections, for natural colours and improved daytime viewing

• Contrast Plus and Colour Transient Improvement

For a picture with more contrast and nicer colours.

• Acoustic Horns

Which allows the sound to be projected to the front of the cabinet.

• Incredible Surround

Which increases the stereo effect by better filling the room.

• Easy Tune

Easy way of channel installation thanks to ACI (Automatic Channel Installation) by means of special teletext transmission of local cable operator.

• Viewing modes

- Conventional 4:3

- Zoom 14:9

- Zoom 16:9

- Subtitle Zoom

- Super Zoom

- Wide screen

• Additional Easy of use 16:9 features

- Subtitle shift

- Continuous zoom

- WideScreen Signalling Bit

Supporting Features

• Ease of use

Easy logic Remote Control with cursor control for TV and VCR functions .Smar t control keys and programmable keys available.

• Daily on/off clock

Easy to set wake up clock as well as programmable switch off.

• Power consumption

- Low standby power:3W at 220V.

• Easy Access

Side connectors mounted on a toblerone.

• Information Line

Which indicates the currently watched program title.

Release date : April ‘97 Predecessor(s) : 24PW6301 Date of issue : February ‘97

Subject to modification without notice
