Philips 24PFL3603/F7 leaflet

Download

Page 1

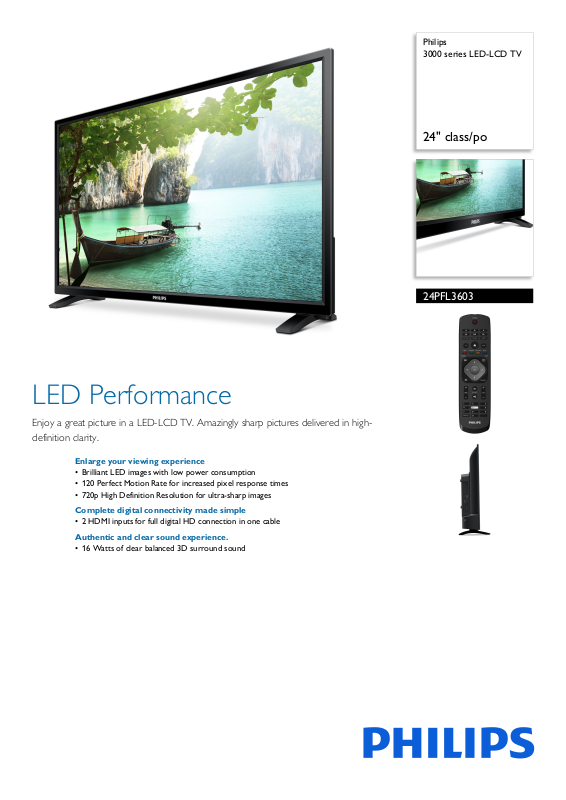

Philips 3000 series LED-LCD TV

24" class/po

24PFL3603

LED Performance

Enjoy a great picture in a LED-LCD TV. Amazingly sharp pictures delivered in highdefinition clarity.

Enlarge your viewing experience

• Brilliant LED images with low power consumption

• 120 Perfect Motion Rate for increased pixel response times

• 720p High Definition Resolution for ultra-sharp images

Complete digital connectivity made simple

• 2 HDMI inputs for full digital HD connection in one cable

Authentic and clear sound experience.

• 16 Watts of clear balanced 3D surround sound

Page 2

24PFL3603/F7

3000 series LED-LCD TV

24" class/po

Highlights

LED with low power consumption

LED lighting technology is the most advanced av

ailable. In this TV it combines an eye-catching minimalistic design with stunning image quality, as well as being the lowest power consumption in its category. Another environmental benefit is that LED lighting technology does not contain hazardous materials. With an LED backlight you can enjoy low power consumption, high brightness, incredible contrast and sharpness and vibrant colors.

120 Perfect Motion Rate

120 Perfect Motion Rate (PMR) creates extreme motion sharpness for clear and vibrant images in fast action movies. The new Philips PMR standard reduces response time of the HDTV to produce faster picture transitions and reduces motion artifacts.

2 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 2 HDMI inputs you can connect multiple HD sources, for instance an HD settop box, and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

24PFL3603/F7

3000 series LED-LCD TV

24" class/po

Specifications

Picture/Display

• Display screen type: LED WXGA Display

• Panel resolution: 1366 x 768p

• Aspect ratio: Widescreen(16:9)

• Response time (typical): 14 ms

• Contrast ratio (typical): 1200:1

• Diagonal screen size: 24 inch / 60.96 cm

• Visible screen diagonal (inch): 23.6 inch

• Viewing angle: 178º (H) / 178º (V)

• Picture enhancement: Digital Noise Reduction, 120 PMR, Pixel Plus HD, Black stretch Enhancement, Dynamic contrast, Gamma, Macro Dimming, MPEG artifact reduction

Color

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60Hz 720 x 480 60Hz 800 x 600 60Hz 1024 x 768 60 1280 x 768 60Hz 1360 x 768 60Hz 1280 x 1024 60Hz

deo formats

• Vi Res

olution Refresh rate 480i 60Hz 480p 60Hz 720p 60Hz 1080i 60Hz 1080p 24,30,60Hz

Sound

• Equalizer: 5-bands

• Output power (RMS): 2 x 2.5W

• Sound System: Mono, Stereo, SAP, Dolby Audio

Loudspeakers

• Built-in speakers: 2

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

• Ease of Installation: Autostore

• Ease of Use: Settings assistant Wizard, AutoPictu

• Screen Format Adjustments: 4:3, 16:9, Normal, Zoom, F dot)

e, AutoSound, Auto Volume Leveling

ull, Movie Expand, Wide, unscaled (dot by

• Remote Control: TV

• Multimedia: auto slideshow, USB media browser

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: JPEG Still pictures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

•Video Playback: NTSC

• Tuner bands: UHF, VHF

• TV system: ATSC, NTSC

Connectivity

• AV 1: CVBS/YPbPr, Shared audio L/R in

• HDMI 1: HDMI, Shared audio L/R in

• HDMI 2: HDMI, Shared audio L/R in

• Audio Output - Digital: Optical (TOSLINK)

• USB: USB(photo)

• Other connections: Headphone out, Shared audio R i

• EasyLink (HDMI-CEC): One touch play, Power atus, Remote control pass-through, System info

st (menu language), System audio control, System standby

Power

• Mains power: 120V, 50/60Hz

• Standby power consumption: <0.5W

• Power consumption: 40 W

• Ambient temperature: 5°C to 40°C (41°F to

4°F

)

Dimensions

• Set dimensions in inch (W x H x D):

21.7 x 13.1 x 2.8 inch

•Set dimensions with stand in inch (W

21.7 x 13.6 x 4.7 inch

• Product weight (lb): 5.20 lb

• Product weight (+stand) (lb): 5.29 lb

• Box dimensions in inch (W x H x D):

x 16.5 x 4.7 inch

• Weight incl. Packaging (lb): 7.05 lb

• VESA wall mount compatible: 100 x 100 mm

x H x D):

Accessories

• Included accessories: Table top stand, Quick start

guide, User Manual, Remote Control, Batteries for remote control, Screws

•

Issue date 2019-02-11

Version: 3.2.1

12 NC: 8670 001 52124 UPC: 6 09585 25191 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com
