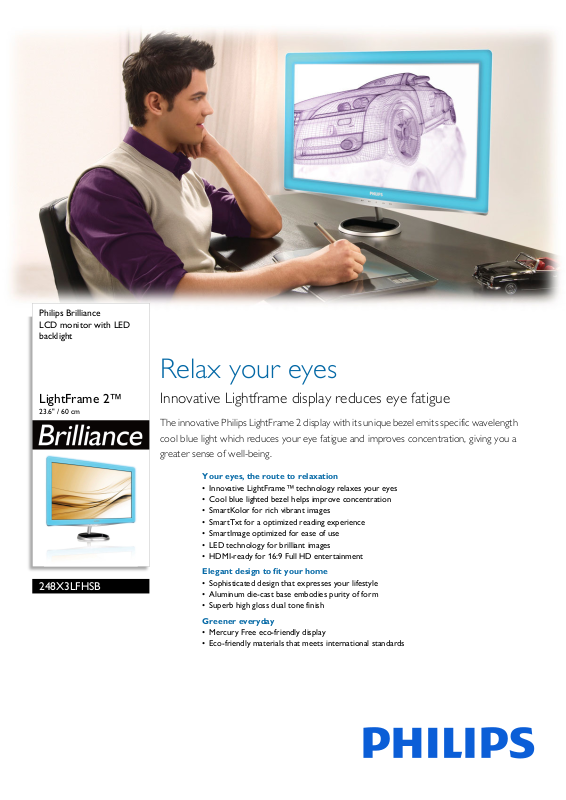

Page 1
Philips Brilliance
LCD monitor with LED
backlight
Relax your eyes
LightFrame 2™
23.6" / 60 cm
248X3LFHSB
Innovative Lightframe display reduces eye fatigue
The innovative Philips LightFrame 2 display with its unique bezel emits specific wavelength
cool blue light which reduces your eye fatigue and improves concentration, giving you a
greater sense of well-being.
Your eyes, the route to relaxation
• Innovative LightFrame™ technology relaxes your eyes
• Cool blue lighted bezel helps improve concentration
• SmartKolor for rich vibrant images
• SmartTxt for a optimized reading experience
• SmartImage optimized for ease of use
• LED technology for brilliant images
• HDMI-ready for 16:9 Full HD entertainment
Elegant design to fit your home
• Sophisticated design that expresses your lifestyle
• Aluminum die-cast base embodies purity of form
• Superb high gloss dual tone finish
Greener everyday
• Mercury Free eco-friendly display
• Eco-friendly materials that meets international standards
Page 2
248X3LFHSB/75
LCD monitor with LED backlight
LightFrame 2™ 23.6" / 60 cm
Highlights
LightFrame™
With its unique LightFrame technology Philips
has
continued on a long tradition of putting
innovation to a meaningful use. LightFrame
technology is based on the scientific tenet that
blue light passed through the eye's third
receptor refreshes your biological clock,
energizes you, and gives you a greater sense of
well-being. By using specially developed
exclusive materials, Philips LightFrame display
emits a specific wavelength blue light from it's
bezel helping you to reduce eye fatigue and
improving your concentration even after long
periods of time in front of the screen.
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartImage
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartKolor
SmartKolor is a sophisticated color extension
technology that is able to enhance visual color
range of the display. By boosting RGB gain level
of the display, this feature enables you to have
rich, vibrant images for experiencing
outstanding photos and videos.
SmartTxt
HDMI-ready
A HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers and video cameras.
Eco-friendly materials
"Philips is committed to use sustainable, ecofriendly m
body plastic parts, metal chassis parts and
packing materials use 100% recyclable
materials. In some selected models we utilize
upto 65% post consumer recycled plastics.
Strict adherence to RoHS standards ensure
substantial reduction or elimination of toxic
substances like Lead, for example. Mercury
content in monitors with CCFL backlight has
been reduced significantly, while eliminated in
monitors with LED backlight completely. Visit
Philips @ http://www.asimpleswitch.com/
global/ to learn more.
aterials across its monitor range. All
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
SmartTxt is a sophisticated algorithm that
enhances reading of text based application
such as PDF documents or ebooks which
usually requires more focus and concentration.
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
Page 3
248X3LFHSB/75
LCD monitor with LED backlight
LightFrame 2™ 23.6" / 60 cm
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23.6" / 59.9cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• SmartResponse: 2 ms (Gray to Gray)
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.272 x 0.272 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: HDMIx2, VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): HDMI audio out
Convenience
• User convenience: SmartImage, Input, Power On/
Off, LightFrame, Menu/OK
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
ench, German, Italian,
Stand
• Tilt: -5/+20 degree
Power
• On mode: 16.72 W (EnergyStar 5.0 test method)
• Standby mode: <0.3 W
• Off mode: <0.3 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50/60Hz, External
Dimensions
• Product with stand (mm): 578 x 443 x 194 mm
• Product without stand (mm): 578 x 369 x 40 mm
• Packaging in mm (WxHxD): 630 x 518 x 120 mm
Weight
• Product with stand (kg): 5.10 kg
• Product without stand (kg): 3.60 kg
• Product with packaging (kg): 6.30 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Silver,
EnergyStar 5.0, RoHS
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, SASO, SEMKO, TCO 5.2, TUV Ergo,
TUV/GS, UL/cUL, WEEE
Cabinet
• Front bezel: Blue light
• Rear cover: Black
• Foot: Black with Aluminum die cast base
•Finish: Glossy
•
Issue date 2022-04-21
Version: 1.0.1
12 NC: 8670 000 75725
EAN: 87 12581 60161 4
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
