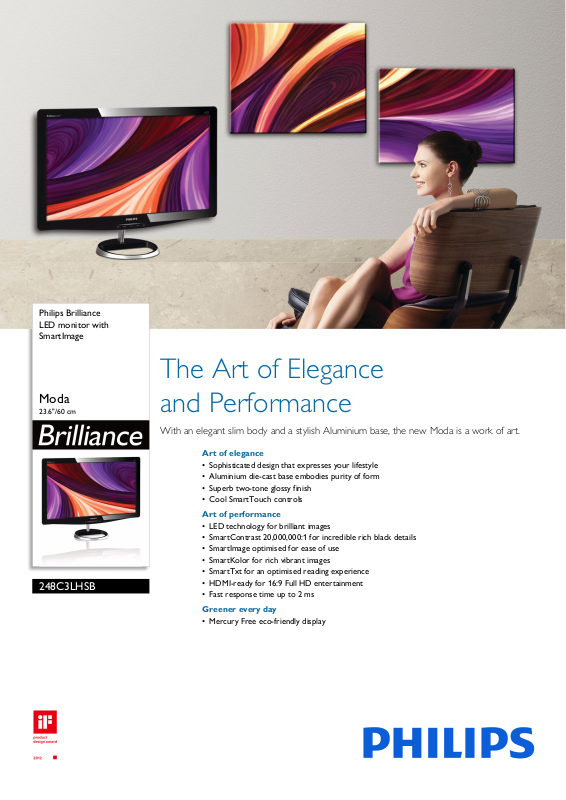

Page 1
Philips Brilliance
LED monitor with
SmartImage
The Art of Elegance
Moda
23.6"/60 cm
248C3LHSB
and Performance
With an elegant slim body and a stylish Aluminium base, the new Moda is a work of art.
Art of elegance
• Sophisticated design that expresses your lifestyle
• Aluminium die-cast base embodies purity of form
• Superb two-tone glossy finish
• Cool SmartTouch controls
Art of performance
• LED technology for brilliant images
• SmartContrast 20,000,000:1 for incredible rich black details
• SmartImage optimised for ease of use
• SmartKolor for rich vibrant images
• SmartTxt for an optimised reading experience
• HDMI-ready for 16:9 Full HD entertainment
• Fast response time up to 2 ms
Greener every day
• Mercury Free eco-friendly display
Page 2
248C3LHSB/00
LED monitor
Moda 23.6"/60 cm
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content, which allows for eco-friendly
recycling and disposal process. LED's allow for
better dimming control of the LCD backlight,
resulting in a super high contrast ratio. It also
gives superior colour reproduction thanks to
consistent brightness across the screen.
SmartContrast ratio 20,000,000:1
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlightboosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent black level and accurate rendition of
dark shades and colours. It gives a bright,
lifelike picture with high contrast and vibrant
colours.
SmartKolor
SmartTxt
SmartTxt is a sophisticated algorithm that
enhances reading of text-based applications
such as PDF documents or ebooks, which
usually require more focus and concentration.
HDMI-ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers and video cameras.
SmartImage
contrast, colour saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
at the touch of a single button!
2ms GtG response time
SmartResponse is an exclusive Philips
overdrive technology that when turned on,
automatically adjusts response times to specific
application requirements like gaming and films,
which require faster response times in order
to produce judder, time-lag and ghost image
free images
SmartTouch controls
SmartTouch controls are intelligent, touch
sensi
tive icons that replace protruding buttons.
Responding to your lightest touch,
SmartTouch controls, for example, power up
your monitor or brighten and sharpen your
display with SmartImage Lite. When activated,
SmartTouch icons glow to indicate that your
commands have been implemented.
SmartKolor is a sophisticated colour extension
technology that is able to enhance the visual
colour range of the display. By boosting the
RGB gain level of the display, you can achieve
rich, vibrant images to experience outstanding
photos and videos.
SmartImage is an exclusive leading edge Philips
technology that analyses the content displayed
on your screen and optimises your display
performance. This user-friendly interface
allows you to select various modes, like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimises the
iF Product Design
Award
Excellent product design.
The Art of Elegance and
Performance.
super-slender bodies and
their ultra-stable, sleek aluminium die-cast
bases, the new Philips Moda monitors
exude exquisite craftsmanship, which
underpins their tag line "Design and
Performance perfected to an art"
With their
Page 3
248C3LHSB/00
LED monitor
Moda 23.6"/60 cm
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23.6 inch/59.9 cm
• Effective viewing area: 521.28 (H) x 293.22 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• SmartResponse (typical): 2 ms (Grey to Grey)
• Response time (typical): 5 ms
• Brightness: 300 cd/m²
• SmartContrast:
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.272 x 0.272 mm
• Viewing angle: 170º (H)/160º (V),
• Picture enhancement: SmartImage
• Display colours: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H)/56 -75 Hz (V)
•sRGB
20,000,000:1
@ C/R > 10
Connectivity
• Audio (In/Out): HDMI audio out
• Signal Input: VGA (Analogue), HDMI x 2
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: SmartImage, Input, Power On/
Off, Turbo, Menu
• OSD Languages: English, Fr
Russian, Simplified Chinese, Spanish, Portuguese
• Other convenience: Kensington lock
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7
sR
ench, German, Italian,
Stand
• Tilt: -5/+20 degree
Power
• On mode: 16.6 W (EnergyStar 5.0 test method)
• Standby mode: <0.3 W
• Off mode: <0.3 W
•Power LED indicator: Operatio
sleep-white (flashing)
• Power supply: External, 100-240 VAC, 50/60 Hz
n - White, Standby/
Dimensions
• Product with stand (mm): 579 x 443 x 194 mm
• Product without stand (mm): 579 x 369 x 33 mm
• Packaging in mm (W x H x D): 625 x 504 x 101 mm
Weight
• Product with stand (kg): 4.5 kg
• Product without stand (kg): 3.0 kg
• Product with packaging (kg): 5.7 kg
Operating conditions
• Temperature range (operation): 0 to 40 °C
• Temperature range (storage): -20 to 60 °C
• Relative humidity: 20%–80% %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: RoHS, EPEAT Silver,
EnergyStar 5.0, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, PSB, SASO, SEMKO, TCO certified,
TUV Ergo, TUV/GS, UL/cUL, WEEE
Cabinet
• Colour: Black (front bezel)/White (rear cover)
•Finish: Glossy
•
Issue date 2019-05-16
Version: 5.2.2
12 NC: 8670 000 75647
EAN: 87 12581 60104 1
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
