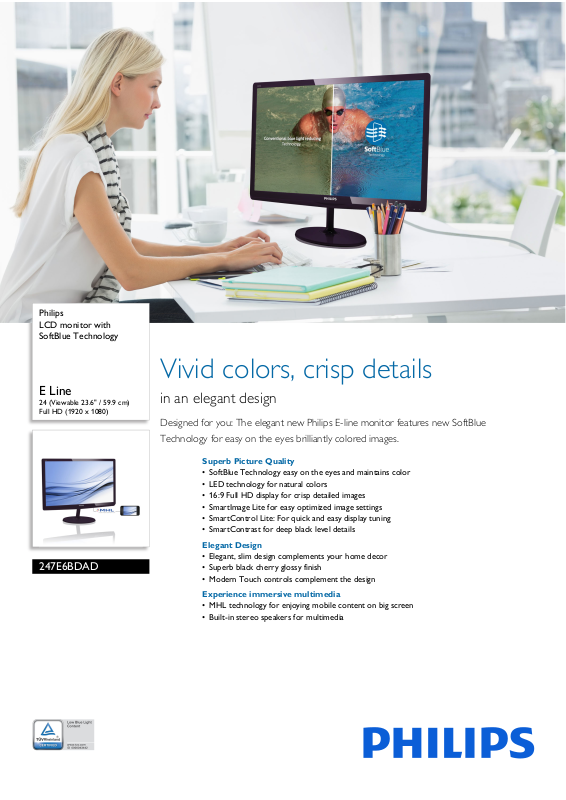

Page 1
Philips
LCD monitor with
SoftBlue Technology
Vivid colors, crisp details
E Line
24 (Viewable 23.6" / 59.9 cm)
Full HD (1920 x 1080)
247E6BDAD
in an elegant design
Designed for you: The elegant new Philips E-line monitor features new SoftBlue
Technology for easy on the eyes brilliantly colored images.
Superb Picture Quality
• SoftBlue Technology easy on the eyes and maintains color
• LED technology for natural colors
• 16:9 Full HD display for crisp detailed images
• SmartImage Lite for easy optimized image settings
• SmartControl Lite: For quick and easy display tuning
• SmartContrast for deep black level details
Elegant Design
• Elegant, slim design complements your home decor
• Superb black cherry glossy finish
• Modern Touch controls complement the design
Experience immersive multimedia
• MHL technology for enjoying mobile content on big screen
• Built-in stereo speakers for multimedia
Page 2
247E6BDAD/27
LCD monitor with SoftBlue Technology
E Line 24 (Viewable 23.6" / 59.9 cm), Full HD (1920 x 1080)
Highlights
SoftBlue Technology
SoftBlue LED technology uses a smart
technology to reduce harmful shortwave blue
light without affecting the color or image of the
display. SoftBlue LED technology is certified by
international testing organizations TUV
Rheinland to reduce harmful blue light.
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
16:9 Full HD display
displayed on your screen. Based on a scenario
you select, SmartImage Lite dynamically
enhances the contrast, color saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press on a single button.
SmartControl Lite
SmartControl Lite is the next generation 3D
i
con based GUI monitor control software. This
allows user to fine-tune most parameters of
the monitor like Color, Brightness, screen
calibration, Multi-media, ID management, etc
with the mouse.
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel.
MHL technology
Mobile High Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
high-definition displays. An optional MHL cable
allows you to simply connect your MHL
capable mobile device to this large Philips MHL
display, and watch your HD videos come to life
with full digital sound. Now not only you can
enjoy your mobile games, photos, movies, or
other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power half way.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colors expect a true to life picture.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyzes the content
Modern Touch controls
Touch controls are intelligent, touch sensitive
icons that replace protruding buttons that lets
TUV Certified Low Blue Light
Philips displays with SoftBlue LED
tech
nology are certified by TUV
Rheinland Low Blue Light testing standard
(2PfG) to reduce harmful blue light.
Page 3
247E6BDAD/27
LCD monitor with SoftBlue Technology
E Line 24 (Viewable 23.6" / 59.9 cm), Full HD (1920 x 1080)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23.6" / 59.9 cm
• Effective viewing area: 521.28 (H) x 293.22 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 (Grey to Grey) ms
• SmartResponse (typical): 2ms (Grey to Grey)
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
20,000,000:1
• Pixel pitch: 0.2715 x 0.2715 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
kHz (H) / 56 -75 Hz (V)
•sRGB
• MHL: 1080p@30Hz
•SoftBlue
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), MHL-HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 3 W x 2
• User convenience: Power On/Off, Menu, Input,
SmartImage lite
, Volume
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 17.44 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: External, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 561 x 429 x 212 mm
• Product with stand in inch: 22.1 x 16.9 x 1.3 inch
• Product without stand (mm): 561 x 347 x 43 mm
• Product without stand in inc
h: 22.1 x 13.7 x
1.7 inch
• Packaging in mm (WxHxD): 598 x 490 x 100 mm
• Packaging in inch (WxHxD): 23.5 x 19.3 x 3.9 inch
Weight
• Product with stand (kg): 3.65 kg
• Product with stand (lb): 8.03 lb
• Product without stand (kg): 3.27 kg
• Product without stand (lb): 7.19 lb
• Product with packaging (kg): 4.90 kg
• Product with packaging (lb): 10.78 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, EPEAT
Silver, RoHS, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, PSB, SASO, SEMKO, TCO
6.0, TUV/ISO9241-307, WEEE
Cabinet
• Color: Black Cherry
•Finish: Glossy
•
Issue date 2017-11-15
Version: 7.0.1
12 NC: 8670 001 23416
UPC: 6 09585 24473 3
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL certified. However, in case your MHL
device does not connect or work correctly, check with your MHL
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
* Requires optional MHL certified mobile device and MHL cable. (not
included) Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For complete list of MHL-enabled products refer to
www.mhlconsortiun.org
* Smart response time is the optimum value from either GtG or GtG
(BW) tests.
