Philips 246V5LSB/00 Datasheet

Download

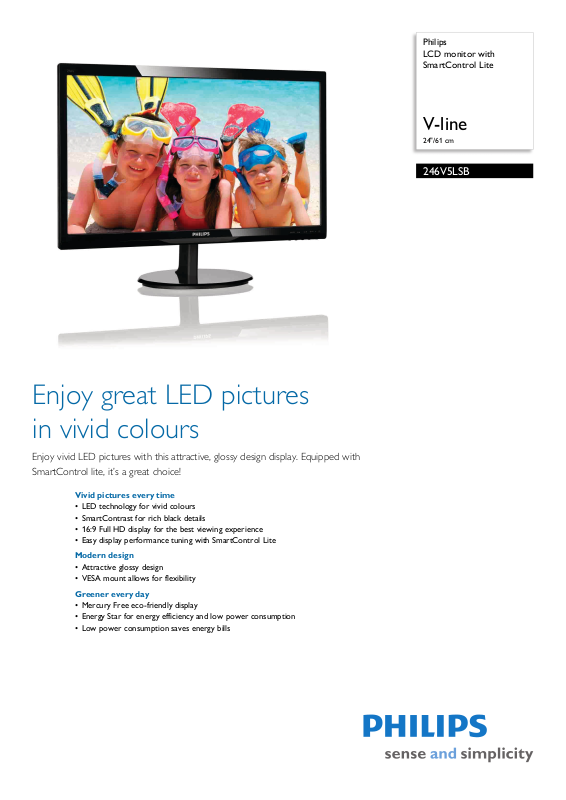

Page 1

Philips LCD monitor with SmartControl Lite

V-line

24"/61 cm

246V5LSB

Enjoy great LED pictures in vivid colours

Enjoy vivid LED pictures with this attractive, glossy design display. Equipped with SmartControl lite, it’s a great choice!

Vivid pictures every time

• LED technology for vivid colours

• SmartContrast for rich black details

• 16:9 Full HD display for the best viewing experience

• Easy display performance tuning with SmartControl Lite

Modern design

• Attractive glossy design

• VESA mount allows for flexibility

Greener every day

• Mercury Free eco-friendly display

• Energy Star for energy efficiency and low power consumption

• Low power consumption saves energy bills

Page 2

LCD monitor with SmartControl Lite

SmartContrast

10,000,000:1

V-line 24"/61 cm

Highlights

246V5LSB/00

LED technology

White LED's are solid state devices which light up

to full, consistent brightness faster saving startup time. LED's are free from mercury content, which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of the LCD backlight, resulting in a super high contrast ratio. It also gives superior colour reproduction thanks to consistent brightness across the screen.

SmartControl Lite

SmartControl Lite is the next generation 3D ic

on-based GUI monitor control software. This allows the user to fine-tune most parameters of the monitor like Colour, Brightness, screen calibration, Multimedia, ID management etc with the mouse.

SmartContrast

SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.

16:9 Full HD

The Full HD screen has the widescreen resolution of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future-proof as it supports 1080p signals from all sources, including the most recent sources such as Bluray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colours.

Mercury Free

Philips monitors with LED backlighting are free of

Mercury content, one of the most toxic natural substances, which affects humans and animals. This allows for an eco-friendly display throughout its life-cycle, from manufacturing to disposal.

Page 3

LCD monitor with SmartControl Lite

V-line 24"/61 cm

Specifications

246V5LSB/00

Picture/Display

• LCD panel type: TFT-LCD

• Backlight type: W-LED system

• Panel Size: 24 inch/61 cm

• Effective viewing area: 531.36 (H) x 298.89 (V)

• Aspect ratio: 16:9

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Response time (typical): 5 ms

• Brightness: 250 cd/m²

• SmartContrast:

• Contrast ratio (typical): 1000:1

• Pixel pitch: 0.277 x 0.277 mm

• Viewing angle: 170º (H)/160º (V),

• Display colours: 16.7 M

• Scanning Frequency: 30–83 kHz (H)/56–75 Hz (V)

•sRGB

10,000,000:1

@ C/R > 10

Connectivity

• Signal Input: VGA (Analogue), DVI-D (digital, HDCP)

• Sync Input: Separate Sync, Sync on Green

Convenience

• User convenience: Auto/Down, 4:3 Wide/Up, Brightness/Back, Menu/OK, Power On/Off

• OSD Languages: English, Fr Portuguese, Russian, Simplified Chinese, Spanish, Turkish

• Other convenience: Kensington lock, VESA mount (100 x 100 mm)

• Plug and Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 7, Windows 8

ench, German, Italian,

Stand

• Tilt: -5/20 degree

Power

• On mode: 20.12 W (EnergyStar 6.0 test method)

• Standby mode: 0.5 W (typ.)

• Off mode: 0.3 W (typ.)

• Power LED indicator: Operation - White, Standby mode - White (f

• Power supply: Built-in, 100-240 VAC, 50-60 Hz

lashing)

Dimensions

• Product with stand (mm): 565 x 435 x 238 mm

• Product without stand (mm): 565 x 354 x 63 mm

• Packaging in mm (W x H x D): 613 x 446 x 131 mm

Weight

• Product with stand (kg): 4.65 kg

• Product without stand (kg): 4.22 kg

• Product with packaging (kg): 6.05 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature range (storage): -20°C to 60°C °C

• Relative humidity: 20–80% %

• Altitude: Operation: +12,000 ft (3658 m), Non-

eration: +40,000 ft (12,192 m)

• MTBF: 30,000 hour(s)

Sustainability

• Environmental and energy: EnergyStar 6.0, EPEAT Silver, RoHS, Lead-free, Mercury Free

• Recyclable packaging material: 100 %

Compliance and standards

• Regulatory Approvals: BSMI, CE Mark, uETLus, FCC Class B, GOST, PSB, SASO, SEMKO, TCO certified, TUV/ISO9241-307, WEEE

Cabinet

• Colour: Black

• Finish: Glossy (front bezel)/Textured (rear cover)

•

Issue date 2013-04-29

Version: 1.0.1

12 NC: 8670 000 98489 EAN: 87 12581 67046 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
