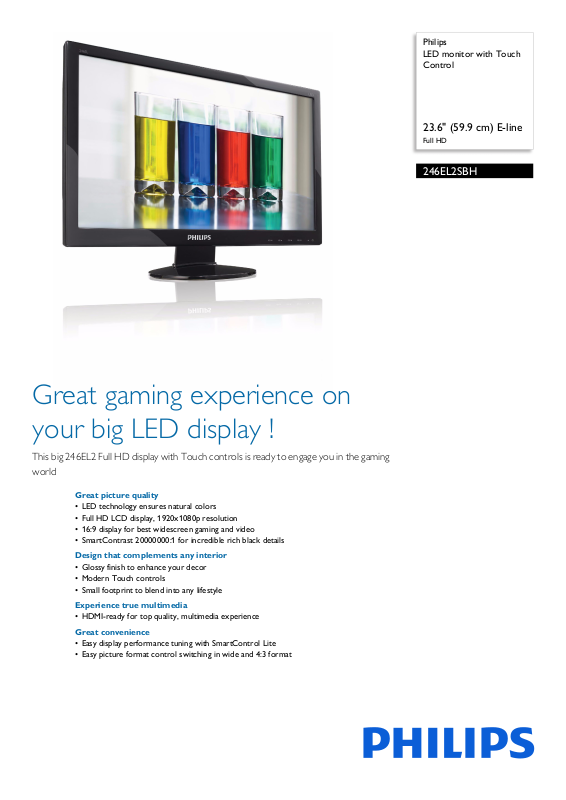

Page 1
Philips
LED monitor with Touch
Control
23.6" (59.9 cm) E-line
Full HD
246EL2SBH
Great gaming experience on
your big LED display !
This big 246EL2 Full HD display with Touch controls is ready to engage you in the gaming
world
Great picture quality
• LED technology ensures natural colors
• Full HD LCD display, 1920x1080p resolution
• 16:9 display for best widescreen gaming and video
• SmartContrast 20000000:1 for incredible rich black details
Design that complements any interior
• Glossy finish to enhance your decor
• Modern Touch controls
• Small footprint to blend into any lifestyle
Experience true multimedia
• HDMI-ready for top quality, multimedia experience
Great convenience
• Easy display performance tuning with SmartControl Lite
• Easy picture format control switching in wide and 4:3 format
Page 2
246EL2SBH/75
LED monitor with Touch Control
®
23.6" (59.9 cm) E-line Full HD
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
Full HD 1920x1080p LCD display
Enjoy crisp and crystal clear picture quality to
gi
ve your audience a truly memorable visual
experience. Your viewers will be treated to
unsurpassed video, with an amazing color
gamut and the sharpest pictures around.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
SmartContrast ratio 20000000:1
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent blacklevel and accurate rendition of
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors.
16:9 widescreen aspect ratio
An aspect ratio is an expression of a video
i
mage's width compared to its height. The 16:9
widescreen aspect ratio is standard for
universal to high-definition television and
European digital television. A native 16:9
aspect ratio means outstanding game and video
display without bars at top and bottom of the
picture and without the quality loss than comes
from scaling, altering an image to fit on a
different screen size.
Touch controls
Touch controls are intelligent, touch sensitive
icons that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel.
SmartControl Lite
SmartControl Lite is the next generation 3D
ic
on based GUI monitor control software. This
allows user to fine-tune most parameters of
the monitor like Color, Brightness, screen
calibration, Multi-media, ID management, etc
with the mouse.
Easy picture format control
Philips easy picture format control on OSD is
to switch from the 4:3 aspect ratio to the
widescreen mode and back again to match the
display's aspect ratio with your content for
working with wide documents without
scrolling or viewing widescreen media in the
widescreen mode and distortion-free, native
mode display of 4:3 ratio content.
4:3 wide
Page 3
246EL2SBH/75
LED monitor with Touch Control
23.6" (59.9 cm) E-line Full HD
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23.6 inch/ 59.9 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• Brightness: 300 cd/m²
• SmartContrast:
• Pixel pitch: 0.272 x 0.272 mm
• Viewing angle: 178° (H) / 170° (V), @ C/R > 5
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), HDMI
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: SmartImage lite, Input, 4:3 /
Wide, Menu, Power On/Off
• OSD Languages: English, F
Italian, Russian, Simplified Chinese, Portuguese,
Turkish
• Other convenience: VESA mount (100x100mm),
nsington lock
Ke
• Plug & Play Compatibility: DDC/CI, Windows 7 /
ista, Mac OS X, sRGB
V
rench, German, Spanish,
Stand
• Tilt: -5/ +15 degree
Power
• On mode: 18.9 W (EnergyStar 5.0 test method)
• Standby mode: < 0.5 W
• Off mode: < 0.5 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 565 x 408 x 199 mm
• Product without stand (mm): 565 x 349 x 57 mm
• Packaging in mm (WxHxD): 619 x 417 x 128 mm
Weight
• Product with stand (kg): 4.24 kg
• Product without stand (kg): 4.06 kg
• Product with packaging (kg): 5.35 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: RoHS, EPEAT Silver,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: CE Mark, FCC, Class B,
SEMKO, UL/cUL
Cabinet
• Color: Black/Black
•Finish: Glossy
•
Issue date 2017-07-28
Version: 2.0.1
12 NC: 8670 000 66861
EAN: 87 12581 55960 1
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
