Philips 246E7QDSW/00 leaflet

Download

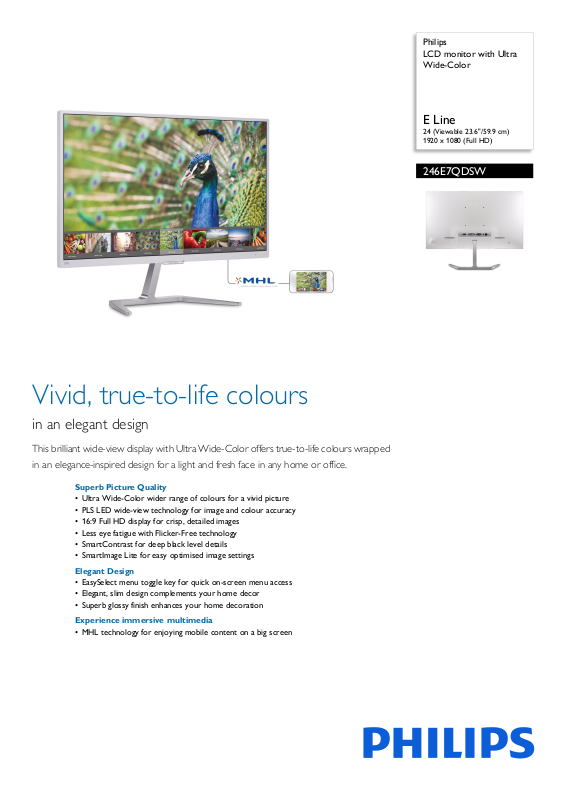

Page 1

Philips LCD monitor with Ultra Wide-Color

E Line

24 (Viewable 23.6"/59.9 cm) 1920 x 1080 (Full HD)

246E7QDSW

Vivid, true-to-life colours

in an elegant design

This brilliant wide-view display with Ultra Wide-Color offers true-to-life colours wrapped in an elegance-inspired design for a light and fresh face in any home or office.

Superb Picture Quality

• Ultra Wide-Color wider range of colours for a vivid picture

• PLS LED wide-view technology for image and colour accuracy

• 16:9 Full HD display for crisp, detailed images

• Less eye fatigue with Flicker-Free technology

• SmartContrast for deep black level details

• SmartImage Lite for easy optimised image settings

Elegant Design

• EasySelect menu toggle key for quick on-screen menu access

• Elegant, slim design complements your home decor

• Superb glossy finish enhances your home decoration

Experience immersive multimedia

• MHL technology for enjoying mobile content on a big screen

Page 2

246E7QDSW/00

LCD monitor with Ultra Wide-Color

E Line 24 (Viewable 23.6"/59.9 cm), 1920 x 1080 (Full HD)

Highlights

Ultra Wide-Color Technology

Ultra Wide-Color Technology delivers a wider spectrum of colours for a more brilliant picture. The Ultra Wide-Color wider "colour gamut" produces more natural-looking greens, vivid reds and deeper blues. Bring media entertainment, images and even productivity more alive with vivid colours from Ultra WideColor Technology.

PLS technology

PLS displays use an advanced technology that gives you extra-wide viewing angles of 178/ 178 degrees, making it possible to view the disp

lay from almost any angle - even in 90degree Pivot mode! Unlike standard TN panels, PLS displays give you remarkably crisp images with vivid colours, making them ideal not only for Photos, movies and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

16:9 Full HD display

Picture quality matters. Regular displays deliver quality, but you expect more. This display features enhanced Full HD 1920 x 1080 resolution. With Full HD for crisp detail paired with high brightness, incredible contrast and realistic colours, expect a true-to-life picture.

Flicker-Free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

SmartContrast

SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned

for just-right display of everyday office applications and lower power consumption.

SmartImage Lite

SmartImage Lite is an exclusive, leading edge Phil

ips technology that analyses the content displayed on your screen. Based on a scenario you select, SmartImage Lite dynamically enhances the contrast, colour saturation and sharpness of images and videos for ultimate display performance - all in real time with the press of a single button.

EasySelect Menu Toggle Key

The discreetly placed EasySelect Menu Toggle Key allows you to make quick and easy adjustments to monitor settings in the OnScreen Display menu.

MHL technology

Mobile High-Definition Link (MHL) is a mobile audio/video interface for directly connecting mobile phones and other portable devices to high-definition displays. An optional MHL cable allows you to simply connect your MHLcapable mobile device to this large Philips MHL display and watch your HD videos come to life with full digital sound. Now not only can you enjoy your mobile games, photos, movies or other apps on its big screen, you can simultaneously charge your mobile device so you never run out of power halfway.

Page 3

246E7QDSW/00

LCD monitor with Ultra Wide-Color

E Line 24 (Viewable 23.6"/59.9 cm), 1920 x 1080 (Full HD)

Specifications

Picture/Display

• LCD panel type: PLS LCD

• Backlight type: W-LED system

•Panel Size: 23.6 inch/59.9 cm

• Effective viewing area: 521.28 (H) x 293.22 (V)

• Aspect ratio: 16:9

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Response time (typical): 5 ms (Grey to Grey)*

• Brightness: 250 cd/m²

• Contrast ratio (typical): 1000:1

• SmartContrast:

20,000,000:1

• Pixel pitch: 0.272 x 0.272 mm

• Viewing angle: 178º (H)/178º (V),

@ C/R > 10

• Flicker-free

• Picture enhancement: SmartImage Lite

• Colour gamut (typical): NTSC 101.4% (CIE1976)*

• Display colours: 16.7 M

• Scanning Frequency: 30–83 kHz (H)/56–76 Hz (V)

• MHL: 1080P @ 30 Hz

•sRGB

Connectivity

• Signal Input: VGA (Analogue), DVI-D (digital, HDCP), MHL-HDMI (digital, HDCP)

• Sync Input: Separate Sync, Sync on Green

• Audio (In/Out): HDMI audio out

Convenience

• User convenience: Power On/Off, Menu, Volume (HDMI Audio out), Input, SmartImage Lite

• OSD Languages: Brazil Portuguese, Czech, Dutch,

glish, Finnish, French, German, Greek,

En Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian

• Other convenience: Kensington lock, VESA mount (100 x 100 mm)

• Plug and Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 8.1 / 8 / 7

Stand

• Tilt: -5/20 degree

Power

• On mode: 14.47 W (typ.) (EnergyStar 7.0 test

method)

• Standby mode: 0.5 W (typ.)

• Off mode: 0.3 W (typ.)

• Power LED indicator: Operation - White, Standby mode - White (f

lashing)

• Power supply: External, 100–240 VAC, 50–60 Hz

Dimensions

• Product with stand (mm): 539 x 419 x 179 mm

• Product without stand (mm): 539 x 324 x 45 mm

• Packaging in mm (W x H x D): 581 x 490 x 102 mm

Weight

• Product with stand (kg): 3.18 kg

• Product without stand (kg): 2.61 kg

• Product with packaging (kg): 5.13 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• Altitude: Operation: +12,000 ft (3658 m), Non-

eration: +40,000 ft (12,192 m)

• MTBF: 50,000 (excluding backlight) hour(s)

Sustainability

• Environmental and energy: EnergyStar 7.0, RoHS, Lead-free, Mercury Free

• Recyclable packaging material: 100 %

Compliance and standards

• Regulatory Approvals: CE Mark, FCC Class B, CUEAC, TCO Certified, TUV/ISO9241-307, VCCI, Ctick, WEEE, CECP

Cabinet

• Colour: White

•Finish: Glossy

What's in the box?

• Monitor with stand

•Cables: VGA, Power

•User Documentation

•

Issue date 2020-04-26

Version: 11.0.1

12 NC: 8670 001 24805 EAN: 87 12581 73171 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* This Philips display is MHL-certified. However, if your MHL device

does not connect or work correctly, check with your MHL device FAQ or vendor directly for instructions. The policy of your device manufacturer may require you to purchase its brand-specific MHL cable or adapter in order for it to work

* Requires optional MHL-certified mobile device and MHL cable (not

included). Please check with your MHL device vendor for compatibility.

* Standby/Off energy saving of ErP is not applicable for the MHL

charging functionality

* For a complete list of MHL-enabled products, refer to

www.mhlconsortium.org * HDMI cables vary depending on region and models. * Response time value equal to SmartResponse * NTSC 85% (CIE1931), sRGB: 122.7%
