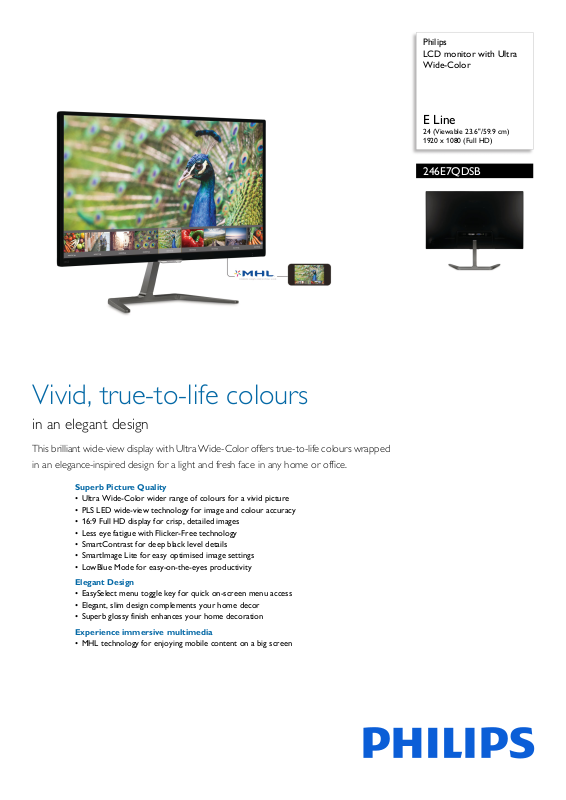

Page 1
Philips
LCD monitor with Ultra
Wide-Color
E Line
24 (Viewable 23.6"/59.9 cm)
1920 x 1080 (Full HD)
246E7QDSB
Vivid, true-to-life colours
in an elegant design
This brilliant wide-view display with Ultra Wide-Color offers true-to-life colours wrapped
in an elegance-inspired design for a light and fresh face in any home or office.
Superb Picture Quality
• Ultra Wide-Color wider range of colours for a vivid picture
• PLS LED wide-view technology for image and colour accuracy
• 16:9 Full HD display for crisp, detailed images
• Less eye fatigue with Flicker-Free technology
• SmartContrast for deep black level details
• SmartImage Lite for easy optimised image settings
• LowBlue Mode for easy-on-the-eyes productivity
Elegant Design
• EasySelect menu toggle key for quick on-screen menu access
• Elegant, slim design complements your home decor
• Superb glossy finish enhances your home decoration
Experience immersive multimedia
• MHL technology for enjoying mobile content on a big screen
Page 2
246E7QDSB/56
LCD monitor with Ultra Wide-Color
E Line 24 (Viewable 23.6"/59.9 cm), 1920 x 1080 (Full HD)
Highlights
Ultra Wide-Color Technology
Ultra Wide-Color Technology delivers a wider
spectrum of colours for a more brilliant
picture. The Ultra Wide-Color wider "colour
gamut" produces more natural-looking greens,
vivid reds and deeper blues. Bring media
entertainment, images and even productivity
more alive with vivid colours from Ultra WideColor Technology.
PLS technology
flicker on their screen which causes eye
fatigue. Philips Flicker-Free technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
SmartContrast
SmartContrast is a Philips technology that
analyses the contents you are displaying,
automatically adjusting colours and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
setting uses a smart software technology to
reduce harmful shortwave blue light.
EasySelect Menu Toggle Key
The discreetly placed EasySelect Menu Toggle
Key allows you to make quick and easy
adjustments to monitor settings in the OnScreen Display menu.
MHL technology
PLS display uses advanced technology that
gives you extra-wide viewing angles of 178/178
degrees, making it possible to view the display
from almost any angle. Unlike standard TN
panels, the PLS display gives you remarkably
crisp images with vivid colours, making it ideal
not only for photos, movies and web browsing,
but also for professional applications that
demand colour accuracy and consistent
brightness at all times.
Flicker-Free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyses the content
displayed on your screen. Based on a scenario
you select, SmartImage Lite dynamically
enhances the contrast, colour saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press of a single button.
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave-length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, the Philips LowBlue Mode
Mobile High Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
high-definition displays. An optional MHL cable
allows you to simply connect your MHLcapable mobile device to this large Philips MHL
display, and watch your HD videos come to life
with full digital sound. Now not only you can
enjoy your mobile games, photos, movies or
other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power half way.
Page 3
246E7QDSB/56
LCD monitor with Ultra Wide-Color
E Line 24 (Viewable 23.6"/59.9 cm), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: PLS LCD
• Backlight type: W-LED system
•Panel Size: 23.6 inch/59.9 cm
• Effective viewing area: 521.28 (H) x 293.22 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms (Grey to Grey)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
20,000,000:1
• Pixel pitch: 0.272 x 0.272 mm
• Viewing angle: 178º (H)/178º (V),
@ C/R > 10
• Flicker-free
• Picture enhancement: SmartImage Lite
• Colour gamut (typical): NTSC 101.4% (CIE1976)*
• Display colours: 16.7 M
• Scanning Frequency: 30–83 kHz (H)/56–76 Hz (V)
• MHL: 1080P @ 30 Hz
•LowBlue Mode
•sRGB
Connectivity
• Signal Input: VGA (Analogue), DVI-D (digital,
HDCP), MHL-HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): HDMI audio out
Convenience
• User convenience: Power On/Off, Menu, Volume
(HDMI Audio out), Input, SmartImage Lite
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 14.47 W (typ.) (EnergyStar 7.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode - White (f
lashing)
• Power supply: External, 100–240 VAC, 50–60 Hz
Dimensions
• Product with stand (mm): 539 x 419 x 179 mm
• Product without stand (mm): 539 x 324 x 45 mm
• Packaging in mm (W x H x D): 581 x 490 x 102 mm
Weight
• Product with stand (kg): 3.18 kg
• Product without stand (kg): 2.61 kg
• Product with packaging (kg): 5.13 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 50,000 (excluding backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, RoHS,
Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B, CUEAC, TCO Certified, TUV/ISO9241-307, VCCI, Ctick, WEEE, CECP
Cabinet
• Colour: Black
•Finish: Glossy
•
Issue date 2021-03-14
Version: 3.0.1
12 NC: 8670 001 47108
EAN: 87 12581 74748 0
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL-certified. However, if your MHL device
does not connect or work correctly, check with your MHL device
FAQ or vendor directly for instructions. The policy of your device
manufacturer may require you to purchase its brand-specific MHL
cable or adapter in order for it to work
* Requires optional MHL-certified mobile device and MHL cable (not
included). Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For a complete list of MHL-enabled products, refer to
www.mhlconsortium.org
* HDMI cables vary depending on region and models.
* Response time value equal to SmartResponse
* NTSC 85% (CIE1931), sRGB: 122.7%
