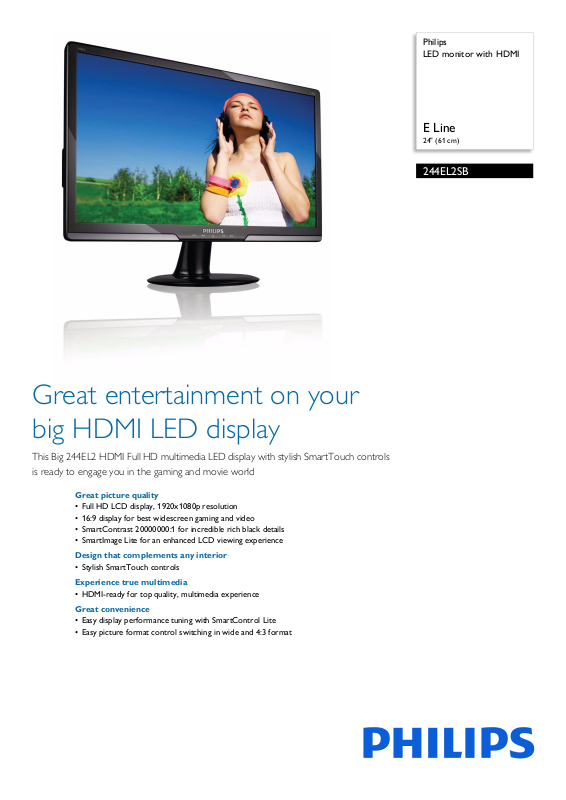

Page 1
Philips
LED monitor with HDMI
E Line
24" (61 cm)
244EL2SB
Great entertainment on your
big HDMI LED display
This Big 244EL2 HDMI Full HD multimedia LED display with stylish SmartTouch controls
is ready to engage you in the gaming and movie world
Great picture quality
• Full HD LCD display, 1920x1080p resolution
• 16:9 display for best widescreen gaming and video
• SmartContrast 20000000:1 for incredible rich black details
• SmartImage Lite for an enhanced LCD viewing experience
Design that complements any interior
• Stylish SmartTouch controls
Experience true multimedia
• HDMI-ready for top quality, multimedia experience
Great convenience
• Easy display performance tuning with SmartControl Lite
• Easy picture format control switching in wide and 4:3 format
Page 2
244EL2SB/75
LED monitor with HDMI
®
4:3 wide
E Line 24" (61 cm)
Highlights
Full HD 1920x1080p LCD display
Enjoy crisp and crystal clear picture quality to
gi
ve your audience a truly memorable visual
experience. Your viewers will be treated to
unsurpassed video, with an amazing color
gamut and the sharpest pictures around.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
16:9 widescreen aspect ratio
An aspect ratio is an expression of a video
im
age's width compared to its height. The 16:9
widescreen aspect ratio is standard for
universal to high-definition television and
European digital television. A native 16:9
aspect ratio means outstanding game and video
display without bars at top and bottom of the
picture and without the quality loss than comes
from scaling, altering an image to fit on a
different screen size.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyzes the content
displayed on your screen. Based on a scenario
you select, SmartImage Lite dynamically
enhances the contrast, color saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press on a single button.
SmartContrast ratio 20000000:1
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent blacklevel and accurate rendition of
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors.
SmartControl Lite
SmartControl Lite is the next generation 3D
i
con based GUI monitor control software. This
allows user to fine-tune most parameters of
the monitor like Color, Brightness, screen
calibration, Multi-media, ID management, etc
with the mouse.
SmartTouch controls
SmartTouch controls are intelligent, touch
sensitive icons that replace protruding buttons.
Responding to your lightest touch,
SmartTouch controls, for example, power up
your monitor or brighten and sharpen your
display with SmartImage Lite. When activated,
SmartTouch icons glow to indicate that your
commands have been implemented.
Easy picture format control
Philips easy picture format control on OSD is
to switch from the 4:3 aspect ratio to the
widescreen mode and back again to match the
display's aspect ratio with your content for
working with wide documents without
scrolling or viewing widescreen media in the
widescreen mode and distortion-free, native
mode display of 4:3 ratio content.
Page 3
244EL2SB/75
LED monitor with HDMI
E Line 24" (61 cm)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 24 inch / 61 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Pixel pitch: 0.276 x 0.276
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), HDMI
• Sync Input: Separate Sync, Sync on Green
• Audio output: HDMI audio out (3.5 mm j
ack)x1
Convenience
•User convenience: SmartImage lite, SmartControl
lite, Volume, Menu, Input, Power On/Off
• OSD Languages: English, F
Italian, Russian, Simplified Chinese, Portuguese,
Turkish
• Other convenience: VESA mount (100x100mm),
nsington lock
Ke
• Plug & Play Compatibility: DDC/CI, Windows 7 /
ista, Mac OS X, sRGB
V
rench, German, Spanish,
Stand
• Tilt: -5/+20 degree
Power
• On mode: 22.8 W (EnergyStar 5.0 test method)
• Standby mode: 0.5 W
• Off mode: 0.5 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 570 x 437 x 225 mm
• Product without stand (mm): 570 x 353 x 62 mm
• Packaging in mm (WxHxD): 626 x 500 x 171 mm
Weight
• Product with stand (kg): 4.9 kg
• Product without stand (kg): 4.5 kg
• Product with packaging (kg): 6.7 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: RoHS, EPEAT Silver,
EnergyStar 5.0
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class
B, GOST, UL/cUL, TCO 5.1
Cabinet
• Color: Black / Black
•Finish: Glossy
•
Issue date 2017-07-28
Version: 3.0.1
12 NC: 8670 000 72562
EAN: 87 12581 58419 1
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
