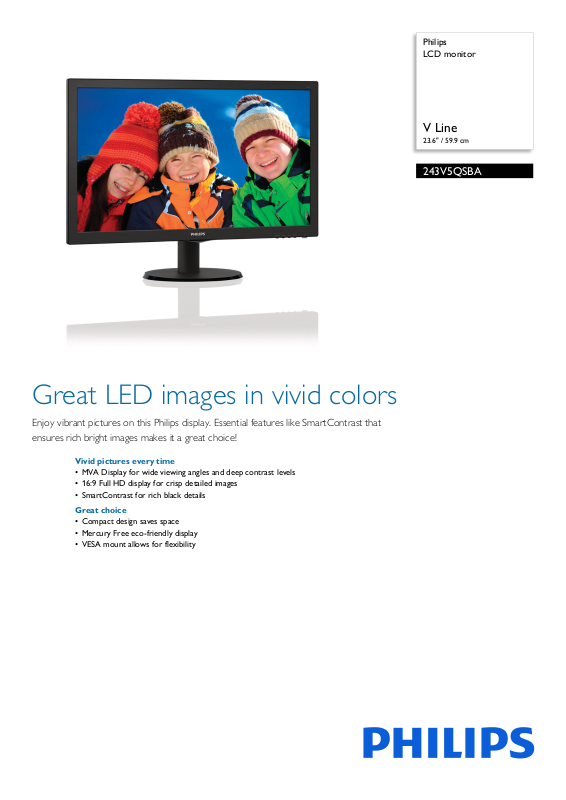

Page 1
Philips
LCD monitor
V Line
23.6" / 59.9 cm
243V5QSBA
Great LED images in vivid colors
Enjoy vibrant pictures on this Philips display. Essential features like SmartContrast that
ensures rich bright images makes it a great choice!
Vivid pictures every time
• MVA Display for wide viewing angles and deep contrast levels
• 16:9 Full HD display for crisp detailed images
• SmartContrast for rich black details
Great choice
• Compact design saves space
• Mercury Free eco-friendly display
• VESA mount allows for flexibility
Page 2
243V5QSBA/01
LCD monitor
V Line 23.6" / 59.9 cm
Specifications
Picture/Display
• LCD panel type: MVA
• Backlight type: W-LED system
• Panel Size: 23.6 inch / 59.9 cm
• Effective viewing area: 521.28 (H) x 293.22 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 25 (Gray to Gray) ms
• SmartResponse (typical): 8 (Gray t
• Brightness: 250 cd/m²
• SmartContrast:
• Contrast ratio (typical): 3000:1
• Pixel pitch: 0.272 x 0.272 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 20
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
10,000,000:1
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: Auto/Down, 4:3 Wide/Up,
Brightness/Back, Menu/OK, Power On/Off
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Spanish, Simplified Chinese,
Swedish, Turkish, Traditional Chinese, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 21.07 W (typ.) (EnergyStar 6.0 test
method)
• Energy Label Class: F
o Gray) ms
kHz (H) / 56 -75 Hz (V)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.5 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 551 x 420 x 220 mm
• Product without stand (mm): 551 x 344 x 52 mm
• Packaging in mm (WxHxD): 600 x 415 x 118 mm
Weight
• Product with stand (kg): 3.66 kg
• Product without stand (kg): 3.22 kg
• Product with packaging (kg): 5.00 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, RoHS,
Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, PSB, SASO, SEMKO, TCO
Certified, TUV/ISO9241-307, WEEE
Cabinet
• Color: Black
• Finish: Hairline (front bezel) / Texture (rear cover)
What's in the box?
• Monitor with stand
•Cables: VGA, Power
•User Documentation
•
Highlights
MVA Display Technology
Philips MVA LED display uses an advanced multidomain vertical alignment technology which gives
you super-high static contrast ratios for extra vivid
and bright images. While standard office applications
are handled with ease, it is especially suitable for
photos, web-browsing, movies, gaming, and
demanding graphical applications. It's optimized pixel
management technology gives you 178/178 degree
extra wide viewing angle, resulting in crisp images.
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display features
enhanced Full HD 1920 x 1080 resolution. With Full
HD for crisp detail paired with high brightness,
incredible contrast and realistic colors expect a true
to life picture.
SmartContrast
Issue date 2021-07-21
Version: 5.0.1
12 NC: 8670 001 24818
EAN: 87 12581 73174 8
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
SmartContrast is a Philips technology that analyzes
the contents you are displaying, automatically
adjusting colors and controlling backlight intensity to
dynamically enhance contrast for the best digital
images and videos or when playing games where
dark hues are displayed. When Economy mode is
selected, contrast is adjusted and backlighting finetuned for just-right display of everyday office
applications and lower power consumption.
Mercury Free
Philips monitors with LED backlighting are free of
Mercury content, one of the most toxic natural
substances, which affects humans and animals. This
reduces the environmental impact of the display
throughout its life-cycle, from manufacturing to
disposal.
* Smart response time is the optimum value from either GtG or GtG
(BW) tests.
